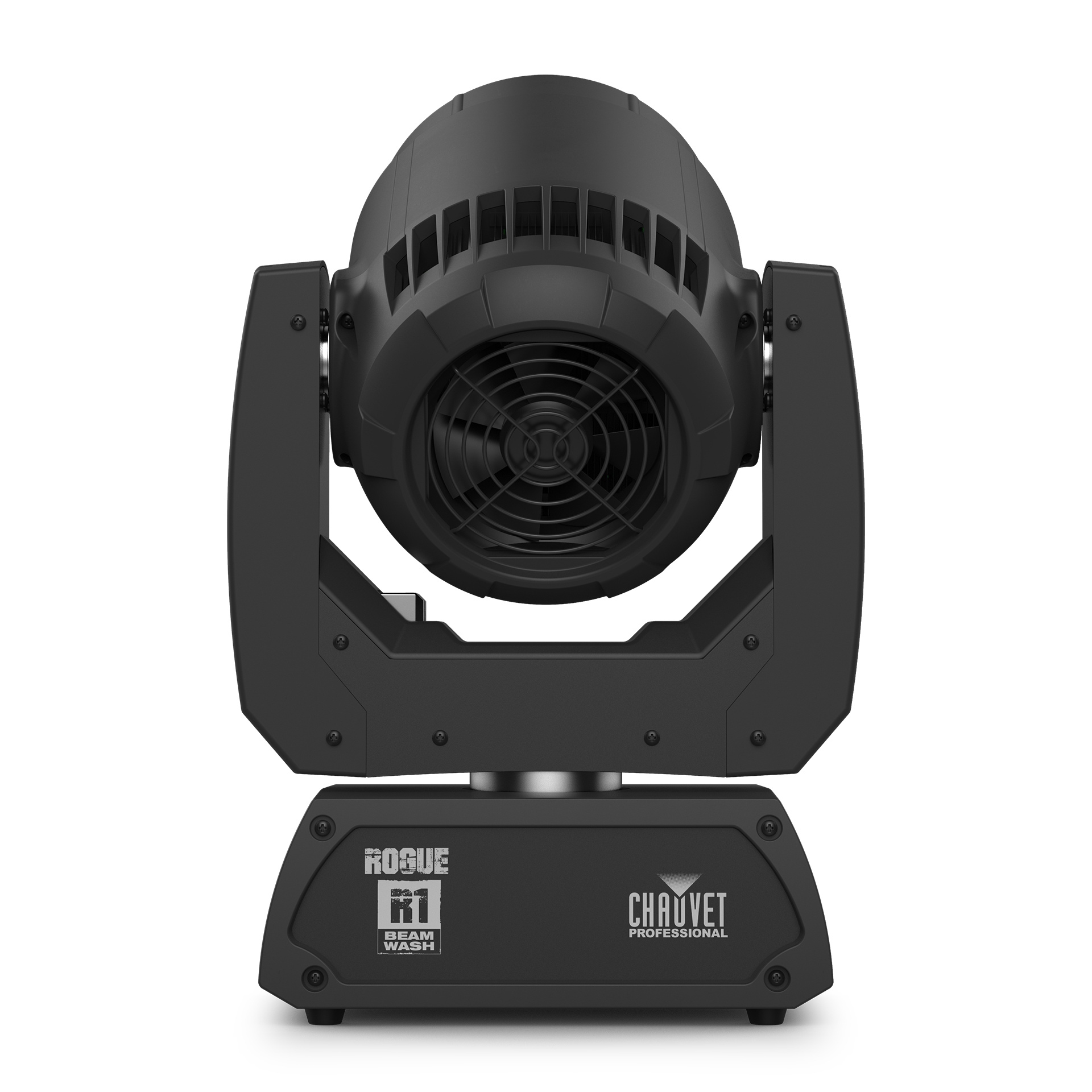

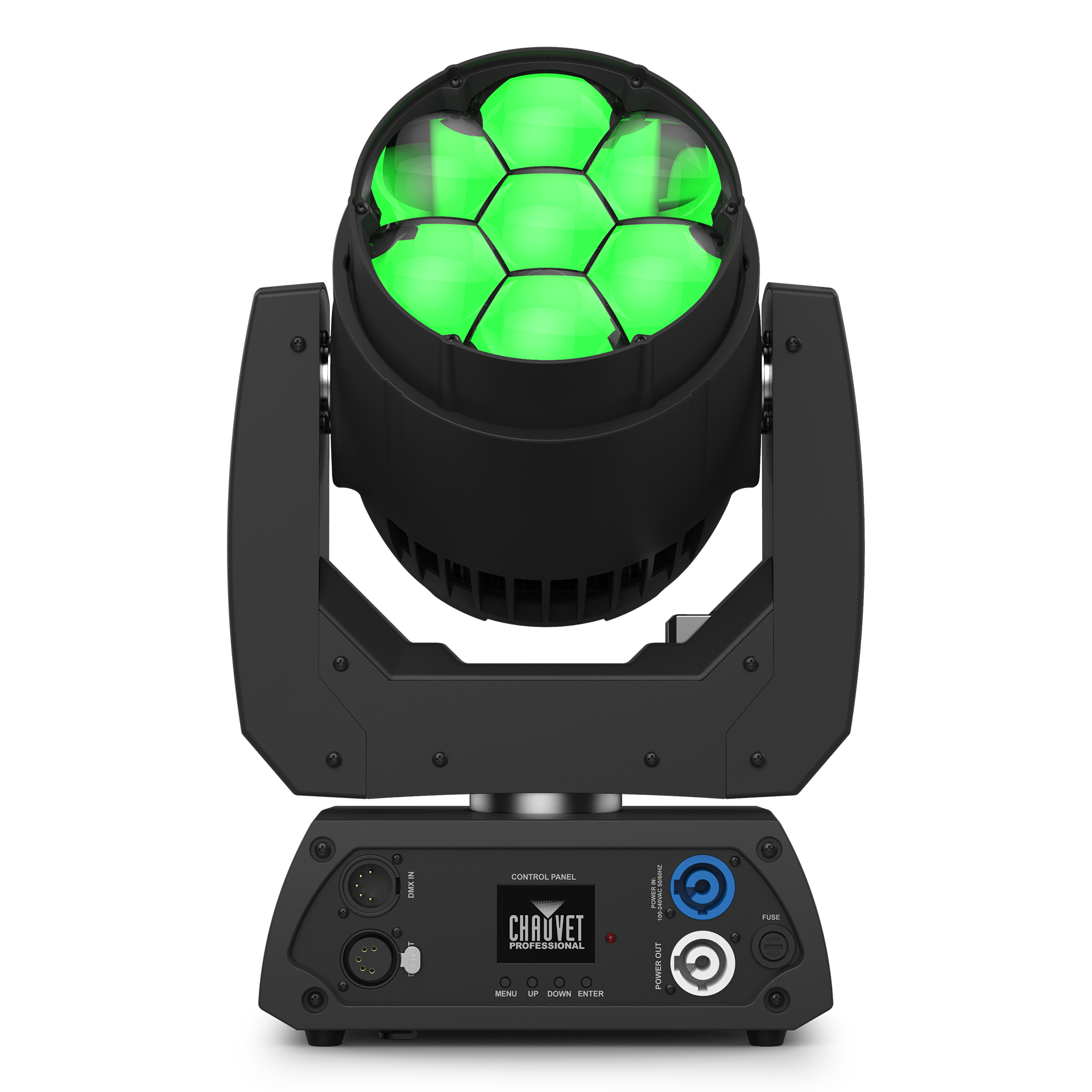

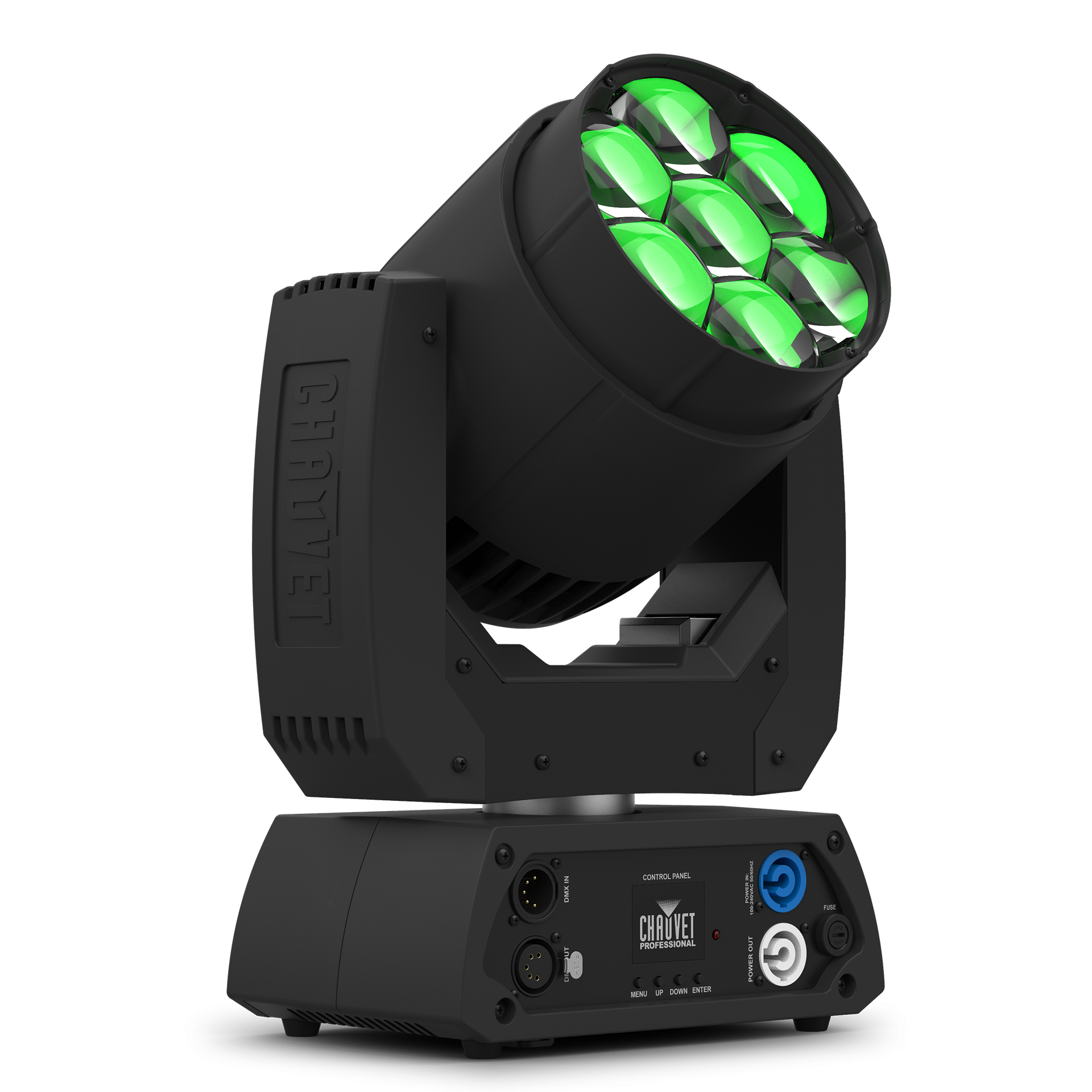

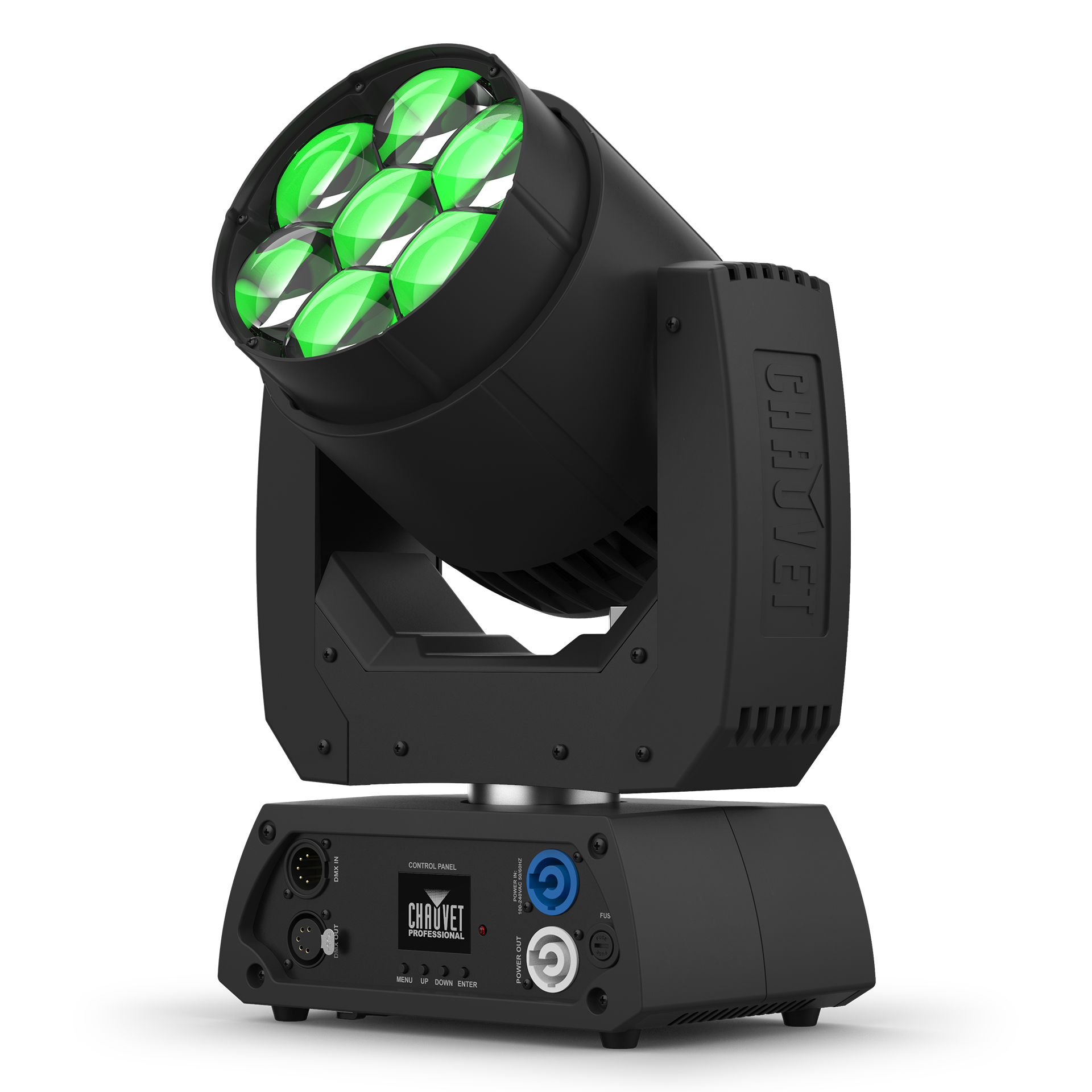

Rogue R1 BeamWash

Optical

• Light Source

  7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy

• Color Temperature (range)

  2800 to 10000 K

• Beam Angle

  4° to 37.8°

• Field Angle

  5° to 58.2°

• Cutoff Angle

  5.5° to 67.7°

• Zoom Range

  3.4° to 67.7°

• Lumens – Source

  5,400

• Lumens – Output

  3,967 Wide

• • Illuminance
    • Illuminance (5°)

      13,939 lux @ 5 m

    • Illuminance (55°)

      383 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt

  540°/230°

• Pan and Tilt Ranges

  180°, 360°, 540° pan/90°, 180°, 230° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Curves

  4

• Built-in Automated Programs

  Yes

• Customizable Programs

  No

• Recall Custom Programs

  No

Construction/Physical

• Dimensions

  8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)

• Weight

  11.8 lb (5.35 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

Connections

• Power Connection

  Edison (Local) plug to Neutrik® powerCON®

• Power Input

  Neutrik® powerCON®

• Power Output

  Neutrik® powerCON®

• Data Connectors

  5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX

• DMX Channels

  14, 15, 19 or 21

• Modes/Personalities

  4 personalities (14, 15, 19, 21)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V

• Power and Current

  285 W, 2.38 A @ 120 V, 60 Hz

• Power and Current

  284 W, 1.37 A @ 208 V, 60 Hz

• Power and Current

  284 W, 1.23 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location
