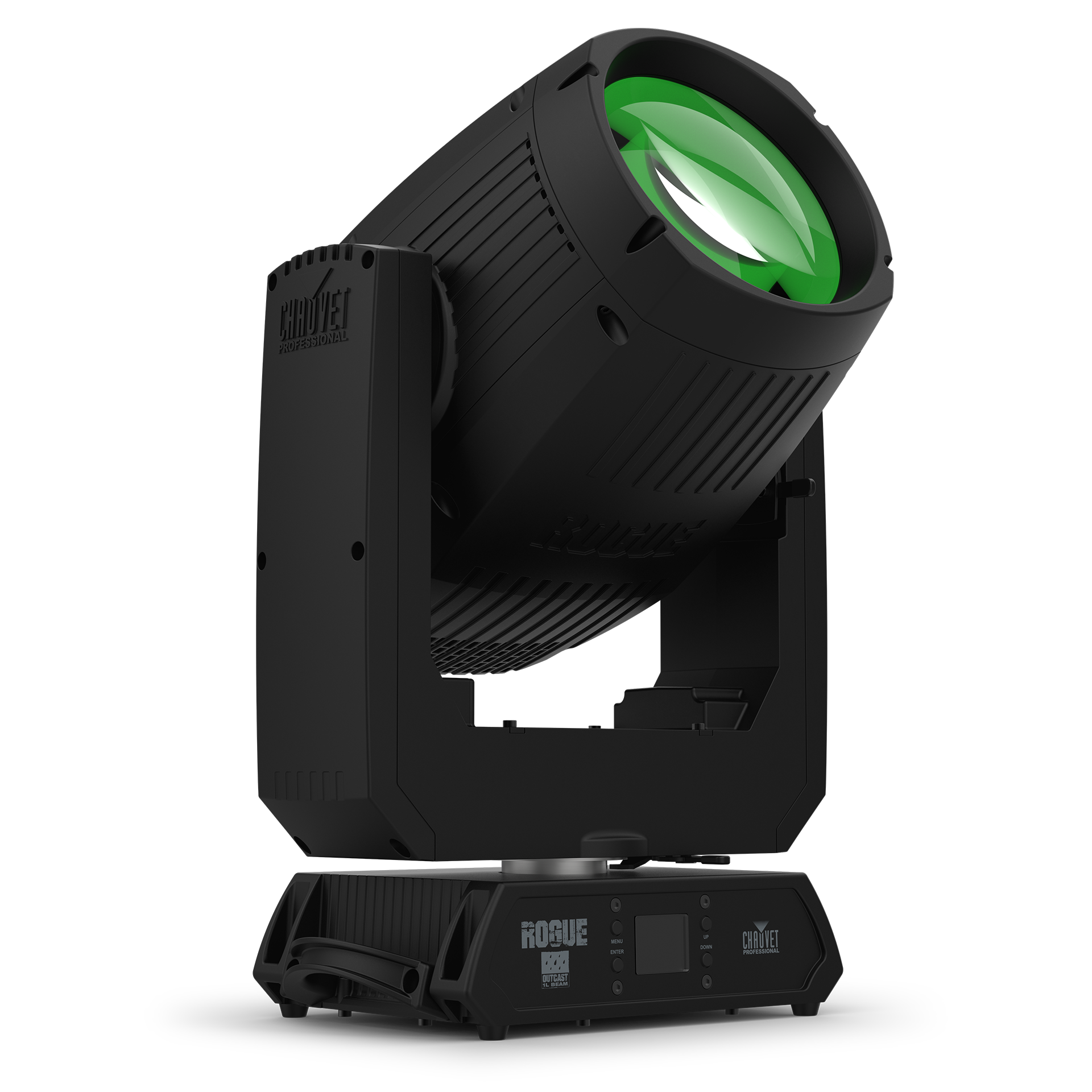

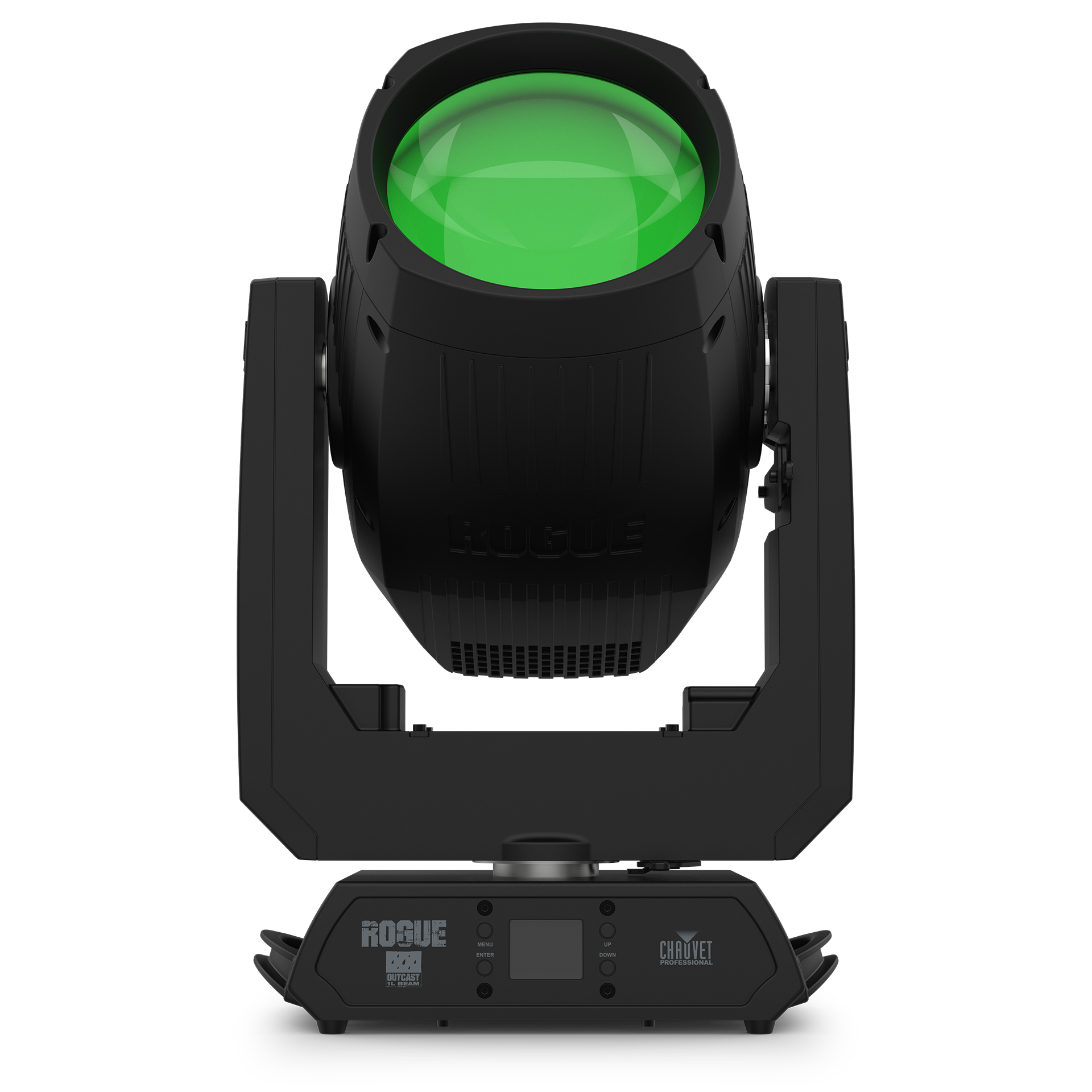

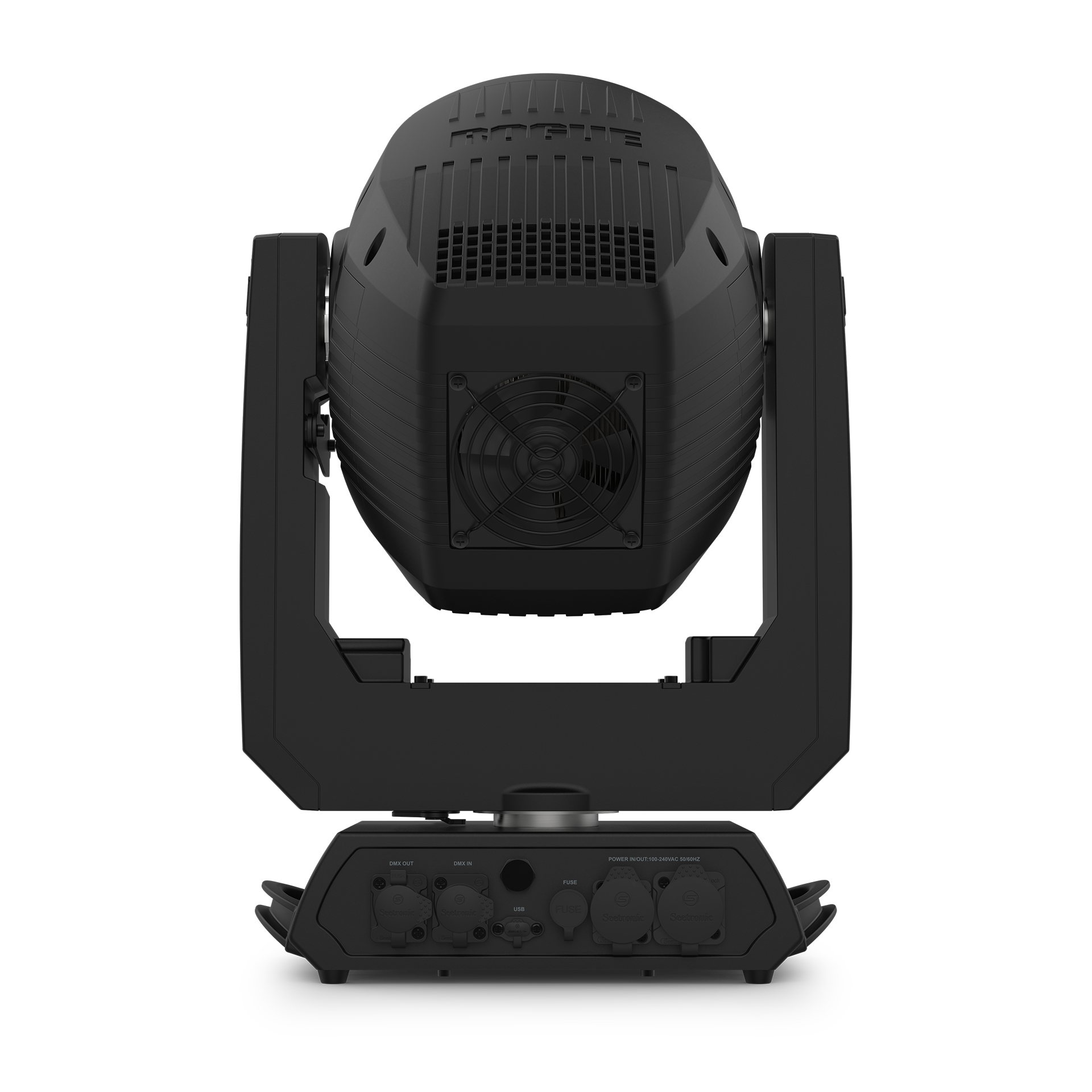

Rogue Outcast 1L Beam

A lightweight, fully-featured IP65 beam fixture that creates tight, focused aerial effects using a color wheel, a gobo wheel with rotating and static gobos, layerable dual prisms, and frost.
Ideal for both outdoor events and indoor installations, its durable, low-maintenance IP65 design is built to withstand weather as well as particulates like fog and haze.

Rogue Outcast 1L Beam

Specifications	Download
Quick Reference Guide	Download
2D CAD File	Download
3D CAD File	Download
Photometrics File	Download
User Manual	Download
IES Files	Download
Firmware	Download
Acoustic Reports	Download

Download All Resources

Rogue Outcast 1L Beam

SKU: ROGUEOUTCAST1LBEAM

Demo

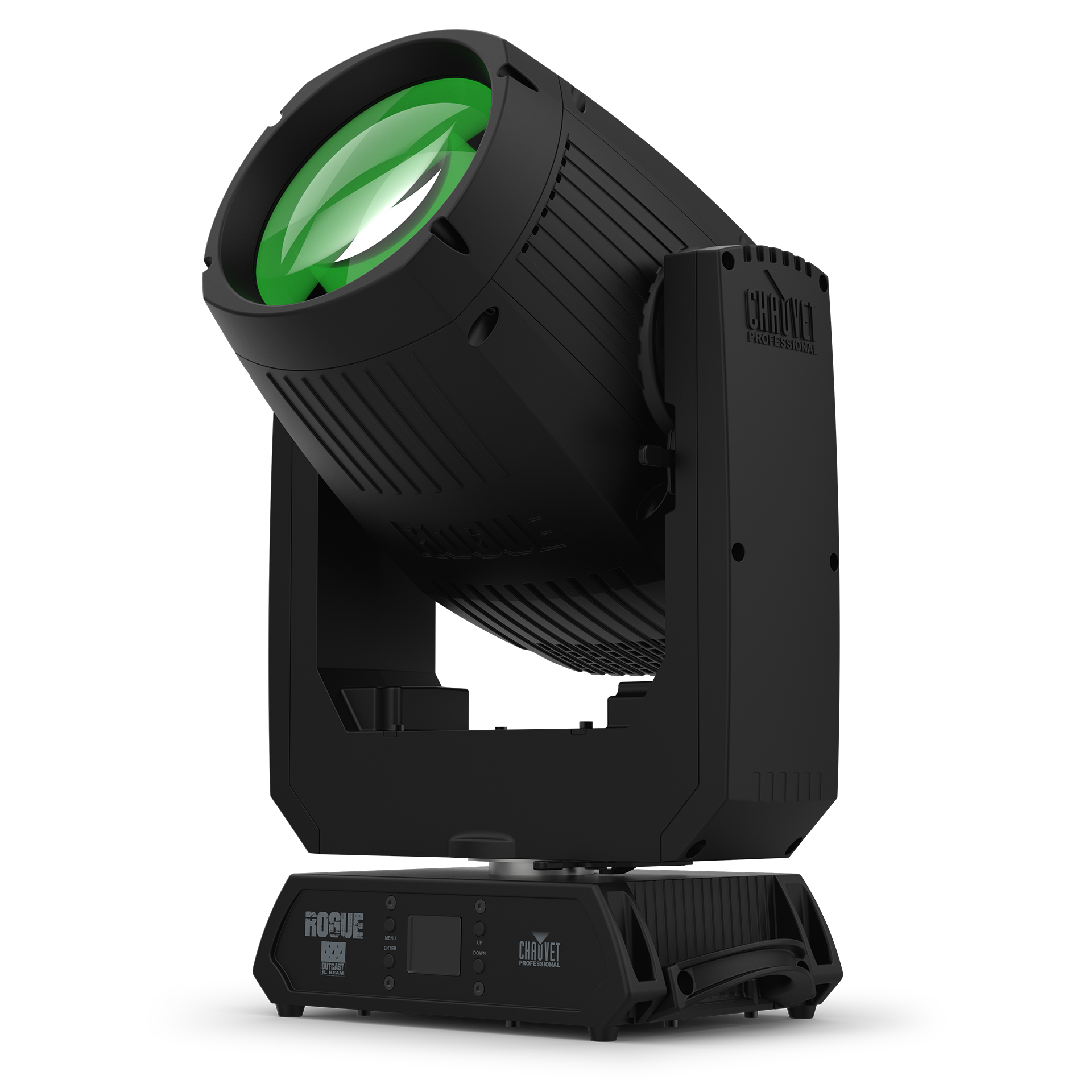

Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

Features

High Powered IP65 LED Beam

A fully featured and high-powered LED beam fixture with an IP65 rating for outdoor use.

Durable, Lightweight Construction

Features a robust yet lightweight body made from an aluminum and magnesium alloy.

Precise Pan and Tilt Movement

Delivers exceptionally fast and accurate pan and tilt movements for dynamic positioning.

Dual Layerable Prisms

Create complex aerial effects with individually controllable and layerable 5-facet and 8-facet prisms.

Frost Filter

Includes a frost filter to soften the beam’s edge for wash-style effects.

Professional DMX Connections

Equipped with industry-standard 5-pin DMX input and output connections for reliable control.

Narrow 1.4° Beam Angle

Produces a tight and extremely focused 1.4-degree beam for sharp aerial effects.

RDM Enabled

Allows for remote addressing and troubleshooting of the fixture via RDM protocol.

Combined Gobo Wheel

A single wheel provides 7 rotating and 7 static gobos for a wide range of dynamic pattern effects.

Easy-to-Read OLED Display

Features a clear OLED display with a simple and effective menu for easy onboard configuration.

Versatile DMX Channel Profiles

Offers both simple and complex DMX channel profiles to suit various programming needs.

USB-C Software Port

A convenient USB-C port allows for easy software uploads and updates.

Latest News

Olly Suckling Dazzles Alton Towers Fireworks Guests with Help From GLX Productions and CHAUVET Professional

Lighting designer Olly Suckling crafts an immersive spectacle for the Alton Towers fireworks finale.

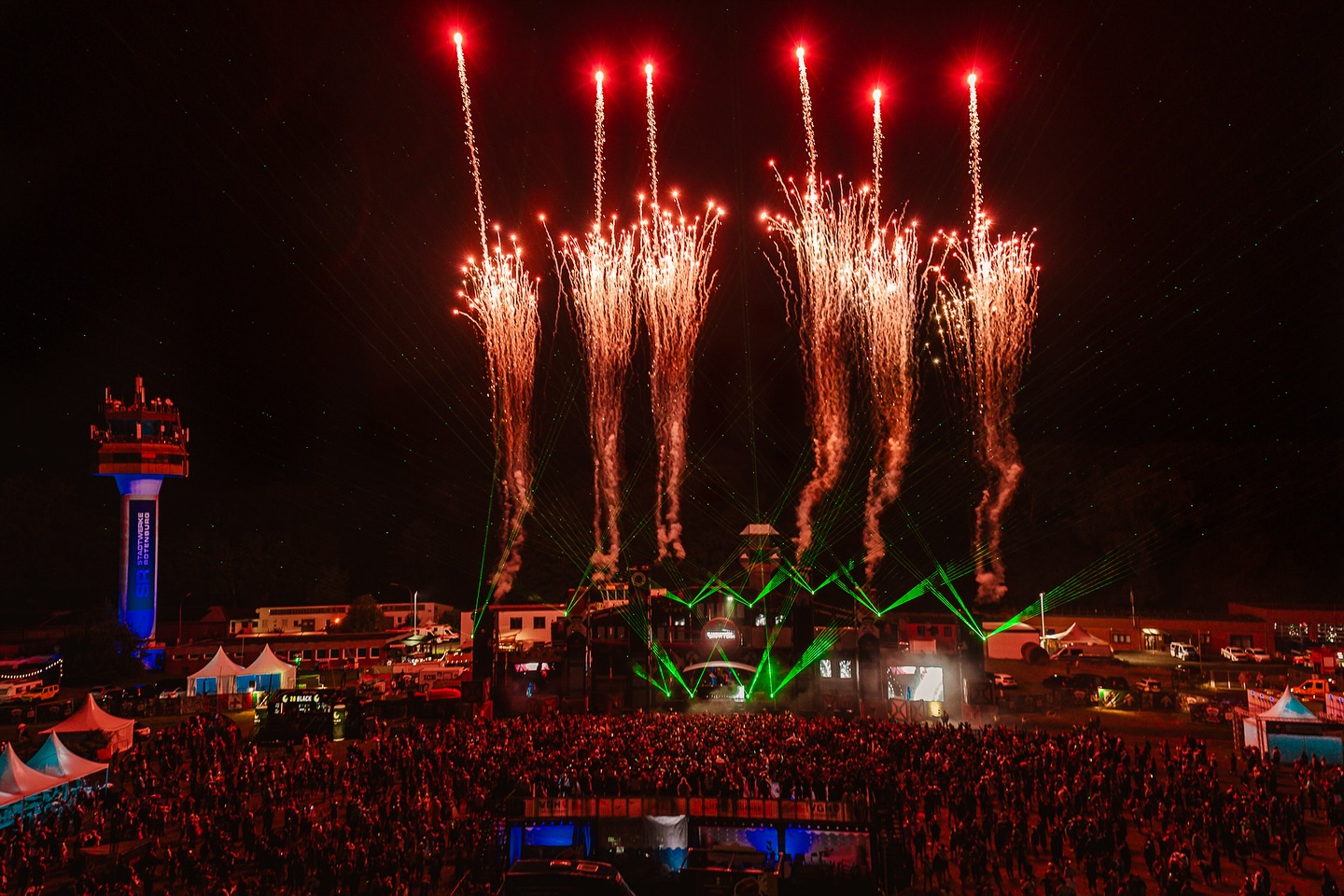

Sound-Patrol Veranstaltungstechnik GmbH. Energizes Ferdinands Felds with CHAUVET Professional

A versatile rig of CHAUVET Professional fixtures delivered bold visuals across multiple festival stages.

GLX Productions Creates Magical Winter Holiday Moments at Eden Project with CHAUVET Professional

Lighting designer Glenn Gridley transforms the Eden Project’s biomes with an immersive holiday show.

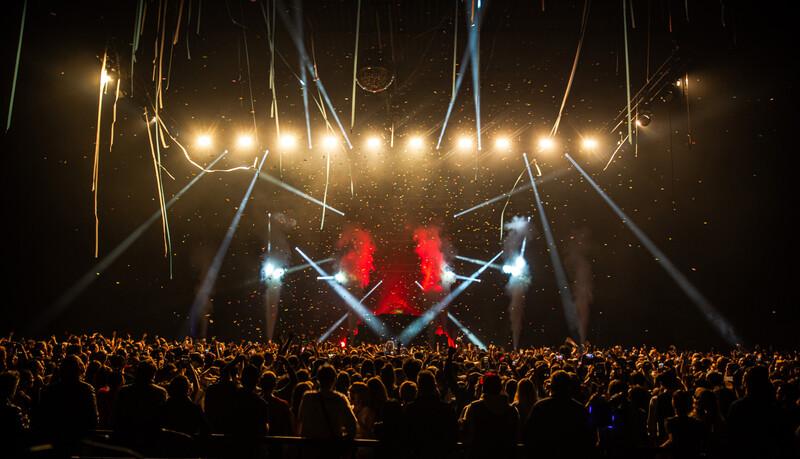

Valentin Lemarquier Adds To Nuit du BAL’s Electric Mood with CHAUVET Professional

LD Valentin Lemarquier creates an electric atmosphere for Nuit du BAL with a bold, fast-moving rig.

The Design Oasis Calls on CHAUVET Professional To Punch Up Excitement for Mayweather Bout

The Design Oasis amplified a high-profile boxing match with a dynamic CHAUVET Professional lighting rig.

Olly Suckling Dazzles Alton Towers Fireworks Guests with Help From GLX Productions and CHAUVET Professional

Lighting designer Olly Suckling crafts an immersive spectacle for the Alton Towers fireworks finale.

Sound-Patrol Veranstaltungstechnik GmbH. Energizes Ferdinands Felds with CHAUVET Professional

A versatile rig of CHAUVET Professional fixtures delivered bold visuals across multiple festival stages.

GLX Productions Creates Magical Winter Holiday Moments at Eden Project with CHAUVET Professional

Lighting designer Glenn Gridley transforms the Eden Project’s biomes with an immersive holiday show.

Valentin Lemarquier Adds To Nuit du BAL’s Electric Mood with CHAUVET Professional

LD Valentin Lemarquier creates an electric atmosphere for Nuit du BAL with a bold, fast-moving rig.

The Design Oasis Calls on CHAUVET Professional To Punch Up Excitement for Mayweather Bout

The Design Oasis amplified a high-profile boxing match with a dynamic CHAUVET Professional lighting rig.

More Related News

Complete Your Rig

Ensure flawless results with gear designed to complement and complete your professional setup.

Specifications

Download Product Specs

Optical

Light Source

1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
Color Temperature (at full)

6928 K
Front lens diameter

160 mm
CRI

69.3
Beam Angle

1.4°
Field Angle

1.7°
Cutoff Angle

1.8°
Lumens – Source

5500
Lumens – Output

3218
Illuminance (total)

224,670 lux @ 5 m

Dynamic Effects

Pan and Tilt

540°/270°
Pan and Tilt Ranges

540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors

14 + white, split colors, continuous scroll at variable speeds
Gobos

14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size

Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
Dimmer

Electronic
Shutter/Strobe

Motorized
Focus

Motorized
Frost

Motorized
Prism

5 Facets, motorized, linear, rotating
Prism

8 Facets, motorized, round, rotating
Move-in-Black

Yes

Construction/Physical

Dimensions

12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
Weight

35.4 lb (16.1 kg)
Exterior Color

Black
Housing Material

Aluminum/Magnesium diecast

Connections

Power Connection

Bare ended to Seetronic Powerkon IP65
Power Input

Seetronic Powerkon IP65
Data Connectors

5-pin IP rated
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

DMX, RDM
DMX Channels

17 or 19
Modes/Personalities

2 personalities (17, 19)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current

233 W, 2.08 A @ 120 V, 60 Hz
Power and Current

226 W, 1.15 A @ 208 V, 60 Hz
Power and Current

223 W, 1.04 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET, UKCA,
IP Rating

IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient)

-14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc)

80° C / 176° F
Maximum Ambient Temperature (Ta)

45° C / 113° F
- Noise Levels
  - Noise Level (Idle)

    24.7 dB(A) @ 1 m
  - Noise Level (Max)

    35.3 dB(A) @ 1 m
  - Noise Level (Auto)

    36.4 dB(A) @ 1 m
  - Noise Level (ECO)

    36.5 dB(A) @ 1 m
  - Noise Level (Full)

    43.3 dB(A) @ 1 m

Compatible Accessories

Clamps
IP65 5 pin DMX Cables
IP65 PowerKon Extension cables
Flight Case

What's Included

Rogue Outcast 1L Beam
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware

Questions or Concerns?

Let us know, we’re here to help! Contact Us

Downloads

Download All

Manuals	Rogue Outcast 1L Beam – Quick Reference Guide	Download
Drawings	Rogue Outcast 1L Beam – 2D CAD File	Download
Drawings	Rogue Outcast 1L Beam – 3D CAD File	Download
Photometrics	Rogue Outcast 1L Beam – Photometrics File	Download
Manuals	Rogue Outcast 1L Beam – User Manual	Download
Other	Rogue Outcast 1L Beam – IES Files	Download
Other	Rogue Outcast 1L Beam – Firmware	Download
Manuals	Rogue Outcast 1L Beam – Acoustic Reports	Download

Learn How To Use Your Rogue Outcast 1L Beam

Explore these detailed videos showcasing setup, features, and creative applications for this product.

Lighting a 360° Circus Tour Across France | Imperial Tour

Discover how a full CHAUVET Professional rig empowers the Imperial Show’s 360° circus tour across France. IP-rated fixtures provide the reliability and creative power needed to overcome a humid, dust-heavy environment and deliver a spectacular experience every time.
Rogue Outcast 1L Beam & Rogue Outcast 2X Wash

Discover the Rogue Outcast 1L Beam and 2X Wash, two rugged IP65 moving heads built to perform anywhere. Lightweight and low-maintenance, they deliver uncompromising beam and wash effects that defy the elements and redefine expectations for all-weather lighting.
InfoComm 2022: Rogue Product Tour

Get a first look at the Rogue Outcast series from CHAUVET Professional, featuring the IP65-armored 1L Beam and 2X Wash. These lightweight moving heads deliver powerful aerial effects and versatile washes, engineered for uncompromising performance in any environment.

Latest Articles

Browse Articles

Rogue Outcast 1L Beam FAQ’s

Quickly find answers to common questions about setup, operation, and features of the Rogue Outcast 1L Beam

Can the Rogue Outcast 1L Beam be used outdoors?

Yes, the Rogue Outcast 1L Beam is specifically designed with a durable, weatherproof housing to withstand outdoor elements like rain. This also makes it a great low-maintenance option for indoor venues that use atmospheric effects like fog or haze.

What kind of lighting effects can the Rogue Outcast 1L Beam create?

It excels at creating very sharp, focused beams of light for stunning mid-air effects. You can change colors, project a variety of static or rotating patterns (gobos), and split the main beam into multiple light shafts using its built-in prisms. It also includes a frost feature to soften the beam for different looks.

What makes the Rogue Outcast 1L Beam a versatile lighting fixture?

Its combination of a lightweight body and a rugged, all-weather design makes it ideal for a wide range of uses. It is powerful enough for large outdoor festivals and concerts, but also precise and quiet enough for permanent installation in indoor theaters and event spaces.
