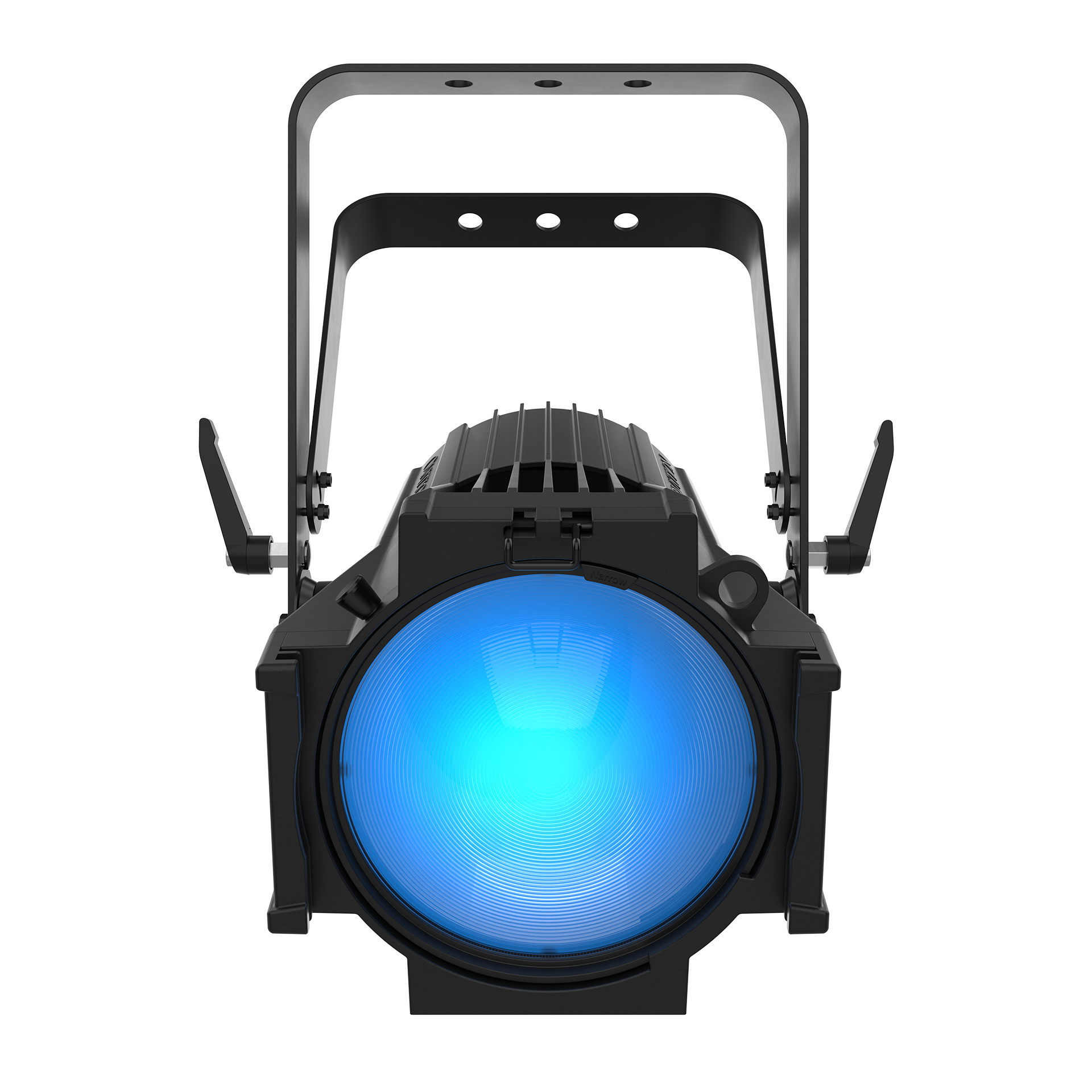

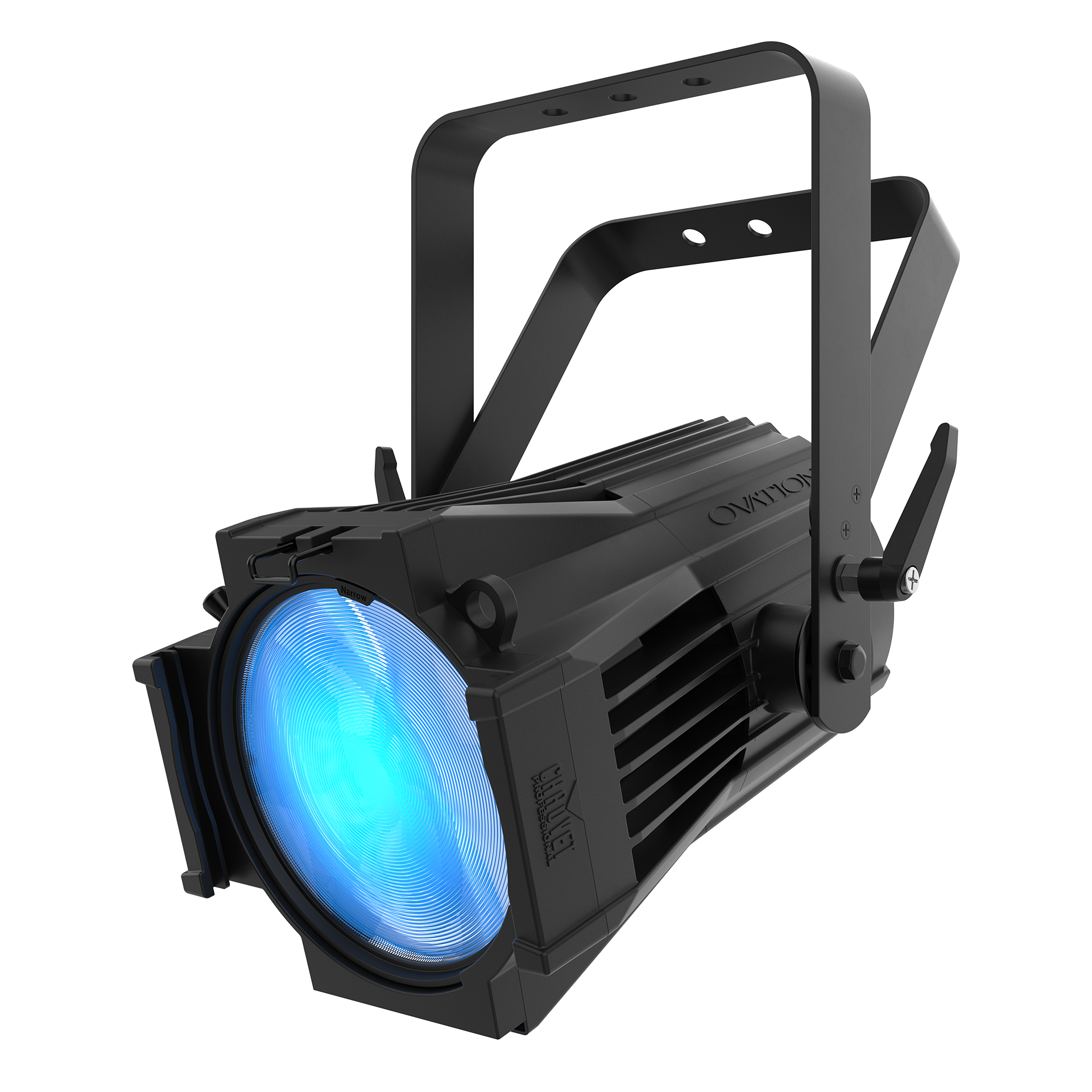

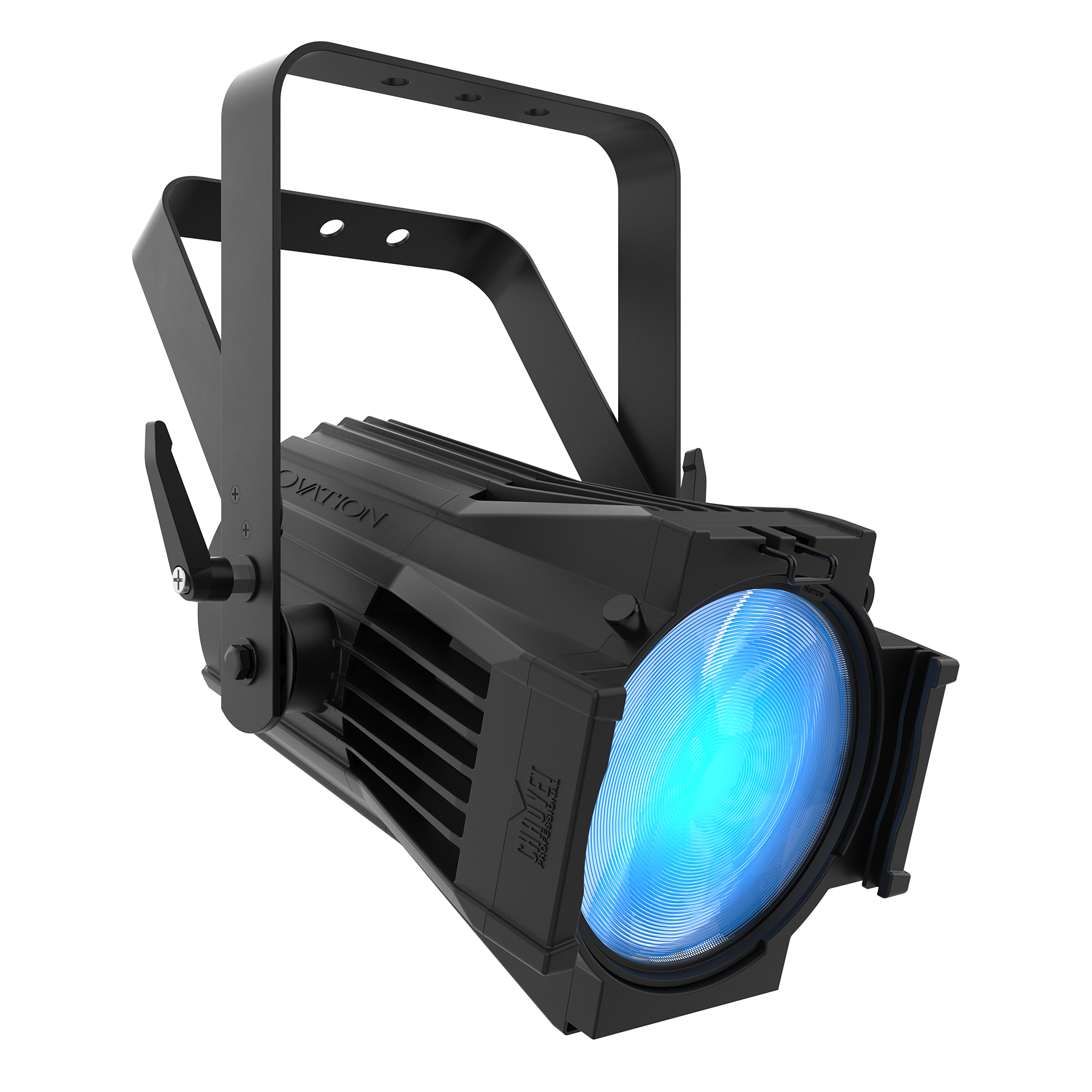

Ovation P-56FC
A compact and virtually silent par light that utilizes an advanced RGBAL LED system to produce a high-CRI, homogenized, and flat field of light with interchangeable lens plates for versatile beam control.
Ideal for theatrical and studio applications requiring silent operation and a high-quality, even field of color-mixed light.
-
Features an advanced RGBAL LED system for a full color spectrum and variable white temperatures.
-
Includes interchangeable medium and wide lens plates for flexible beam shaping and versatile coverage.
-
Provides adjustable fan speed for virtually silent operation, ideal for studio and theatre use.
-
Achieves exceptionally smooth fades and dimming control with 16-bit resolution.
-
Supports DMX and RDM protocols with selectable PWM for easy setup and flicker-free on-camera use.
-
Accepts standard 7.5-inch beam shaping accessories for expanded creative and control possibilities.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation P-56FC
Specifications | Download |
Ovation P-56FC Quick Reference Guide | Download |
Legacy Software | Download |
Ovation P-56FC User Manual | Download |
Ovation P-56FC CAD Drawings | Download |
Ovation P-56FC IES Files | Download |
Ovation P-56FC Photometric Report | Download |
Ovation P-56FC DMX Chart | Download |
Legacy Software | Download |
Specification Sheet | Download |
Firmware | Download |
CAD Files | Download |
Acoustic Reports | Download |
Ovation P-56FC
Ovation P-56FC is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.
Features
Homogenized Color Source
Functions as a full-color PAR fixture with a single, blended source of light for seamless color mixing.
Interchangeable Lenses
Includes both medium and wide beam angle lens plates for flexible beam control.
Even Light Field
Produces a flat and consistent field of light for smooth, even coverage.
Quiet Operation
Offers adjustable fan speed control to ensure quiet performance suitable for any environment.
Advanced Setup Control
Features RDM and variable Pulse Width Modulation for simplified setup and flicker-free operation.
Accessory Compatibility
Accepts standard 7.5-inch beam shaping accessories for expanded creative options.
High Resolution Dimming
Provides 16-bit dimming resolution to achieve exceptionally smooth and precise fades.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
62 LEDs (12 red, 11 green, 11 blue, 14 amber, 14 lime) 6 to 8 W, (1 A), 50,000 hours life expectancy.
-
Color Temperature (range)
2800 to 6500 K
-
Color Temperature (at full)
6229 K
-
CRI (3200)
87.9
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
-
-
Narrow Lens
-
Beam Angle
12.8°
-
Field Angle
24.7°
-
Illuminance
3,404 lux @ 5m
-
-
Narrow Lens
-
-
Medium Lens
-
Beam Angle
23.2°
-
Field Angle
40.9°
-
Illuminance
1,251 lux @ 5 m
-
Illuminance
1251 lux @ 5 m
-
-
Medium Lens
-
-
Wide Lens
-
Beam Angle
73.2°
-
Field Angle
103.7°
-
Illuminance
197 lux @ 5 m
-
-
Wide Lens
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 30 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
-
Weight
12.2 lb (5.6 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum die-cast
-
Accessory Holder/Gel Frame Size
7.5 in (191 mm)

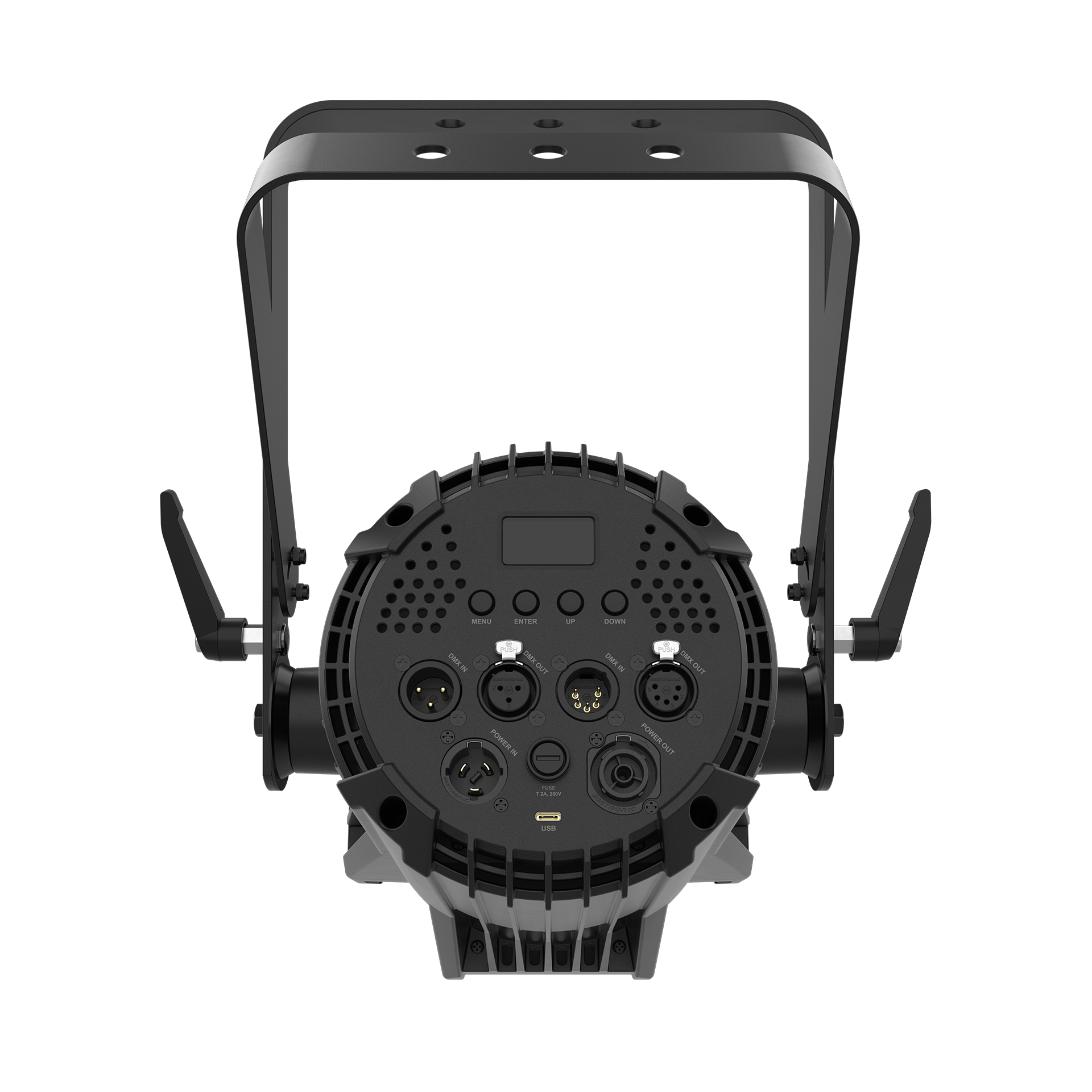

Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
1, 3, 5, 7, 10, 12, 13, 16 or HSV
-
Modes/Personalities
9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V
-
Power and Current
167 W, 1.68 A @ 100 V, 60 Hz [4.6 A inrush]
-
Power and Current
161 W, 1.36 A @ 120 V, 60 Hz [6.0 A inrush]
-
Power and Current
160 W, 0.80 A @ 208 V, 60 Hz [8.2 A inrush]
-
Power and Current
159 W, 0.75 A @ 230 V, 50 Hz [9.8 A inrush]
-
Power and Current
158 W, 0.73 A @ 240 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
-
-
Noise Levels
-
Noise Level (Idle)
31.5 dB(A) @ 1 m
-
Noise Level (Auto)
31.4 dB(A) @ 1 m
-
Noise Level (On)
31.3 dB(A) @ 1 m
-
Noise Level (Off)
4.0 dB(A) @ 1 m
-
Noise Level (silent)
19.3 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE1 Style Power Extension cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5” Barndoor V2
- Ovation 60 deg, 7.5” Honeycomb
What's Included
- Ovation P-56FC
- Seetronic Powerkon IP65 power cord
- Gel frame (7.5 in/191 mm accessories)
- Narrow, Medium, and Wide Lens
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation P-56FC Quick Reference Guide | Download |
Manuals | Ovation P-56FC Quick Reference Guide – Legacy Software | Download |
Manuals | Ovation P-56FC User Manual | Download |
Drawings | Ovation P-56FC CAD Drawings | Download |
Photometrics | Ovation P-56FC IES Files | Download |
Photometrics | Ovation P-56FC Photometric Report | Download |
DMX | Ovation P-56FC DMX Chart | Download |
DMX | Ovation P-56FC DMX Chart – Legacy Software | Download |
Other | Ovation P-56FC – Specification Sheet | Download |
Other | Ovation P-56FC – Firmware | Download |
Drawings | Ovation P-56FC – CAD Files | Download |
Manuals | Ovation P-56FC – Acoustic Reports | Download |
Learn How To Use Your Ovation P-56FC
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Ovation Pars Product Video by CHAUVET Professional
The CHAUVET Professional Ovation Par series delivers superior performance for theatrical and studio applications. Featuring advanced optics for a flat, even field of light and virtually silent operation, these fixtures provide the precision demanded by discerning professionals.
Ovation P-56FC FAQ’s
The Ovation P-56FC uses an advanced color-mixing system to produce a high-quality, even field of light. It can create a vast spectrum of colors, from soft pastels to deep, saturated hues, as well as a full range of natural-looking white light, all without creating distracting color shadows.
Yes, absolutely. It is designed to be virtually silent, making it an ideal choice for sound-sensitive applications like theater stages, television studios, and houses of worship where fan noise from lighting would be a distraction.
The fixture includes interchangeable lens plates that allow you to easily switch between a medium or a wide beam of light to fit your needs. It is also compatible with standard 7.5-inch accessories, such as barn doors, for further control and shaping of the light.
