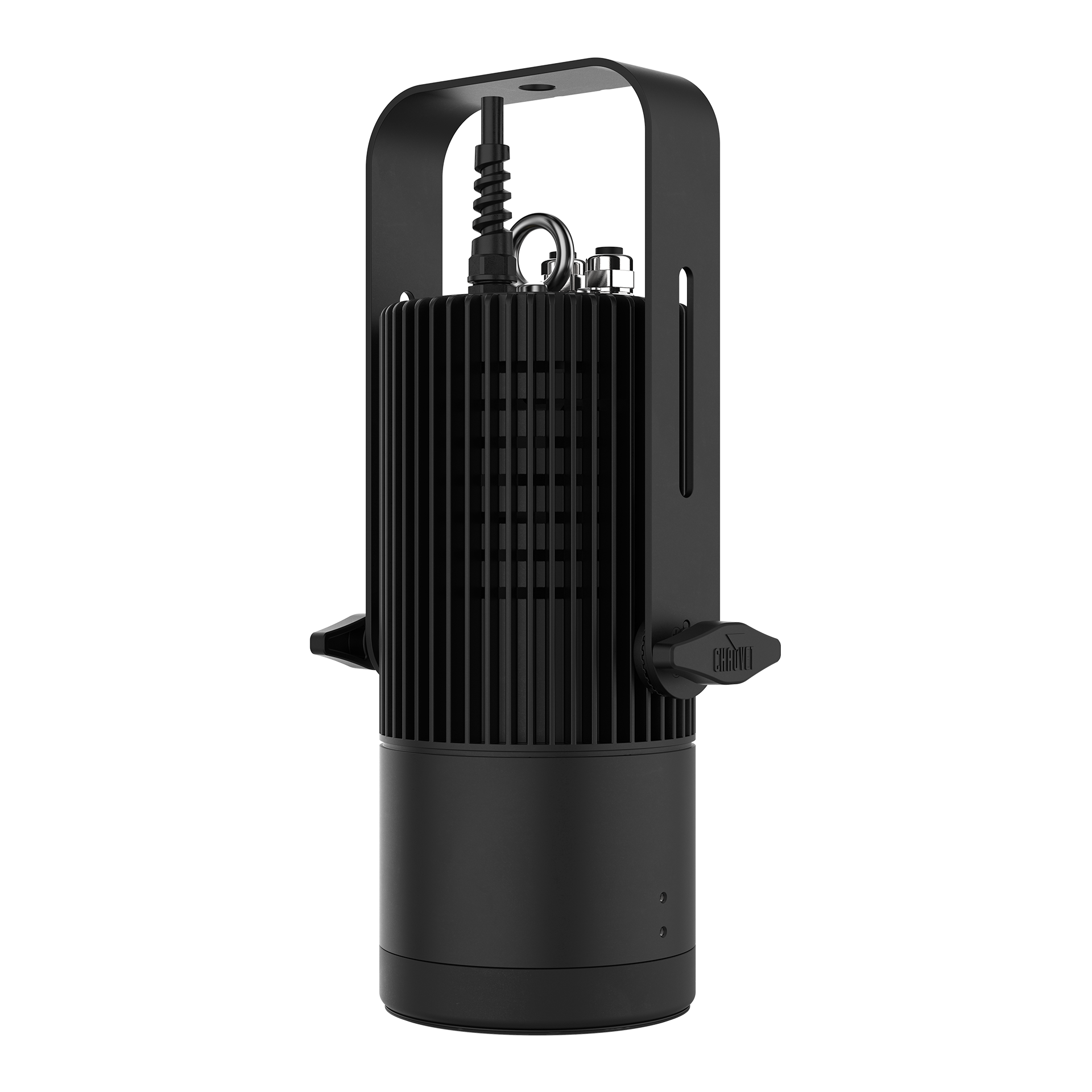

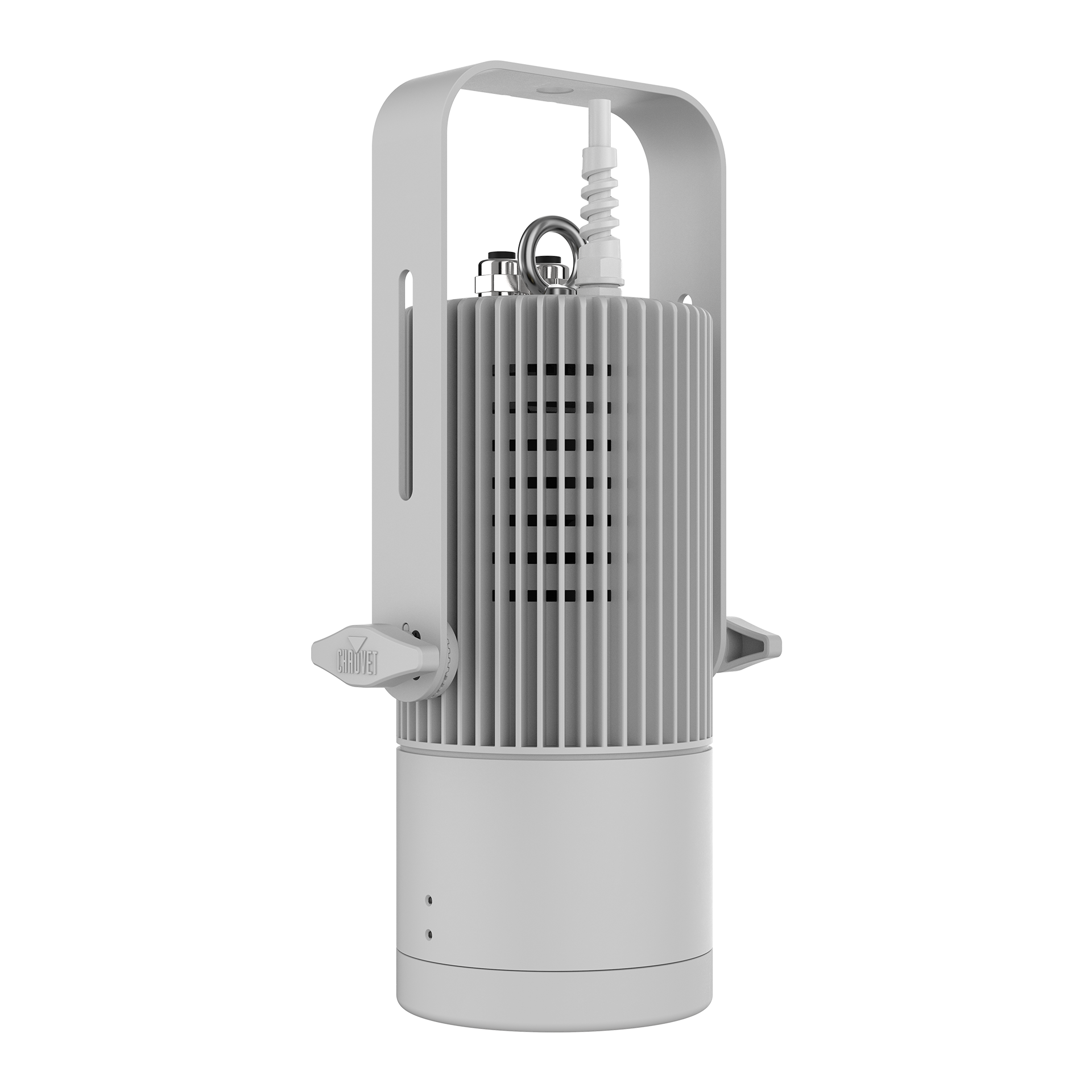

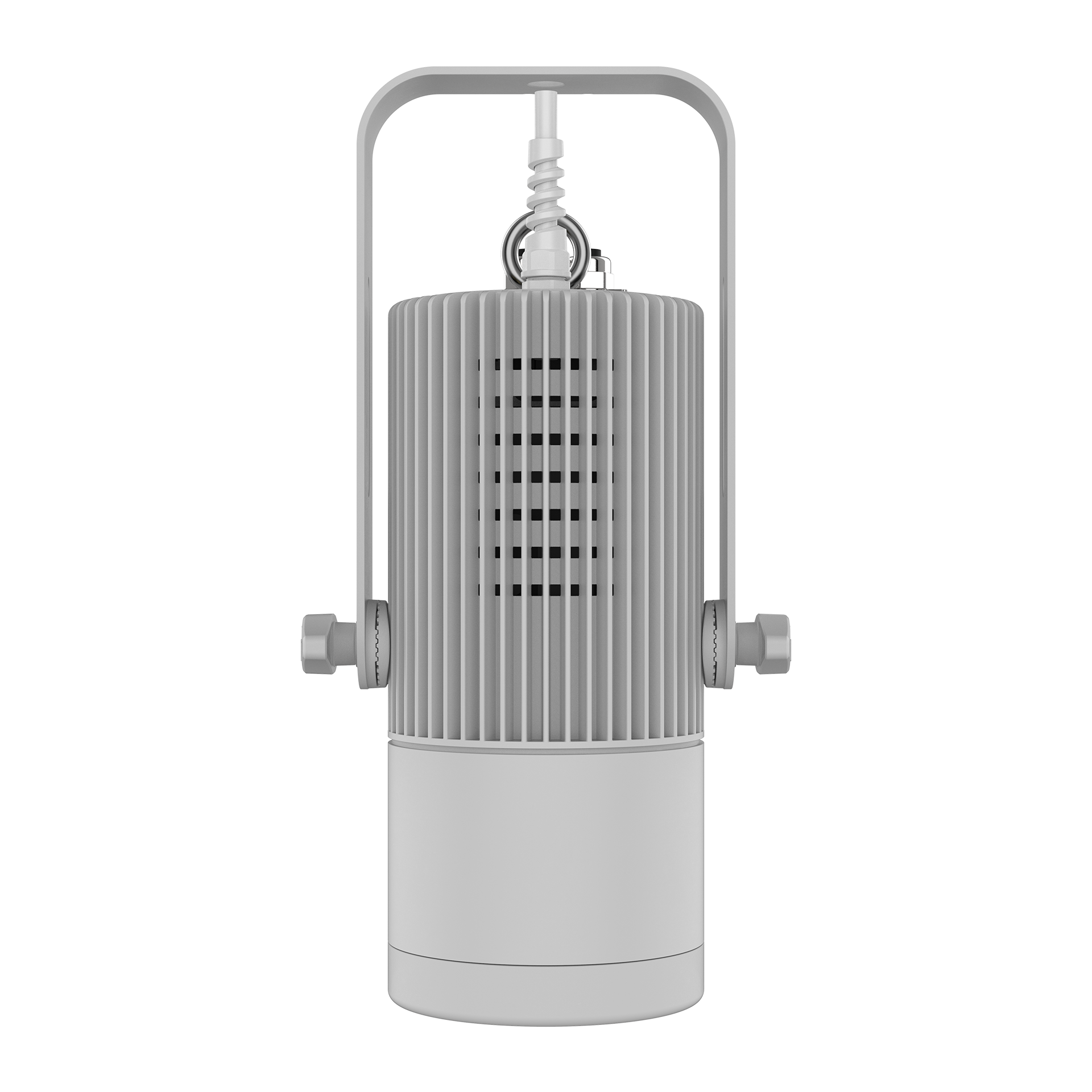

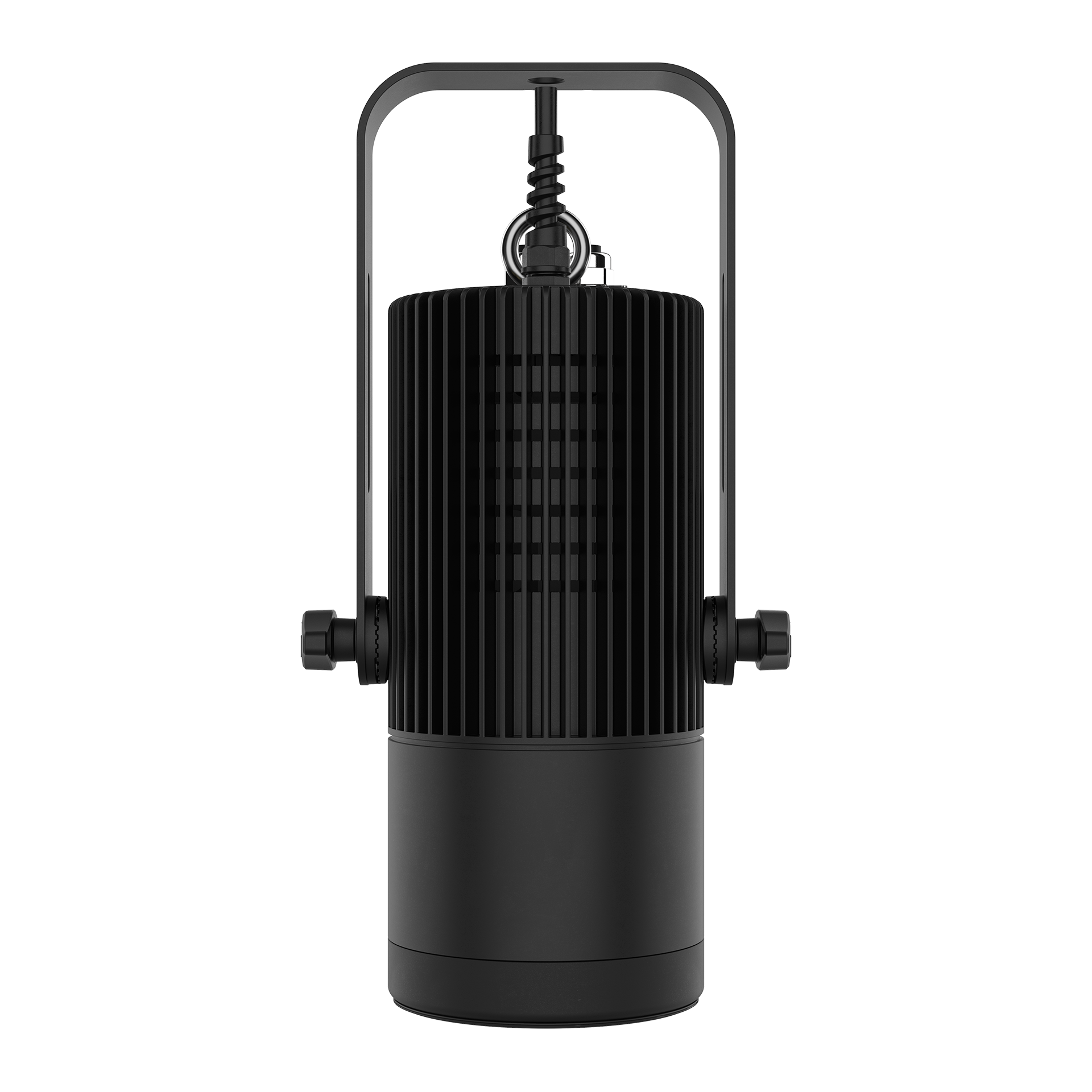

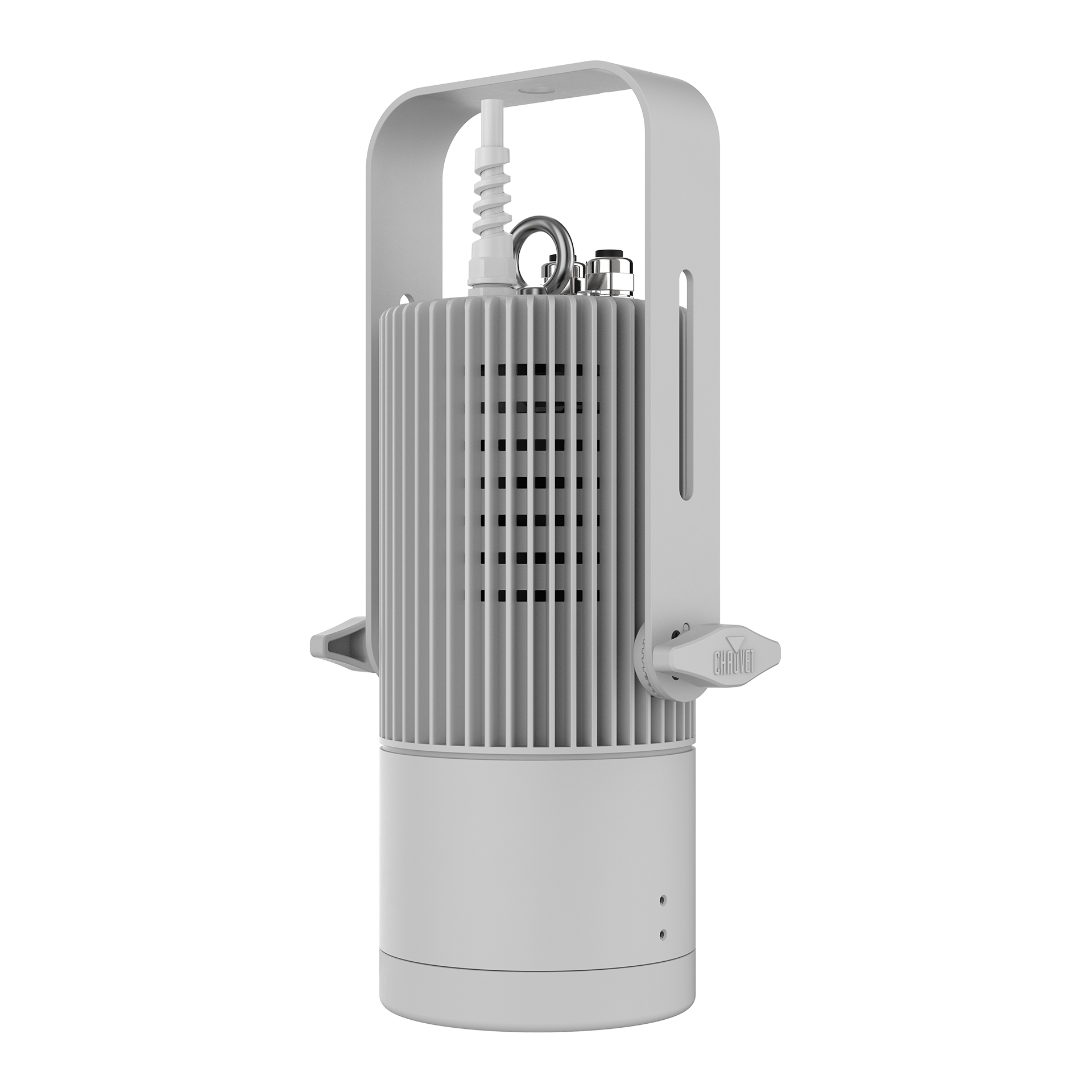

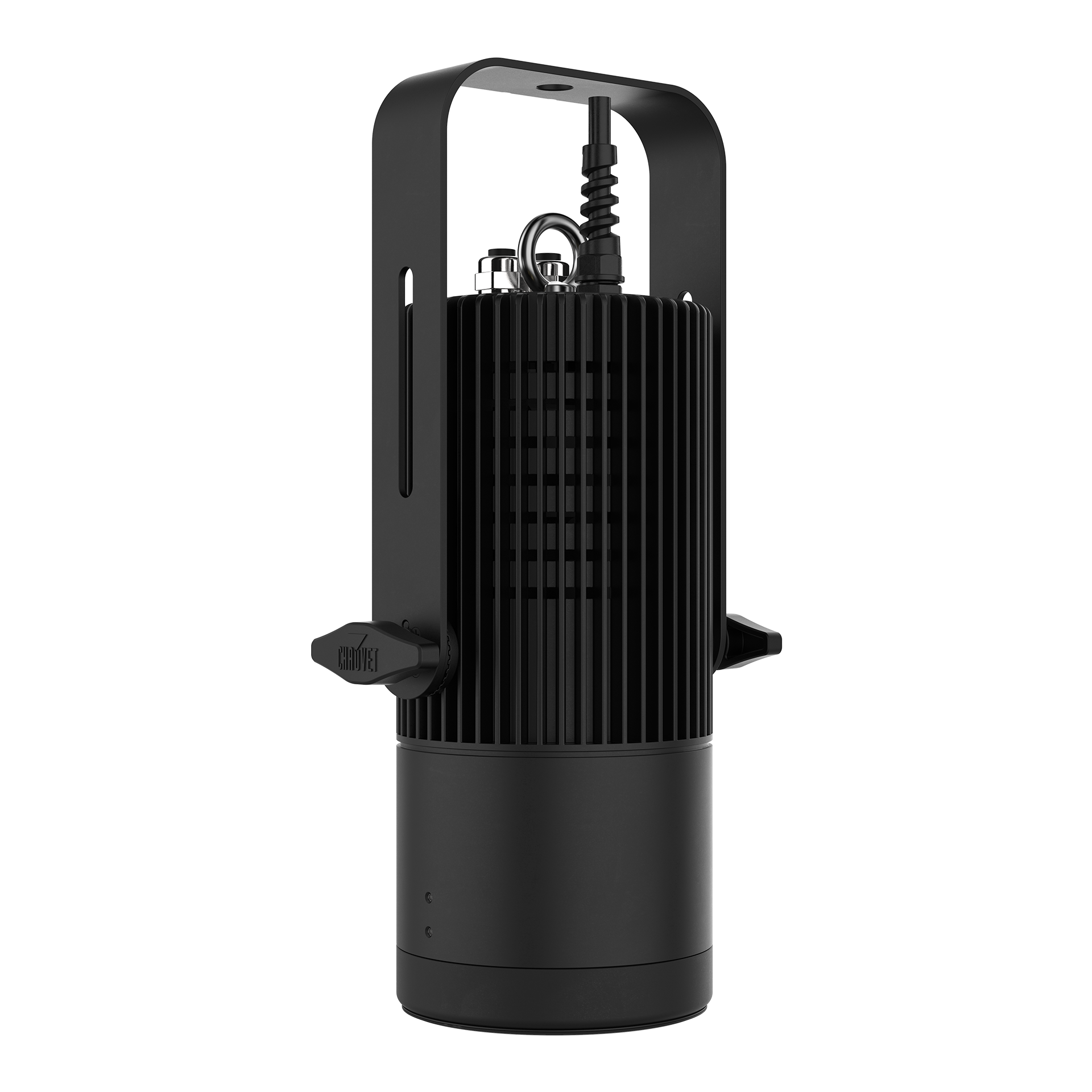

Ovation H-55WW
The Ovation H-55WW is a compact and silent, convection-cooled LED houselight delivering a high-CRI warm white output with versatile features including interchangeable lenses, 16-bit dimming, and flicker-free PWM control.
Ideal for theatres, houses of worship, recital halls, and broadcast applications, particularly in spaces with lower trim heights where silent, high-quality lighting is essential.
-
Features a 129.5 W warm white LED source for high-quality light with an exceptional 93 CRI.
-
Adapt the beam angle for various mounting heights with included interchangeable 40°, 65°, and 80° lens plates.
-
Its fanless, convection-cooled design ensures completely silent operation for noise-sensitive environments.
-
Supports DMX, W-DMX, and RDM protocols for versatile control and remote device management.
-
Offers flexible installation with a removable yoke, integrated loop-eye, and included recess or sconce kits.
-
Features both 5-pin XLR and terminal block connections for easy DMX integration into any system.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation H-55WW
Specifications | Download |
Ovation H-55WW Quick Reference Guide | Download |
Ovation H-55WW Quick Reference Guide- Legacy So… | Download |
Ovation H-55WW DMX Chart | Download |
Ovation H-55WW CAD Files | Download |
Ovation H-55WW IES Files | Download |
Ovation H-55WW Photometrics Report | Download |
Ovation H-55WW Specification Sheet | Download |
User Manual | Download |
Ovation H-55WW (BLK)– Firmware | Download |
Firmware | Download |
Firmware | Download |
Firmware | Download |
Ovation H-55WW
Ovation H-55WW is a small and silent, convection cooled LED houselight with a punchy warm white output and a high CRI, ideal for theatres, worship venues and recital halls or any other application with a smaller trim height. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate.
Features
Compact Convection Cooled Design
Provides a warm white house light with completely silent, fan-less operation in a compact form factor.
Interchangeable Lens Plates
Adapt the beam angle for various mounting heights with the included interchangeable lens plates.
Versatile DMX Connections
Offers both 5-pin XLR and terminal block connections for flexible DMX integration into any system.
Flexible Mounting Options
Mount the fixture using the included yoke or suspend it directly from the integrated loop-eye.
Included Installation Kits
Comes with both recess and sconce mounting kits for even more installation possibilities.
16-Bit Dimming
Achieve exceptionally smooth fades and precise intensity control with high-resolution 16-bit dimming.
Advanced Control Protocols
Supports DMX, WDMX, and RDM for expanded programming flexibility and remote device management.
Adjustable PWM
Eliminate on-camera flicker by adjusting the Pulse Width Modulation frequency.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy
-
Color Temperature (at full)
3157 K
-
CRI
93
-
-
Beam Angle
-
(W/80° Filter)
41°
-
(W/65° Lens)
39°
-
(W/40° Lens)
30°
-
(W/25° Lens)
24°
-
-
Beam Angle
-
-
Field Angle
-
(W/80° Filter)
126°
-
(W/65° Lens)
73°
-
(W/40° Lens)
58°
-
(W/25° Lens)
39°
-
-
Field Angle
-
Lumens (w/80° filter)
3314
-
Lumens (w/65° lens)
3797
-
Lumens (w/40° lens)
4007
-
Lumens (w/25° lens)
4079
-
-
Illuminance
-
Illuminance (w/80° filter)
131 lux @ 5 m
-
Illuminance (w/65° lens)
212 lux @ 5 m
-
Illuminance (w/40° lens)
400 lux @ 5 m
-
Illuminance (w/25° lens)
728 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 25 Hz
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
-
Weight
7.4 lb (3.4 kg)
-
Exterior Color
Black
Connections
-
Power Connection
Bare-wired
-
Power Input
Hard-wired
-
Data Connectors
5-pin XLR, Phoenix connector
-
Cable Length (power)
15 ft (4.5 m)
Control
-
Control Protocol
DMX, W-DMX, RDM
-
DMX Channels
1, 2 or 5
-
Modes/Personalities
3 personalities (1CH, 2CH, 5CH)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
-
Power and Current
60 W, 0.497 A @ 120 V, 60 Hz
-
Power and Current
61 W, 0.297 A @ 208 V, 60 Hz
-
Power and Current
63 W, 0.269 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
- RDM2go or other RDM capable interface for fixture set-up
Compatible Accessories
- W-DMX™ Transmitter
- Professional Clamps: CTC-50HC, CTC-50HCN
- 5-pin DMX Cables
- RDM2go™
What's Included
- Ovation H-55WW
- 65°, 40° and 25° Lens
- 80° Filter
- Egg Crate
- Recess and Sconce Mounting Kits
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation H-55WW Quick Reference Guide | Download |
Manuals | Ovation H-55WW Quick Reference Guide- Legacy Software | Download |
DMX | Ovation H-55WW DMX Chart | Download |
Drawings | Ovation H-55WW CAD Files | Download |
Photometrics | Ovation H-55WW IES Files | Download |
Photometrics | Ovation H-55WW Photometrics Report | Download |
Other | Ovation H-55WW Specification Sheet | Download |
Manuals | Ovation H-55WW – User Manual | Download |
Other | Ovation H-55WW (BLK)– Firmware | Download |
Other | Ovation H-55WW (WHT) – Firmware | Download |
Other | Ovation H-55WW (BLK) – Firmware | Download |
Other | Ovation H-55WW (WHTH2) – Firmware | Download |
Ovation H-55WW FAQ’s
The Ovation H-55WW is ideal for venues where silence is essential, such as theaters, houses of worship, and recital halls. Its completely silent, fanless design won’t create any distracting noise, and its warm white light creates a pleasant, inviting atmosphere.
Yes, it is designed to be flicker-free for any video application or broadcast. This ensures a clean, professional look on camera. The light quality also makes colors appear natural and true-to-life, which is perfect for recording performances.
This fixture is very versatile. It includes interchangeable lenses to adjust the light for different ceiling heights. You can mount it using a standard yoke, hang it like a pendant from its integrated loop, or use the included kits for recessed and sconce-style mounting.
