    Ovation F-95WW

    The Ovation F-95WW is a compact and quiet Fresnel fixture that delivers a beautiful, soft warm white wash with a high CRI, a massive zoom range, and smooth 16-bit dimming.
    With its virtually silent operation and precise lighting control, this fixture is the perfect choice for theatrical and studio applications requiring a high-quality, soft field of light.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    Specifications
    		 Download
    Ovation F-95WW Quick Reference Guide
    		 Download
    Ovation F-95WW User Manual
    		 Download
    Ovation F-95WW CAD Drawing
    		 Download
    Ovation F-95WW Photometrics File
    		 Download
    Ovation F-95WW DMX Chart
    		 Download
    Ovation F-95WW ShowXpress Profile
    		 Download
    Case study: CHAUVET Professional Ovation provid…
    		 Download
    Case study: Ovation Fixtures Deliver Focus For …
    		 Download
    Case study: XYZ Technologie and CHAUVET Profess…
    		 Download
    Firmware
    		 Download

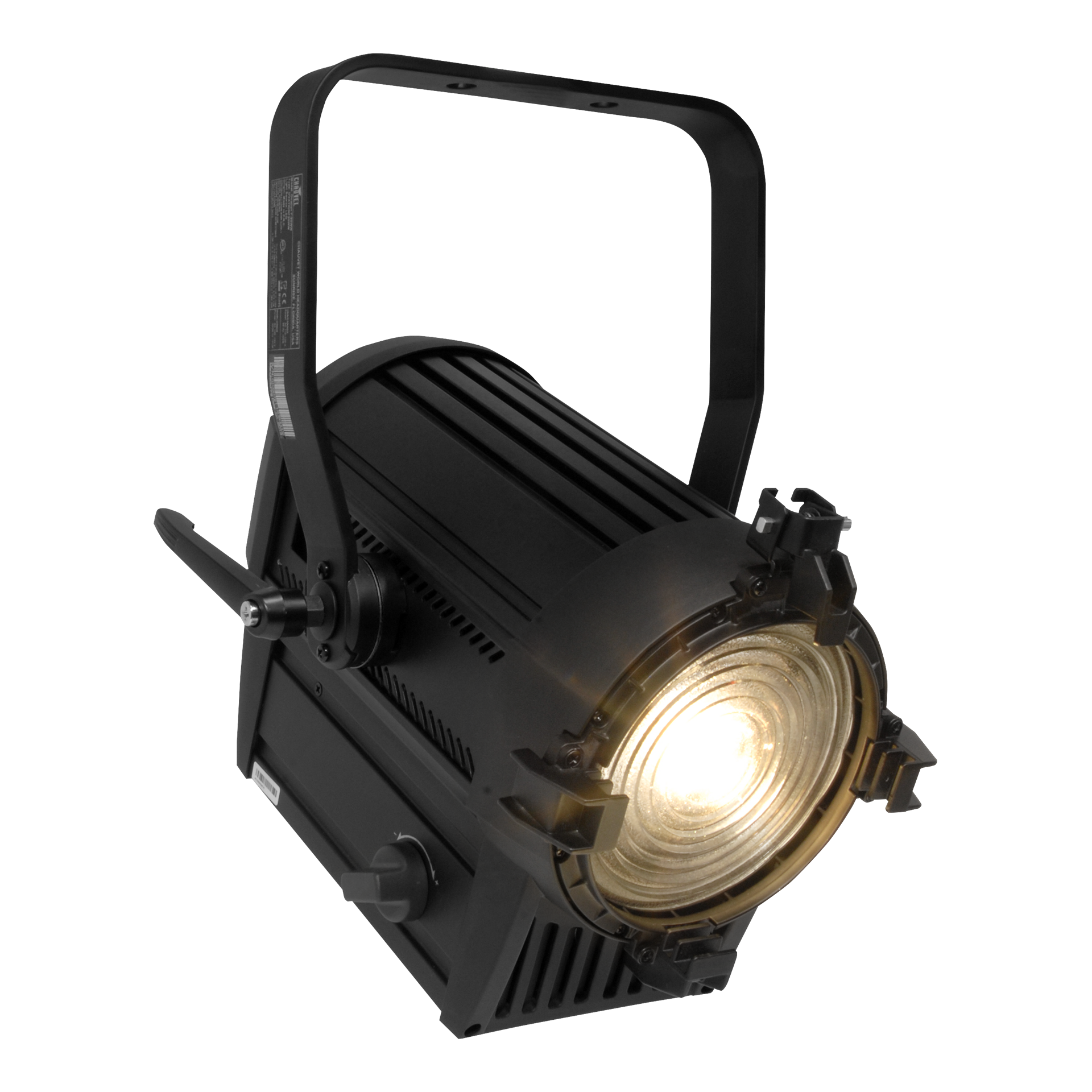

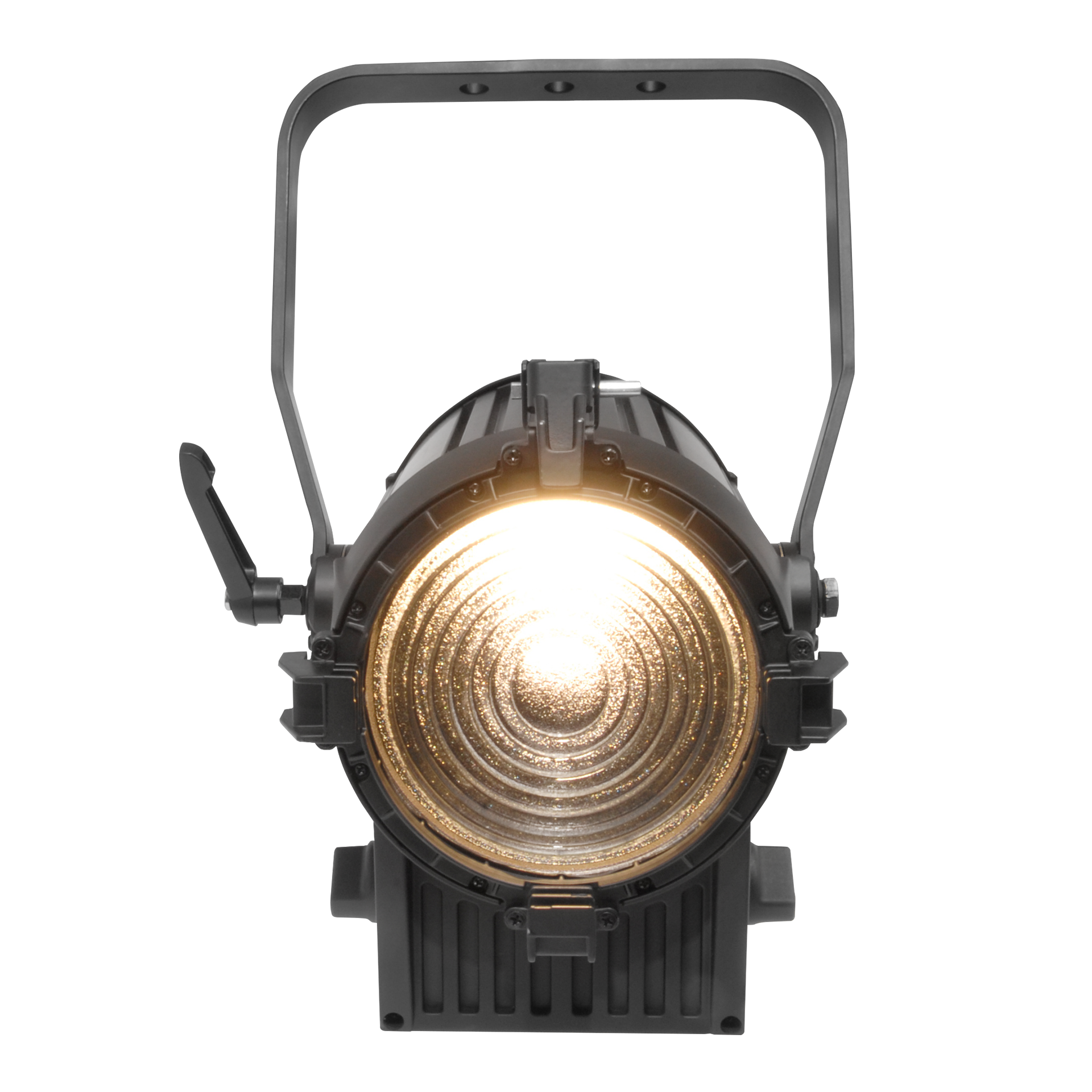

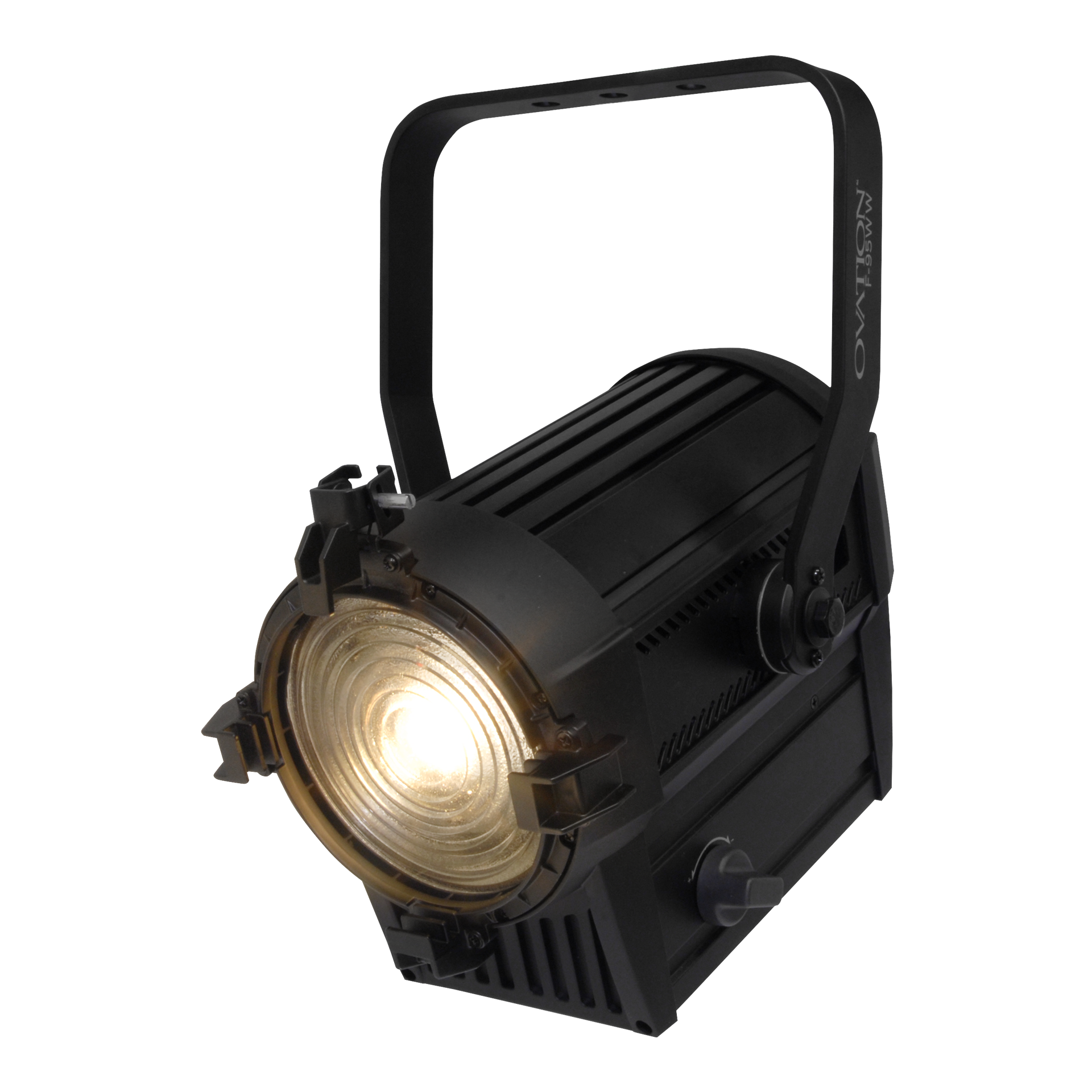

    Ovation F-95WW

    SKU: OVATIONF95WW

    Ovation F-95WW delivers a beautiful soft flat field with high-quality glass optics. Ovation F-95WW is built to work on its own and jointly with the larger Ovation F-165WW. A massive zoom range of 21° to 83° and a beautifully soft, warm white wash with high CRI make it a versatile replacement for aging six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a perfect choice for theatrical and/or studio applications. Manual override for dimming and a manually adjustable zoom allow you to add a beautifully soft light where needed.

    Features

    16-Bit Dimming Resolution

    Achieve exceptionally smooth fades and precise intensity control with high-resolution dimming.

    Flat, Even Light Field

    Produces a consistent and uniform field of light for seamless wash coverage.

    Silent Operation

    Its virtually silent performance makes it perfect for use in any noise-sensitive situation.

    Versatile DMX Profiles

    Includes both simple and complex DMX channel profiles for flexible programming options.

    Manual Variable Zoom

    A manually controlled zoom provides a variable beam angle from 21° to 83°.

    Latest News

    CHAUVET Professional Ovation Provides Theatrical Looks at Colombia’s University of Atlántico
    Ovation fixtures provide the foundation for a Colombian university’s new theatrical stage.
    Read more
    Justin Preston Uses Over 400 CHAUVET Professional Fixtures at NBA All-Star Event
    Lighting designer Justin Preston creates a dazzling experience for the NBA All-Star Weekend with over 400 CHAUVET Professional fixtures.
    Read more

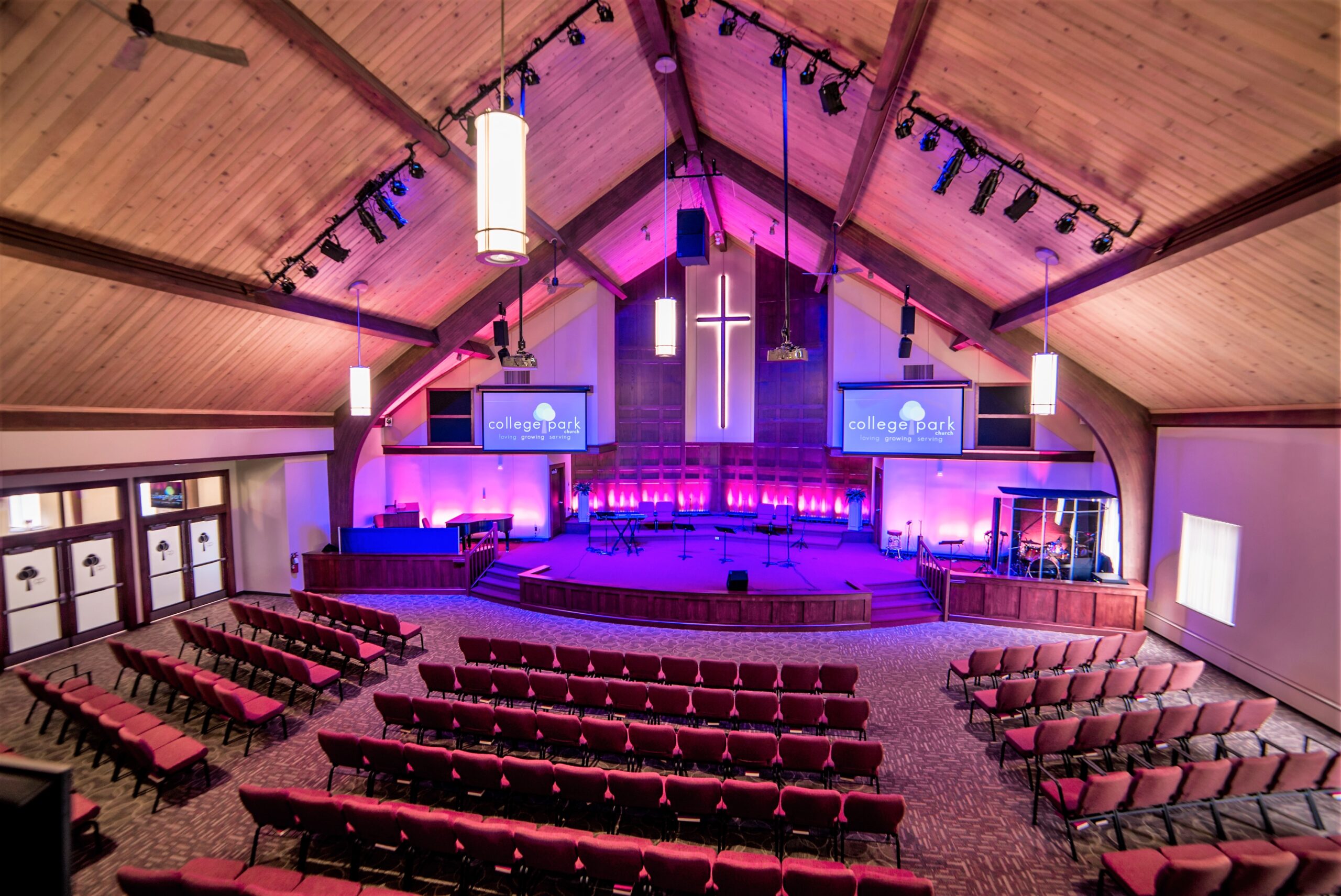

    CSD Group Adds Flexibility To Historic College Park Church With Help From Chauvet
    CSD Group balances tradition and modernity at College Park Church with a versatile lighting design.
    Read more
    CCI Solutions Helps Turn Movie Theater Into Church With CHAUVET Professional
    An Indiana movie theater finds new life as a church with a versatile CHAUVET Professional rig.
    Read more
    CCI Solutions Calls On CHAUVET Professional To Create Worship Environment in Former Outlet Store
    A former retail store finds new life as a dynamic worship space with CHAUVET Professional.
    Read more
    CHAUVET Professional Ovation Provides Theatrical Looks at Colombia’s University of Atlántico
    Ovation fixtures provide the foundation for a Colombian university’s new theatrical stage.
    Read more
    Justin Preston Uses Over 400 CHAUVET Professional Fixtures at NBA All-Star Event
    Lighting designer Justin Preston creates a dazzling experience for the NBA All-Star Weekend with over 400 CHAUVET Professional fixtures.
    Read more
    CSD Group Adds Flexibility To Historic College Park Church With Help From Chauvet
    CSD Group balances tradition and modernity at College Park Church with a versatile lighting design.
    Read more
    CCI Solutions Helps Turn Movie Theater Into Church With CHAUVET Professional
    An Indiana movie theater finds new life as a church with a versatile CHAUVET Professional rig.
    Read more
    CCI Solutions Calls On CHAUVET Professional To Create Worship Environment in Former Outlet Store
    A former retail store finds new life as a dynamic worship space with CHAUVET Professional.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        9 LEDs (WW) 10 W, (2.8 A), 100,000 hours life expectancy

      • Color Temperature (at full)

        3199 K

      • CRI

        91

      • Beam Angle

        11° to 60°

      • Field Angle

        21° to 83°

      • Zoom Angle

        21° to 83°

      • Lumens (21°)

        1,681

      • Lumens (83°)

        3,741

      • PWM Frequency

        600 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Zoom

        Manual

      • Focus

        Manual

      • Strobe Rate

        0 to 20 Hz

      • Dim Modes

        5

      • Dim Curves

        4

      Construction/Physical

      • Dimensions

        12.8 x 11 x 16.5 in (325 x 279 x 420 mm)

      • Weight

        13.4 lb (6.1 kg)

      • Exterior Color

        Black

      • Gel Frame Size

        6.25 in/159 mm

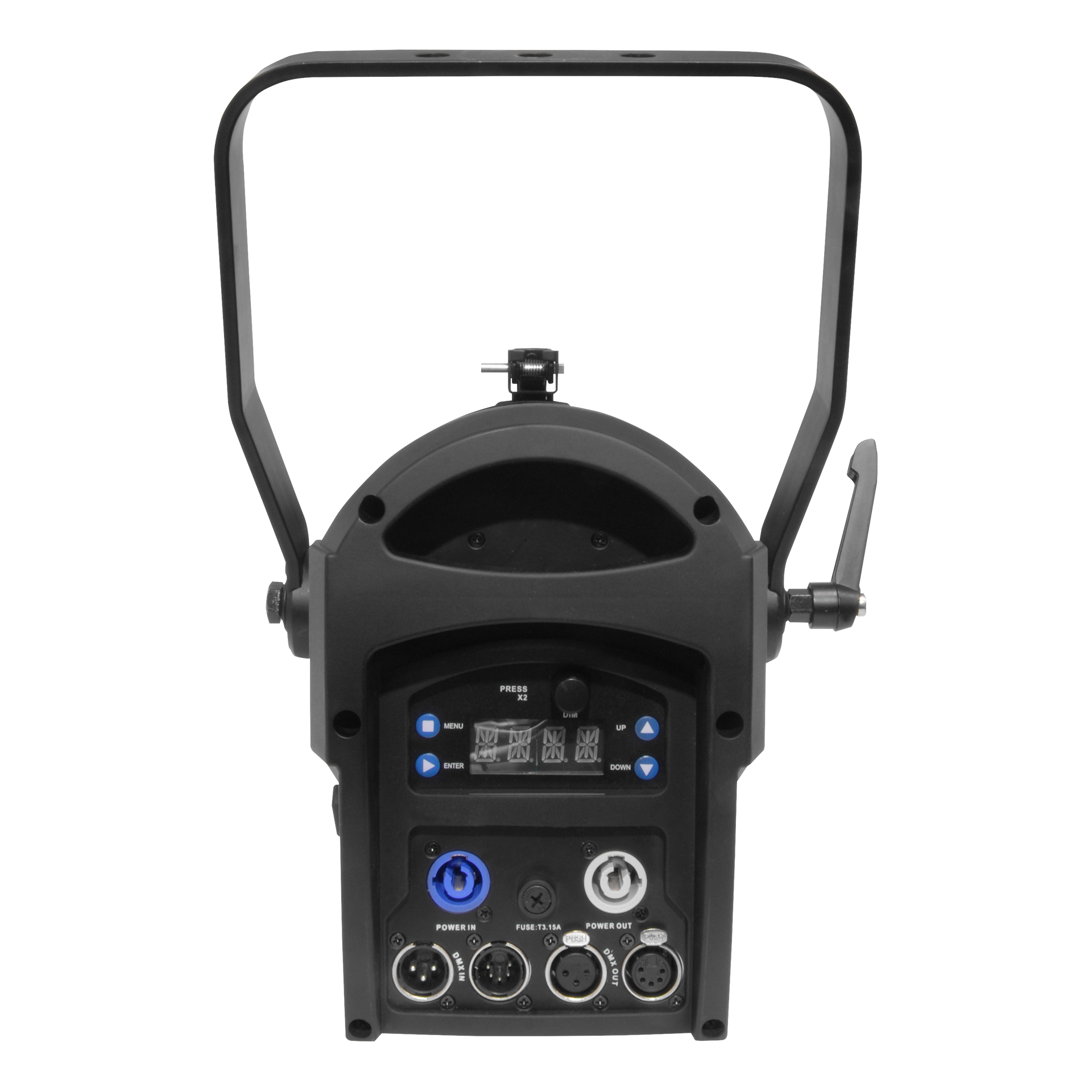

      Connections

      • Power Connection

        Edison plug to Neutrik powerCON

      • Power Input

        Neutrik powerCON

      • Power Output

        Neutrik powerCON

      • Data Connectors

        3- and 5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX

      • DMX Channels

        1, 2 or 3

      • Modes/Personalities

        3 personalities (UNO, DOS, STD.P)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        15 units @ 120 V; 25 units @ 208 V; 28 units @ 230 V

      • Power and Current

        108 W, 0.89 A @ 120 V, 60 Hz

      • Power and Current

        110 W, 0.53 A @ 208 V, 60 Hz

      • Power and Current

        110 W, 0.48 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP20, dry location

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Neutrik powerCON cables
      • 3-pin or 5-pin DMX Cables
      • Color Blending Filters: DF60X1D, DF20D
      • Ovation F6.25” Barndoor

      What's Included

      • Ovation F-95WW
      • Neutrik powerCON power cord
      • Gel frame (6.25 in/159 mm accessories)
