    onAir Panel 2 IP

    A rugged, IP65-rated 1×2 full-spectrum LED soft light panel delivering superior quality white light, full color capabilities, and a comprehensive suite of control and power options.
    Ideal for on-location broadcast, film, and event production where high-quality, all-weather, and flexible lighting is critical.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: ONAIRPANEL2IP

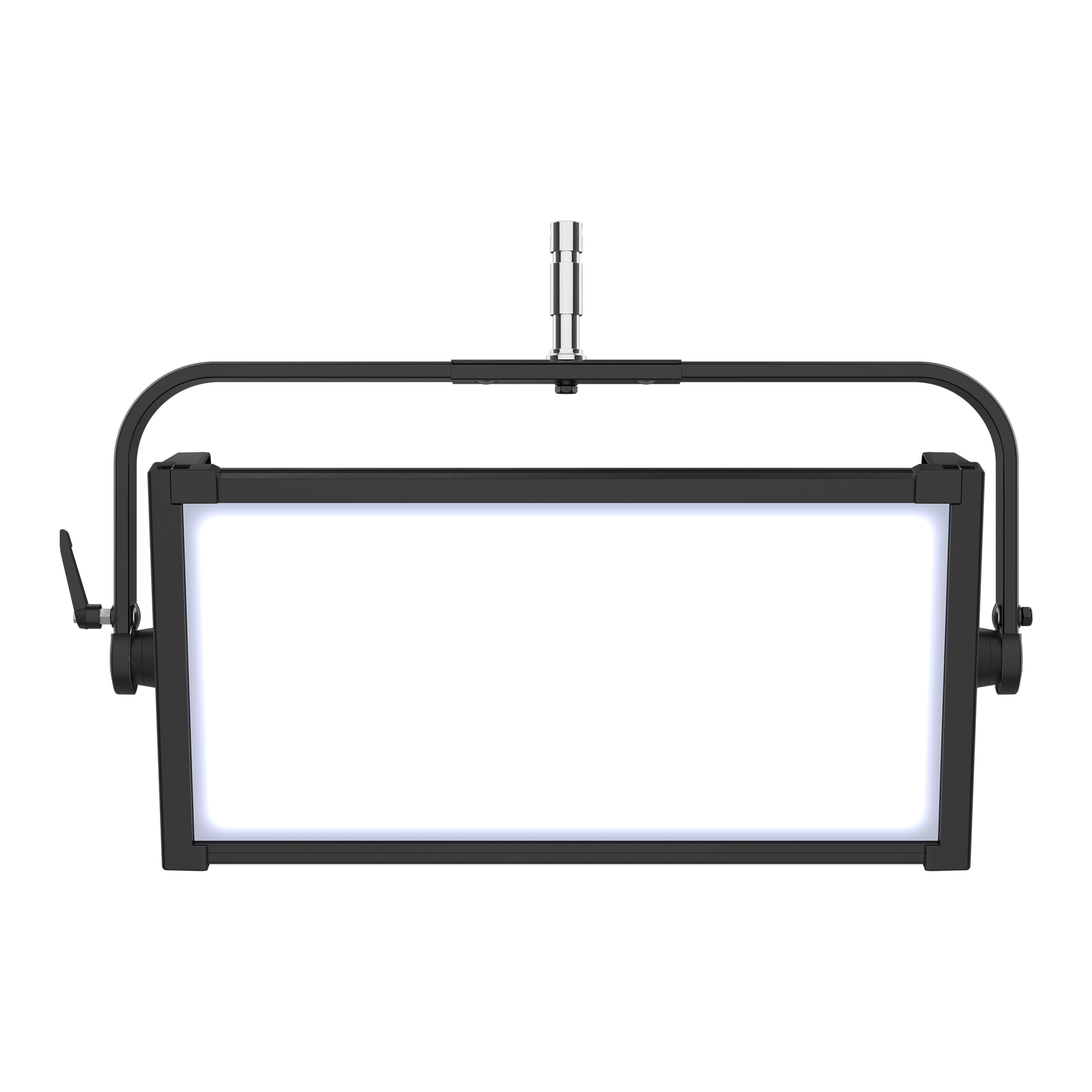

    onAir Panel 2 IP

    Specifications
    		 Download
    User Manual
    		 Download
    Quick Reference Guide
    		 Download
    DMX Chart
    		 Download
    IES File
    		 Download
    2D CAD File
    		 Download
    3D CAD File
    		 Download
    Photometrics Report
    		 Download
    Acoustic Report
    		 Download
    Firmware
    		 Download
    Download All Resources

    onAir Panel 2 IP

    SKU: ONAIRPANEL2IP

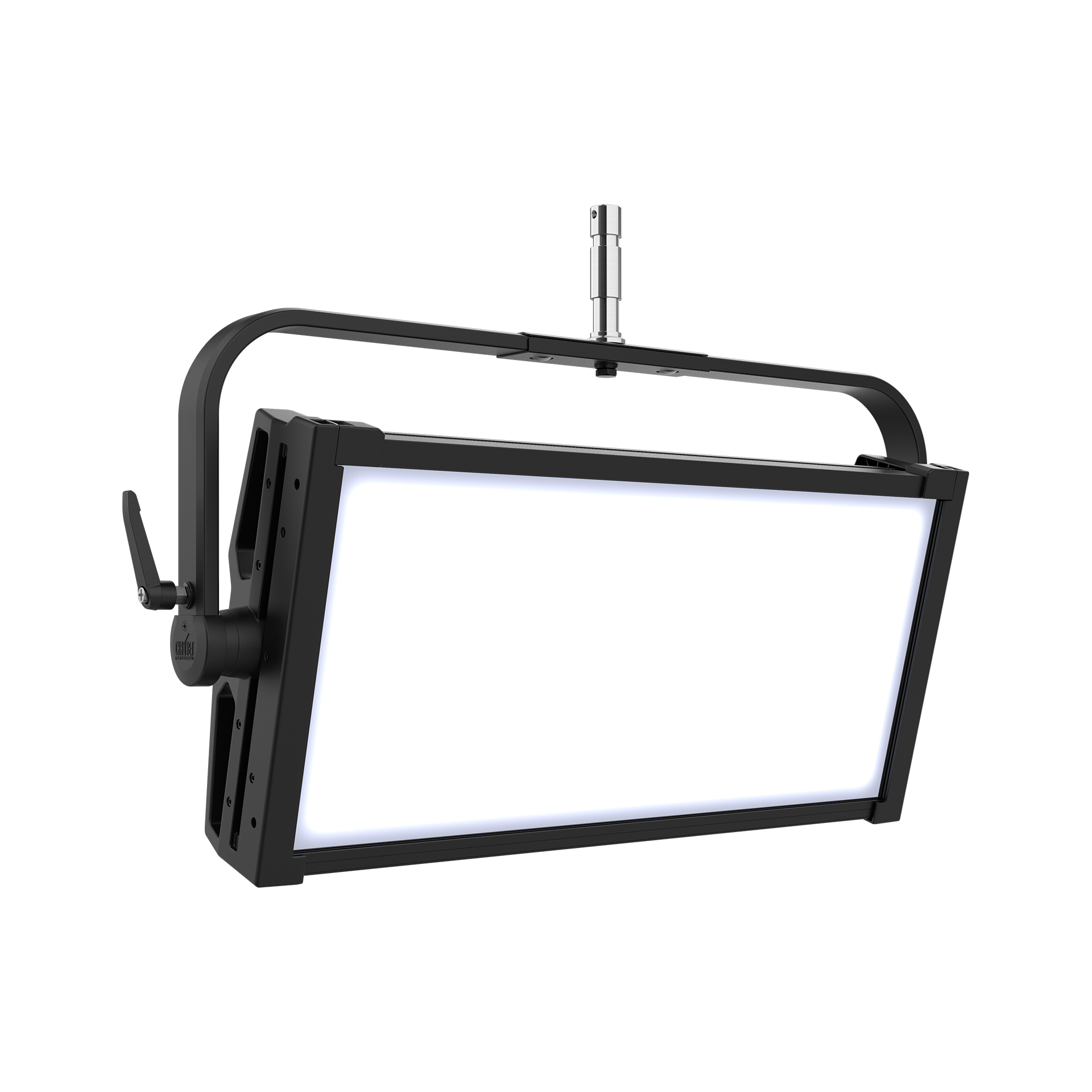

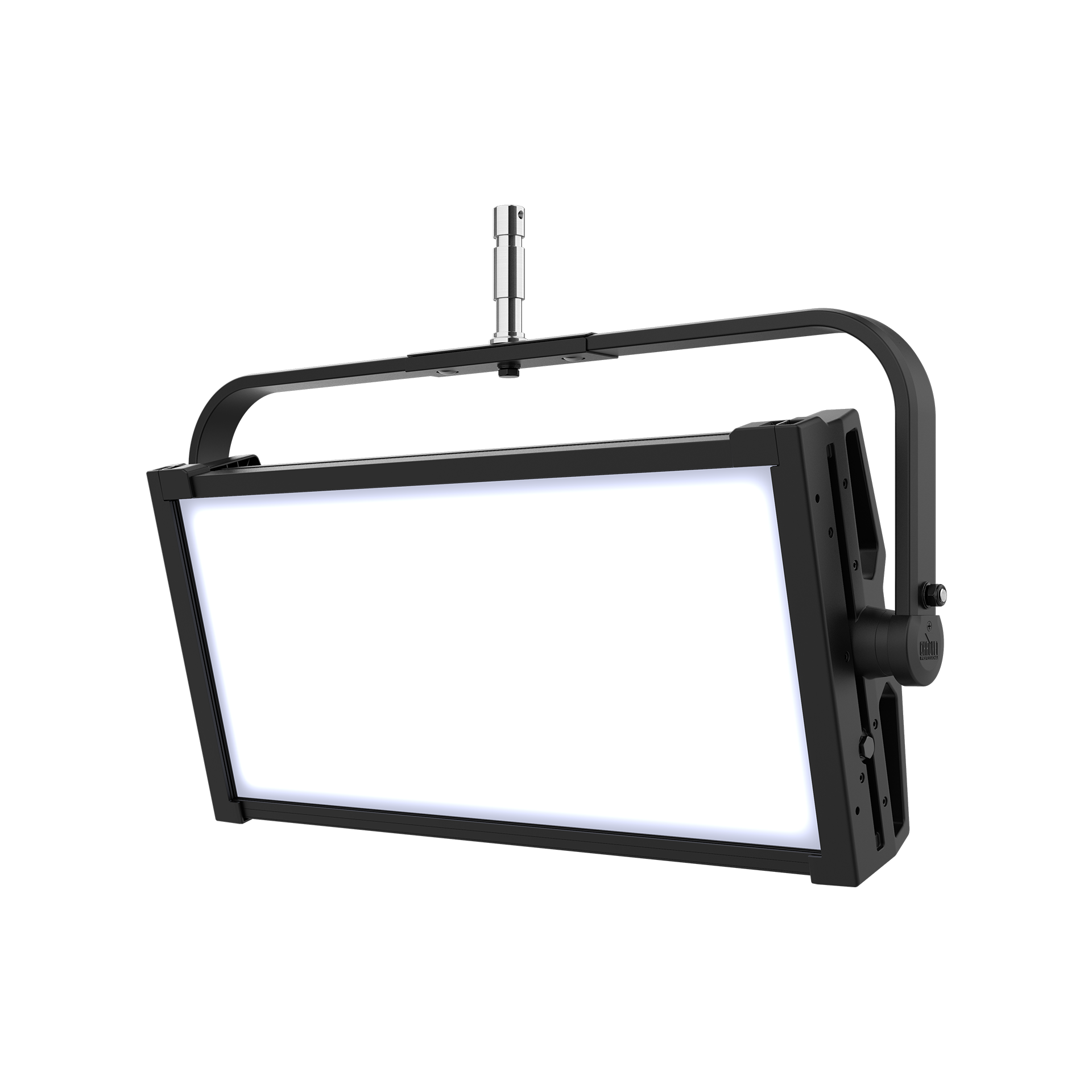

    onAir Panel 2 IP is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

    Features

    Full-Spectrum LED Soft Light

    Provides high-quality soft lighting in a 2×1 panel format ideal for broadcast, film, and special events.

    IP65 All-Weather Rating

    Ensures reliable performance in all weather conditions, making it suitable for both indoor and outdoor use.

    Wide Color Temperature Range

    Adjust the color temperature from 2800 K to 8000 K with high CRI and CQS for accurate color rendering.

    Virtual Gel Color Wheel

    Access a virtual color wheel with presets matched to popular gel colors for quick and familiar color selection.

    Precise Color Control

    Fine-tune your output with plus/minus green adjustment and emulated red-shift via DMX or on-board controls.

    Advanced Wireless Control

    RDM and CRMX wireless capabilities offer enhanced flexibility for remote fixture management and operation.

    Flicker-Free Operation

    Adjustable Pulse Width Modulation (PWM) prevents on-camera flickering for clean video capture.

    Silent Studio Operation

    Virtually silent performance makes it perfect for noise-sensitive studio and broadcast environments.

    Smooth 16-Bit Dimming

    Achieve ultra-smooth fades with 16-bit dimming curves and speeds to complement any lighting scheme.

    Versatile Mounting Options

    Easily switch between a Jr Pin and an Omega Bracket to suit your rigging needs.

    Integrated Accessory Slot

    A convenient drop-in slot allows for the easy addition of optional diffusers and intensifier filters.

    Rugged, Durable Construction

    The rugged design is built to withstand years of rough use in the most extreme conditions.

    Intuitive On-Board Control

    Access all fixture features directly through an easy-to-use on-board interface without needing a separate controller.

    USB Port for Updates

    Keep your fixture’s software current using the convenient built-in USB port.

    External Battery Power Input

    A 28 VDC power input via 3-pin XLR enables you to operate the fixture using an external battery pack.

    Latest News

    Mextly Couzin Reflects Complex Web of Human Emotions in Broadway Show Job with CHAUVET Professional
    Lighting designer Mextly Couzin visualizes the complex emotional worlds of the Broadway play ‘Job.’
    Read more
    Barrett Hall and Invoke Entertainment Create Elegant Emmys Red Carpet Looks with CHAUVET Professional
    Producer Barrett Hall and LD Ben Green craft an elegant, camera-ready red carpet for the Primetime Emmy Awards.
    Read more
    Materie Event Production GmbH Reflects Energy of MediMeisterschaften with CHAUVET Professional
    Materie Event Production GmbH matches the energy of a German music festival with a dynamic design.
    Read more
    Mextly Couzin Reflects Complex Web of Human Emotions in Broadway Show Job with CHAUVET Professional
    Lighting designer Mextly Couzin visualizes the complex emotional worlds of the Broadway play ‘Job.’
    Read more
    Barrett Hall and Invoke Entertainment Create Elegant Emmys Red Carpet Looks with CHAUVET Professional
    Producer Barrett Hall and LD Ben Green craft an elegant, camera-ready red carpet for the Primetime Emmy Awards.
    Read more
    Materie Event Production GmbH Reflects Energy of MediMeisterschaften with CHAUVET Professional
    Materie Event Production GmbH matches the energy of a German music festival with a dynamic design.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    onAir Panel Min IP

    Compact, IP65 soft light for silent on-camera use.

    onAir Flex Drive 2

    Quiet, flicker-free LED driver for broadcast control.

    CTC-50HC

    Anodized aluminum clamp for high-load rigging applications.

    CTC-50HCBLK

    Heavy-duty, black anodized clamp for high-load rigging.

    CTC-50HCN

    Heavy-duty, narrow-profile clamp for crowded truss.

    CTC-50HCNBLK

    High-capacity narrow clamp for rigging in tight spaces.

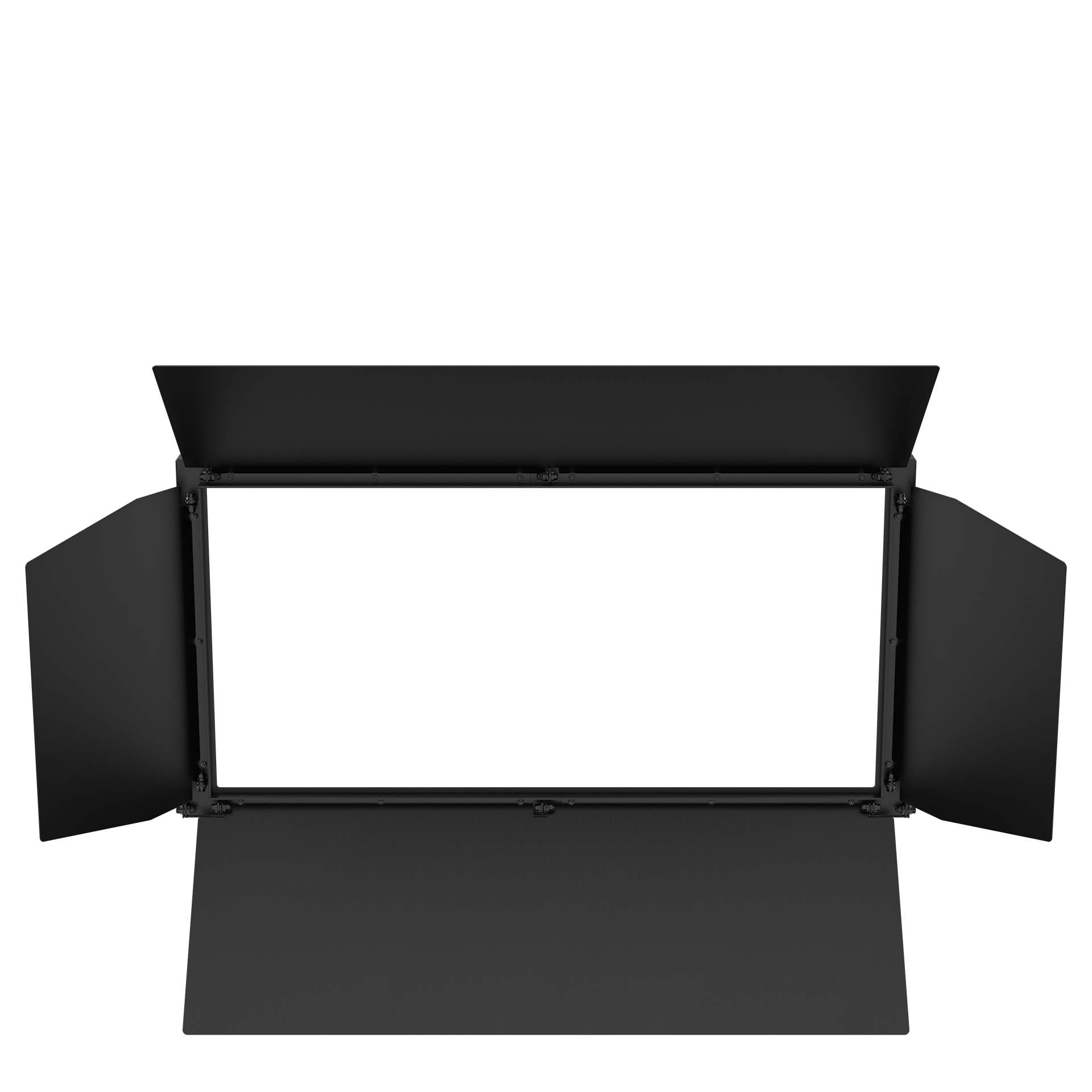

    onAir Panel 2 IP Studio Barndoor

    Four-leaf barndoor for precise light spill control.

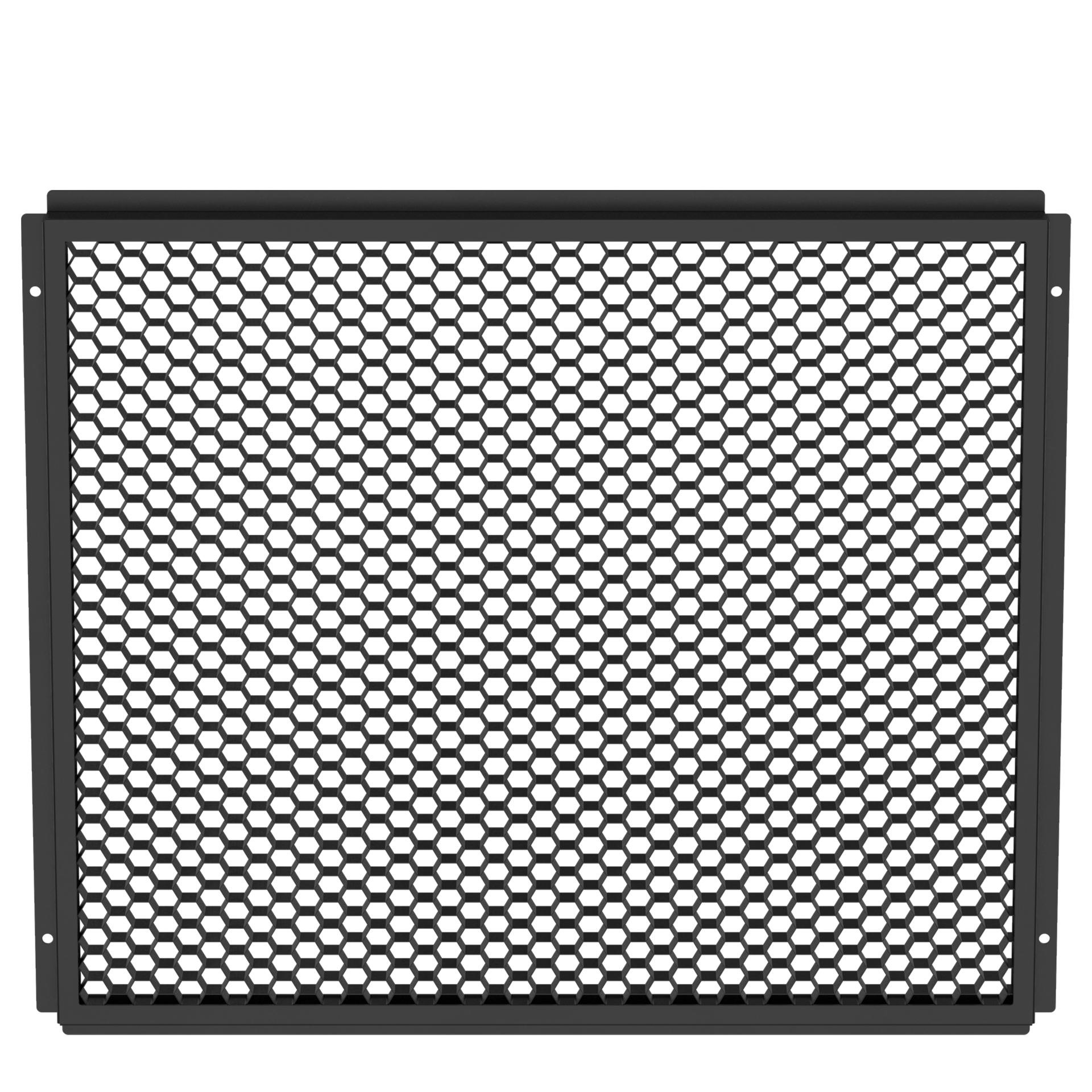

    onAir Panel 1 IP 60° Honeycomb

    Honeycomb grid for precise beam shaping and spill control.

    onAir Panel 2 IP 30° Honeycomb

    Honeycomb grid for precise beam control and spill reduction.

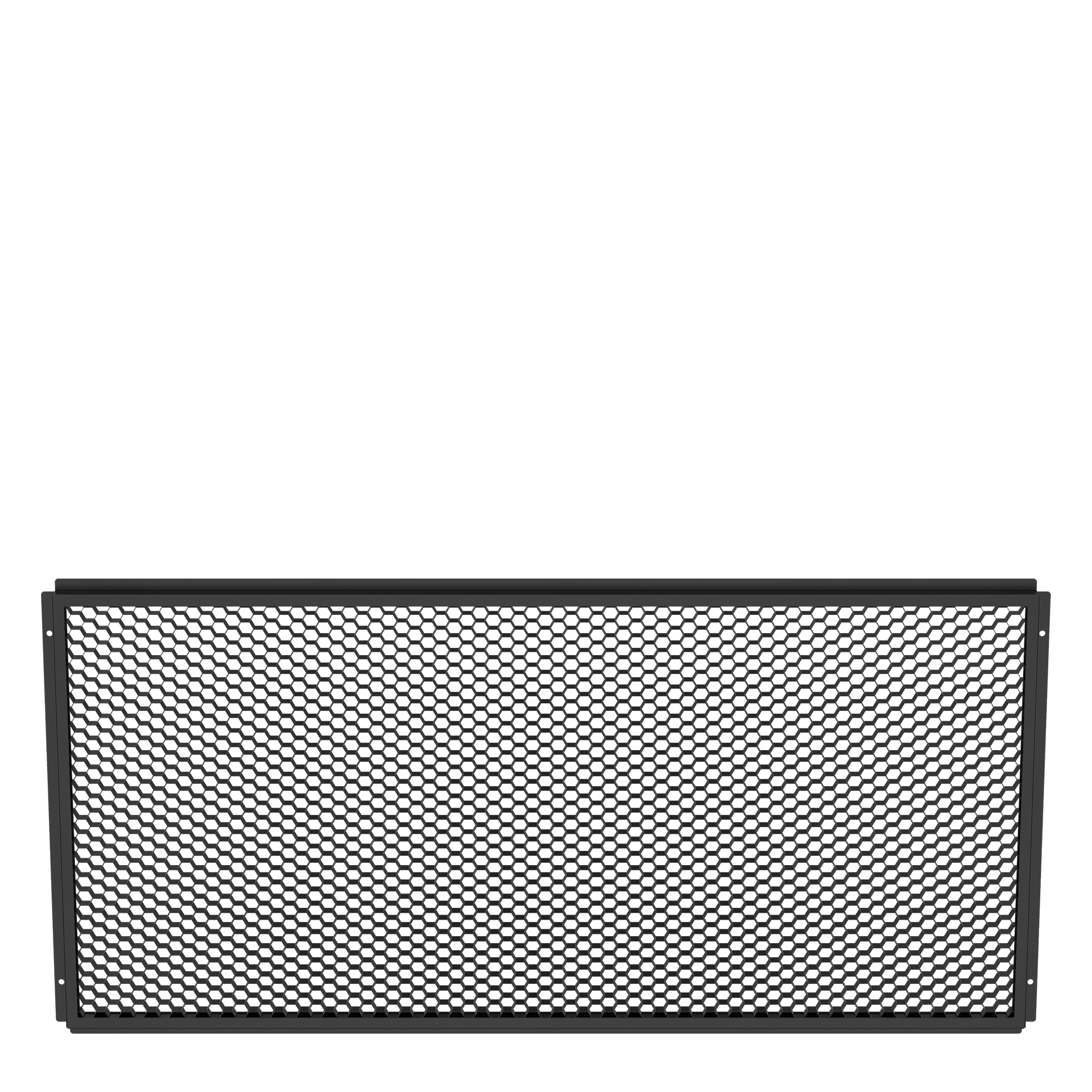

    onAir Panel 2 IP 60° Honeycomb

    Honeycomb grid for precise beam control and spill elimination.

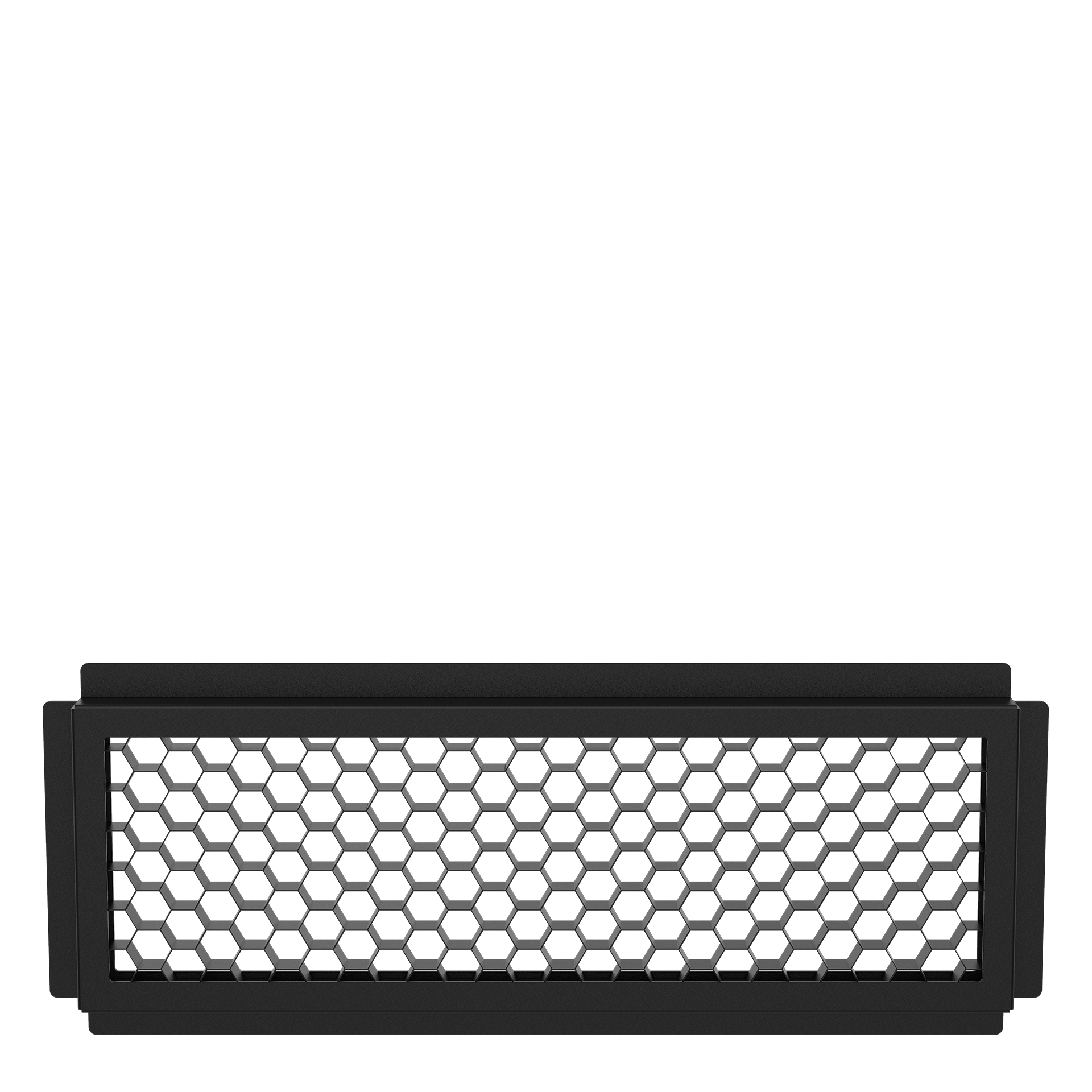

    onAir Panel Min IP 60° Honeycomb

    Grid accessory for precise beam shaping and glare reduction.

    onAir Panel 1 IP Barndoor

    Four-leaf barndoor for precise beam and glare control.

    onAir Panel 1 IP Heavy Diffusion Filter

    Heavy diffusion filter for soft, flattering studio light.

    onAir Panel 1 IP Intensifier

    Concentrates output for long-throw applications.

    onAir Panel 1 IP Light Diffusion Filter

    Accessory filter to create defined, high-contrast shadows.

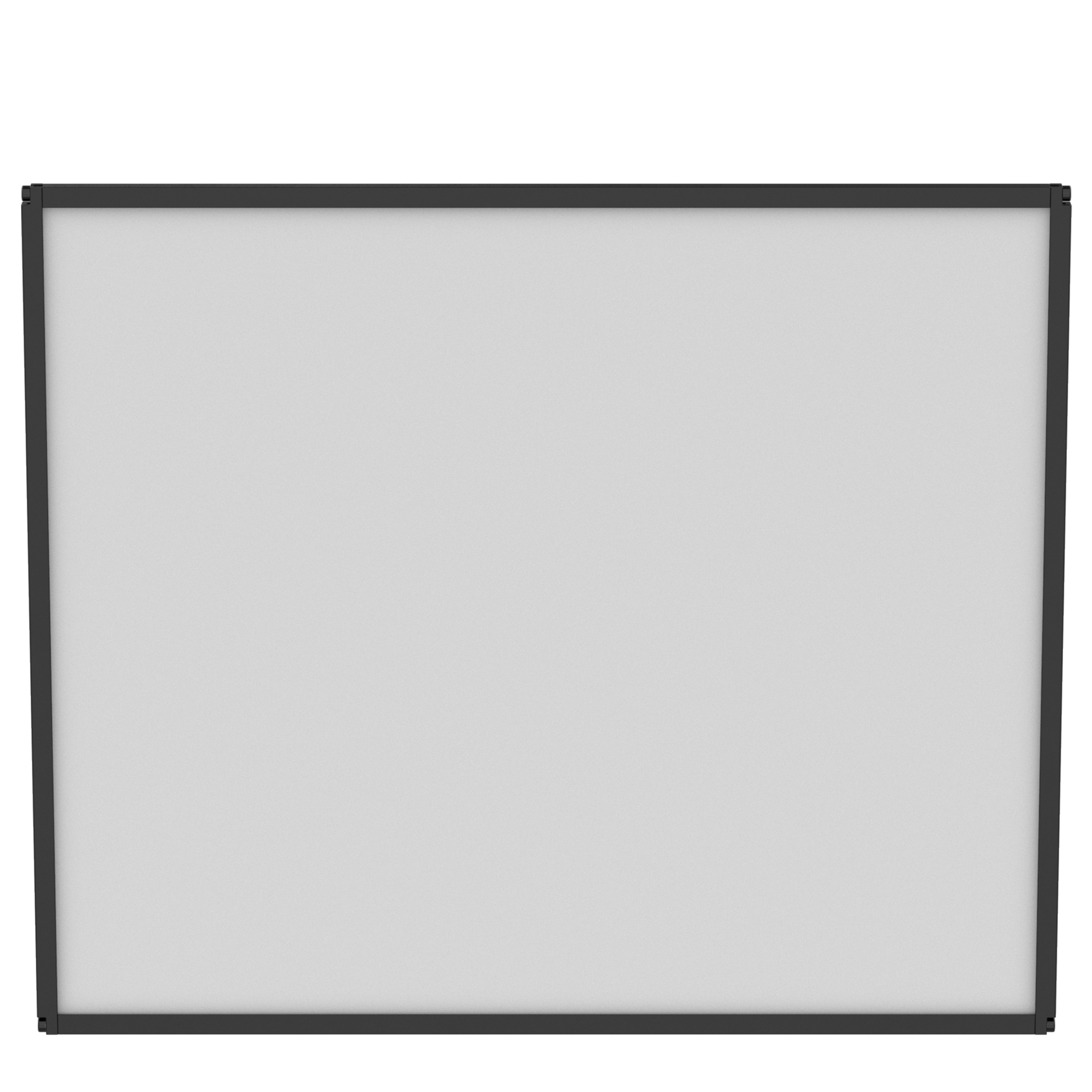

    onAir Panel 1 IP Medium Diffusion Filter

    Medium diffusion filter for on-camera applications.

    onAir Panel 1 IP Pole Yoke

    Pole-operated yoke for ground-level pan and tilt control.

    onAir Panel 2 IP Heavy Diffusion Filter

    Heavy filter for the softest possible light output.

    onAir Panel 2 IP Intensifier

    Accessory filter for focused, long-throw illumination.

    onAir Panel 2 IP Light Diffusion Filter

    Shapes a hard-edged beam for high-contrast key lighting.

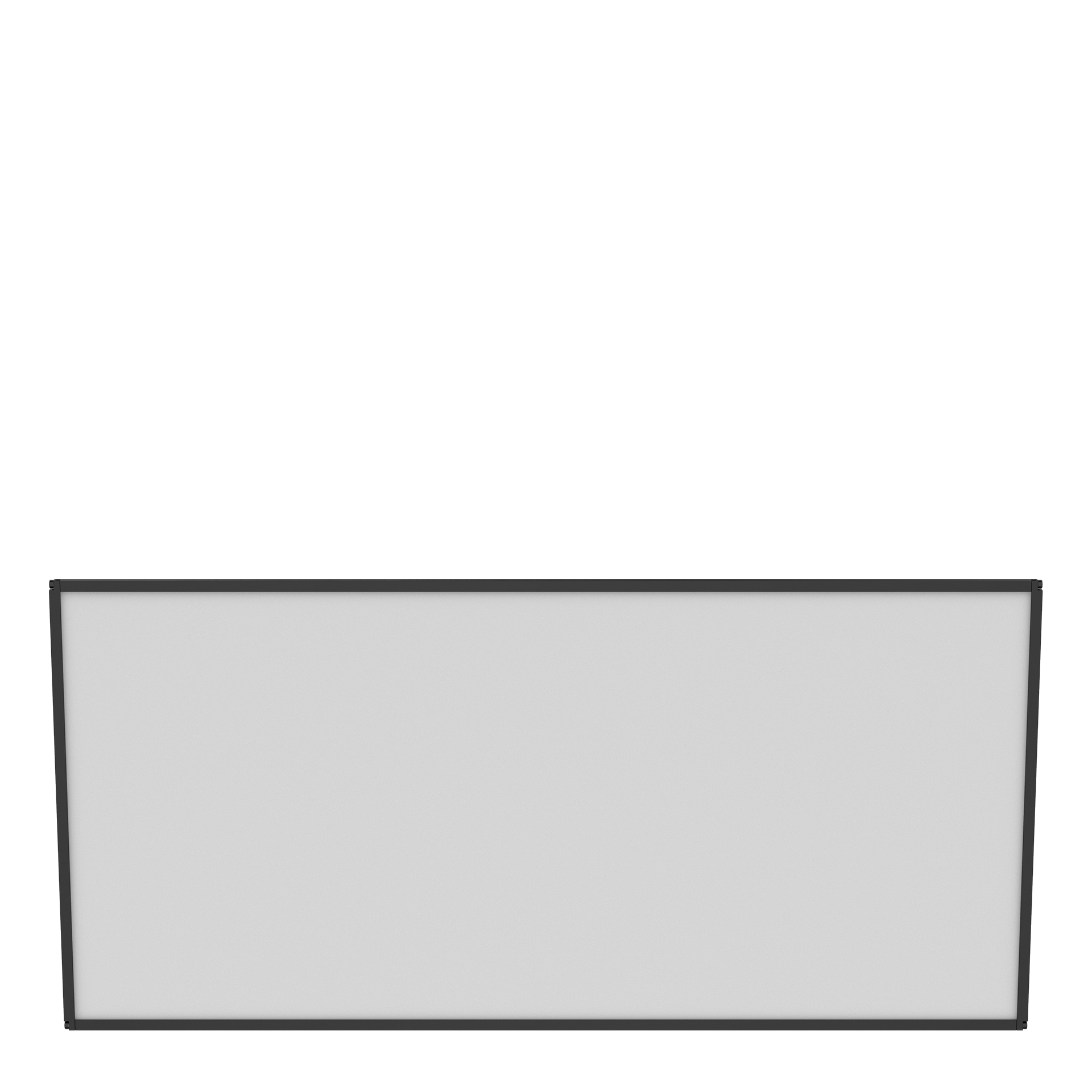

    onAir Panel 2 IP Medium Diffusion Filter

    Accessory filter for a soft, even field of light.

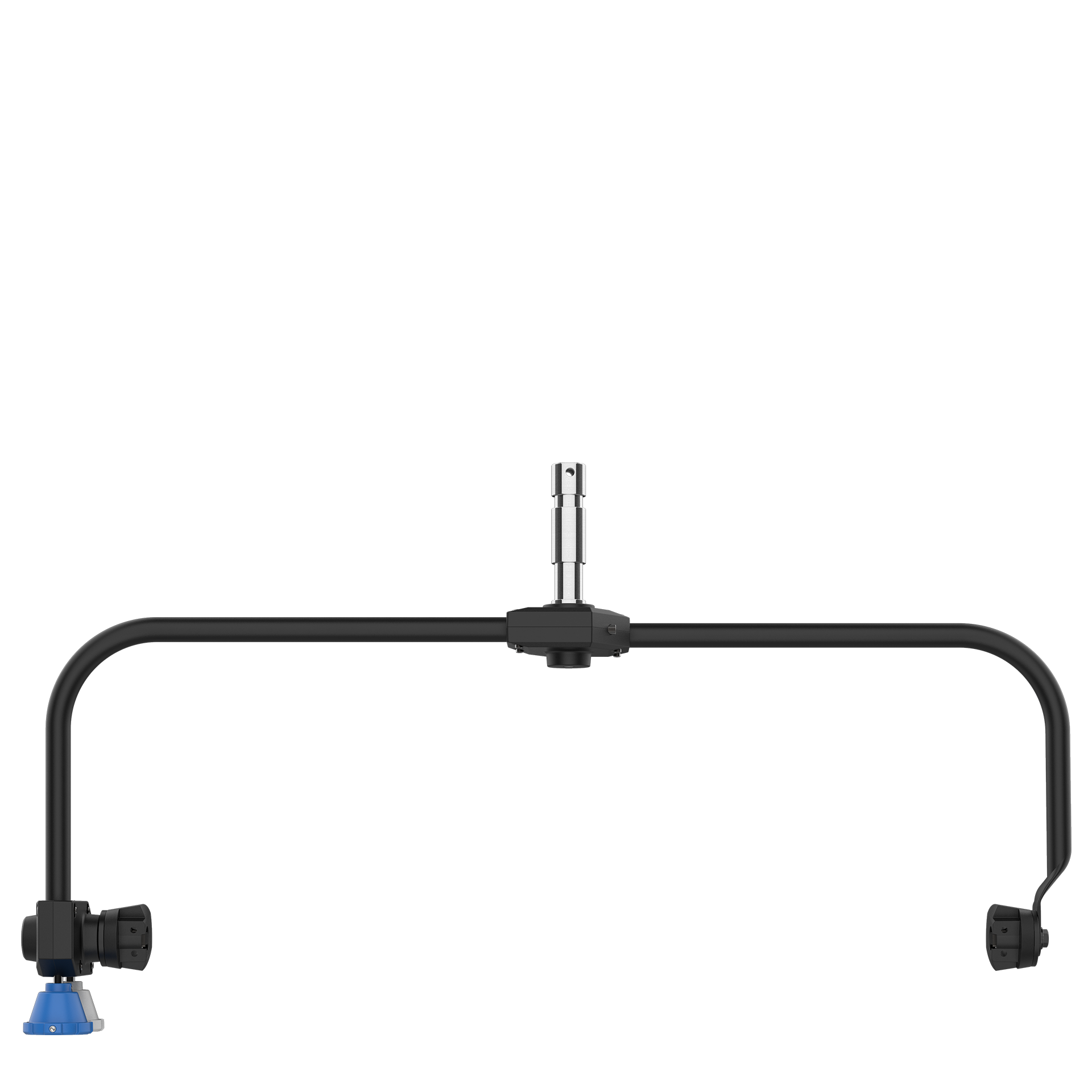

    onAir Panel 2 IP Pole Yoke

    Pole-operated yoke for manual ground-level pan and tilt.

    onAir Panel Min IP Barndoor

    All-metal shield for precise light spill control.

    RIGLINK DMX Cables

    Production-grade, double-shielded for signal integrity.

    RIGLINK PowerKon Cables

    Rugged, UL-certified power cable for touring reliability.

    RIGLINK 4-Pin Cables

    IP65 hybrid cable for streamlined power and DMX runs.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        448 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.

      • Light Source

        448 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy. Color Temperature (range): 2800 to 8000 K

      • Color Temperature (range)

        2800 to 8000 K

      • Color Temperature (at full)

        7220 K

      • CRI

        95

      • Beam Angle

        100.2°

      • Field Angle

        157°

      • Lumens

        22,508

      • Illuminance

        349 lux @ 5 m

      • Selectable PWM

        600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 30 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        4

      • Dim Curves

        4

      • Built-in Automated Programs

        Yes

      Construction/Physical

      • Dimensions

        33.4 x 5.4 x 21.6 in (849 x 139 x 553 mm)

      • Weight

        37.9 lb (17.1 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum alloy

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Power Input

        28 VDC, 3-pin IP65 XLR

      • Data Connectors

        5-pin IP65 XLR, Seetronic etherCON® Compatible Cable Length (power): 5 ft (1.5 m)

      • Cable Length (power)

        5 ft (1.5 m)

      • Software Connection

        USB

      Control

      • Control Protocol

        Art-Net, sACN, DMX, CRMX, RDM

      • DMX Channels

        1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32

      • Art-Net Channels

        1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32

      • Modes/Personalities

        12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V, 8 units @ 240 V

      • Power and Current

        372 W, 3.104 A @ 120 V, 60 Hz

      • Power and Current

        371 W, 1.774 A @ 208 V, 60 Hz

      • Power and Current

        370 W, 1.608 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, FCC,

      • IP Rating

        IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

        • Noise Levels
          • Noise Level (Auto)

            7.8 dB(A) @ 1 m

          • Noise Level (On)

            20.3 dB(A) @ 1 m

          • Noise Level (Off)

            6.1 dB(A) @ 1 m

          • Noise Level (Silent)

            15.9 dB(A) level @ 1 m

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • onAir Panel 2 IP Barndoor
      • onAir Panel 2 IP 60° Honeycomb
      • onAir Panel 2 IP Diffusion Filter Pack
      • onAir Panel 2 IP Light Diffusion Filter
      • onAir Panel 2 IP Medium Diffusion Filter
      • onAir Panel 2 IP Heavy Diffusion Filter
      • onAir Panel 2 IP Intensifier
      • onAir Panel 2 IP Pole Yoke
      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Seetronic Powerkon power linking cables
      • 5-pin DMX Cables
      • Ethernet Cables

      What's Included

      • onAir Panel 2 IP
      • Seetronic Powerkon IP65
      • Omega bracket with mounting hardware
      • onAir Panel 2 IP Medium Diffusion Filter
      • TV Junior Spigot

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      onAir Panel 2 IP – User Manual
      		Download
      Manuals
      onAir Panel 2 IP – Quick Reference Guide
      		Download
      DMX
      onAir Panel 2 IP – DMX Chart
      		Download
      Photometrics
      onAir Panel 2 IP – IES File
      		Download
      Drawings
      onAir Panel 2 IP – 2D CAD File
      		Download
      Drawings
      onAir Panel 2 IP – 3D CAD File
      		Download
      Photometrics
      onAir Panel 2 IP – Photometrics Report
      		Download
      Manuals
      OnAir Panel 2 IP – Acoustic Report
      		Download
      Other
      onAir Panel 2 IP – Firmware
      		Download

      Latest Articles

      Browse Articles

      onAir Panel 2 IP FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the onAir Panel 2 IP
      Can the onAir Panel 2 IP be used in the rain?

      Yes, the onAir Panel 2 IP is designed for all-weather use, both indoors and outdoors. Its rugged, element-resistant construction means it can safely operate in conditions like rain, making it reliable for on-location shoots and outdoor events.

      How can I adjust the light color on the onAir Panel 2 IP?

      The panel offers exceptional control over its light. You can adjust the white light from a warm to a cool tone, fine-tune the green balance for perfect skin tones on camera, and even select from a virtual wheel of popular colored gels to create specific moods and effects.

      Can the onAir Panel 2 IP run on battery power?

      Yes, it can. The onAir Panel 2 IP features an input for an external battery pack, giving you the flexibility to use the light in remote locations or anywhere a standard power outlet isn’t available. This makes it ideal for mobile broadcast and film crews.
