Nexus 4×4

A versatile LED wash panel combining pixel mapping capabilities with sixteen powerful tri-colored COB LEDs to produce a robust and richly saturated wash of diffused light.
With interlocking hardware to build large arrays, it excels at creating visually impactful backdrops and set pieces for touring, broadcast, and live event productions.

Nexus 4×4

SKU: NEXUS4X4

Demo

“The Camera Is Your Friend” — When Creating Designs For Live Events

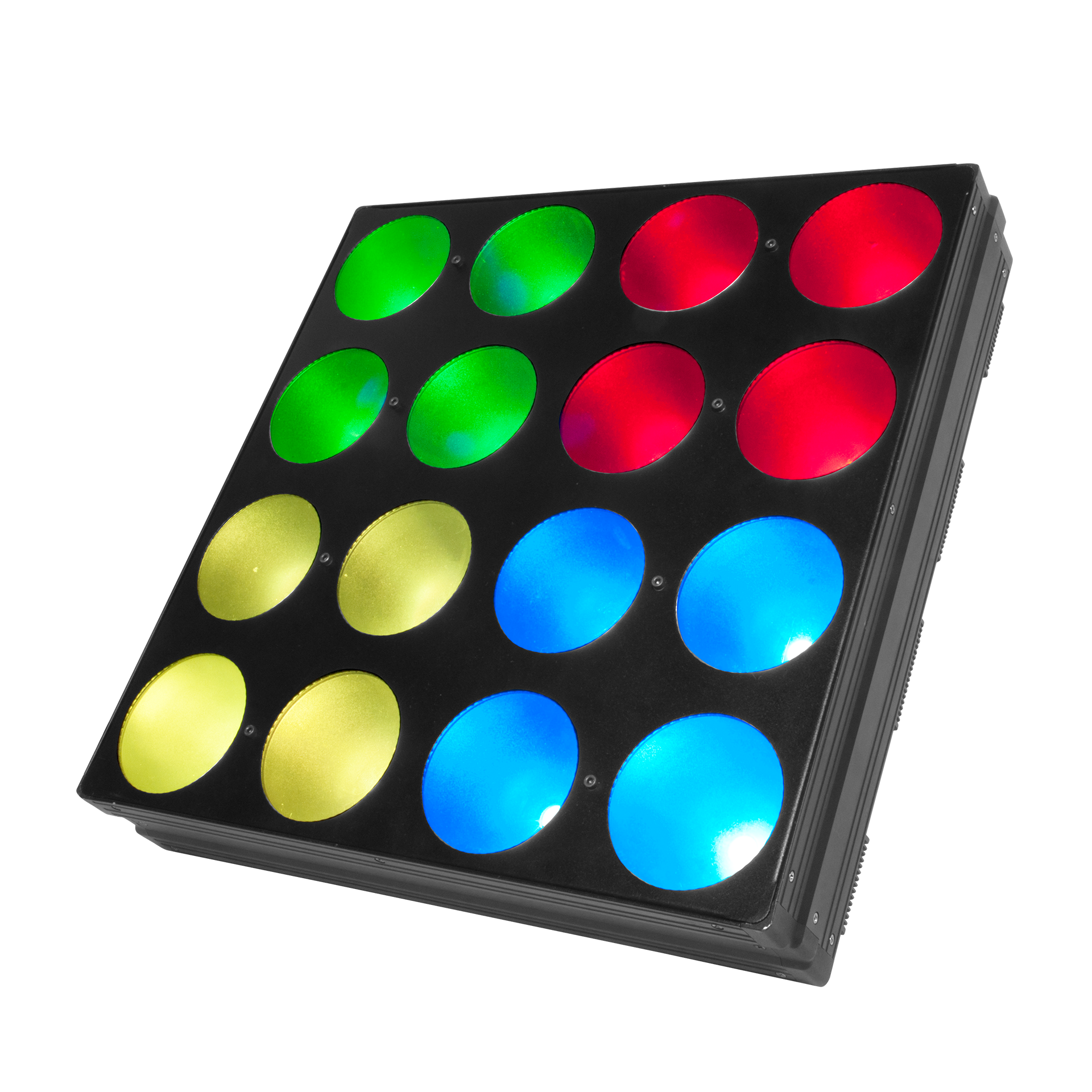

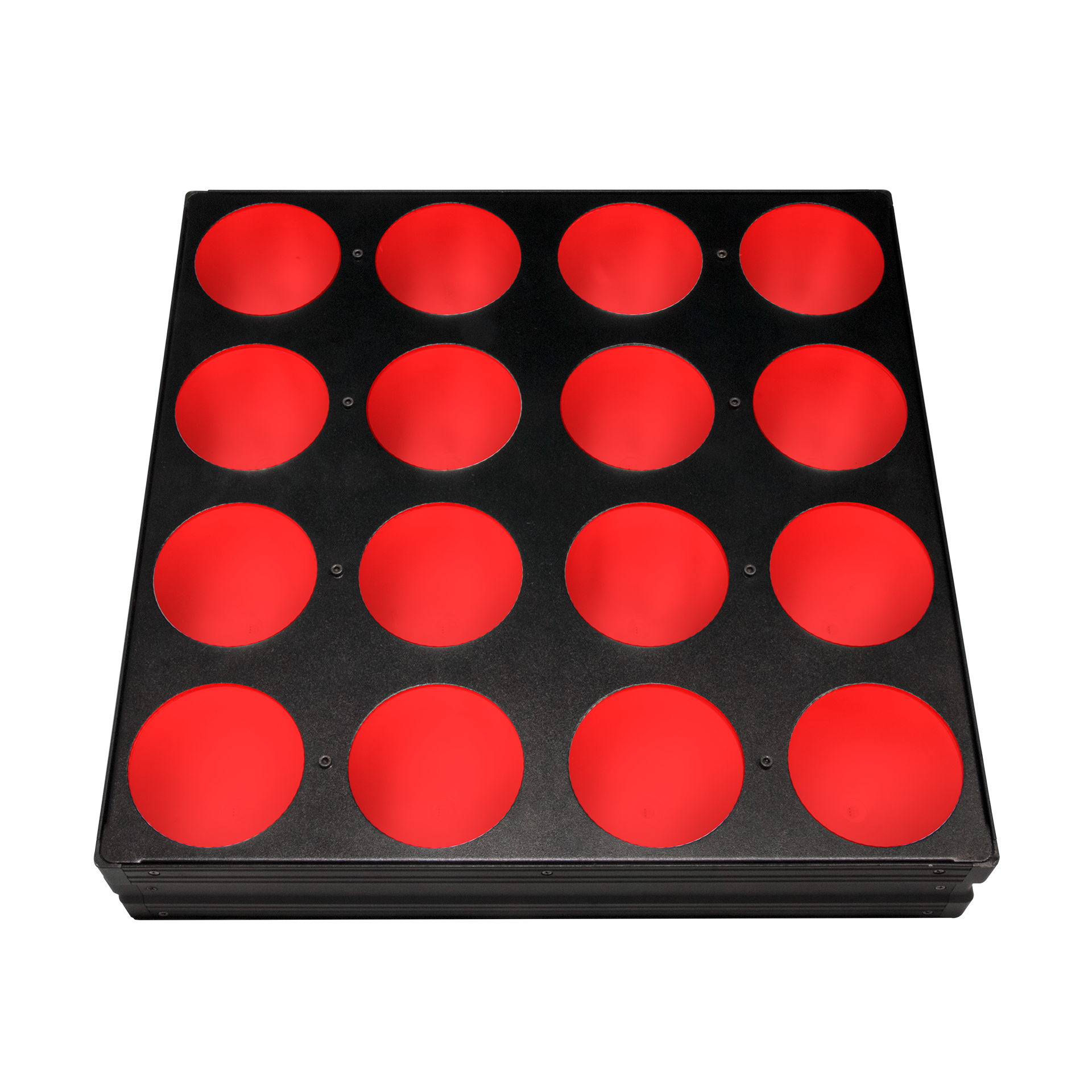

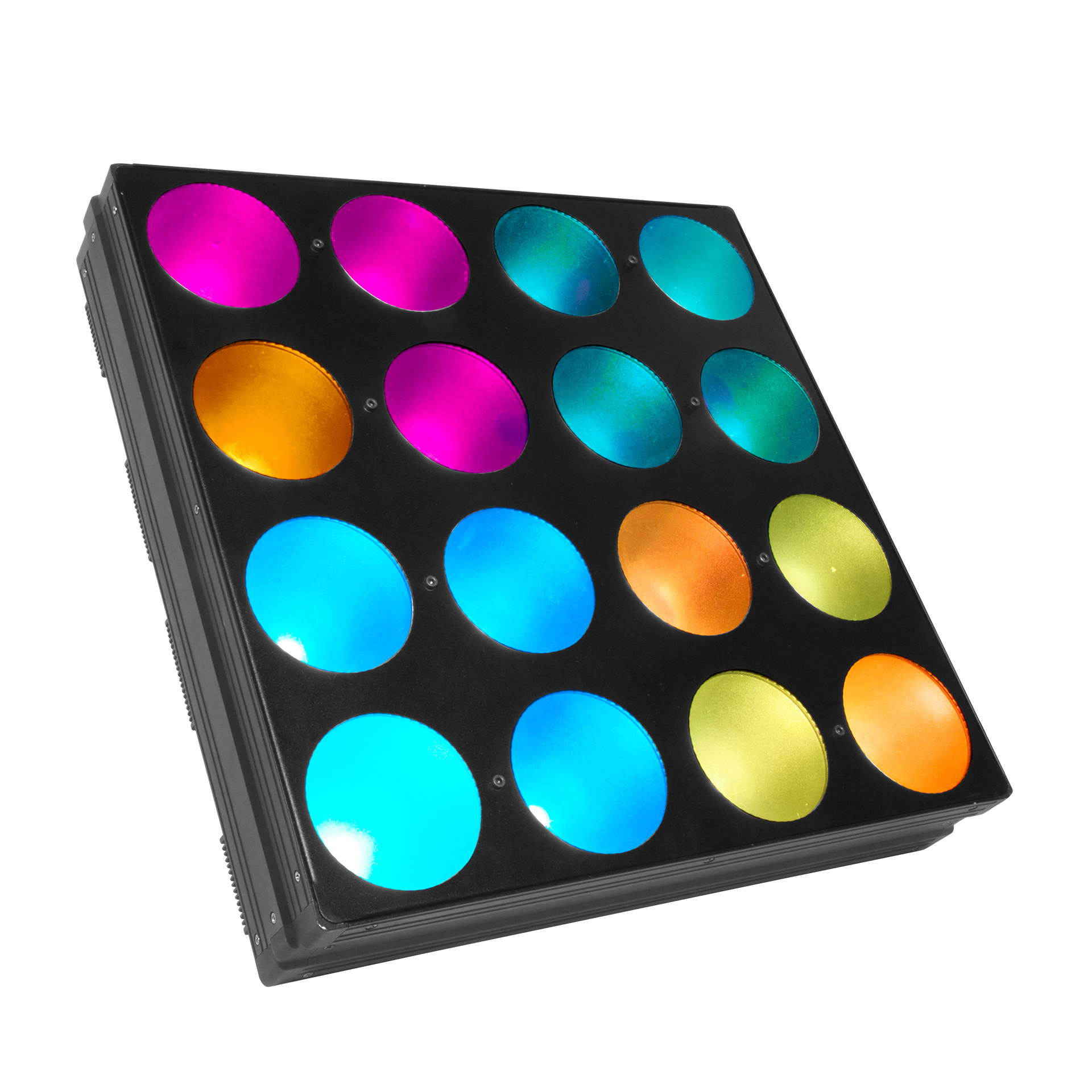

Nexus 4×4 is an award winning LED wash panel combining the sizzle of pixel mapping and a robust light output afforded by 16 27 W COB tri-colored LEDs. The combination of COB emitters and a clever reflector design yields a striking, diffused light richly drenched in saturated hues. Nexus 4×4 is controllable via Art-Net, Kling-Net and DMX protocols and features interlocking hardware to build large arrays. Whether in use for front viewing or as a backdrop, Nexus 4×4 promises a hard-to-match visual impact.

Features

Vibrant RGB Blinder

Achieve a wide range of vibrant colors with bright, pixel-mappable COB LEDs.

Individual Pixel Control

Increase your creative options by controlling each LED pixel independently for detailed mapping.

Integrated Panel Linking

Build large arrays and custom configurations by connecting multiple panels together with the built-in locking system.

Nexus Series Compatibility

Works seamlessly with existing Nexus 2×2 and Nexus 4×1 panels for expanded lighting setups.

Flexible Control Options

Design with versatile control choices including Kling-Net, Art-Net, and standard DMX protocols.

Professional Connectivity

Utilize universal power and data connectors including Neutrik powerCON, Neutrik etherCON, and 3- and 5-pin DMX.

Complete Your Rig

Ensure flawless results with gear designed to complement and complete your professional setup.

All
Exterior

Specifications

Download Product Specs

Optical

Light Source

16 LEDs (tri-color RGB) 27 W, (2 A), 50,000 hours life expectancy
Color Temperature (range)

2,800 to 10,000 K
Beam Angle

45°
Field Angle

75°
Illuminance (total)

484 lux @ 5 m
Pixels

4 x 4
Pixel Pitch

115 mm
Pixel Density

64/m2

Dynamic Effects

Dimmer

Electronic
Strobe Rate

0 to 20 Hz
Standalone Color Mixing

Yes
Built-in Automated Programs

Yes

Construction/Physical

- Dimensions
  - Single Unit

    18.07 x 6.61 x 18.07 in (462 x 168 x 462 mm)
  - Roadcase

    37.99 x 20.67 x 27.56 in (965 x 525 x 700 mm)
- Weight
  - Single Unit

    28.6 lb (13 kg)
  - Roadcase

    81.6 lb (37 kg)
Exterior Color

Black
Housing Material

Aluminum alloy and steel

Connections

Power Connection

Edison (Local) plug to Neutrik powerCON
Power Input

Neutrik powerCON
Power Output

Neutrik powerCON
Data Connectors

3- and 5-pin XLR, Neutrik etherCON
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

Art-Net, Kling-Net, DMX
DMX Channels

3, 5, 9, 48 or 53
Art-Net Channels

48

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking

4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current

401 W, 3.35 A @ 120 V, 60 Hz
Power and Current

393 W, 1.90 A @ 208 V, 50 Hz
Power and Current

394 W, 1.71 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET
IP Rating

IP20, dry location

Compatible Accessories

ArKaos Media Master Express + KN software
Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables

What's Included

Nexus 4×4
Neutrik powerCON power cord
#5 Allen wrench
Road case (4 Pack)

Questions or Concerns?

Let us know, we’re here to help! Contact Us

Downloads

Download All

Manuals	Nexus 4×4 Quick Reference Guide	Download
Manuals	Nexus 4×4 User Manual	Download
Manuals	Nexus 4×4 CAD File	Download
Manuals	Nexus 4×4 Art-Net 3 Protocol	Download
Other	Nexus 4×4 – Firmware	Download

Learn How To Use Your Nexus 4×4

Explore these detailed videos showcasing setup, features, and creative applications for this product.

Marc Anthony on Tour with Maverick and Nexus at AmericanAirlines Arena

Go behind the scenes with Lighting Designer Alex Soto on the Marc Anthony tour. Discover how CHAUVET Professional Maverick spots and Nexus panels delivered the creative firepower and tour-grade reliability needed to command a massive 360-degree arena stage.
98 Degrees Rig with CHAUVET Professional

Join Lighting Director Andy Figueroa for a behind-the-scenes tour of the 98 Degrees concert rig designed by Butch Allen. Discover how a versatile array of CHAUVET Professional fixtures empowers designers to create impactful, dynamic looks for major touring productions and live events.
Detrás de las cámaras: Ricky Martin Gira Mundial 2014, México

Discover the lighting design behind Ricky Martin’s 2014 One World Tour in Mexico City. The design team harnessed the power of Nexus 4×4 panels to deliver an electrifying, pixel-mapped experience for a sold-out arena crowd.
Behind the Scenes: RICKY MARTIN Rocks the World

Go behind the scenes on Ricky Martin’s One World Tour to see how designers built a massive, pixel-mapped backdrop using CHAUVET Professional Nexus 4×4 panels. This powerful rig delivered the intense, high-energy visuals demanded by a global superstar for a sellout 15,000-seat arena show.
PRO Show Product Tour

Explore the CHAUVET Professional stand at the PRO show for a firsthand look at our innovative lighting technology. This tour showcases a powerful range of moving heads, pixel-mapping fixtures, and video panels engineered to inspire bold, creative designs.

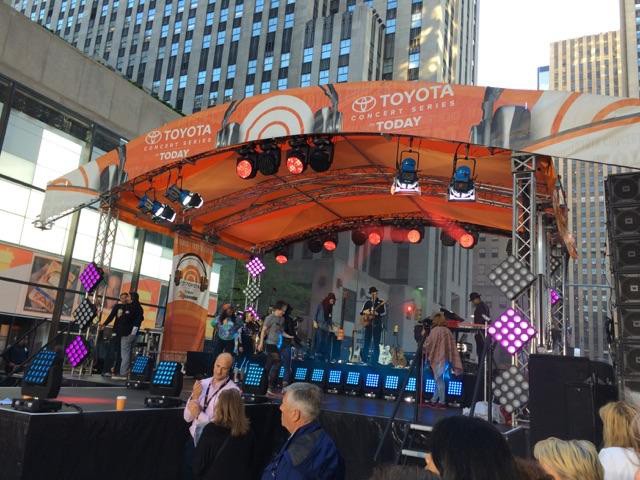

Peter Greenbaum and NEXUS on The Today Show, with CHAUVET Professional!

Go behind the scenes on The Today Show with Lighting Director Peter Greenbaum. See how he uses powerful, pixel-mappable Nexus 4×4 panels from CHAUVET Professional to create dynamic, camera-ready looks for one of television’s most iconic morning broadcasts.
CHAUVET Professional Light Show at Algam Salon

Experience a dynamic light show from the Algam Pro Salon, where nearly 200 CHAUVET Professional fixtures unite in a stunning display. This showcase combines the creative power of the Nexus, Rogue, Ovation, and Legend series to deliver an immersive visual experience.
NEXUS COB Fixtures by CHAUVET Professional

Explore the Nexus series from CHAUVET Professional, a family of interlocking COB LED wash panels. Build scalable, pixel-mapped arrays for stunning backdrops and immersive visual displays, combining robust light output with the sizzle of a dynamic video effect.

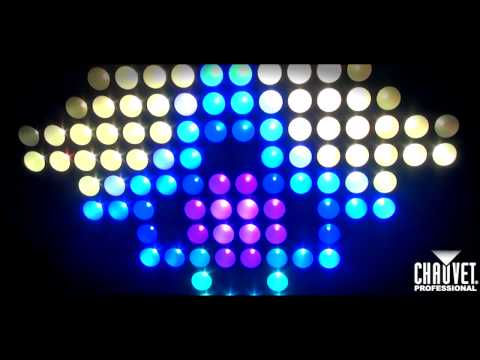

NEXUS 4×4 NAMM 2014

The award-winning Nexus 4×4 delivers the sizzle of a pixel-mapping display and the robust output of a tour-ready wash light. Its interlocking COB LED panels empower designers to build massive, visually striking arrays that command attention on any stage or broadcast set.
LDI 2013 – CHAUVET Professional Product Tour

Explore the CHAUVET Professional product lineup from LDI 2013 in this comprehensive tour. Discover the innovative spots, washes, and effects that helped define a new era of lighting design, including the award-winning Nexus 4×4.
CHAUVET Professional Wins the 2013 Indispensable Technology Parnelli Award!

CHAUVET Professional celebrates winning the prestigious 2013 Parnelli Award for Indispensable Technology. This honor recognizes the groundbreaking Nexus 4×4 LED wash panel, affirming our commitment to restless innovation and empowering lighting professionals with bold, impactful tools for touring and live events.

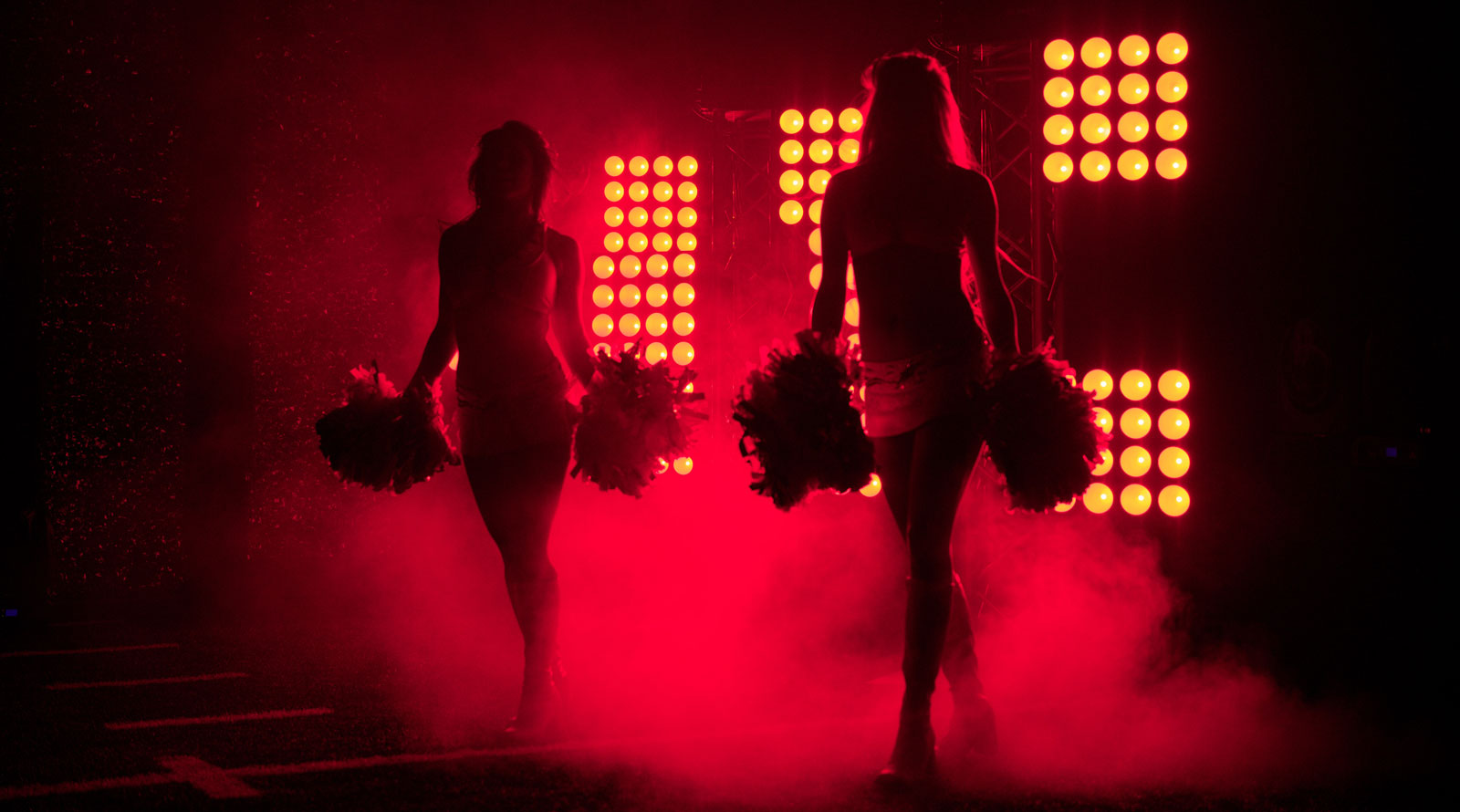

Behind the scenes with CHAUVET Professional: Miami Dolphins Cheerleaders promo

Go behind the scenes with CHAUVET Professional on a dynamic video shoot for the Miami Dolphins Cheerleaders. See how our versatile fixtures empower creative teams to deliver bold, high-impact visuals for major broadcast and promotional events.

Latest Articles

Browse Articles

Nexus 4×4 FAQ’s

Quickly find answers to common questions about setup, operation, and features of the Nexus 4×4

What is the Chauvet Professional Nexus 4×4 used for?

The Nexus 4×4 is a powerful LED panel used to create stunning visual effects for stages, concerts, and events. It works great as an eye-catching backdrop, a powerful audience wash, or for creating intricate, colorful patterns with its 16 individually controllable lights.

Can you connect multiple Nexus 4×4 panels together?

Yes, the Nexus 4×4 is designed for building large displays. It features built-in interlocking hardware that allows you to easily and securely link multiple panels together to create a seamless and expansive visual wall or custom shape.

What makes the Nexus 4×4’s lighting effect unique?

Its unique look comes from combining powerful, tri-color LEDs with a special reflector. This creates a bold yet beautifully diffused wash of rich, saturated color. Because each of the 16 lights can be controlled independently, you can create detailed ‘pixel-mapping’ effects for animated patterns and vibrant visuals.
