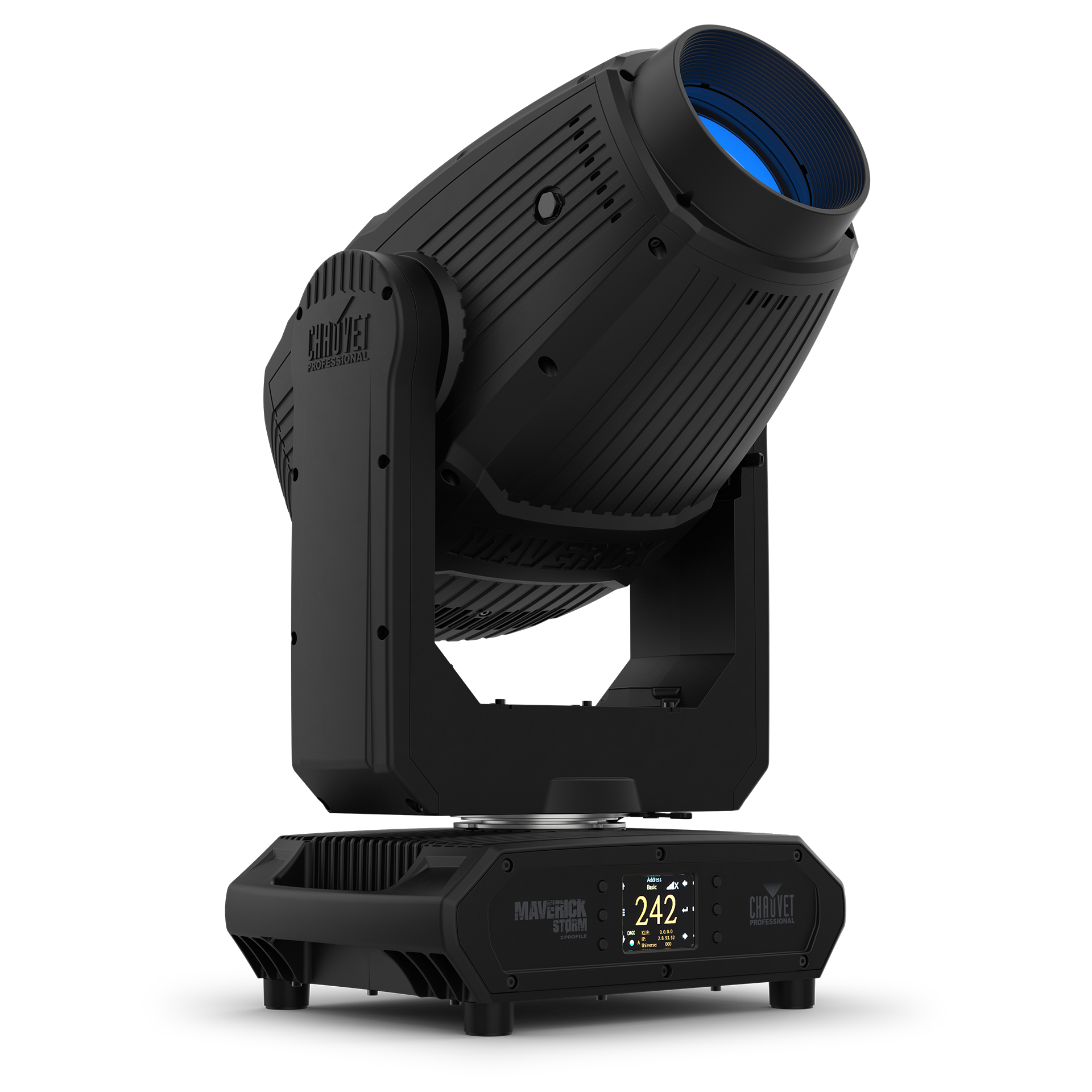

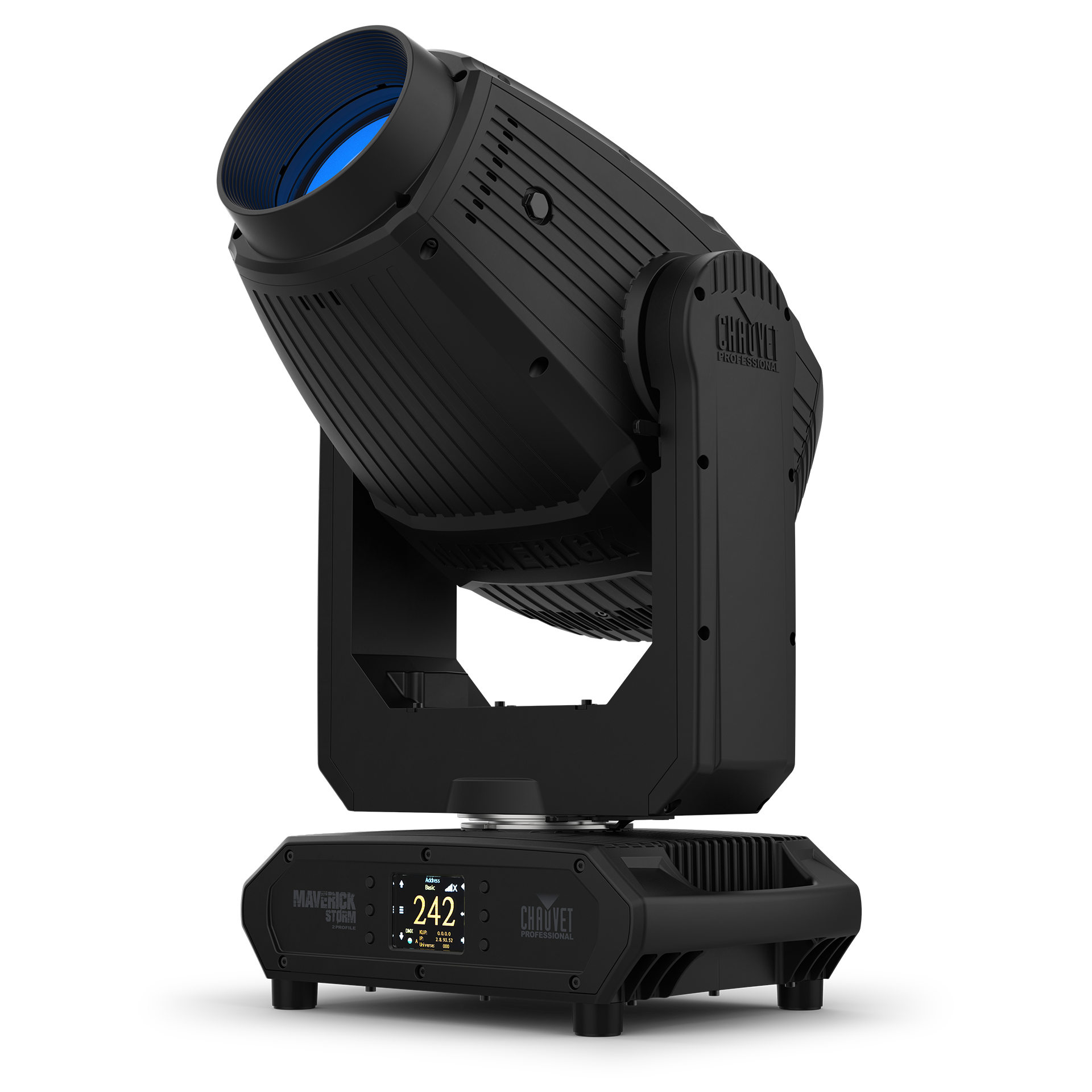

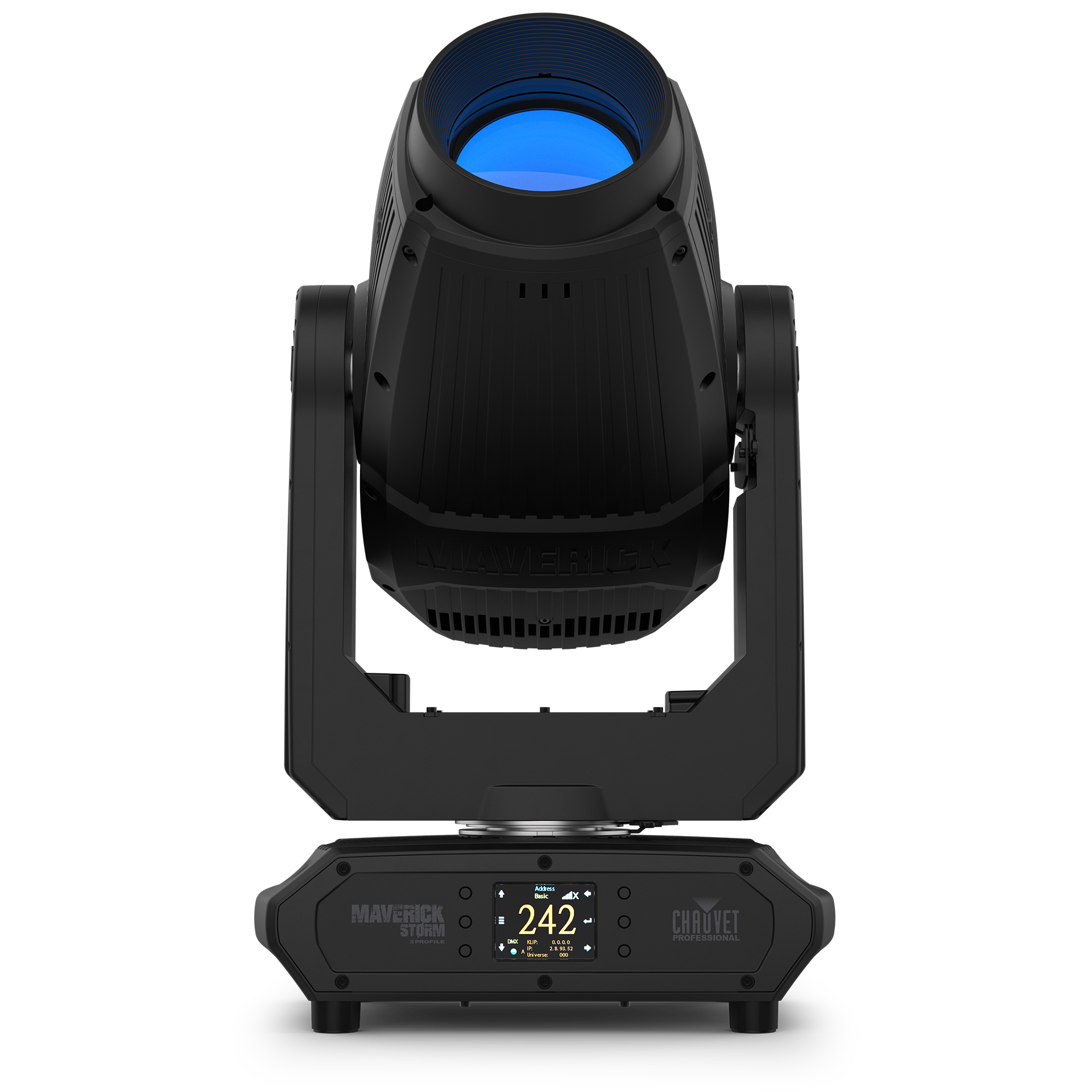

Maverick Storm 2 Profile

Optical

• Light Source

  1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy

• Color Temperature (at full)

  6963 K

• CRI

  71.3

• CRI with CRI Filter

  89.1

• Front Lens Diameter

  127 mm

• Beam Angle

  6.3° to 42.6°

• Field Angle

  7.9° to 54.7°

• Cutoff Angle

  8.2° to 58.6°

• Zoom Range

  5.5° to 58.6°

• Lumens – Source

  35,000

• Lumens – Output

  28,534

• • Illuminance
    • Illuminance (6.3°)

      71,933 lux @ 5 m

    • Illuminance (58.6°)

      2,580 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds

• Colors

  CMY flags, CTO flag

• Gobos (1)

  7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  9 + open (glass), continuous scroll at variable speeds

• Gobo Size

  Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)

• Framing Shutters

  4 Blades, each with dual axis movement, Full blackout.

• Framing Shutter rotation

  +/- 60° rotation.

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Iris

  Motorized

• Prism

  5 Facets, motorized, rotating

• Strobe Rate

  0 to 20 Hz

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)

• Weight

  67.0 lb (30.4 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum diecast, High-impact flame-retardant polymer, Steel

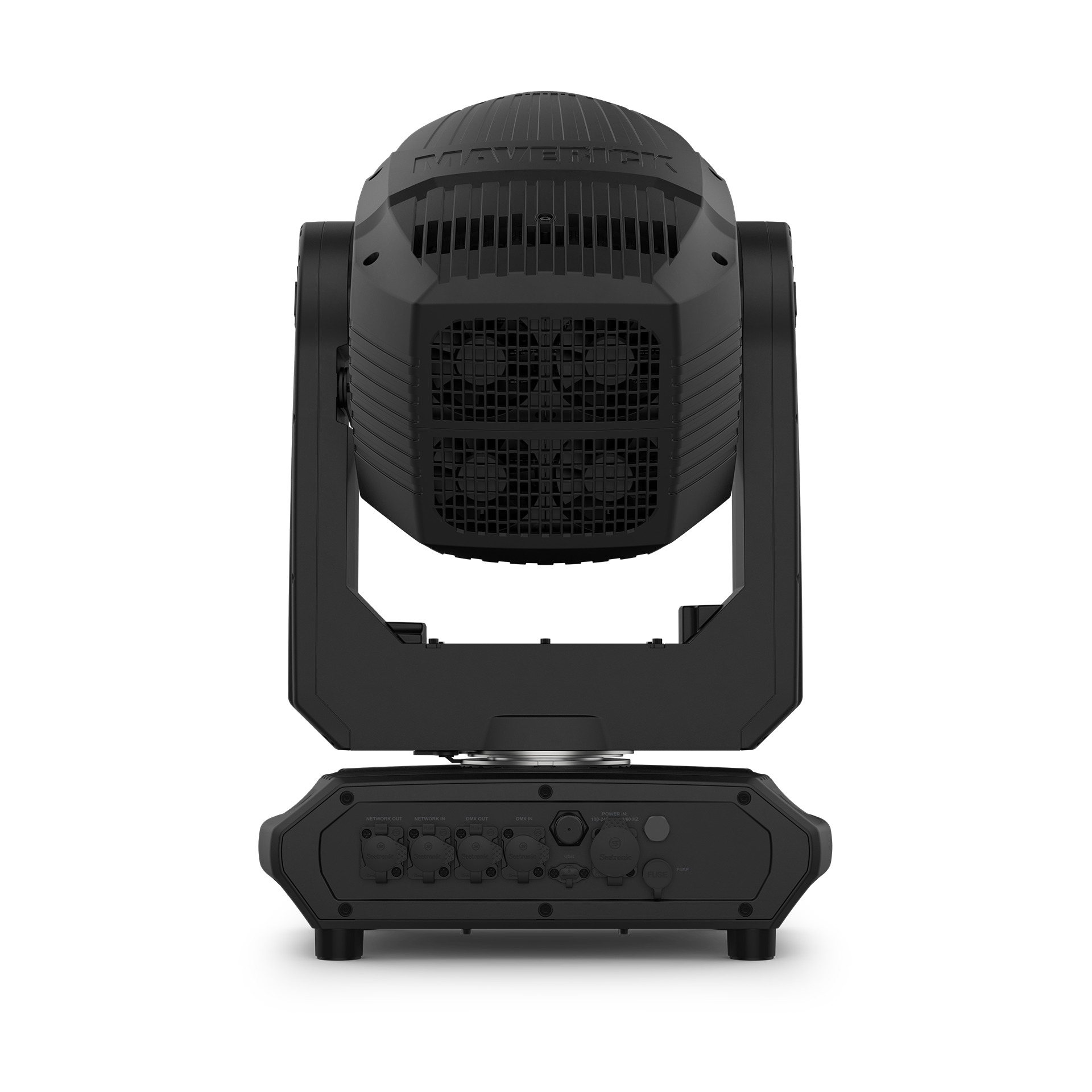

Connections

• Power Connection

  Seetronic Powerkon IP65

• Power Input/Output

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, DMX, RDM, W-DMX, sACN

• DMX Channels

  32 or 48

• Art-Net Channels

  32 or 48

• Modes/Personalities

  2 personalities (32, 48)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  800 W, 6.82 A @ 120 V, 60 Hz

• Power and Current

  779 W, 3.77 A @ 208 V, 60 Hz

• Power and Current

  763 W, 3.41 A @ 230 V, 50 Hz

• Breaker Size

  F15 A, 250 V

Certifications/Qualifications

• Certifications

  CE, MET, FCC

• IP Rating

  IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

• • Noise Levels
    • Noise Level (Idle)

      34.4 dB(A) @ 1 m

    • Noise Level (Max)

      42.4 dB(A) @ 1 m

    • Noise Level (ECO)

      41.3 dB(A) @ 1 m

    • Noise Level (Auto)

      41.9 dB(A) @ 1 m

    • Noise Level (Full)

      51.1 dB(A) @ 1 m

• Temperature (Ambient)

  4 °F to 113 °F (-20 °C to 45 °C)
