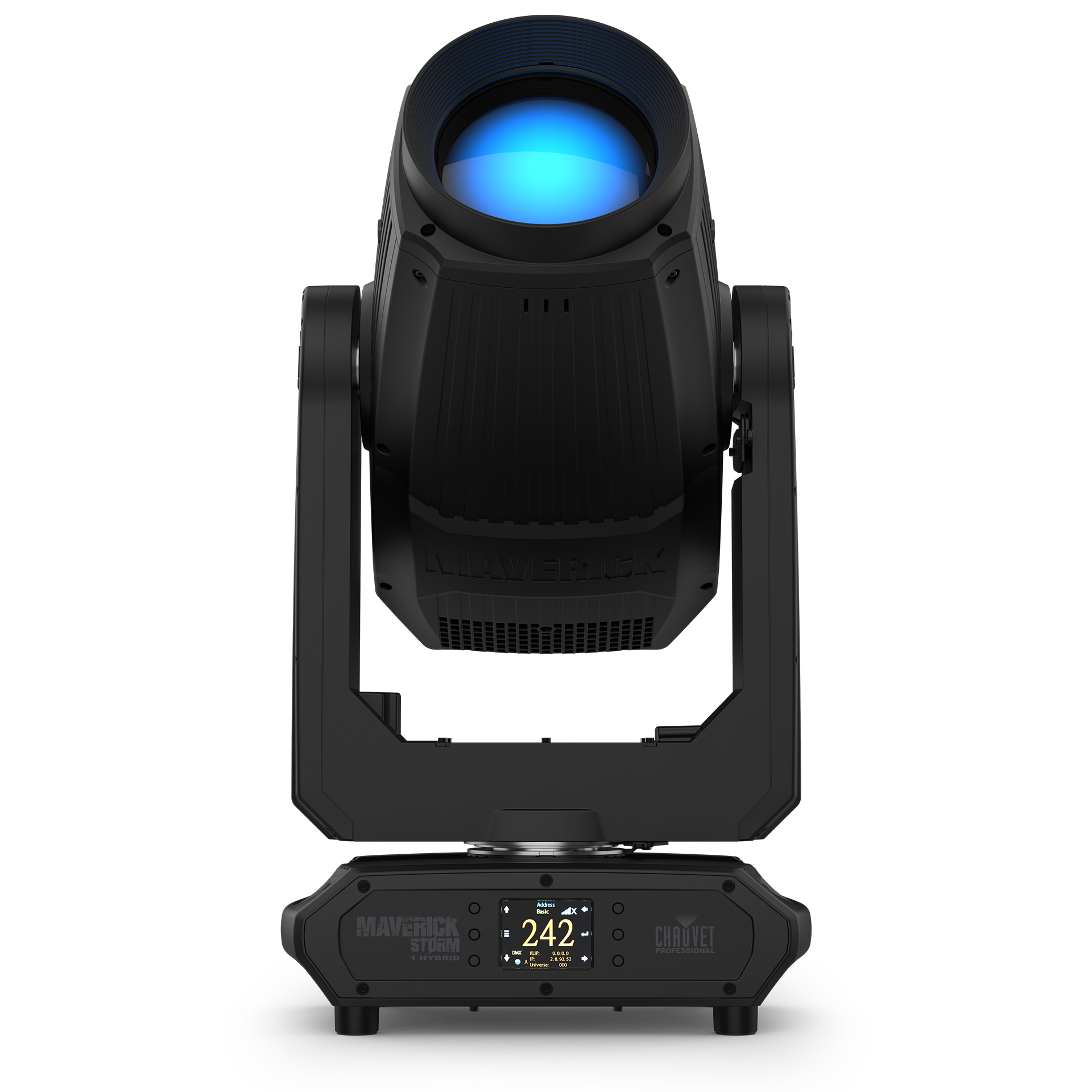

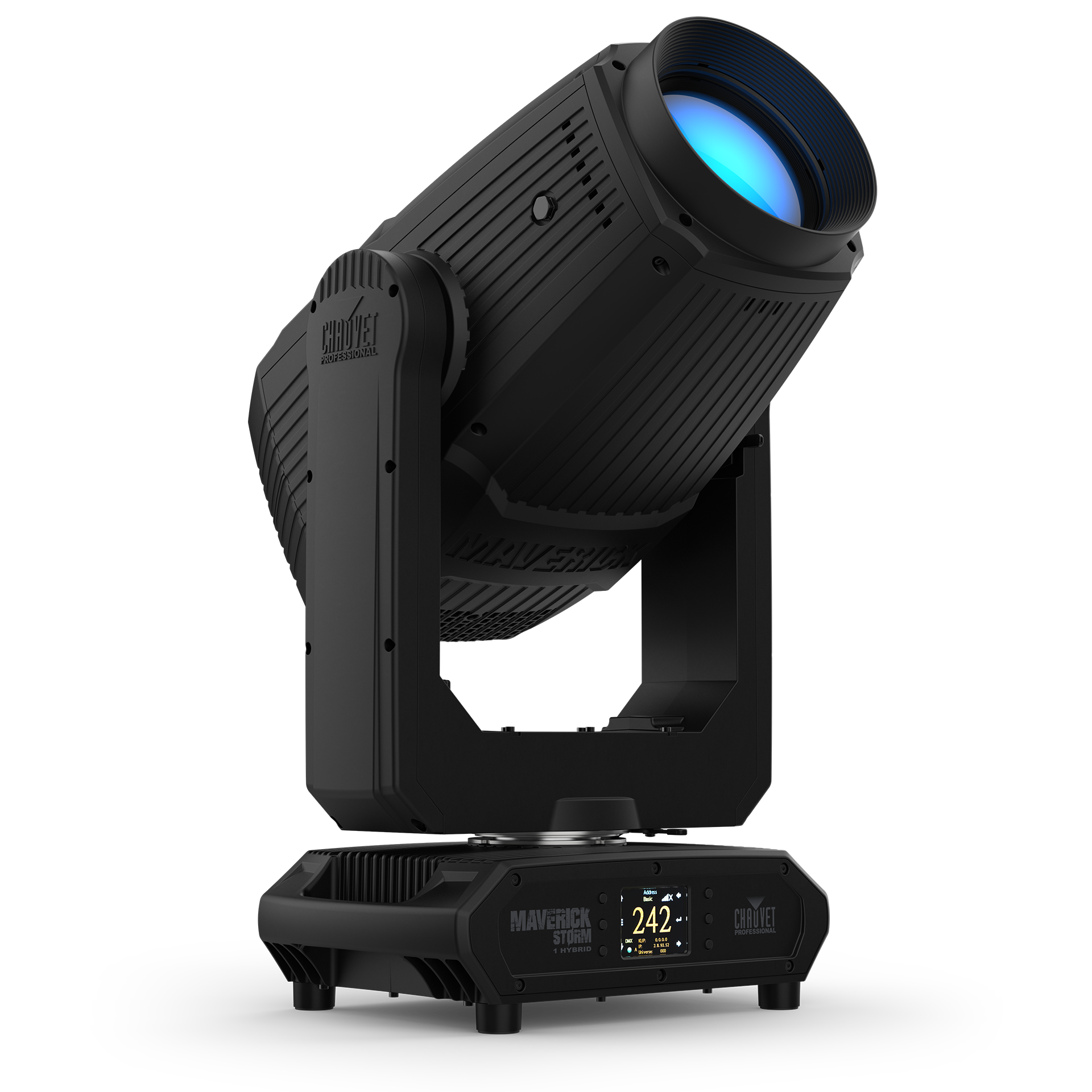

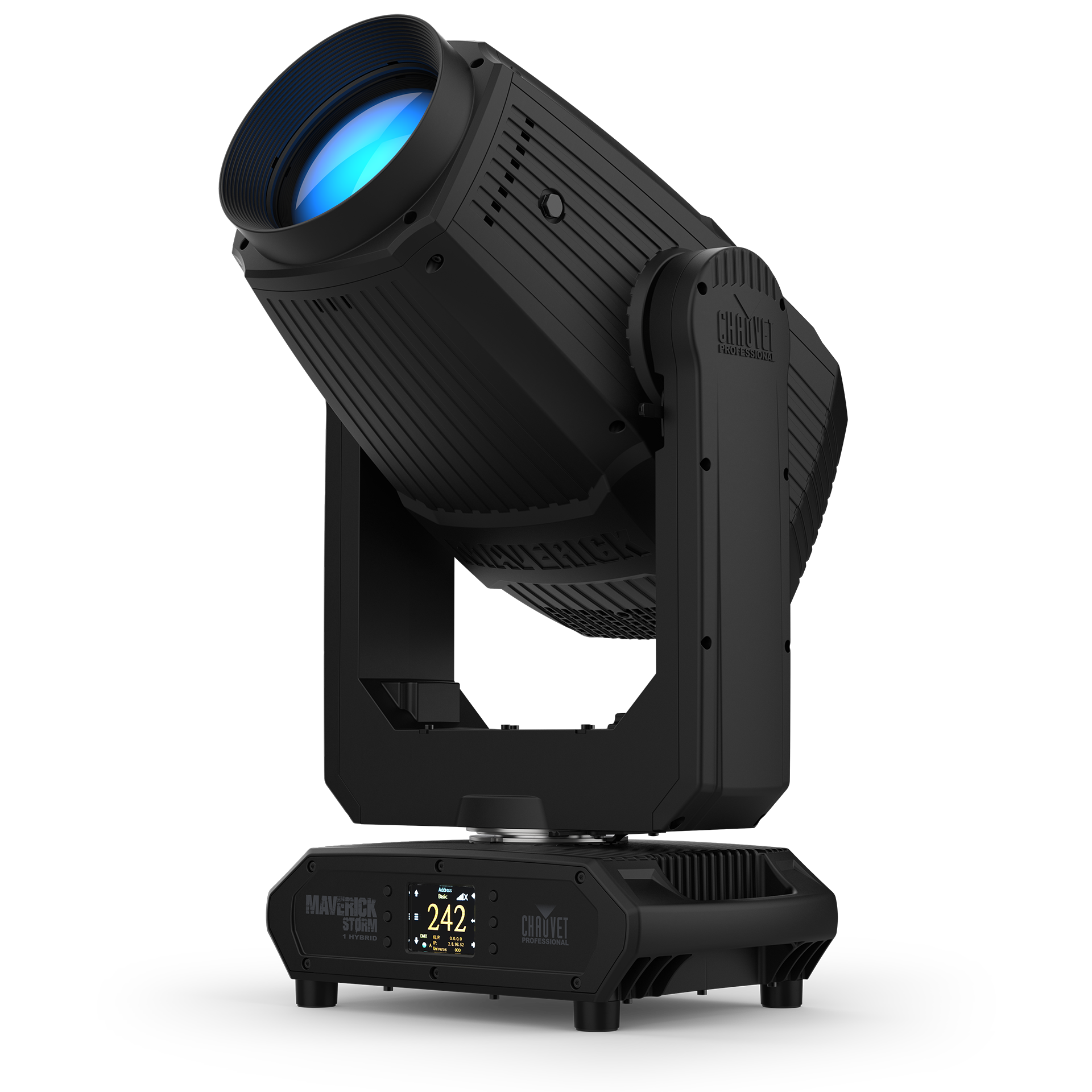

Maverick Storm 1 Hybrid

Optical

• Light Source

  Osram Sirius HRI 420 W lamp, 7700 K (Color Temp), up to 4,500 hours life expectancy

• Color Temperature (at full)

  6,995 K

• Front lens diameters

  174mm

• Lumens

  30,978

• • Spot Mode
    • Beam Angle

      1.3° to 17.7°

    • Field Angle

      2.2° to 31.9°

    • Cutoff Angle

      2.6° to 40.8°

    • Zoom Range

      1.3° to 40.8°

    • Illuminance (2.2°)

      1,075,418 lux @ 5 m

    • Illuminance (31.9°)

      5,422 lux @ 5 m

• • Beam Mode
    • Beam Angle

      .8° to 7.4°

    • Field Angle

      1.5° to 19.9°

    • Cutoff Angle

      1.9° to 25.6°

    • Zoom Range

      .8° to 25.6°

    • Illuminance (1.5°)

      226,074 lux @ 15 m

    • Illuminance (19.9°)

      2,144 lux @ 15 m

• • Wash Mode
    • Beam Angle

      3.6° to 16.6°

    • Field Angle

      6.7° to 30.1°

    • Cutoff Angle

      9.2° to 32.2°

    • Zoom Range

      3.6° to 32.2°

    • Illuminance (30.1°)

      3,005 lux @ 5 m

    • Illuminance (6.7°)

      71,522 lux @ 5 m

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  14 + white, split colors, continuous scroll at variable speeds

• Colors

  CMY flags

• Gobos (1)

  9 + open (1 empty slot + 8 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos Static

  17 + open (17 metal), rotating, continuous scroll at variable speeds

• Gobo Size (1)

  Gobo Wheel 1 (rotating): 16 mm (outside), 10 mm (image), 1.1 mm (max. thickness)

• Animation Wheel

  1

• Dimmer

  Motorized

• Shutter/Strobe

  Motorized

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Prism (1)

  6 Facets, motorized, rotating

• Prism (2)

  8 Facets, motorized, rotating

• Move-in-Black

  Yes

• Built in Sky Tracker Mode

  Yes

Construction/Physical

• Dimensions

  15.27 x 10.78 x 29.72 in (388 x 274 x 755 mm)

• Weight

  64.4 lb (29.2 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum die-cast, High-impact flame-retardant polymer, Steel

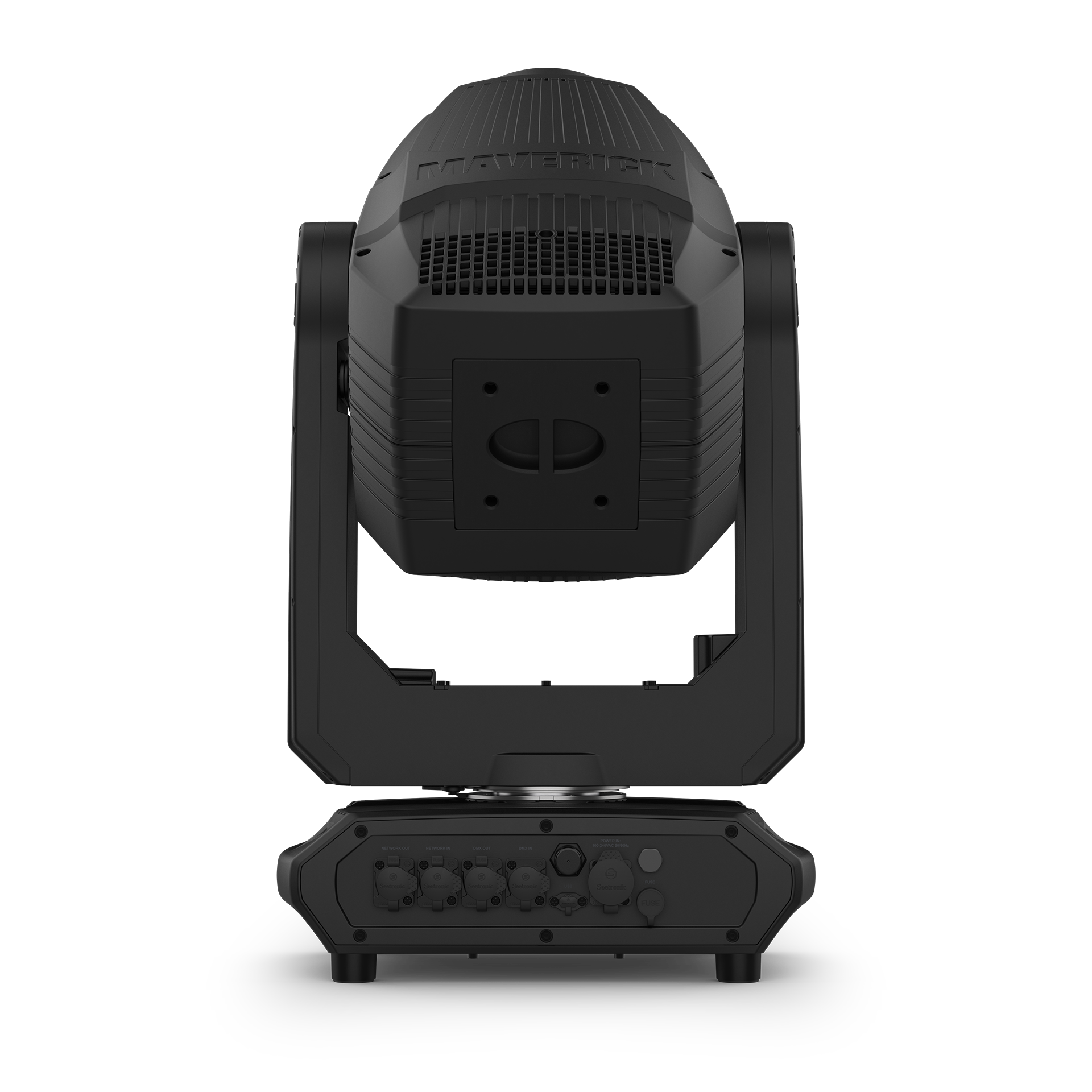

Connections

• Power Connection

  Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

• Software Connection

  Type-C USB

Control

• Control Protocol

  Art-Net, sACN, RDM, DMX, WDMX

• DMX Channels

  24 or 29

• Art-Net/sACN Channels

  24 or 29

• Modes/Personalities

  2 personalities (24, 29)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  660 W, 5.540 A @ 120 V, 60 Hz

• Power and Current

  648 W, 3.124 A @ 208 V, 60 Hz

• Power and Current

  647 W, 2.800 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, CB, UKCA

• IP Rating

  IP65, outdoor/wet, with pressure equalizing M12 GORE valve

• • Noise Levels
    • Noise Level (Idle)

      40.0 dB(A) @ 1 m

    • Noise Level (Max)

      41.2 dB(A) @ 1 m

• Temperature (Ambient)

  14 °F to 113 °F (-10 °C to 45 °C)
