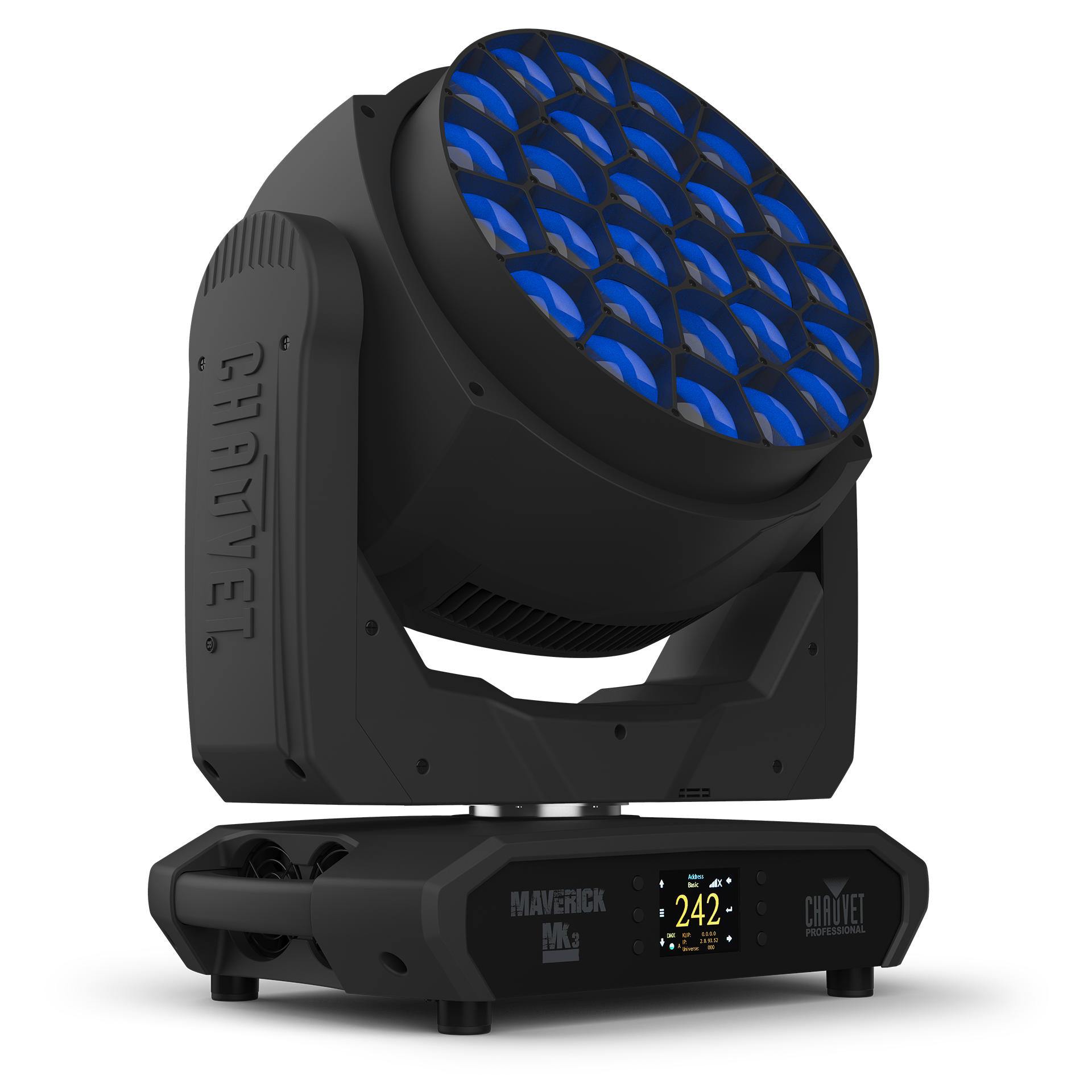

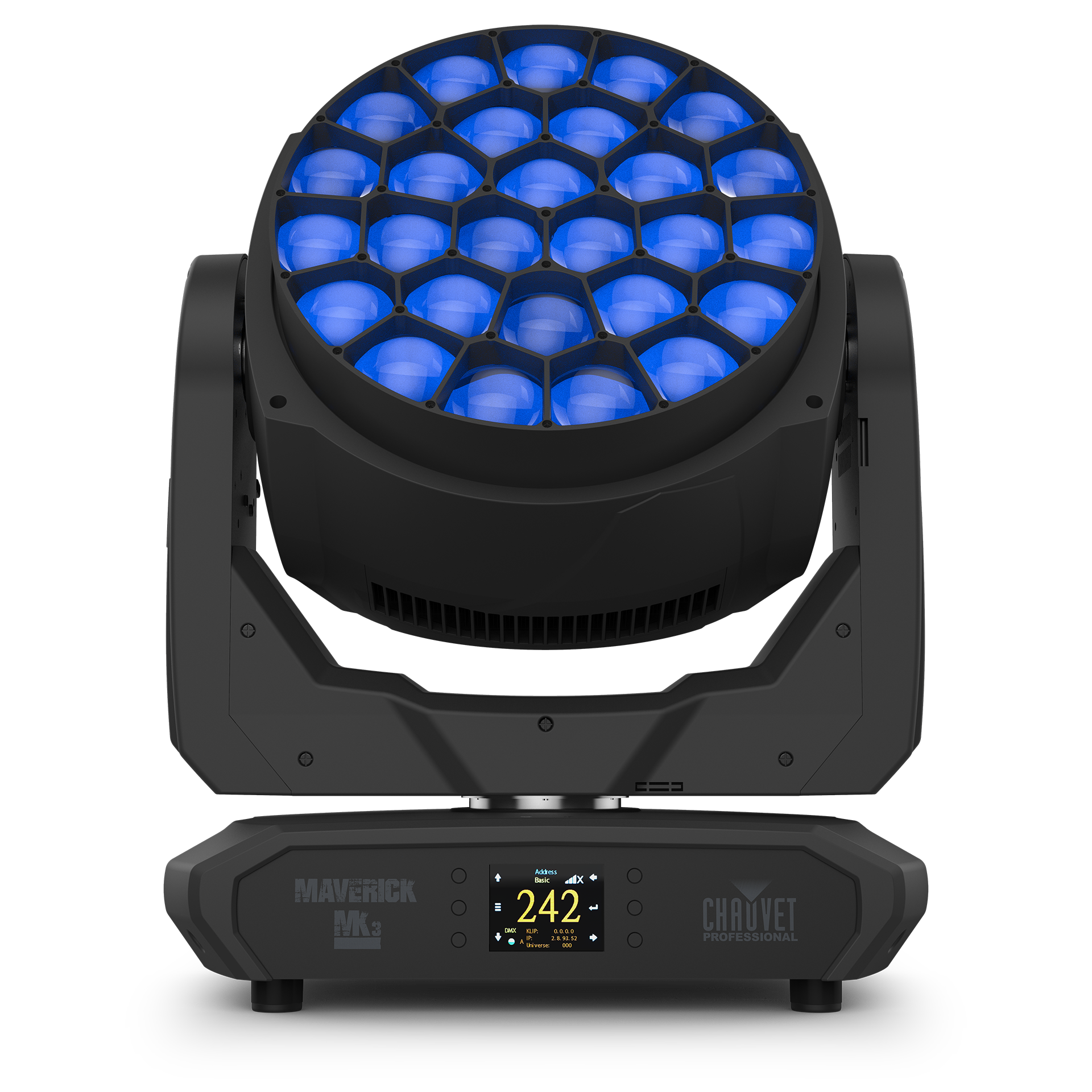

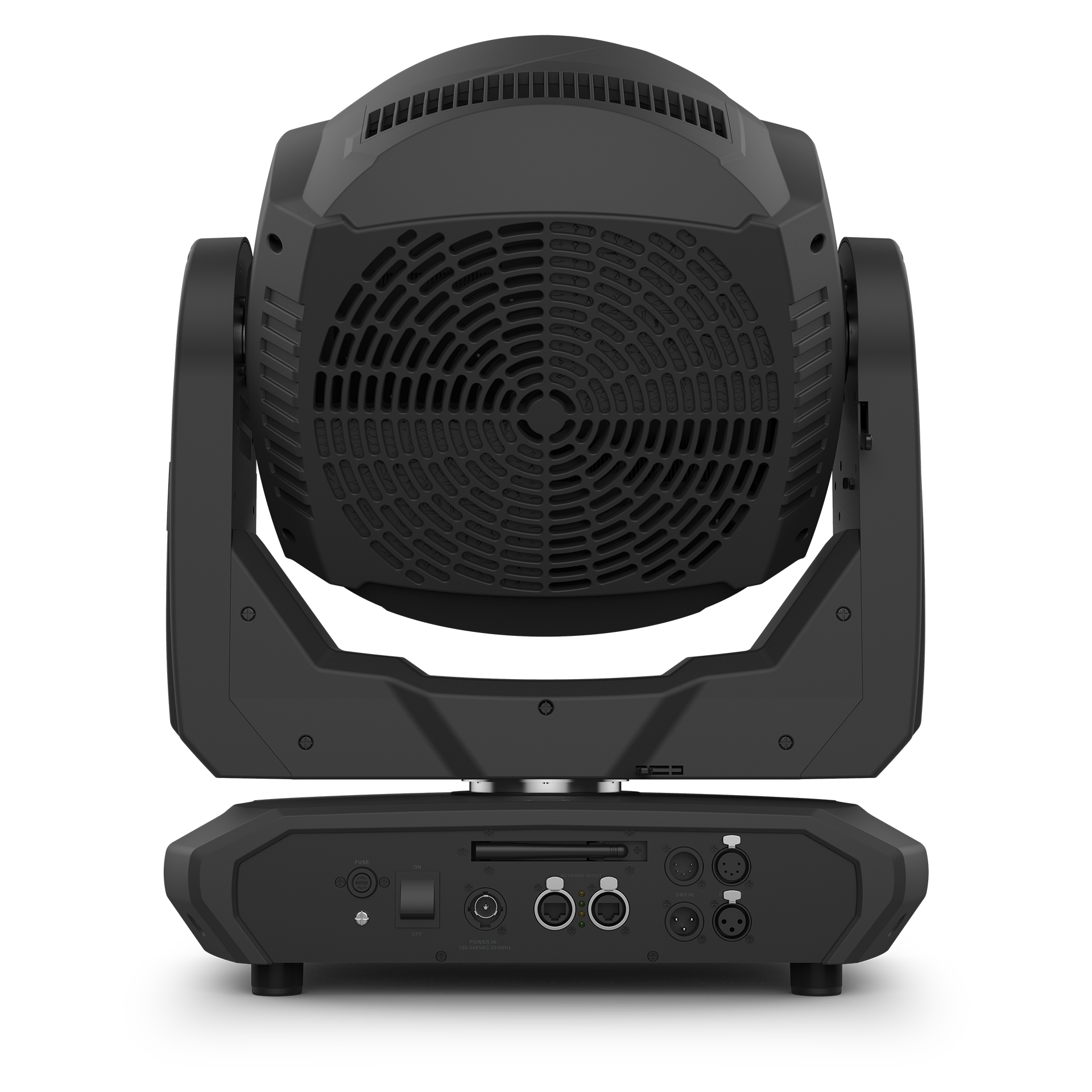

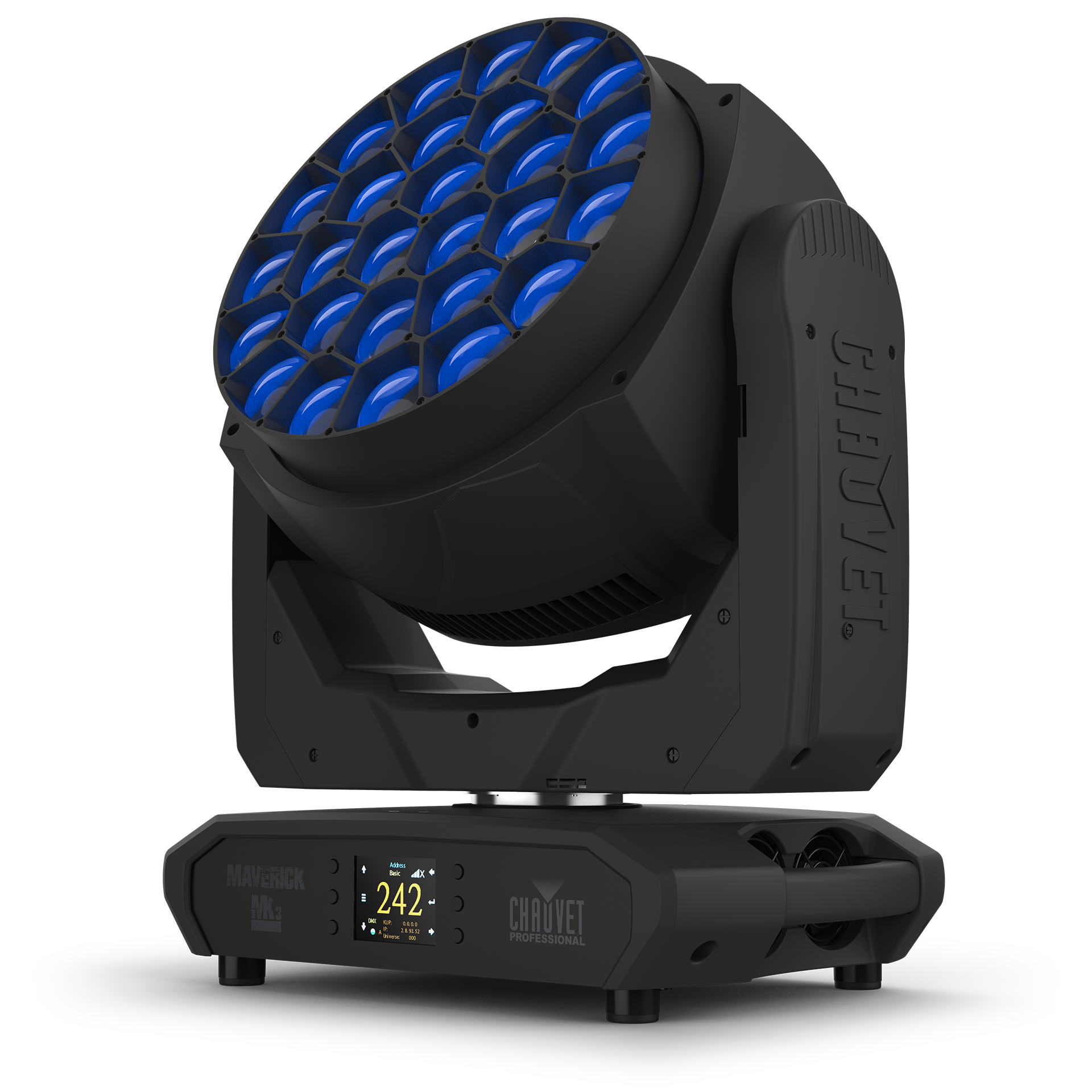

Maverick MK3 Wash

Optical

• Light Source

  27 LEDs (quad-color RGBW) 40 W, (2.6A), 50,000 hours life expectancy

• Color Temperature (range)

  2800 to 10000 K

• Beam Angle

  5° to 36°

• Field Angle

  7.4° to 52.8°

• Cutoff Angle

  8.6° to 65.1°

• Zoom Range

  5.2° to 65.1°

• Lumens – Source

  18,000

• Lumens – Output

  13,300

• • Illuminance
    • Illuminance (7.4°)

      60,090 lux @ 5 m

    • Illuminance (45°)

      2,040 lux @ 5 m

• Selectable PWM

  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  18.7 x 11.49 x 22.93in 459 x 292 x583 mm)

• Weight

  68.2 lb (31 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

Connections

• Power Connection

  Edison plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, Kling-Net, sACN, DMX, W-DMX, RDM

• • DMX Channels
    • Single Mode

      20, 129, 243 or 297

    • Dual Mode – Function

      9,21,27

    • Dual Mode – Pixel

      81,108,216

• • Art-Net Channels
    • Single Mode

      21, 129, 243 or 297

    • Dual Mode – Function

      9,21,27

    • Dual Mode – Pixel

      81,108,216

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  1,120 W, 9.54 A @ 120 V, 60 Hz

• Power and Current

  1,090 W, 5.35 A @ 208 V, 60 Hz

• Power and Current

  1,120 W, 4.79 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
