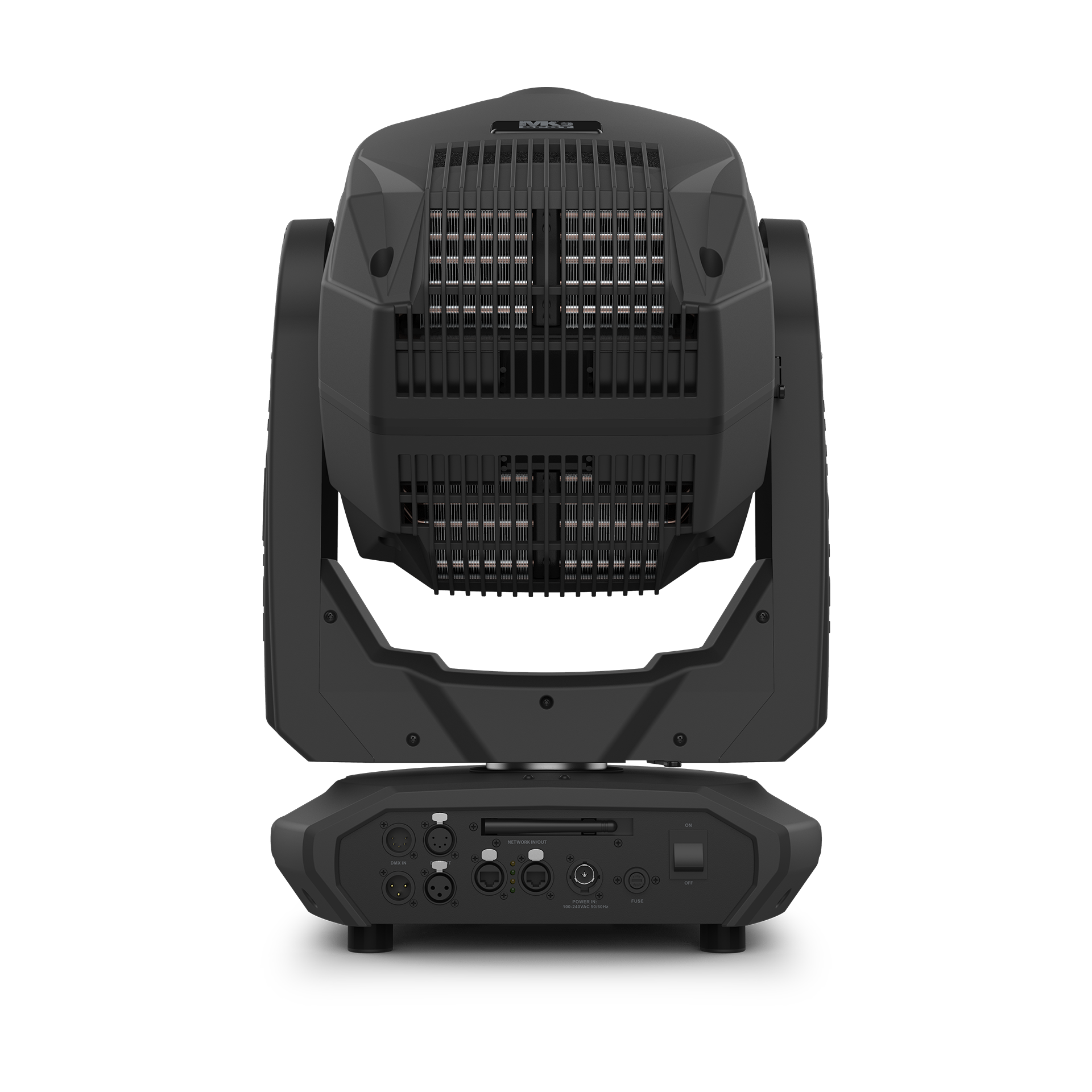

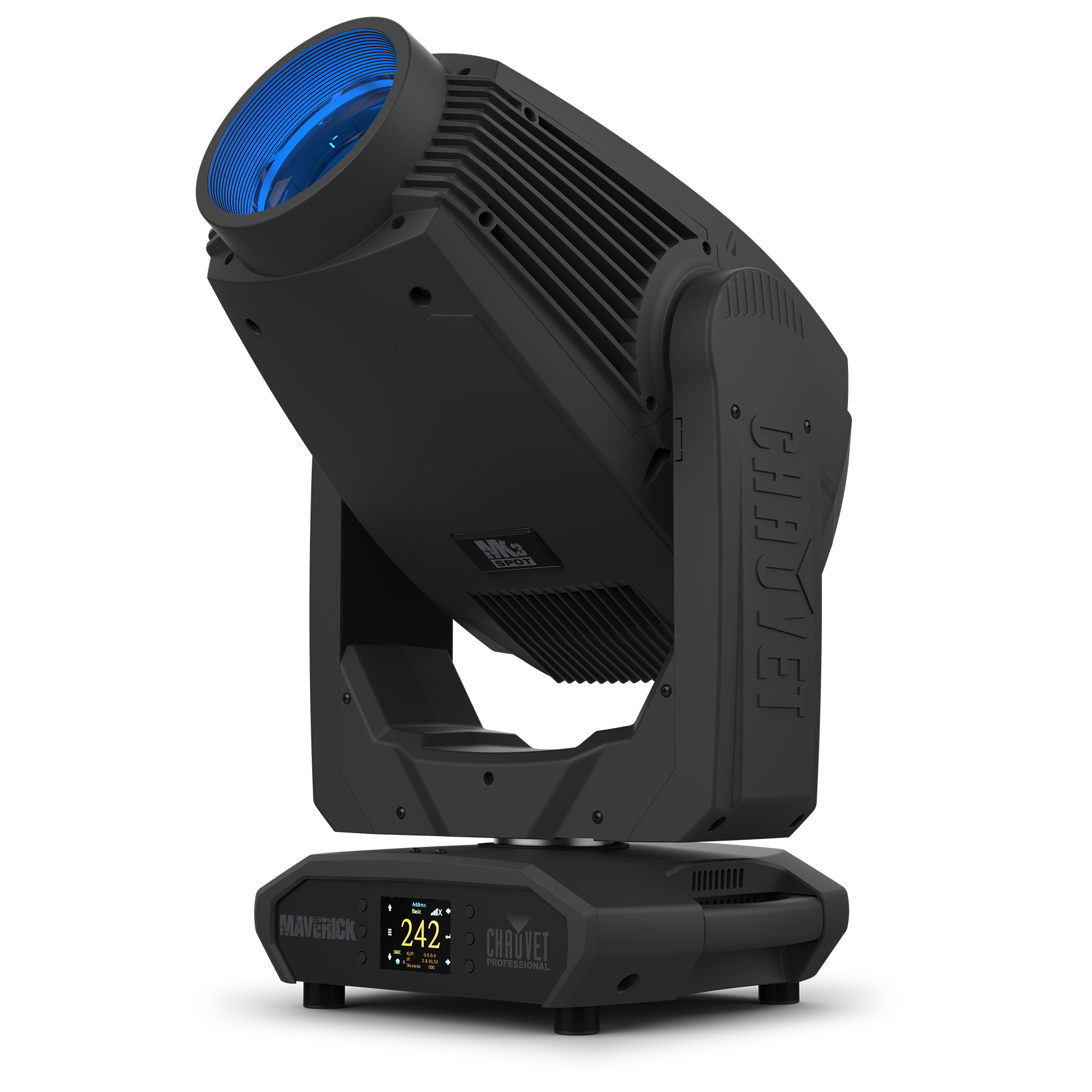

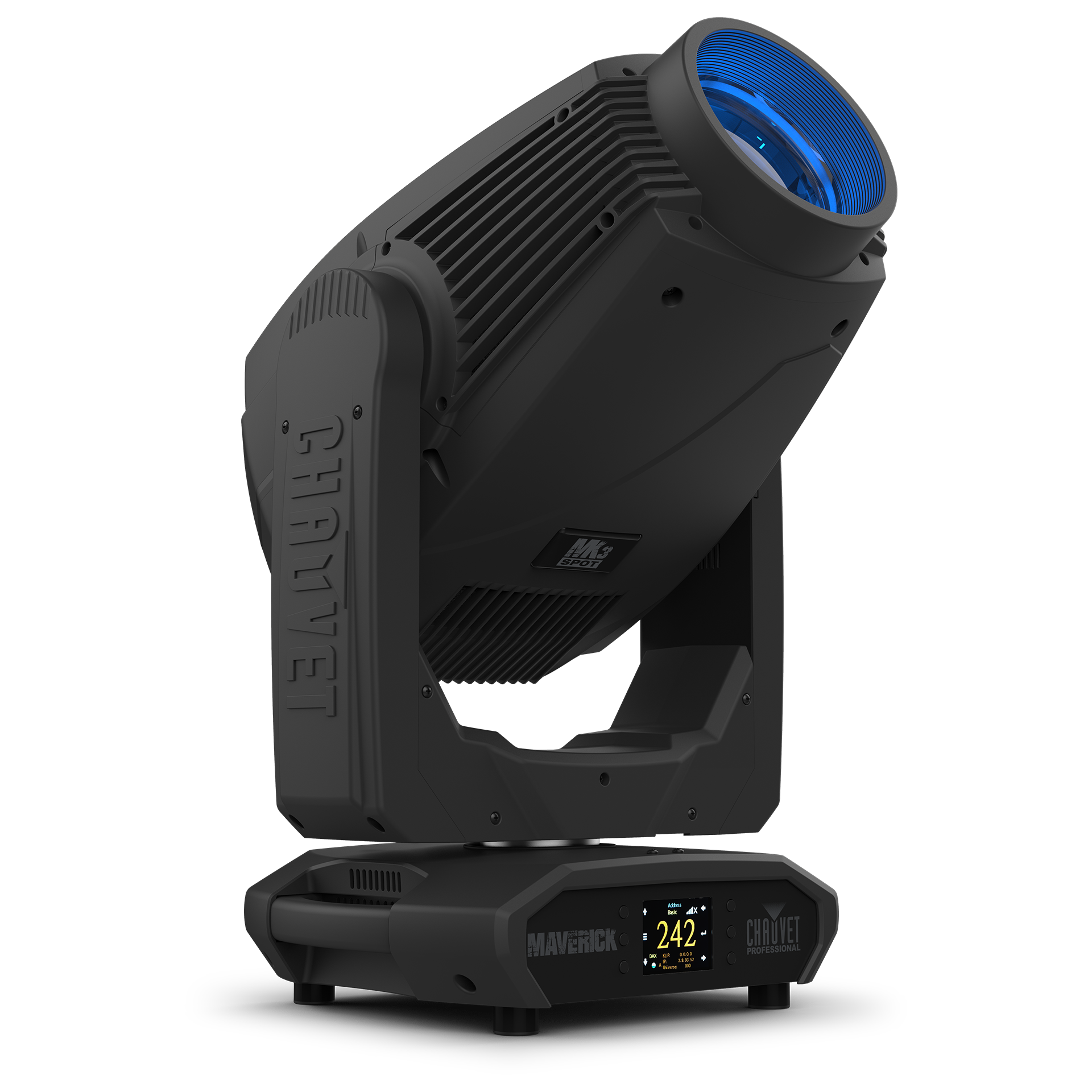

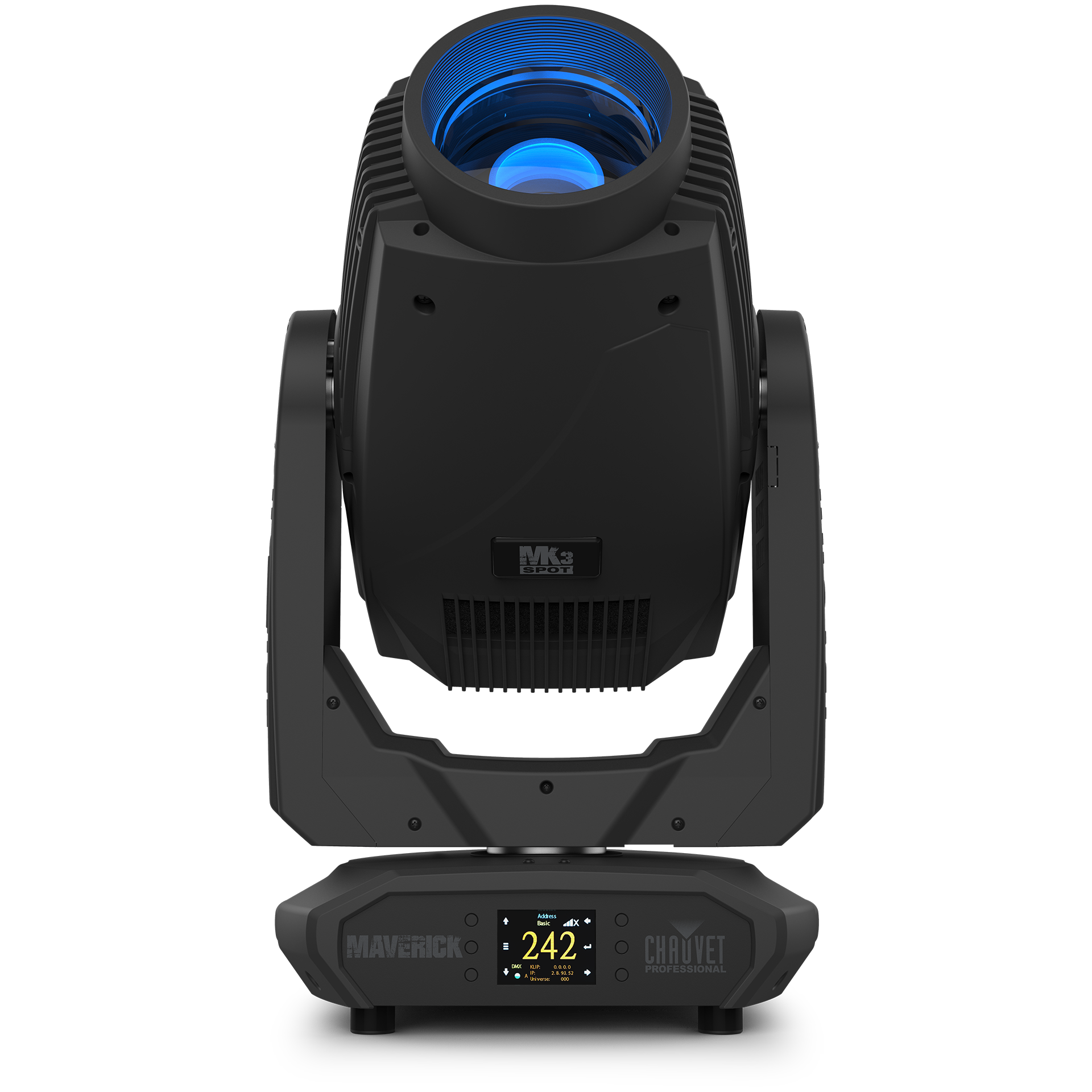

Maverick MK3 Spot

Optical

• Light Source

  1 LEDs (CW) 820 W, (24 A), 7,472 K, 50,000 hours life expectancy

• Color Temperature (at full)

  7,207 K

• Front lens diameter

  147 mm

• CRI

  73.8

• CRI W / Filter

  93.2

• Beam Angle

  6.1° to 52.1°

• Field Angle

  7.6° to 60.5°

• Zoom Range

  6.1° to 62°

• Cutoff Angle

  8.1° to 62°

• Lumens – Source

  51,000

• Lumens – Output

  22,000

• • Illuminance
    • Illuminance (7.6°)

      56,945 lux @ 5 m

    • Illuminance (60.5°)

      1,920 lux @ 5 m

• Illuminance w / CRI filter (7.6°)

  39,011 lux @ 5 m

• Illuminance w / CRI filter (60.5°)

  1242 lux @ 5 m

• Selectable PWM

  600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  6 + white, split colors, continuous scroll at variable speeds

• Colors

  CMY flags, CTO flag, CRI filter, color correction

• Gobos (1)

  7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (3)

  8 + open (8 metal), 2 rotating, 1 static gobo wheel.

• • Gobo Size
    • Gobo Wheel 1 (rotating)

      30 mm (outside), 23 mm (image), 1.1 mm (max. thickness)

    • Gobo Wheel 2 (rotating)

      30 mm (outside), 21 mm (image), 1.1 mm (max. thickness)

    • Gobo Wheel 3 (static)

      160 mm (outside), 22 mm (image), 0.8 mm (max. thickness)

• Effect Wheel

  1 effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost 1

  Light Frost – Motorized

• Frost 2

  Medium Frost – Motorized

• Iris

  Motorized

• Prism

  5 Linear facets, motorized, rotating

• Prism

  5 Circular facets, motorized, rotating

• Strobe Rate

  0 to 25 Hz

• Move-in-Black

  Yes

• Dim Modes

  5

Construction/Physical

• Dimensions

  16.10 x 11.92 x 29.76 in (409 x 303 x 756 mm)

• Weight

  72.9 lb (33 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer, Steel

Connections

• Power Connection

  Edison plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, DMX, W-DMX, RDM, sACN

• DMX Channels

  31 or 39

• Art-Net Channels

  31 or 39

• Modes/Personalities

  2 personalities (31, 39)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  1180 W, 9.90 A @ 120 V, 60 Hz

• Power and Current

  1160 W, 5.60 A @ 208 V, 60 Hz

• Power and Current

  1150 W, 5.04 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
