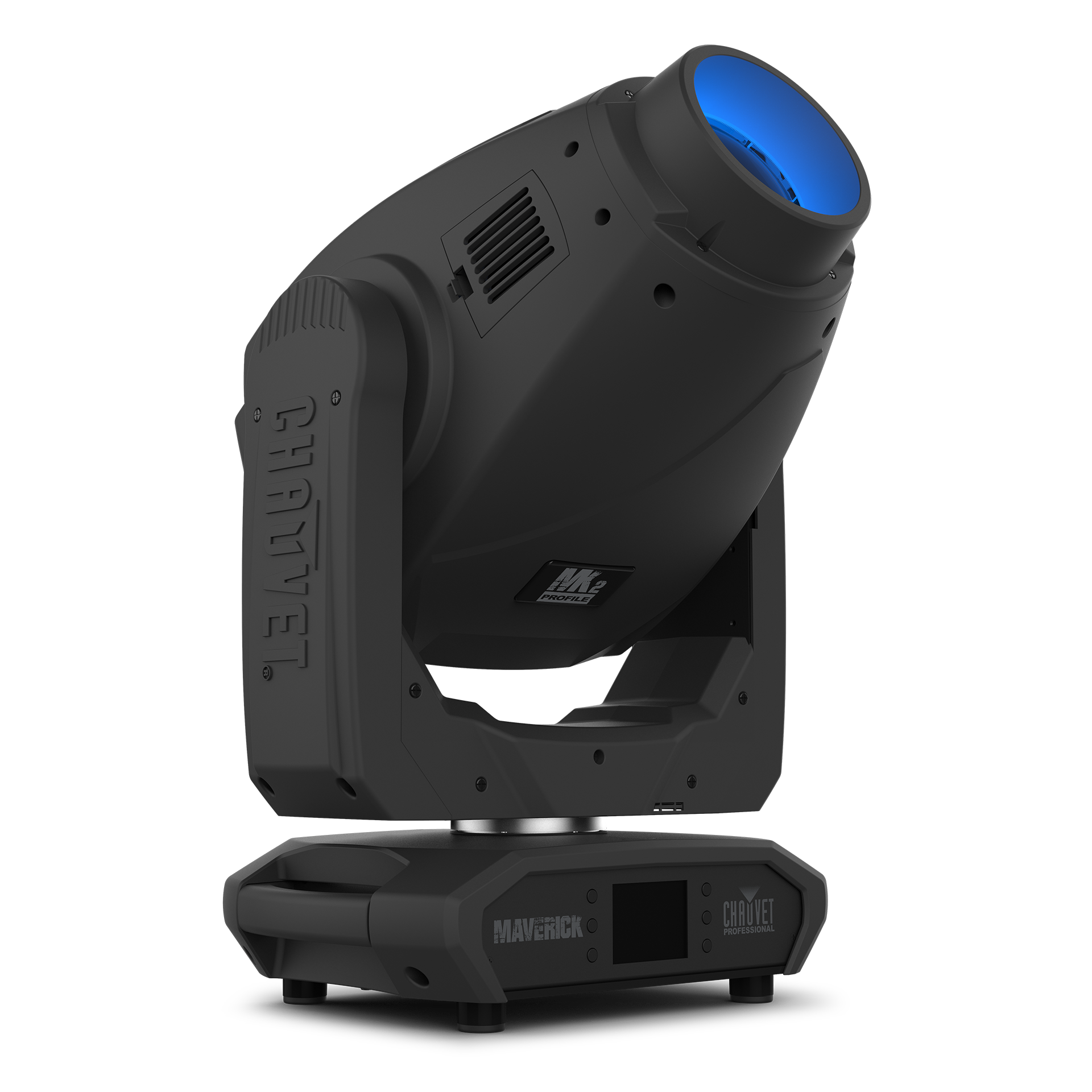

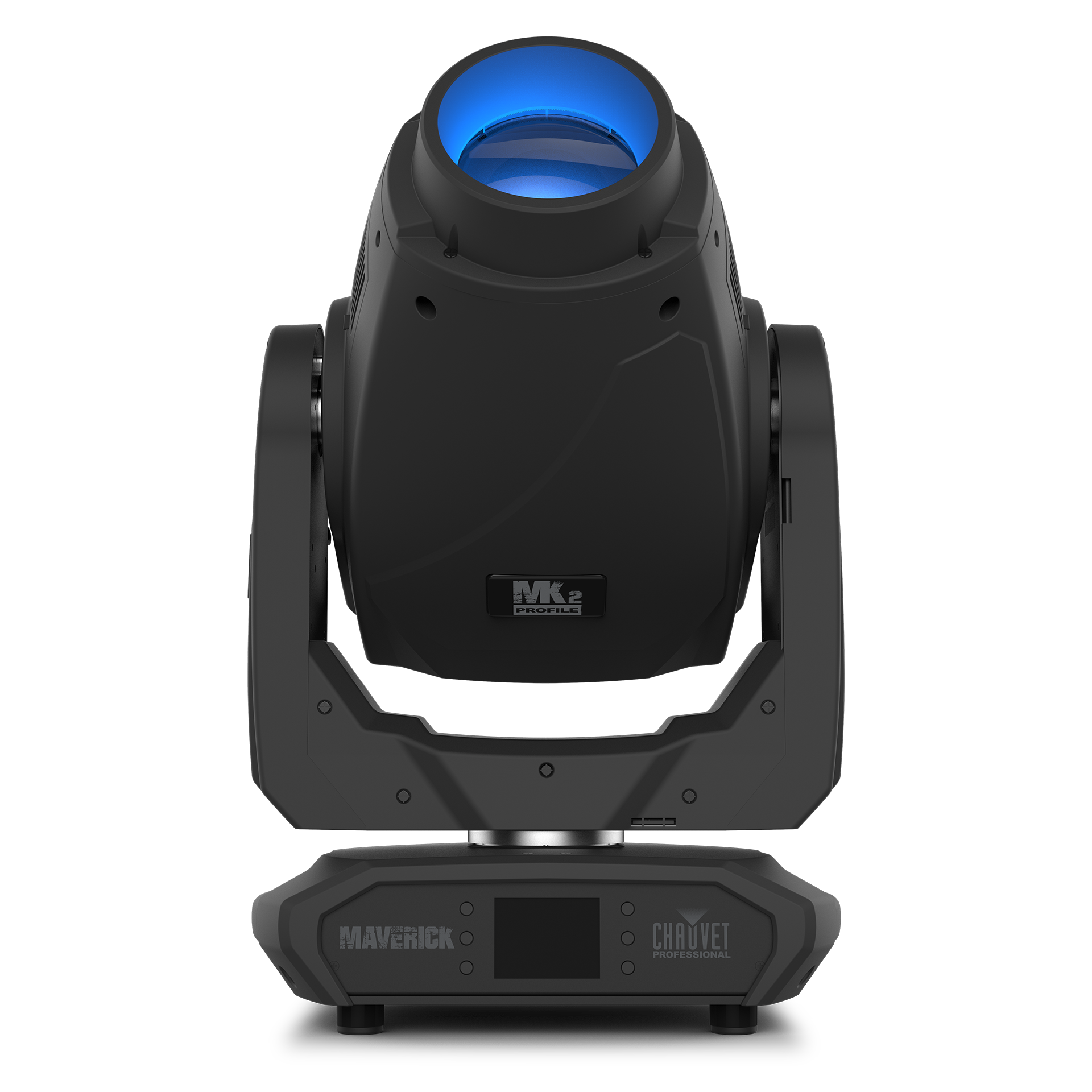

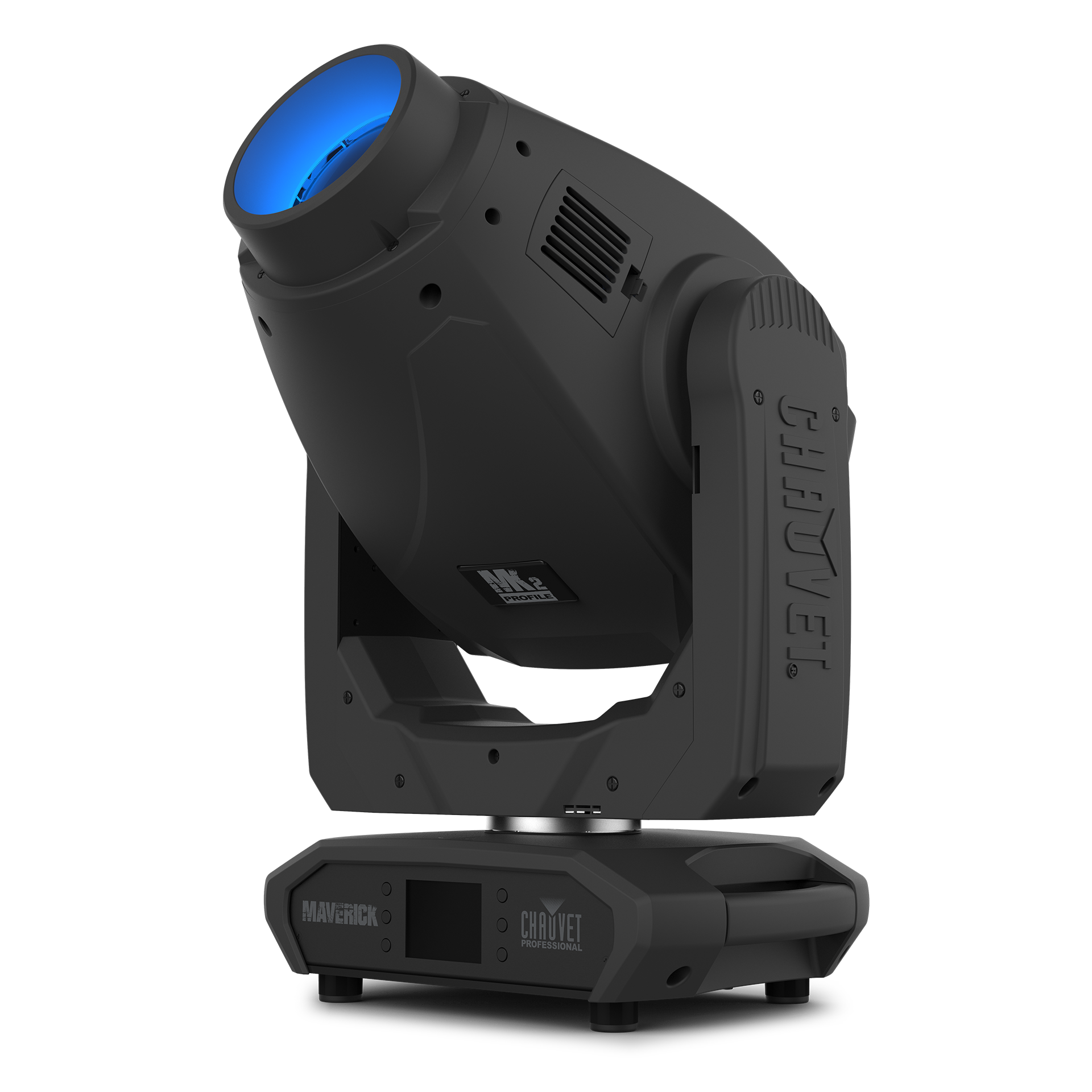

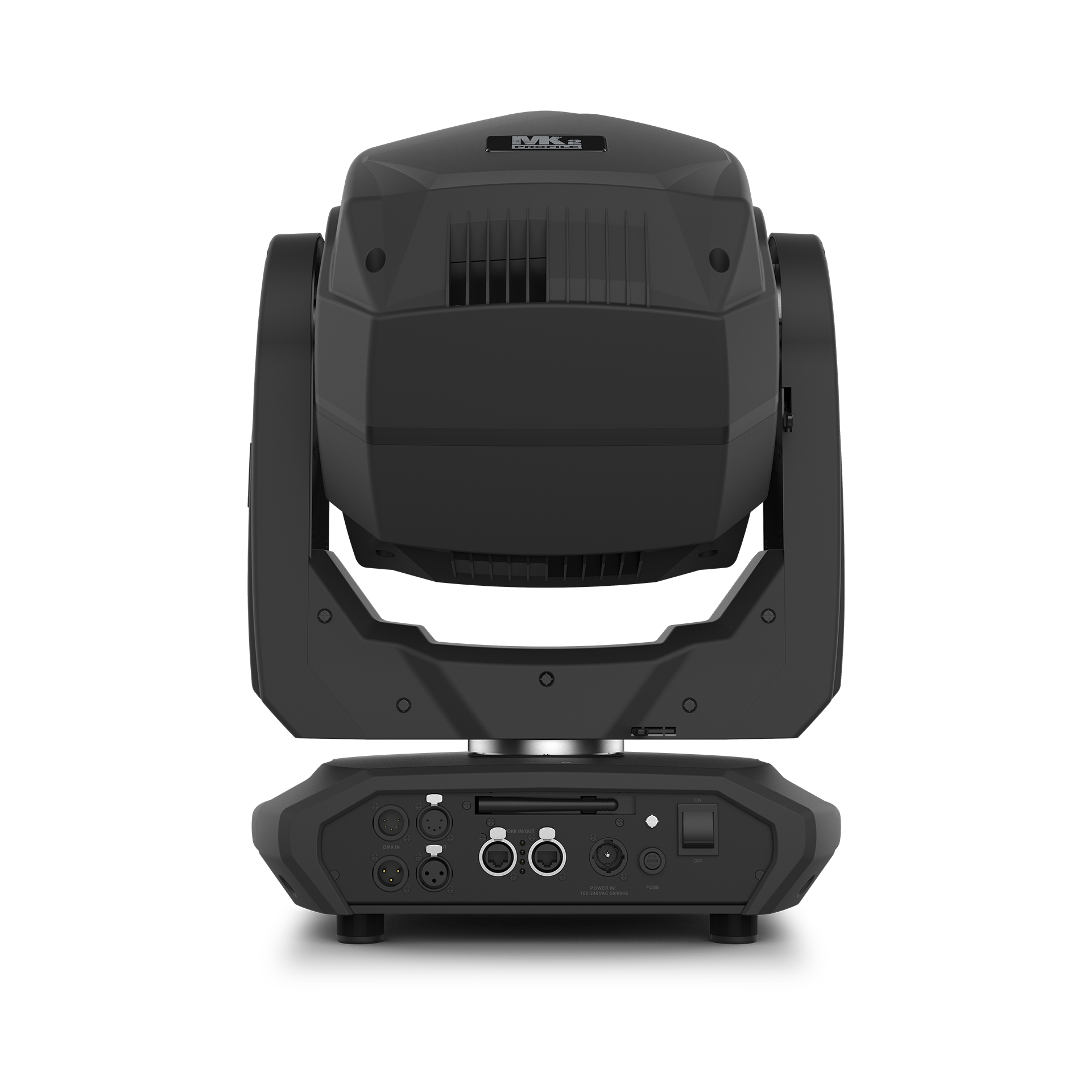

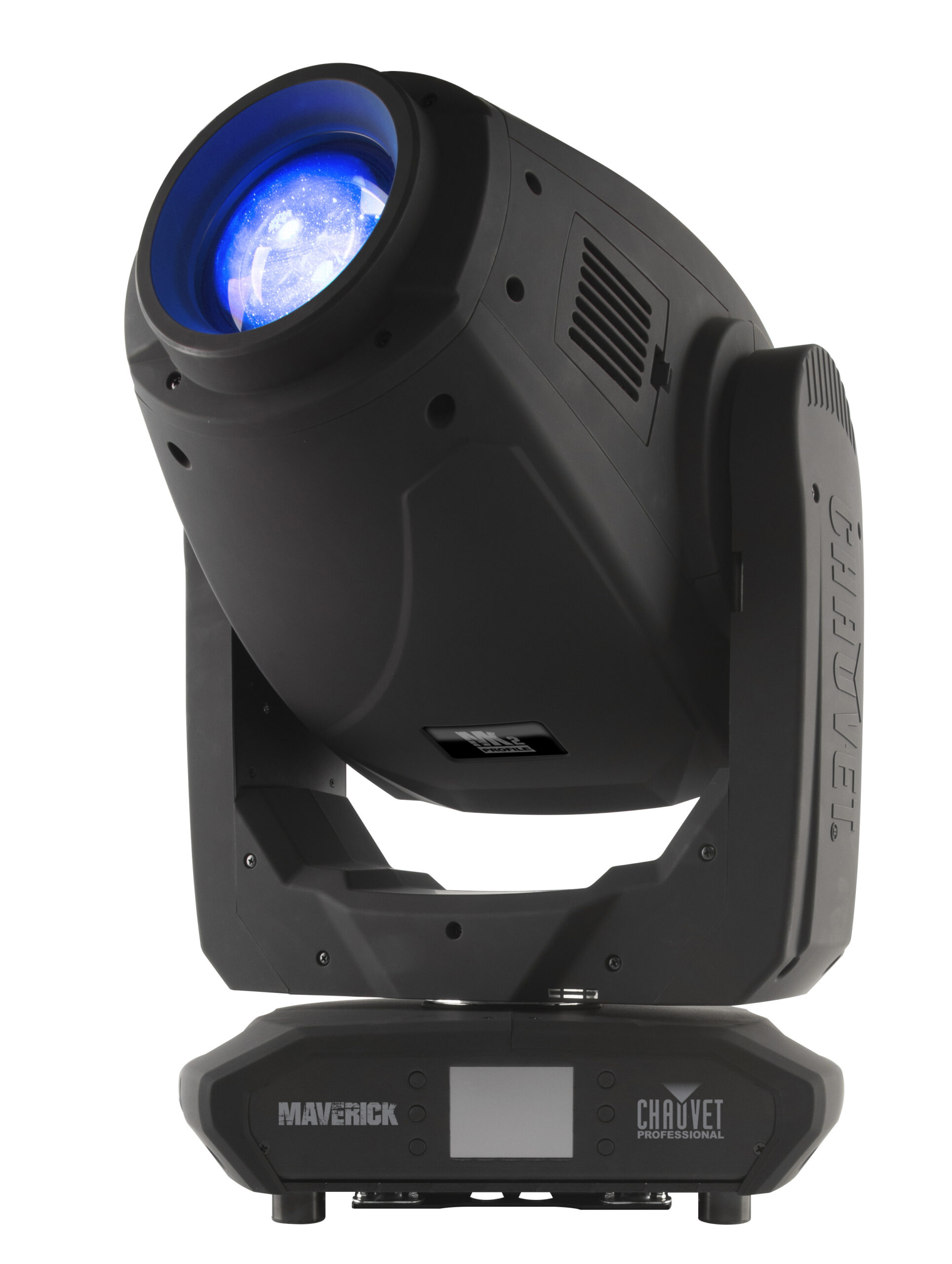

Maverick MK2 Profile

Optical

• Light Source

  1 LEDs (CW) 440 W, (6.5 A), 6,016 K, 50,000 hours life expectancy

• Color Temperature (at full)

  6160 K

• Front Lens diameter

  116 mm

• CRI

  >90

• Beam Angle

  11.3° to 34.1°

• Field Angle

  13.2° to 38.4°

• Zoom Angle

  13° to 37°

• Lumens – Source

  20,000

• Lumens – Output

  11,519

• • Illuminance
    • Illuminance (13°)

      13,617 lux @ 5 m

    • Illuminance (36°)

      1,843 lux @ 5 m

• Selectable PWM

  600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 15,000Hz

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  7 + white, split colors, continuous scroll at variable speeds

• Colors

  CMY flags, CTO flag

• Gobos (1)

  6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• • Gobo Size
    • Gobo Wheel 1 (rotating)

      32 mm (outside), 28 mm (image), 1.1 mm (max. thickness)

    • Gobo Wheel 2 (rotating)

      32 mm (outside), 26 mm (image), 1.1 mm (max. thickness)

• Framing Shutters

  4 blades, each with dual axis movement

• Framing Shutter rotation

  90°

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Iris

  Motorized

• Prism

  3 Facets, motorized, rotating

• Strobe Rate

  0 to 20 Hz

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  15.5 x 10.9 x 26.4 in (394 x 279 x 671 mm)

• Weight

  69.8 lb (31.7 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

Connections

• Power Connection

  Edison plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, DMX, W-DMX, sACN

• DMX Channels

  33 or 50

• Art-Net Channels

  33 or 50

• Modes/Personalities

  2 personalities (33, 50)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  750 W, 6.32 A @ 120 V, 60 Hz

• Power and Current

  732 W, 3.5 A @ 208 V, 60 Hz

• Power and Current

  734 W, 3.1 A @ 230 V, 50 Hz

• Breaker Size

  F12 A, 250 V

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
