    COLORdash Par H7IP

    An ultra-compact, all-weather RGBWAUV LED wash light that delivers a beautifully mixed, soft field of deeply saturated colors.
    Its IP-rated, durable design makes it ideal for a wide range of indoor or outdoor applications, including mobile entertainment, theatrical productions, and event or architectural installations.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORDASHPARH7IP

    COLORdash Par H7IP

    Specifications
    		 Download
    COLORdash Par H7IP User Manual
    		 Download
    COLORdash Par H7IP Quick Reference Guide
    		 Download
    COLORdash Par H7IP CAD Drawings
    		 Download
    COLORdash Par H7IP DMX Chart
    		 Download
    COLORdash Par H7IP Photometrics File
    		 Download
    COLORdash Par H7IP ShowXpress Profile
    		 Download
    COLORdash Par H7IP IES File
    		 Download
    Photometrics Report_COLORdash Par H7IP File
    		 Download
    Firmware
    		 Download
    Download All Resources

    COLORdash Par H7IP

    SKU: COLORDASHPARH7IP

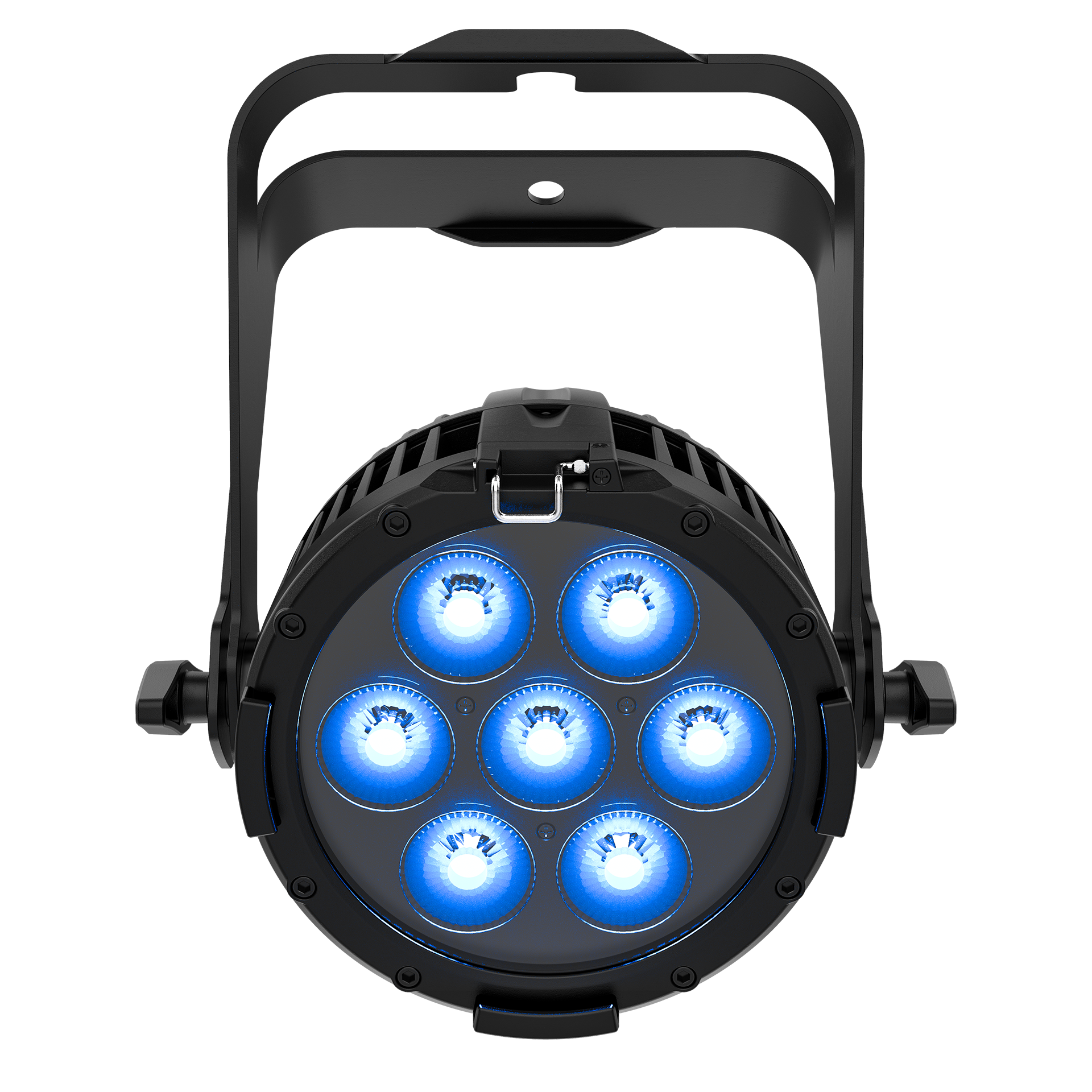

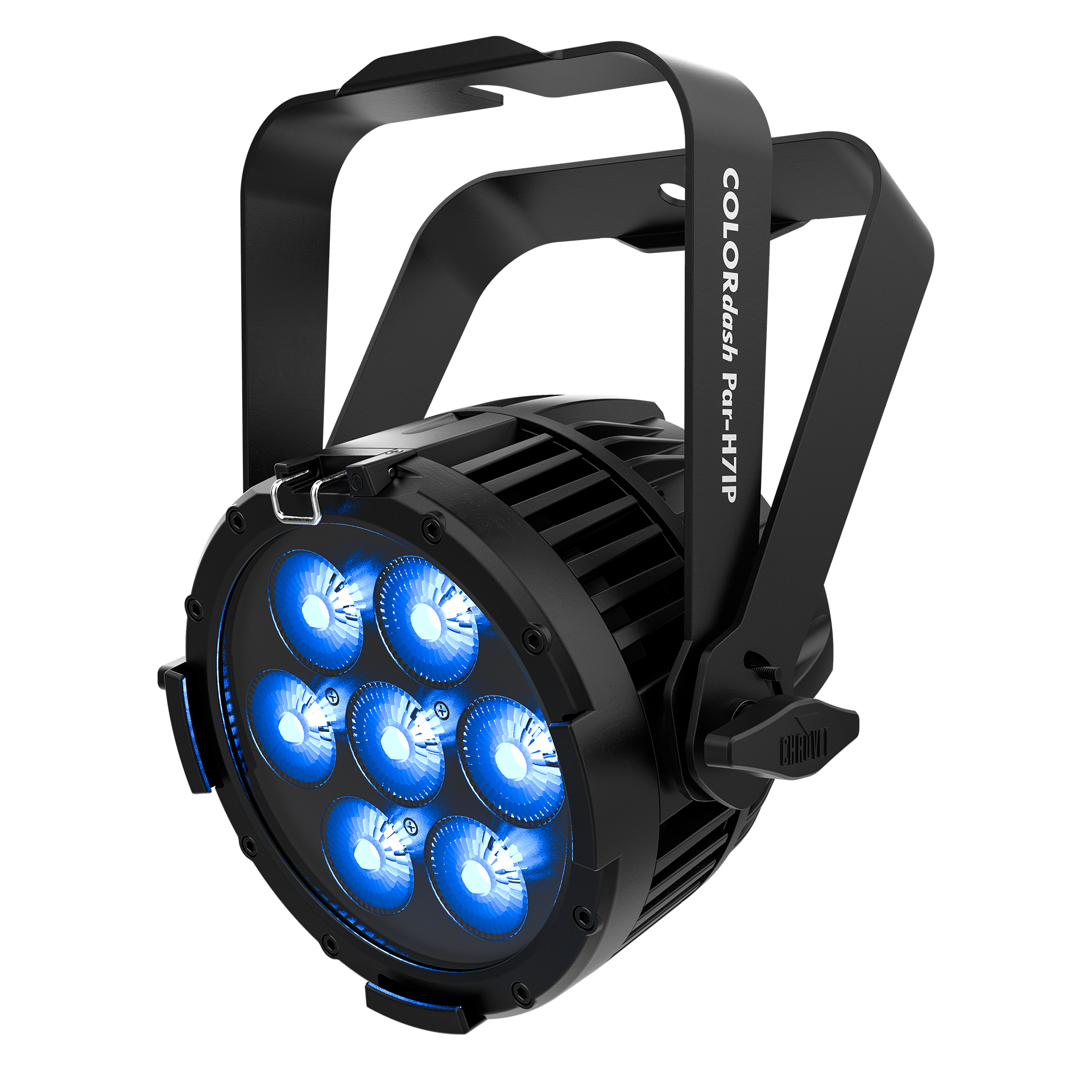

    COLORdash Par H7IP is an ultra compact, all-weather RGBWAUV LED wash at home in any environment. It delivers a beautifully mixed, soft field of deeply saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

    Features

    Versatile Indoor/Outdoor Wash

    A rugged RGBWA-UV LED wash light designed for flexible use at both indoor and outdoor events.

    Weatherproof Connections

    Features IP-rated power and DMX connections to ensure reliable operation in any weather condition.

    Adjustable PWM

    Avoid on-camera flickering with adjustable Pulse Width Modulation for broadcast-safe operation.

    Remote Device Management

    RDM capability allows for remote addressing and configuration, adding operational flexibility.

    Smooth Dimming Curves

    Eliminate flicker and choppiness in fades with multiple selectable, smooth dimming curves.

    OLED Touchscreen Interface

    An easy-to-read, password-protected OLED display with a touchscreen interface allows for simple onboard control.

    Advanced Optics

    Experience exceptional color mixing and high efficiency thanks to the advanced optical system.

    Dual-Purpose Yoke

    The double-bracketed yoke provides flexible mounting options and also functions as a floor stand.

    Latest News

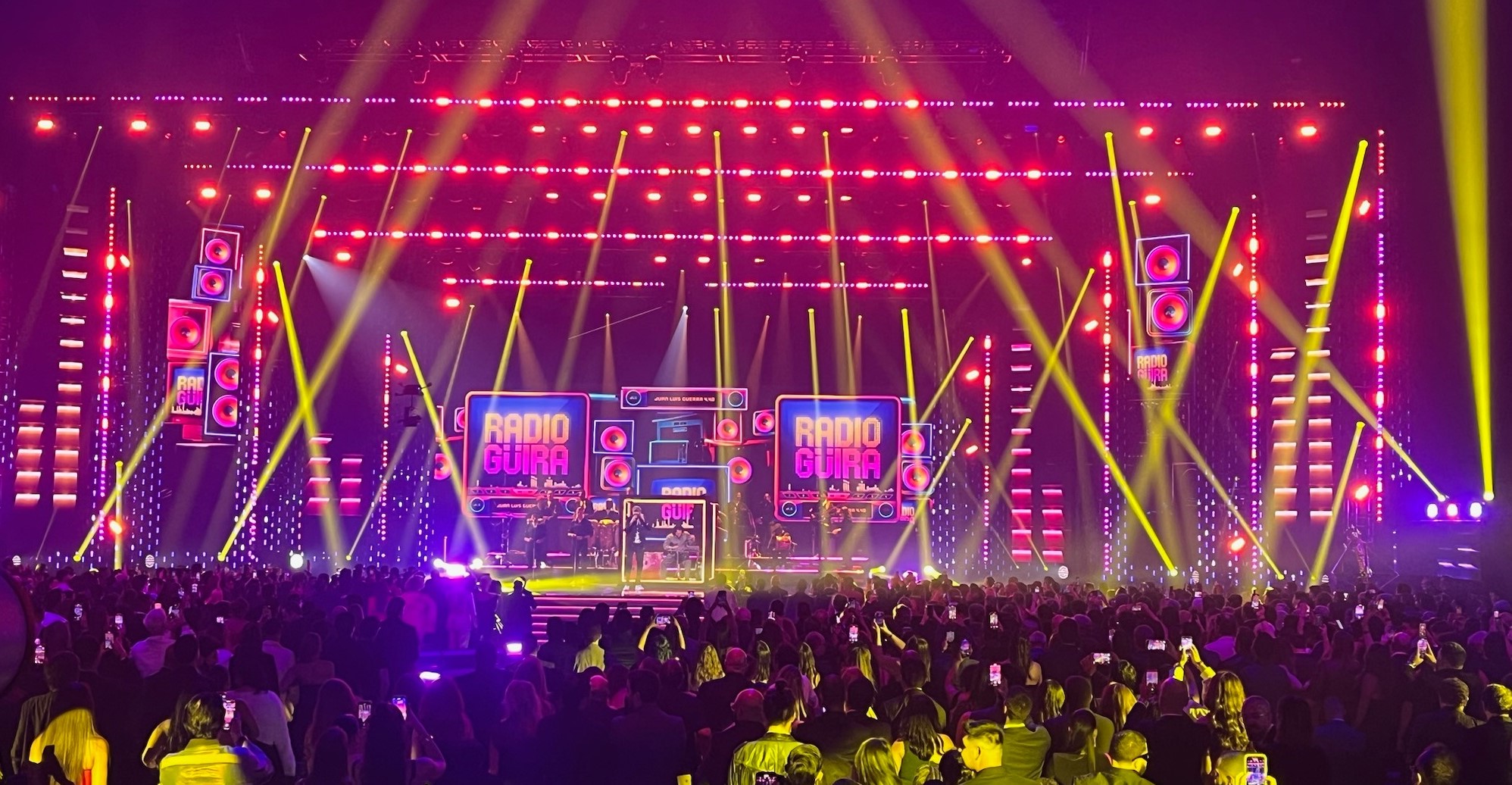

    Tom Kenny, Felix Peralta & David Convertino Create Latin Grammy Looks with CHAUVET Professional and 4Wall
    LDs Tom Kenny and Felix Peralta detail the versatile lighting design for the 25th Latin Grammy Awards broadcast.
    Read more

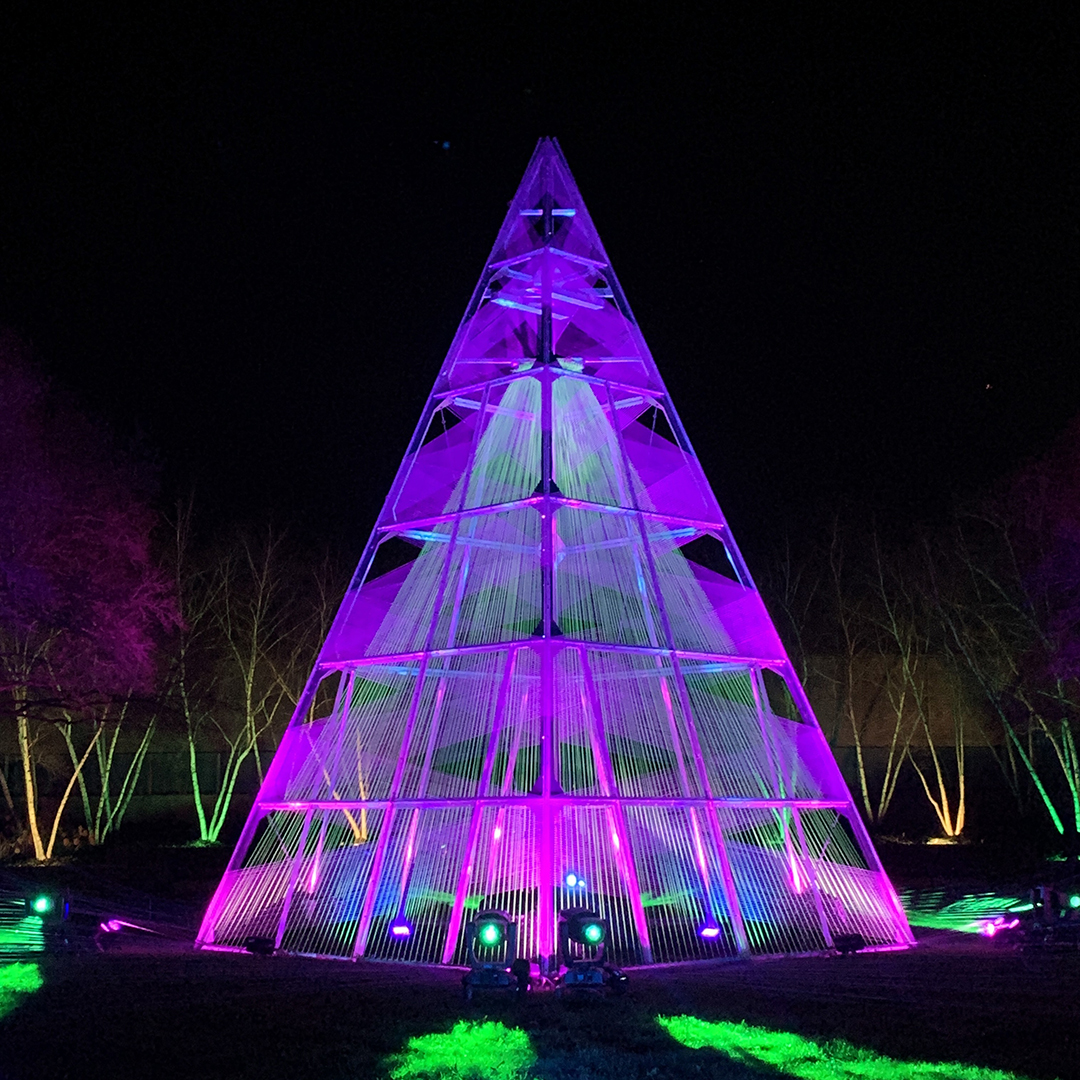

    Christopher Wren Accents Culture Creative’s Lightscape with CHAUVET Professional
    Chief designer Christopher Wren illuminates the unique character of six botanical gardens for Lightscape.
    Read more

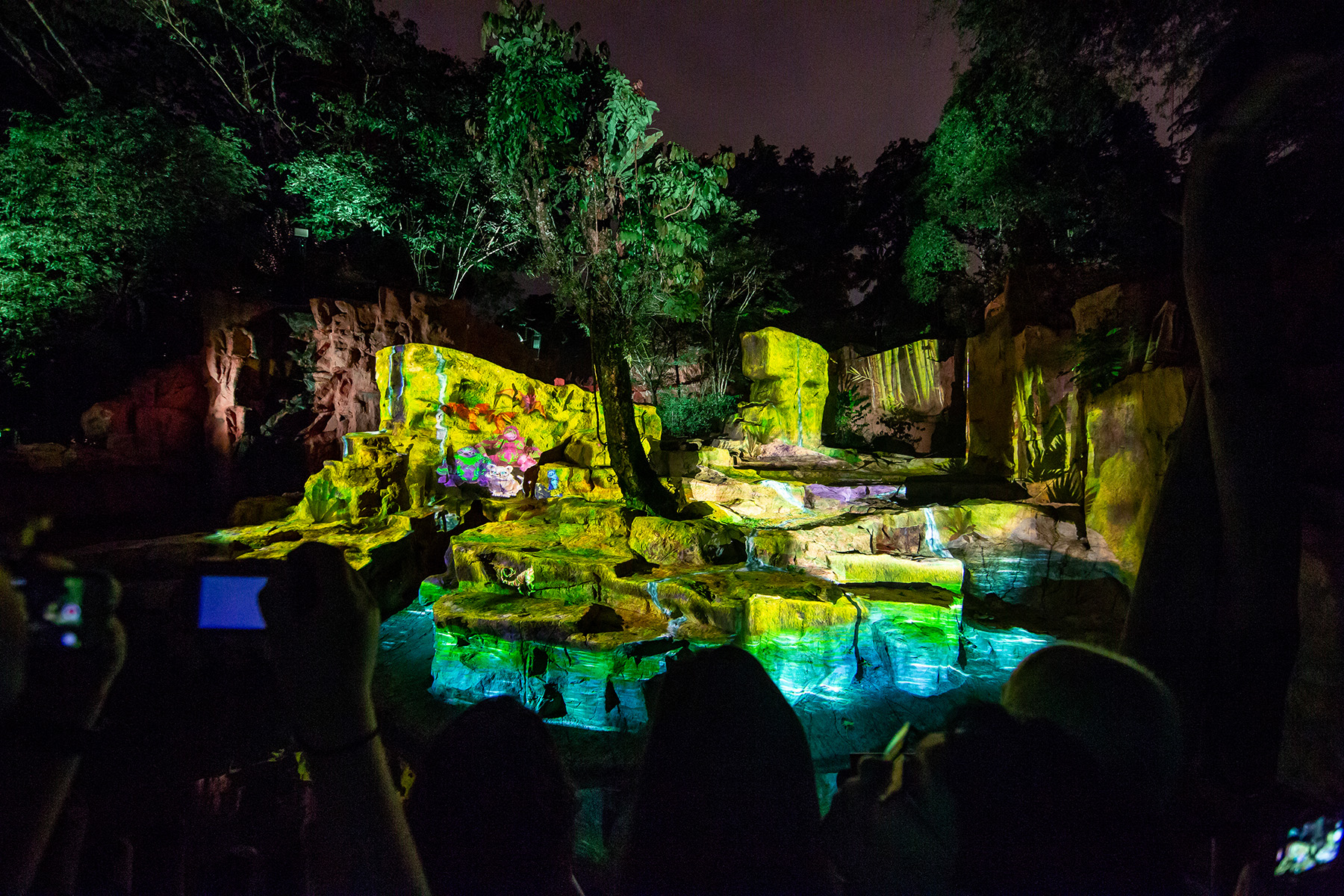

    Magic Moments
    Moment Factory illuminates the Singapore Zoo with an immersive, magical rainforest experience.
    Read more
    Tom Kenny, Felix Peralta & David Convertino Create Latin Grammy Looks with CHAUVET Professional and 4Wall
    LDs Tom Kenny and Felix Peralta detail the versatile lighting design for the 25th Latin Grammy Awards broadcast.
    Read more
    Christopher Wren Accents Culture Creative’s Lightscape with CHAUVET Professional
    Chief designer Christopher Wren illuminates the unique character of six botanical gardens for Lightscape.
    Read more
    Magic Moments
    Moment Factory illuminates the Singapore Zoo with an immersive, magical rainforest experience.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        7 LEDs (hex-color RGBAW+UV) 10 W, (500 mA), 50,000 hours life expectancy

      • Color Temperature (range)

        2800 to 10,000 K

      • Beam Angle

        21°

      • Field Angle

        47°

      • Illuminance (total)

        674 lux @ 5 m

      • Selectable PWM

        600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 30 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        4

      • Built-in Automated Programs

        Yes

      Construction/Physical

      • Dimensions

        11.02 x 9.44 x 6.06 in (280 x 240 x 154 mm)

      • Weight

        7.8 lb (3.6 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum die-cast

      • Accessory Holder/Gel Frame Size

        6.5 in (165 mm)

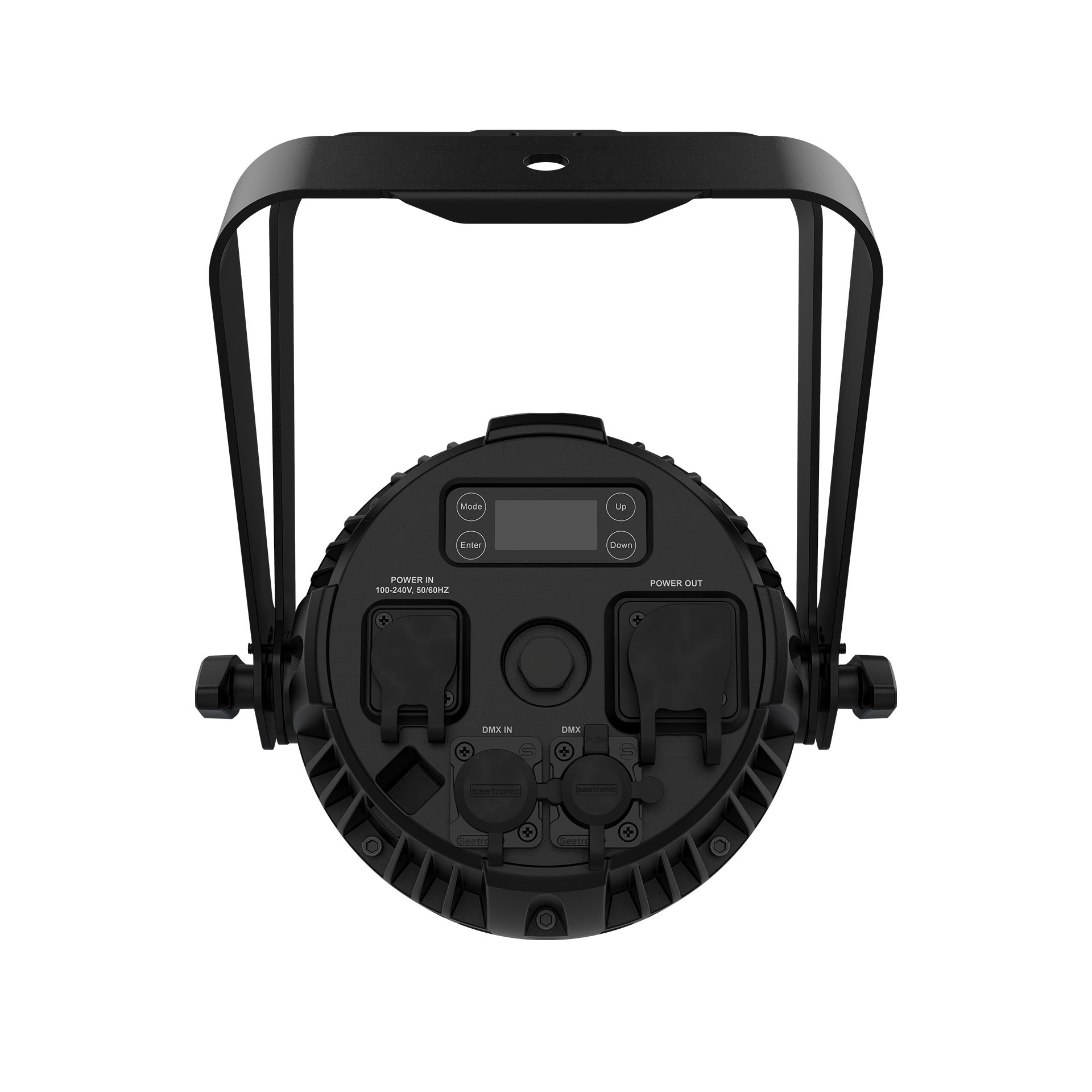

      Connections

      • Power Connection

        Edison(Local plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin IP65 XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        6, 8 or 13

      • Modes/Personalities

        3 personalities (6, 8, 13)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        23 units @ 120 V; 39 units @ 208 V; 42 units @ 230 V

      • Power and Current

        68 W, 0.569 A @ 120 V, 60 Hz

      • Power and Current

        72 W, 0.347 A @ 208 V, 60 Hz

      • Power and Current

        74 W, 0.318 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP65, temporary outdoor/wet use

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Seetronic Powerkon power linking cables
      • 5-pin IP or non-IP DMX cables

      What's Included

      • Seetronic Powerkon IP 65 power cord
      • Gel frame

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      COLORdash Par H7IP User Manual
      		Download
      Manuals
      COLORdash Par H7IP Quick Reference Guide
      		Download
      Manuals
      COLORdash Par H7IP CAD Drawings
      		Download
      Manuals
      COLORdash Par H7IP DMX Chart
      		Download
      Manuals
      COLORdash Par H7IP Photometrics File
      		Download
      Manuals
      COLORdash Par H7IP ShowXpress Profile
      		Download
      Photometrics
      COLORdash Par H7IP IES File
      		Download
      Photometrics
      Photometrics Report_COLORdash Par H7IP File
      		Download
      Other
      COLORdash Par H7IP – Firmware
      		Download

      Learn How To Use Your COLORdash Par H7IP

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

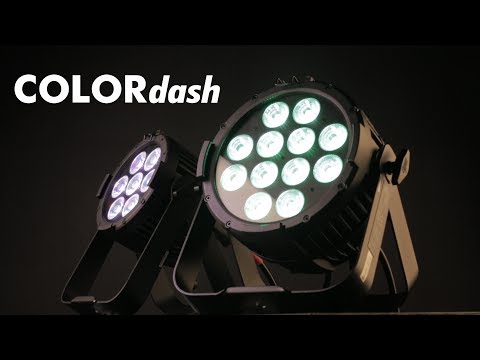

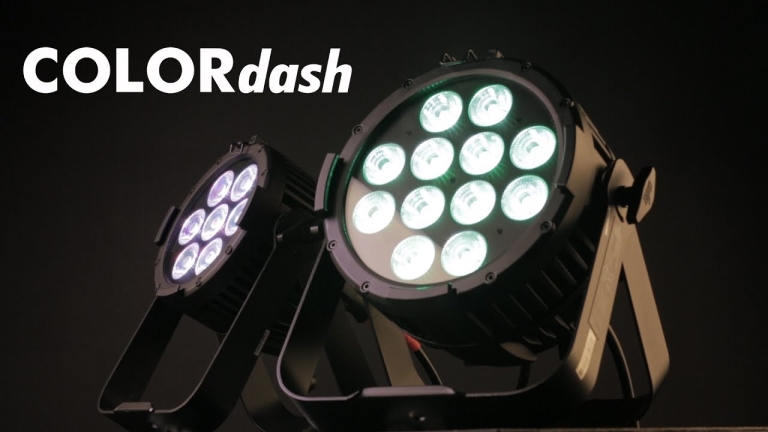

      • COLORdash Par H7 & 12 IP by CHAUVET Professional

        Create a beautifully mixed, soft field of richly saturated colors with the compact COLORdash Par H7 IP and H12 IP from CHAUVET Professional. These powerful, all-weather RGBWAUV LED wash fixtures feature IP-rated connections for dependable operation, empowering vibrant designs in any environment.

      Video Library

      COLORdash Par H7IP FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the COLORdash Par H7IP
      Can the COLORdash Par H7IP be used outdoors in the rain?

      Yes, it is designed for all-weather performance. Its durable, weatherproof housing and sealed power and data connections allow it to be used for events outdoors, even in wet conditions.

      What kind of colors can the COLORdash Par H7IP create?

      It creates a massive spectrum of rich colors. By mixing red, green, blue, amber, and white, it can produce everything from vibrant hues to soft pastels. It also includes an ultraviolet (UV) element for a classic ‘blacklight’ glow effect.
