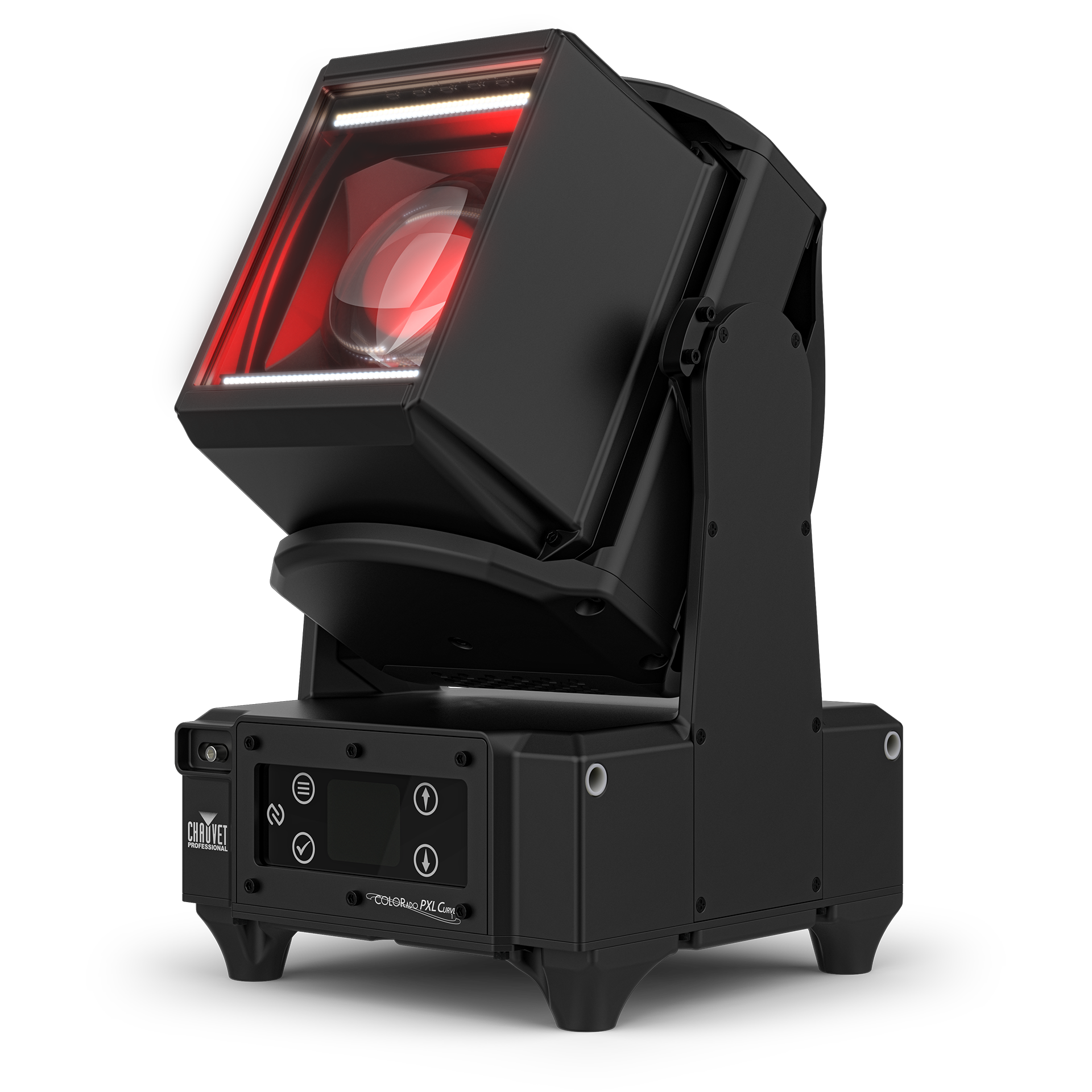

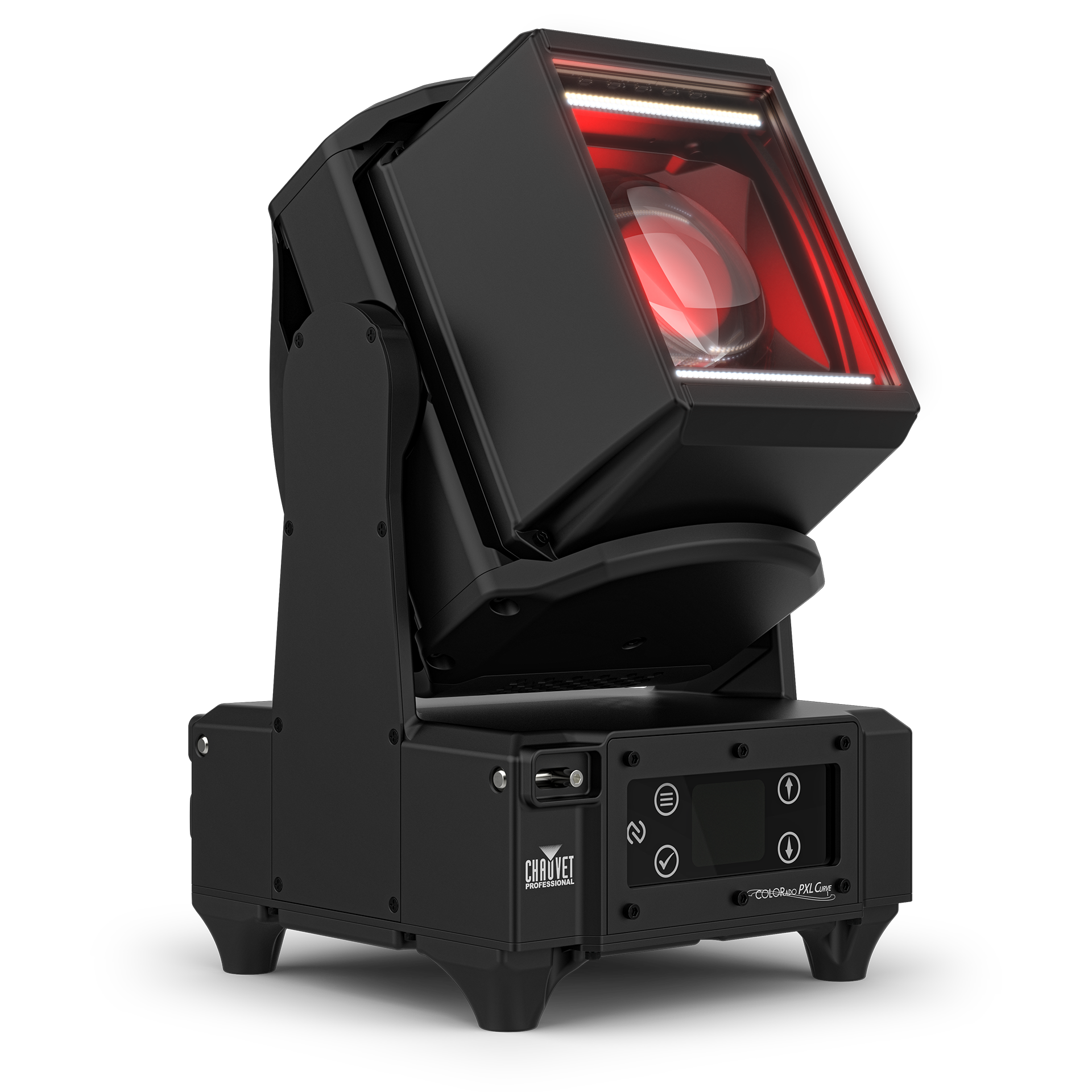

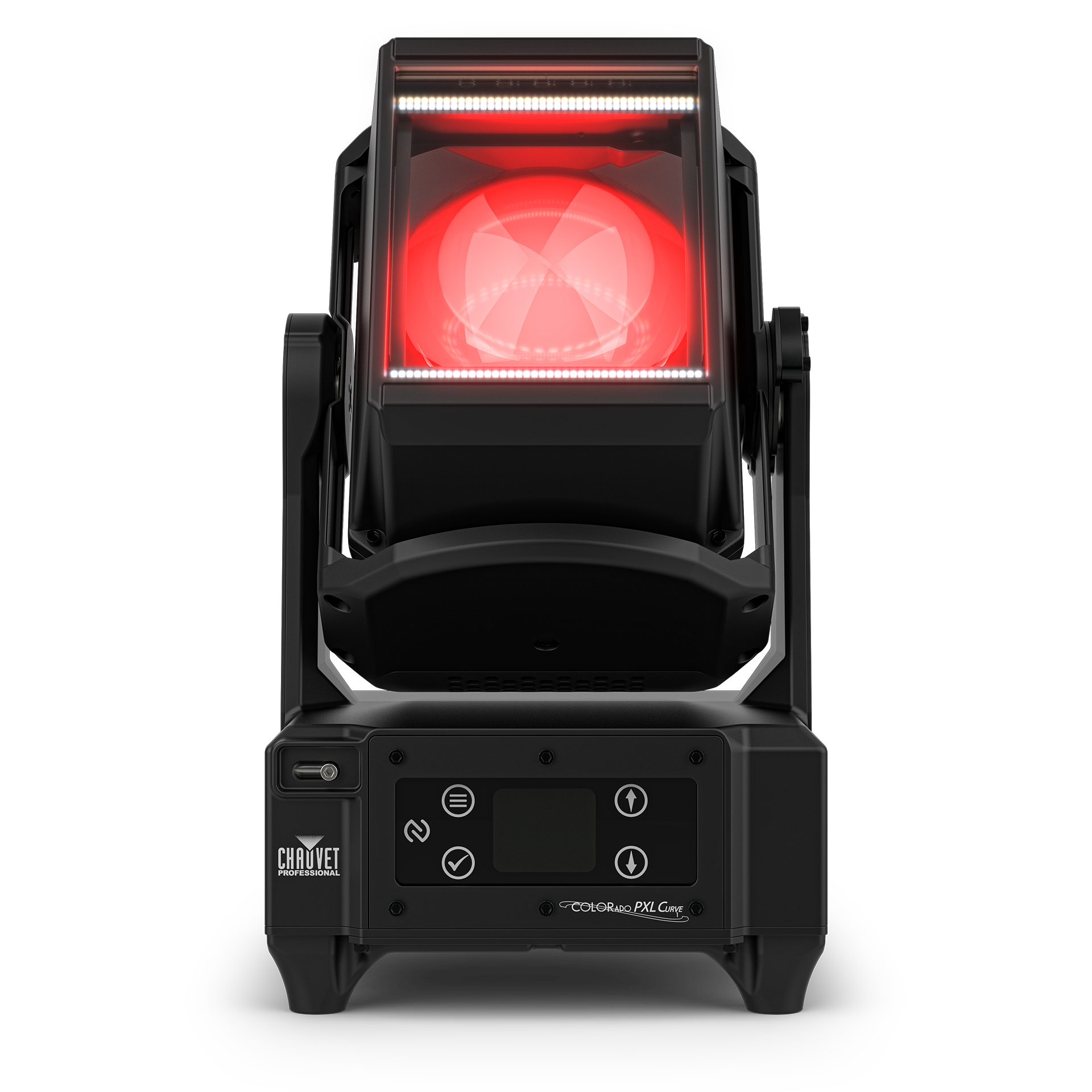

COLORado PXL Curve 1

Optical

• • Light Source(s)
    • Light Source (Cell)

      1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy

    • Light Source (Strobe/Blinder)

      160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy

• Color Temperature (at full)

  22,089 K

• • Beam Angle(s)
    • Beam Angle (without strobe)

      3.4 – 30.2°

    • Beam Angle (with strobe)

      3.4 – 32.1°

• • Field Angle(s)
    • Field Angle (without strobe)

      4.4 – 38.7°

    • Field Angle (with strobe)

      4.3 – 66.3°

• • Cutoff Angle(s)
    • Cutoff Angle (without strobe)

      4.7 – 40.8°

    • Cutoff Angle (with strobe)

      4.6 – 144.3°

• • Zoom Range(s)
    • Zoom Range (without strobe)

      3.4 – 40.8°

    • Zoom Range (with strobe)

      3.4 – 144.3°

• • Lumens
    • Lumens (without strobe)

      1,558

    • Lumens (with strobe)

      4,630

• Illuminance without strobe (3.4°)

  14,009 lux @ 5 m

Dynamic Effects

• Pan and Tilt

  60°/190°

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized/Manual

• Strobe Rate

  0 to 25 Hz

• Color Temperature Presets

  Yes

• Move-in-Black

  Yes

• Dim Modes

  2

• Dim Curves

  4

Construction/Physical

• Dimensions

  7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)

• Weight

  15 lb (6.8 kg)

Connections

• Power Input

  Seetronic Powerkon

• Power Output

  Seetronic Powerkon

• Data Connectors

  5-pin IP65 XLR, etherCON

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  [Art-Net, sACN, DMX, RDM, NFC]

• DMX Channels

  24 or 45

• Art-Net Channels

  24 or 45

• Modes/Personalities

  2 personalities (24, 45)
