    COLORado 1QS

    A robust, IP65-rated indoor/outdoor wash light delivering fully homogenized output from a single, high-power RGBW LED source with a versatile 17° beam angle and smooth 16-bit dimming.
    Ideal for touring, rental, and production markets requiring a durable, easy-to-rig, all-weather wash fixture for both indoor and outdoor applications.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORADO1QS

    COLORado 1QS

    Specifications
    		 Download
    COLORado 1QS Quick Reference Guide
    		 Download
    COLORado 1QS User Manual
    		 Download
    COLORado 1QS DMX Chart
    		 Download
    COLORado 1QS CAD Drawings
    		 Download
    COLORado 1QS IES Files
    		 Download
    COLORado 1QS Photometrics Report
    		 Download
    Firmware
    		 Download
    Download All Resources

    COLORado 1QS

    SKU: COLORADO1QS

    COLORado 1QS is a robust indoor/outdoor wash light that delivers fully homogenized output from a single, high-power RGBW LED source. A 17° beam angle offers versatile control and 16 bit-dimming facilitates smooth fades. The unit’s IP65 housing makes it ideal for touring, rental, and production markets. Outdoor-rated power and data connectors allow for easy connections without propriety cabling. The unit also includes an omega bracket with ¼ turn adaptors for fast and easy rigging and is compatible with all 7.5” accessories.

    Features

    Professional RGBW LED Wash

    Designed for touring, rental, and production applications, this versatile wash light performs equally well indoors or out.

    All Weather Operation

    Features IP-rated power and DMX connections, ensuring reliable performance in any environment.

    Even Light Distribution

    Produces a flat, even field of light from its single source for seamless color washes.

    Advanced Setup Control

    RDM and variable Pulse Width Modulation (PWM) simplify configuration and ensure flicker-free operation on camera.

    Standard Accessory Compatibility

    Easily accepts industry-standard 7.5-inch beam shaping accessories for enhanced lighting control.

    Smooth 16-Bit Dimming

    Achieve exceptionally smooth fades and subtle color transitions with 16-bit dimming resolution.

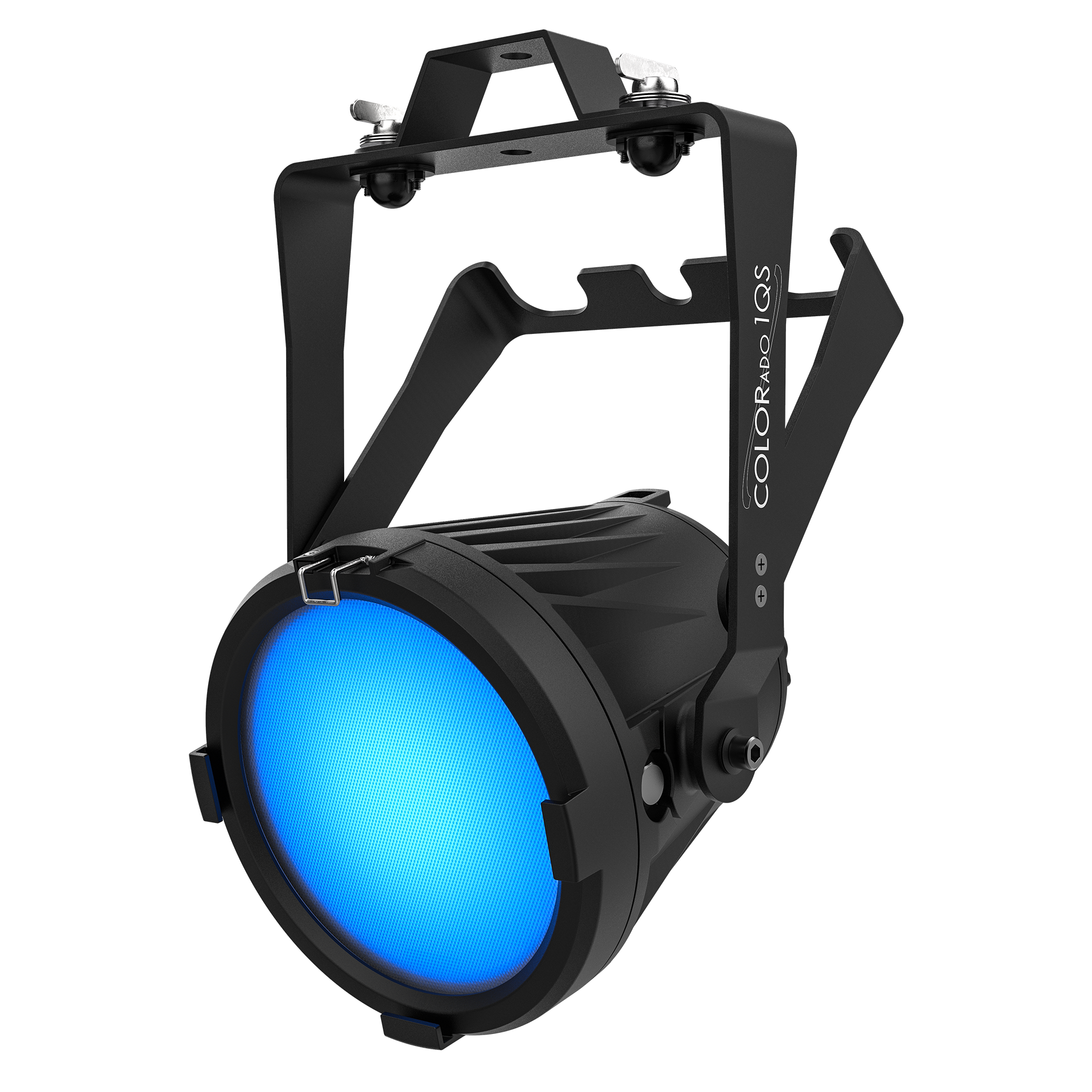

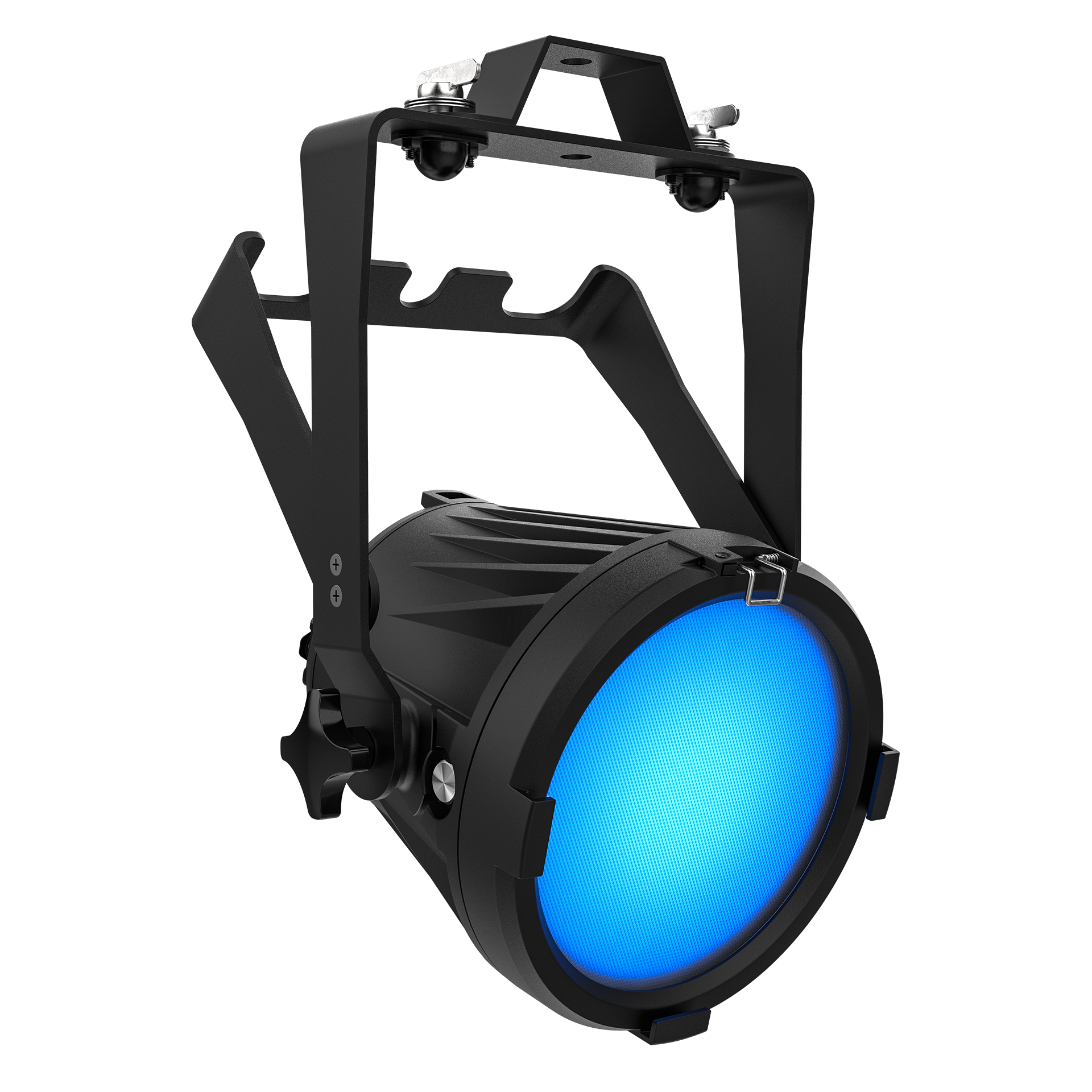

    Versatile Mounting Yoke

    The included double-bracket yoke can be used for traditional rigging or as a convenient floor stand.

    Latest News

    Brian Willison Creates Free Flowing Vibe at Northern Nights with 160 CHAUVET Professional Fixtures From 4Wall
    A look at how Brian Willison’s lighting design immersed a redwood forest in vibrant color.
    Read more
    CHAUVET Professional and Lighting & Sound Company Create Embracive Experience at Maymont Garden Glow
    An immersive design transforms Maymont Estate Park’s gardens into an enchanting, glowing experience.
    Read more
    Brian Willison Creates Free Flowing Vibe at Northern Nights with 160 CHAUVET Professional Fixtures From 4Wall
    A look at how Brian Willison’s lighting design immersed a redwood forest in vibrant color.
    Read more
    CHAUVET Professional and Lighting & Sound Company Create Embracive Experience at Maymont Garden Glow
    An immersive design transforms Maymont Estate Park’s gardens into an enchanting, glowing experience.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    COLORado 1-Quad Zoom

    IP65 RGBW wash with a wide zoom and pixel mapping.

    Ovation E-160WW

    Silent LED ellipsoidal with warm, tungsten-like output.

    Ovation E-260WW / E-260CW

    High-output, silent ellipsoidal for theatre and broadcast.

    Ovation E-260WW IP

    IP65-rated ellipsoidal with high-CRI, warm white output.

    Ovation E-2 FC

    Silent ellipsoidal with high-CRI, RGBA-Lime color.

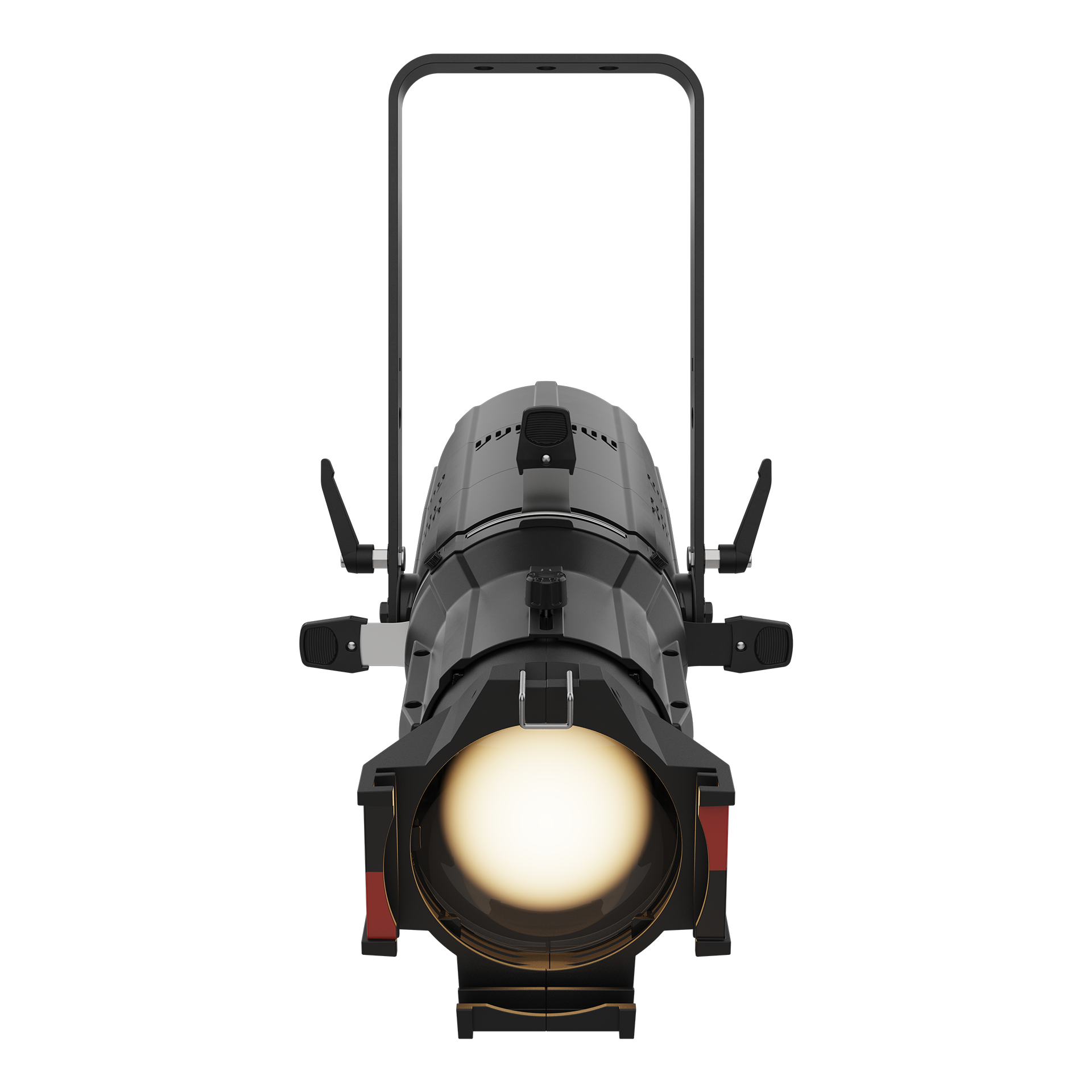

    Ovation E-4WW IP

    High-output IP65 ellipsoidal for superior gobo projection.

    Ovation E-910FC

    Silent ellipsoidal with a high-CRI, RGBA-Lime engine.

    Ovation E-910FC IP

    IP65 RGBA-Lime profile uses standard Ovation optics.

    COLORado Solo Bar 6 – Stealth Dome

    Smoked grey dome for wider viewing and a stealth appearance.

    COLORado Solo Bar 4 – Stealth Dome

    Stealth dome for smooth direct-view and wider viewing angles.

    COLORado Solo Bar 1 – Stealth Dome

    Smoked polycarbonate dome for wider, smoother direct view.

    CTC-50HC

    Anodized aluminum clamp for high-load rigging applications.

    CTC-50HCBLK

    Heavy-duty, black anodized clamp for high-load rigging.

    CTC-50HCN

    Heavy-duty, narrow-profile clamp for crowded truss.

    CTC-50HCNBLK

    High-capacity narrow clamp for rigging in tight spaces.

    Ovation F 3.25″ Barndoor

    Four-leaf barndoor for precise beam shaping.

    Ovation F 7.5″ Barndoor

    All-metal barndoor with eight leaves for precise beam shaping.

    RIGLINK DMX Cables

    Production-grade, double-shielded for signal integrity.

    RIGLINK PowerKon Cables

    Rugged, UL-certified power cable for touring reliability.

    RIGLINK 4-Pin Cables

    IP65 hybrid cable for streamlined power and DMX runs.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        24 LEDs (quad-color RGBW) 3 W, (900 mA), 50,000 hours life expectancy.

      • Color Temperature (range)

        2800 to 10,000 K

      • Beam Angle

        17°

      • Field Angle

        30°

      • Lumens

        3401 lm

      • Illuminance (total)

        1268 lux @ 5 m

      • Selectable PWM

        600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 20 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        No

      • Dim Modes

        5

      • Built-in Automated Programs

        Yes

      • Customizable Programs

        Yes

      • Recall Custom Programs

        Yes

      Construction/Physical

      • Dimensions

        10.75 x 8.27 x 13.19 in (273 x 210 x 335 mm)

      • Weight

        10.8 lb (5.0 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum die-cast

      • Accessory Holder/Gel Frame Size

        7.5 in (191 mm)

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        7, 10 or 15

      • Modes/Personalities

        5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        18 @ units 100 V; 22 units @ 120 V; 35 units @ 208 V; 38 units @ 230 V; 40 units @ 240 V

      • Power and Current

        74 W, 0.613 A @ 120 V, 60 Hz

      • Power and Current

        79 W, 0.385 A @ 208 V, 60 Hz

      • Power and Current

        80 W, 0.350 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP65, outdoor/wet, with pressure equalizing M12 GORE valve

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Neutrik® powerCON® cables
      • 3-pin or 5-pin DMX Cables
      • Color Blending Filters: DF60X1D
      • Ovation F7.5” Barn door
      • Ovation 60 deg, 7.5” Honeycomb

      What's Included

      • COLORado 1QS
      • Seetronic Powerkon IP65 power cord
      • Gel Frame
      • Omega Bracket

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      COLORado 1QS Quick Reference Guide
      		Download
      Manuals
      COLORado 1QS User Manual
      		Download
      Manuals
      COLORado 1QS DMX Chart
      		Download
      Drawings
      COLORado 1QS CAD Drawings
      		Download
      Photometrics
      COLORado 1QS IES Files
      		Download
      Photometrics
      COLORado 1QS Photometrics Report
      		Download
      Other
      COLORado 1QS – Firmware
      		Download

      Learn How To Use Your COLORado 1QS

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Big & Bold NYE 2025! #BTS at Fontainebleau Miami Beach with LD Tyler Frank

        Go behind the scenes at the Fontainebleau Miami Beach as LD Tyler Frank transforms the iconic poolside venue for a bold New Year’s Eve party. Discover how a powerful, IP65-rated rig of CHAUVET Professional fixtures delivered stunning looks for this legendary outdoor celebration.

      Video Library

      COLORado 1QS FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the COLORado 1QS
      Can the COLORado 1QS be used outdoors?

      Yes, it is specifically designed for both indoor and outdoor use. Its durable, weatherproof housing and outdoor-rated power and data connectors ensure reliable performance in any environment, including wet conditions, without needing special protection.

      What makes the light from the COLORado 1QS look so good?

      The COLORado 1QS uses a powerful, single source of light. This creates a beautifully smooth and even field of color, free of the distracting, multicolored shadows that can be created by lights with multiple, separate LEDs.

      How easy is it to set up and use the COLORado 1QS?

      It is designed for fast and flexible setup. A versatile double-bracket allows you to either hang it from a rig or use it as a stand on the floor. It is also compatible with standard 7.5-inch accessories, making it simple to shape or filter the light for any production need.
