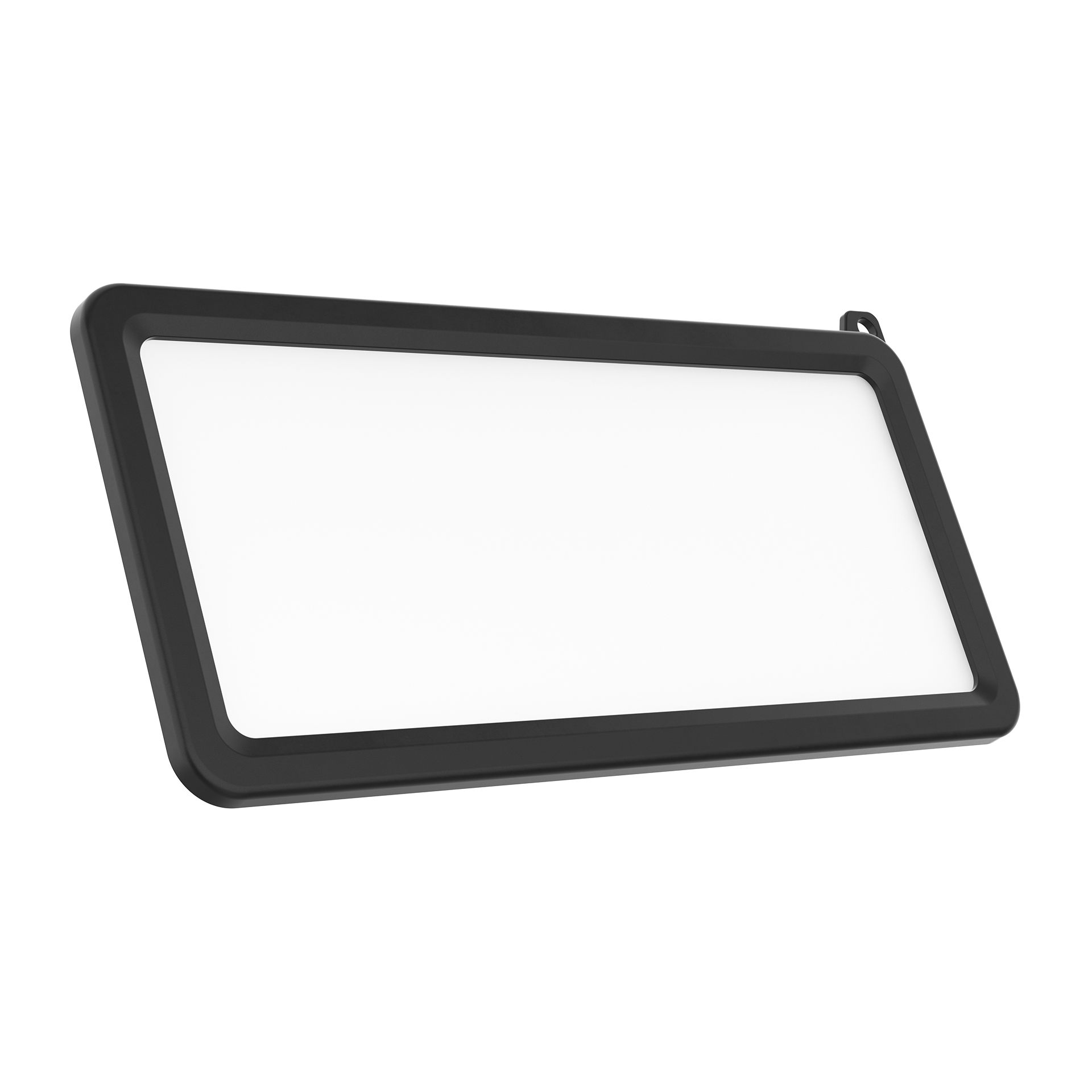

    Well Panel / Panel X – 30° x 60° Hard Filter

    A rigid, magnetically attached lens option that widens the beam angle of the WELL Panel X for broader, more asymmetrical coverage.

    Its durable substrate is perfect for outdoor long-throw applications, such as illuminating trees or creating smooth, linear washes on architectural surfaces.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: WPANELHF30X60

    Well Panel / Panel X – 30° x 60° Hard Filter

    Specifications
    		 Download
    Download All Resources

    Well Panel / Panel X – 30° x 60° Hard Filter

    SKU: WPANELHF30X60

    30° x 60° hard frame filter. Magnetically attached lens option for WELL Panel and WELL Panel X.

    Download the App

    ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

    Download on the App Store
    Get it on Google Play

    Features

    Widen Beam Coverage

    Instantly transforms the fixture’s beam into a wide 41.9° x 72.7° field for broad, asymmetrical wash applications.

    Compact for Easy Storage

    Its small, flat profile allows for simple storage directly inside the fixture’s charging case, saving valuable space during transport.

    Optimized for Long Throws

    Creates the ideal beam shape for illuminating tall trees, architectural columns, and other long-throw scenic elements with precision.

    Fast Magnetic Mounting

    Attaches and detaches in seconds with a secure magnetic frame, streamlining on-site adjustments without needing any tools.

    Clear Angle Identification

    Clearly marked numbering on the frame allows for quick and confident identification of the beam angle during prep or setup.

    Rigid Substrate Construction

    The durable hard frame construction protects the lens from physical impacts during frequent handling and transport.

    Weather-Resistant Performance

    Designed for temporary outdoor use, this filter maintains optical clarity and integrity in wet or humid environments.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Beam Angle

      41.9 x 72.7°

    • Cut off Angle

      100.8°

      • Illuminance (@ 5 m)
        • AC

          405 lux

        • Battery (curve off)

          404 lux

        • Battery (5 hr)

          174 lux

        • Battery (8 hr)

          106 lux

        • Battery (12 hr)

          70 lux

        • Battery (18 hr)

          50 lux

      • Lumens
        • AC

          6162

        • Battery (curve off)

          614

        • Battery (5 hr)

          2650

        • Battery (8 hr)

          1608

        • Battery (12 hr)

          1069

        • Battery (18 hr)

          769

    Construction/Physical

    • Dimensions

      4.33 in dia. (336 x 123 x 10 mm)

    • Weight

      0.6 lb (0.3kg)

    Certifications/Qualifications

    • Certifications

      CE

    • IP Rating

      IP65, temporary outdoor/wet use

    What's Included

    • WELL Panel X 60×30° Filter
    • Safety cable

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Well Panel / Panel X – 30° x 60° Hard Filter FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Well Panel / Panel X – 30° x 60° Hard Filter
    How does this filter attach to a WELL Panel X fixture?

    The filter features a built-in magnetic frame that allows it to snap securely onto the face of the WELL Panel or WELL Panel X instantly. No tools are required for installation or removal, making on-site adjustments fast and simple.

    Can this filter be used in the rain?

    Yes, the filter is built with a rigid substrate designed for temporary outdoor or wet use, consistent with the IP65 rating of the fixtures it pairs with. It is durable enough for typical event production environments.

    How can I tell this filter apart from other beam-shaping options?

    Each filter is clearly marked with its beam angle (30° x 60°) for easy identification. This ensures you can quickly select the correct lens from your kit during show prep or on a busy job site.

    If you have any inquiries about our lights, feel free to ask us or visit our help desk for more information.
