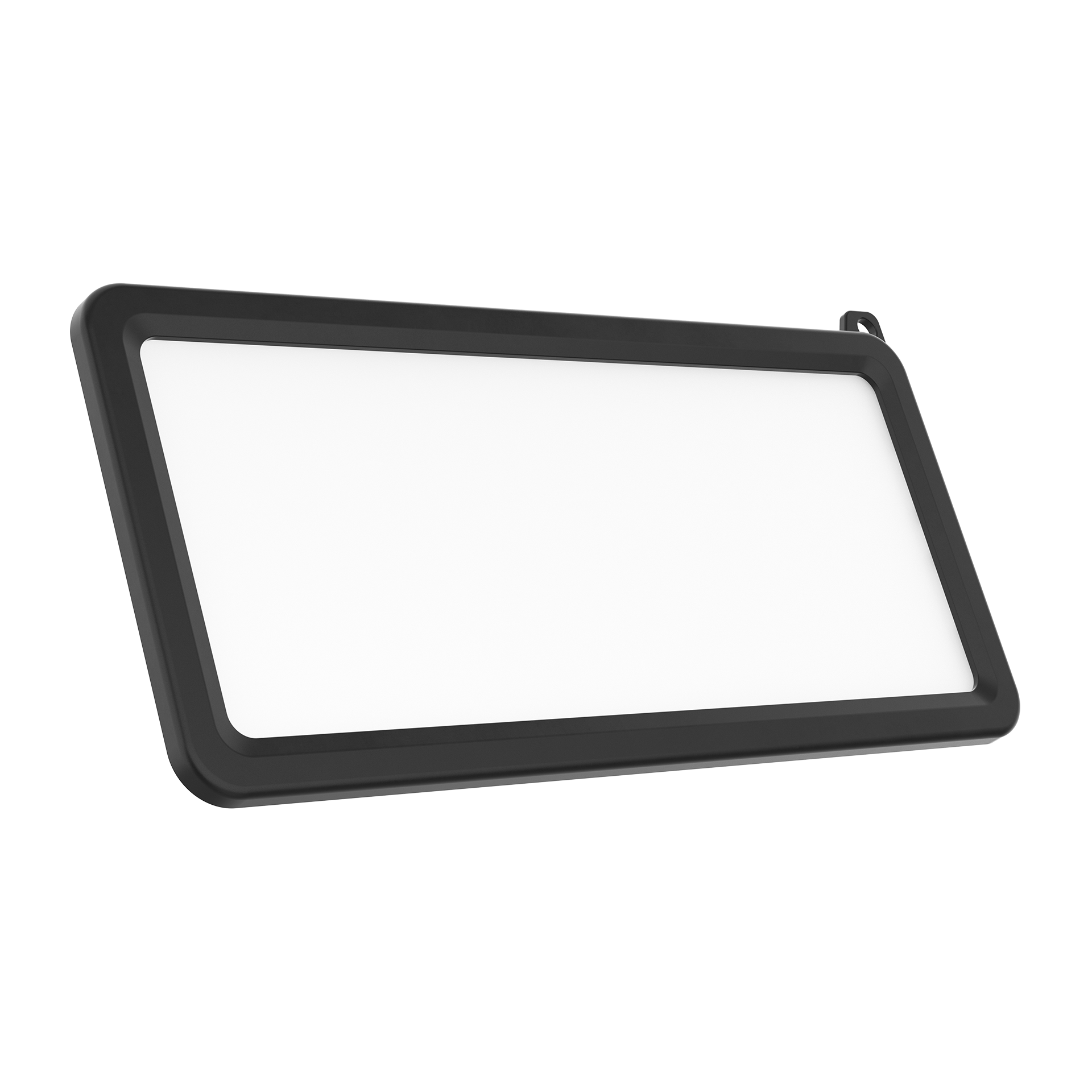

    Well Panel / Panel X – 100° Hard Filter

    This rigid, magnetic filter instantly attaches to WELL Panel fixtures, transforming the native beam into an expansive and even 90.7° wash for broad coverage.

    Its durable, IP65-rated design and compact size make it an essential tool for dynamic, on-the-fly adjustments in demanding outdoor event production environments.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: WPANELHF100

    Well Panel / Panel X – 100° Hard Filter

    Specifications
    		 Download
    Download All Resources

    Well Panel / Panel X – 100° Hard Filter

    SKU: WPANELHF100

    100° hard frame filter. Magnetically attached lens option for WELL Panel and WELL Panel X.

    Download the App

    ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

    Download on the App Store
    Get it on Google Play

    Features

    Expansive Beam Shaping

    Instantly transform the fixture’s narrow beam into a wide 90.7° wash, delivering broad and even coverage for large surfaces and areas.

    Compact And Portable

    A small footprint allows for simple storage directly inside the WELL Panel charging case, streamlining your load-out and protecting your investment.

    Fast Magnetic Mounting

    Powerful magnets enable instant, tool-free installation and removal, empowering you to make rapid creative adjustments on site with minimal downtime.

    Quick Identification

    Clear, permanent numbering on the frame allows for immediate beam angle identification, speeding up your lighting setup and ensuring accuracy.

    Rugged Outdoor Design

    The durable, rigid substrate construction is built to withstand the demands of temporary outdoor use, ensuring reliable performance in various weather conditions.

    Weather-Resistant Performance

    An IP65 rating ensures this filter maintains optical clarity and structural integrity when used with WELL Panel fixtures in wet environments.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Beam Angle

      90.7°

    • Field Angle

      126.3

      • Illuminance
        • AC

          128 lux @ 5 m

        • Battery curve off

          127 lux @ 5 m

        • 5 hr

          53 lux @ 5 m

        • 8 hr

          33 lux @ 5 m

        • 12 hr

          22 lux @ 5 m

        • 18 hr

          16 lux @ 5 m

      • Lumens
        • AC

          6230

        • Battery curve off

          6158

        • 5 hr

          2626

        • 8 hr

          1599

        • 12 hr

          1051

        • 18 hr

          75

    Construction/Physical

    • Dimensions

      4.33 in dia. (336 x 123 x 10 mm)

    • Weight

      0.6 lb (0.3kg)

    Certifications/Qualifications

    • Certifications

      CE

    • IP Rating

      IP65, temporary outdoor/wet use

    What's Included

    • WELL Panel X 100° Filter
    • Safety cable

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Well Panel / Panel X – 100° Hard Filter FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Well Panel / Panel X – 100° Hard Filter
    How does this filter attach to the WELL Panel X?

    The filter attaches magnetically for a secure, tool-free connection. Simply place it on the face of the WELL Panel or WELL Panel X, and the integrated magnets will hold it firmly in place for quick installation and removal.

    Is this filter suitable for outdoor or rainy events?

    Yes, it is. The filter has a rigid substrate and carries an IP65 rating for temporary outdoor and wet use, making it a reliable choice for events where weather is a factor. Always ensure it is properly seated on the fixture.

    Can I store this filter inside the fixture’s charging case?

    Yes, its compact size is specifically designed to allow for easy storage within the official WELL Panel charging case, helping you keep your kit organized and ready for the next deployment.
