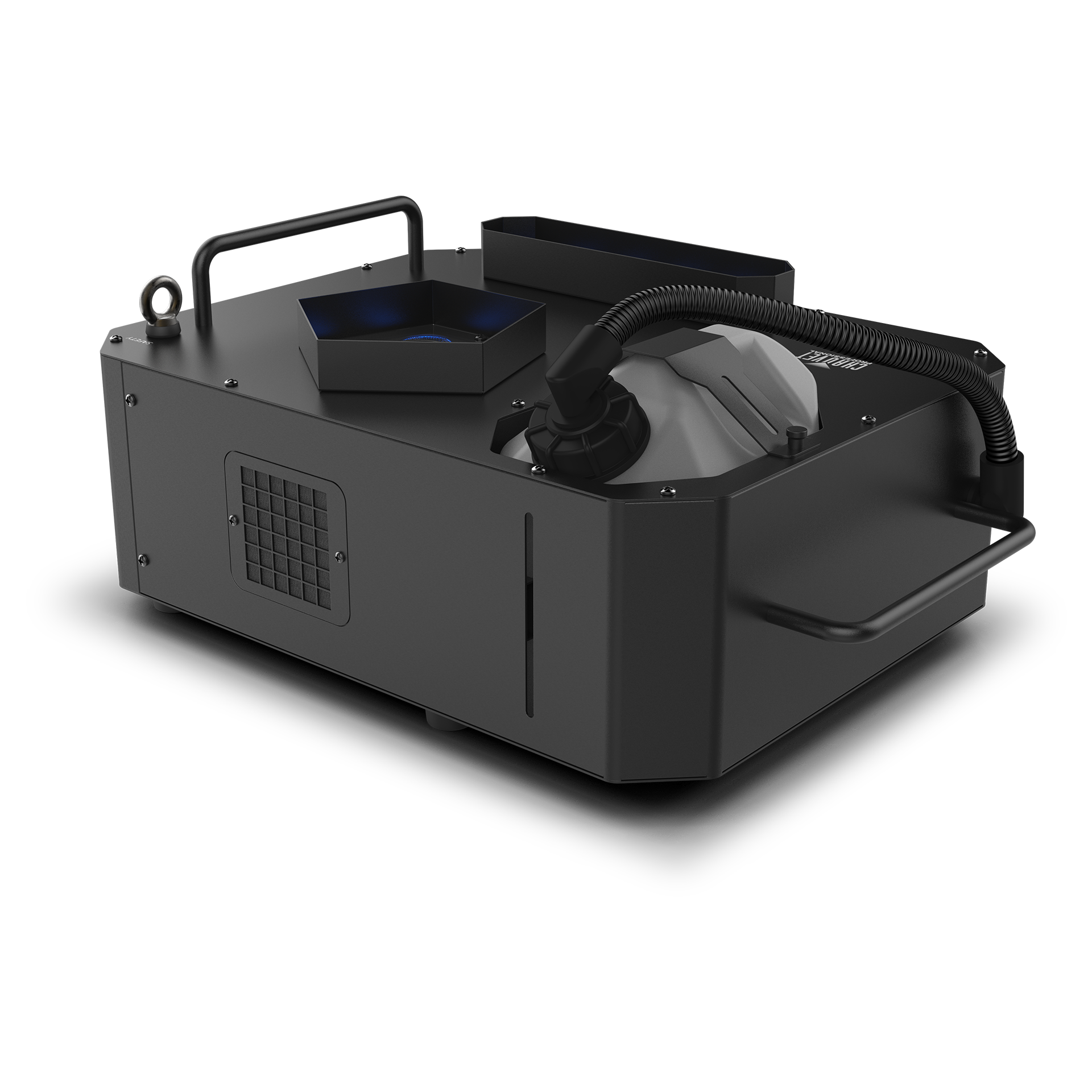

    Vesuvio II

    A high-output fog machine that illuminates powerful bursts of fog with advanced RGBA+UV LED color mixing, creating ferocious atmospheric effects.
    Ideal for concerts, theatrical productions, and special events requiring powerful, colored fog effects that can be deployed vertically, horizontally, or from overhead trusses.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: VESUVIOII

    Vesuvio II

    Specifications
    		 Download
    Vesuvio II User Manual
    		 Download
    Vesuvio II Quick Reference Guide
    		 Download
    Vesuivio II 2D 3D CAD V1.0
    		 Download
    Download All Resources

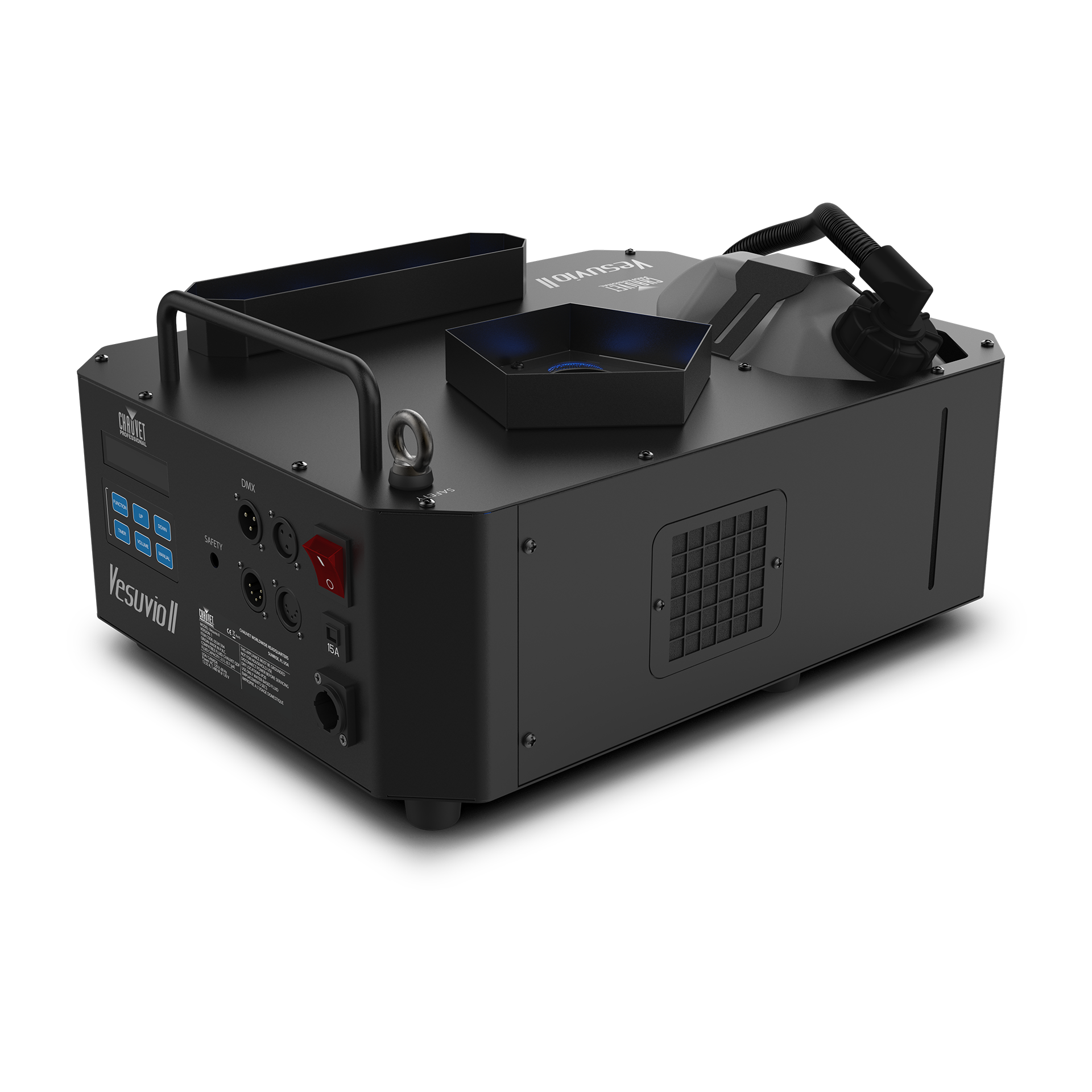

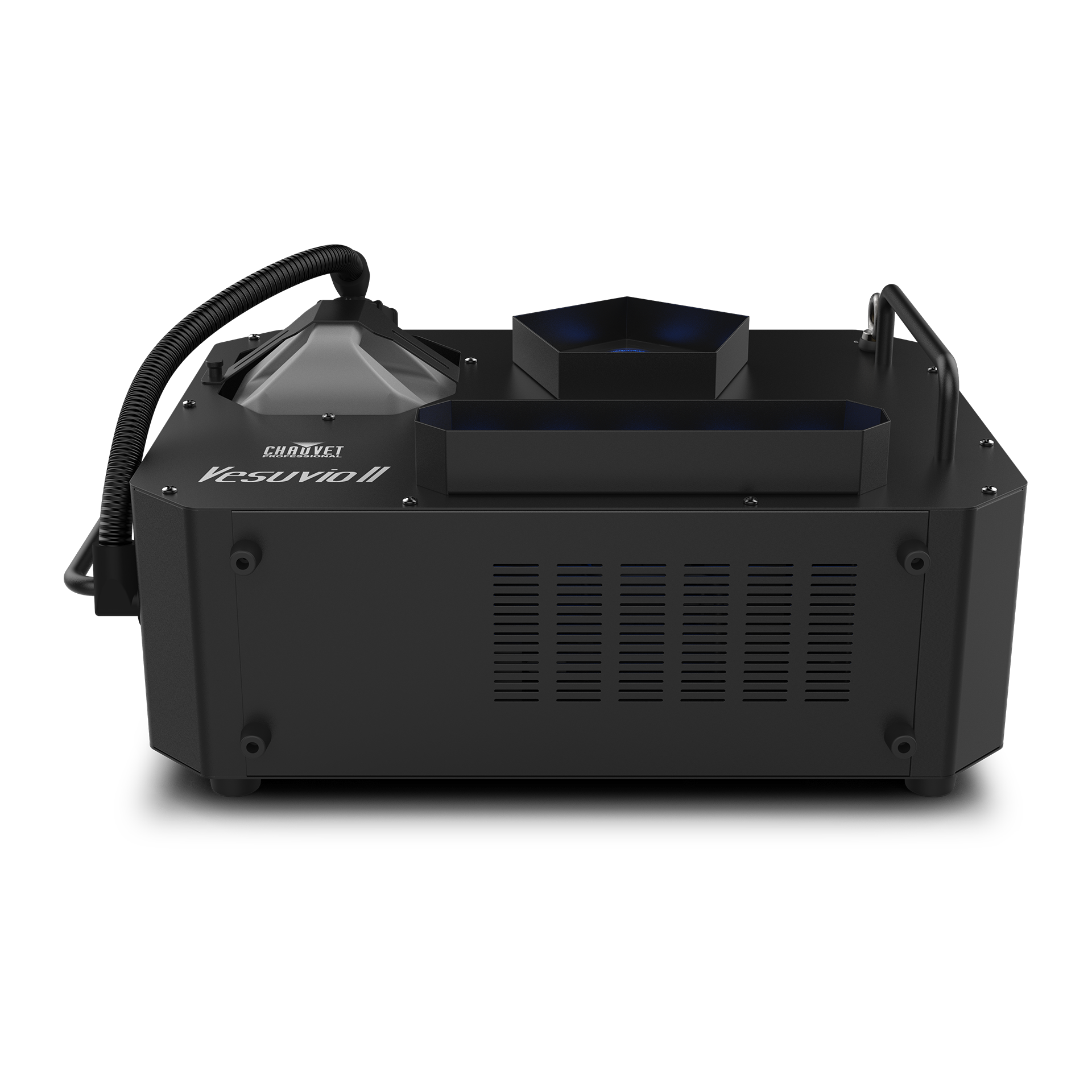

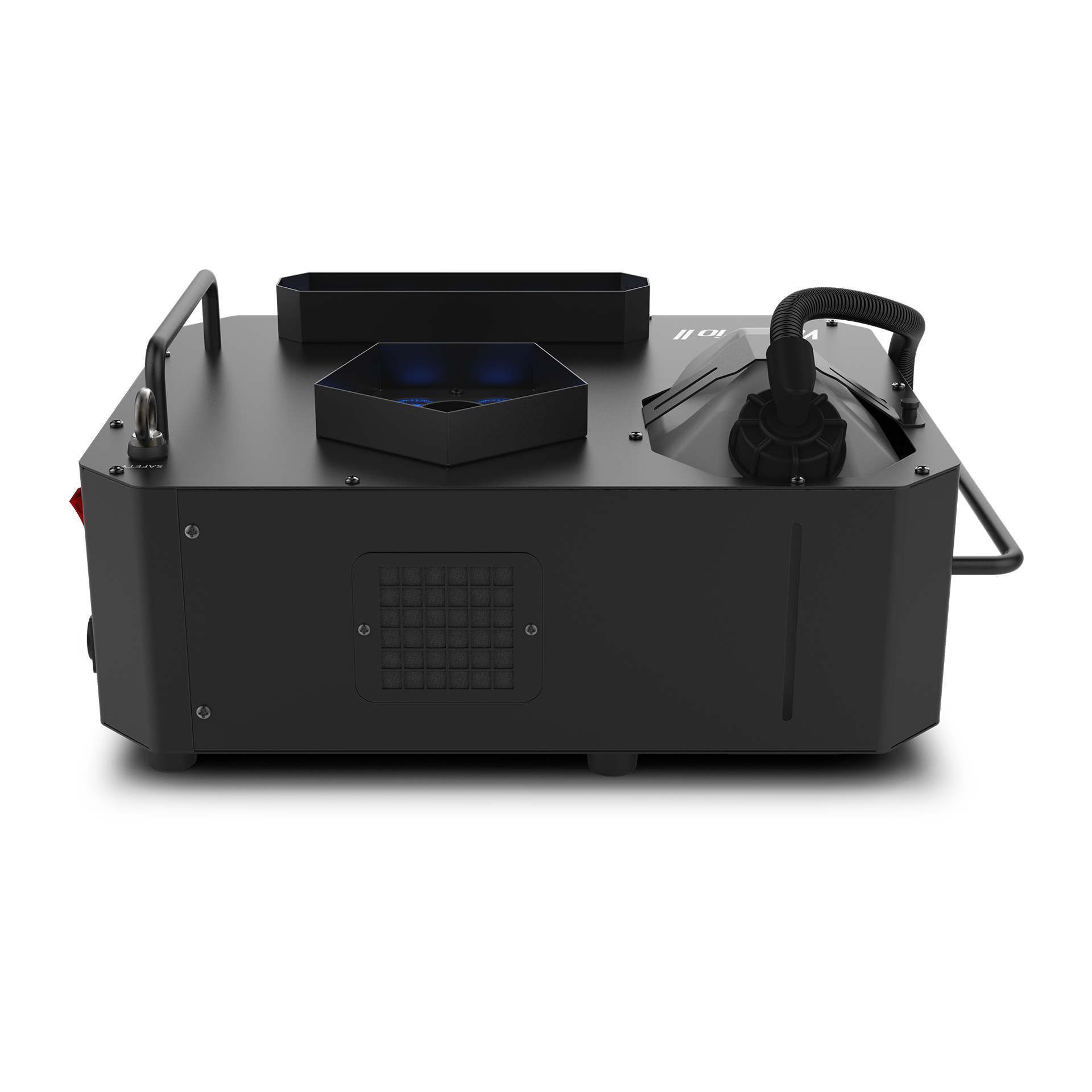

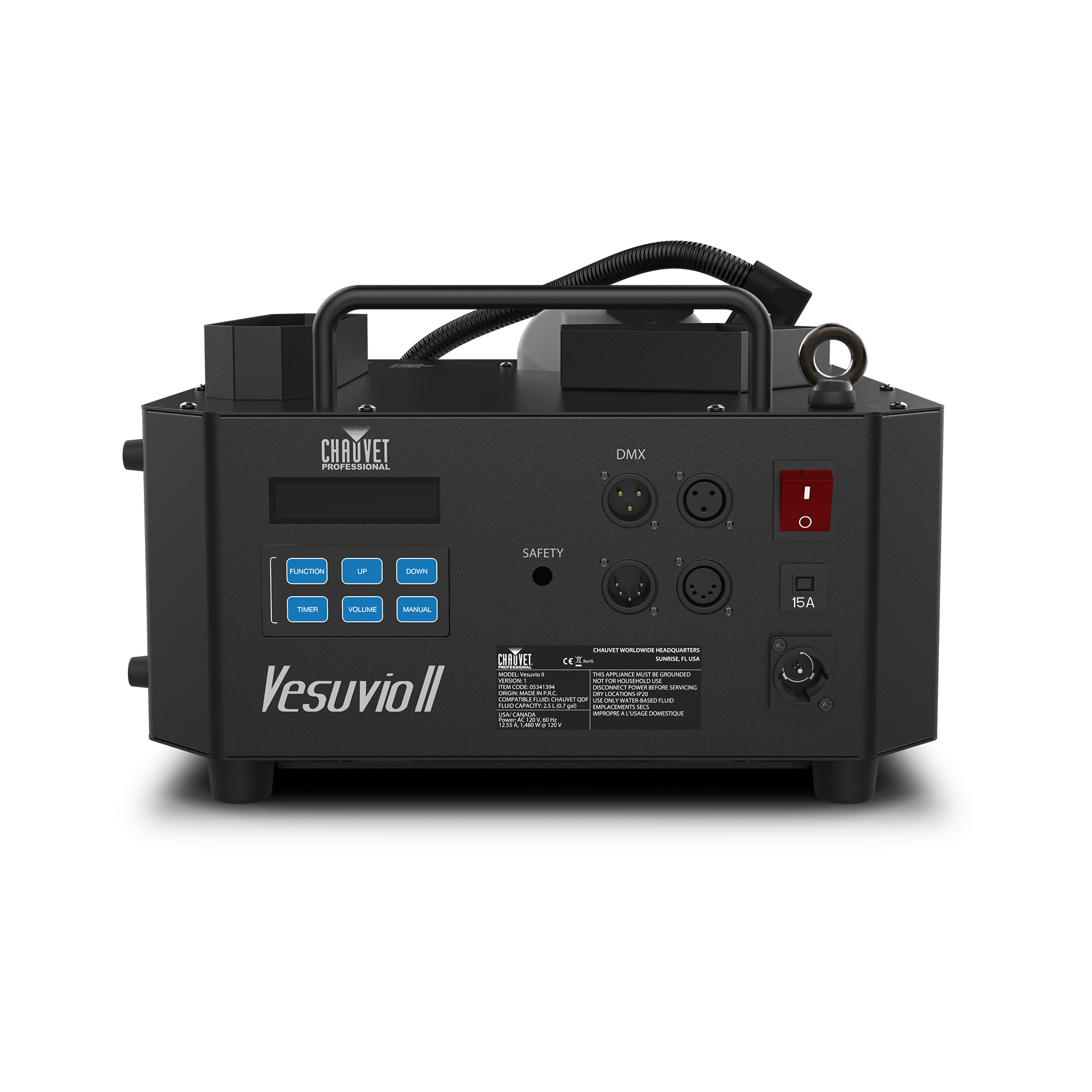

    Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80 ml/min of QDF fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with CHAUVET QDF quick dissipating fluid.

    Features

    Advanced Color Mixing

    Utilizes red, green, blue, amber, and UV LEDs for a rich and expanded color palette.

    Continuous Fog Bursts

    Produces an intense, 40-second continuous burst of fog to enhance any performance.

    High Volume Fog Output

    Delivers a massive 40,000 CFM output, capable of filling large venues with dense fog.

    Large Fluid Capacity

    Features a 2.5-liter fluid tank to ensure reliable, long-lasting operation during production.

    Robust Construction

    Built with a strong and sturdy housing to withstand the rigors of various production environments.

    DMX Control

    Integrates seamlessly into professional lighting setups with full DMX control for easy operation.

    Versatile DMX Connections

    Includes both 3-pin and 5-pin DMX input/output connections for maximum compatibility.

    Latest News

    LIT Live Conveys Intimacy In The Word Alive Stream With CHAUVET Professional
    A Phoenix-based creative team translates the energy of The Word Alive into an intimate livestream show.
    Read more
    JDI Productions Adds Punch To Project Mayhem With CHAUVET Professional Maverick Fixtures
    JDI Productions ignites the Project Mayhem EDM festival with a dynamic Maverick-driven light show.
    Read more
    Andy Hinago And CHAUVET Professional Add Sparkle To The Kyoto Sushi Theater
    Lighting designer Andy Hinago illuminates a unique blend of dining and performance in Kyoto.
    Read more
    Rodger Pugh Bends Space For Starset Tour With CHAUVET Professional
    Lighting designer Rodger Pugh crafts a distorted, sci-fi world for rock band Starset’s tour.
    Read more
    Marc Wasserman Lights Nick Cannon Homecoming With CHAUVET Professional
    Lighting designer Marc Wasserman overcomes a 360° stage for Nick Cannon’s homecoming show.
    Read more
    LIT Live Conveys Intimacy In The Word Alive Stream With CHAUVET Professional
    A Phoenix-based creative team translates the energy of The Word Alive into an intimate livestream show.
    Read more
    JDI Productions Adds Punch To Project Mayhem With CHAUVET Professional Maverick Fixtures
    JDI Productions ignites the Project Mayhem EDM festival with a dynamic Maverick-driven light show.
    Read more
    Andy Hinago And CHAUVET Professional Add Sparkle To The Kyoto Sushi Theater
    Lighting designer Andy Hinago illuminates a unique blend of dining and performance in Kyoto.
    Read more
    Rodger Pugh Bends Space For Starset Tour With CHAUVET Professional
    Lighting designer Rodger Pugh crafts a distorted, sci-fi world for rock band Starset’s tour.
    Read more
    Marc Wasserman Lights Nick Cannon Homecoming With CHAUVET Professional
    Lighting designer Marc Wasserman overcomes a 360° stage for Nick Cannon’s homecoming show.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy

      • Illuminance
        • Center

          199.5 lux @ 5 m

        • Linear

          154 lux @ 5 m

        • Both

          334 lux @ 5 m

    • PWM Frequency

      126 Hz

    Dynamic Effects

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      0 to 20 Hz

    • Output

      40,000 cfm

    • Low Fluid Shutdown

      No

    Construction/Physical

    • Dimensions

      19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)

    • Weight

      28.4 lb (12.9 kg)

    • Exterior Color

      BLACK

    • Housing Material

      Steel

    • Tank Capacity

      0.7 gal (2.5 l)

    • Fluid Consumption

      80 ml/min

    • Maximum Run time

      1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)

    • Maximum Run time

      2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)

    • Maximum Run time

      2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)

    Connections

    • Power Connection

      Edison plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Data Connectors

      3- and 5-pin XLR

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      DMX

    • DMX Channels

      15

    • Modes/Personalities

      1 personalities

    • On-Board Control

      Yes

    • Included Remote

      No

    Electrical

    • Input Voltage (120V)

      120 VAC, 60 Hz
      Input Voltage (220V): 230 VAC, 50 Hz

    • Power and Current (120V)

      1,480 W, 12.55 A @ 120 V, 60 Hz
      Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz

    • Heat-up Time (120V)

      10 min
      Heat-up Time (220V): 10 min

    • Breaker Size (120V)

      15A
      Breaker Size (220V): 15A

    Certifications/Qualifications

    • Certifications

      CE

    • IP Rating

      IP20, dry location

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    • Thermal Dissipation @ 120V

      5,050 BTU per hour (max)

    • Thermal Dissipation @ 230V

      9,825 BTU per hour (max)

    Compatible Accessories

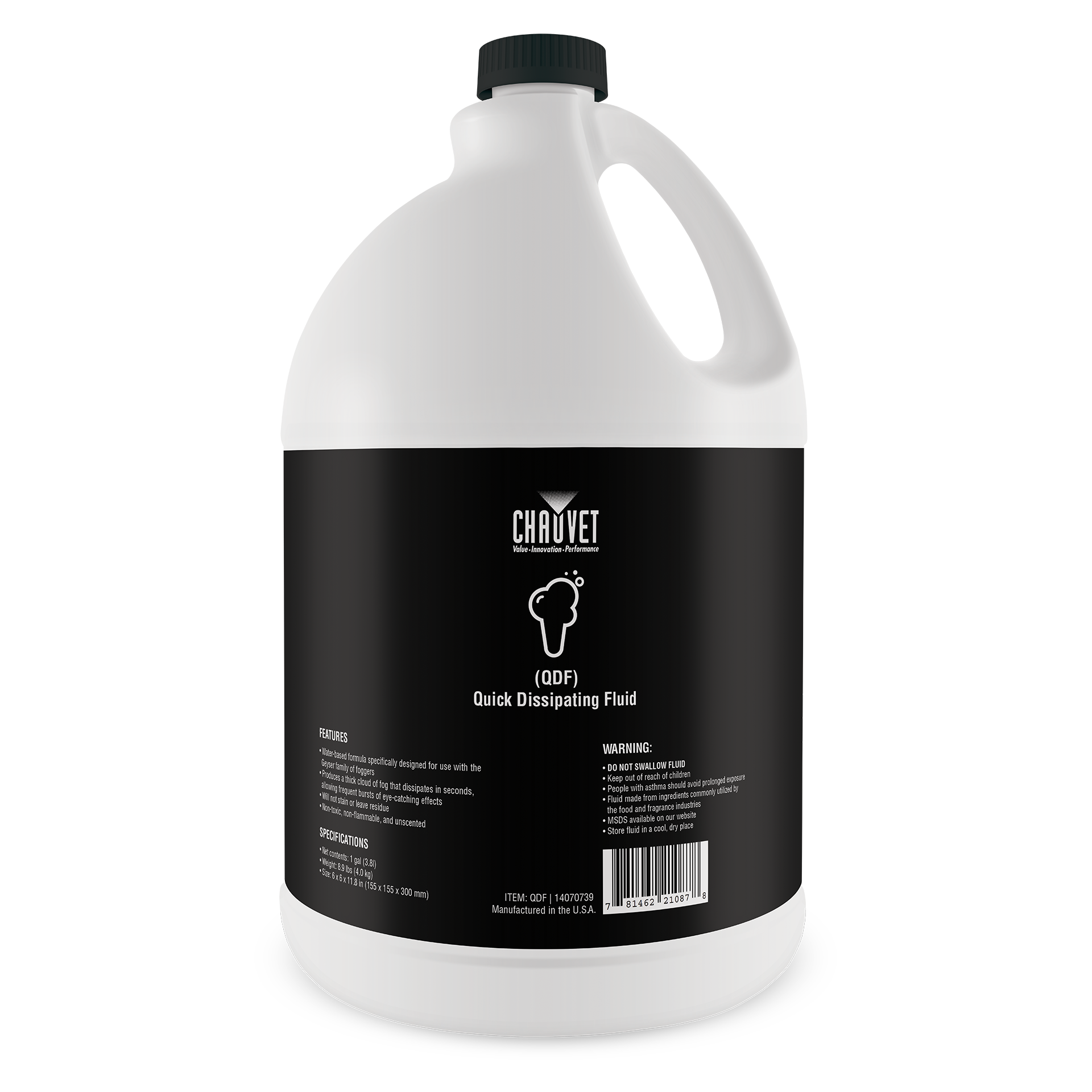

    • Quick Dissipating Fluid (QDF)
    • Clamps
    • Neutrik powerCON cables
    • Neutrik etherCON cables
    • DMX Cables

    What's Included

    • Vesuvio II
    • Seetronic Powerkon IP65power cord

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    Vesuvio II User Manual
    		Download
    Manuals
    Vesuvio II Quick Reference Guide
    		Download
    Manuals
    Vesuivio II 2D 3D CAD V1.0
    		Download

    Learn How To Use Your Vesuvio II

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • Vesuvio II Product Video by CHAUVET Professional

      Command the atmosphere with the Vesuvio II from CHAUVET Professional. This high-output fogger illuminates ferocious bursts of fog with advanced RGBA+UV LED color mixing, delivering powerful effects for concerts, productions, and events from any mounting position.

    Video Library

    Vesuvio II FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Vesuvio II
    What kind of effect does the Vesuvio II create?

    The Vesuvio II creates dramatic, high-output plumes of fog that are instantly lit up with vibrant colors. Using its built-in red, green, blue, amber, and UV lights, it can simulate effects like colorful volcanic eruptions or cryogenic-style jets, adding a spectacular visual impact to performances and events.

    How can the Vesuvio II be positioned for an event?

    The Vesuvio II is highly versatile and can be used in multiple positions. It can be placed on the floor to shoot fog vertically upwards, positioned horizontally to blast fog across a stage, or mounted overhead with brackets to shoot downwards, giving you creative control over your atmospheric effects.

    What makes the lighting on the Vesuvio II special?

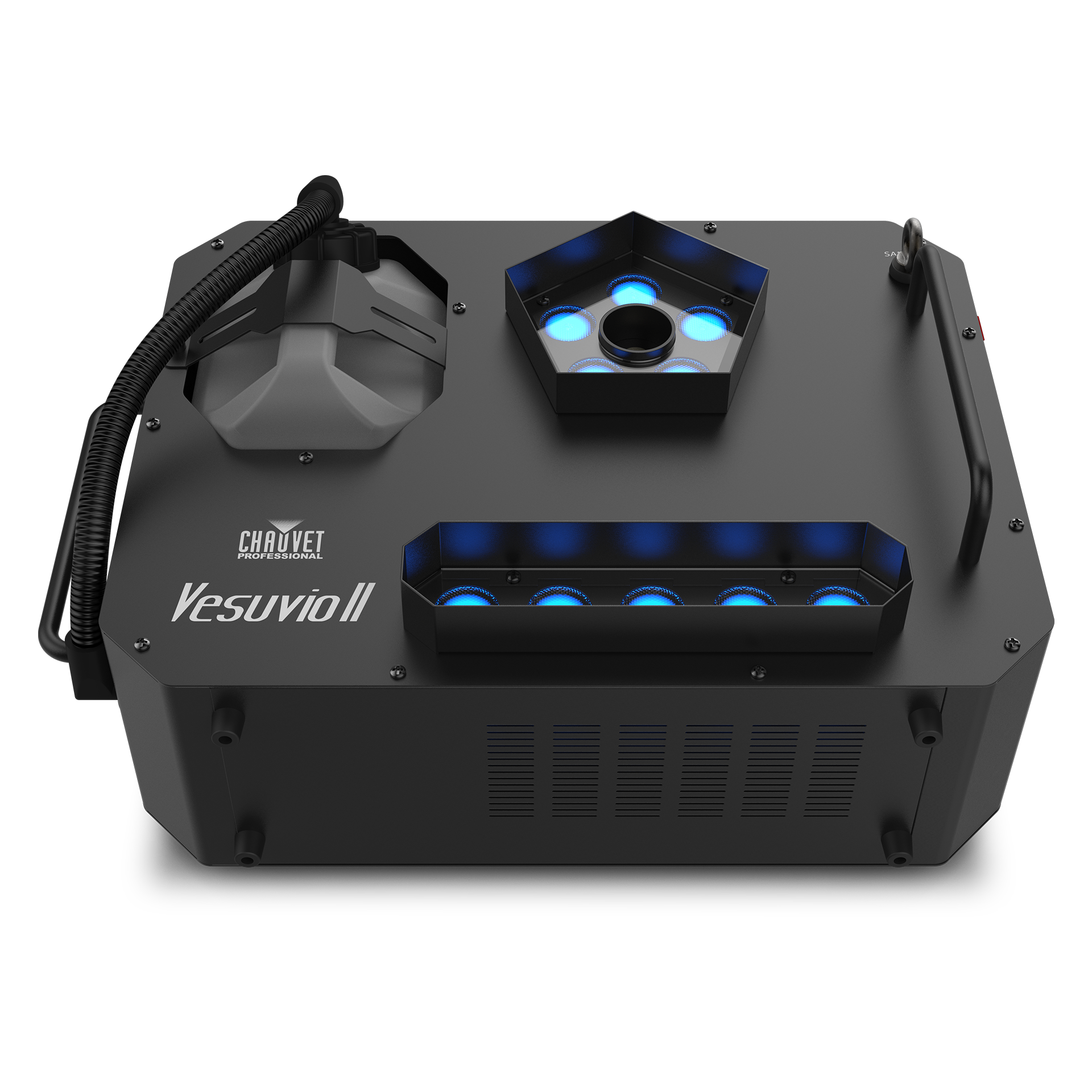

    Its lighting system is designed to fully saturate the fog with rich, even color. The Vesuvio II uses two separate sections of advanced LEDs, which ensures that the entire plume of fog is brightly lit from base to tip without any dark spots, creating a more complete and impressive visual.
