    Synapse 4

    The Synapse 4 is an intelligent 4-channel relay pack that controls power to lighting fixtures via DMX, signal loss, or an internal scheduler, while also functioning as a built-in 4-port DMX opto-isolator.
    Ideal for any permanent installation requiring automated power control and DMX signal management to conserve energy, prolong fixture life, and simplify wiring.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: SYNAPSE4

    Synapse 4

    Specifications
    		 Download
    Synapse 4 User Manual
    		 Download
    Synapse 4 Quick Reference Guide
    		 Download
    Synapse 4 DMX Chart
    		 Download
    Synapse 4 CAD File
    		 Download
    Synapse 4
    		 Download
    Download All Resources

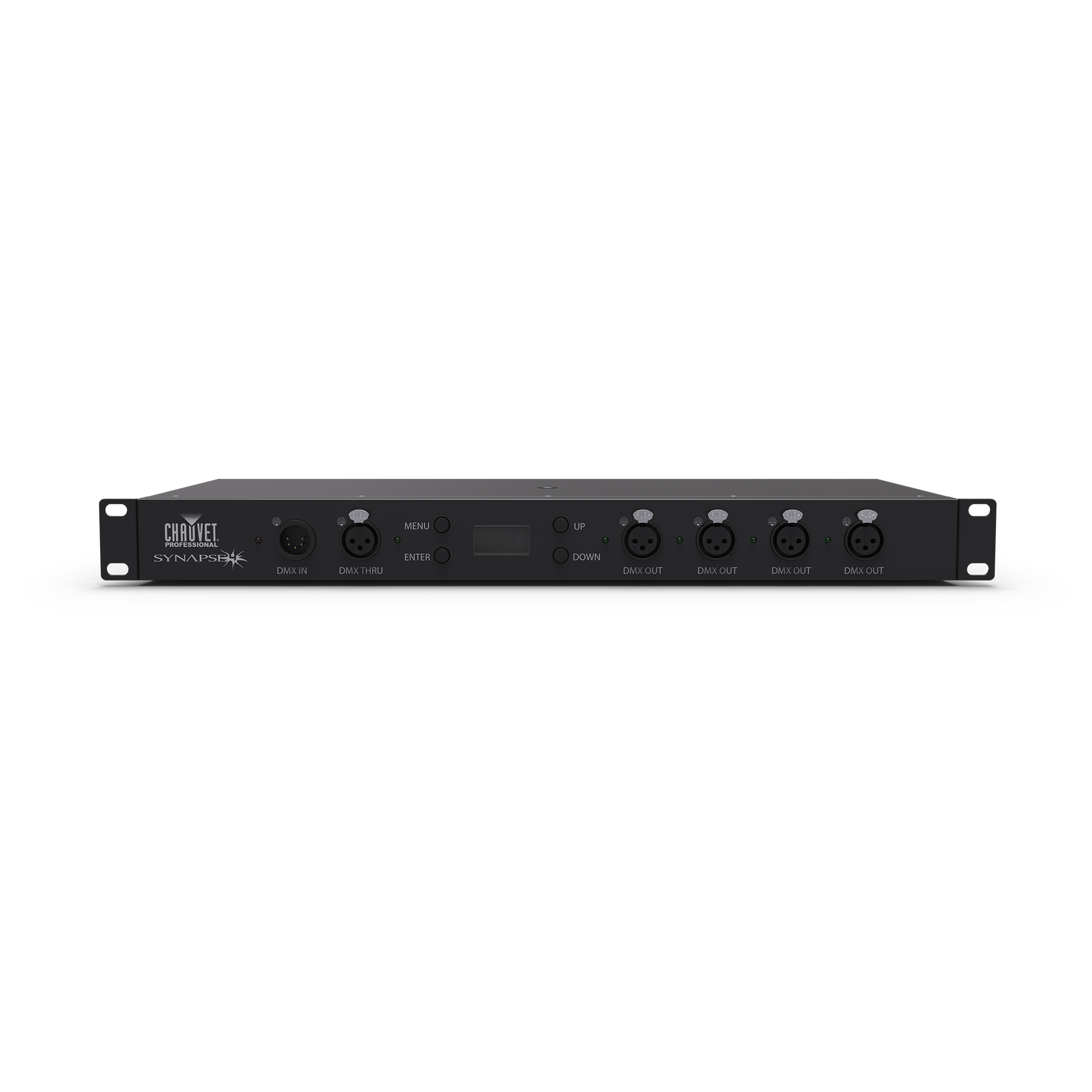

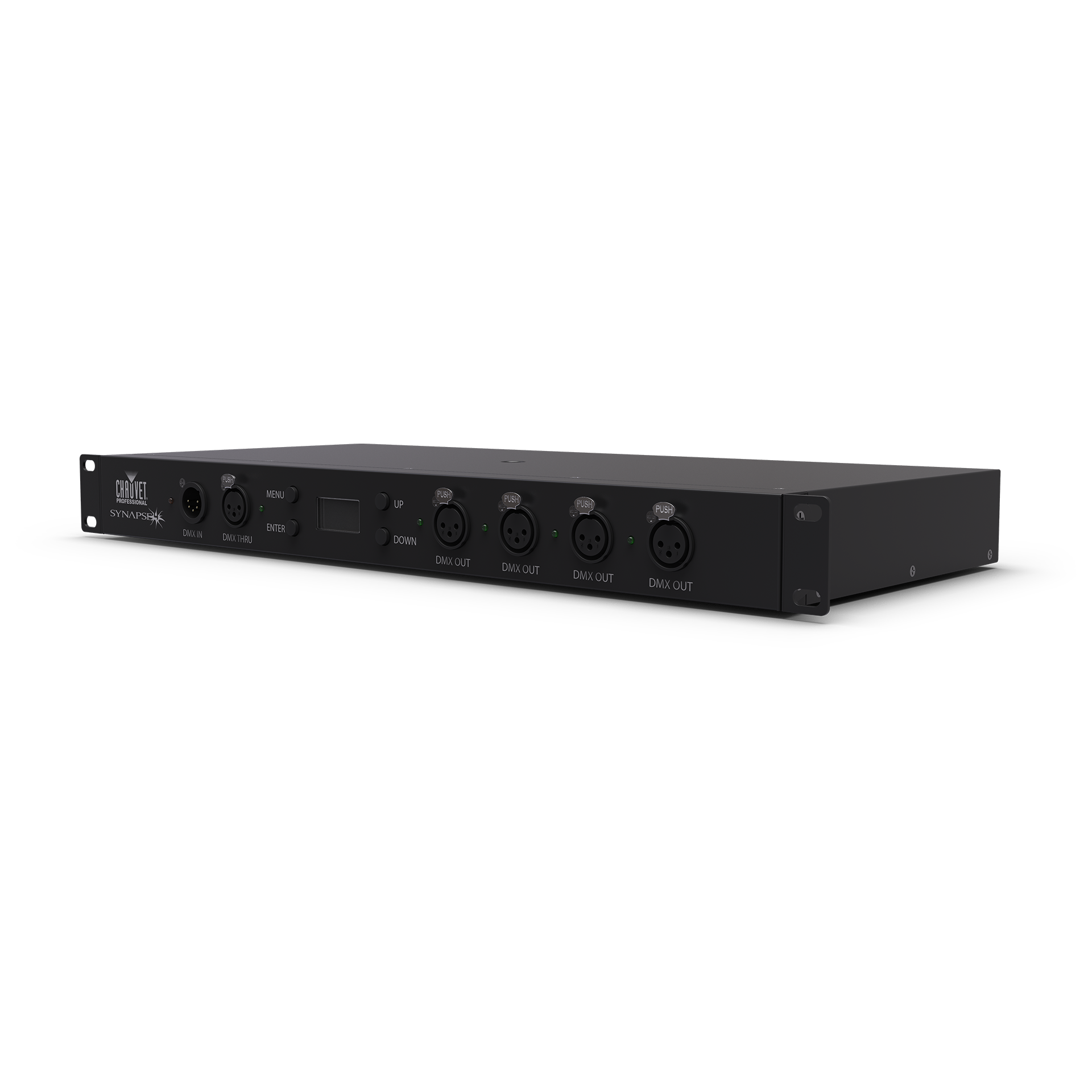

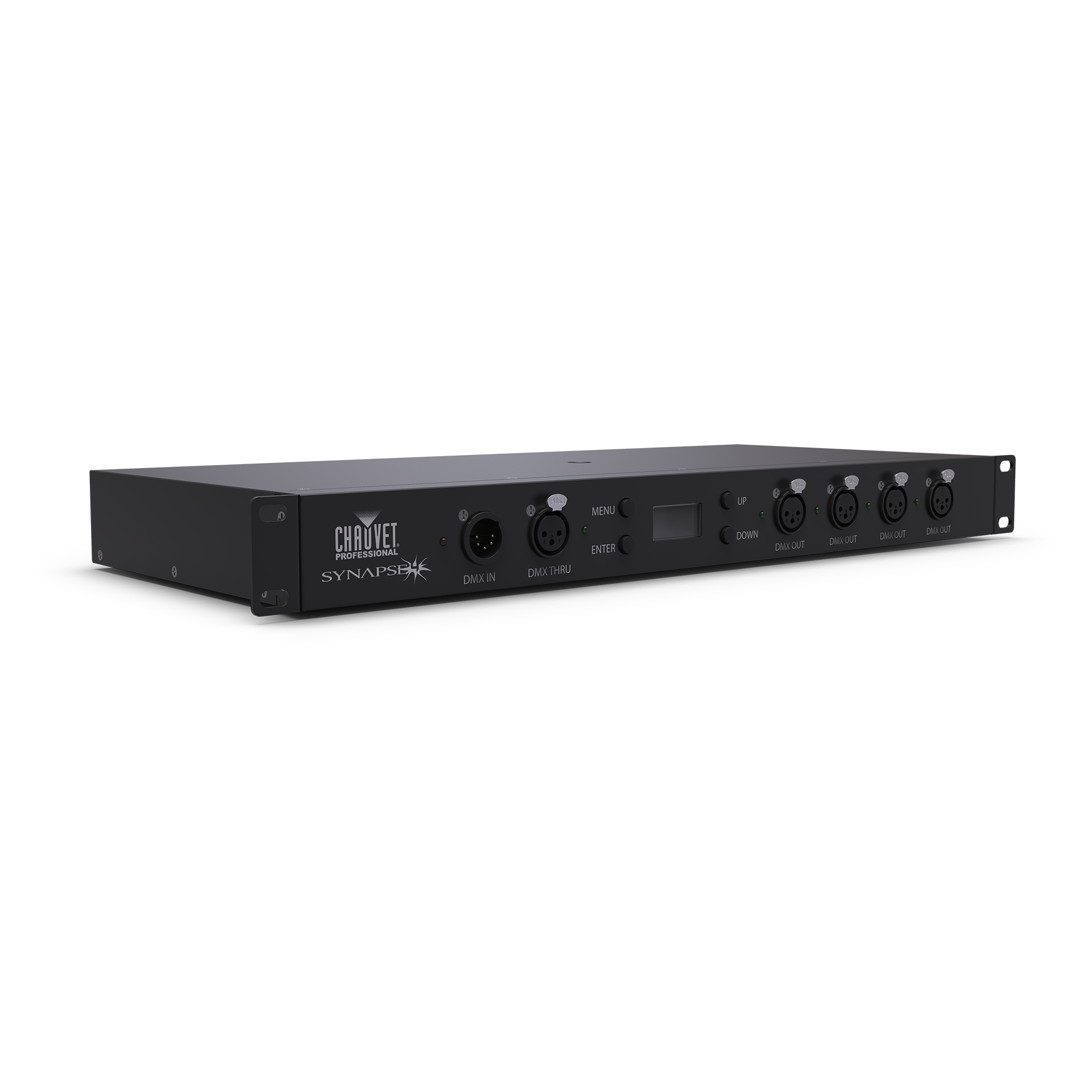

    Synapse 4 functions as an intelligent relay pack to control the power sent to individual lighting units. Synapse 4 can de-power entire sections of an installation, which prolongs the lifespan of lighting fixtures and decreases overall power consumption, saving energy and money. Rack, truss or wall mountable, Synapse 4 also offers flexible options to control its four outputs: 1) via DMX; 2) upon sensing the loss of the DMX signal; 3) via an internal scheduler that can be used to specify that individual outputs be turned on/off. As an added convenience, a 4-port DMX opto-isolator allows users to easily branch their DMX universe in multiple directions and amplify the signal after a long cable run.

    Features

    Hybrid Relay Pack and DMX Splitter

    A single unit combines a controllable powerCON relay pack with an optically isolated DMX splitter and amplifier.

    Automated Power Saving

    Reduces energy costs by completely cutting power to connected fixtures when they are not in use.

    Flexible Relay Control

    Individually operate all four relays using DMX, DMX signal sensing, or the internal scheduler for precise daily on/off times.

    Integrated DMX Hub

    The optically isolated 5-pin DMX splitter simplifies routing DMX signals to multiple fixtures or locations.

    Versatile Mounting Options

    Easily install the unit by mounting it in a rack, on a wall, or clamped directly to truss.

    Latest News

    CHAUVET Professional’s STRIKE 4 Warm White LED Blinder A Must- See At LDI 2015
    CHAUVET Professional unveils the powerful STRIKE 4 blinder and Synapse 4 relay pack at LDI 2015.
    Read more
    CHAUVET Professional’s STRIKE 4 Warm White LED Blinder A Must- See At LDI 2015
    CHAUVET Professional unveils the powerful STRIKE 4 blinder and Synapse 4 relay pack at LDI 2015.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      19 x 7.87 x 1.75 in (483 x 200 x 44.5 mm)

    • Weight

      6 lb (2.8 kg)

    • Exterior Color

      Black

    • Rackmount

      1U

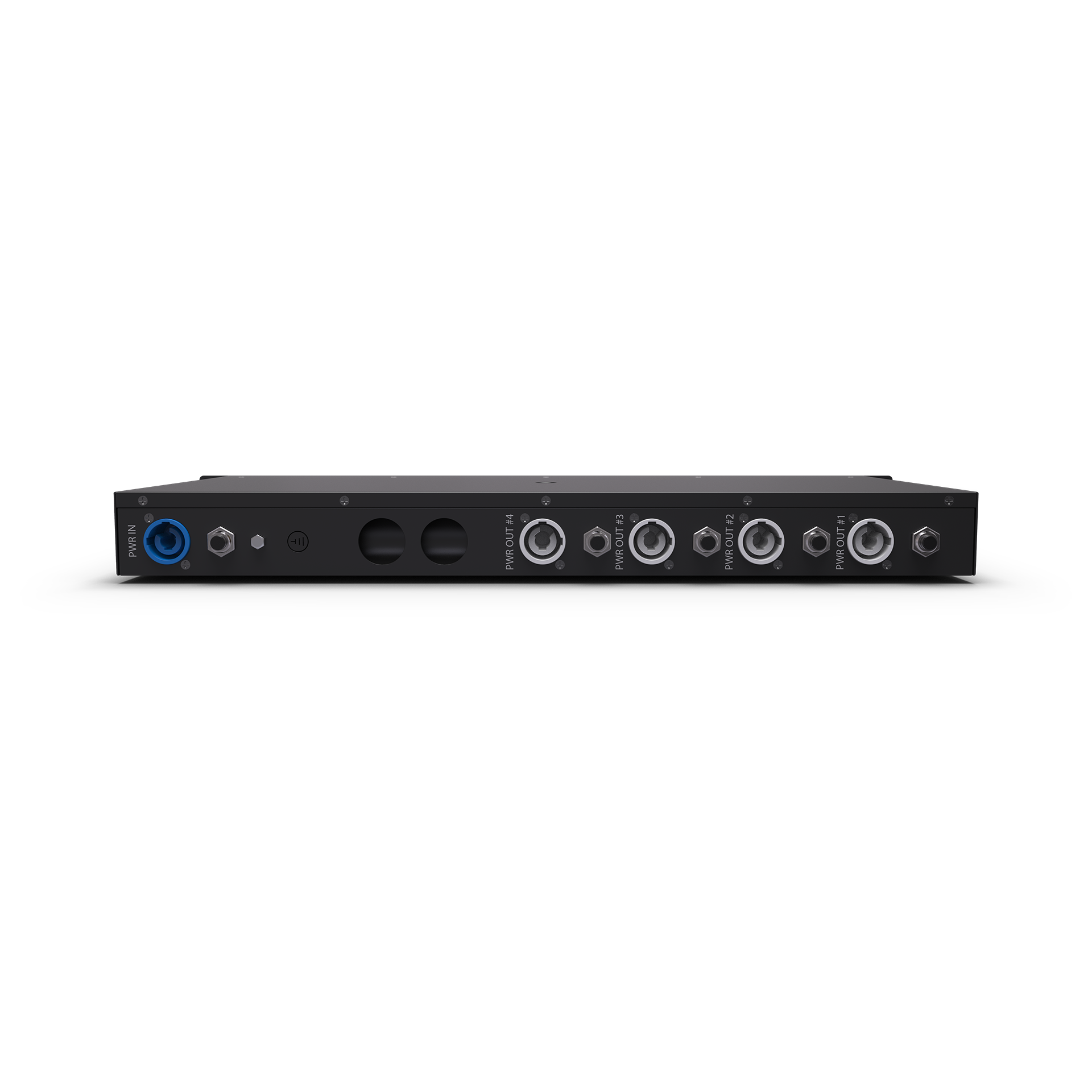

    Connections

    • Power Connection

      Edison (Local) plug to Neutrik powerCON

    • Power Input

      Neutrik powerCON

    • Power Output

      Neutrik powerCON

    • Data Connectors

      5-pin XLR

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      DMX

    • DMX Channels

      1 or 4

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Main breaker size

      20 A, 250 V

    • Breaker size per output

      20A, 250 V

    Certifications/Qualifications

    • Certifications

      CE

    • IP Rating

      IP20, dry location

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Neutrik powerCON cables
    • 5-pin DMX Cables

    What's Included

    • Synapse 4
    • Neutrik powerCON power cord

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    Synapse 4 User Manual
    		Download
    Manuals
    Synapse 4 Quick Reference Guide
    		Download
    Manuals
    Synapse 4 DMX Chart
    		Download
    Manuals
    Synapse 4 CAD File
    		Download
    Other
    Synapse 4
    		Download

    Learn How To Use Your Synapse 4

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • Synapse 4 by CHAUVET Professional

      Command your installation’s power and DMX with the Synapse 4 from CHAUVET Professional. This intelligent relay pack automates power control to extend fixture life and reduce energy costs, while its integrated DMX opto-isolator simplifies signal management for any permanent installation.

    • InfoCOMM 2015 – CHAUVET Professional Product Tour

      Join CHAUVET Professional for a product tour from InfoCOMM 2015, showcasing a bold lineup of innovative fixtures. Discover the hybrid moving heads, powerful blinders, and high-resolution video panels that empower lighting designers to create unforgettable experiences.

    Video Library

    Synapse 4 FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Synapse 4
    What is the Synapse 4 used for?

    Synapse 4 is a smart power control unit for lighting setups. It allows you to completely turn off the power to four individual lighting circuits, which saves energy and extends the life of your fixtures. You can control it with a lighting controller, have it power down automatically when the signal is lost, or set a daily on/off schedule.

    Does the Synapse 4 also manage lighting signals?

    Yes, in addition to controlling power, Synapse 4 has a built-in signal splitter. This lets you easily send your lighting control signal to four different locations or fixtures, amplifying it to ensure it stays strong over long distances without needing a separate device.

    How can I install the Synapse 4?

    It is designed for flexible installation to fit any professional setup. You can mount it in a standard equipment rack, attach it directly to a wall, or clamp it onto a lighting truss for convenient placement.

    If you have any inquiries about our lights, feel free to ask us or visit our help desk for more information.

    Ready To Try CHAUVET Professional?

    Give us a call, send us a message, or find an authorized vendor to get started.
    Contact Us
    Where to Buy

    Our Products

    View All Products

    Moving Heads

    Dynamic moving fixtures for impactful designs.

    Strobes & Blinders
