    STRIKE Array 4C

    An IP65-rated audience blinder with four independently focusable pods, delivering a full spectrum of color and a wide range of whites via its RGBA-WW LEDs, complete with smooth low-end dimming and a classic tungsten-emulating Red Shift.

    Its high CRI, variable PWM, and scalable, weather-resistant design make it the ideal blinder for broadcast studios, outdoor festivals, concert tours, and large-scale productions.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: STRIKEARRAY4C

    STRIKE Array 4C

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    DMX Chart
    		 Download
    Photometrics Report
    		 Download
    IES Files
    		 Download
    CAD Files
    		 Download
    User Manual
    		 Download
    Download All Resources

    STRIKE Array 4C

    SKU: STRIKEARRAY4C

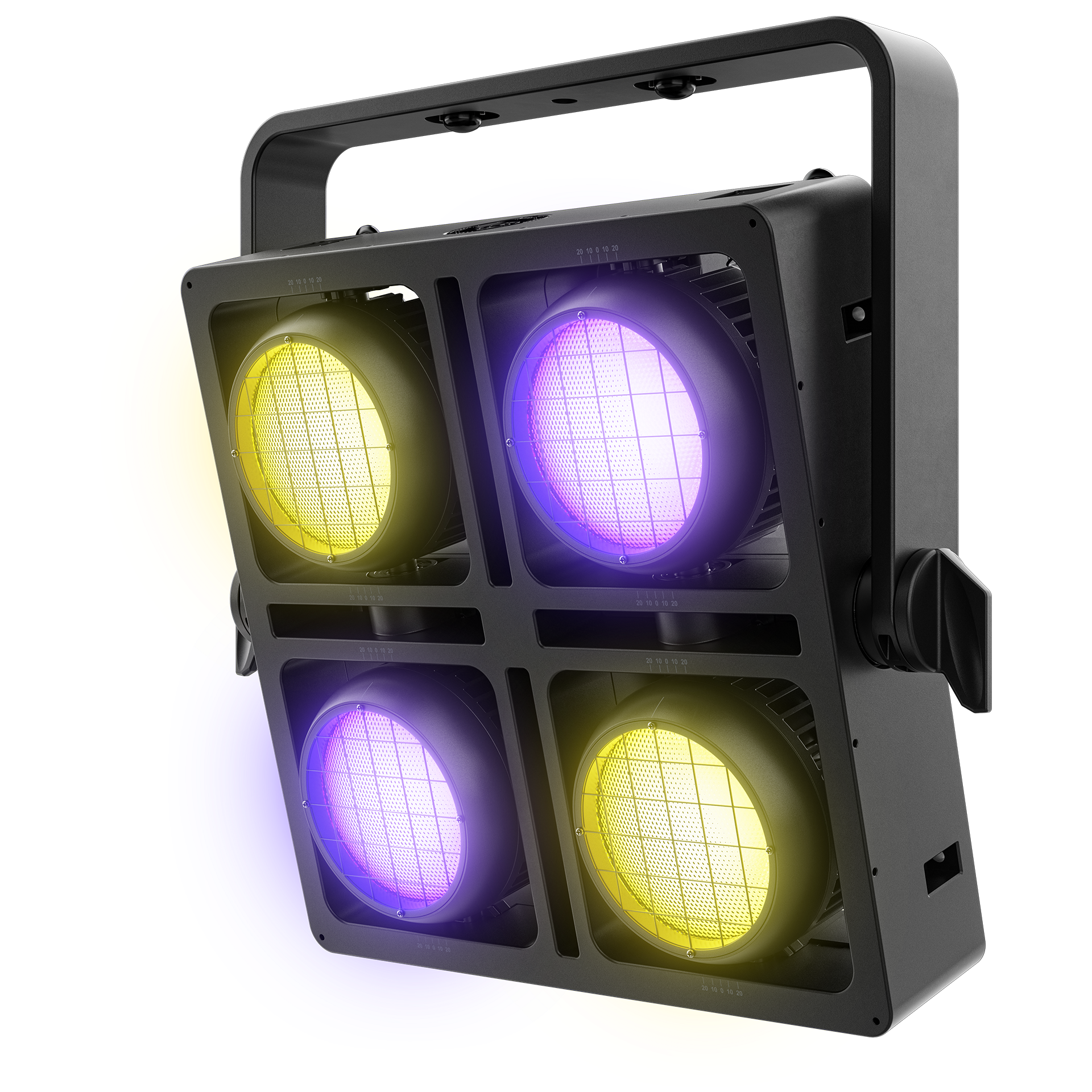

    STRIKE Array 4C is an IP65-rated audience blinder with four independently focusable pods.  Intense RGBA-WW LED output delivers a full range of color as well as a wide choice of white color temperatures with exceptional color rendering.  Offering the industry leading low end dimming performance our STRIKE Array fixtures are known for as well as Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make this the ideal blinder for broadcast applications. Its proprietary Tool-Free interlocking system enables STRIKE Array 4C to be easily interconnected with multiple Array units for scalable configurations. Omega-Bracket locks are also installed on both the yoke and the rear of the fixture to streamline the truss mounting process.

    Features

    IP65 All Weather Blinder

    An intense four-pod color blinder and strobe is rated IP65 for reliable use in any weather condition.

    Full Spectrum Color Rendition

    Achieve a full range of vibrant colors and an excellent rendition of any color temperature of white.

    Incandescent Red Shift Emulation

    This feature perfectly mimics the warm dimming curve of traditional incandescent fixtures.

    Individual Pod Pan and Tilt

    Each head can be individually panned or tilted, allowing for precise directional adjustment of the light output.

    Interlocking Fixture System

    An innovative system allows you to connect multiple STRIKE Array family fixtures together quickly and securely.

    Versatile Rigging Options

    Multiple mounting locations and a repositionable yoke with quarter-turn adaptors offer creative and convenient rigging.

    Independent Pod Control

    Manage each pod and its strobe functionality independently to create high-impact effects on the fly.

    Smooth 18-Bit Dimming

    Ultra-smooth 18-bit dimming curves and speeds are designed to complement any lighting scheme.

    Latest News

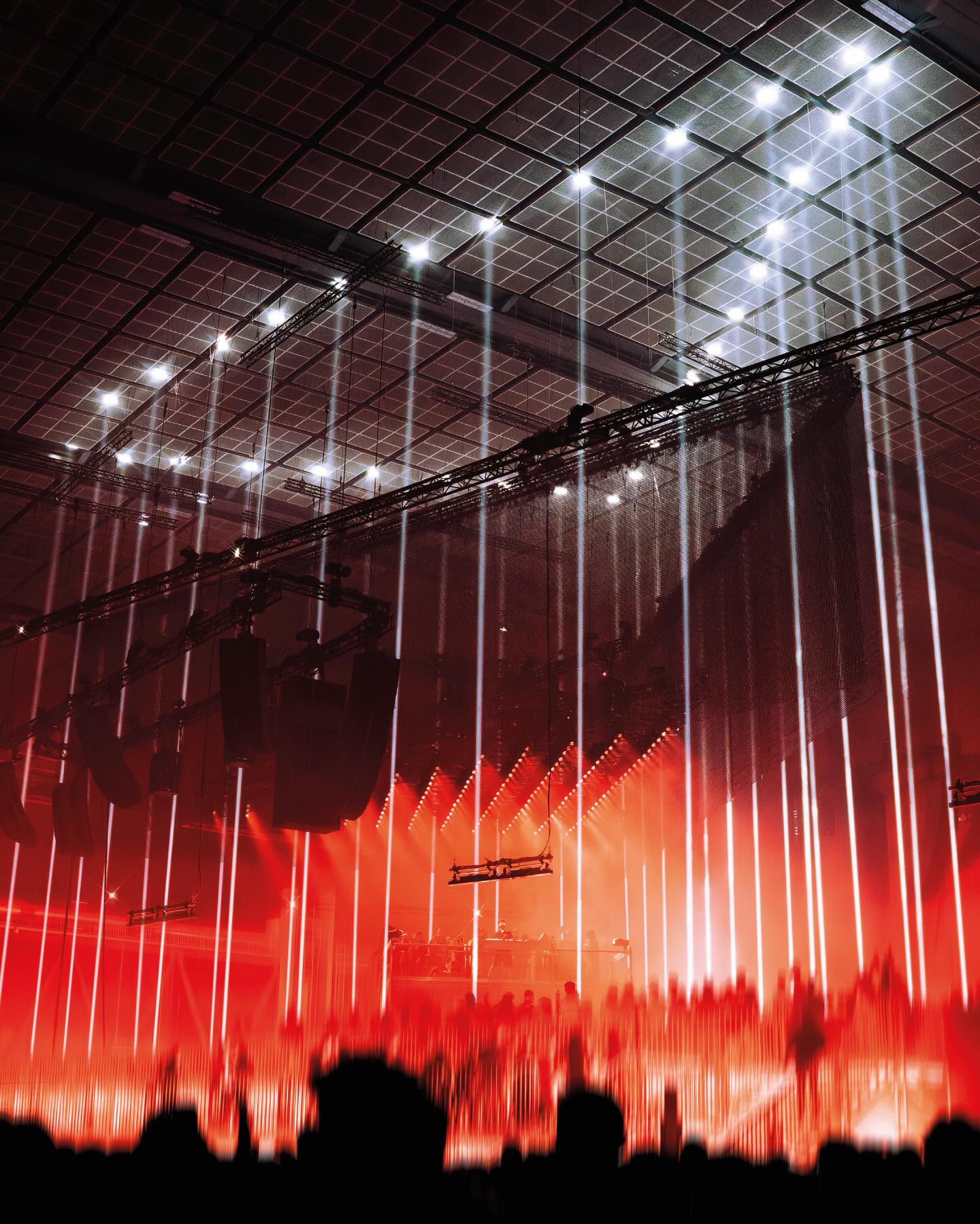

    Nick Jevons and Ross Chapple Create Compelling Imagery for I Hate Models with CHAUVET Professional
    Designers Nick Jevons and Ross Chapple forge a brutalist, Mayan-inspired techno landscape for I Hate Models.
    Read more

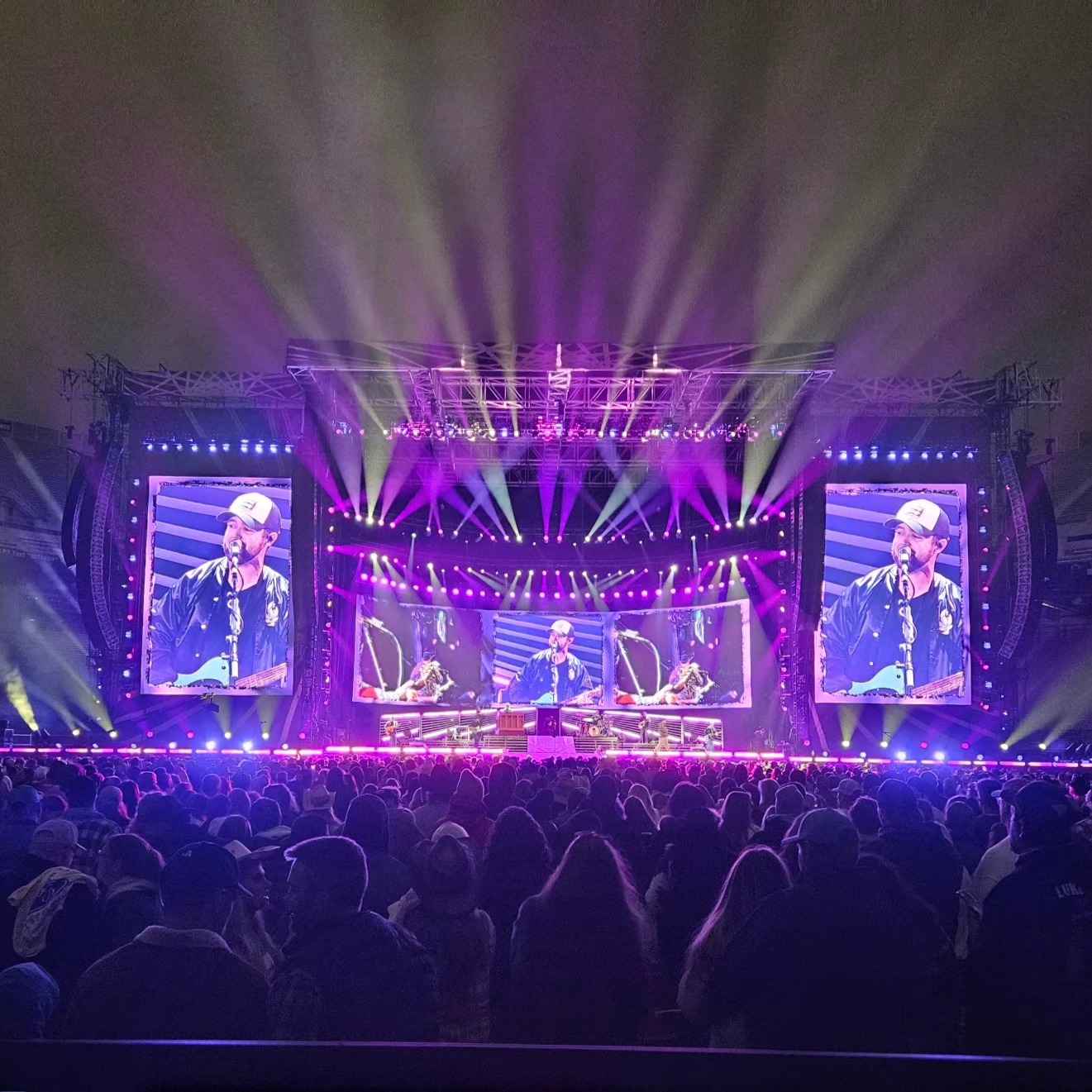

    I’m With The Band Kevin Northrup and Luke Combs
    Lighting designer Kevin Northrup shares the fan-focused philosophy behind his work with Luke Combs.
    Read more
    Nick Jevons and Ross Chapple Create Compelling Imagery for I Hate Models with CHAUVET Professional
    Designers Nick Jevons and Ross Chapple forge a brutalist, Mayan-inspired techno landscape for I Hate Models.
    Read more
    I’m With The Band Kevin Northrup and Luke Combs
    Lighting designer Kevin Northrup shares the fan-focused philosophy behind his work with Luke Combs.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      268 LEDs (112 quad-color RGBA, 156 WW), 2.7W to 4.32 W, (871 mA), 50,000 hours life expectancy.

    • Color Temperature (range)

      2800 to 6500 K

    • Color Temperature (at full)

      5991 K

    • CRI (@3200K)

      94.6

    • Beam Angle

      59.6°

    • Field Angle

      102.2°

    • Lumens

      53,481

    • Illuminance

      1979 lux @ 5 m

    • Selectable PWM

      600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

    Dynamic Effects

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      0 to 30 Hz

    • Standalone Color Mixing

      Yes

    • Color Temperature Presets

      Yes

    • Dim Modes

      4

    • Dim Curves

      4

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      19.17 x 16.70 x 6.45 in (487.02 x 424.21 x 163.84 mm)

    • Weight

      34.4 lb (15.4 kg)

    • Exterior Color

      Black

    • Housing Material

      Magnesium alloy

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON

    • Cable Length (power)

      5 ft (1.5 m)

    • Software Update

      USB-C

    Control

    • Control Protocol

      Art-Net, sACN, DMX ,RDM

    • Modes/Personalities

      10 personalities (1, 3, 5, 7, 10, 12, 13, 16, 22 or HSV)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      1180 W, 9.92 A @ 120 V, 60 Hz

    • Power and Current

      1150 W, 5.60 A @ 208 V, 60 Hz

    • Power and Current

      1140 W, 5.02 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET, FCC, ETL, cULus,

    • IP Rating

      IP65, outdoor/wet, with pressure equalizing M12 GORE valve

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • STRIKE Array Flush Bracket
    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-08
    • IP Rated Seetronic® Powerkon Extensions
    • IP Rated DMX cables
    • IP Rated EtherCon Cables
    • UPLOAD 03 software uploader

    What's Included

    • STRIKE Array 4C
    • Seetronic Powerkon IP65
    • Omega bracket with mounting hardware

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    STRIKE Array 4C – Quick Reference Guide
    		Download
    DMX
    STRIKE Array 4C – DMX Chart
    		Download
    Photometrics
    STRIKE Array 4C – Photometrics Report
    		Download
    Other
    Strike Array 4C – IES Files
    		Download
    Drawings
    Strike Array 4C – CAD Files
    		Download
    Manuals
    Strike Array 4C – User Manual
    		Download

    Learn How To Use Your STRIKE Array 4C

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • #bts On Set with LD David Howard Reaction to STRIKE Array C & STRIKE Bolt 1C

      Lighting Designer David Howard shares his first impressions of the STRIKE Bolt 1C and STRIKE Array C fixtures. See how CHAUVET Professional combines classic tungsten looks with modern color, pixel-mapping, and IP65 durability to empower creative designs for any stage or broadcast.

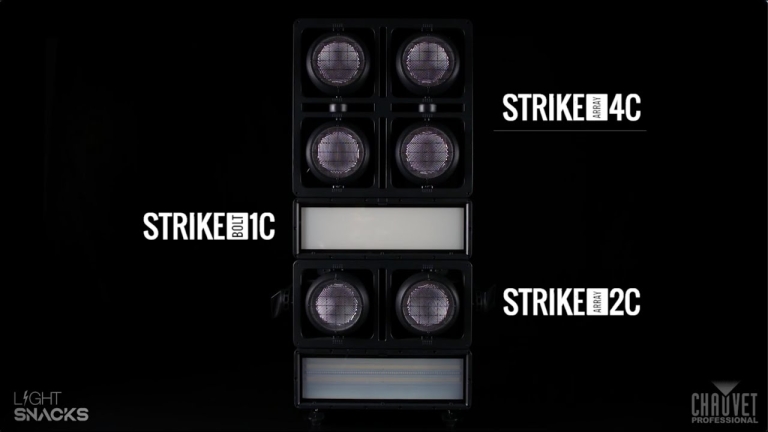

    • Light Snacks: Stack Up Colorful Strobe & Blinder Combinations with STRIKE Array C + Bolt 1C

      Create powerful, stackable strobe and blinder arrays with CHAUVET Professional STRIKE Array C and Bolt 1C fixtures. These IP65-rated units combine intense bursts with smooth eye-candy color effects, delivering maximum versatility for concerts, festivals, and touring in any environment.

    • STRIKE Array C Blinders Bring Full-Color Impact to LDI 2023

      CHAUVET Professional introduces the STRIKE Array 2C and 4C, expanding the family with full-color RGBA-WW capabilities. These IP65-rated blinders deliver vibrant color, classic tungsten emulation, and a backward-compatible housing designed for scalable, interlocking arrays perfect for broadcast and touring.

    Video Library

    Latest Articles

    Browse Articles

    STRIKE Array 4C FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the STRIKE Array 4C
    What are the main features of the STRIKE Array 4C?

    The STRIKE Array 4C is a powerful and versatile audience light built for outdoor use in any weather. Its four light pods can each be aimed independently, giving you precise control. It produces a full spectrum of vibrant colors and a wide range of high-quality white light. A special feature mimics the warm, classic glow of traditional lights as it dims. You can also easily link multiple units together to create larger, more impressive lighting arrays.

    Can the STRIKE Array 4C be used in the rain?

    Yes, absolutely. The STRIKE Array 4C is specifically designed for all-weather performance. Its durable, sealed housing protects it from the elements, making it a reliable choice for outdoor concerts, festivals, and events, even in wet conditions.

    How do you set up or combine STRIKE Array 4C lights?

    The STRIKE Array 4C has a simple, tool-free locking system that lets you easily connect multiple fixtures together to build a larger light wall. It also includes versatile mounting options that make it quick and convenient to attach to stage trussing in various creative configurations.
