    STRIKE Array 1

    The STRIKE Array 1 is an IP65-rated audience blinder with intense, warm white LEDs in independently focusable, interlocking pods that provide scalable configurations and tungsten-emulating Red Shift dimming.
    With its high CRI and variable PWM, this modular fixture is ideal for broadcast, touring, festivals, and any large-scale indoor or outdoor event requiring powerful and versatile audience lighting.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: STRIKEARRAY1

    STRIKE Array 1

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    User Manual
    		 Download
    IES Files
    		 Download
    CAD Files
    		 Download
    DMX Chart
    		 Download
    Firmware
    		 Download
    Download All Resources

    STRIKE Array 1

    SKU: STRIKEARRAY1

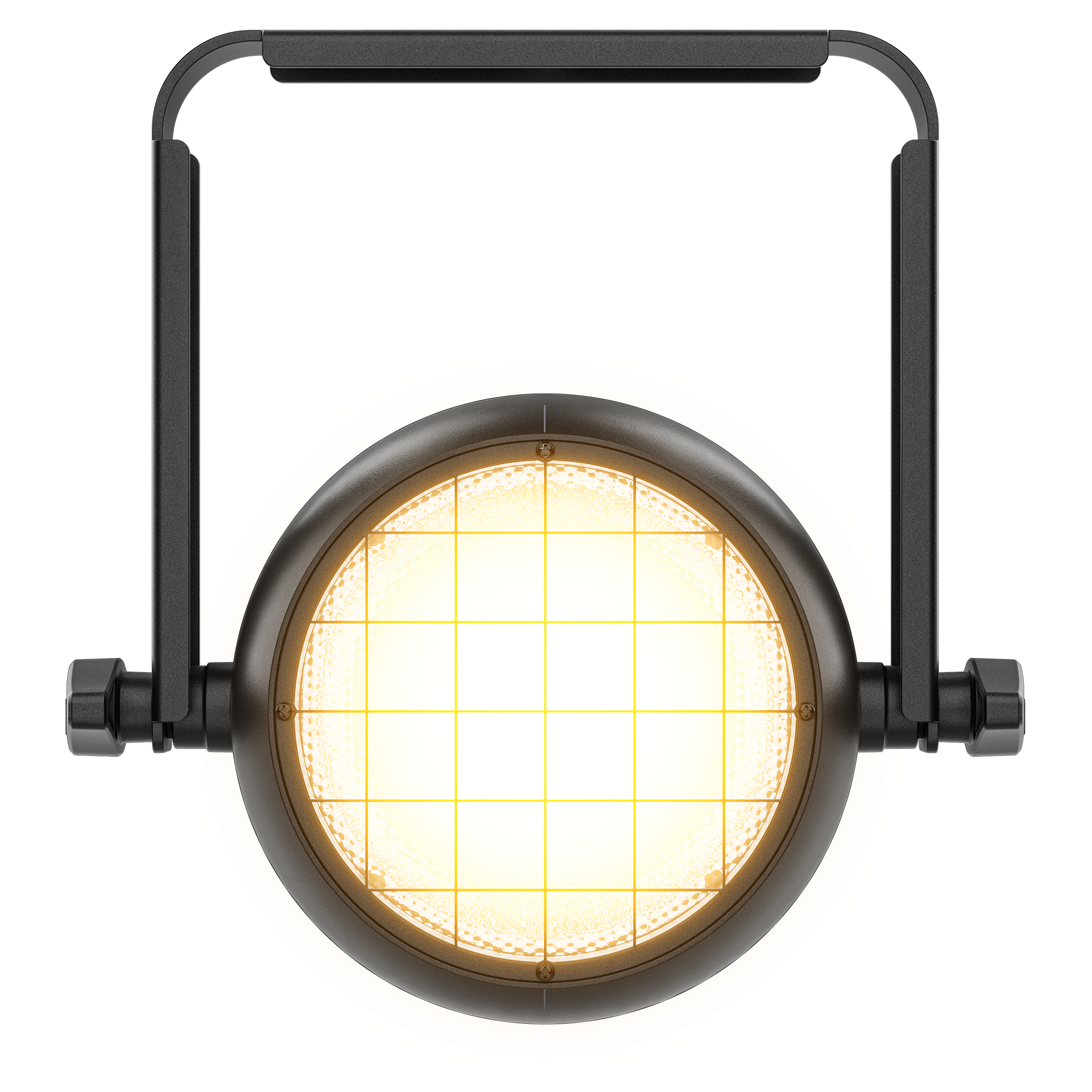

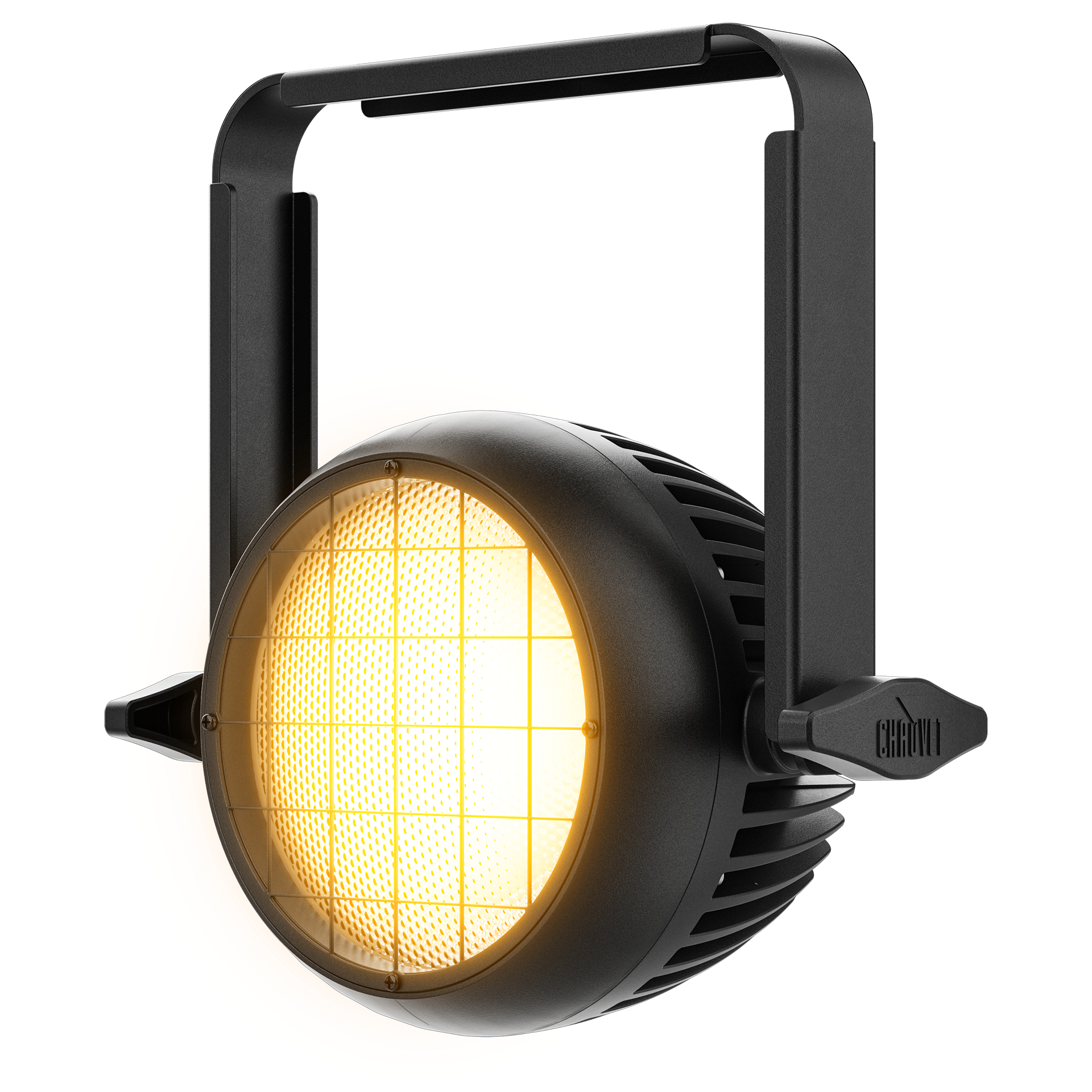

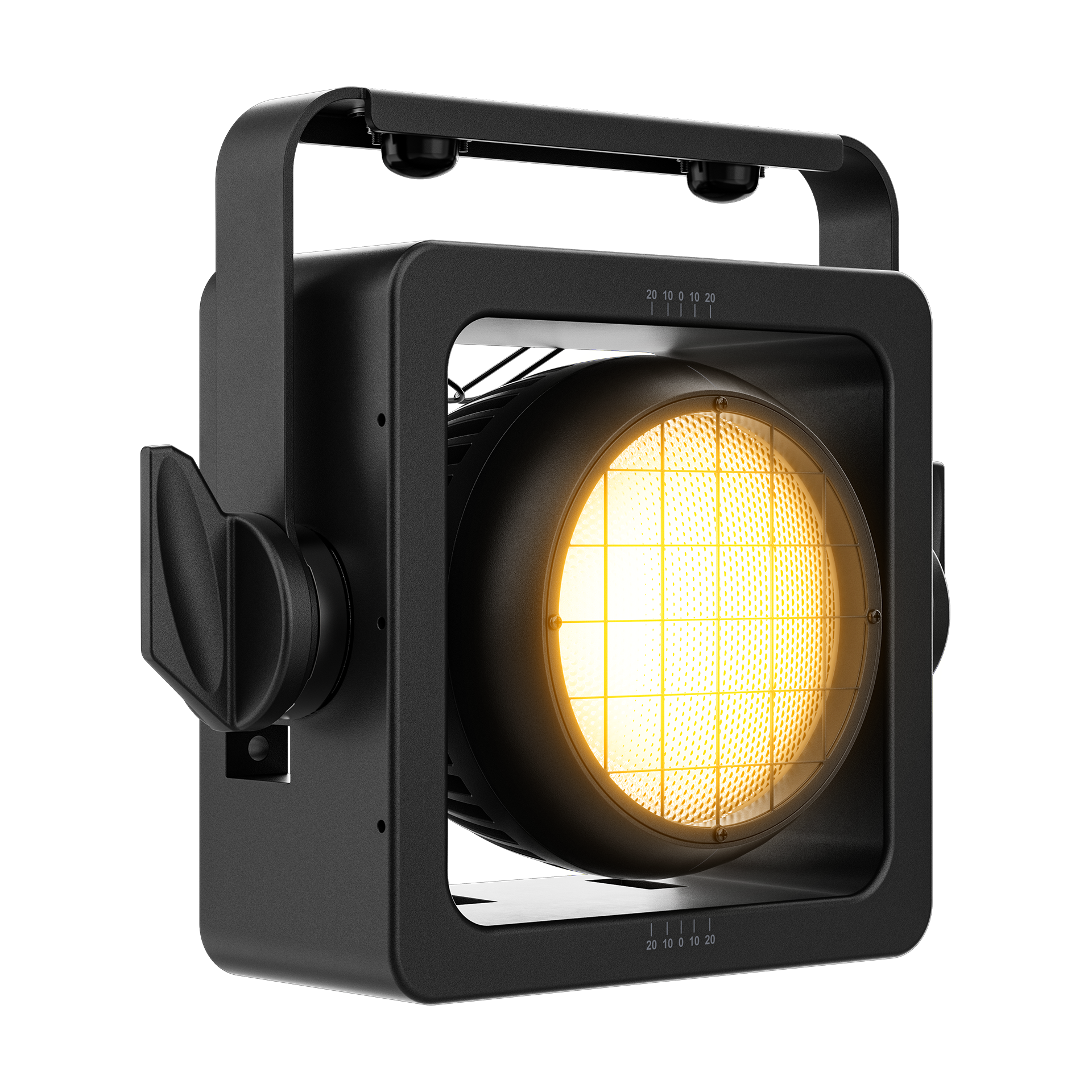

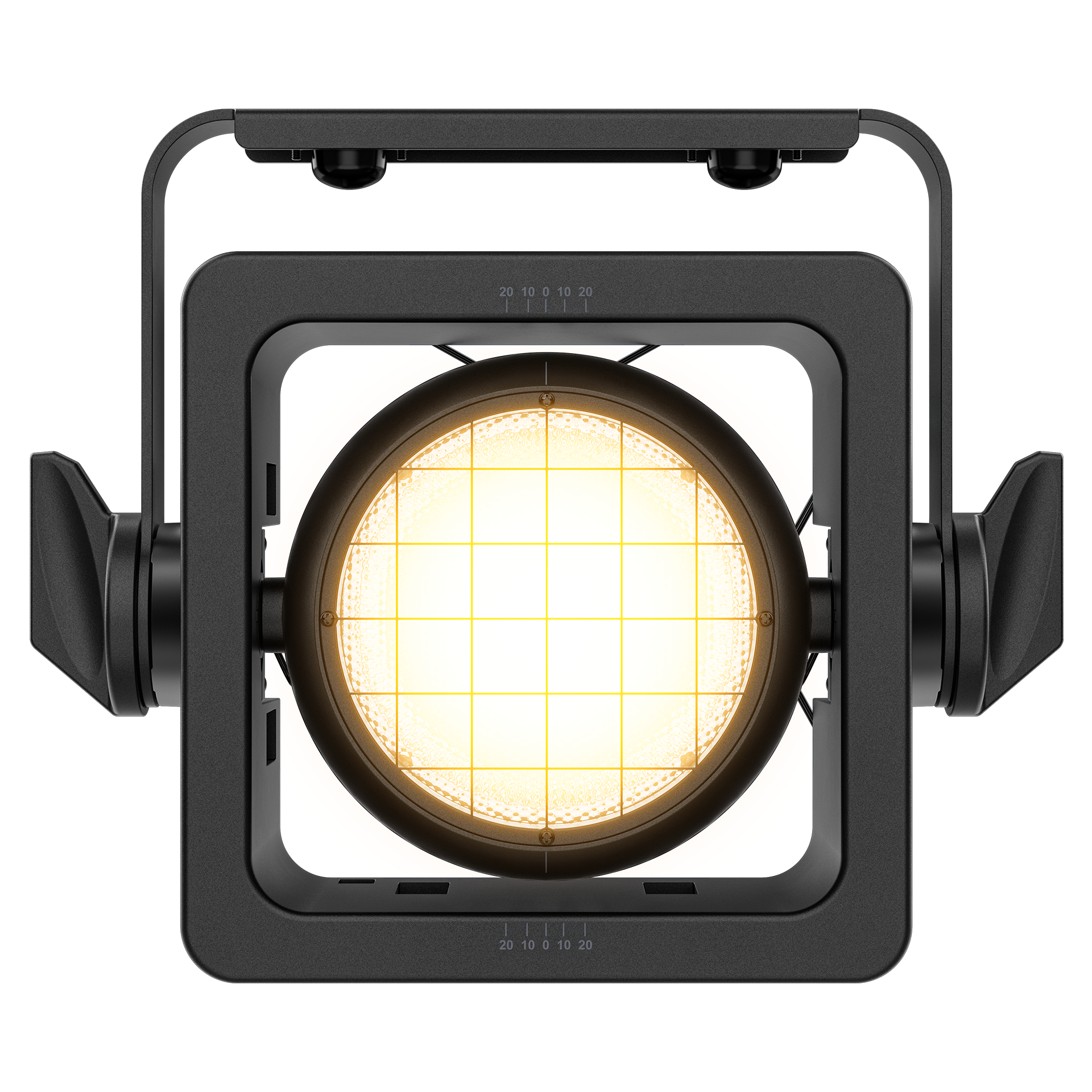

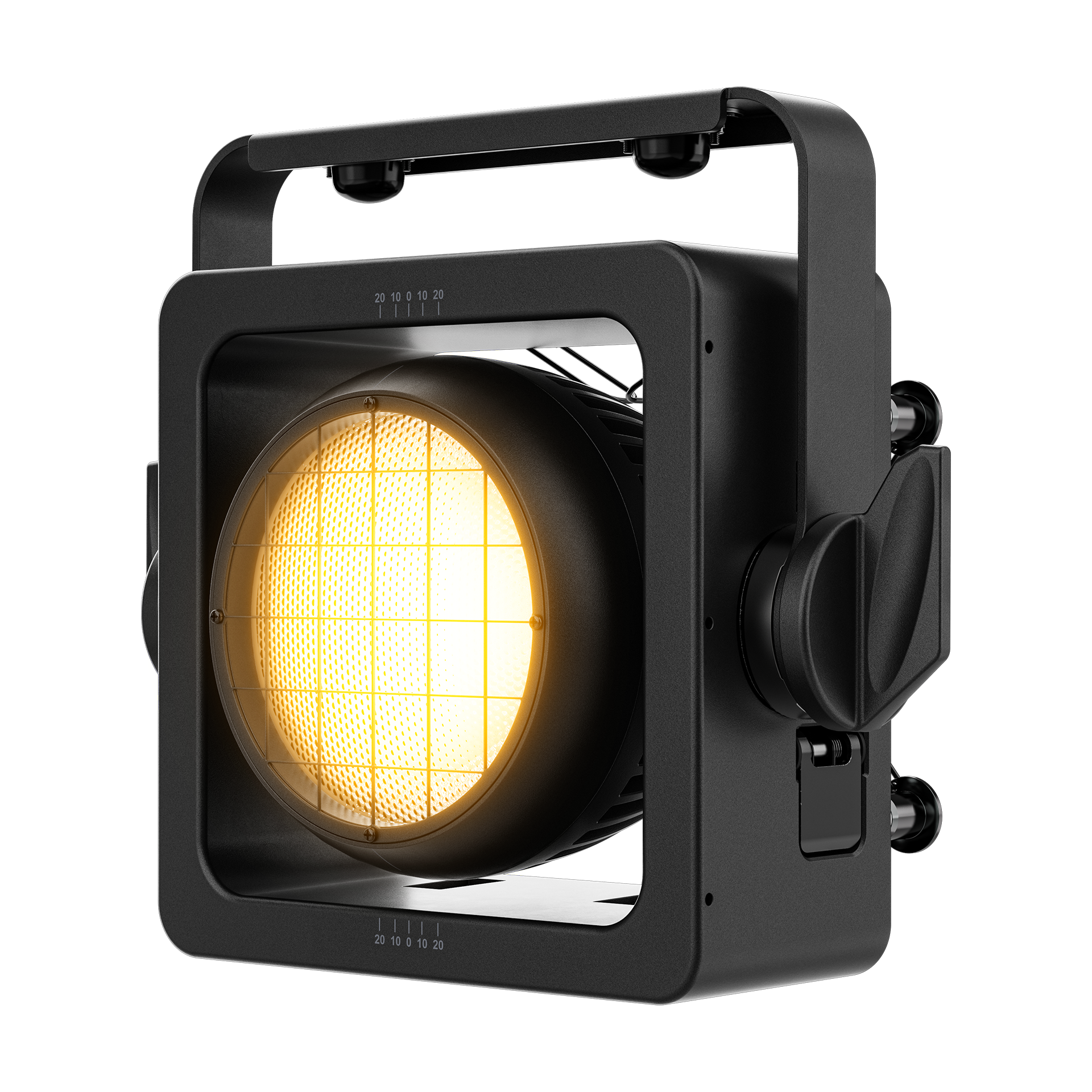

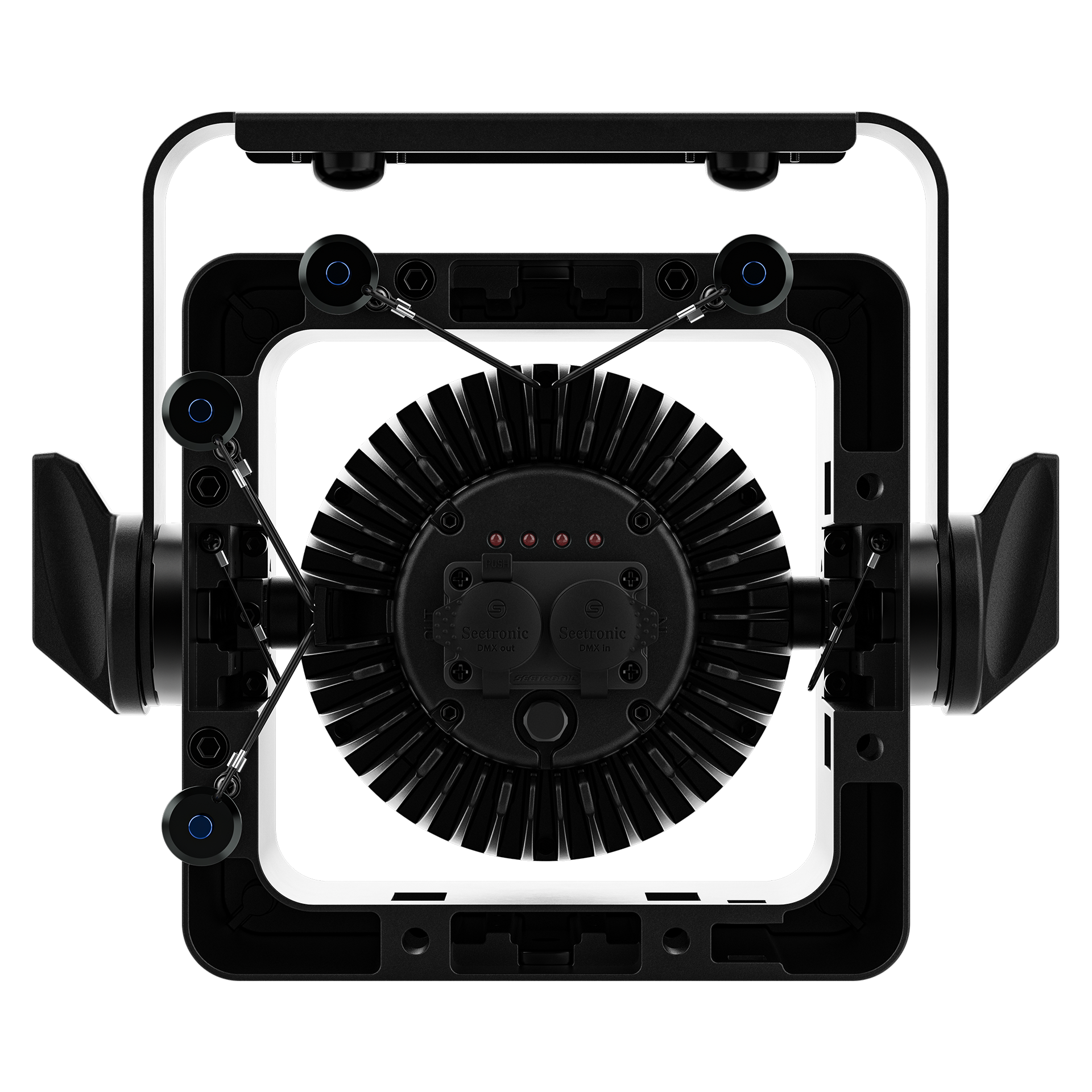

    STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

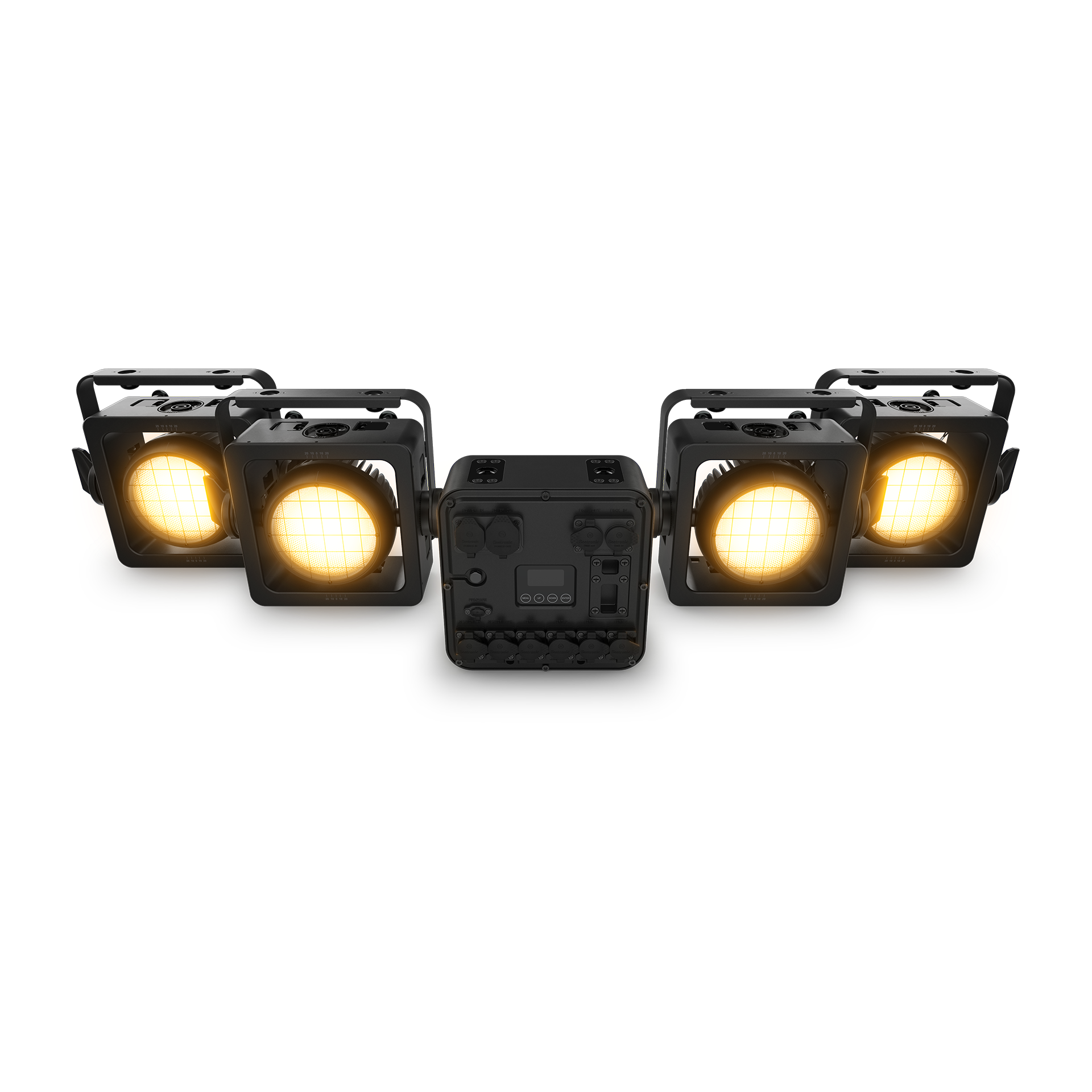

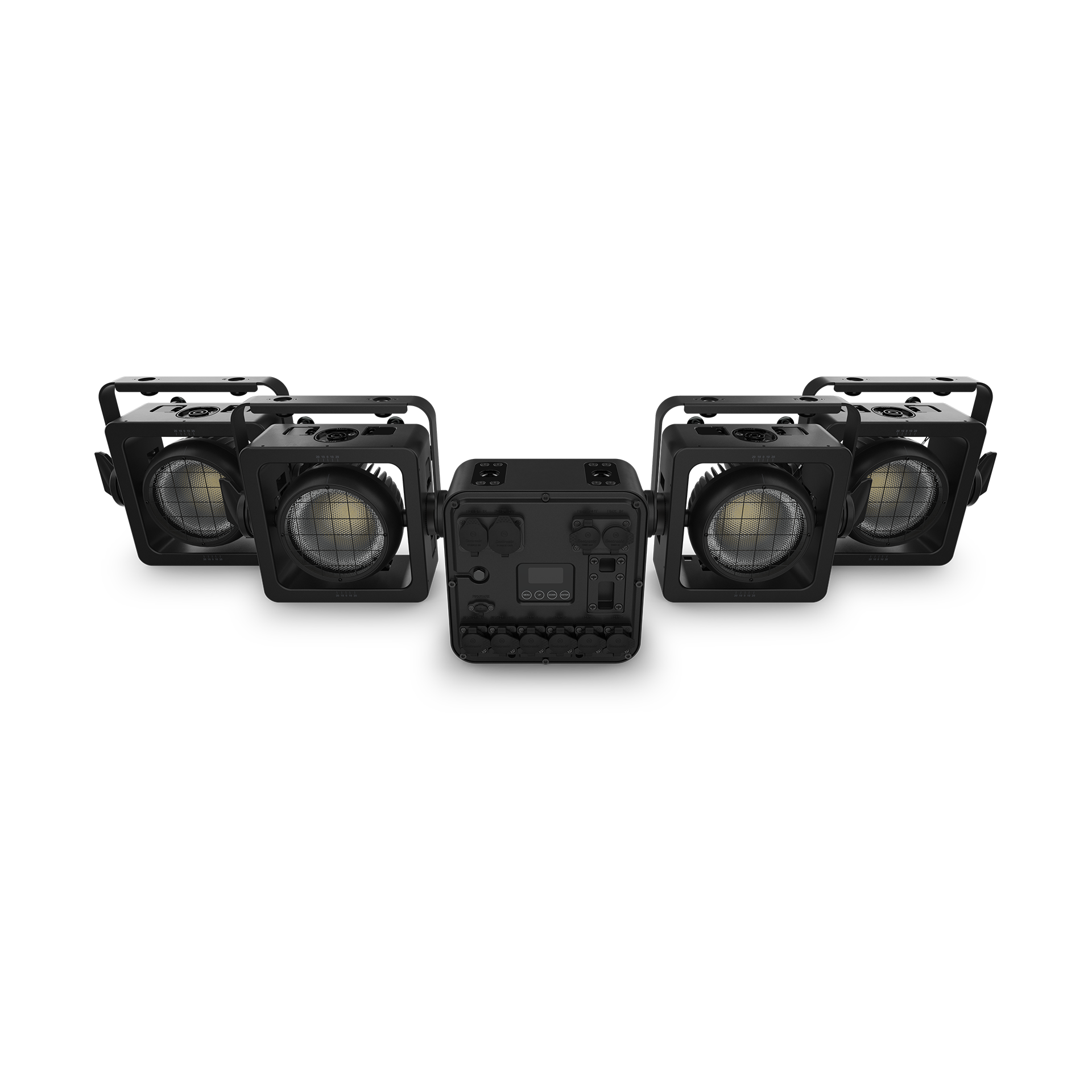

    STRIKE Array 1 is a package that includes:

    (4) STRIKE Array 1 pods mounted in square frame
    (4) Linking cables (1m length)
    (4) Hanging brackets for individual truss mounting (“head only yokes”)
    (1) Driver (controls and powers up to 8 units)

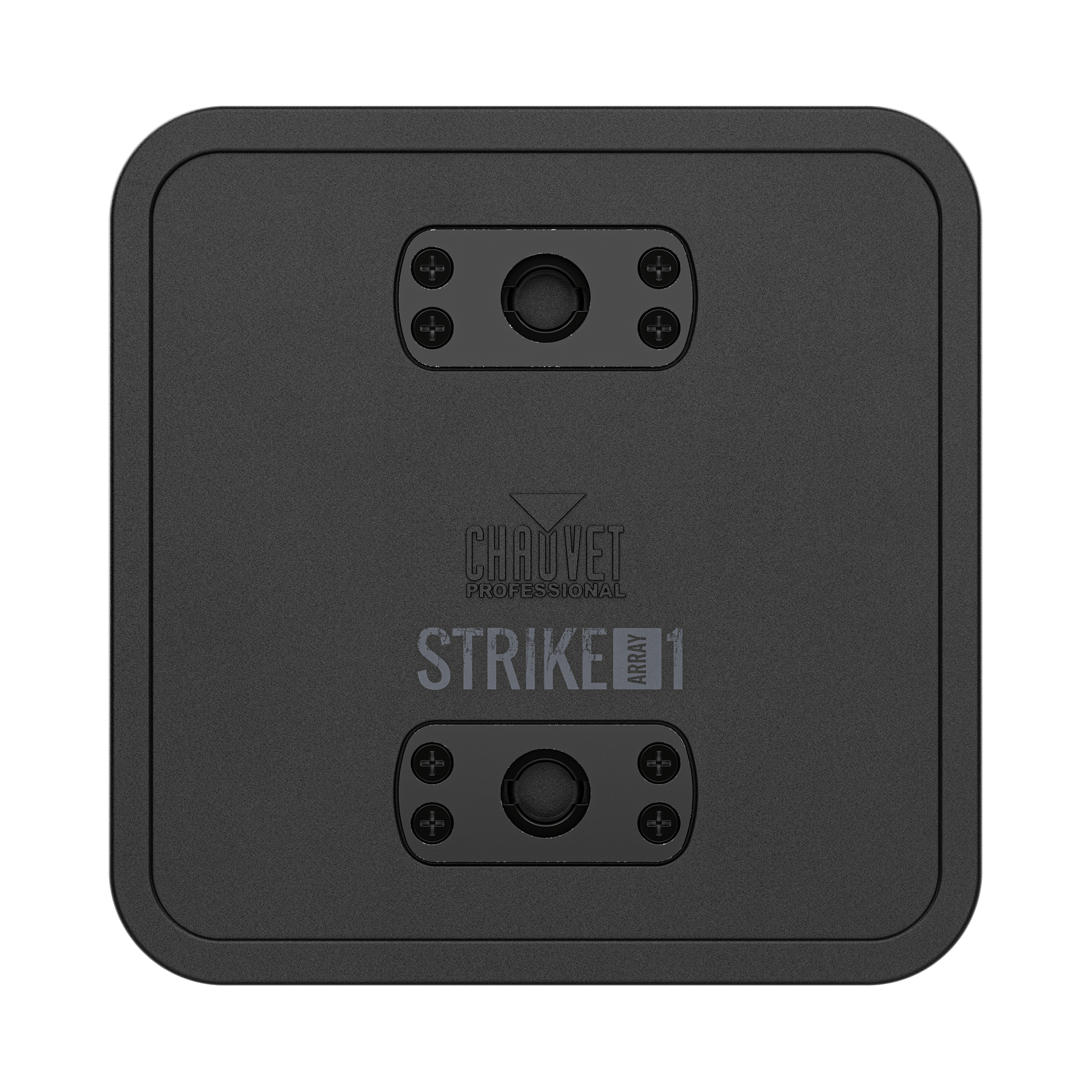

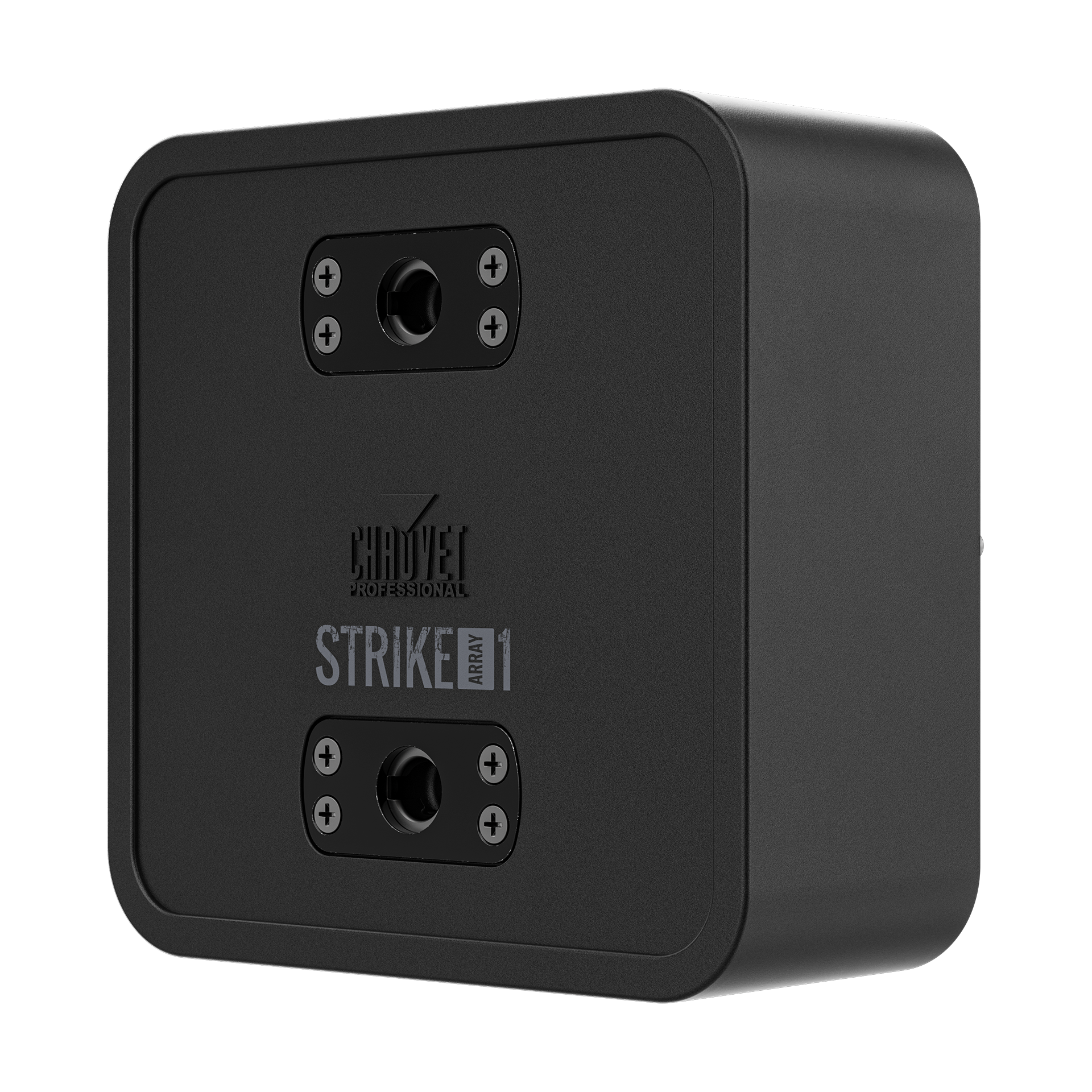

    The included remote Driver unit performs automatic addressing of up to (8) STRIKE Array 1 pods for ease of installation.

    Features

    All-Weather Blinder and Strobe

    This intense, stacking fixture is IP65 rated for reliable performance as a blinder or strobe in any weather condition.

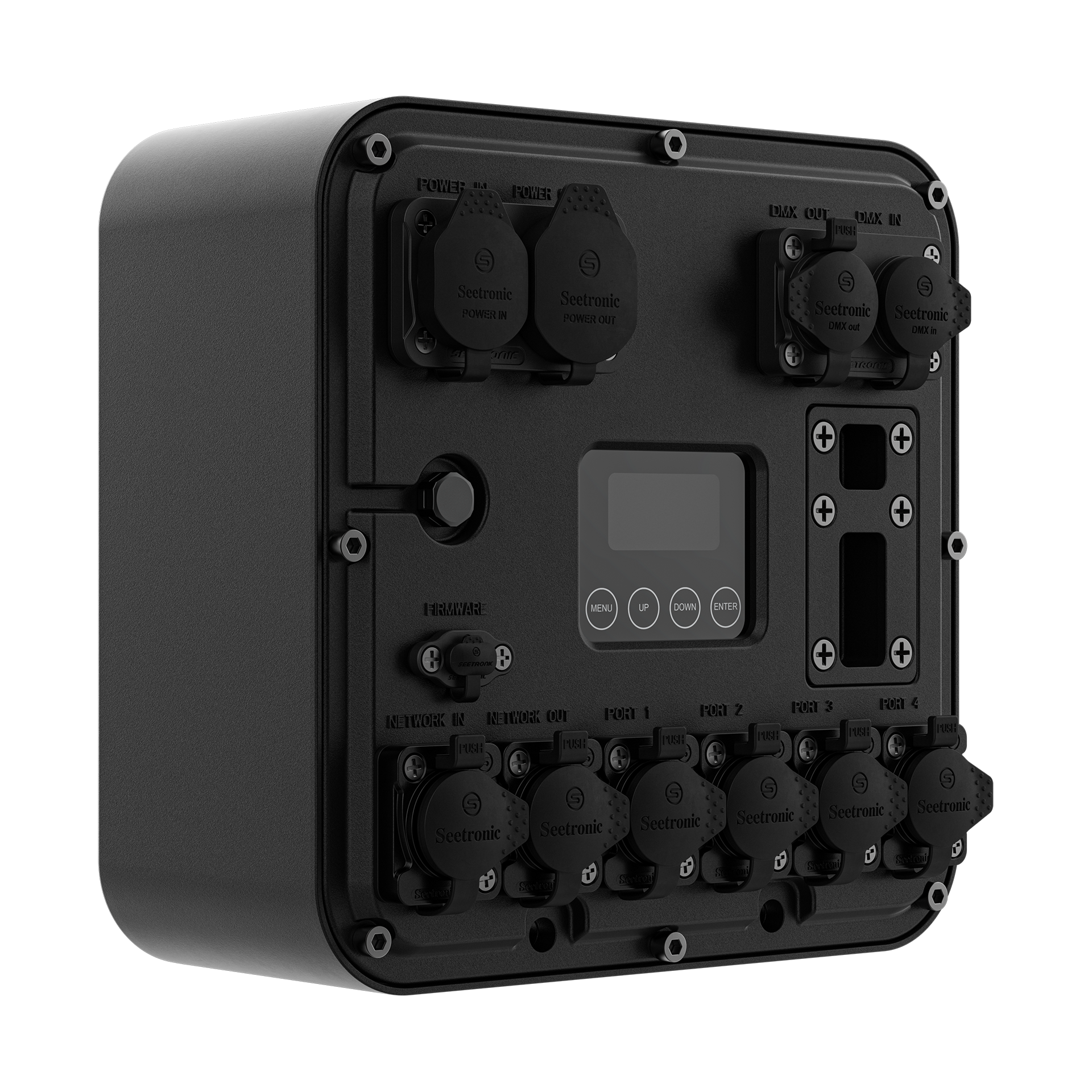

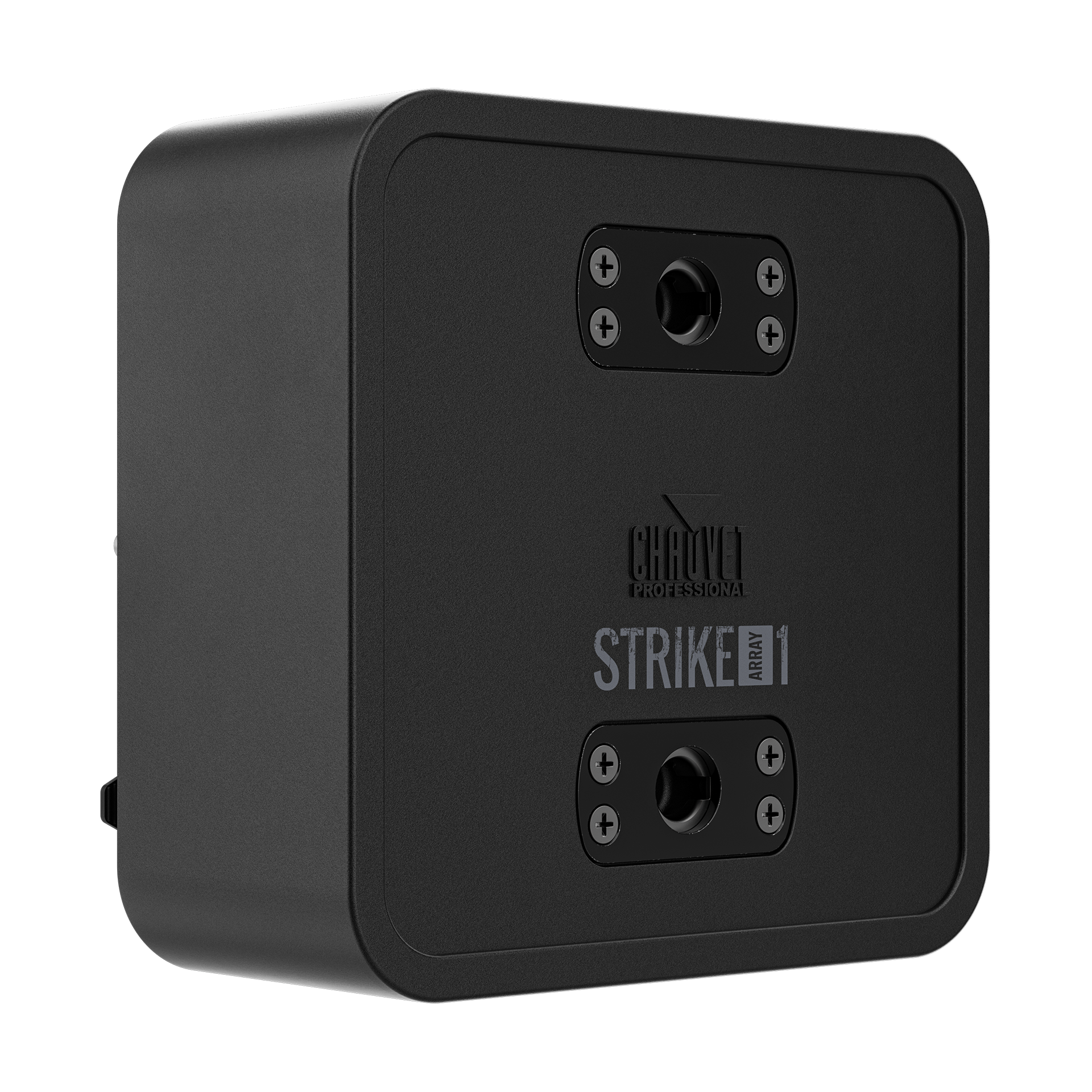

    Remote Driver Unit

    A remote driver unit simplifies installations by automatically addressing up to eight connected light pods for a clean setup.

    Versatile Mounting Options

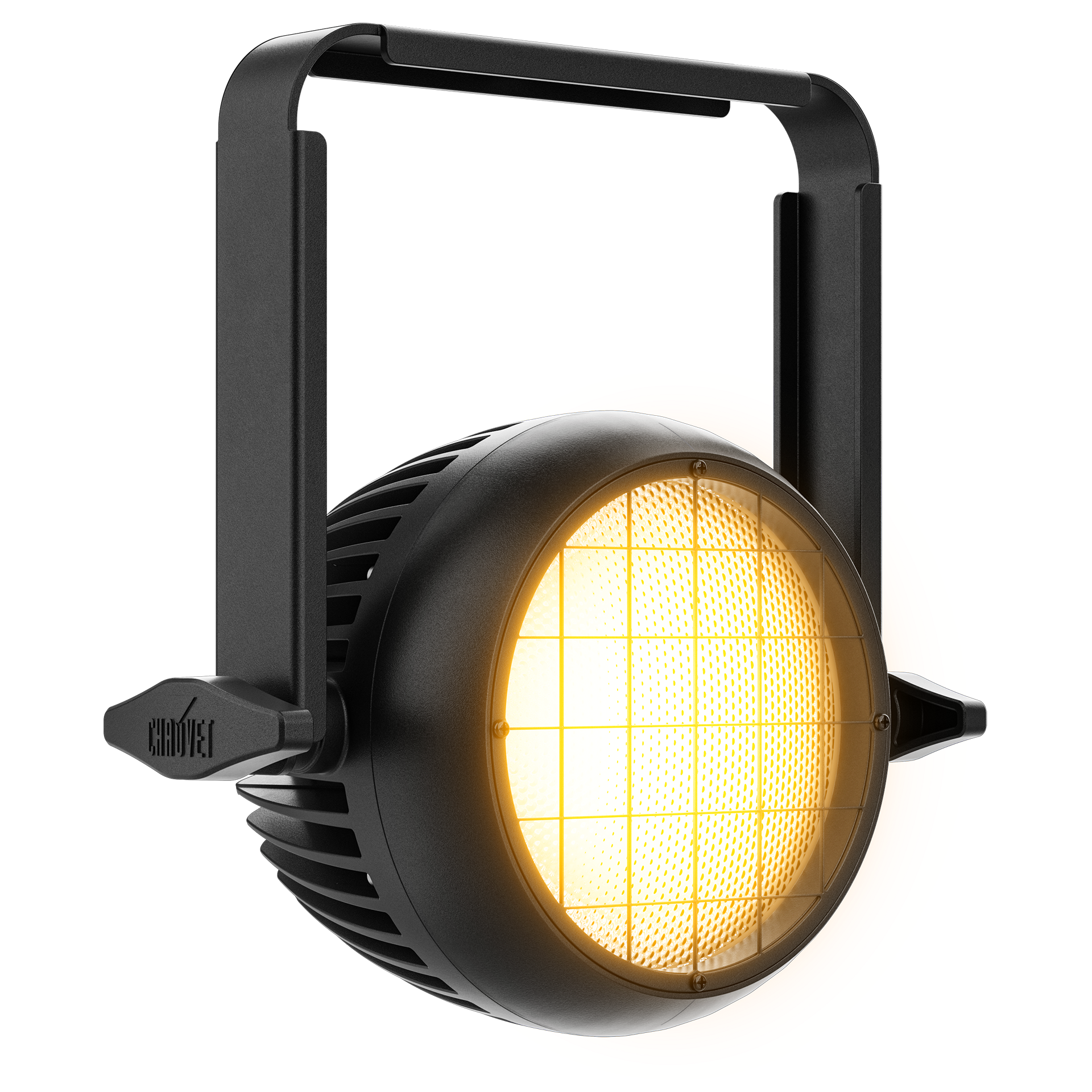

    Individual heads can be removed from the frame and mounted in an included standard yoke for a more traditional look.

    Incandescent Red Shift Emulation

    The emulated red shift feature perfectly mimics the warm dimming glow of traditional incandescent fixtures.

    Manual Head Adjustment

    Each head offers manual pan or tilt adjustment, allowing for precise directional control of the light output.

    Innovative Interlocking System

    An innovative interlocking system allows you to easily connect multiple fixtures together to create larger arrays.

    Smooth 18-Bit Dimming

    Ultra-smooth 18-bit dimming curves provide seamless fades and transitions to complement any lighting scheme.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source (Single Pod)

      48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy

    • Light Source (Single Pod)

      5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy

    • Color Temperature (at full)

      2657 K

    • CRI

      83.9

    • Beam Angle

      62.8°

    • Field Angle

      104.5°

    • Lumens (Single Pod)

      4,353 lm @ 5 m

    • Illuminance (total) (Single Pod)

      153 lux @ 5 m

    • Selectable PWM

      600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

    Dynamic Effects

    • Dimmer

      Electronic

    • Strobe Rate

      0 to 25 Hz

    • Dim Modes

      4

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)

    • Dimensions

      7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)

    • Dimensions

      10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)

    • Dimensions

      7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)

    • Weight

      3.2 lbs (1.5 kg) (Single Unit with Bracket)

    • Weight

      6.6 lbs (3.0 kg) (Single Unit with Frame)

    • Weight

      7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)

    • Weight

      6.4 lbs (2.9 kg) (Control Box)

    • Exterior Color

      Black

    • Housing Material

      Aluminum die-cast

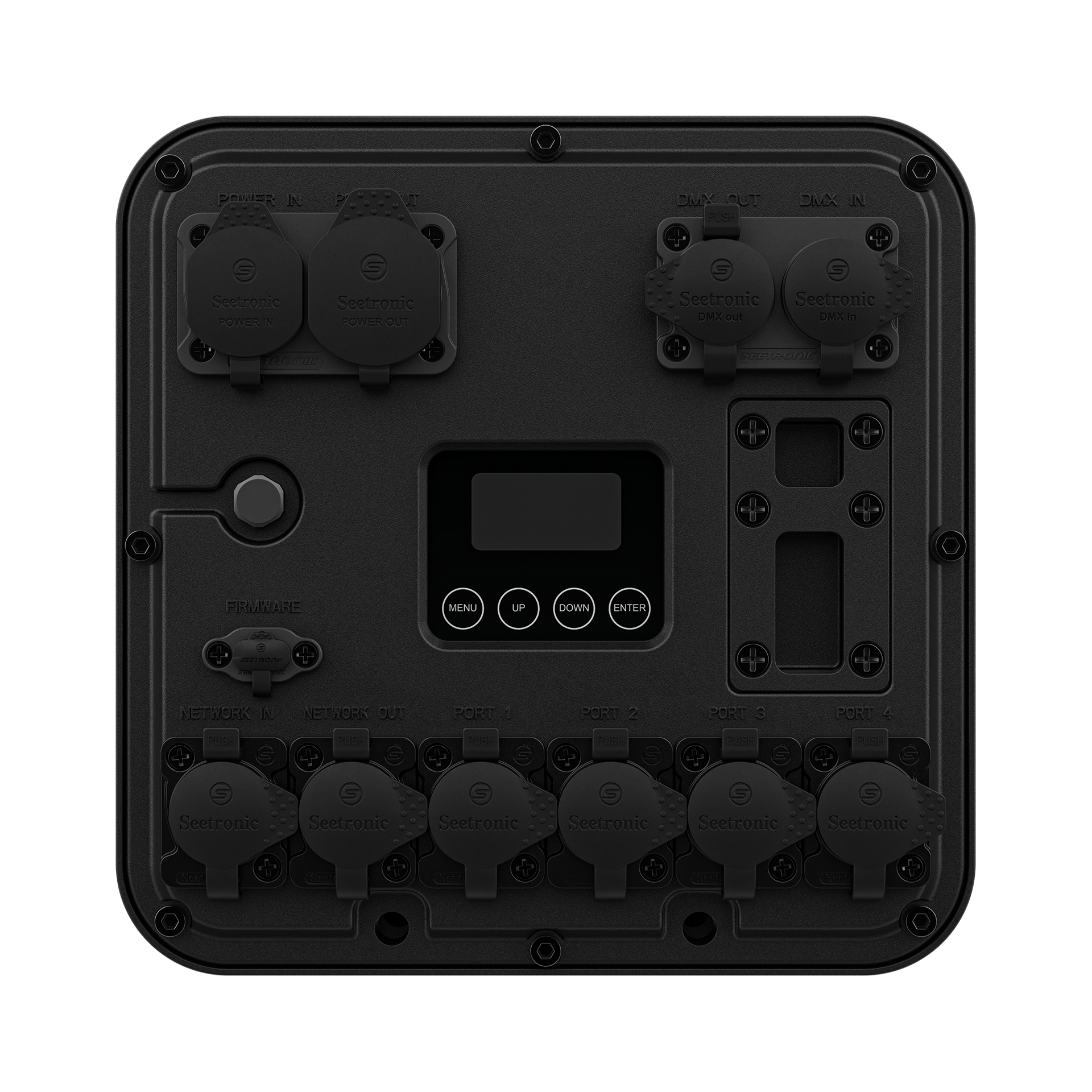

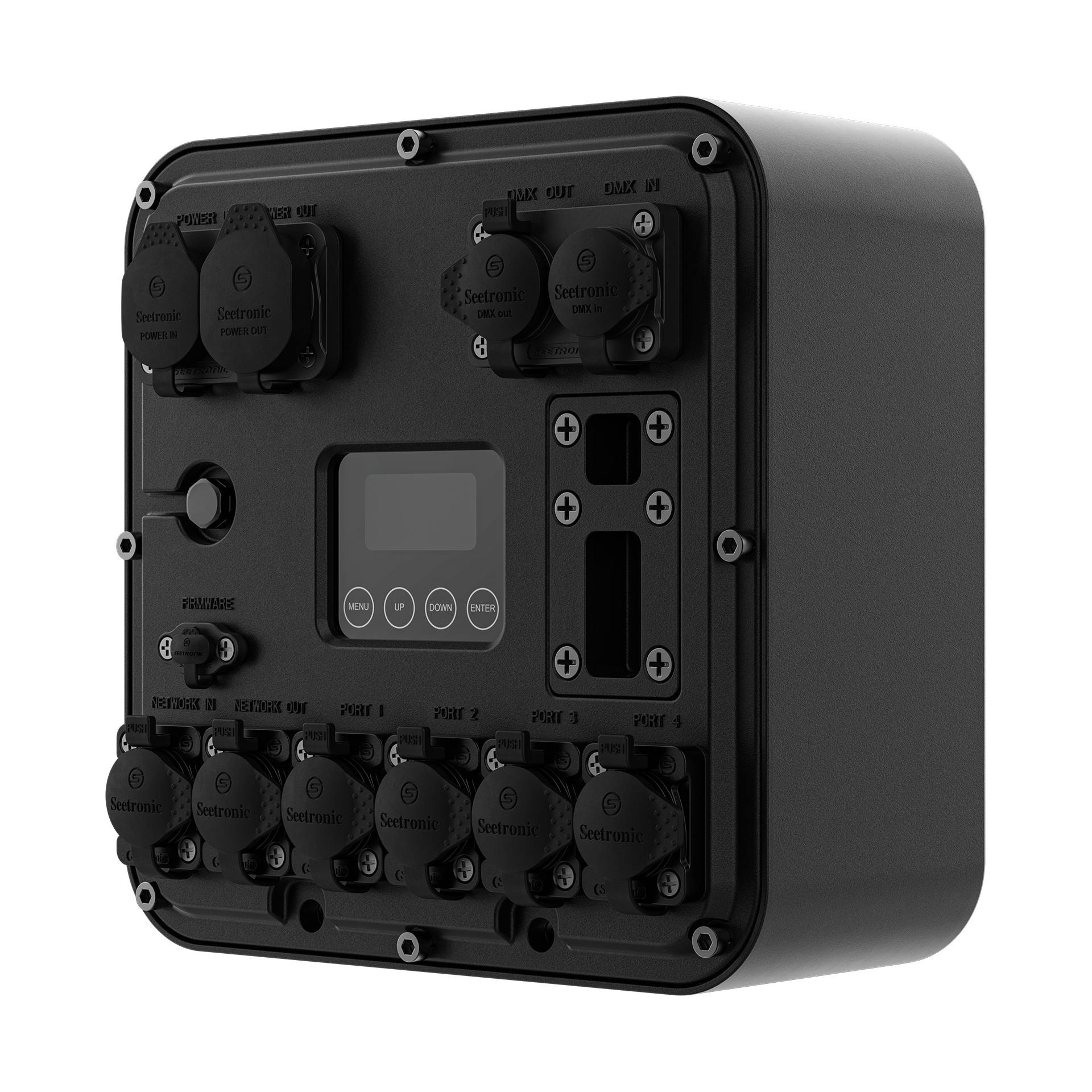

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Power Output

      Seetronic Powerkon IP65

    • Device Outputs (4)

      4-pin XLR

    • Data Connectors

      5-pin IP65 XLR, Seetronic Etherkon IP65

    • Software Connection

      USB

    • Cable Length (power)

      5 ft (1.5 m)

    • Total max. cable length (shielded cables) between Driver and last Head

      147 ft (45 m)

    Control

    • Control Protocol

      DMX, RDM, ArtNet, sACN

    • DMX Channels

      1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current (4 PODS)

      253 W, 2.13 A @ 120 V, 60 Hz

    • Power and Current (4 PODS)

      248 W, 1.21 A @ 208 V, 60 Hz

    • Power and Current (4 PODS)

      248 W, 1.09 A @ 230 V, 50 Hz

    • Power Linking

      2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V

    • Power Linking

      5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V

    • Power and Current (8 PODS)

      509 W, 4.22 A @ 120 V, 60 Hz

    • Power and Current (8 PODS)

      494 W, 2.38 A @ 208 V, 60 Hz

    • Power and Current (8 PODS)

      490 W, 2.14 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET, FCC

    • IP Rating

      IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-07
    • IP Rated Seetronic® Powerkon Extensions
    • IP Rated DMX cables
    • IP Rated EtherCon Cables
    • UPLOAD 03 software uploader

    What's Included

    • 4pc Strike Array 1, mounted in the Square Frame with Yokes
    • 4pc linking cables (1m)
    • 1pc Seetronic Powerkon IP65
    • 1pc driver
    • 4pc “head only yokes”
    • 5pc Omega Bracket

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    STRIKE Array 1 – Quick Reference Guide
    		Download
    Manuals
    STRIKE Array 1 – User Manual
    		Download
    Drawings
    STRIKE Array 1 – IES Files
    		Download
    Drawings
    STRIKE Array 1 – CAD Files
    		Download
    DMX
    STRIKE Array 1 – DMX Chart
    		Download
    Other
    STRIKE Array 1 – Firmware
    		Download

    Learn How To Use Your STRIKE Array 1

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • Light Snacks: Riglink Cables 101

      CHAUVET Professional introduces the Riglink family of IP65-rated power and data cables. Available in combo and 4-pin versions, these cables simplify rigging by combining connections into a single, tidy run, ensuring reliable performance in any environment.

    Video Library

    Latest Articles

    Browse Articles

    STRIKE Array 1 FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the STRIKE Array 1
    Can I customize the setup of the STRIKE Array 1?

    Yes, it is highly versatile. It comes as a four-light unit, but its tool-free interlocking system lets you easily connect multiple units to create larger light arrays. You can also aim each light pod individually or even remove them from the frame to use separately with an included bracket.

    Can the STRIKE Array 1 be used outdoors?

    Absolutely. The STRIKE Array 1 is designed for all-weather use, making it a reliable choice for outdoor festivals, concerts, and events, even in wet conditions.

    What kind of light does the STRIKE Array 1 produce?

    It produces an intense, warm-white light designed to look like a classic stage light. A special feature makes the light appear warmer and redder as it dims, perfectly mimicking the glow of a traditional tungsten fixture. This effect, combined with its flicker-free operation, makes it ideal for live events and video recording.
