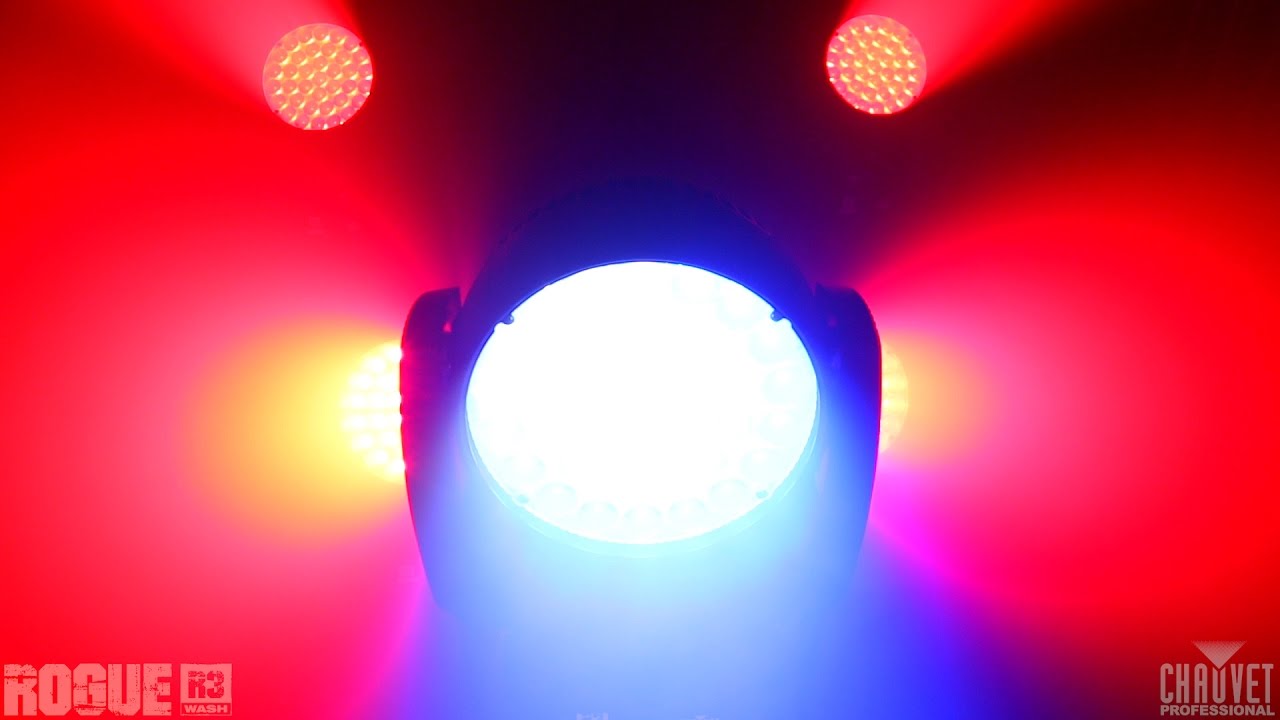

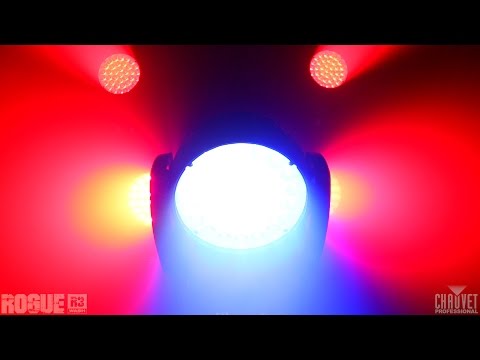

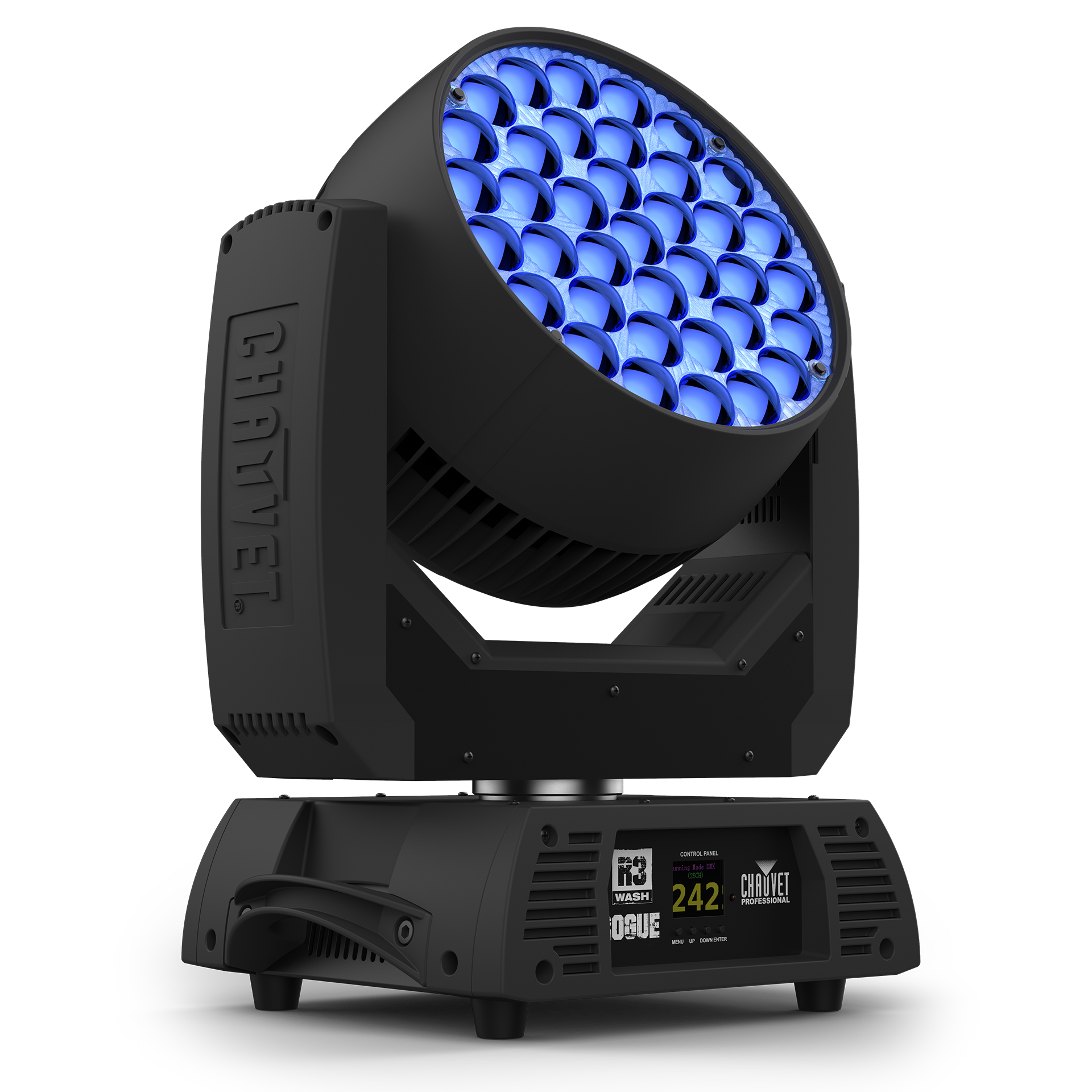

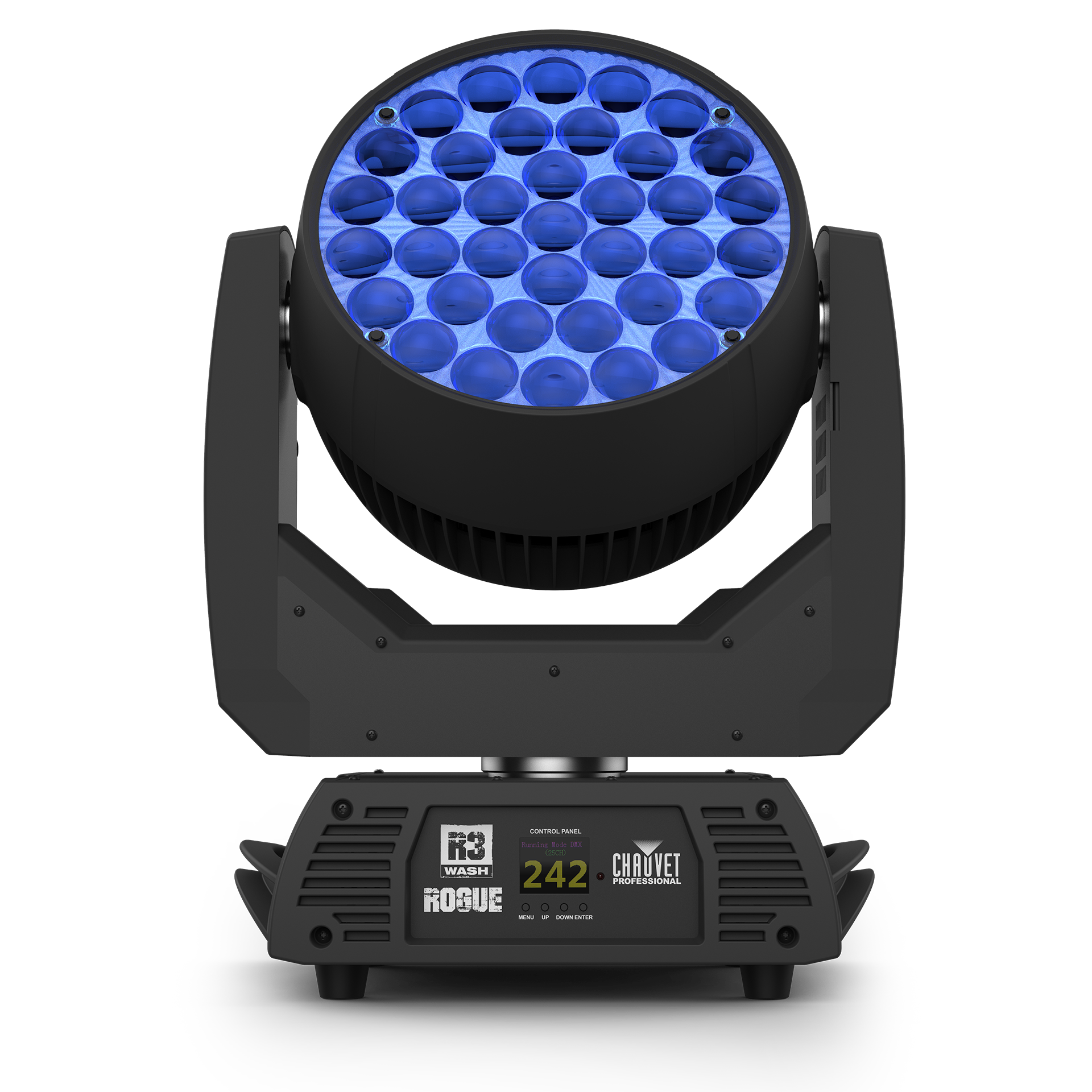

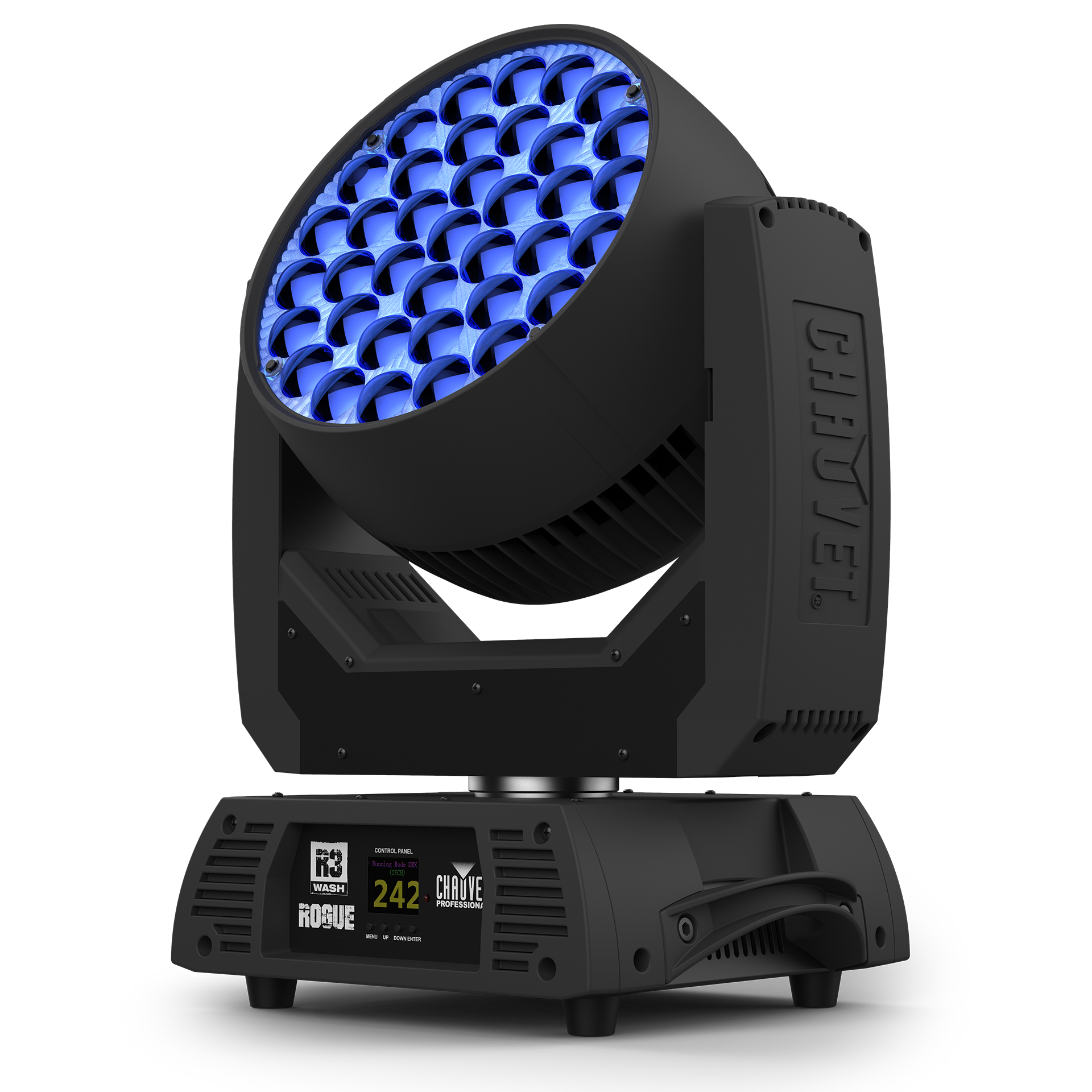

Rogue R3 Wash

Optical

• Light Source

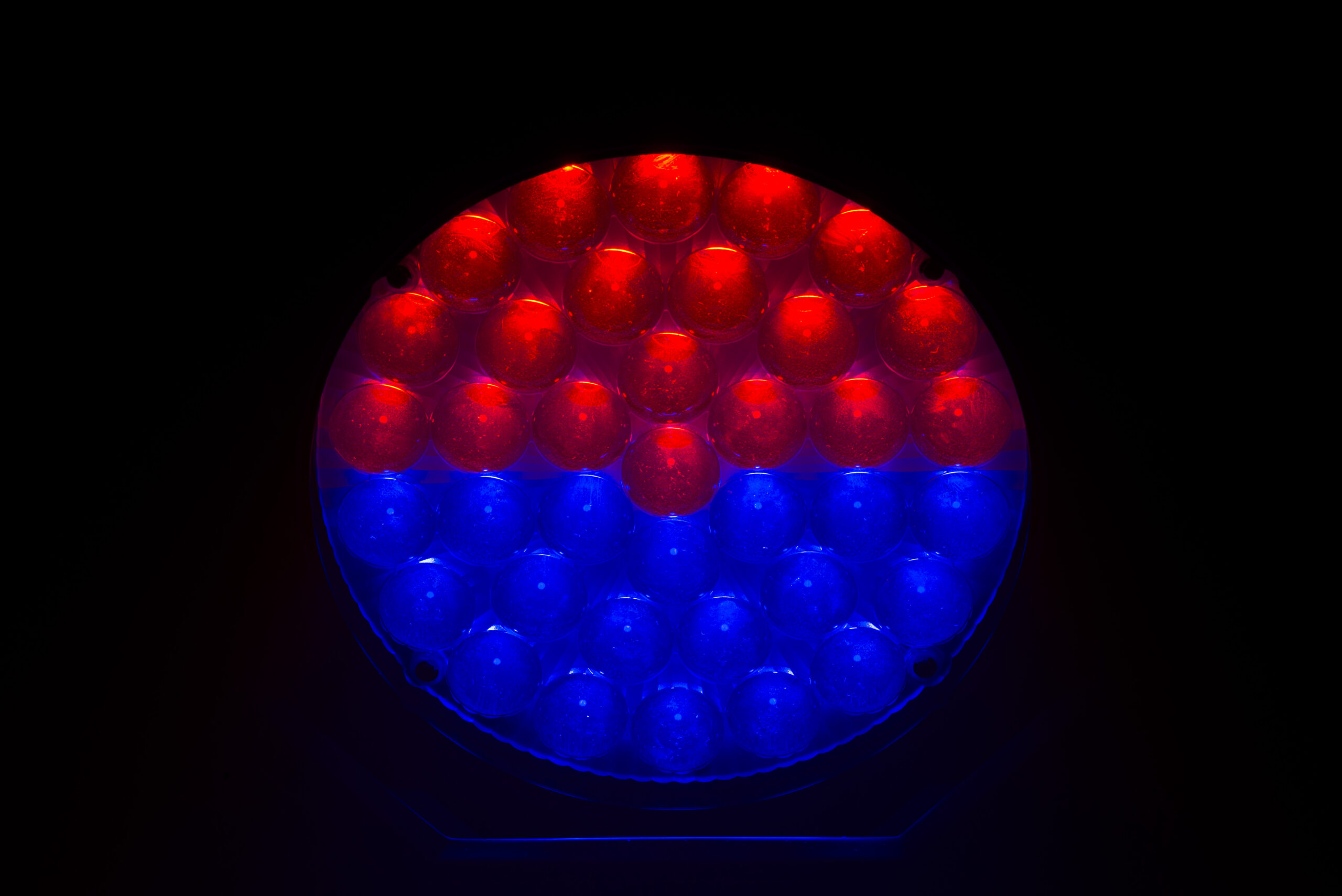

  37 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy

• Color Temperature (range)

  2,800 to 10,000 K

• Beam Angle

  8° to 30°

• Field Angle

  12° to 49°

• Cutoff Angle

  13.1° to 62.6°

• Zoom Range

  9.3° to 62.6°

• Lumens – Source

  17,000

• Lumens – Output

  11,500

• • Illuminance
    • Illuminance (12°)

      21,000 lux @ 5 m

    • Illuminance (49°)

      1,902 lux @ 5 m

• PWM Frequency

  2,400 Hz

Dynamic Effects

• Pan and Tilt

  540°/230°

• Pan and Tilt Ranges

  180°, 360°, 540° pan/90°, 180°, 230° tilt

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Curves

  4

• Built-in Automated Programs

  Yes

• Customizable Programs

  No

• Recall Custom Programs

  No

Construction/Physical

• Dimensions

  15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)

• Weight

  38.5 lb (17.46 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

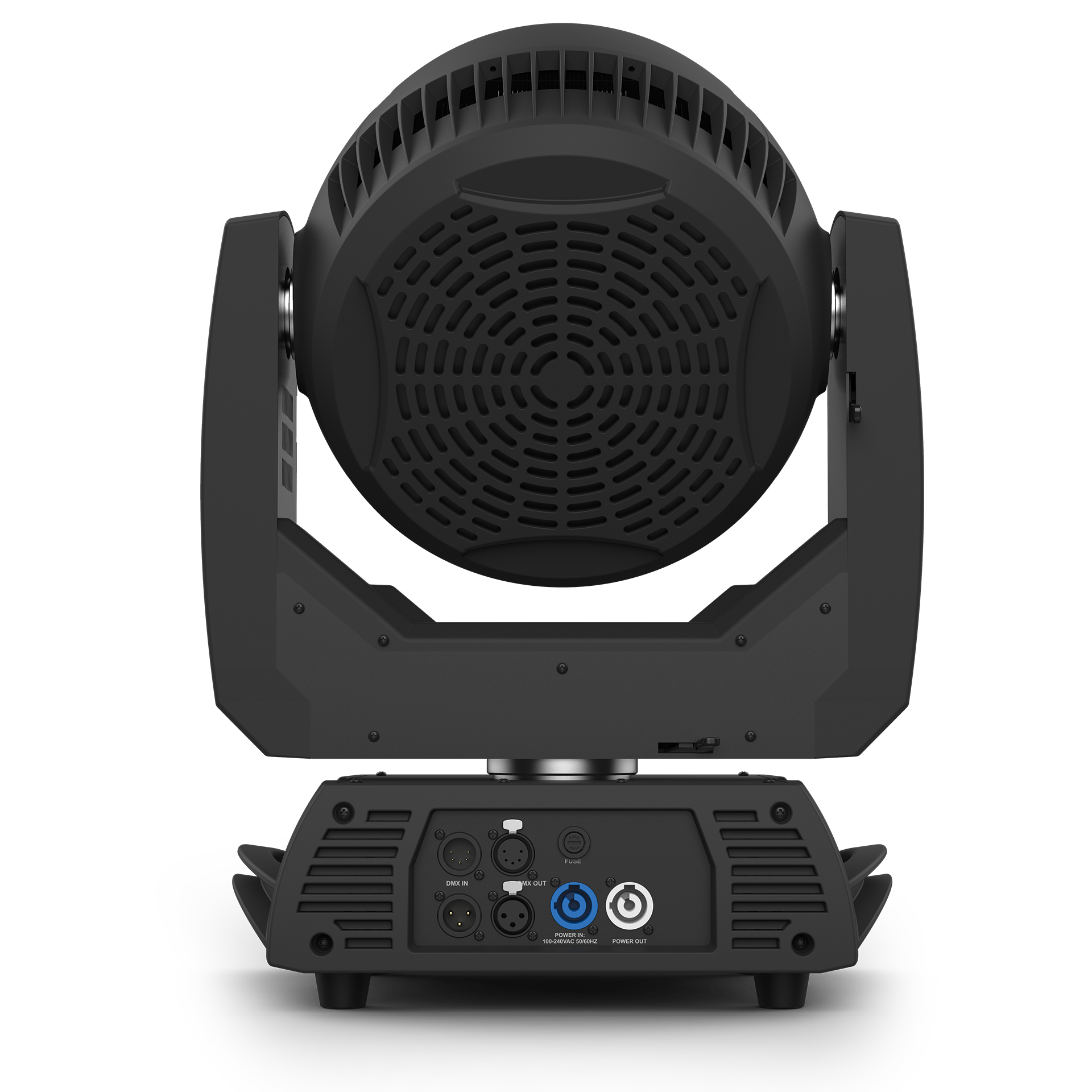

Connections

• Power Connection

  Edison (Local) plug to Neutrik® powerCON®

• Power Input

  Neutrik® powerCON®

• Power Output

  Neutrik® powerCON®

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  21, 62, 71, 107

• Modes/Personalities

  4 personalities

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V

• Power and Current

  660 W, 6.21 A @ 120 V, 60 Hz

• Power and Current

  689 W, 3.40 A @ 208 V, 60 Hz

• Power and Current

  704 W, 3.10 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location
