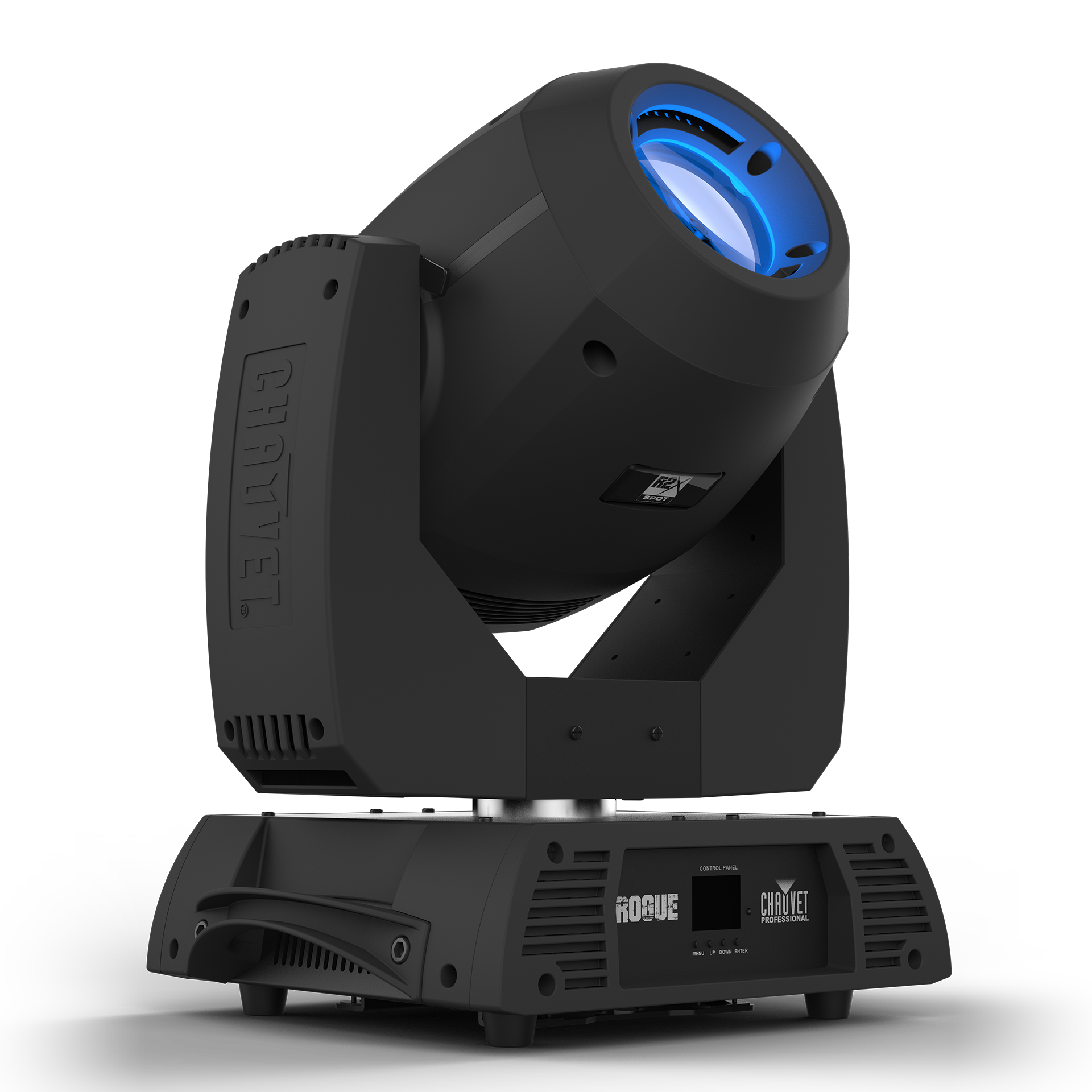

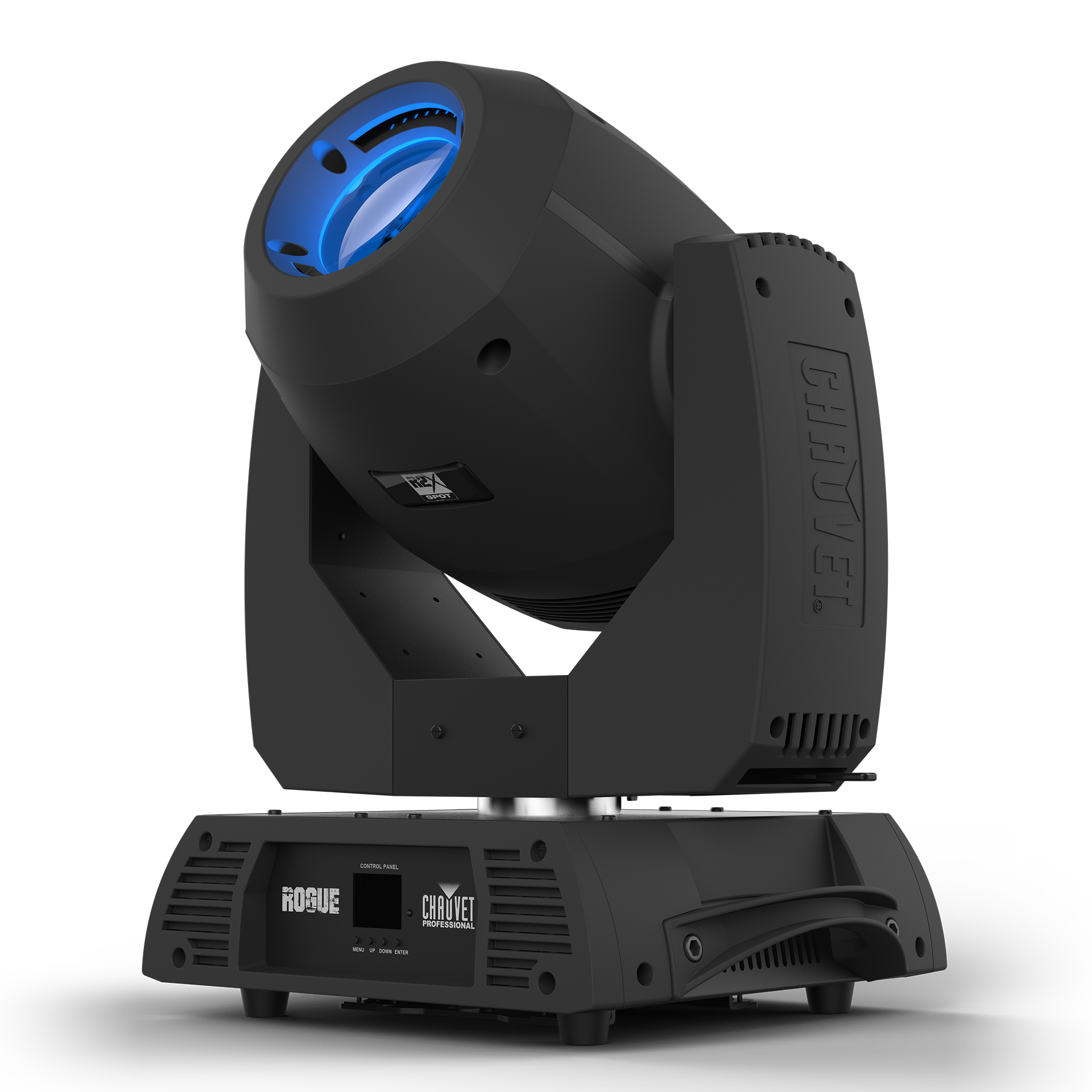

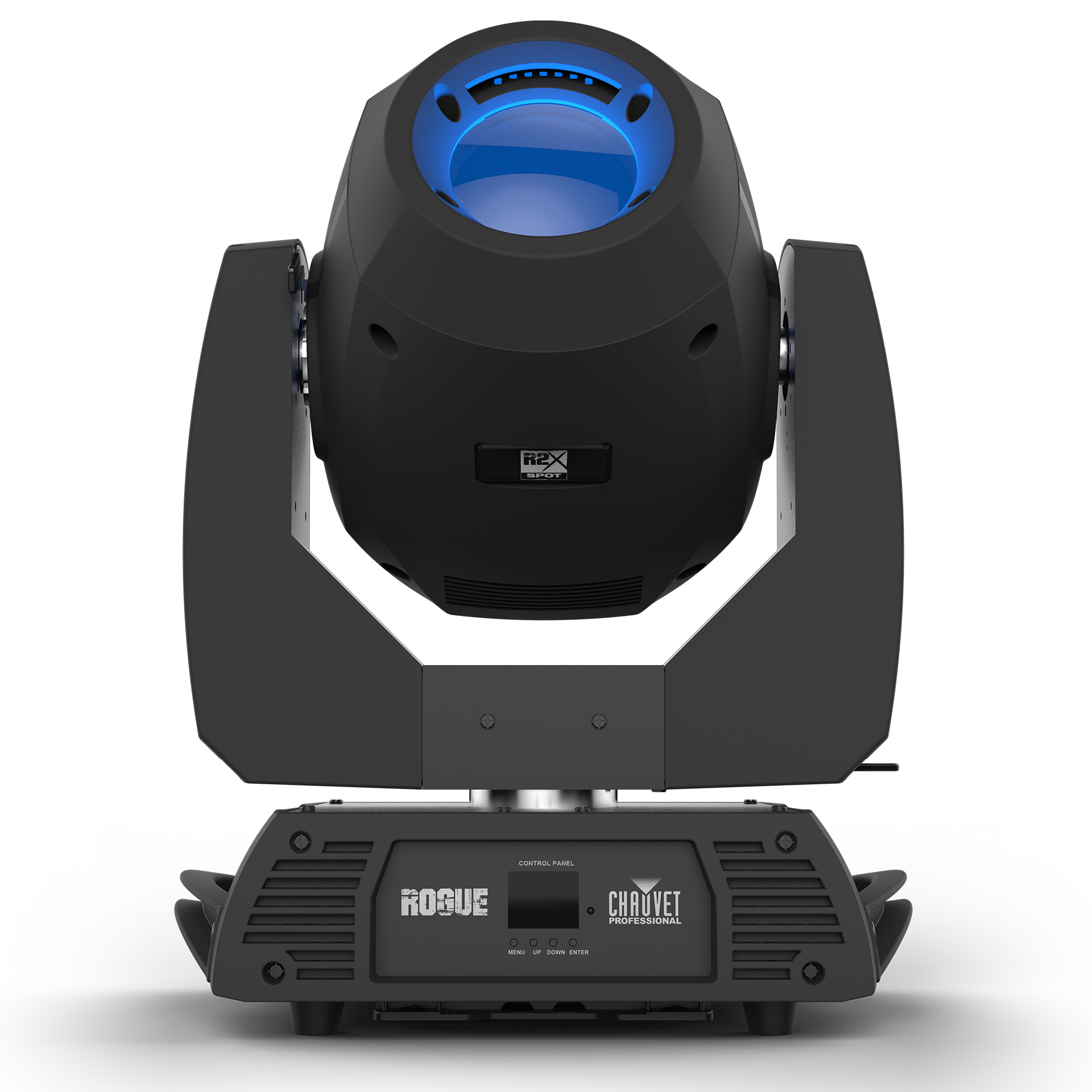

Rogue R2X Spot
A powerful 300W LED moving head spot fixture featuring gobo-morphing technology and two variable scrolling color wheels for a stunning range of shape-changing and split-color effects.
Perfect for touring productions, event stages, and installations requiring a feature-packed spot fixture that delivers high-impact visual effects and dynamic color combinations.
-
Features an intense 300 W LED engine with a crisp 8831 K color temperature.
-
Offers two separate gobo wheels, one rotating and one fixed, for layered pattern effects.
-
Includes a 3-facet prism, frost, and iris for dynamic beam shaping and aerial effects.
-
Achieves exceptionally smooth fades with 16-bit dimming and flicker-free on-camera operation.
-
Provides versatile control options with DMX, RDM, and both 3-pin and 5-pin connectors.
-
Features professional Neutrik powerCON connections for fast and reliable power linking between units.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Rogue R2X Spot
Rogue R2X Spot offers incredible value with a stunning range of colors and effects, all supported by professional quality engineering. Rogue R2X Spot builds on the features of the R1X Spot by adding gobo-morphing technology and two variable scrolling color wheels for an unlimited number of shape-changing and split-color effects. Rogue R2X Spot uses a powerful 300 W LED light source in a 16.5° beam angle for a brilliant light that creates an unparalleled audience experience.
Features
Intense 300W LED Engine
Delivers punchy and bold beams with a powerful 300-watt LED light source.
Seamless Gobo Morphing
Create smooth, perfect transitions between gobos from different wheels for stunning visual effects.
Dual Color Wheels
Features two separate wheels with 7 colors each, split-color ability, and variable speed scrolling.
Dual Gobo Wheels
Includes one fixed and one rotating, interchangeable gobo wheel for a wide range of pattern options.
Advanced Beam Control
Shape and modify the beam using the integrated iris, 3-facet prism, and frost filter.
16-Bit LED Dimming
Achieve exceptionally smooth fades and precise intensity control for professional results.
PowerCON Power Linking
Easily link power between multiple units using professional-grade Neutrik powerCON input and output connections.
Versatile DMX Connections
Offers both 3-pin and 5-pin DMX input/output connections for maximum compatibility.
RDM Enabled
Allows for remote addressing and troubleshooting, simplifying setup and maintenance.
Selectable LED Output
Match the brightness of legacy Rogue R2 Spot fixtures by selecting the maximum LED output.
Flicker-Free Operation
Maintain flicker-free performance on camera with selectable Pulse Width Modulation (PWM) settings.
Flexible DMX Channel Profiles
Choose between simple and complex DMX channel profiles for ultimate programming versatility.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LEDs (CW) 300 W, (8.7 amps), 8831 K, 50,000 hours life expectancy
-
Color Temperature (at full)
8847 K
-
Front lens diameter
100 mm
-
CRI
71.7
-
Beam Angle
16°
-
Field Angle
18°
-
Cutoff Angle
18.4°
-
Lumens – Source
23,000
-
Lumens – Output
14,789
-
Illuminance (total)
9,344 lux @ 5 m
-
Selectable LED Power output
50-100
-
Selectable PWM
600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
-
Pan and Tilt
540°/250°
-
Pan and Tilt Ranges
540°, 360°, 180° pan/250°, 180°, 90° tilt
-
Colors (1)
7 + white, split colors, continuous scroll at variable speeds
-
Colors (2)
7 + white, split colors, continuous scroll at variable speeds
-
Gobos (1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
-
Gobos (2)
8 + open (8 metal), continuous scroll at variable speeds
-
-
Gobo Size
-
Gobo Wheel 1 (rotating)
Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
-
Gobo Wheel 1 (rotating)
Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
-
-
Gobo Size
-
Framing Shutters
No
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Focus
Motorized
-
Frost
Motorized
-
Iris
Motorized
-
Prism
3 Facets, motorized, rotating
-
Strobe Rate
0 to 22 Hz
-
Standalone Color Mixing
No
-
Color Temperature Presets
No
-
Move-in-Black
Yes
Construction/Physical
-
Dimensions (single unit)
16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm)
-
Weight (single unit)
47.8 lb (21.7 kg)
-
Exterior Color
Black
-
Housing Material
High-impact flame-retardant polymer

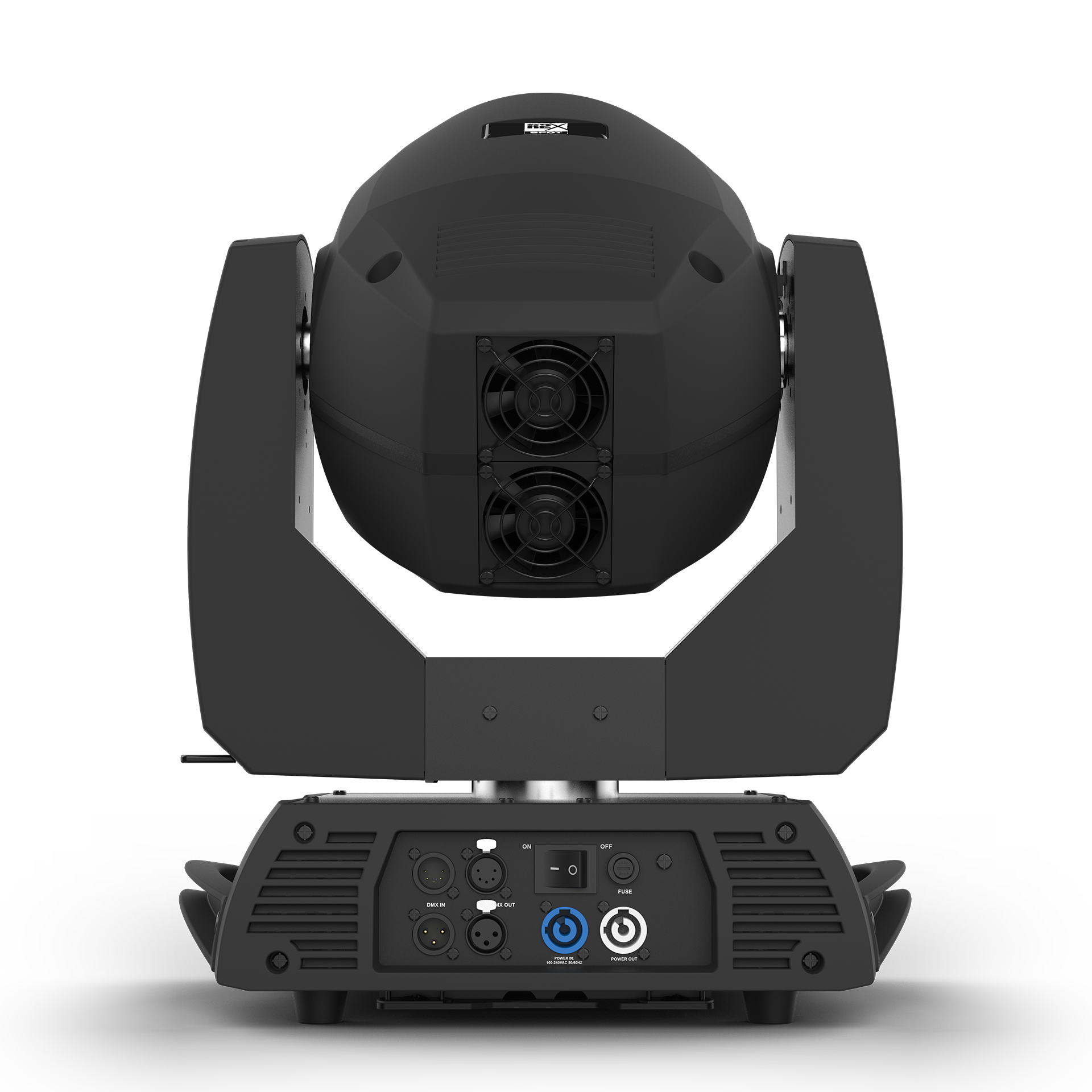

Connections
-
Power Connection
Edison (local) plug to Neutrik® powerCON®
-
Power Input
Neutrik® powerCON®
-
Power Output
Neutrik® powerCON®
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
18 or 21
-
Modes/Personalities
2 personalities (18, 21)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
2 units @ 120 V; 5 units @ 208 V;5 units @ 230 V
-
Power and Current
488 W, 4.09 A @ 120 V, 60 Hz
-
Power and Current
480 W, 2.35 A @ 208 V, 60 Hz
-
Power and Current
481 W, 2.03 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- DMX Cables
- powerCON extension cables
- Upload 08 software uploader
- Road Case: CP2CASER2XR3XSPOT
What's Included
- Rogue R2X Spot
- Neutrik powerCON power cord
- Omega bracket with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Rogue R2X Spot Quick Reference Guide | Download |
Manuals | Rogue R2X Spot User Manual | Download |
Drawings | Rogue R2X Spot CAD File | Download |
DMX | Rogue R2X Spot DMX Chart | Download |
Photometrics | Rogue R2X Spot Photometrics Report | Download |
Other | Rogue R2X Spot ES files | Download |
Other | Rogue R2X Spot – Firmware | Download |
Learn How To Use Your Rogue R2X Spot
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-

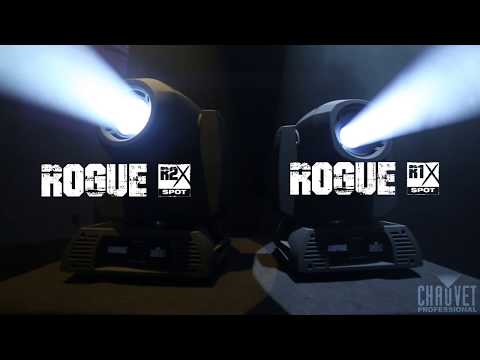

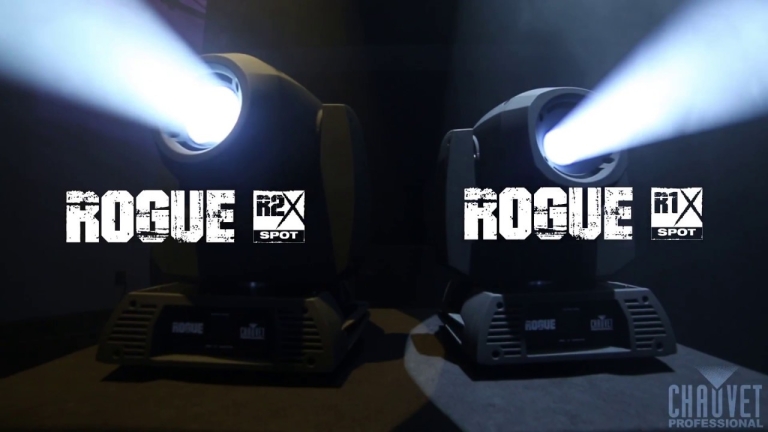

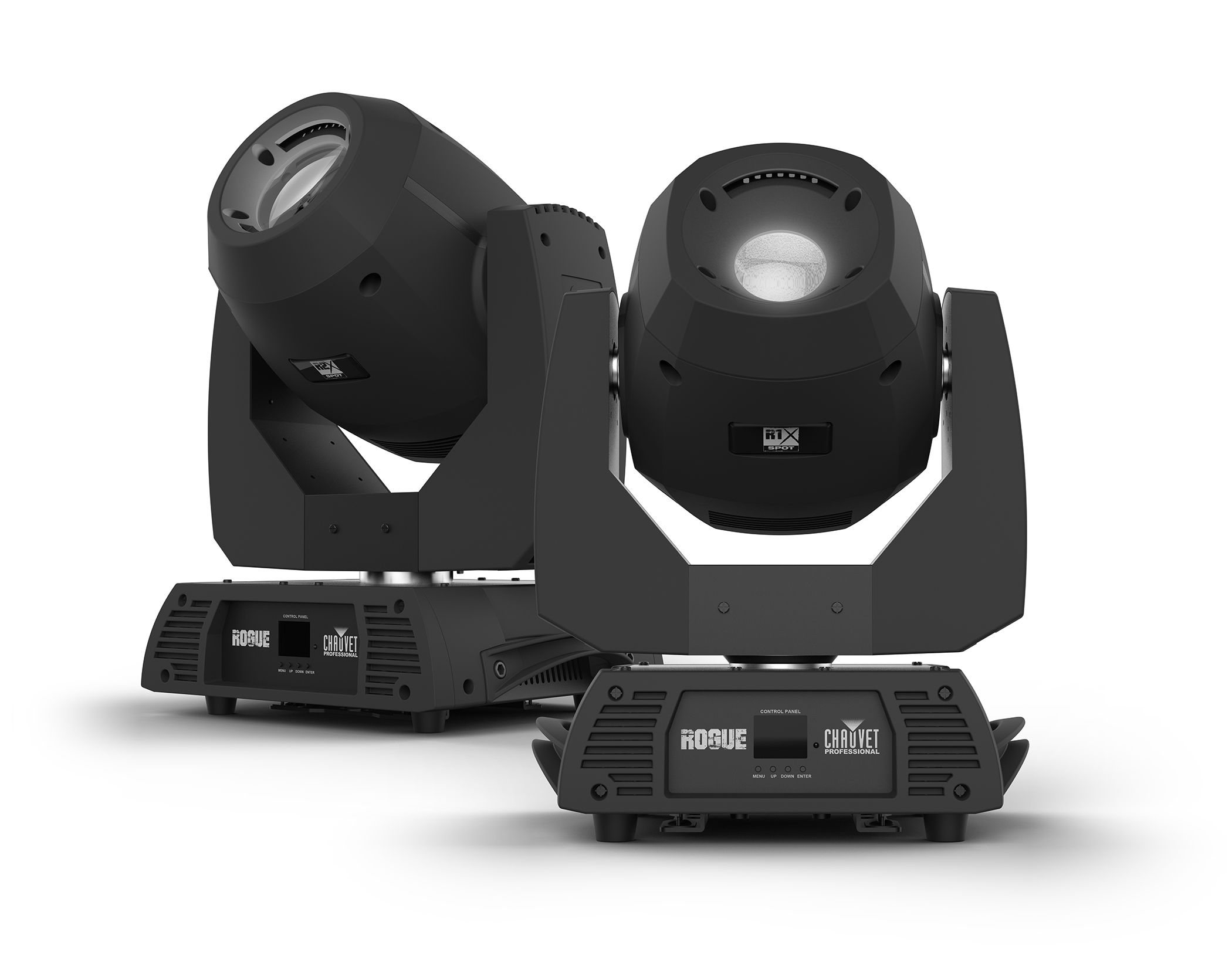

Rogue R1X Spot & Rogue R2X Spot by CHAUVET Professional
The Rogue R1X Spot and R2X Spot from CHAUVET Professional deliver greater output and a stunning range of creative effects. These rugged, compact moving heads feature advanced gobo capabilities and a legacy mode, ensuring seamless integration and powerful performance for any production.
-
Rogue Army: Liberating the Imagination by CHAUVET Professional
Unleash your creative vision with the Rogue series from CHAUVET Professional, a powerful army of moving heads built to win the battle against tight budgets. These feature-packed spot and beam fixtures deliver the high-impact looks you need to command any stage.
-
1
Rogue R1X Spot & Rogue R2X Spot by CHAUVET Professional
The Rogue R1X Spot and R2X Spot from CHAUVET Professional deliver greater output and a stunning range of creative effects. These rugged, compact moving heads feature advanced gobo capabilities and a legacy mode, ensuring seamless integration and powerful performance for any production.
-
2
Rogue Army: Liberating the Imagination by CHAUVET Professional
Unleash your creative vision with the Rogue series from CHAUVET Professional, a powerful army of moving heads built to win the battle against tight budgets. These feature-packed spot and beam fixtures deliver the high-impact looks you need to command any stage.
Rogue R2X Spot FAQ’s
The Rogue R2X Spot stands out with its ability to smoothly morph from one projected pattern (gobo) into another, creating seamless visual transitions. It also features two independent color wheels, allowing you to project split-color beams and create endless color-scrolling effects for dynamic stage looks.
Its intense, bright beam is perfect for creating powerful lighting effects in medium-to-large venues like concert stages, houses of worship, and event halls. It is also designed to be flicker-free, making it an excellent choice for any event that will be filmed or broadcast on camera.
You can easily customize the light beam in several ways. Use the motorized iris to make the beam smaller or larger, the prism to split the light into three separate beams for wider coverage, and the frost effect to soften the beam’s edge for a wash-like appearance. It also has a motorized focus to keep projected patterns sharp at any distance.
