    Legacy

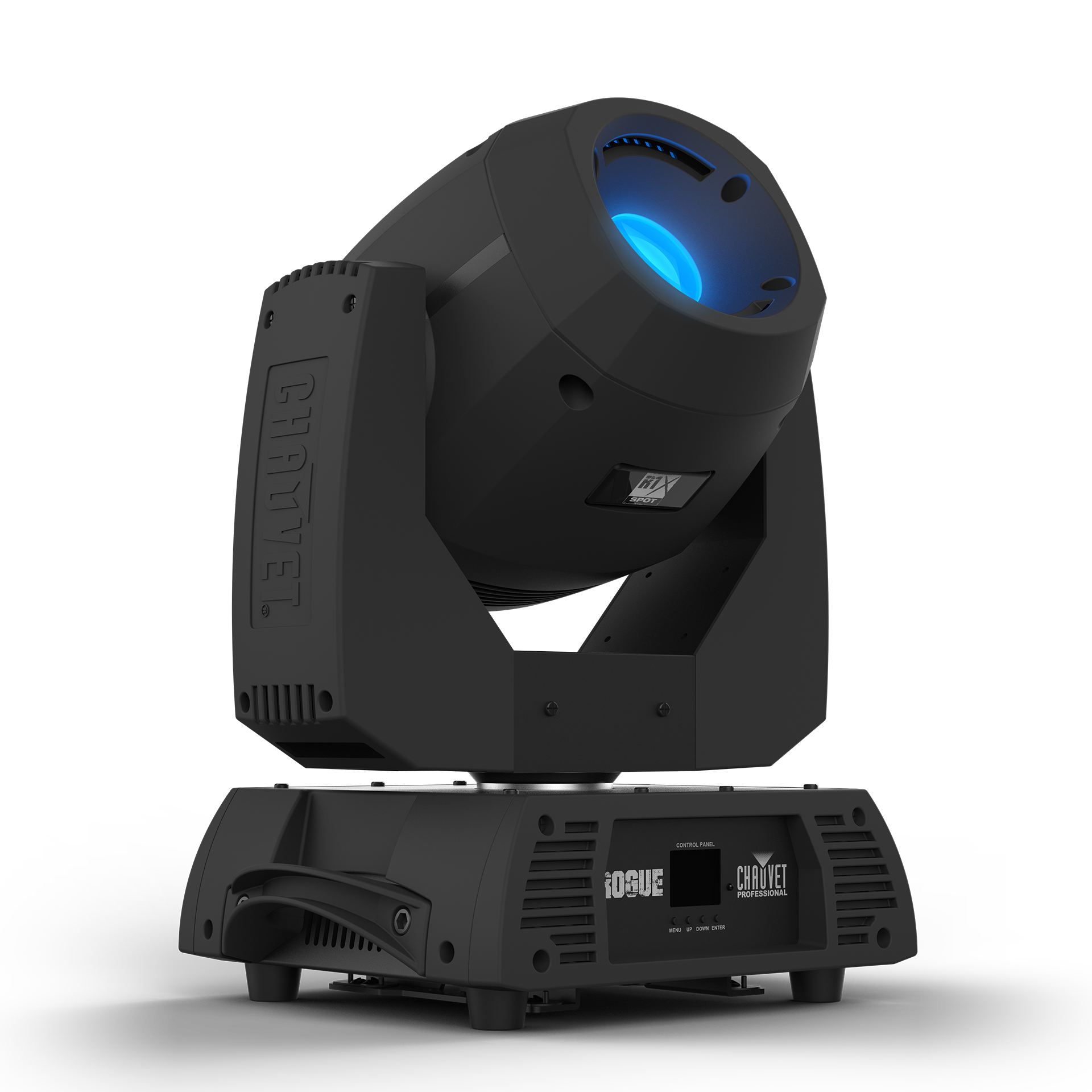

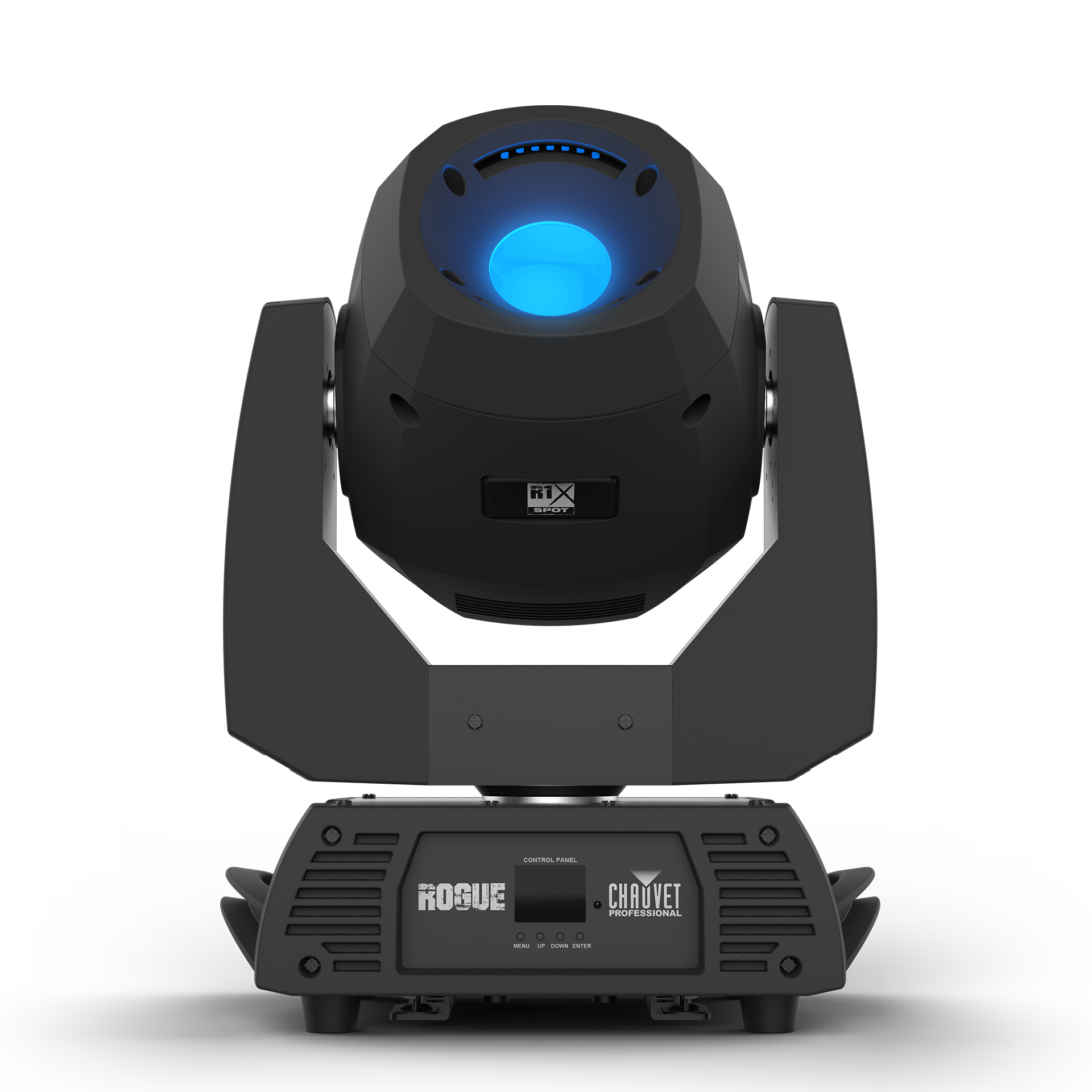

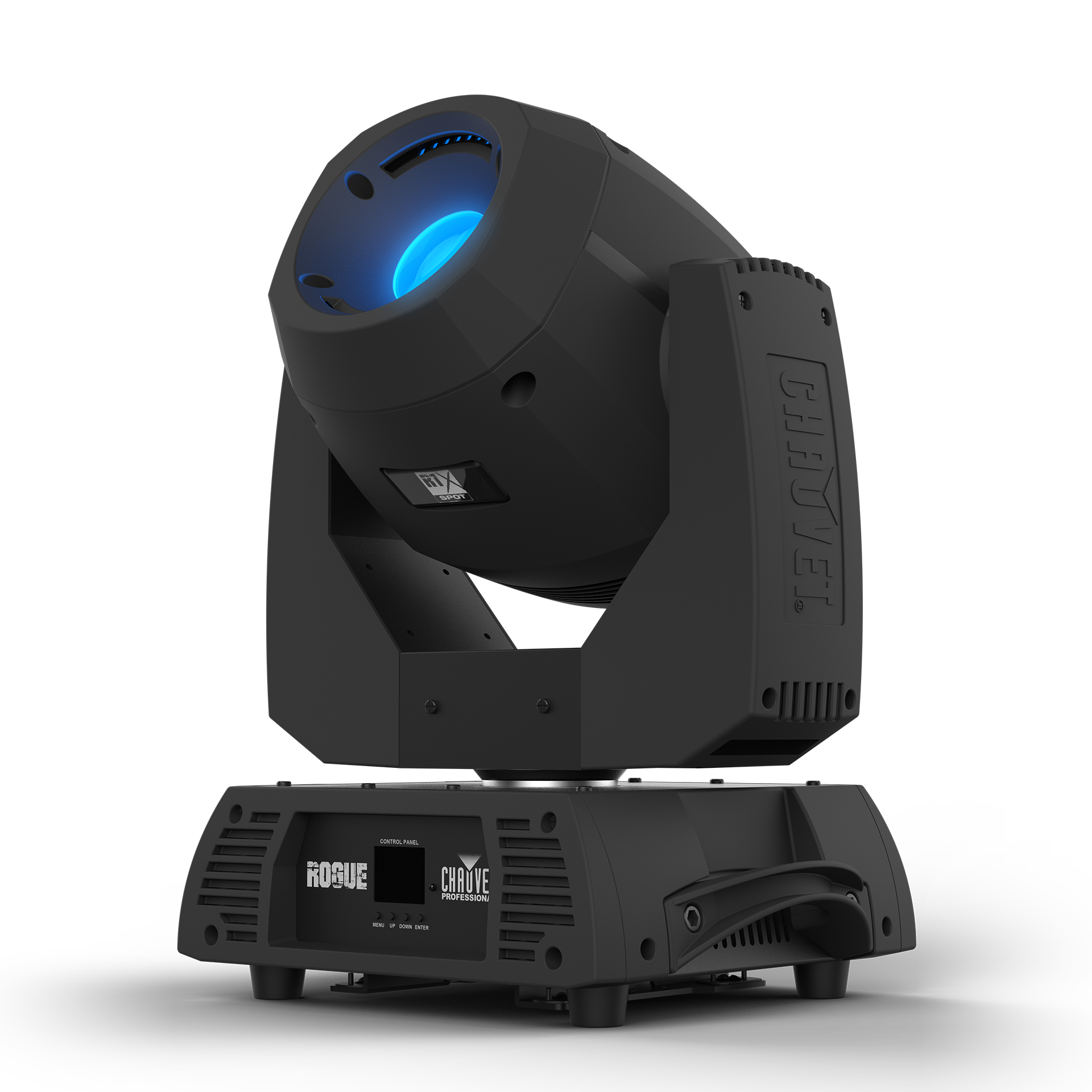

    Rogue R1X Spot

    A feature-packed 170W LED moving head spot fixture that delivers creative aerial effects and crisp gobo projections using a rotating prism, motorized iris, focus, and dual gobo wheels.
    Perfectly suited for small to medium-sized venues, mobile productions, and houses of worship requiring dynamic beam shaping and custom gobo projection.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: ROGUER1XSPOT

    Rogue R1X Spot

    Specifications
    		 Download
    Rogue R1X Spot Quick Reference Guide
    		 Download
    Rogue R1X Spot User Manual
    		 Download
    Rogue R1X Spot 2D CAD File
    		 Download
    Rogue R1X Spot DMX Chart
    		 Download
    Rogue R1X Spot 3D CAD File
    		 Download
    Firmware
    		 Download
    Firmware
    		 Download
    Download All Resources

    Rogue R1X Spot

    SKU: ROGUER1XSPOT

    Rogue R1X Spot brings innovation and creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, as well as two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks. Rogue R1X Spot shines brightly with a 170 W LED light source in a 14° beam angle for crisp gobo projections in a range of eight beautiful colors.

    Features

    Bright 170W LED Engine

    Delivers bold, punchy, and solid beams with a powerful 170-watt light source.

    Dynamic Color Wheel

    Features 8 colors, split-color capabilities, and continuous variable-speed scrolling for a wide range of color effects.

    Dual Gobo Wheels

    Includes both a fixed scrolling wheel and a rotating, interchangeable wheel for diverse pattern projections.

    Stunning Visual Effects

    An integrated iris and a 3-facet prism allow for the creation of stunning mid-air and projection effects.

    Power Linking Connections

    Equipped with Neutrik® powerCON® input and output connections for easily linking power between multiple units.

    Flexible DMX Control

    Offers both 3-pin and 5-pin DMX input/output connections for versatile control system integration.

    RDM Enabled

    Allows for remote addressing and troubleshooting, simplifying setup and maintenance.

    Selectable LED Output

    Match the brightness of legacy Rogue R1 Spot fixtures by selecting the maximum LED output.

    Flicker-Free On Camera

    Selectable PWM settings ensure flicker-free performance, making it ideal for broadcast and video applications.

    Versatile DMX Profiles

    Provides both simple and complex DMX channel profiles to accommodate various programming needs.

    Latest News

    CHAUVET Professional Helps Clifford Michael Spulock Evoke Mood of Newsies
    Lighting designer Clifford Michael Spulock uses shadows and sepia tones to evoke the mood of the musical Newsies.
    Read more
    Events United Delivers Realtime, Two-Site Kickoff for Connection with CHAUVET Professional
    Events United bridges two distant stages for a flawlessly connected hybrid corporate event.
    Read more
    Hibino Lighting and CHAUVET Professional Create Camera-Friendly Retro Looks at Kennedy House
    Hibino Lighting balances a classic retro atmosphere with modern camera-friendly tech at Tokyo’s Kennedy House.
    Read more

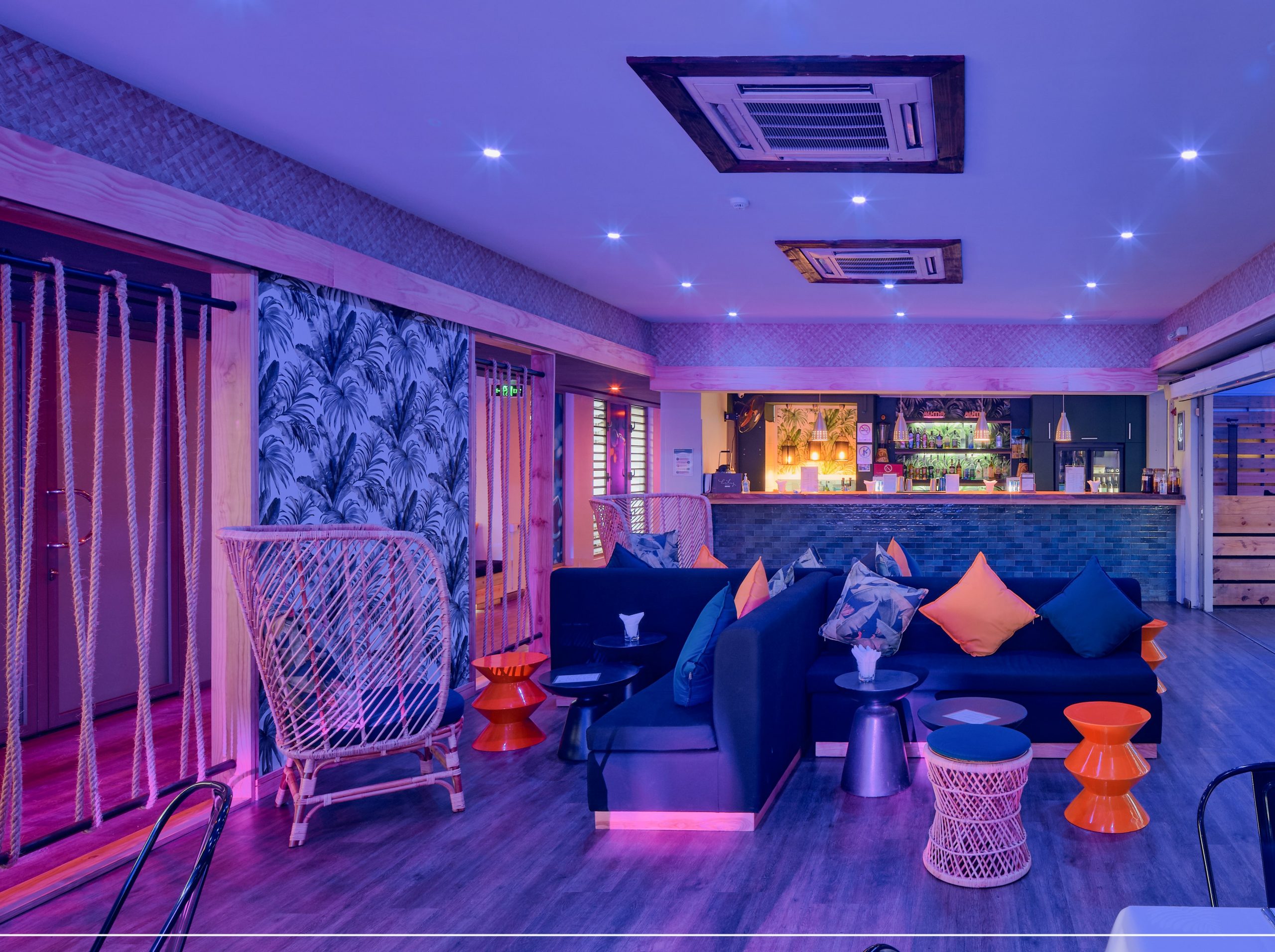

    Hibino Lighting Adds Versatility to Tokyo’s R3 Club Lounge with CHAUVET Professional
    Hibino Lighting uses a versatile rig to transition Tokyo’s R3 Club Lounge from fine dining to nightclub.
    Read more
    Chameleon Rental Lights Up Novi Sad for Doček with 175+ CHAUVET Professional fixtures
    Chameleon Rental illuminates Novi Sad’s architecture and concerts for the city-wide Doček festival.
    Read more
    CHAUVET Professional Helps Clifford Michael Spulock Evoke Mood of Newsies
    Lighting designer Clifford Michael Spulock uses shadows and sepia tones to evoke the mood of the musical Newsies.
    Read more
    Events United Delivers Realtime, Two-Site Kickoff for Connection with CHAUVET Professional
    Events United bridges two distant stages for a flawlessly connected hybrid corporate event.
    Read more
    Hibino Lighting and CHAUVET Professional Create Camera-Friendly Retro Looks at Kennedy House
    Hibino Lighting balances a classic retro atmosphere with modern camera-friendly tech at Tokyo’s Kennedy House.
    Read more
    Hibino Lighting Adds Versatility to Tokyo’s R3 Club Lounge with CHAUVET Professional
    Hibino Lighting uses a versatile rig to transition Tokyo’s R3 Club Lounge from fine dining to nightclub.
    Read more
    Chameleon Rental Lights Up Novi Sad for Doček with 175+ CHAUVET Professional fixtures
    Chameleon Rental illuminates Novi Sad’s architecture and concerts for the city-wide Doček festival.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        1 LEDs (CW) 170 W, (7.4 A), 8847 K, 50,000 hours life expectancy

      • Color Temperature (at full)

        8847 K

      • Front lens diameter

        65 mm

      • CRI

        75.2

      • Beam Angle

        14°

      • Field Angle

        15.6°

      • Cutoff Angle

        15.9°

      • Lumens – Source

        12,000

      • Lumens – Output

        5,479

      • Illuminance (total)

        4,388 lux @ 5 m

      • Selectable LED Power output

        50-100

      • Selectable PWM

        600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

      Dynamic Effects

      • Pan and Tilt

        540°/250°

      • Pan and Tilt Ranges

        180°, 360°, 540° pan/90°, 180°, 250° tilt

      • Colors

        8 + white, split colors, continuous scroll at variable speeds

      • Gobos (1)

        7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

      • Gobos (2)

        8 + open (8 metal),continuous scroll at variable speeds

        • Gobo Size
          • Gobo Wheel 1 (rotating)

            Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)

          • Gobo Wheel 1 (rotating)

            Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Focus

        Motorized

      • Iris

        Motorized

      • Prism

        3 Facets, motorized, rotating

      • Strobe Rate

        0 to 22 Hz

      • Move in Black

        Yes

      Construction/Physical

      • Dimensions (single unit)

        11.10 x 14.20 x 17.60 in (282 x 360 x 447 mm)

      • Weight (single unit)

        37.6 lb (17.1 kg)

      • Exterior Color

        Black

      • Housing Material

        High-impact flame-retardant polymer

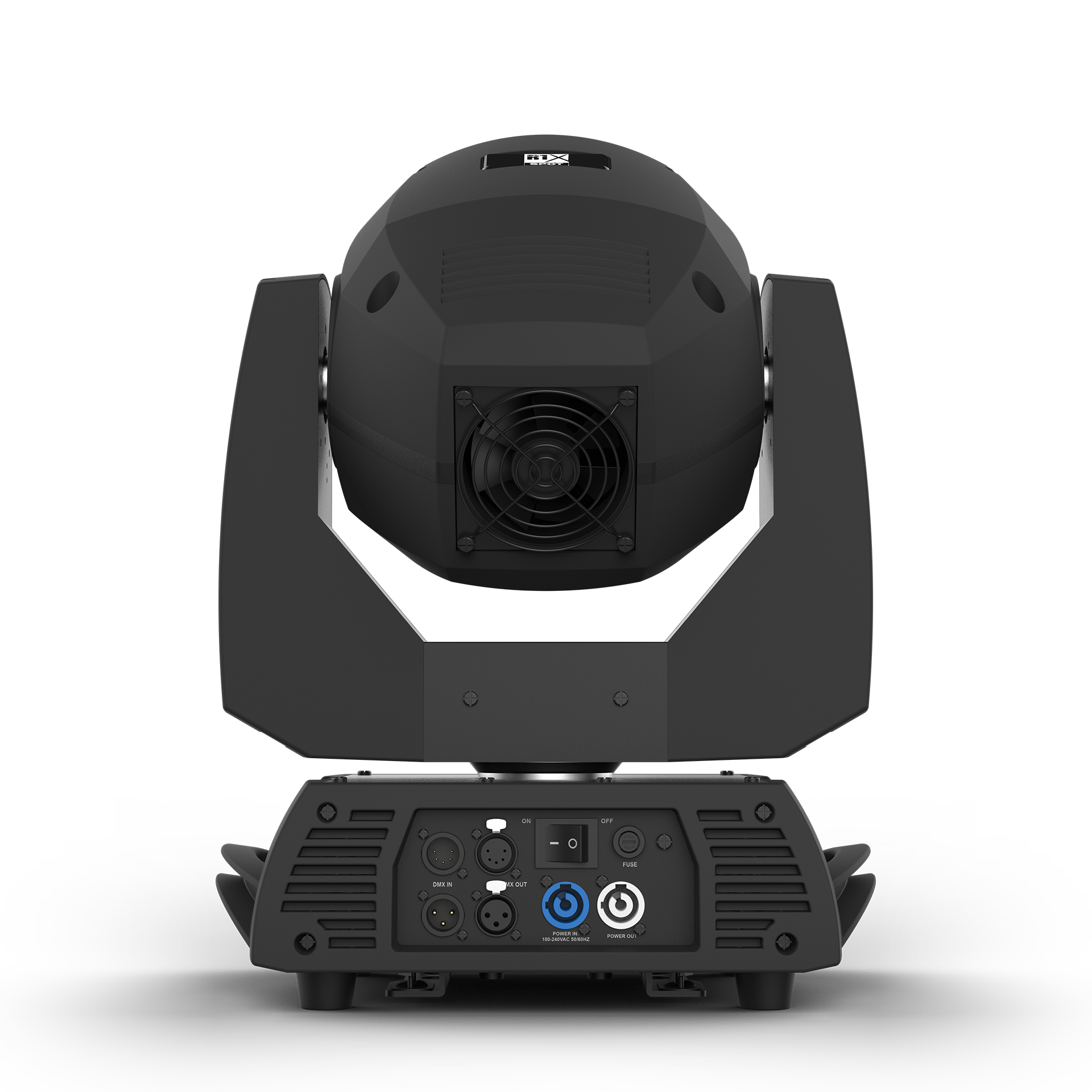

      Connections

      • Power Connection

        Edison (Local) plug to Neutrik® powerCON®

      • Power Input

        Neutrik® powerCON®

      • Power Output

        Neutrik® powerCON®

      • Data Connectors

        3- and 5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        16 or 19

      • Modes/Personalities

        2 personalities (16, 19)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V

      • Power and Current

        303 W, 2.34 A @ 120 V, 60 Hz

      • Power and Current

        297 W, 1.35 A @ 208 V, 60 Hz

      • Power and Current

        299 W, 1.20 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, FCC, UKCA

      • IP Rating

        IP20, dry location

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Safety Cable: SC-07
      • DMX Cables
      • powerCON extension cables
      • UPLOAD 08 software uploader

      What's Included

      • Rogue R1X Spot
      • Neutrik powerCON power cord
      • 2 Omega brackets with mounting hardware

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      Rogue R1X Spot Quick Reference Guide
      		Download
      Manuals
      Rogue R1X Spot User Manual
      		Download
      Drawings
      Rogue R1X Spot 2D CAD File
      		Download
      DMX
      Rogue R1X Spot DMX Chart
      		Download
      Drawings
      Rogue R1X Spot 3D CAD File
      		Download
      Other
      Rogue R1X Spot – Firmware
      		Download
      Other
      Rogue R1 Spot – Firmware
      		Download

      Learn How To Use Your Rogue R1X Spot

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

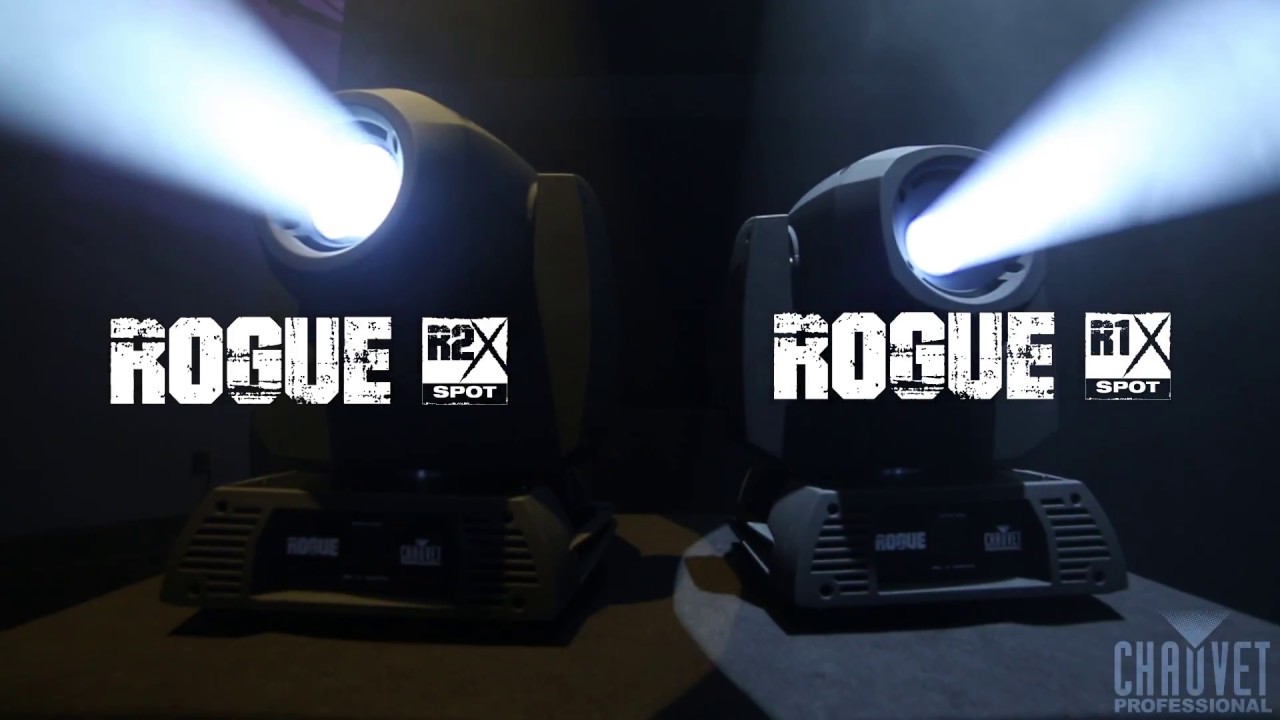

      • Rogue R1X Spot & Rogue R2X Spot by CHAUVET Professional

        The Rogue R1X Spot and R2X Spot from CHAUVET Professional deliver greater output and a stunning range of creative effects. These rugged, compact moving heads feature advanced gobo capabilities and a legacy mode, ensuring seamless integration and powerful performance for any production.

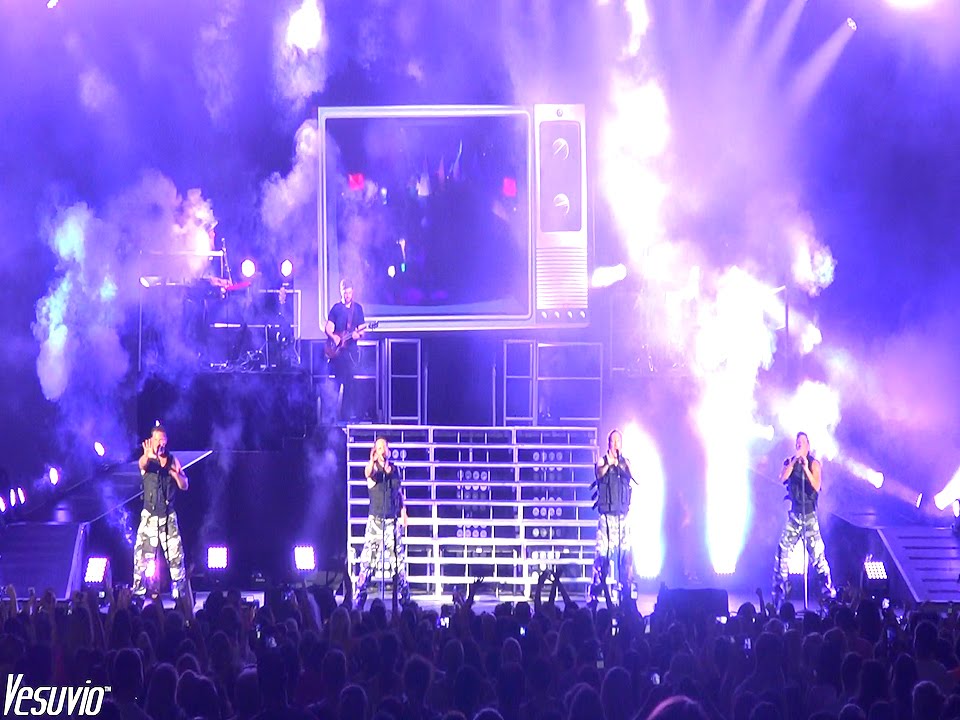

      • 98 Degrees Rig with CHAUVET Professional

        Join Lighting Director Andy Figueroa for a behind-the-scenes tour of the 98 Degrees concert rig designed by Butch Allen. Discover how a versatile array of CHAUVET Professional fixtures empowers designers to create impactful, dynamic looks for major touring productions and live events.

      • Rogue Army: Liberating the Imagination by CHAUVET Professional

        Unleash your creative vision with the Rogue series from CHAUVET Professional, a powerful army of moving heads built to win the battle against tight budgets. These feature-packed spot and beam fixtures deliver the high-impact looks you need to command any stage.

      Video Library

      Rogue R1X Spot FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the Rogue R1X Spot
      What is the Rogue R1X Spot used for?

      The Rogue R1X Spot is a professional moving head light designed to create stunning visual effects for events, stages, and venues. It projects bright, focused beams of light and can display crisp patterns (called gobos) onto surfaces or through the air. With its ability to change colors and move around, it’s perfect for creating dynamic, eye-catching light shows.

      Can I use custom patterns with the Rogue R1X Spot?

      Yes, you can create custom looks. The fixture features two separate pattern wheels. One wheel has a set of built-in patterns, while the second wheel is designed to be interchangeable, allowing you to insert your own custom patterns. This makes it ideal for personalizing an event with things like company logos or wedding monograms.

      How does the Rogue R1X Spot create unique lighting effects?

      It uses several key features to produce unique effects. A rotating prism can split the light beam into three identical, moving beams for dramatic aerial displays. It also has a motorized iris and focus, which allow you to precisely change the size of the light beam and keep your projected patterns perfectly sharp over any distance.
