Rogue R1 FX-B

A unique lighting fixture that creates dynamic aerial effects using five individually controlled heads, each featuring infinite pan and tilt rotation and a pixel-mappable 15W RGBW LED.
Ideal for concert tours, nightclubs, and any live event production seeking to create powerful and dynamic eye-candy aerial effects.

Rogue R1 FX-B

Specifications	Download
Rogue R1 FX-B Quick Reference Guide	Download
Rogue R1 FX-B User Manual	Download
Rogue R1 FX-B CAD file	Download
Rogue R1 FX-B DMX Chart	Download
Rogue R1 FX-B ShowXpress	Download
Rogue R1 FX-B 3D .DWG file	Download
Firmware	Download

Download All Resources

Rogue R1 FX-B

SKU: ROGUER1FXB

Demo

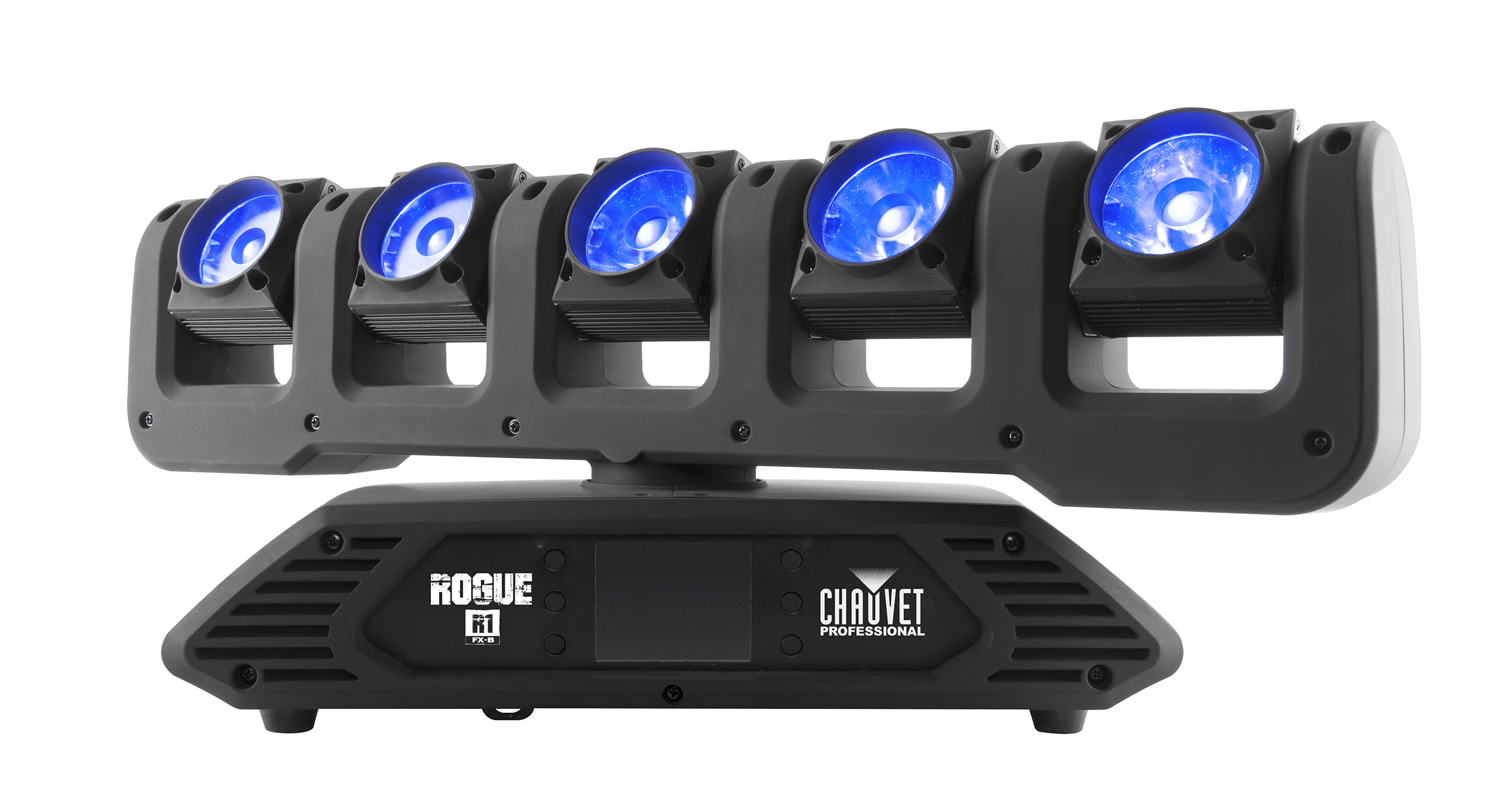

Rogue R1 FX-B shakes things up, five times over. It orchestrates an infinite rotation of both pan and tilt for its five individually controlled heads, powered by five pixel mappable 15 W RGBW LEDs. Crisp beams, a sizzling output and rocket quick movements create amazing aerial effects. Control is achieved with DMX, Art-Net, sACN, or Kling-Net.

Features

RGBW LED Beam with Pixel Mapping

A fully featured yoke effect beam fixture with RGBW LEDs and pixel mapping capability.

Smooth 16-Bit Dimming

Achieve seamless control of fades with 16-bit dimming for the master dimmer and individual colors.

Built-In Color and Tilt Macros

Utilize pre-programmed color and tilt macros for quick and easy design possibilities.

Continuous Pan and Tilt

The fixture offers unlimited, continuous movement for both its pan and tilt functions.

Individual Head Control

All five heads can be controlled independently for unique movement and output effects.

Quiet Operation

Silent performance makes this fixture suitable for a wide range of installation situations.

Versatile Control Protocols

Full flexibility is offered through DMX, sACN, Art-Net, and Kling-Net control options.

Narrow Beam Angle

The tight 6.2° beam angle creates crisp and well-defined aerial beam effects.

Selectable PWM Frequencies

User-selectable PWM frequencies are available to eliminate flicker and roll on camera.

Auto-Rotating Battery Display

A battery-backed display automatically rotates its orientation for easy reading in any position.

Latest News

Tyler Veneziano Mixes Subtlety And Color For Breaking Benjamin With CHAUVET Professional

Designer Tyler Veneziano uses restraint and color to create powerful, high-impact looks for Breaking Benjamin.

Glenn Ottenbacher Accents Aesthetics at Pabst Theatre with CHAUVET Professional

Lighting designer Glenn Ottenbacher accentuates the historic Pabst Theatre’s architecture with a versatile lighting rig.

PYTCH and CHAUVET Professional Rock World Procurement Awards

PYTCH delivers a rock concert atmosphere for a corporate awards show using a versatile rig of CHAUVET fixtures.

Arts and Culture Center Oskard Adds CHAUVET Professional Fixtures

KONIN, POLAND – In the city centers and main squares of many Polish towns and cities, visitors will come upon a multi-purpose building known locally as a “culture house.” Like many of these structures, which date back to the 1960s, Arts and Culture Center Oskard was beginning to show its age.Happily a renaissance has taken…

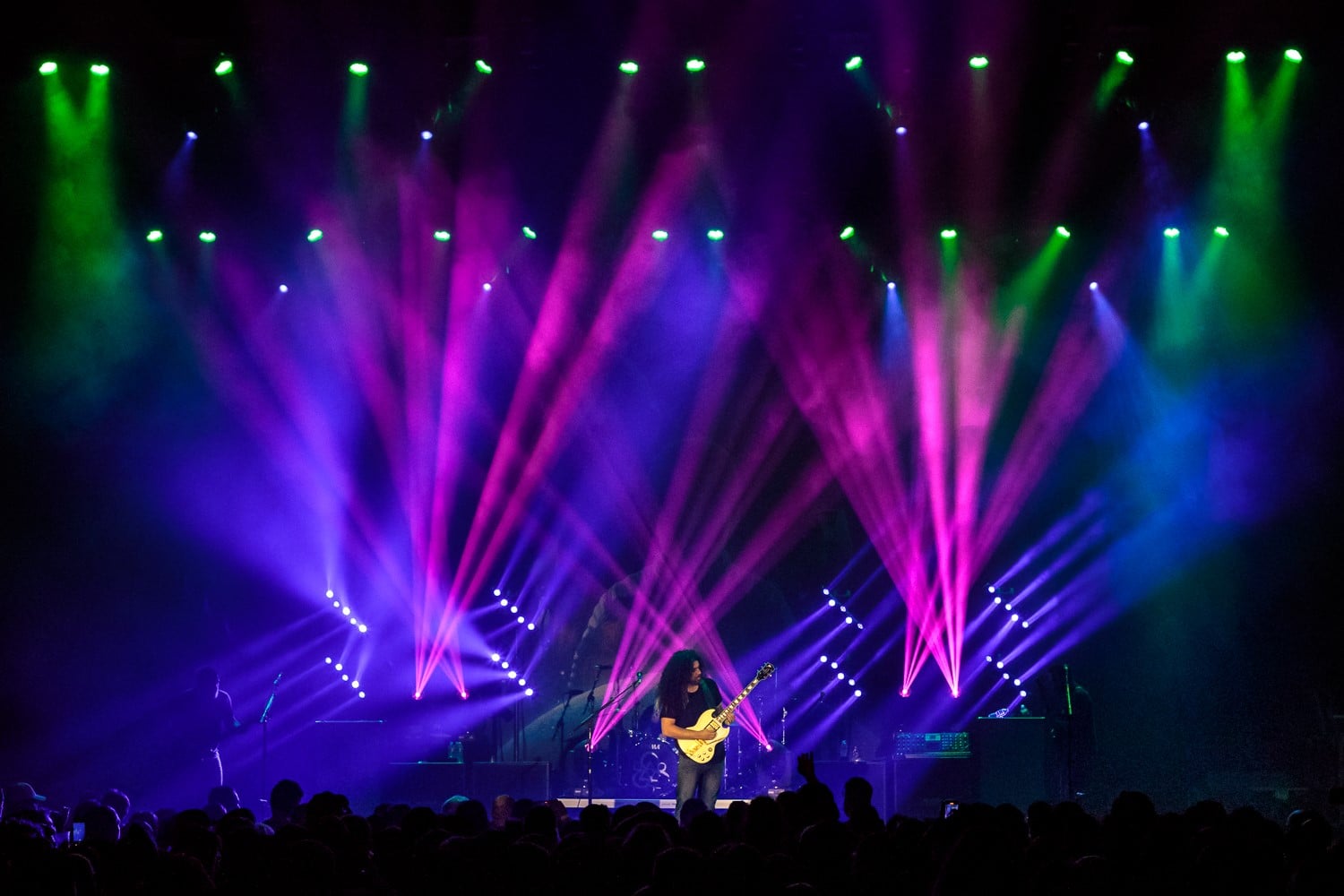

Ben Jarrett Supports Coheed and Cambria’s Storytelling With Help From CHAUVET Professional

LD Ben Jarrett translates Coheed and Cambria’s intricate sci-fi saga into a dynamic visual story.

Tyler Veneziano Mixes Subtlety And Color For Breaking Benjamin With CHAUVET Professional

Designer Tyler Veneziano uses restraint and color to create powerful, high-impact looks for Breaking Benjamin.

Glenn Ottenbacher Accents Aesthetics at Pabst Theatre with CHAUVET Professional

Lighting designer Glenn Ottenbacher accentuates the historic Pabst Theatre’s architecture with a versatile lighting rig.

PYTCH and CHAUVET Professional Rock World Procurement Awards

PYTCH delivers a rock concert atmosphere for a corporate awards show using a versatile rig of CHAUVET fixtures.

Arts and Culture Center Oskard Adds CHAUVET Professional Fixtures

Ben Jarrett Supports Coheed and Cambria’s Storytelling With Help From CHAUVET Professional

LD Ben Jarrett translates Coheed and Cambria’s intricate sci-fi saga into a dynamic visual story.

More Related News

Complete Your Rig

Ensure flawless results with gear designed to complement and complete your professional setup.

Specifications

Download Product Specs

Optical

Light Source

5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
Installed Optics

5°
Beam Angle

6.2°
Field Angle

10.1°
Cutoff Angle

12.7°
Lumens – Source

2,500
Lumens – Output

5,020
Illuminance

6,008 lux @ 5 m
Selectable PWM

600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Pan and Tilt

540°/540°
Pan and Tilt Ranges

Infinite, 540°, 360°, 180° pan/ Infinite, 540°, 270°, 180° tilt
Dimmer

Electronic
Shutter/Strobe

Electronic
Strobe Rate

0 to 20 Hz
Standalone Color Mixing

No
Color Temperature Presets

No
Move-in-Black

Yes
Dim Curves

4

Construction/Physical

Dimensions

25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
Weight

24.2 lb (11 kg)
Exterior Color

BLACK
Housing Material

High-impact flame-retardant polymer

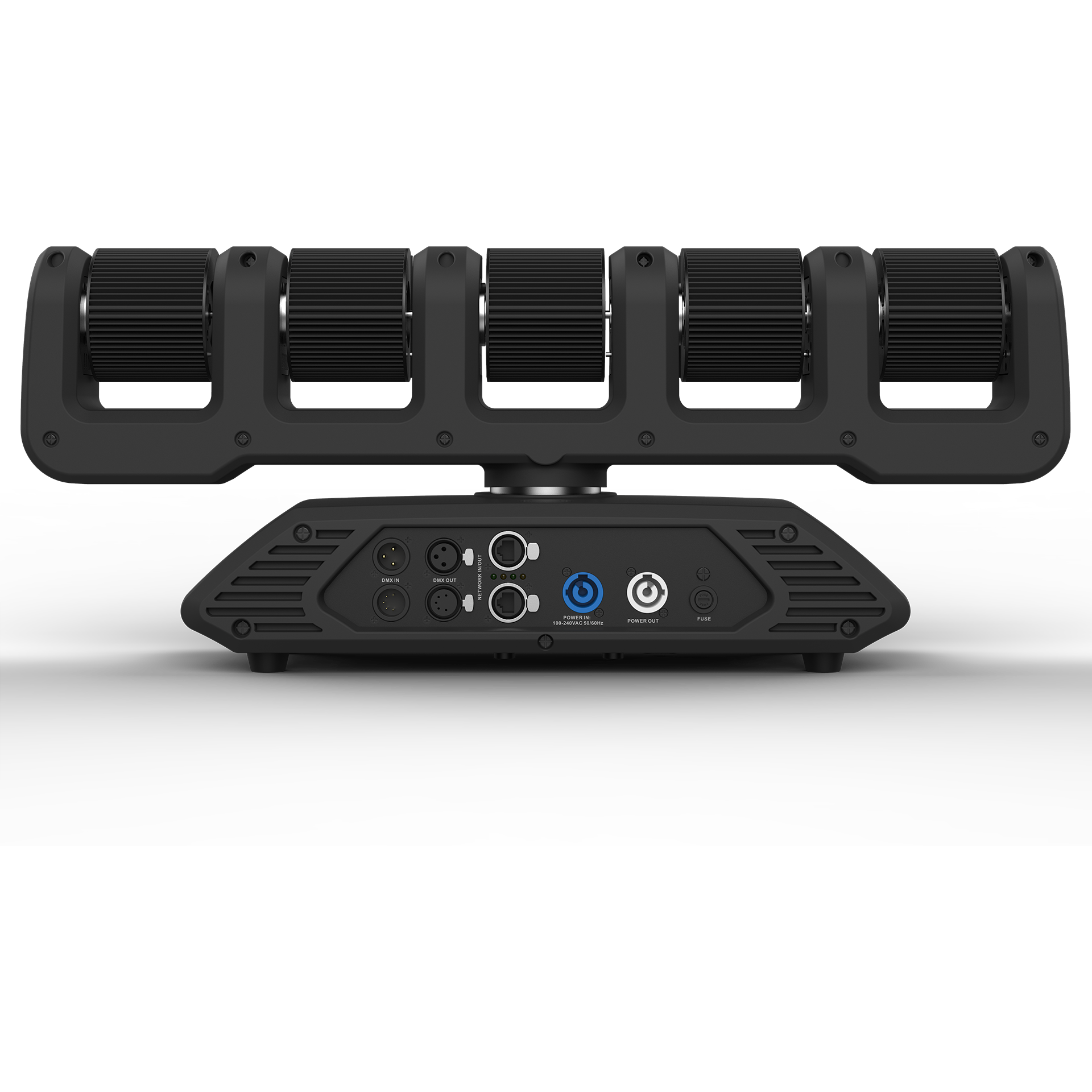

Connections

Power Connection

Edison (Local) plug to Neutrik powerCON
Power Input

Neutrik powerCON
Data Connectors

3- and 5-pin XLR
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

Art-Net, Kling-Net, DMX, sACN
- DMX Channels
  - Single Mode

    18, 25, 47 or 52
  - Dual Mode – Function

    9, 17, 23
  - Dual Mode – Pixel

    15 or 20
- Art-Net Channels
  - Single Mode

    18, 25, 47 or 52
  - Dual Mode – Function

    9, 17, 23
  - Dual Mode – Pixel

    15 or 20

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking

8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V
Power and Current

176 W, 1.48 A @ 120 V, 60 Hz
Power and Current

171 W, 0.796 A @ 208 V, 60 Hz
Power and Current

167 W, 0.757 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET, UKCA
IP Rating

IP20, dry location

Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
UPLOAD 08 software uploader

What's Included

Rogue RX1
Edison (Local) plug to Neutrik powerCON
Omega bracket with mounting hardware

Questions or Concerns?

Let us know, we’re here to help! Contact Us

Downloads

Download All

Manuals	Rogue R1 FX-B Quick Reference Guide	Download
Manuals	Rogue R1 FX-B User Manual	Download
Drawings	Rogue R1 FX-B CAD file	Download
DMX	Rogue R1 FX-B DMX Chart	Download
Other	Rogue R1 FX-B ShowXpress	Download
Other	Rogue R1 FX-B 3D .DWG file	Download
Other	Rogue R1 FX-B – Firmware	Download

Learn How To Use Your Rogue R1 FX-B

Explore these detailed videos showcasing setup, features, and creative applications for this product.

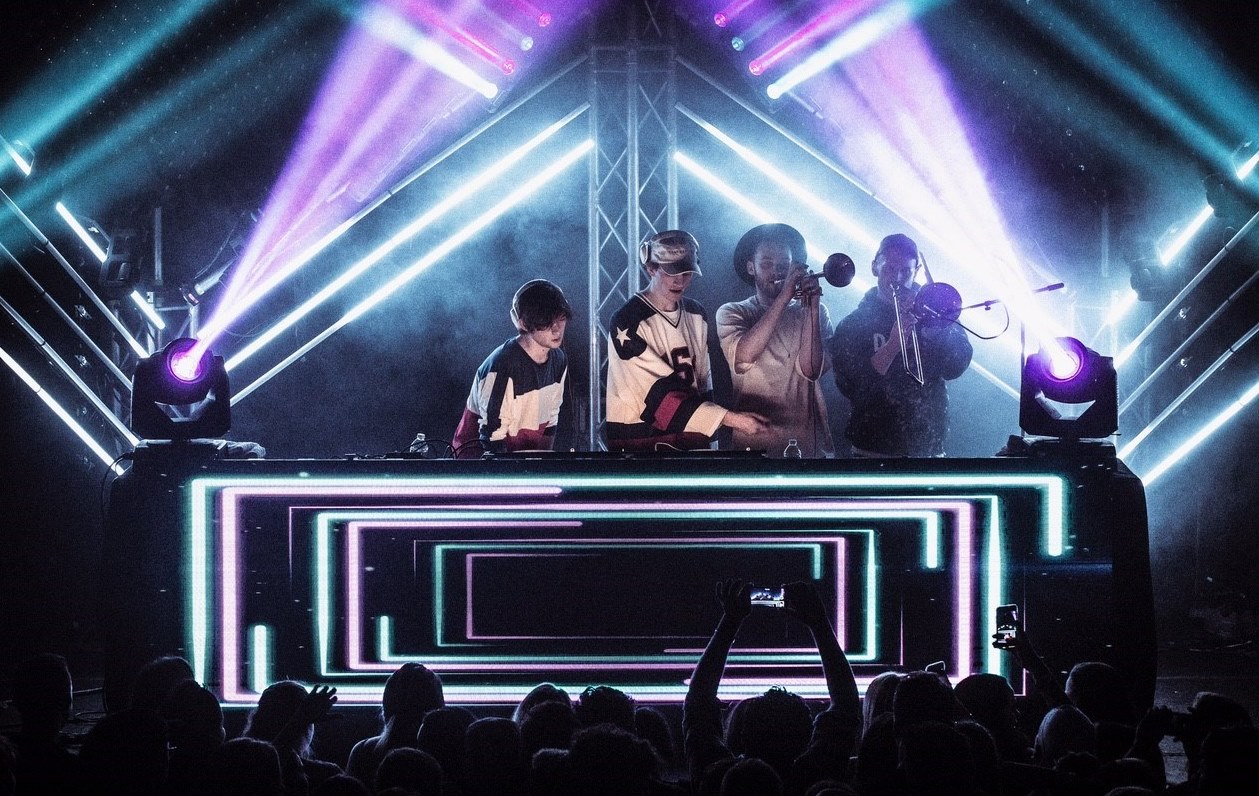

Maverick MK Pyxis on Tour with Louis the Child

Join LD Kendall Clark backstage with EDM superstars Louis the Child for an exclusive look at his dynamic tour design. Discover how CHAUVET Professional fixtures empower designers to create unforgettable, high-energy concert experiences.
ROGUE R1 FX-B by CHAUVET Professional

Unleash a storm of dynamic aerial effects with the Rogue R1 FX-B. Its five individually controlled heads, each with infinite pan and tilt rotation, empower designers to create powerful, kinetic looks that command attention.

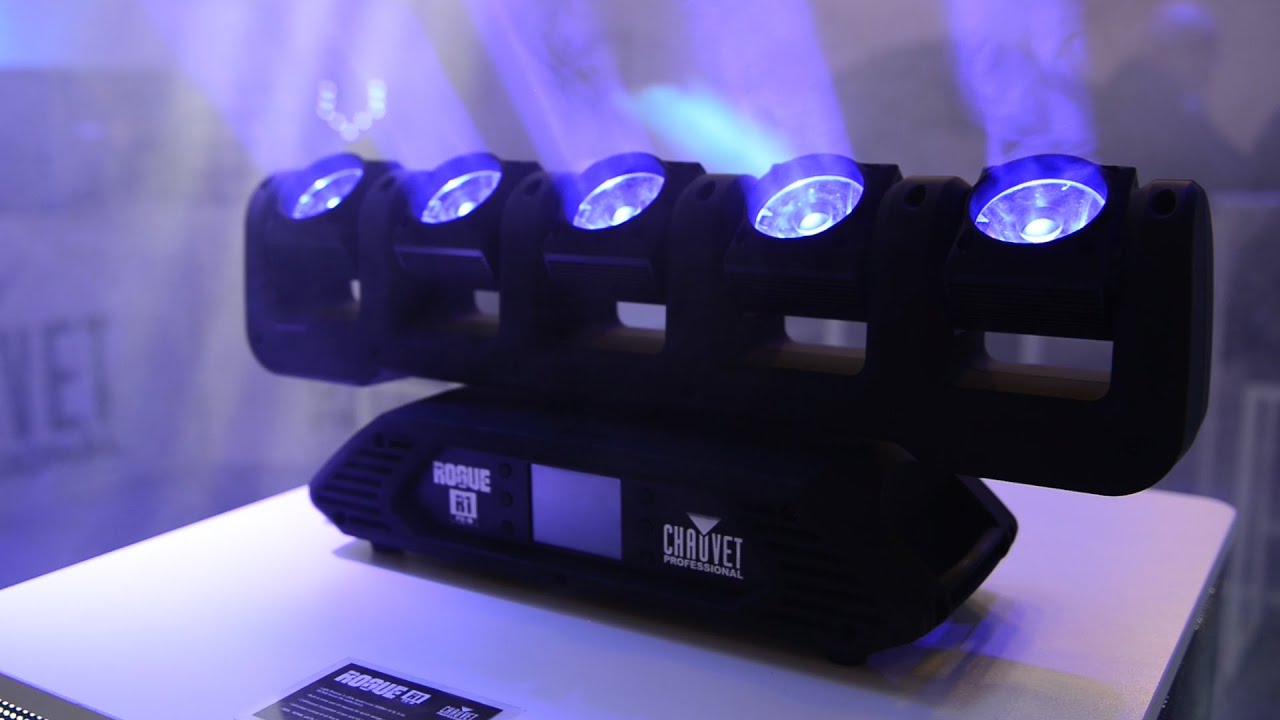

Prolight + Sound ROGUE R1 FX-B by CHAUVET Professional

Discover the creative power of the Rogue R1 FX-B from CHAUVET Professional. This guided tour reveals how its five pixel-mappable heads, each with infinite pan and tilt rotation, empower designers to craft unforgettable aerial looks.
ROGUE R1 FX B Preview by CHAUVET Professional

Shake up your design with the Rogue R1 FX-B, a unique CHAUVET Professional fixture with five individually controlled heads. Create amazing aerial effects with infinite pan and tilt rotation, crisp beams, and pixel-mappable LEDs that empower bold, dynamic looks for any production.

Latest Articles

Browse Articles

Rogue R1 FX-B FAQ’s

Quickly find answers to common questions about setup, operation, and features of the Rogue R1 FX-B

What is the Rogue R1 FX-B best used for?

The Rogue R1 FX-B is designed to create stunning aerial effects for stages, concerts, and events. Its five powerful light heads move with incredible speed, producing sharp, colorful beams of light that fill the air and add energy to any show.

What makes the Rogue R1 FX-B special?

Its most unique feature is the five light heads mounted on a single bar, each capable of continuous, infinite spinning and tilting. This allows it to create dynamic, mesmerizing effects that typical moving lights cannot, with each head’s color and movement controlled individually for complex looks.

How can I create effects with the Rogue R1 FX-B?

You can get started quickly using its built-in, pre-programmed color and movement patterns. For more advanced designs, it connects to standard professional lighting control systems, offering full creative flexibility. Its quiet operation also makes it suitable for a wide range of venues.
