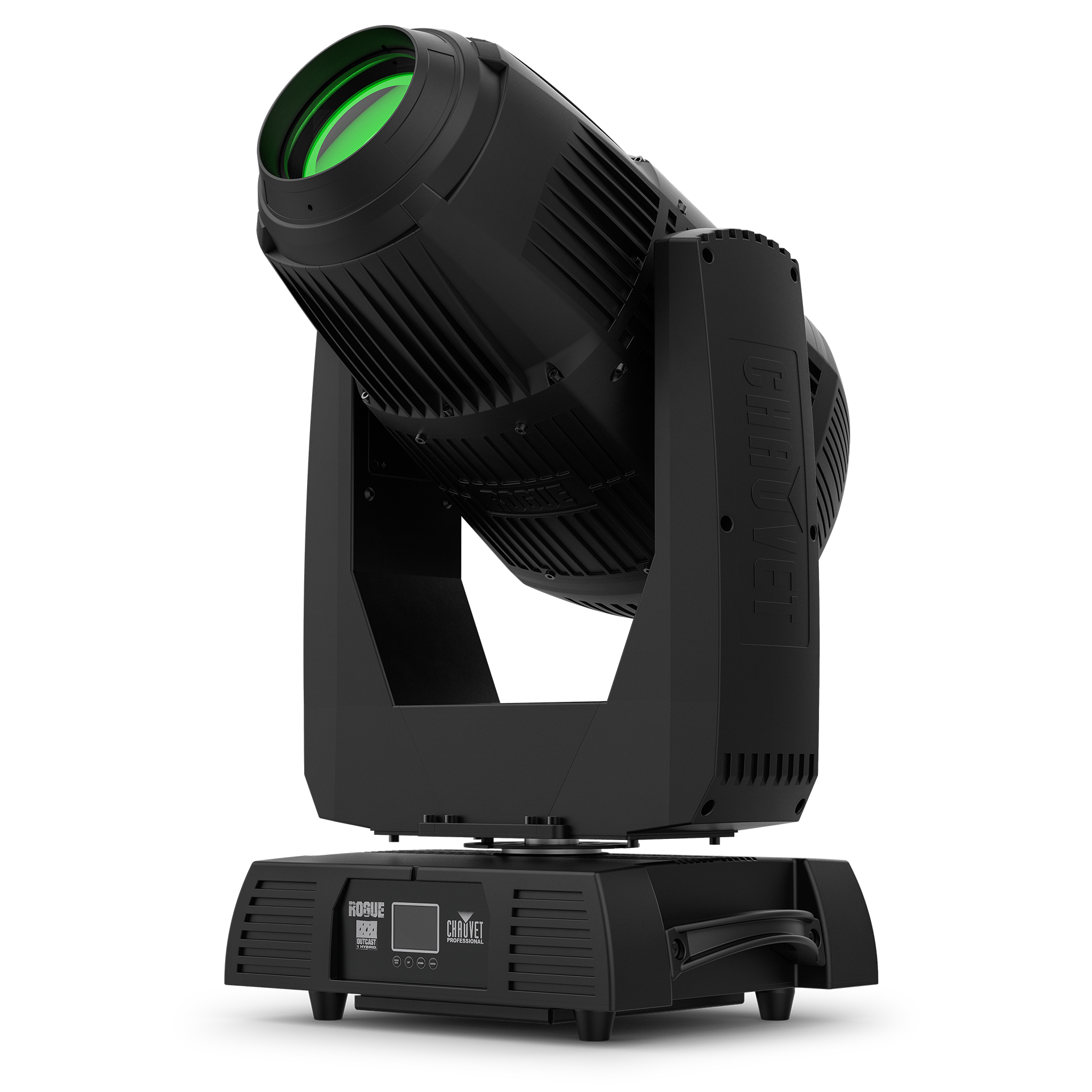

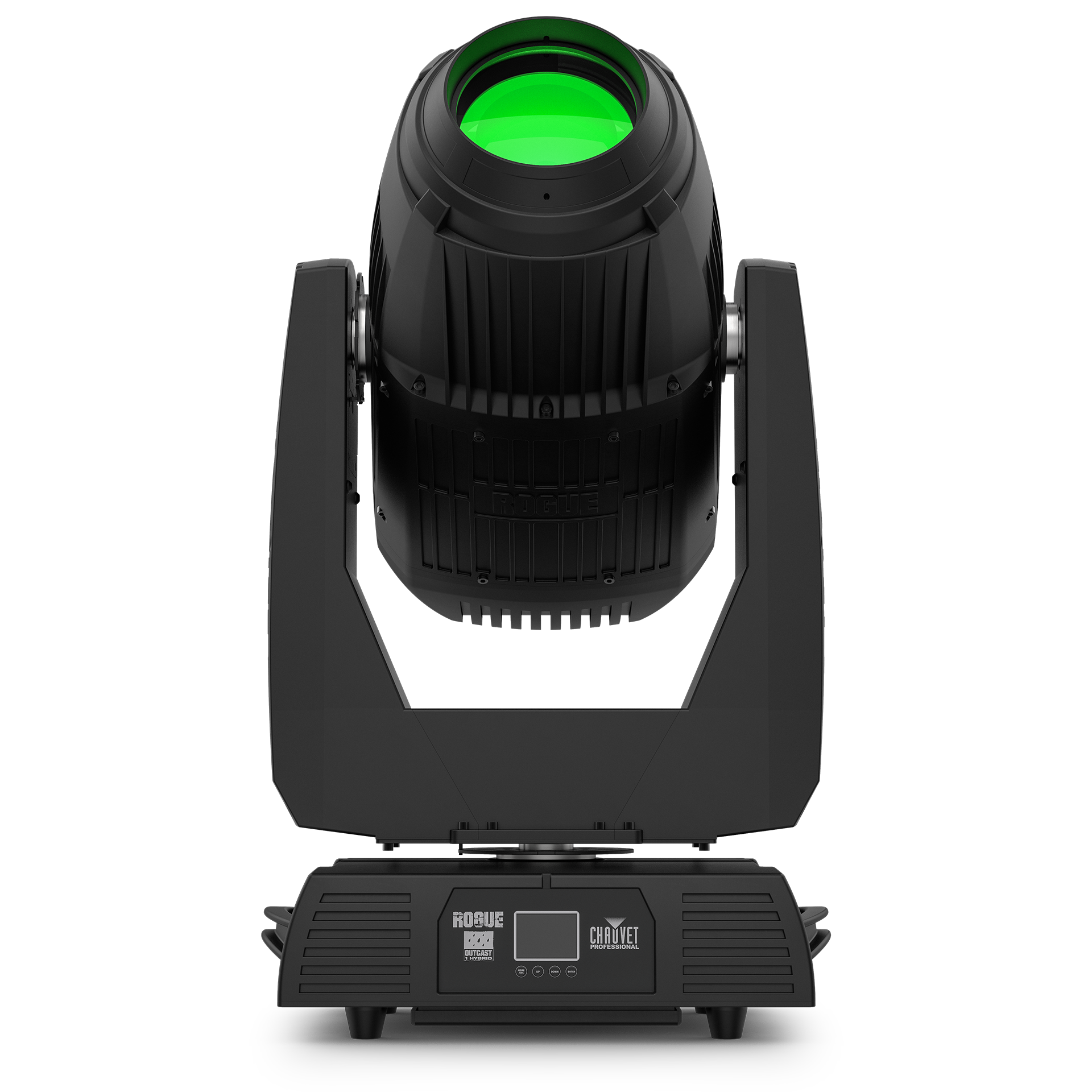

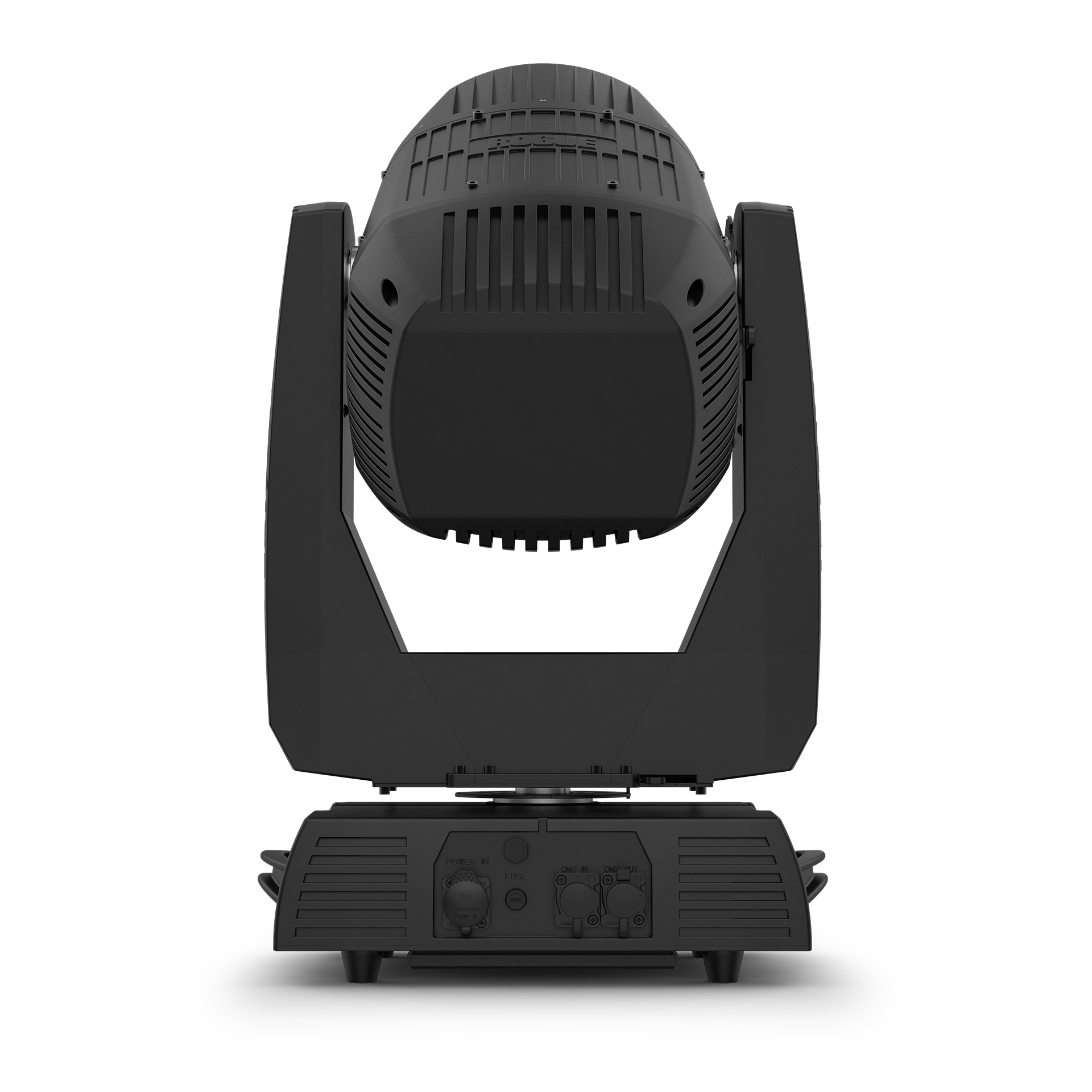

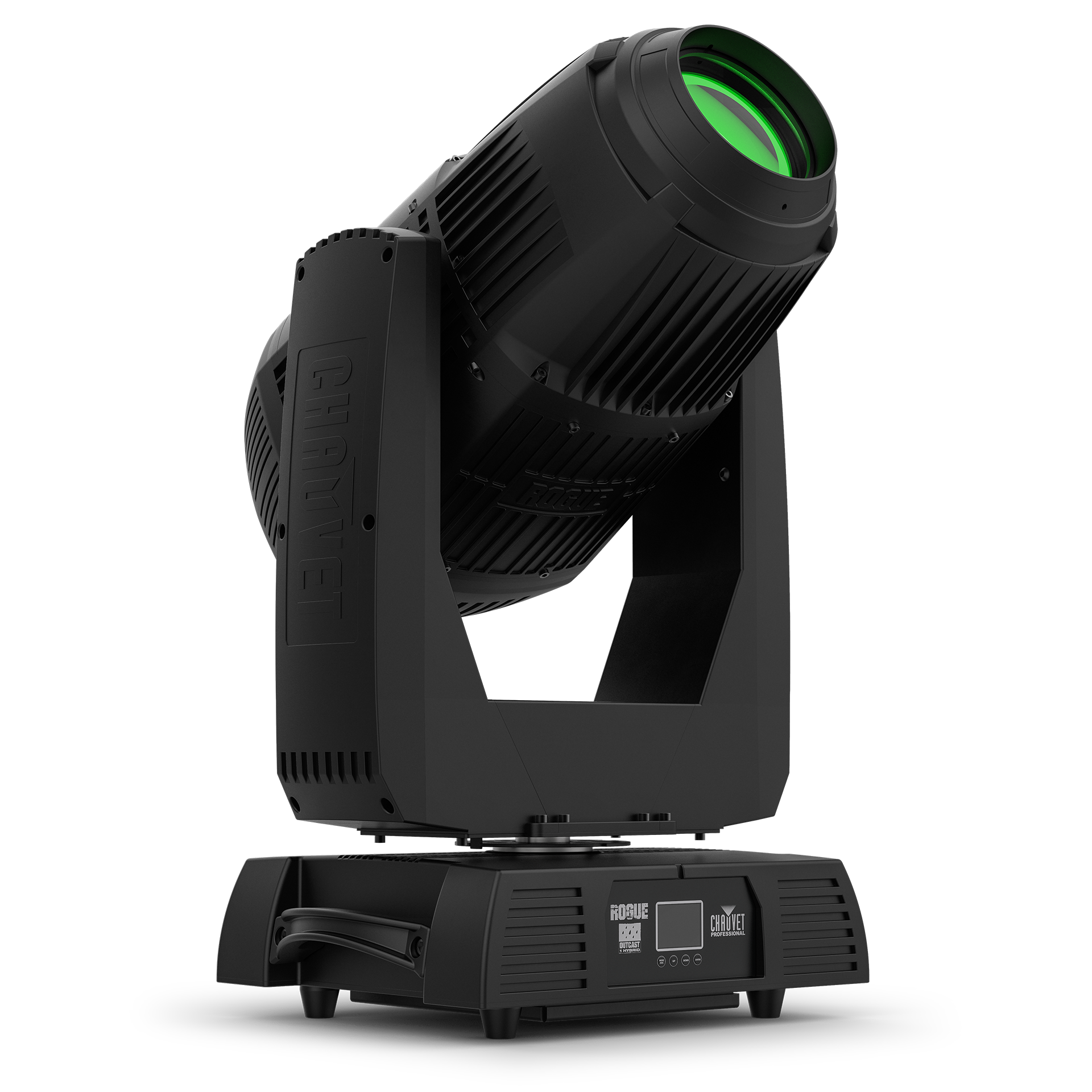

Rogue Outcast 1 Hybrid

Optical

• Light Source

  USHIO NSL-400 W lamp, 6632 K, 6,000 hours life expectancy

• Color Temperature (at full)

  6483 K

• Lumens – Source

  14,575

• Lumens – Output

  9,263

• • Spot Mode
    • Beam Angle

      2.2° to 12.4°

    • Field Angle

      4.3° to 24.3°

    • Cutoff Angle

      5.2° to 29.1°

    • Zoom Range

      2.2° to 29.1°

    • Illuminance (24.3°)

      5742 lux @ 5 m

    • Illuminance (4.3°)

      209326 lux @ 5 m

• • Beam Mode
    • Beam Angle

      1° to 5.2°

    • Field Angle

      1.8° to 12.6°

    • Cutoff Angle

      2.1° to 15.3°

    • Zoom Range

      1° to 15.3°

    • Illuminance (1.8°)

      123,124 lux @ 15 m

    • Illuminance (12.6°)

      3,517 lux @ 15 m

• • Wash Mode
    • Beam Angle

      4.9° to 18°

    • Field Angle

      9.3° to 25.6°

    • Cutoff Angle

      12.4° to 28°

    • Zoom Range

      4.9° to 28.3°

    • Illuminance (25.6°)

      1,570 lux @ 5 m

    • Illuminance (9.3°)

      17,118 lux @ 5 m

Dynamic Effects

• Pan and Tilt

  540°/260°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/260°, 180°, 90° tilt

• Colors

  13 + white, split colors, continuous scroll at variable speeds

• Gobos (1)

  9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  13 + open (13 metal), continuous scroll at variable speeds

• Gobo Size

  Gobo Wheel 1 (rotating glass): 15.9 mm (outside), 12 mm (image), 1.1 mm (max. thickness)

• Dimmer

  Motorized

• Shutter/Strobe

  Motorized

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Prism

  6 Facets, motorized, rotating

• Prism

  8 Facets, motorized, rotating

• Move-in-Black

  Yes

Construction/Physical

• Dimensions

  15.91 x 12.20 x 30.16 in (404 x 310 x 766 mm)

• Weight

  83.8 lb (38 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum die-cast

Connections

• Power Connection

  Bare-wired to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  5-pin IP rated

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  20 or 25

• Modes/Personalities

  2 personalities (20, 25)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  514 W, 4.329 A @ 120 V, 60 Hz

• Power and Current

  513 W, 2.501 A @ 208 V, 60 Hz

• Power and Current

  520 W, 2.267 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP65, temporary outdoor/wet use

• Temperature (Ambient)

  14 °F to 104 °F (-10 °C to 40 °C)
