Rogue Outcast 1 BeamWash M
A rugged, IP66 and marine-grade rated beam and wash moving head that delivers versatile effects through seven powerful RGBW LEDs and a 12-zone pixel-mappable outer ring.
Ideal for demanding applications like touring, cruise ships, theme parks, and architectural exteriors requiring robust, all-weather performance.
-
Delivers an expansive zoom range from a tight 3.9° beam to a broad 55.3° wash.
-
Built with a C5M marine-grade finish and full aluminum construction for extreme weather durability.
-
Achieves exceptionally smooth fades with 16-bit dimming and a selectable calibrated white of 7500 K.
-
Powered by seven high-output 45W RGBW LEDs for intense, smoothly blended color washes.
-
Supports DMX and RDM protocols with six DMX personalities for ultimate programming versatility.
-
Ensures flicker-free on-camera performance with user-selectable Pulse Width Modulation settings.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.

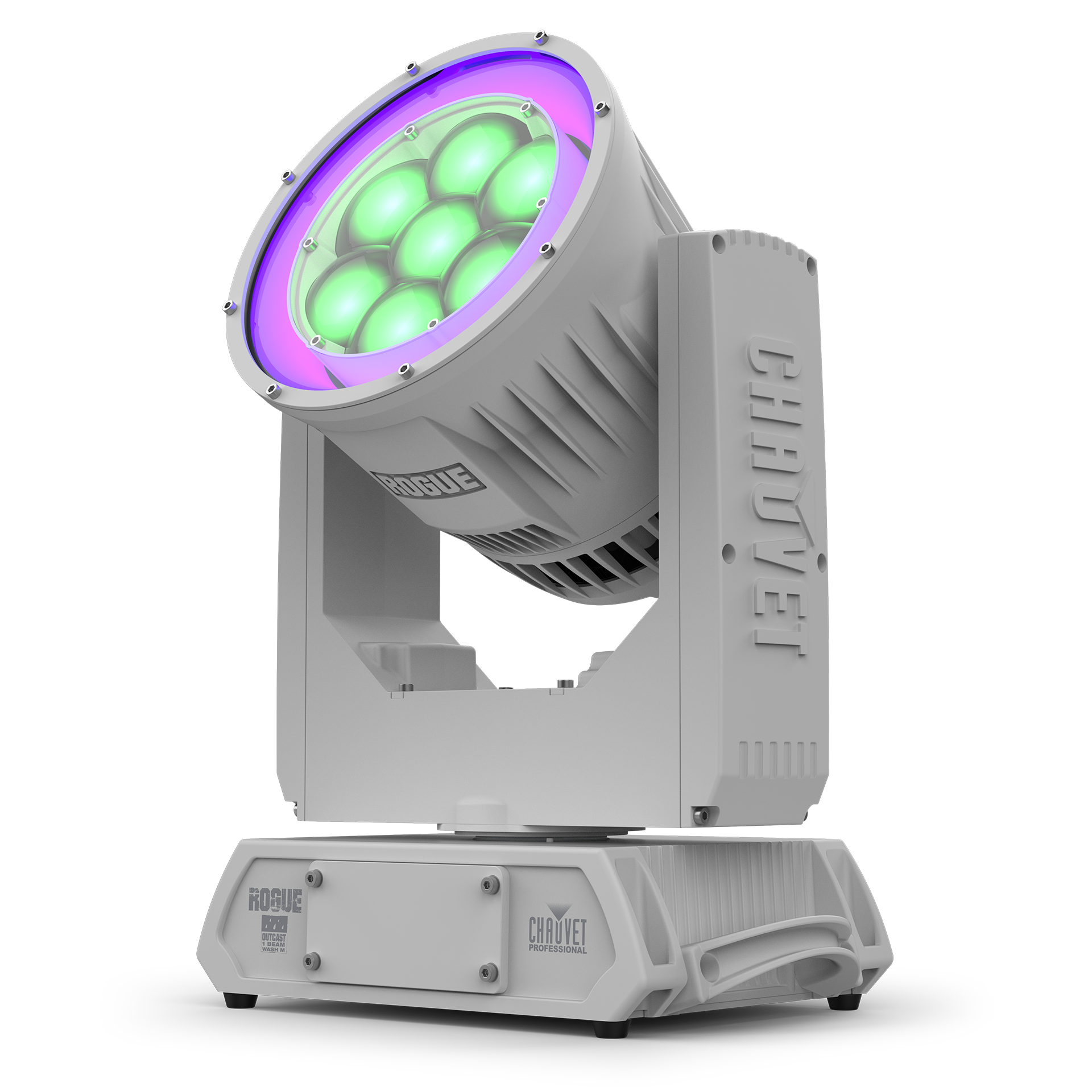

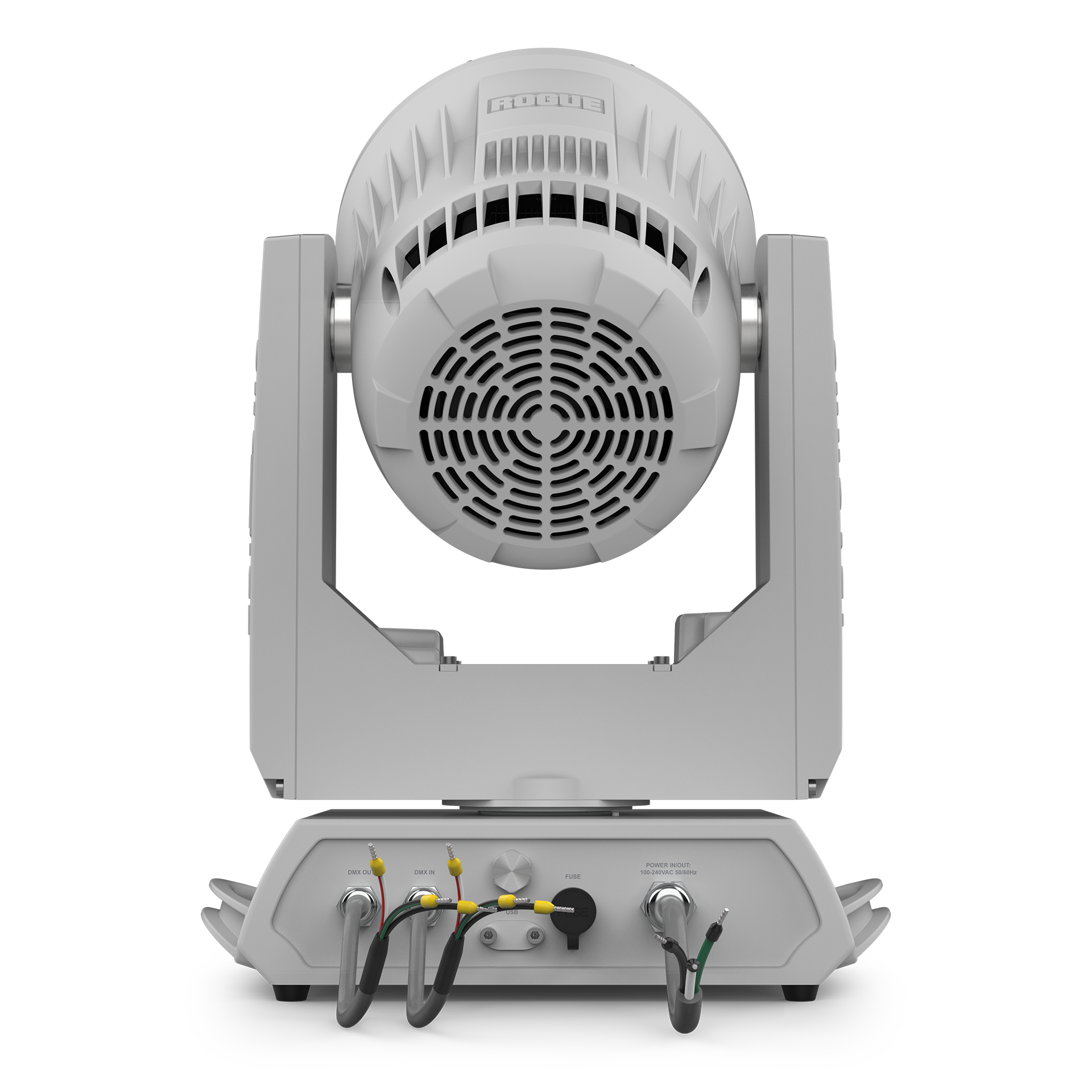

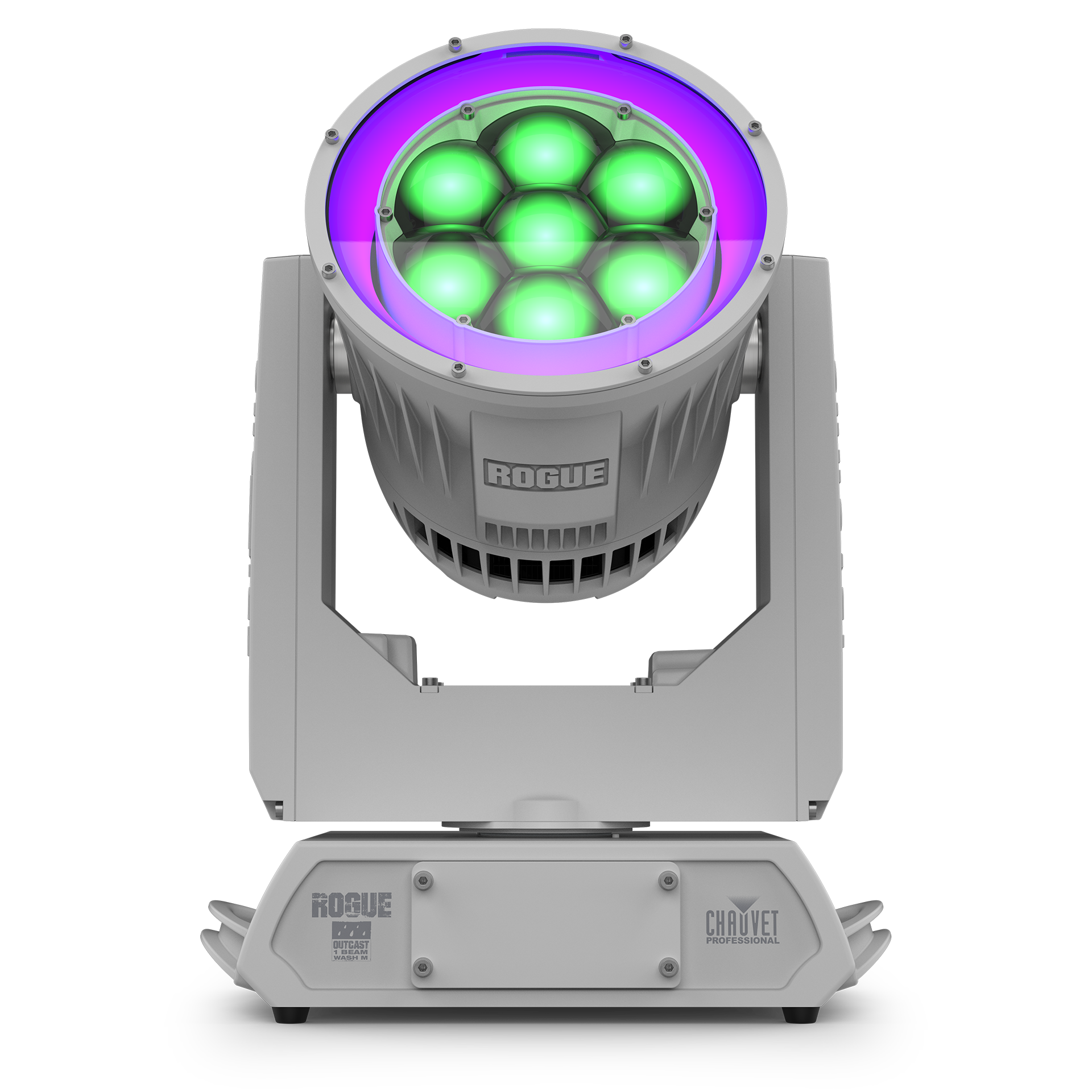

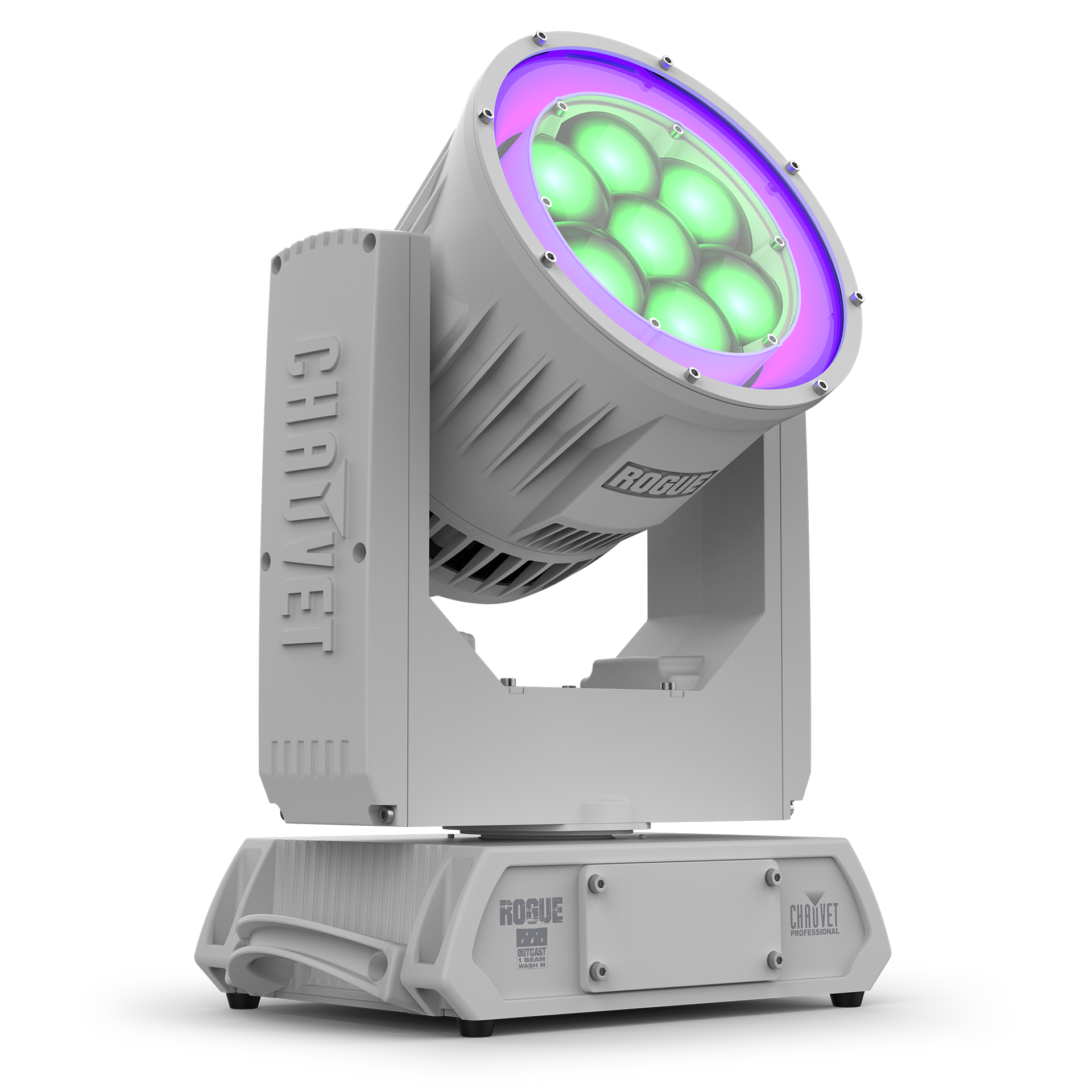

Rogue Outcast 1 BeamWash M
Rogue Outcast 1 BeamWash M brings layers of external corrosion resistance with its full aluminum construction, C5M marine-grade finish, and rugged IP66 build engineered with the enhanced protections needed to perform extended duty in and near marine environments. Seven 45W high-powered RGBW LEDs and a unique lens design deliver smoothly blended color washes and tight beam effects, while a 12-zone pixel-mappable outer ring provides limitless creative possibilities. Create dynamic looks while withstanding the most demanding environments, whether on tour, cruise ships, or lighting theme park and architectural exteriors.
Features
RGBW LED Wash Fixture
A fully featured and IP66 rated yoke wash fixture with zoom and a dynamic RGB LED ring.
C5M Marine-Grade Construction
A C5M paint process, full aluminum construction, and stainless steel hardware ensure extended use in marine environments.
Protective Display Cover
An included display cover enhances durability for extended outdoor and marine usage.
16-Bit Dimming Control
Achieve exceptionally smooth fades with 16-bit dimming of the master dimmer and individual colors.
Pixel-Mappable LED Ring
A 12-zone pixel-mappable RGB LED outer ring under a stealth filter adds compelling visual effect possibilities.
5-Pin DMX Connections
Includes professional 5-pin DMX input and output connections for reliable data linking.
Prebuilt Ring Programs
Easily control prebuilt effects for the outer LED ring, including dimming, rate, and color selection.
Unique Lens Design
A specialized lens design provides excellent color blending and creates tight, well-defined beam effects.
RDM Enabled
Allows for remote addressing and troubleshooting, simplifying setup and maintenance.
Selectable PWM Settings
Ensures flicker-free performance on camera with user-selectable Pulse Width Modulation settings.
Wide Zoom Range
Offers an expansive zoom from a narrow 3.9° to a wide 55.3° for maximum coverage flexibility.
Selectable Calibrated White
Includes a user-selectable calibrated white option of 7500 K at full output.
Six Distinct Dimming Modes
Choose from six different dimming modes for advanced and customized control.
Easy-to-Read OLED Display
A clear OLED display with a simple menu structure provides effortless navigation and configuration.
Flexible DMX Channel Profiles
Offers both simple and complex DMX channel profiles for programming versatility.
USB-C Software Port
A convenient USB-C port allows for fast and easy software uploads.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
7 LEDs (quad-color RGBW) 45W, (3 A), 50,000 hours life expectancy
-
Light Source
97 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.
-
Color Temperature (range)
2800 to 10000 K
-
Beam Angle
9.1° to 32.3°
-
Field Angle
11.2° to 49.2 °
-
Zoom Range
3.9° to 55.3°
-
Zoom Angle
11° to 63.2 °
-
Lumens – Source
5,900
-
Lumens – Output
4,073
-
-
Illuminance
-
Illuminance (3.9°)
15,308 lux @ 5 m
-
Illuminance (55.3°)
473 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
-
Pan and Tilt
540°/260°
-
Pan and Tilt Ranges
180°, 360°, 540° Pan/90°, 180°, 260° Tilt.
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 20 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Curves
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
No
-
Recall Custom Programs
No
Construction/Physical
-
Dimensions
11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
-
Weight
20.2 lb (9.16 kg)
-
Exterior Color
White
-
Housing Material
Aluminum
Connections
-
Power Connection
Edison (local) plug to Seetronic PowerKON IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power input)
5 ft (1.5 m)
-
Cable Length (signal in/out)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
15, 24, 30, 64, 111 or 135
-
Modes/Personalities
6 personalities (15, 24, 30, 64, 111, 135)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
-
Power and Current
385 W, 3.25 A @ 120 V, 60 Hz
-
Power and Current
376 W, 1.92 A @ 208 V, 60 Hz
-
Power and Current
372 W, 1.69 A @ 230 V, 50 Hz
-
Fuse Size
8A, 250 V
Certifications/Qualifications
-
Certifications
CE, MET, FCC, FCC, UKCA
-
IP Rating
IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
-
Maximum Exterior Surface Temperature (Tc)
80° C / 176° F
-
Maximum Ambient Temperature (ta)
45° C / 113° F
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- DMX Cables
- Flight Case
- UPLOAD 08 software uploader
What's Included
- Rogue Outcast 1 BeamWash M
- 2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
- Display cover
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Rogue Outcast 1 BeamWash M FAQ’s
Absolutely. It is built specifically for the most demanding environments. With its full aluminum body and a special marine-grade finish, it’s highly resistant to corrosion and harsh weather, making it perfect for cruise ships, theme parks, outdoor concerts, and architectural lighting.
This versatile fixture is both a beam and a wash light. It can project tight, sharp beams for dramatic aerial effects or zoom out to create broad, soft washes of color to illuminate large areas. Its powerful LEDs produce a full spectrum of rich, vibrant colors for any scene.
The outer ring is a secondary set of LEDs that can be controlled independently to create stunning visual effects. You can use it to display colorful patterns, animations, or subtle glows, adding an extra layer of ‘eye-candy’ to your lighting design from the same fixture.
