    REM Rig Bar 100CM -2

    A rugged, IP65-rated rig bar that provides dual-function overhead hanging and ground stacking support for REM 1 and REM 3 IP video panels.
    Ideal for mobile productions and rental houses needing a versatile, all-weather mounting system for creating both flown and ground-stacked video walls.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: REMRB100CMIP-2

    REM Rig Bar 100CM -2

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

    REM Rig Bar 100CM -2

    SKU: REMRB100CMIP-2

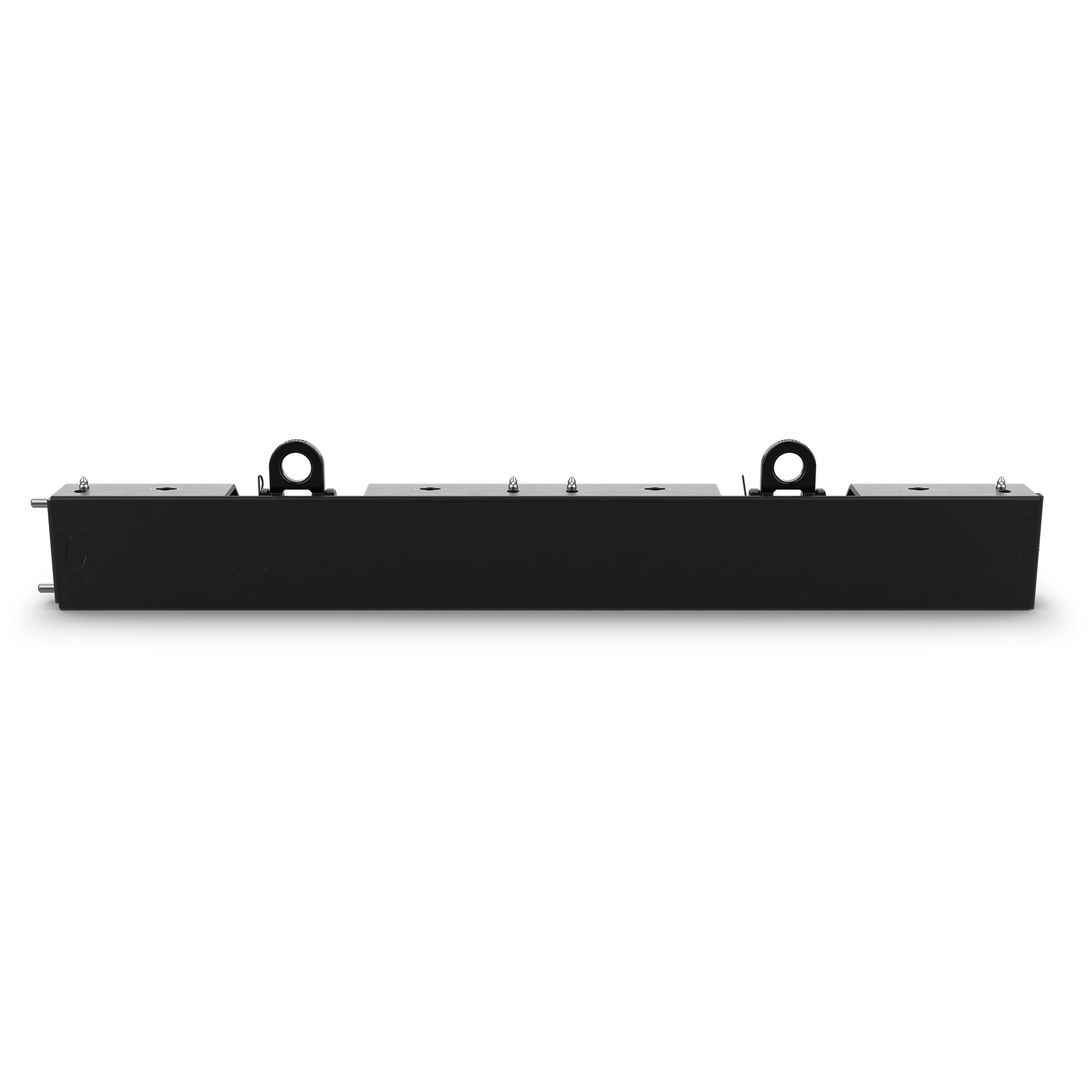

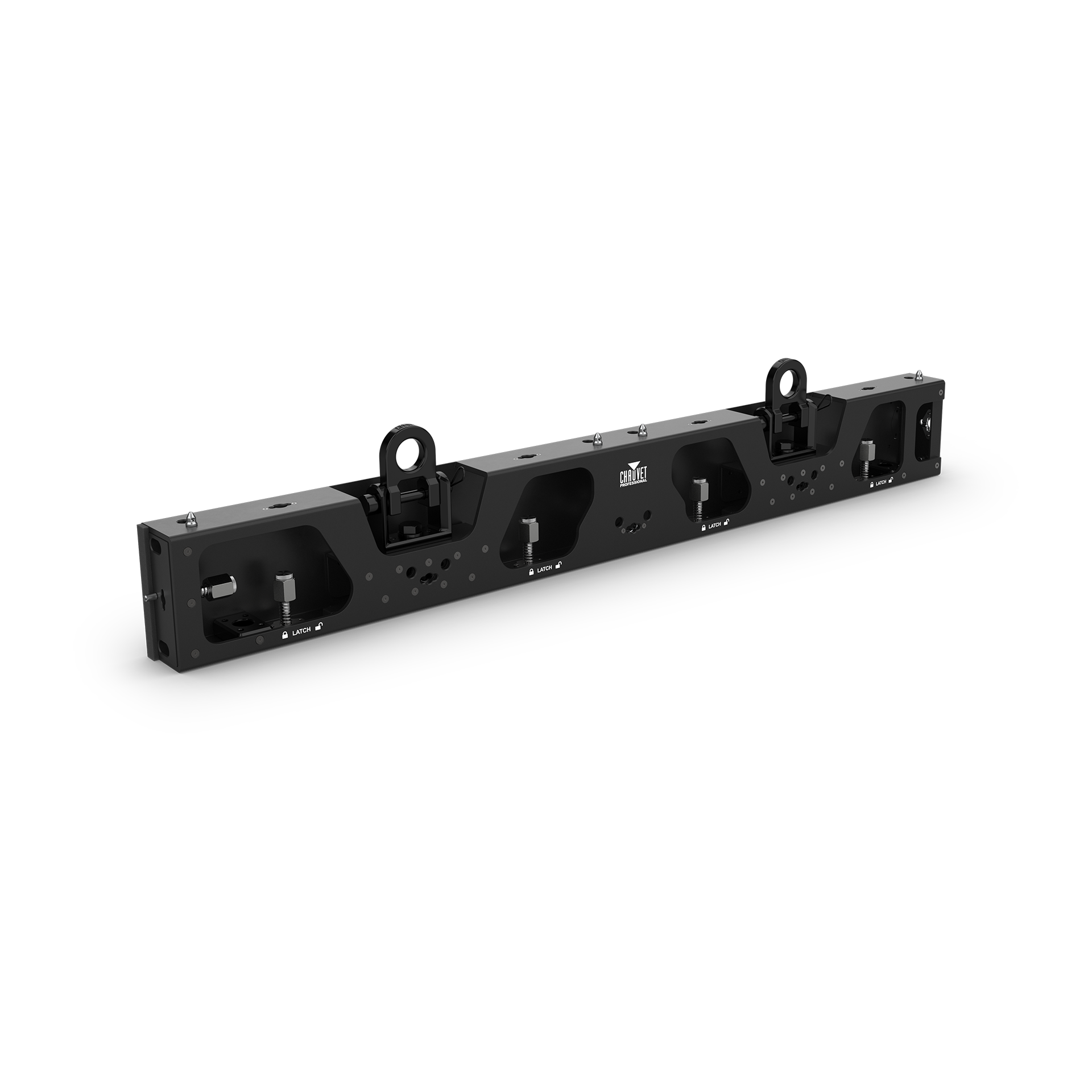

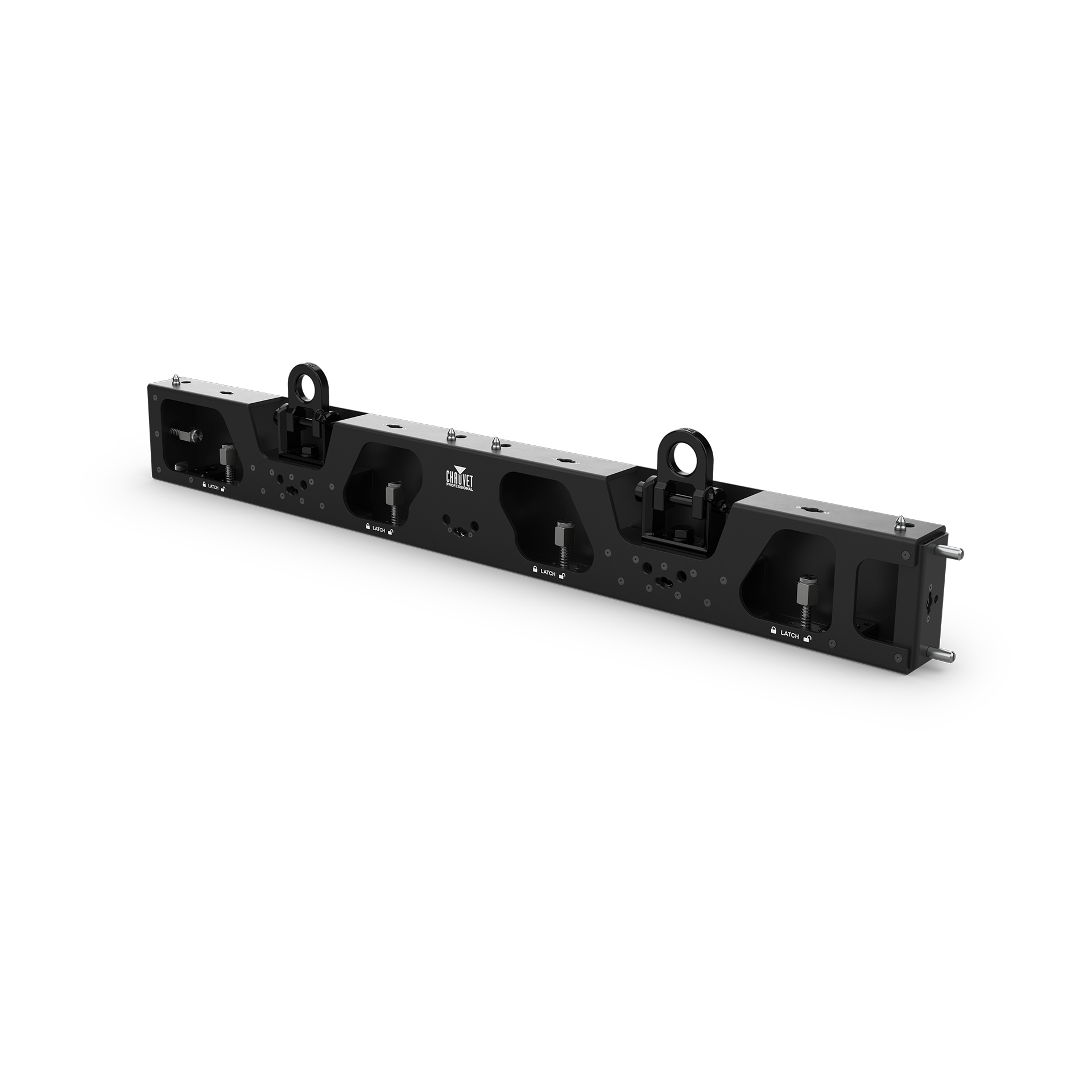

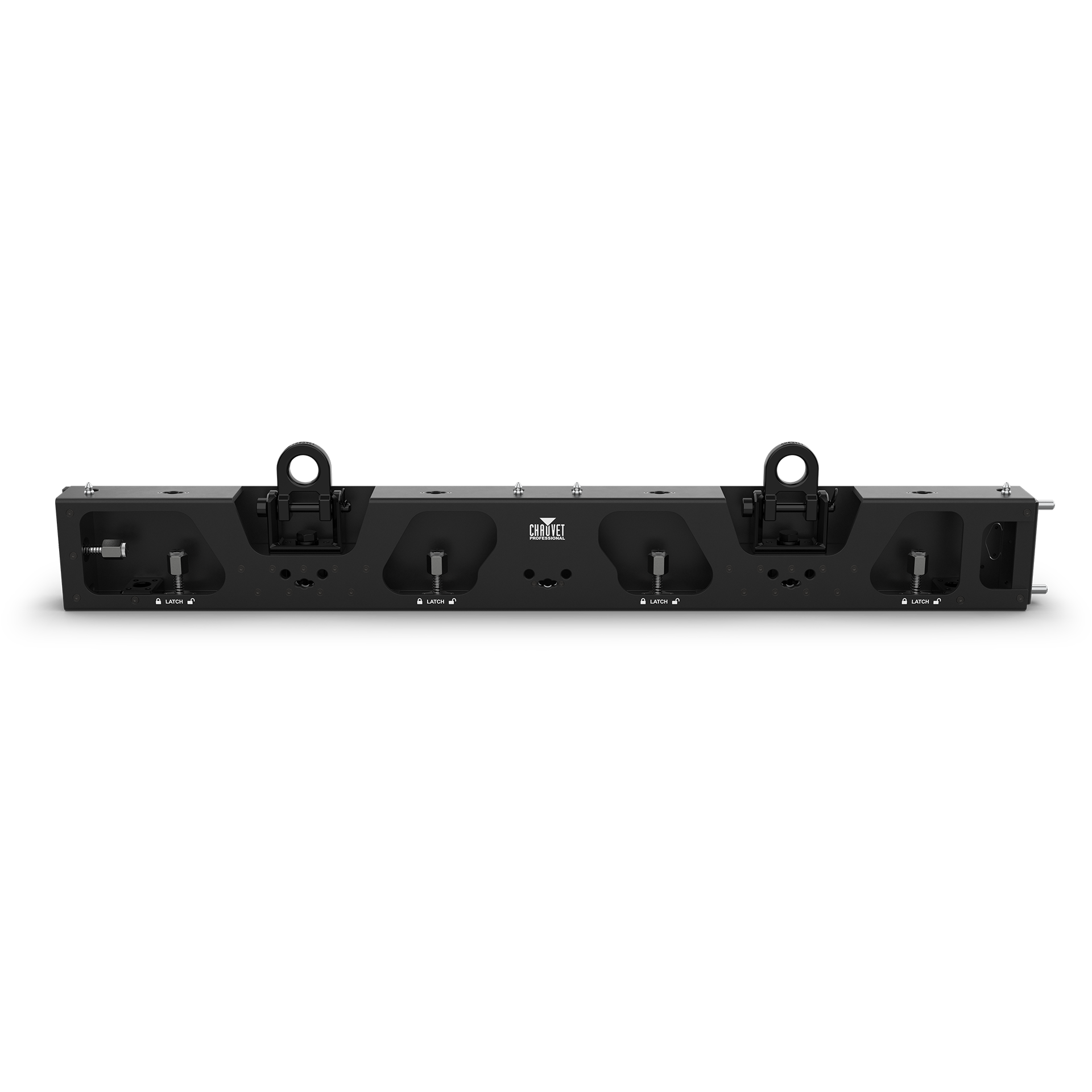

    Designed to work with REM 1 and REM 3IP video panels (not compatible with older F-series Rig Bars), REM-RB100CMIP is a rugged IP65-rated rig bar that performs dual functions. It may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUND STACK KIT.

    Features

    Versatile Rigging Options

    This rig bar is designed for flexible use in both overhead hanging and ground stacking configurations.

    CHAUVET REM Compatibility

    Seamlessly integrates with CHAUVET REM video panels for a complete system.

    Integrated Hoist Ring

    An equipped hoist ring supports standard 1/2-inch and 5/8-inch shackles for secure overhead suspension.

    Included Clamp Bracket

    The included attachment bracket allows for direct connection to clamps using M12 bolts.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Construction/Physical

      • Dimensions

        39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)

      • Weight

        16.8 lb (7.62 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum extrusion, stainless steel

      Clamp

      • Load Capacity (Hanging)

        1,710.8 lb (776 kg)

      • Load Capacity (Stacking)

        1,752.70 lb (795 kg)

      • Recommended Shackle Sizes

        1/2”, 5/8”

      Certifications/Qualifications

      • IP Rating

        IP65, temporary outdoor/wet use

      Required Accessories

      • Compatible Mounting Options: Shackle (Sizes: 1/2”, 5/8”), Pipe Clamp (M12 threaded bolt)

      Compatible Accessories

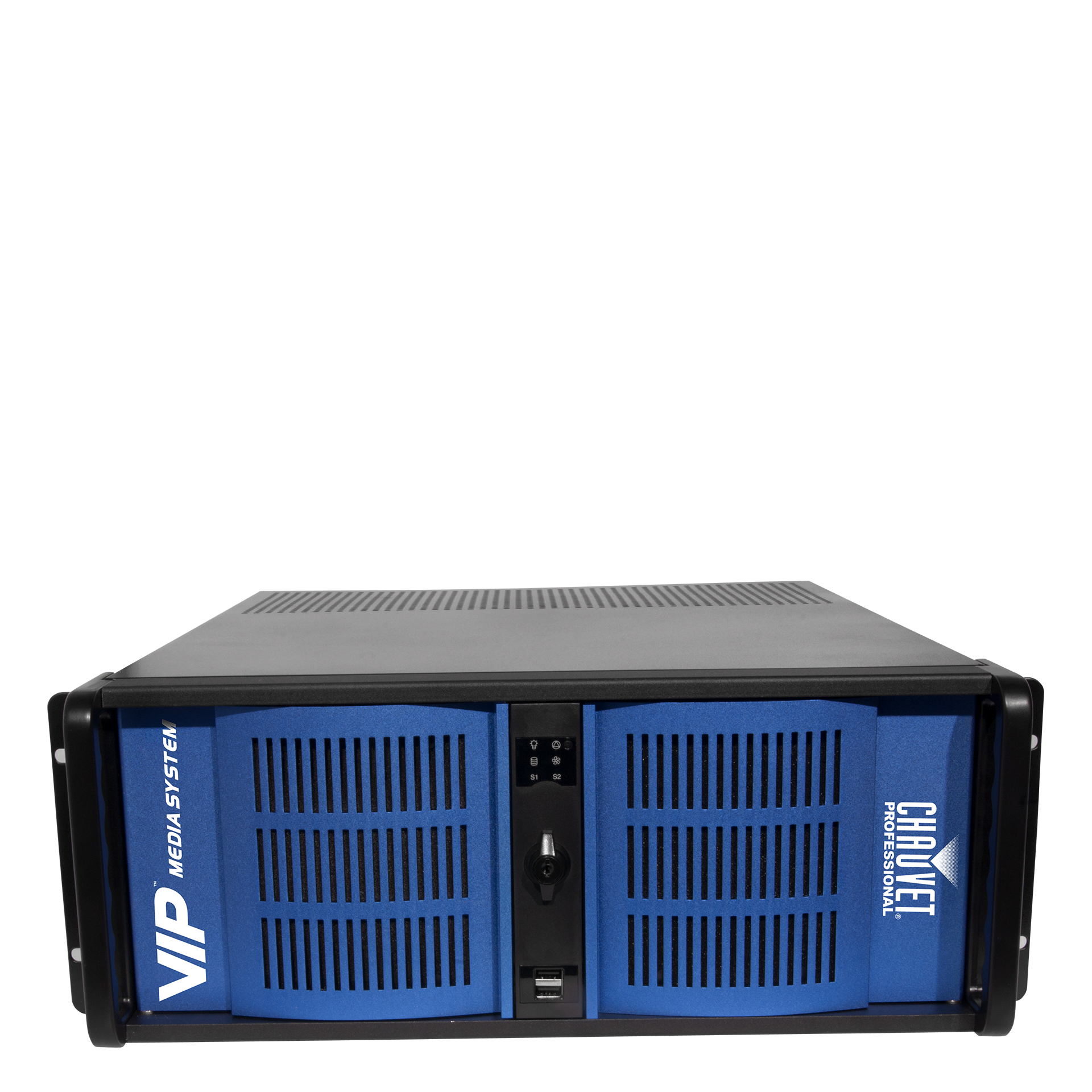

      • VIP Signal Distributor, VIP Media Server
      • ArKaos Media Master Express + KN software
      • Controllers (optional): IRC, FCW, ACW, FCT, FCM
      • Clamps

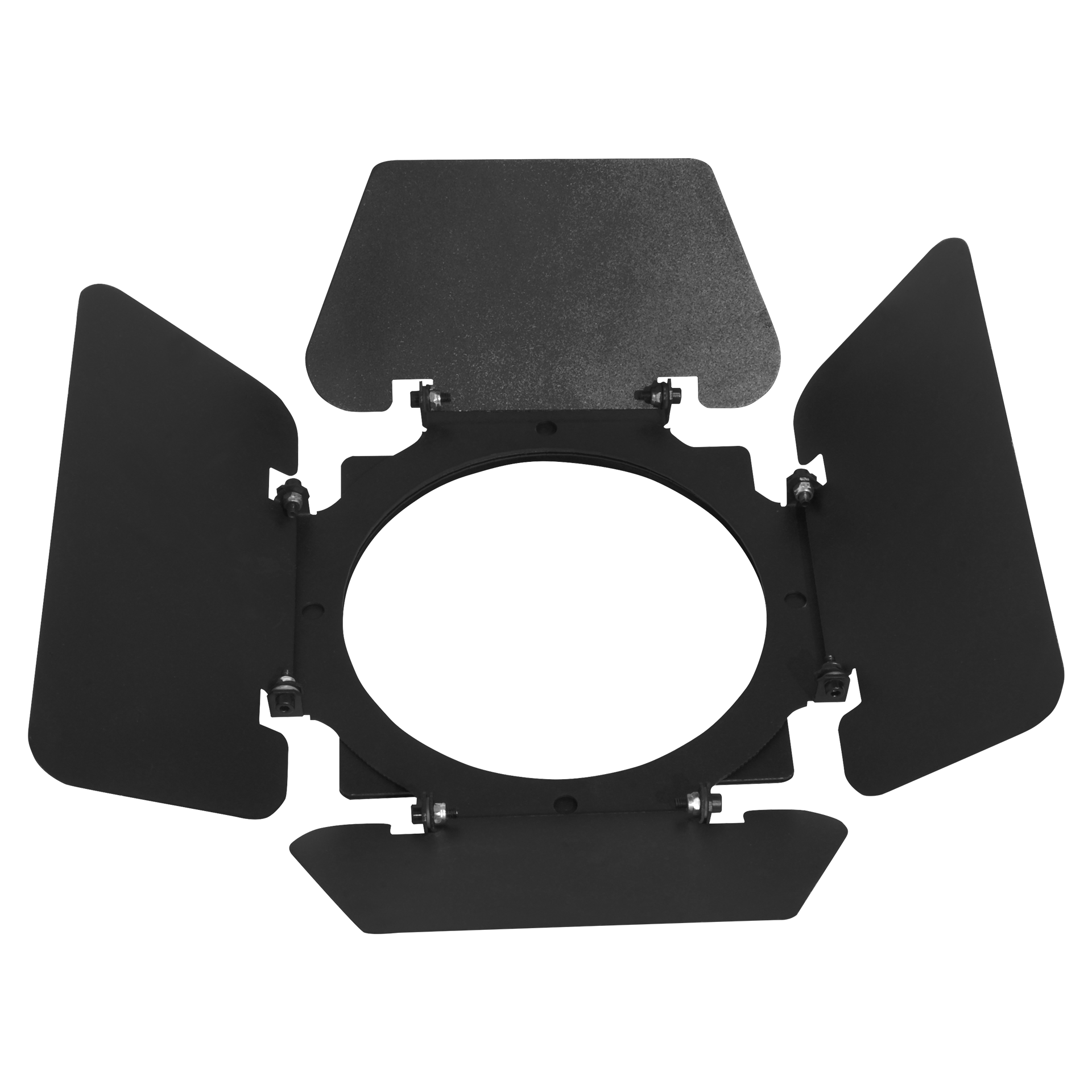

      • Barn Doors
      • Neutrik powerCON cables
      • Neutrik etherCON cables

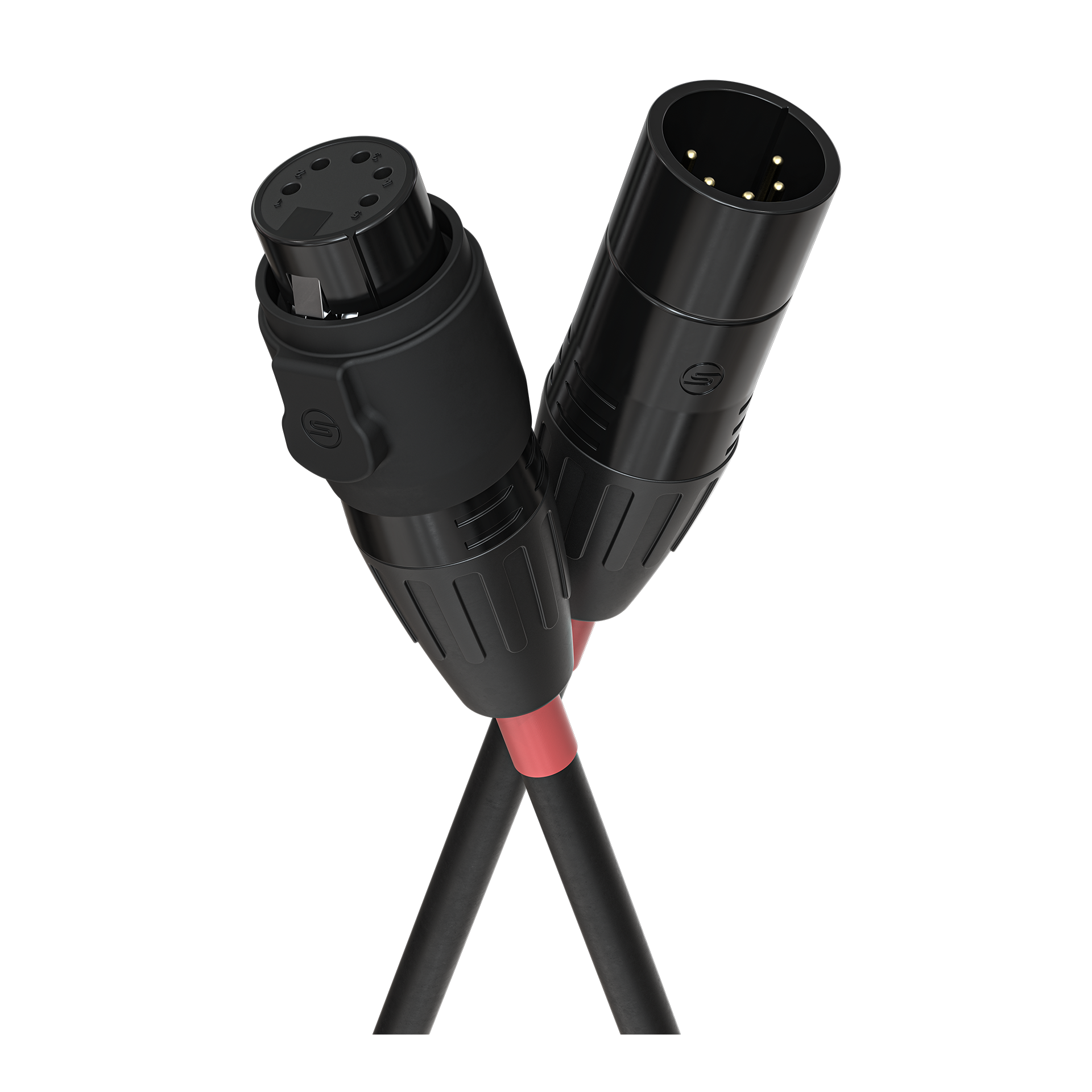

      • DMX Cables
      • Flight Cases

      What's Included

      • 1pc REM Rig Bar-100 cm (REM-F100CMIP)
      • 2pcs clamp attachment brackets (DRB-CTC)
      • 2pcs clamp bolts for TRUSST CTC-50HC

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      REM-RB100CM IP – Quick Reference Guide
      		Download

      REM Rig Bar 100CM -2 FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the REM Rig Bar 100CM -2
      What is the REM Rig Bar 100CM -2 used for?

      The REM Rig Bar is a versatile mounting accessory for REM series video panels. It serves a dual purpose: you can use it to safely hang a video wall from an overhead structure, or you can use it as a stable base to securely stack video panels from the ground up.

      Can the REM Rig Bar 100CM -2 be used outdoors?

      Yes, this rig bar is designed to be weatherproof. It is suitable for temporary outdoor events and can be used in wet conditions, ensuring your video wall setup is secure and reliable, rain or shine.

      How do I connect the REM Rig Bar 100CM -2 to my setup?

      It is specifically designed for CHAUVET Professional’s REM 1 and REM 3IP video panels. The bar includes clamp attachment brackets, making it easy to connect to standard rigging hardware for both overhead hanging and ground stacking configurations.
