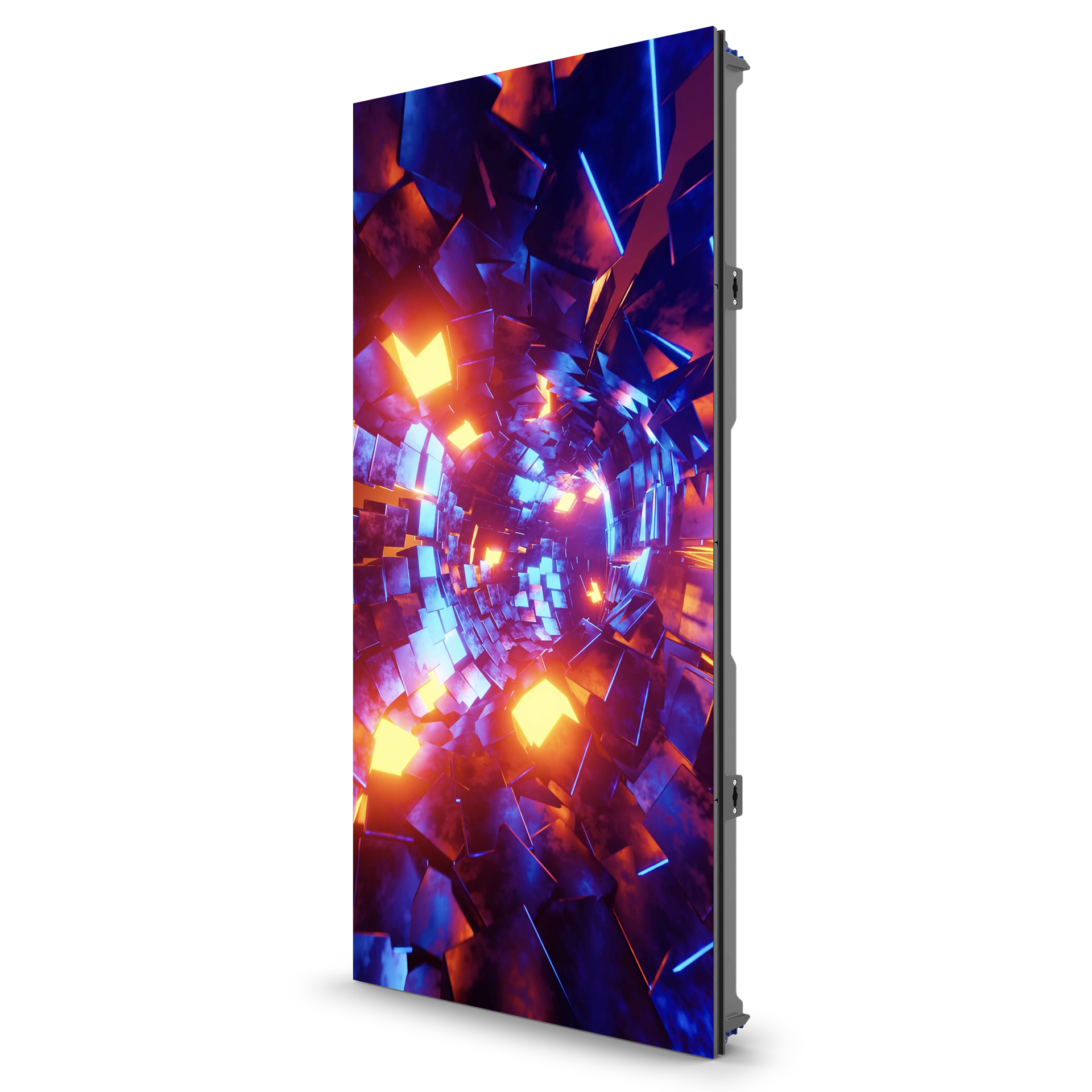

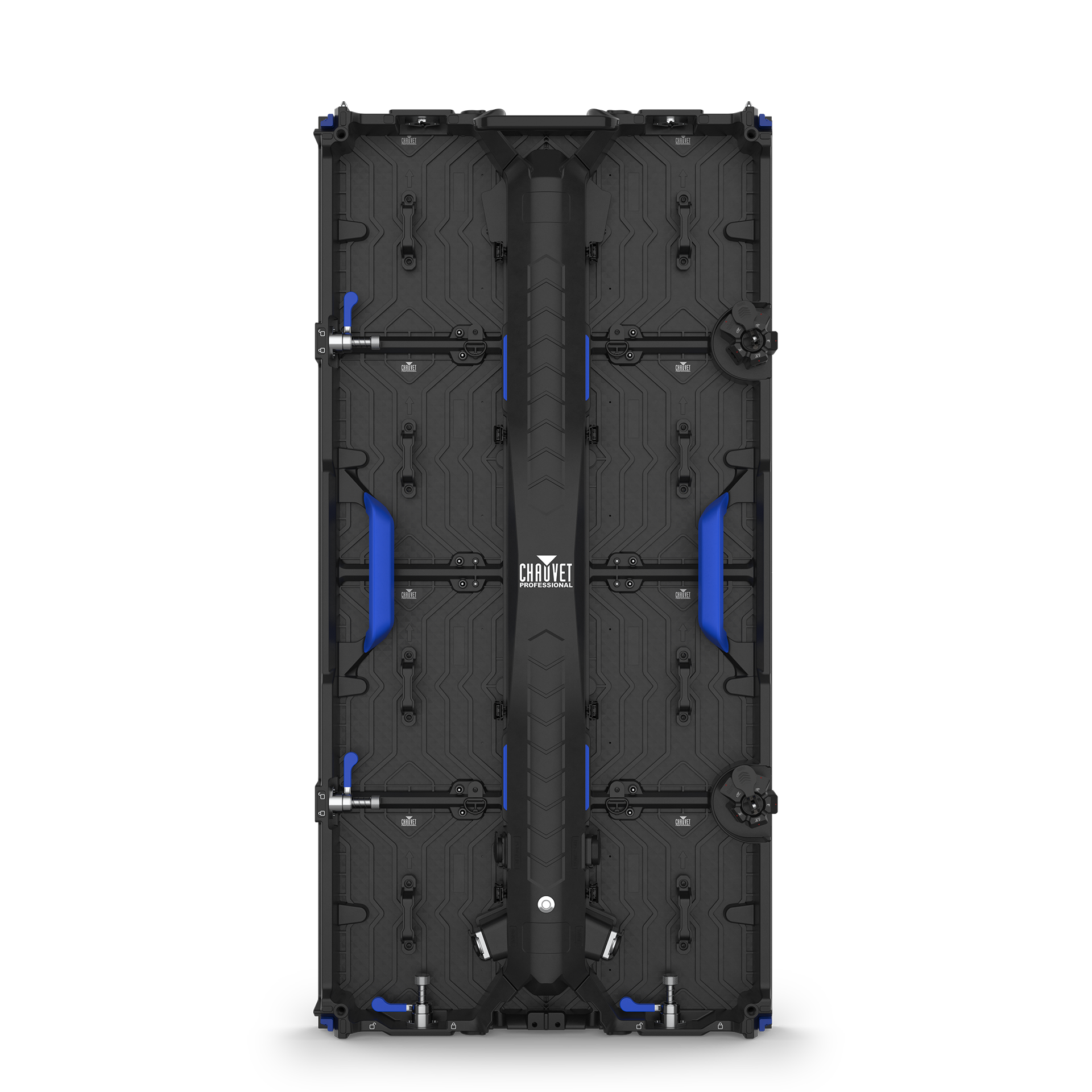

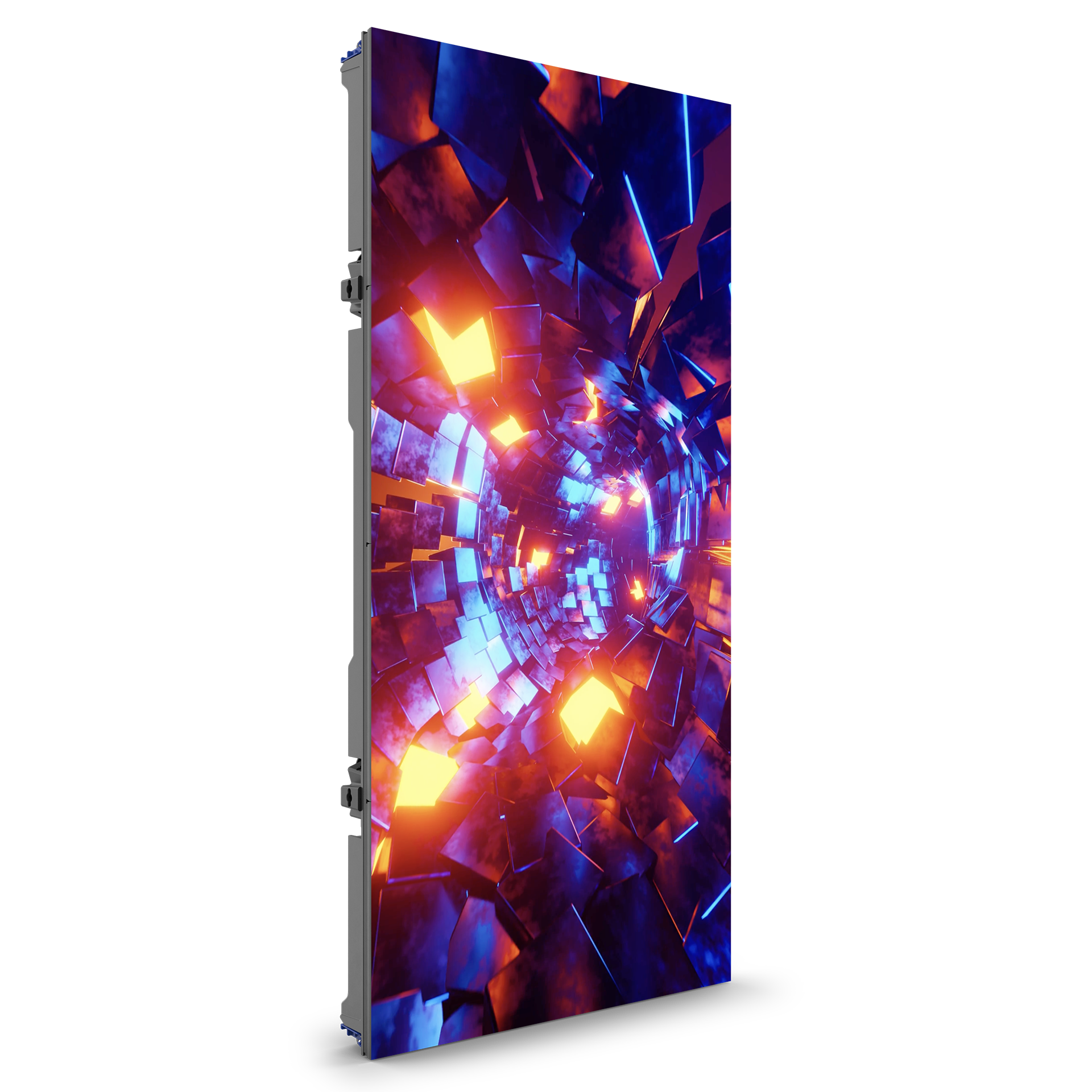

REM 3IP

Optical

• Light Source

  32,768 LEDs (tri-color RGB) SMD 1921 (Black frame, white reflector), 100,000 hours life expectancy

• Color Wavelength

  red (615 to 630 nm), green (520 to 535 nm), blue (465 to 480 nm)

• Color Space

  DCI-P3

• Viewing Angle (H/V)

  140°/140°

• Calibrated Illuminance

  4,500 NITS (calibrated)

• Maximum Illuminance

  >5,000 NITS (calibration disabled)

• Grayscale

  22-bit+

• Receiver Card

  A10s Pro

• Drive Type

  1/16

• Pixels

  128 x 256

• Pixel Pitch

  3.9 mm

• Minimum Viewing Distance

  7.5 ft (2.3 m)

• Pixel Density

  65,536/m2

• Display Refresh Rate

  7,680 Hz (S-PWM)

Construction/Physical

• Dimensions

  19.69 x 3.25 x 39.37 in (500 x 82.5 x 1000 mm)

• Weight

  31.2 lb (14.15 kg)

• Threaded Bolt

  M10, 1.5

• Exterior Color

  Black

• Housing Material

  Aluminum ADC12

• LED Module Material

  Glass filled Polycarbonate

• Maximum vertical hang

  11 panels

Connections

• Power Connection

  Edison (local) plug to Seetronic® powerKON®

• Power Input

  Seetronic® powerKON®

• Power Output

  Seetronic® powerKON®

• Data Connectors

  Seetronic® etherKON®

• • Cable Length
    • (Signal Extension)

      4 ft (1.2 m)

    • (Power)

      4 ft (1.2 m)

    • (Power Extension)

      6 ft (1.8 m)

Control

• Control Protocol

  Novastar VMP platform

• Recommended Processor/Driver

  Novastar MX40 Pro

• Panel Resolution (L x H)

  128 x 256

• • Maximum Panels / Novastar MX40 Pro (20 ports)
    • 24 Hz — 8-bit video source

      50/port, up to 1,000/Processor/Sender

    • 24 Hz — 10-bit video source

      37/port, up to 740/Processor/Sender

    • 24 Hz — 12-bit video source

      25/port, up to 500/Processor/Sender

    • 30 Hz — 8-bit video source

      40/port, up to 800/Processor/Sender

    • 30 Hz — 10-bit video source

      30/port, up to 600/Processor/Sender

    • 30 Hz — 12-bit video source

      20/port, up to 400/Processor/Sender

    • 60 Hz — 8-bit video source

      20/port, up to 400/Processor/Sender

    • 60 Hz — 10-bit video source

      15/port, up to 300/Processor/Sender

    • 60 Hz — 12-bit video source

      10/port, up to 200/Processor/Sender

    • 120 Hz — 8-bit video source

      10/port, up to 200/Processor/Sender

    • 120 Hz — 10-bit video source

      7/port, up to 140/Processor/Sender

    • 120 Hz — 12-bit video source

      5/port, up to 100/Processor/Sender

    • 144 Hz — 8-bit video source

      8/port, up to 160/Processor/Sender

    • 144 Hz — 10-bit video source

      6/port, up to 120/Processor/Sender

    • 144 Hz — 12-bit video source

      4/port, up to 80/Processor/Sender

• Maximum Panels Tall/ Novastar MX40 Pro

  (adjust input/source resolution as needed): 4 @ 1080 height 5 @ 1344 height 6 @ 1680 height 8 @ 2160 height

• Maximum Panels Wide/ Novastar MX40 Pro

  (adjust input/source resolution as needed): 15 @ 1920 wide resolution 30 @ 3840 wide resolution 64 @ 8192 wide resolution

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V

• Power and Current

  300 W, 2.5 A @ 120 V, 60 Hz

• Power and Current

  300 W, 1.44 A @ 208 V, 60 Hz

• Power and Current

  300 W, 1.3 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC

• MET Listing Number

  E113093-1110, E113093-1125

• US Safety

  UL 60950-1

• Canadian Safety

  CSA C22.2 No. 60950-1

• IP Rating

  IP65/IP54

• • Thermal Dissipation
    • @120V

      1,024 BTU per hour

    • @ 208V

      1,024 BTU per hour

    • @ 230V

      1,024 BTU per hour

• Operating Temperature

  -4 °F to 122 °F (-20 °C to 50 °C)
