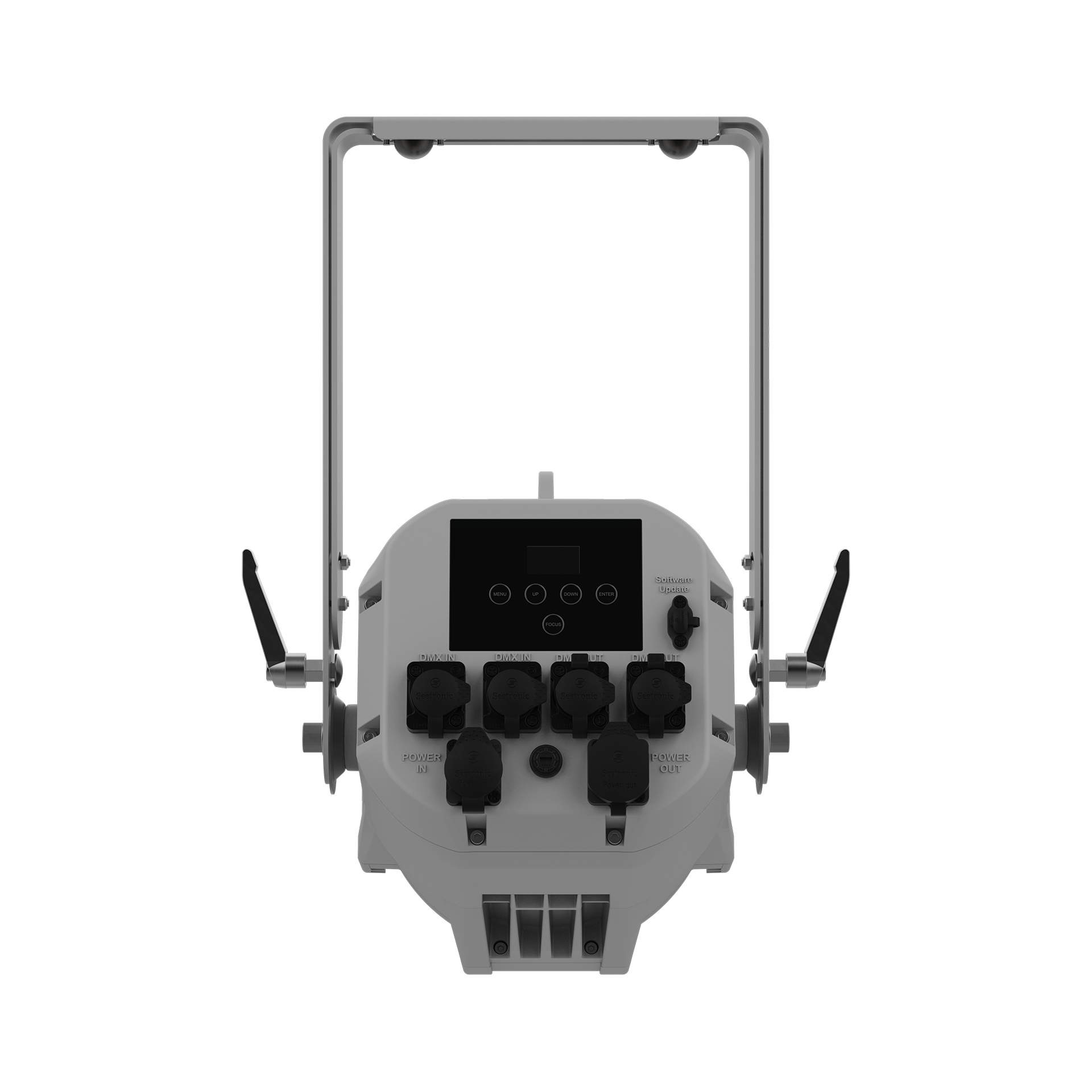

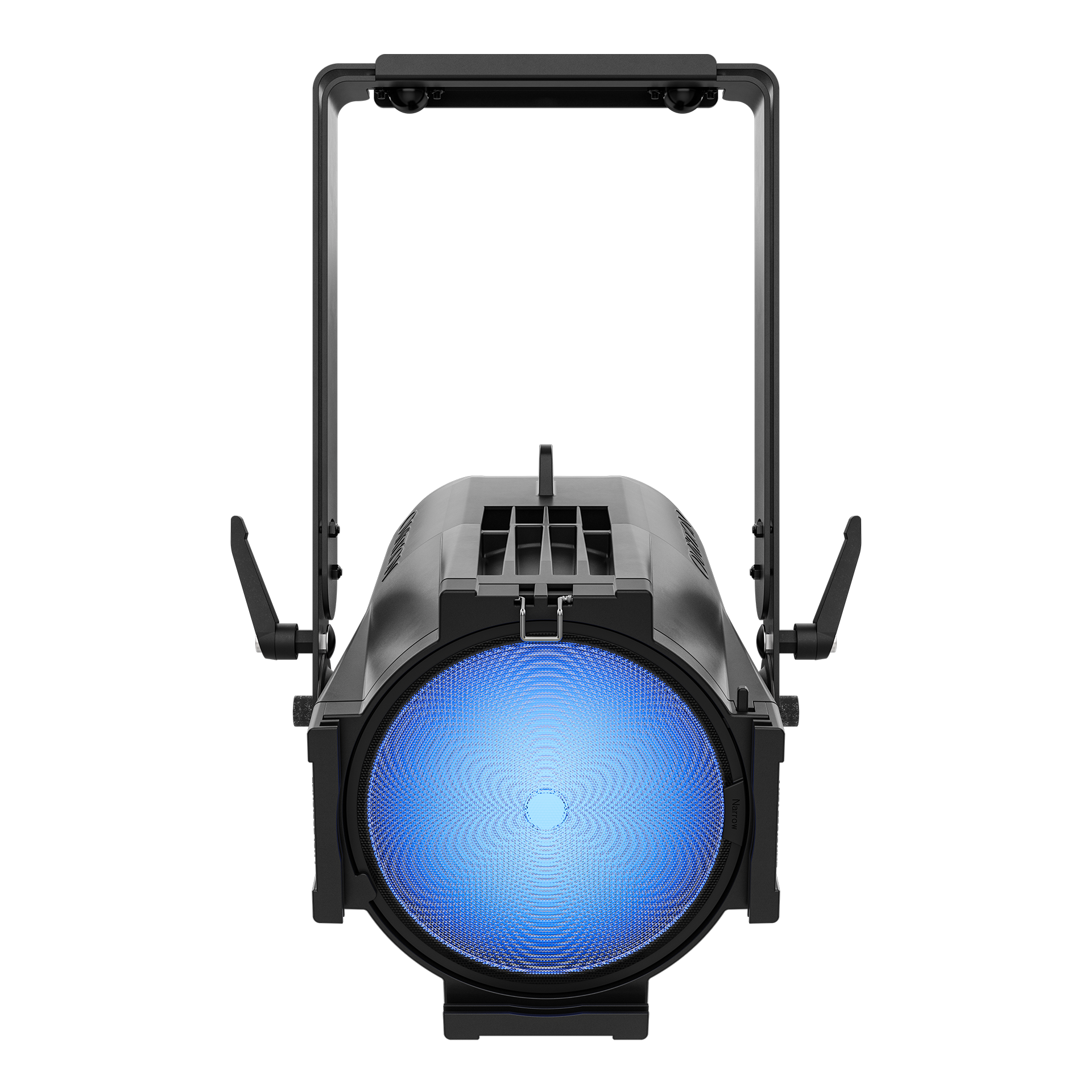

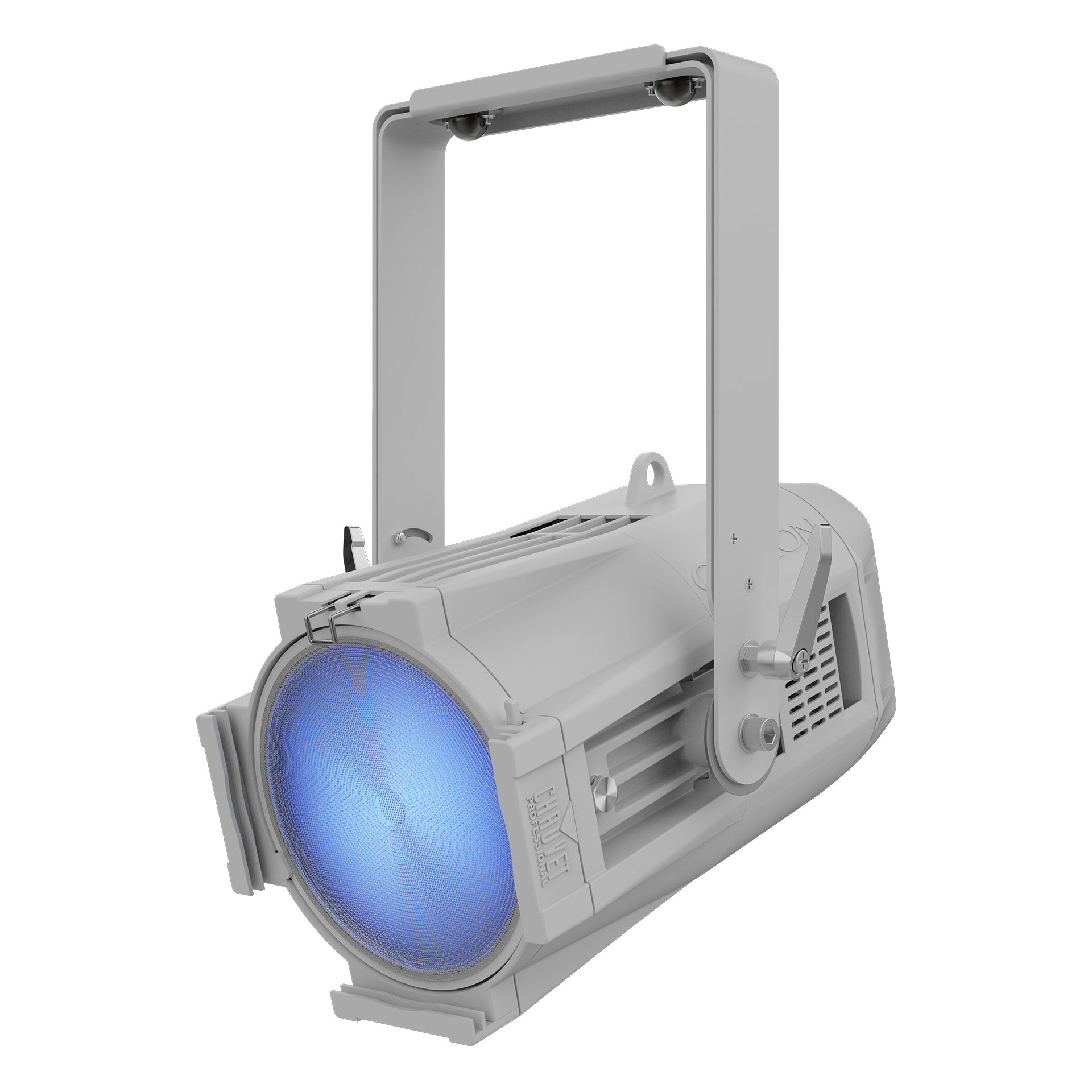

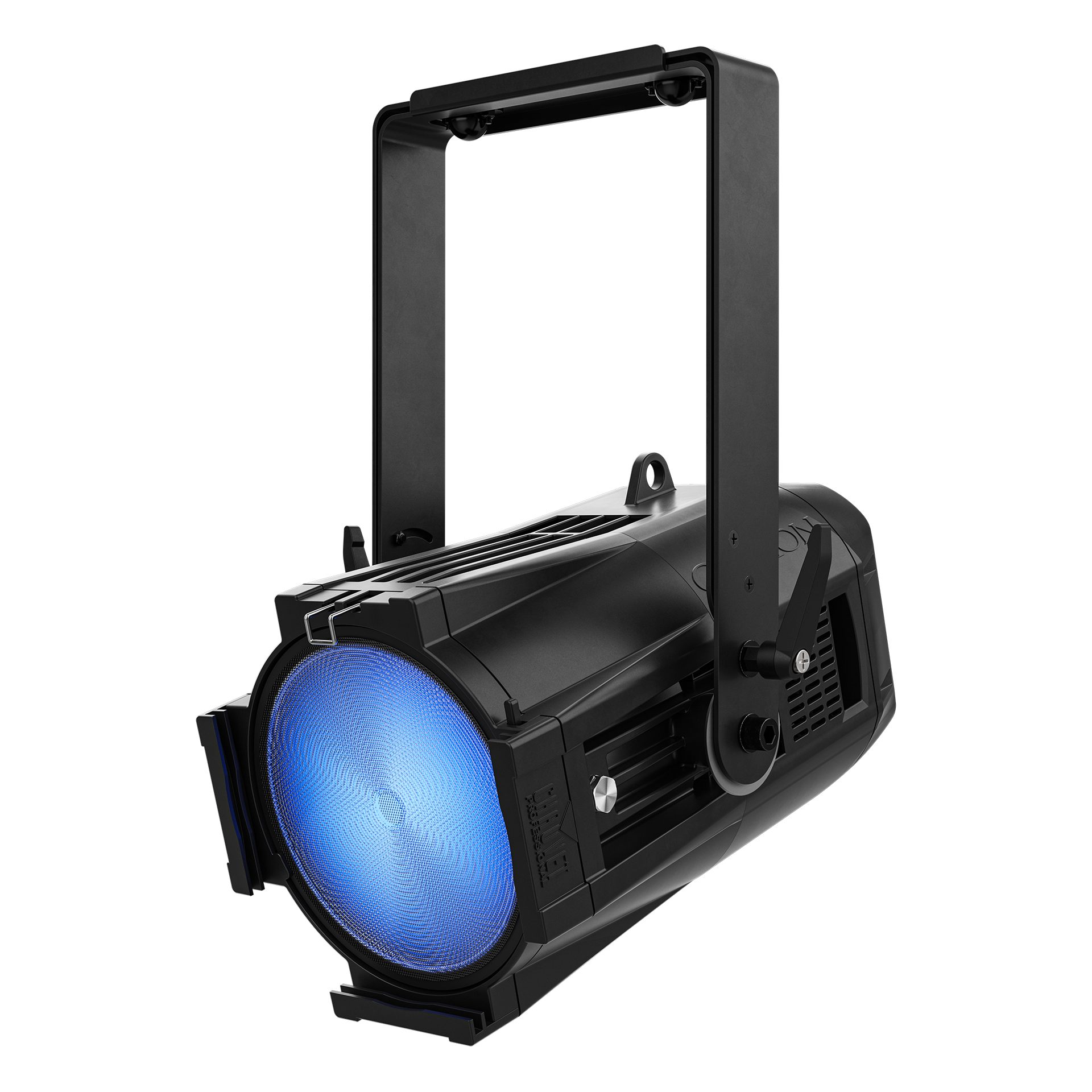

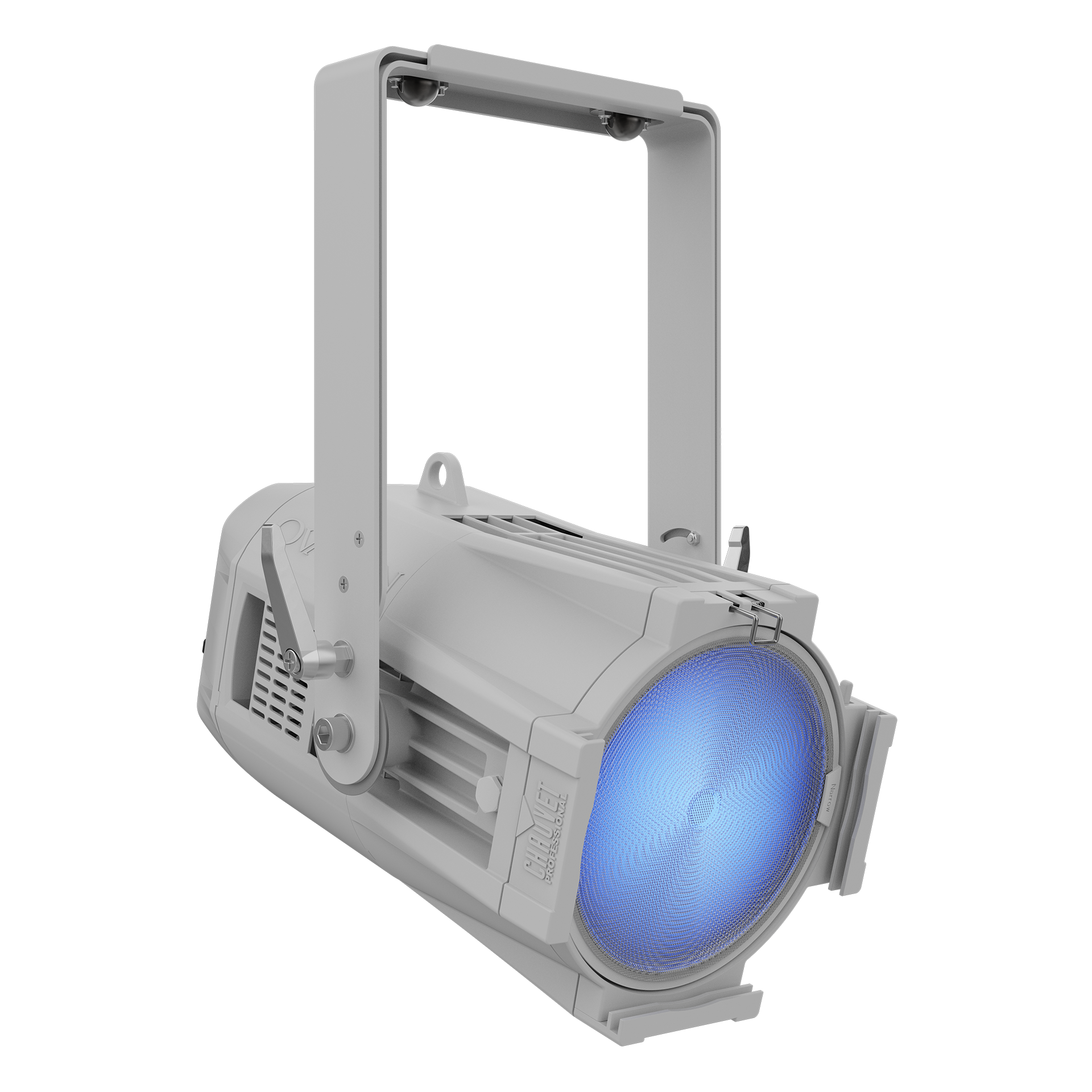

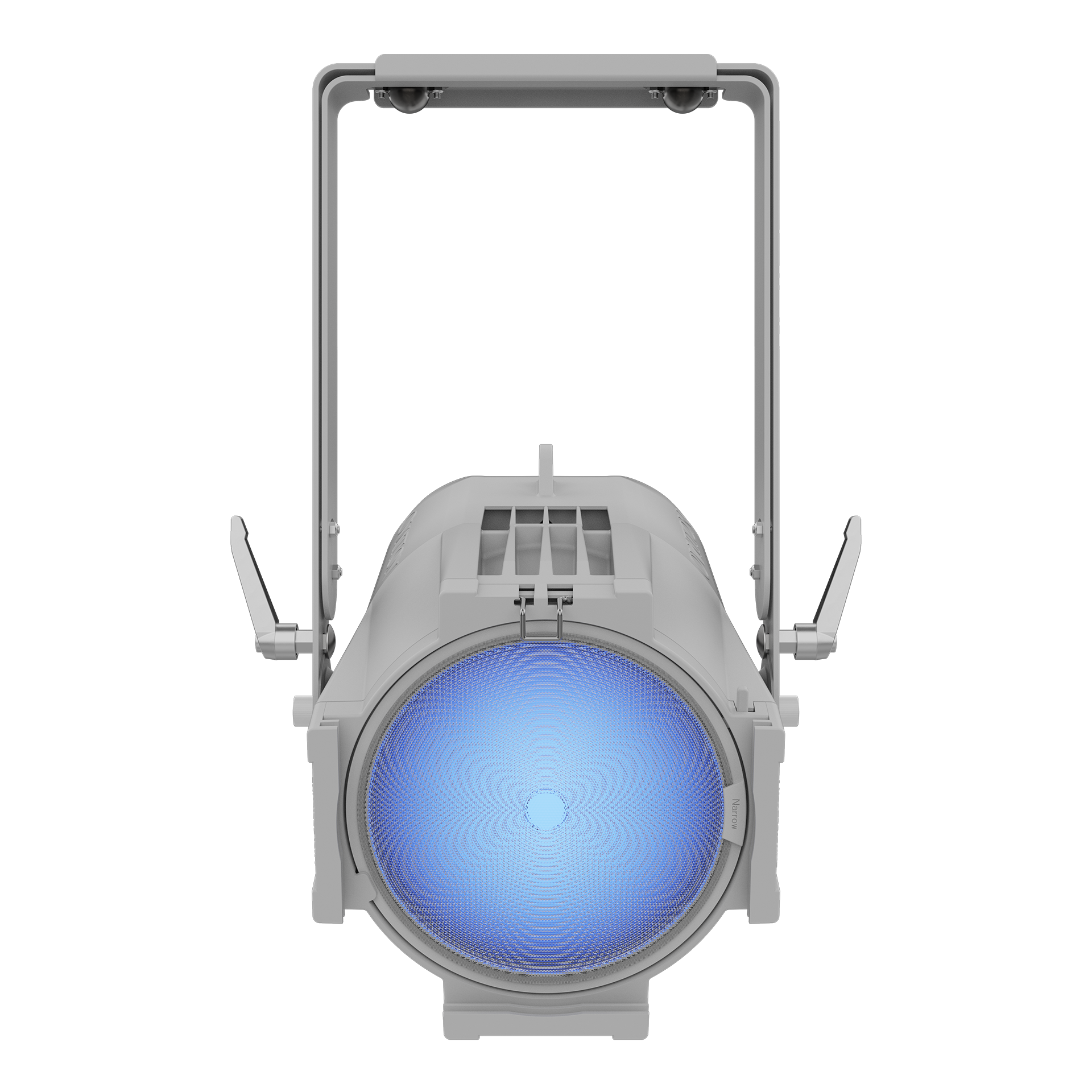

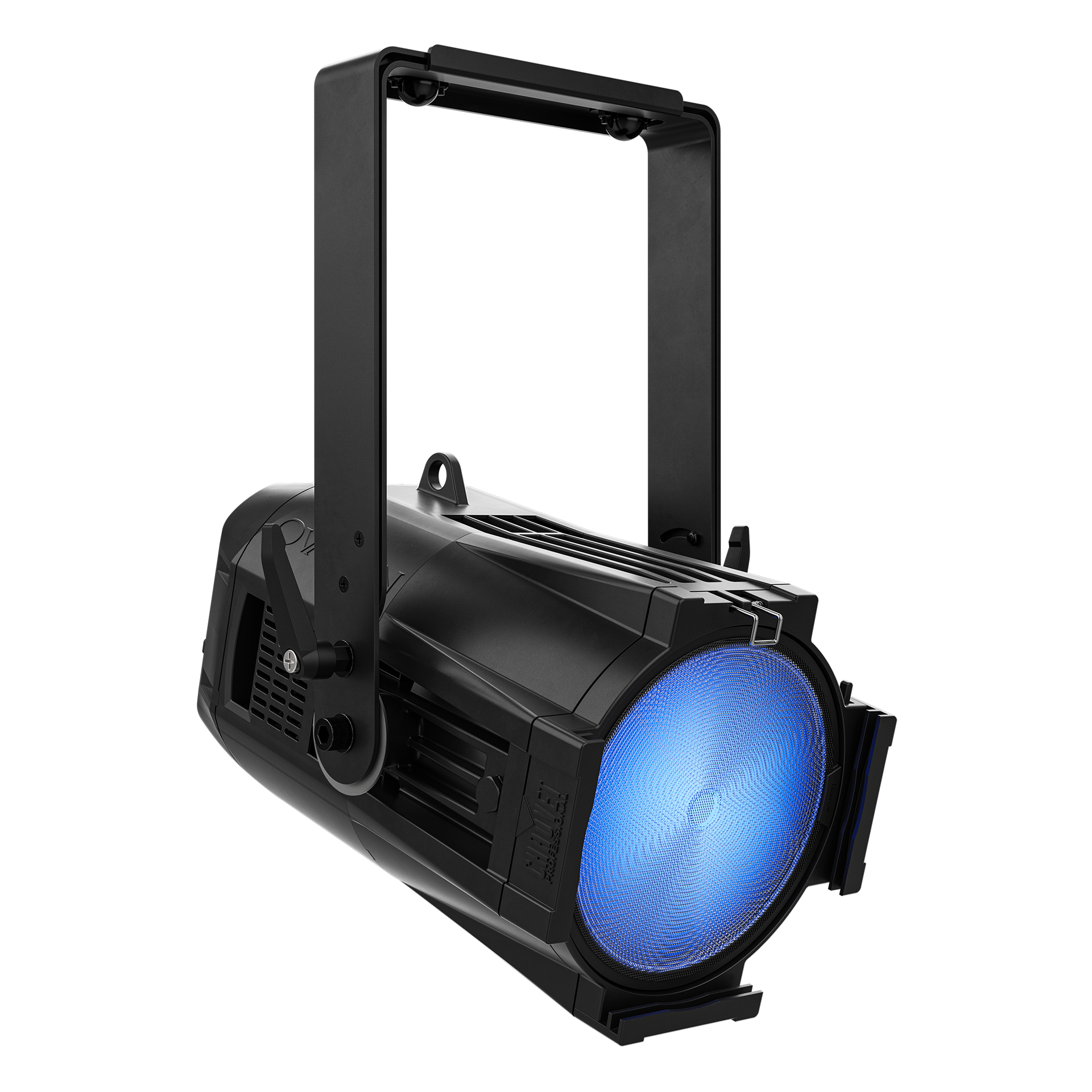

Ovation Rêve P-3 IP
A high-output, IP65-rated LED PAR fixture that delivers multi-color and full-spectrum-white light with exceptional color rendering and versatile beam shaping via four interchangeable lenses.
This powerful instrument is perfectly suited for indoor or outdoor theatrical productions, houses of worship, special events, and rental applications, especially where on-camera performance is critical.
-
Delivers linear color temperature presets from 2800 K to 8000 K with high CRI.
-
Features a fully IP65-rated housing for dependable, all-weather use in any environment.
-
Includes four interchangeable lenses to easily adapt beam angles from narrow spot to wide flood.
-
Adjustable Pulse Width Modulation (PWM) ensures flicker-free operation for broadcast and film.
-
Offers flexible integration with DMX and RDM control across nine operating personalities.
-
An advanced RGBAM LED engine provides full-spectrum color mixing and superior white light.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation Rêve P-3 IP
Handle it all, from a narrow spot to a wide flood. Four interchangeable lenses, one unrivaLED light engine. Ovation Rêve P-3 IP is our brightest IP65-rated multi-color full-spectrum-white LED PAR. An outdoor fixture with unsurpassed power and quality of light that incorporates all the advancements of our Ovation Rêve RGBAM LED source, and offers the versatility of Narrow, Medium, Wide and Very Wide lenses. Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS. Adjustable PWM (Pulse Width Modulation) avoids on camera flicker. Indoors or out, a powerful instrument for theatrical, house of worship, special events, rental and production use.
Features
Versatile LED PAR Fixture
This full-spectrum LED PAR is ideal for rental, production, special events, and theatrical applications.
IP65 Weatherproof Rating
A full IP65 rating ensures reliable performance for seasonal use both indoors and outdoors.
Interchangeable Lens Options
Includes interchangeable narrow, medium, wide, and very wide lenses to easily adapt the beam angle.
USB Software Updates
A built-in USB port allows for simple fixture software updates.
Adjustable Color Temperature
Offers linear color temperature presets from 2800 K to 8000 K with high CRI and CQS for excellent color rendering.
Advanced Color Control
Fine-tune your look with plus/minus green adjustment and emulated red-shift, accessible via DMX or on-board controls.
Complete Your Rig
Specifications
Optical
-
Light Source
80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint) 4.4 to 7.8 W, (2.4 A), 50,000 hours life expectancy.
-
Color Temperature (range)
2800 to 8000 K
-
Color Temperature (at full)
5399 K
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
-
-
Narrow Lens
-
Beam Angle
11.9°
-
Field Angle
20.8°
-
Lumens
10,051
-
-
Narrow Lens
-
-
Medium Lens
-
Beam Angle
25.6°
-
Field Angle
37.8°
-
Illuminance
1,950 lux @ 5 m
-
Lumens
10,079
-
-
Medium Lens
-
-
Wide Lens
-
Beam Angle
29.3°
-
Field Angle
43.1°
-
Illuminance
1,475 lux @ 5 m
-
Lumens
9,936
-
-
Wide Lens
-
-
Very Wide Lens
-
Beam Angle
43.5°
-
Field Angle
87.9°
-
Illuminance
401 lux @ 5 m
-
Lumens
8,380
-
-
Very Wide Lens
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 25 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)
-
Weight
21.4 lb. (9.8 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum diecast
-
Accessory Holder/Gel Frame Size
7.5 in (191 mm)
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
-
Modes/Personalities
9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;
-
Power and Current
274 W, 2.31 A @ 120 V, 60 Hz
-
Power and Current
267 W, 1.38 A @ 208 V, 60 Hz
-
Power and Current
265 W, 1.25 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP65, outdoor/wet, with pressure equalizing M12 GORE valve
-
-
Noise Levels
-
Idle
17.4 dB(A) @ 1 m
-
Auto
30.7 dB(A) @ 1 m
-
On
31.9 dB(A) @ 1 m
-
Off
2.3 dB(A) @ 1 m
-
Silent
11.3 dB(A) @ 1 m
-
-
Noise Levels
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- TRUE1 Style Power Extension Cables
- 5-pin IP65 DMX Cables
- RDM2go
- USB Jump Drive
- Ovation F 7.5” Barndoor V2
What's Included
- Ovation Reve P-3 IP
- Seetronic Powerkon power cord
- Omega bracket with mounting hardware
- Narrow, Medium, Wide, Very Wide Lens
- Gel Frame
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation Rêve P-3 IP – Quick Reference Guide | Download |
Manuals | Ovation Rêve P-3 IP – User Manual | Download |
DMX | Ovation Rêve P-3 IP – DMX Chart | Download |
Other | Ovation Rêve P-3 IP – IES File | Download |
Photometrics | Ovation Rêve P-3 IP – Photometrics Report | Download |
Drawings | Ovation Rêve P-3 IP – CAD Files | Download |
Other | Ovation Rêve P-3 IP – Firmware | Download |
Learn How To Use Your Ovation Rêve P-3 IP
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Designing the CHAUVET Professional Booth at #LDI2025 | LD David Howard Walkthrough
Join lighting designer David Howard for an inside look at the CHAUVET Professional LDI 2025 booth. Discover the creative vision and technical approach behind layering beam, wash, and pixel-based fixtures to build an immersive showcase of lighting innovation and design.
Ovation Rêve P-3 IP FAQ’s
Its versatility comes from being a powerful, all-in-one lighting solution. It is fully weatherproof for both indoor and outdoor use and includes four interchangeable lenses. This allows you to easily change the light beam from a very narrow spot to a wide flood, adapting it for any scene or event.
Yes. It is specifically designed for outdoor use with a weatherproof rating, meaning it is protected against rain and wet conditions. This makes it a reliable choice for seasonal productions, festivals, and any event exposed to the elements.
It produces exceptionally high-quality, natural-looking light. It can create a full spectrum of rich, vibrant colors as well as beautiful white light in various temperatures from warm to cool. Its flicker-free operation also makes it perfect for use on camera for live streams or broadcasts.
