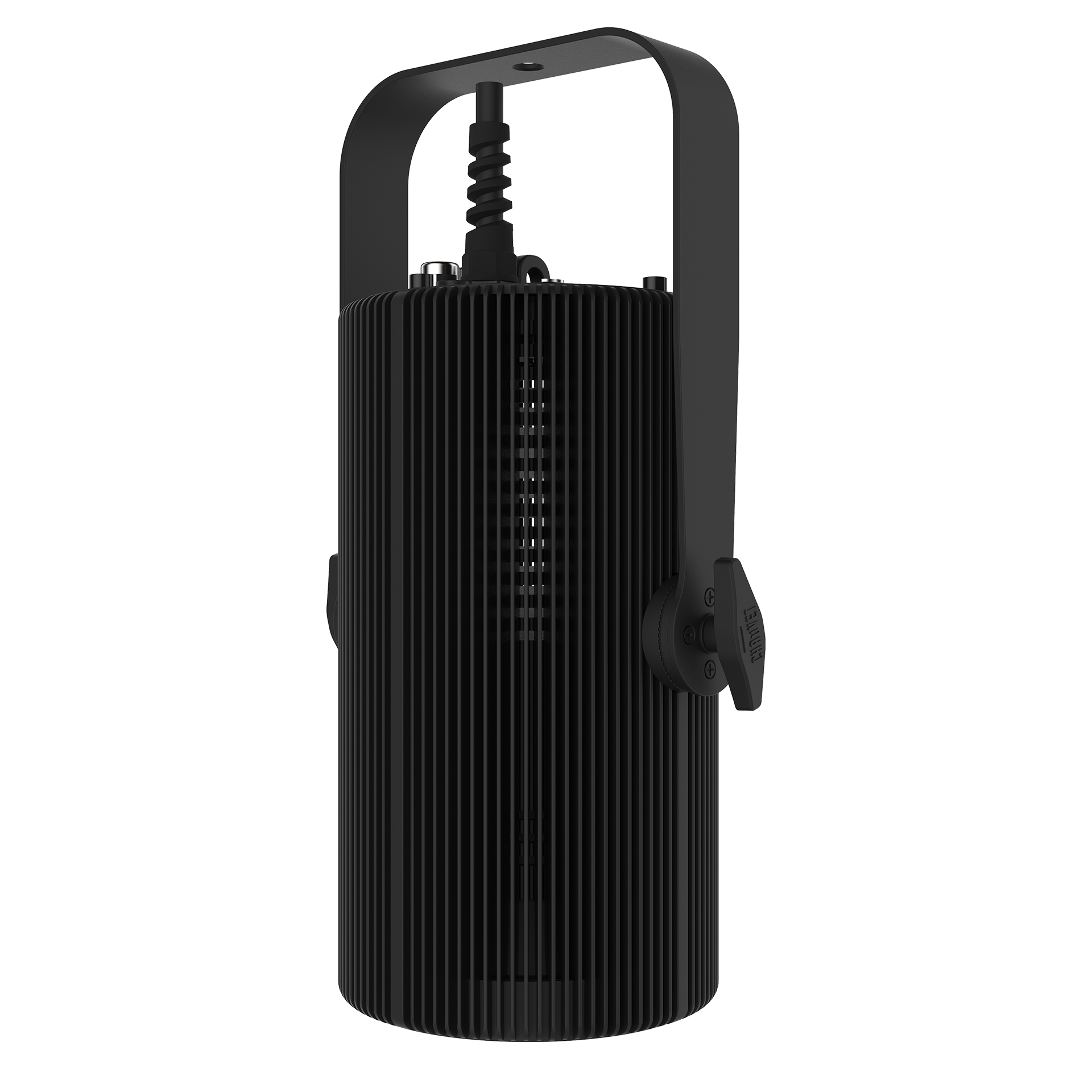

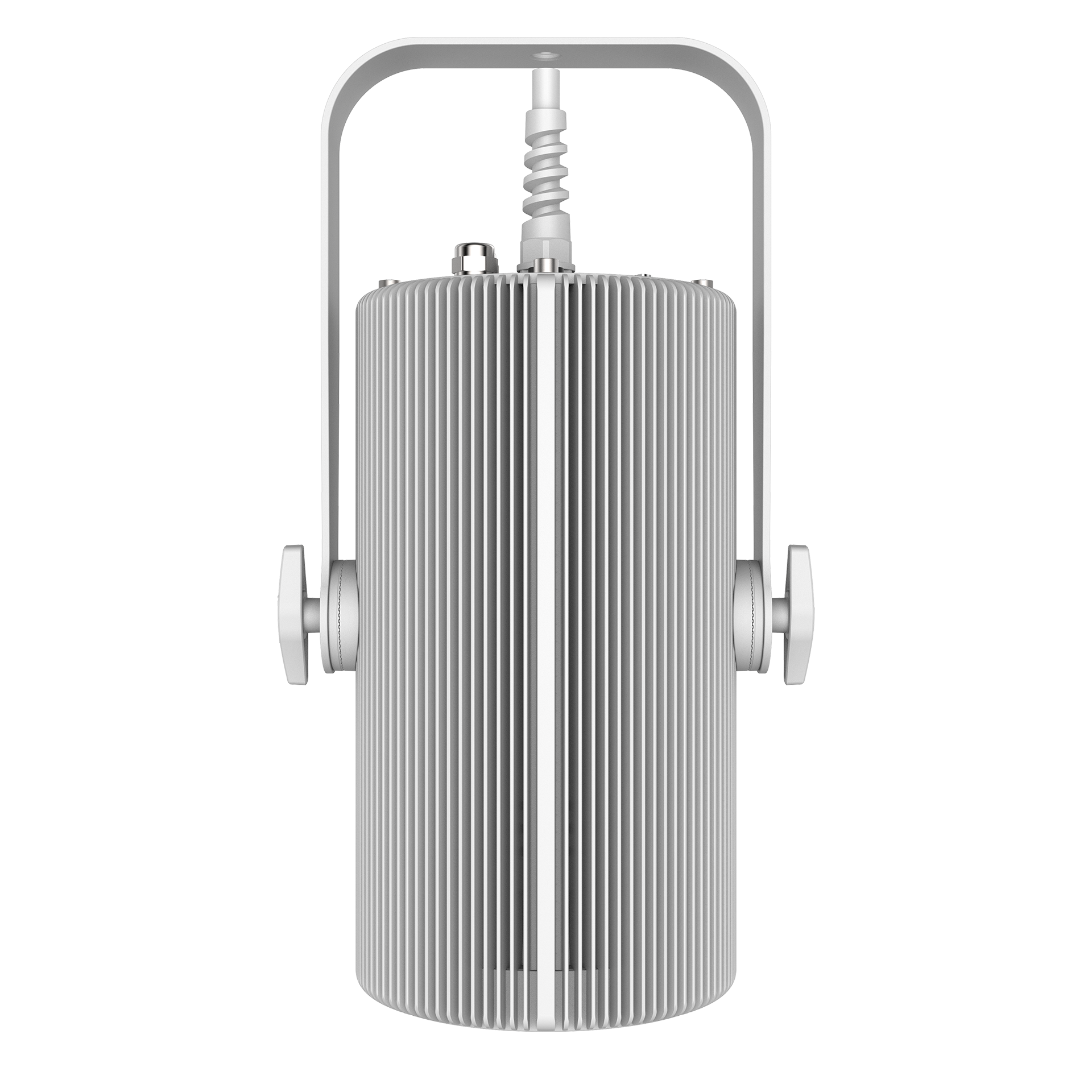

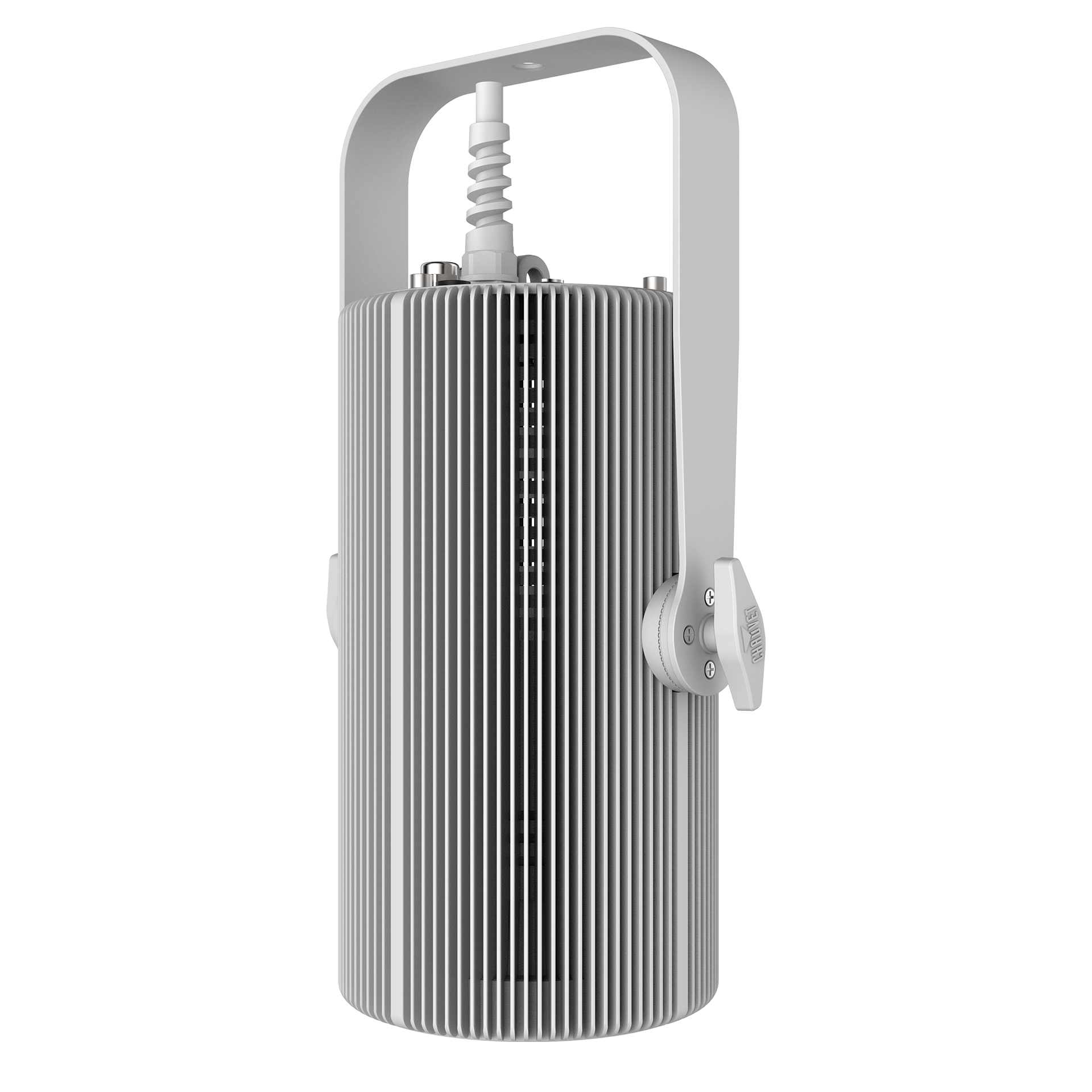

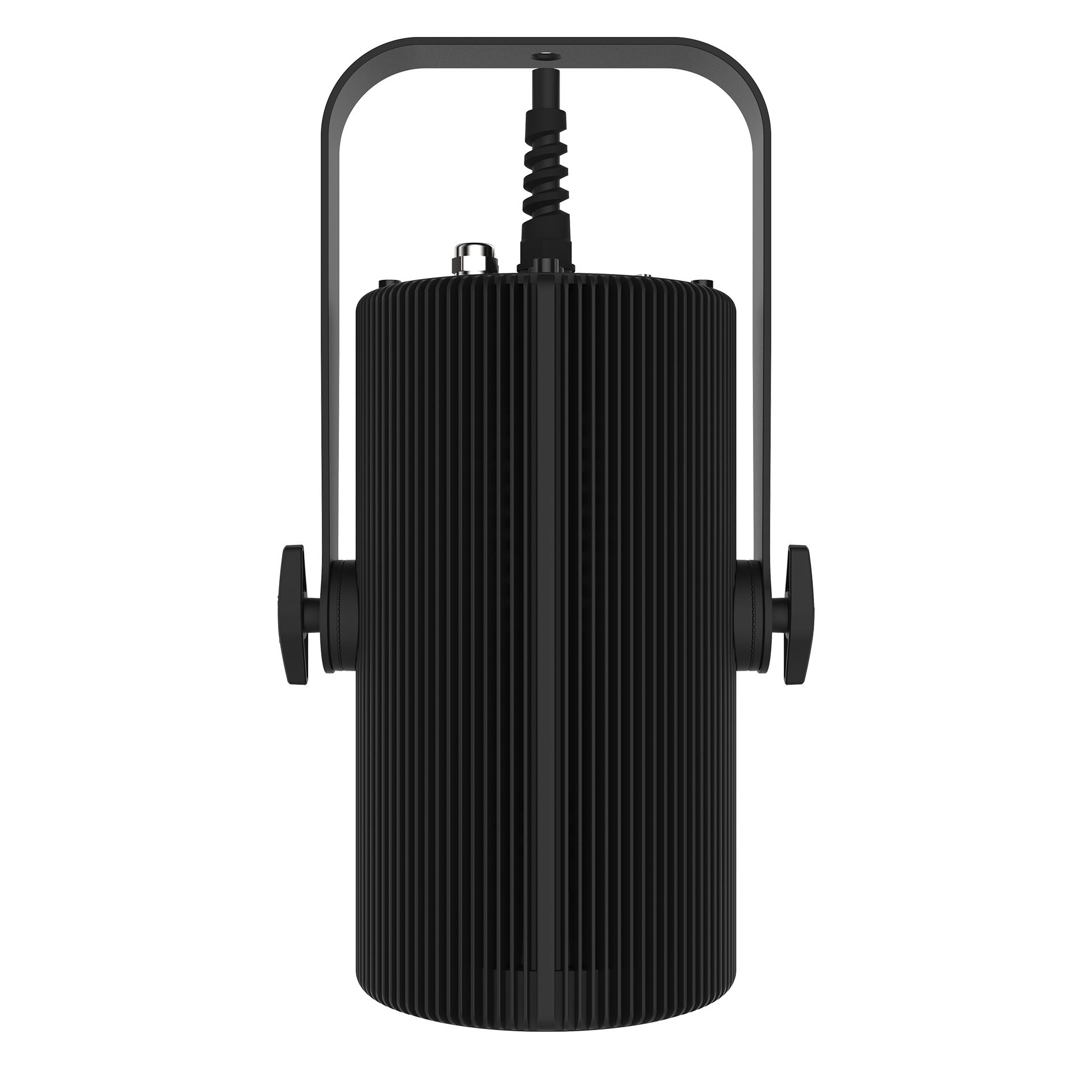

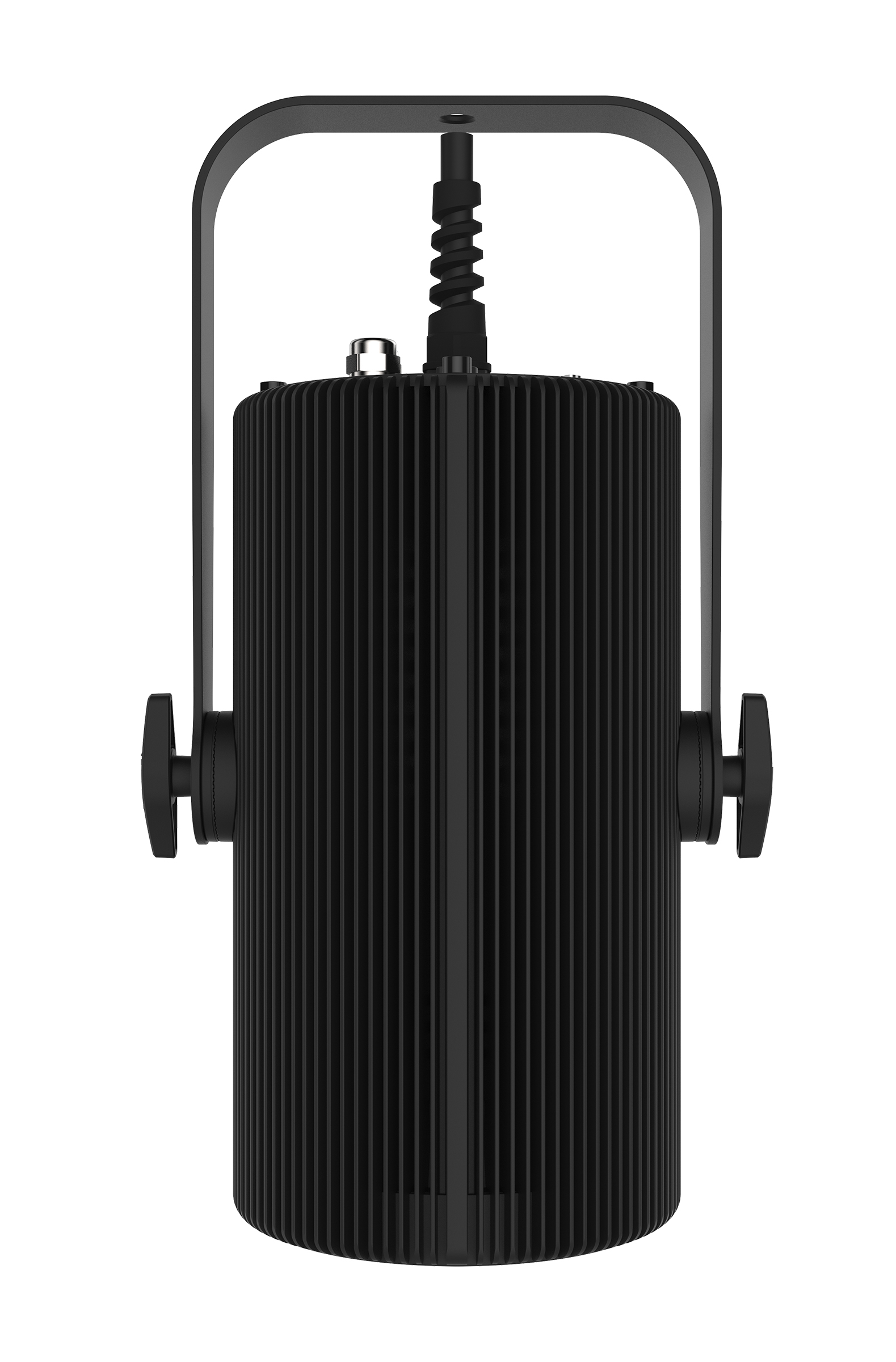

Ovation H-605FC
The Ovation H-605FC is a convection-cooled, full-color house light that utilizes an RGBA-Lime LED system to deliver a massive color spectrum and a wide range of adjustable white temperatures with advanced control features.
Perfectly suited for theatrical and house of worship applications, its silent operation and superior color rendering provide high-quality illumination without distraction.
-
Offers interchangeable lens plates to easily adapt beam angles for various mounting heights.
-
Achieves exceptionally smooth fades and precise intensity control with 16-bit dimming.
-
Supports advanced control protocols including DMX, WDMX, and RDM for programming flexibility.
-
Features versatile DMX integration with both 5-pin XLR and terminal block connections.
-
Includes a virtual color wheel with presets matched to popular gel colors.
-
Ensures flicker-free performance on camera with adjustable Pulse Width Modulation (PWM).
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation H-605FC
Specifications | Download |
Ovation H-605FC Quick Reference Guide | Download |
Ovation H-605FC Quick Reference Guide- Legacy S… | Download |
Ovation H-605FC User Manual | Download |
Ovation H-605FC CAD File | Download |
Ovation H-605FC IES Files | Download |
Ovation H-605FC Photometric Report | Download |
Ovation H-605FC DMX Chart | Download |
Ovation H-605FC DMX Chart- Legacy Software | Download |
Ovation H-605FC ShowXpress Profile | Download |
Ovation H-605FC Specification Sheet | Download |
Firmware | Download |
Firmware | Download |
Ovation H-605FC

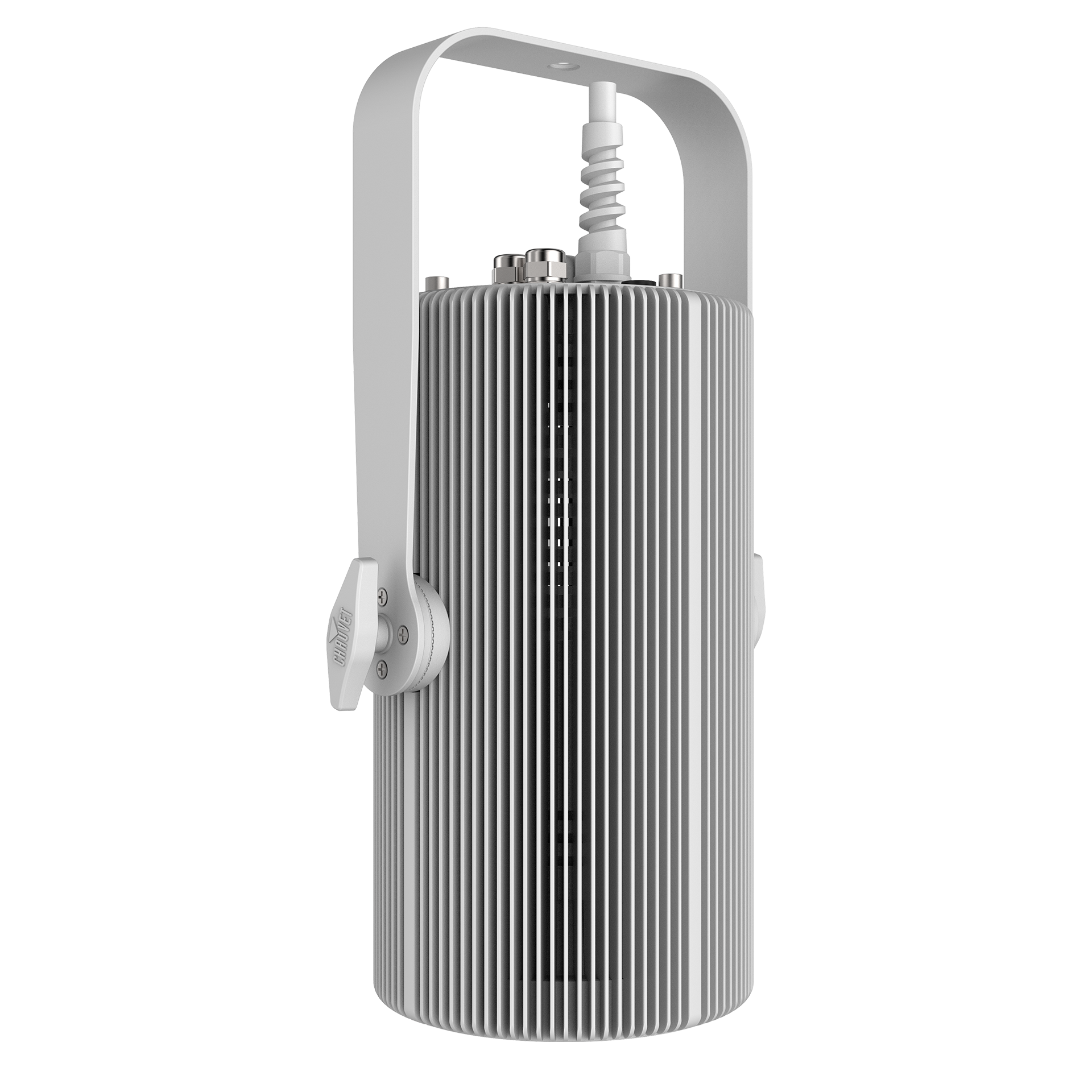

Ovation H-605FC takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display. White housing not available in European Markets.
Features
Full Color RGBAL LED
A convection-cooled houselight featuring a full-color Red, Green, Blue, Amber, and Lime LED engine for rich, vibrant colors.
Interchangeable Lens Plates
Easily adapt the beam to different mounting heights with swappable lens plates.
Flexible DMX Connections

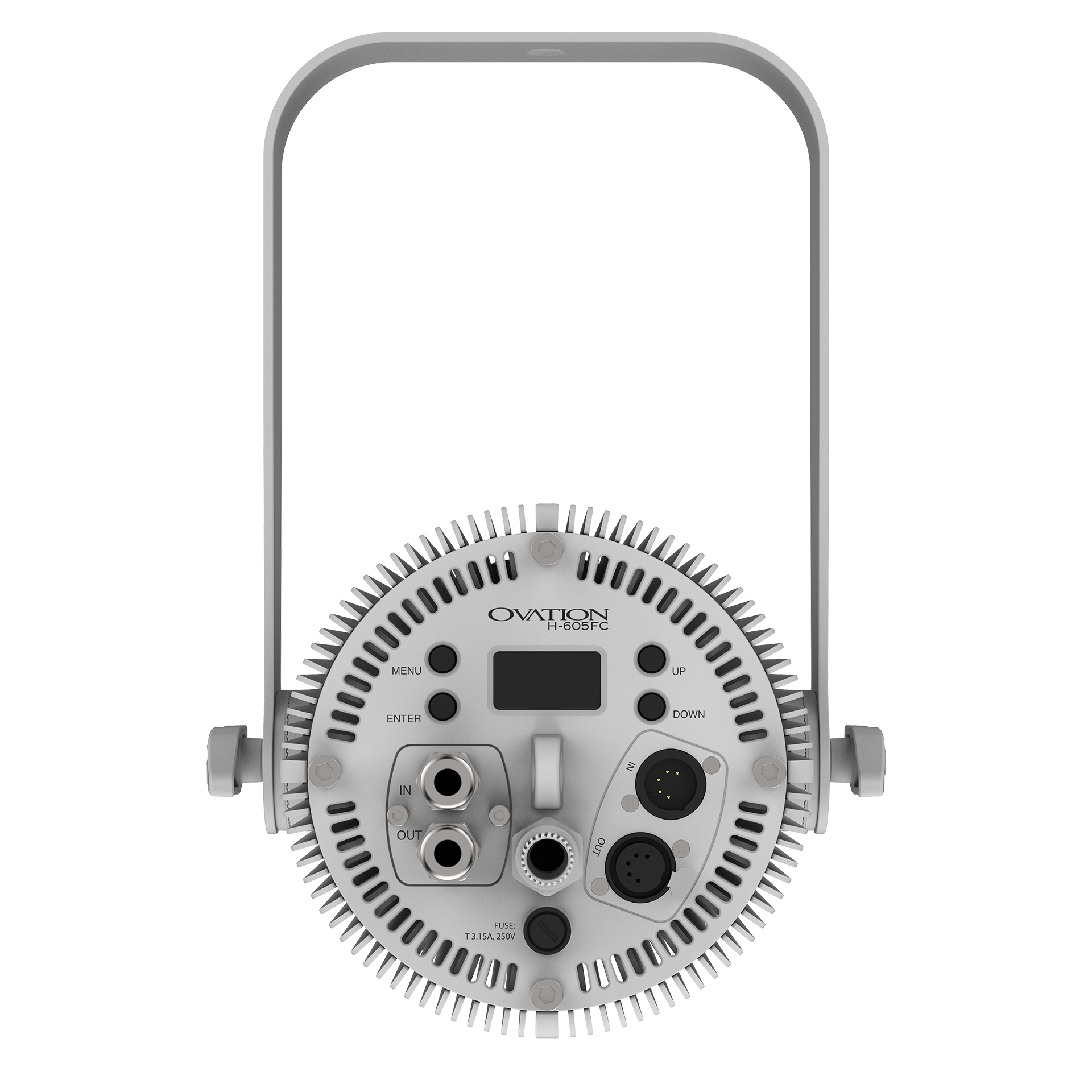

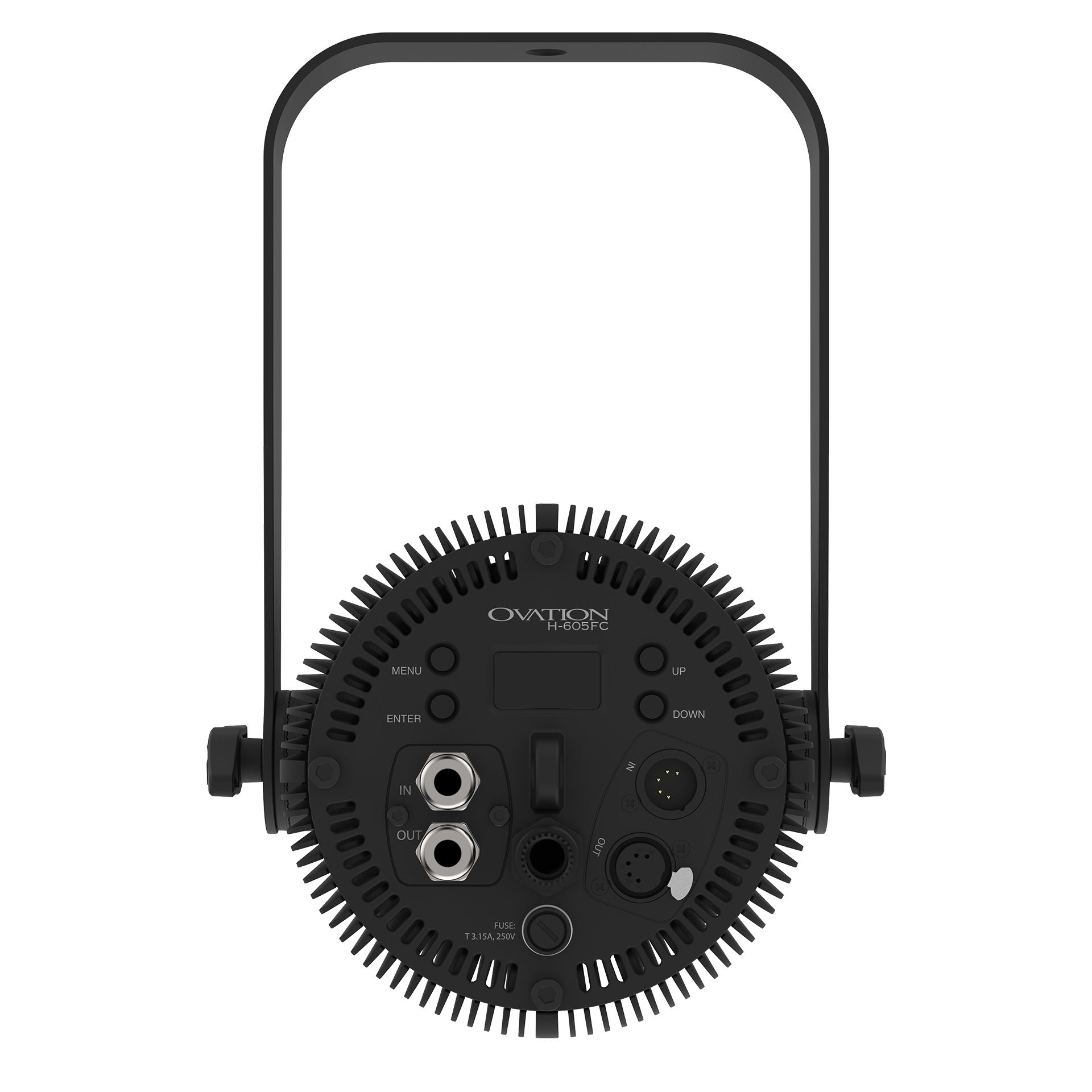

Offers both 5-pin XLR and terminal block connections for seamless DMX integration.
Versatile Mounting Options

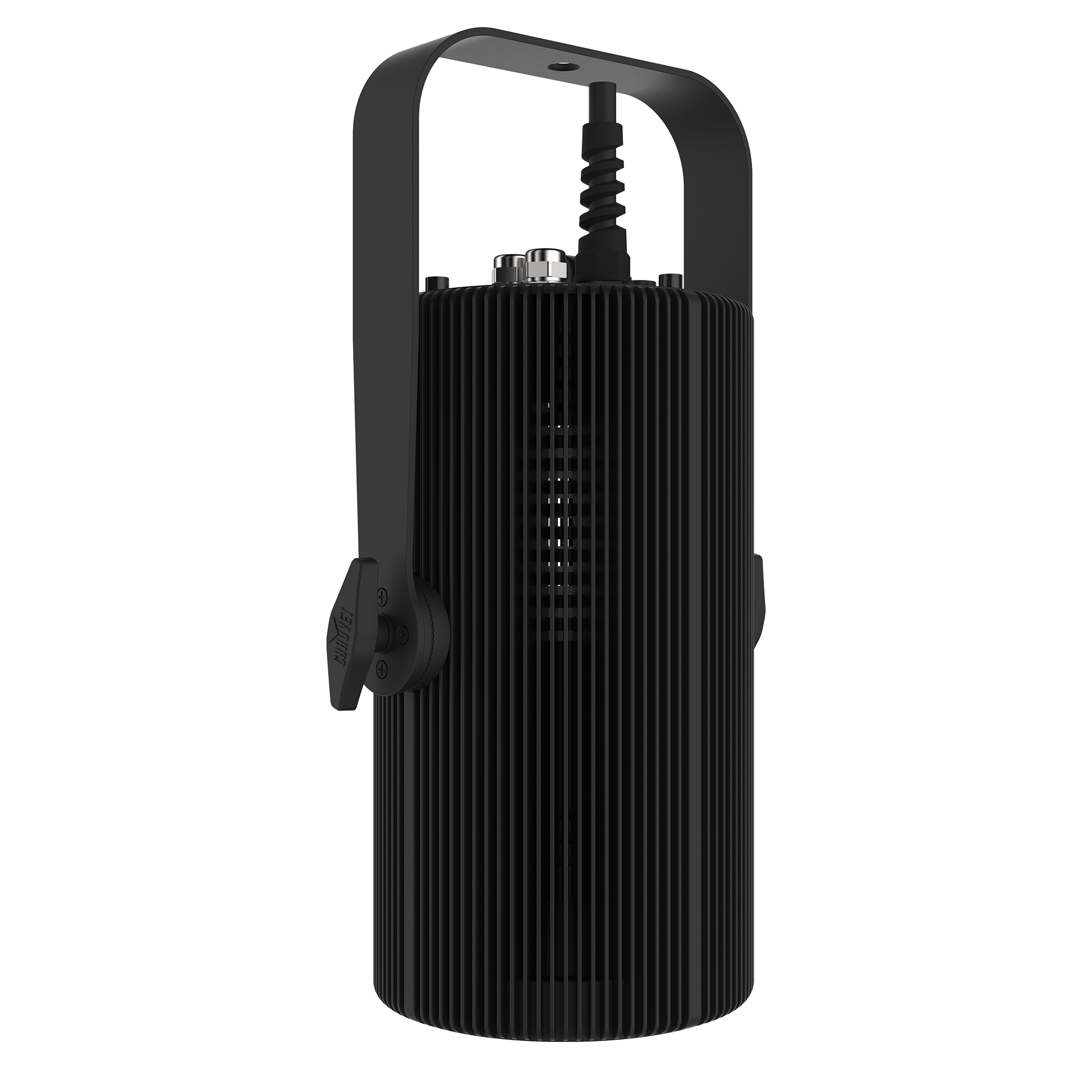

Mount the fixture on a pipe using the included yoke or suspend it via the integrated loop-eye.
Virtual Color Wheel
Access a virtual color wheel with presets matched to popular gel colors for quick and familiar operation.
Adjustable Color Temperature
Select color temperature presets from 2800 K to 6500 K, all with high CRI and CQS for superior light quality.
16-Bit Dimming
Achieve exceptionally smooth fades and precise intensity control with 16-bit dimming.
Advanced Control Protocols
Supports DMX, WDMX, and RDM for enhanced programming flexibility and remote device management.
Flicker-Free Operation
Adjust the Pulse Width Modulation (PWM) to ensure flicker-free performance on camera.
Complete Your Rig
Specifications
Optical
-
Light Source
60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy
-
Color Temperature (at full)
5714 K
-
CRI (5600 K)
87
-
-
Beam Angle
-
(W/80° Filter)
48°
-
(W/65° Lens)
68°
-
(W/45° Lens)
36°
-
(W/25° Lens)
26°
-
-
Beam Angle
-
-
Field Angle
-
(W/80° Filter)
135°
-
(W/65° Lens)
97°
-
(W/45° Lens)
82°
-
(W/25° Lens)
47°
-
-
Field Angle
-
Dimming Modes
4
-
-
Illuminance
-
Illuminance (w/80° filter)
147 lux @ 5 m
-
Illuminance (w/65° lens)
178 lux @ 5 m
-
Illuminance (w/45° lens)
353 lux @ 5 m
-
Illuminance (w/25° lens)
652 lux @ 5 m
-
-
Illuminance
-
Lumens (w/80° filter)
4,409
-
Lumens (w/65° lens)
5,288
-
Lumens (w/45° lens)
5,446
-
Lumens (w/25° lens)
5,121
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 27 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
-
Weight
19.6 lb (8.9 kg)
-
Exterior Color
Black or White
Connections
-
Power Connection
Bare-wired
-
Power Input
Hard-wired
-
Data Connectors
5-pin XLR, Phoenix connector
-
Cable Length (power)
15 ft (4.5 m)
Control
-
Control Protocol
, DMX, RDM, W-DMX™
-
DMX Channels
2, 4, 5, 8, 11, 13, 14, 16 or HSV
-
Modes/Personalities
9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
145 W, 1.43 A @ 100 V, 60 Hz
-
Power and Current
142 W, 1.19 A @ 120 V, 60 Hz
-
Power and Current
146 W, 0.704 A @ 208 V, 60 Hz
-
Power and Current
145 W, 0.627 A @ 230 V, 50 Hz
-
Power and Current
145 W, 0.605 A @ 240 V, 60 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
Compatible Accessories
- W-DMX™ Transmitter
- Professional Clamps: CTC-50HC, CTC-50HCN
- 5-pin DMX Cables
- RDM2go
What's Included
- Ovation H-605FC
- 65°, 45° and 25° lenses
- 80° filter
- Egg crate
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation H-605FC Quick Reference Guide | Download |
Manuals | Ovation H-605FC Quick Reference Guide- Legacy Software | Download |
Manuals | Ovation H-605FC User Manual | Download |
Drawings | Ovation H-605FC CAD File | Download |
Photometrics | Ovation H-605FC IES Files | Download |
Photometrics | Ovation H-605FC Photometric Report | Download |
DMX | Ovation H-605FC DMX Chart | Download |
DMX | Ovation H-605FC DMX Chart- Legacy Software | Download |
Other | Ovation H-605FC ShowXpress Profile | Download |
Other | Ovation H-605FC Specification Sheet | Download |
Manuals | Ovation H-605FC ( White ) – Firmware | Download |
Other | Ovation H-605FC – Firmware | Download |
Learn How To Use Your Ovation H-605FC
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Ovation H-605FC by CHAUVET Professional
The Ovation H-605FC from CHAUVET Professional delivers superior color rendering for theatrical and house of worship applications. Its convection-cooled RGBA-Lime engine provides a massive color spectrum and silent operation, while advanced control options like W-DMX and RDM ensure seamless integration into any professional rig.
Ovation H-605FC FAQ’s
The Ovation H-605FC is a house light designed for venues like theaters and houses of worship where silence is critical. It operates without any fan noise, so it won’t disrupt performances or services. Its primary use is to provide high-quality, full-color overhead lighting for the audience area.
Yes, it excels at creating a massive range of colors. Using a special five-color LED system (Red, Green, Blue, Amber, and Lime), it can produce everything from deep, saturated colors to soft pastels. It can also generate a wide spectrum of high-quality white light, from warm to cool tones, and includes presets that match popular lighting gel colors.
It is very adaptable. The fixture comes with several interchangeable lenses that let you easily change the beam of light from wide to narrow, making it suitable for venues with various ceiling heights. It also offers flexible control options, including built-in wireless DMX, which simplifies installation by reducing the need for data cables.
