    Ovation GR-1 IP

    An IP65-rated gobo rotator accessory that provides dynamic pattern projection for Ovation E-260WW IP and E-910FC IP fixtures by drawing power and control directly from the host unit.
    Perfect for adding textured lighting and logos to outdoor theatrical productions, themed environments, and architectural designs where weather resistance is crucial.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: OVATIONGR1IP

    Ovation GR-1 IP

    Specifications
    		 Download
    Ovation GR-1 IP Quick Reference Guide
    		 Download
    Ovation E-260WW IP DMX Chart
    		 Download
    Ovation GR-1 IP CAD Drawings
    		 Download
    Download All Resources

    Ovation GR-1 IP

    SKU: OVATIONGR1IP

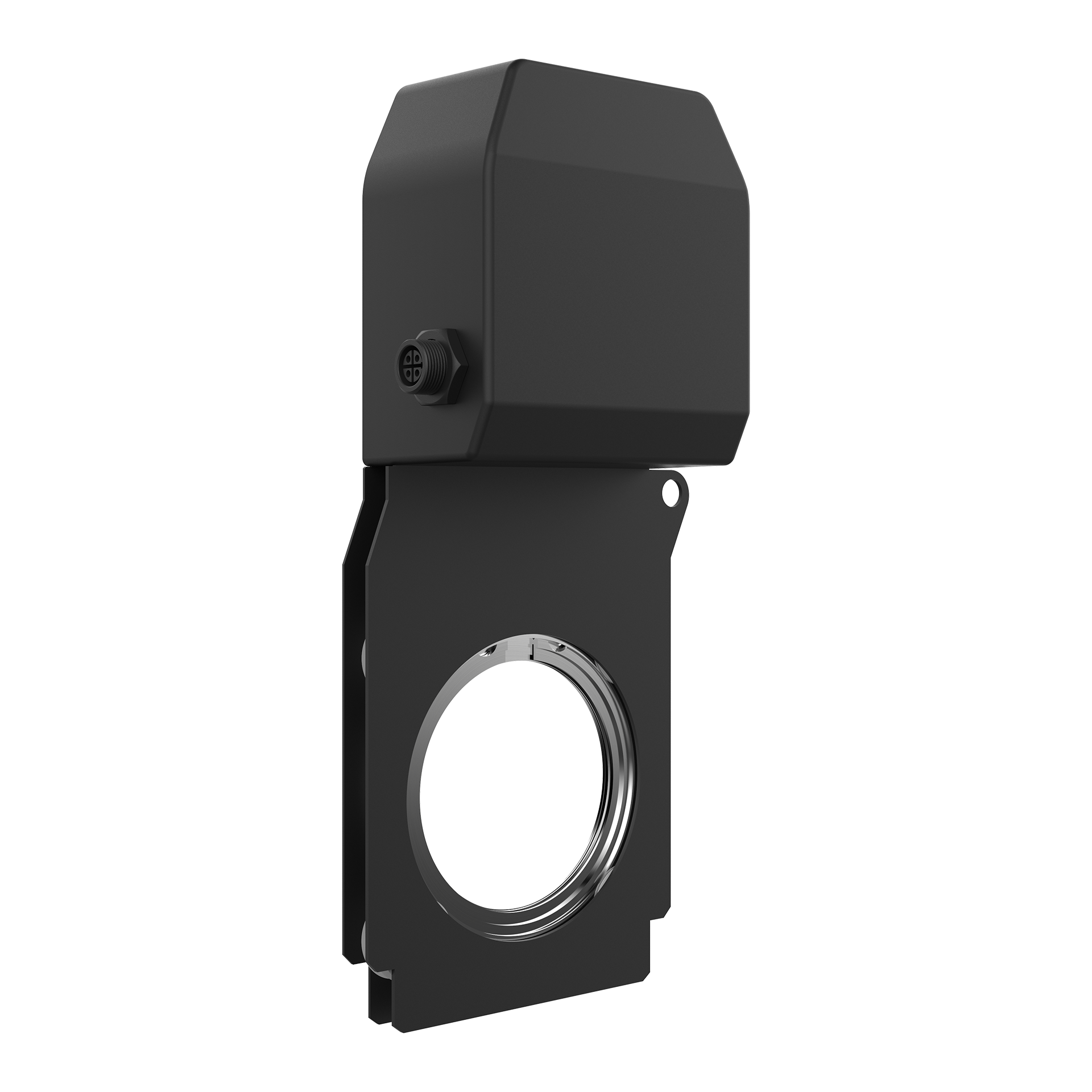

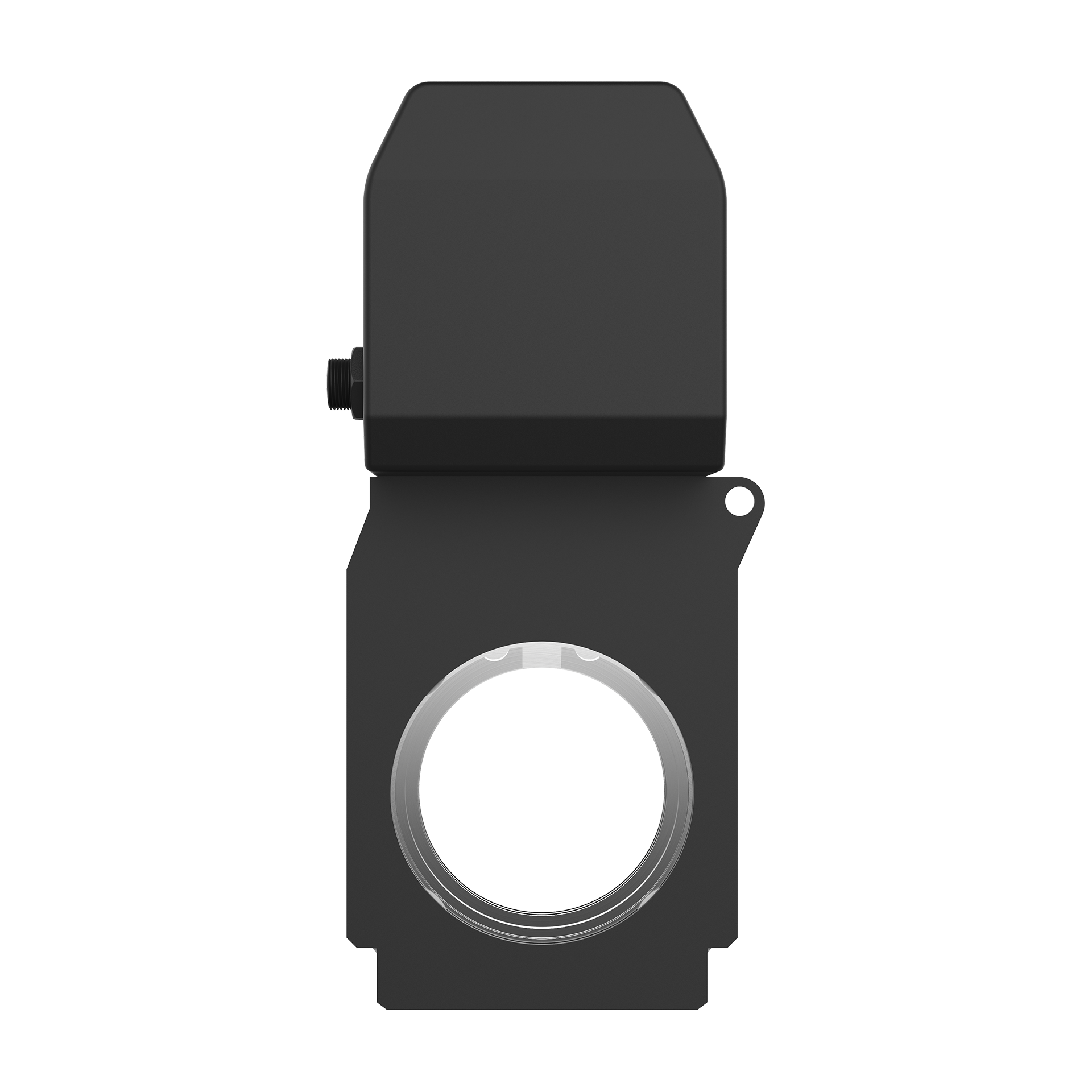

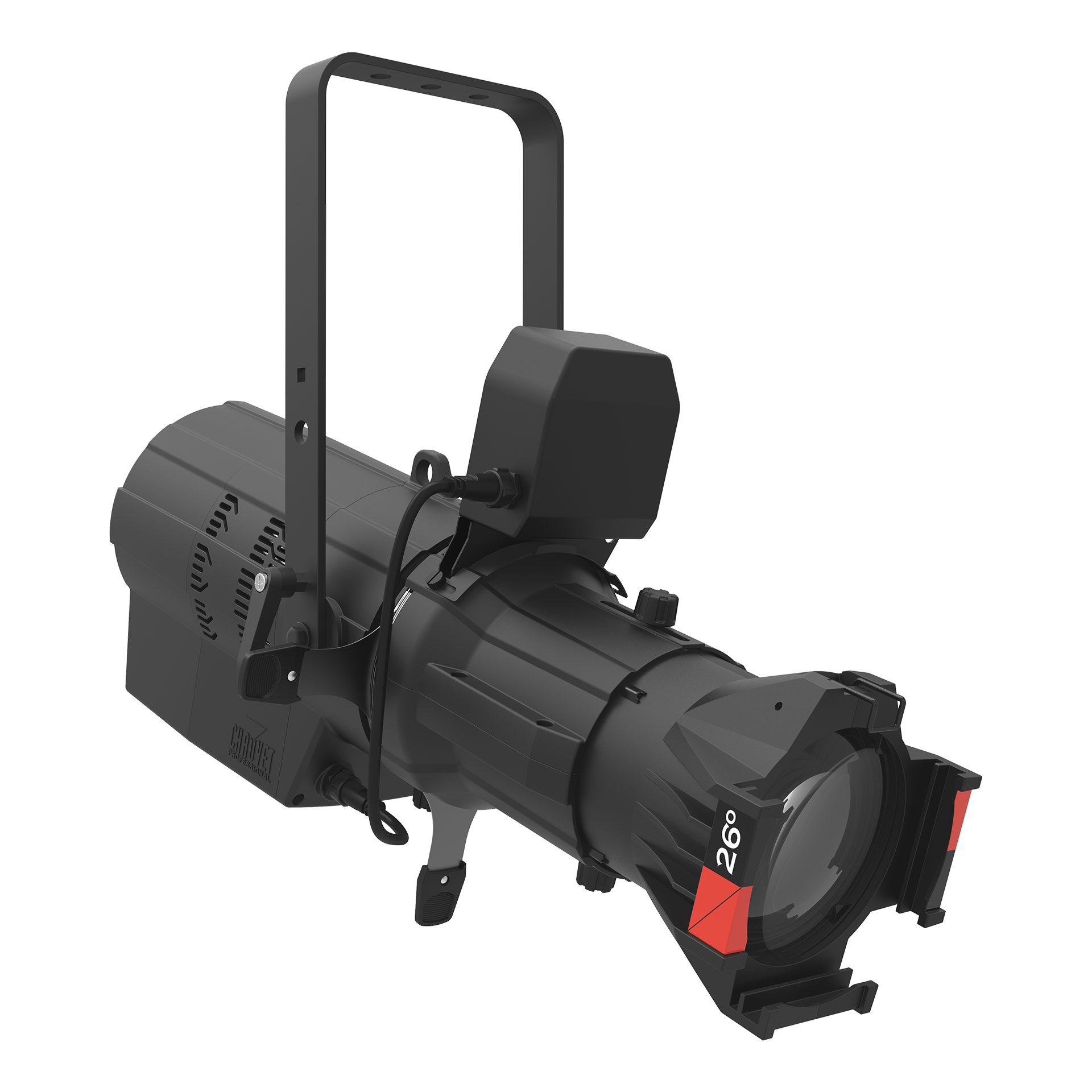

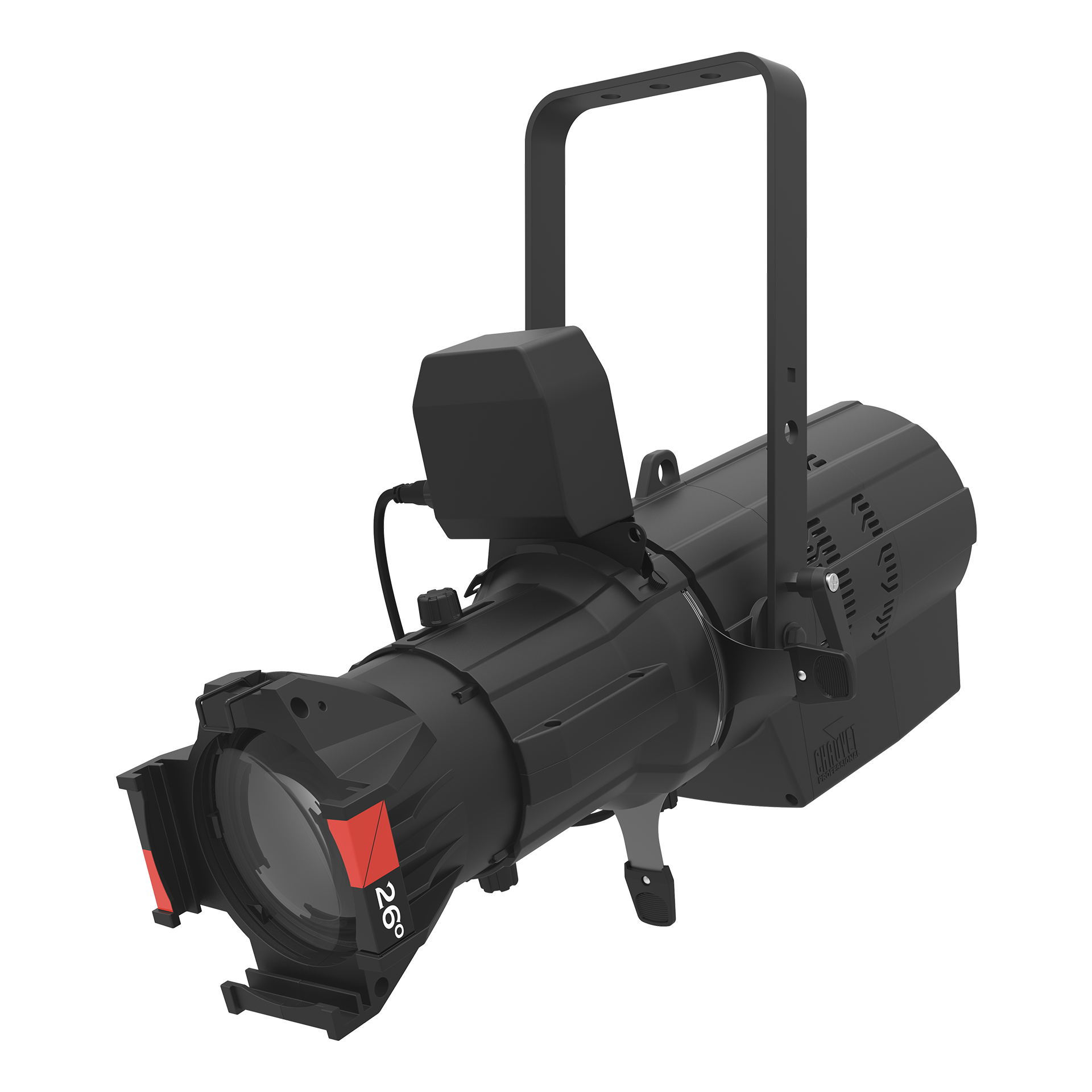

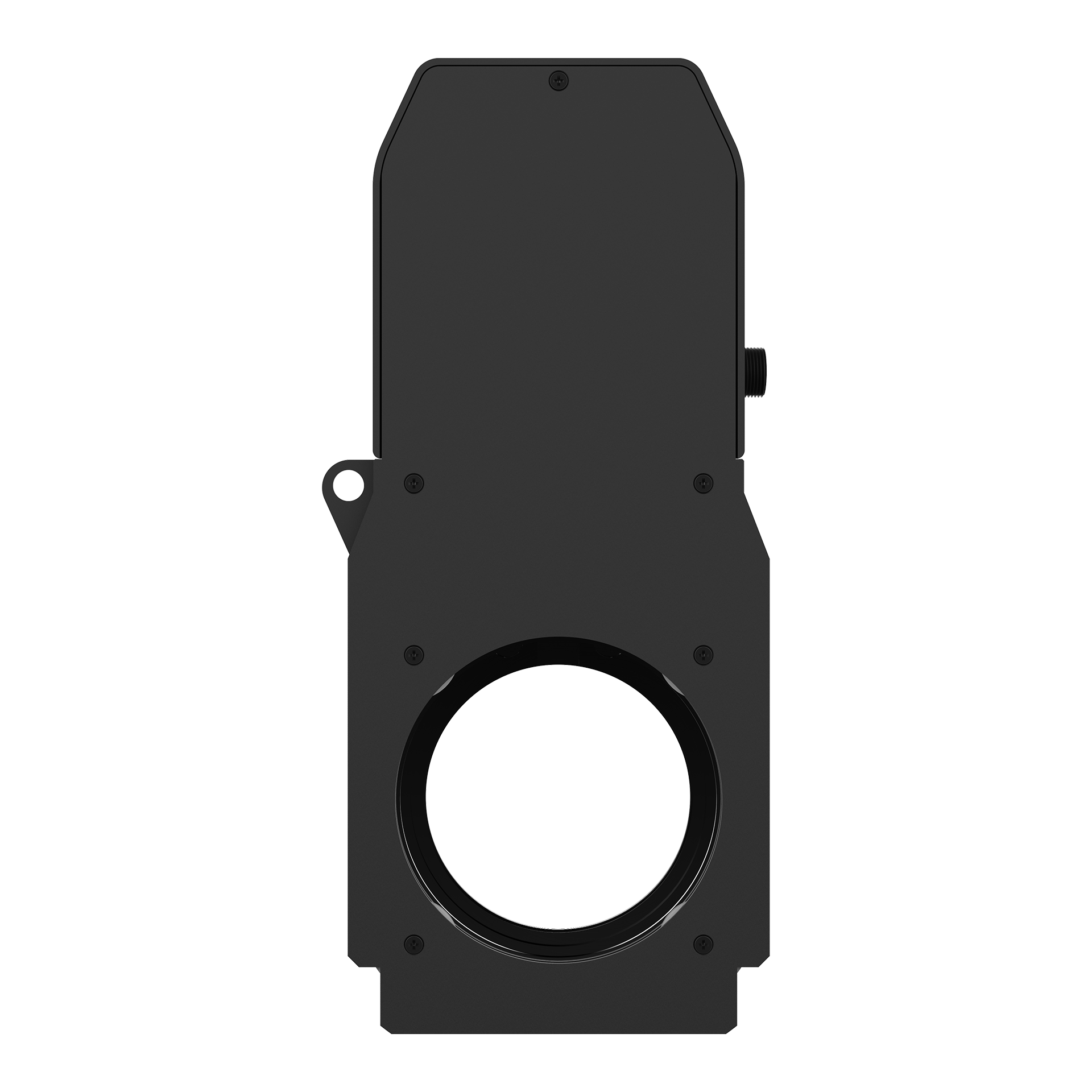

    Ovation GR-1 IP is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality.

    Features

    IP65 Gobo Rotator

    This weather-resistant rotator can spin a single gobo or two gobos in counter-rotating directions.

    Full Ovation Control

    Integrates seamlessly for complete control through the Ovation E-260WW IP’s existing control personalities.

    Variable Speed Rotation

    Achieve a wide range of bi-directional rotational speeds from a slow 0.047 RPM up to 21 RPM.

    Precise DMX Indexing

    Allows for fully indexable gobo positioning via DMX for exact and repeatable alignment.

    Integrated Power Supply

    Draws both power and control signals directly from the connected Ovation E-260WW IP fixture.

    Smooth Stepper Motor Drive

    A high-quality stepper motor provides exceptionally smooth and quiet movement without stalling or stuttering.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Dynamic Effects

    • Gobos size

      B (metal, glass or effect)

    • Effects

      CW or CCW Rotation, indexing, infinite rotation at variable speeds

    • Speed Range

      0.047 – 21 RPM (17° – 7,560° per minute)

    Construction/Physical

    • Dimensions

      10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)

    • Weight

      2.4 lb (1.2 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum die-cast

    Connections

    • Power Connection

      Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)

    • Data Connectors

      Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)

    • Cable Length (power/data)

      19 in/483 mm

    Control

    • Control Protocol

      DMX

    • DMX Channels

      1

    Electrical

    Certifications/Qualifications

    • Certifications

      CE

    • IP Rating

      IP65, temporary outdoor/wet use

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    What's Included

    • Ovation GR-1 IP
    • Power & Data Control Cable

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Ovation GR-1 IP Quick Reference Guide
    		Download
    Ovation E-260WW IP DMX Chart
    		Download
    Ovation GR-1 IP CAD Drawings
    		Download

    Ovation GR-1 IP FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Ovation GR-1 IP
    What is the Ovation GR-1 IP used for?

    The Ovation GR-1 IP is a special accessory that attaches to specific Ovation stage lights. It holds a patterned disc (called a gobo) and rotates it to project moving images, logos, or textures onto walls, floors, or stages. Its movement is exceptionally smooth and quiet.

    Can the Ovation GR-1 IP be used outdoors?

    Yes, it is designed to be fully weatherproof. This allows it to be used with compatible Ovation outdoor lights for events, concerts, or architectural installations, even in wet conditions.

    How do you power and control the Ovation GR-1 IP?

    It’s designed for simple setup. A single, dedicated cable connects the rotator directly to a compatible Ovation light fixture. This one cable provides both power and control, so no extra power cords or data cables are required.
