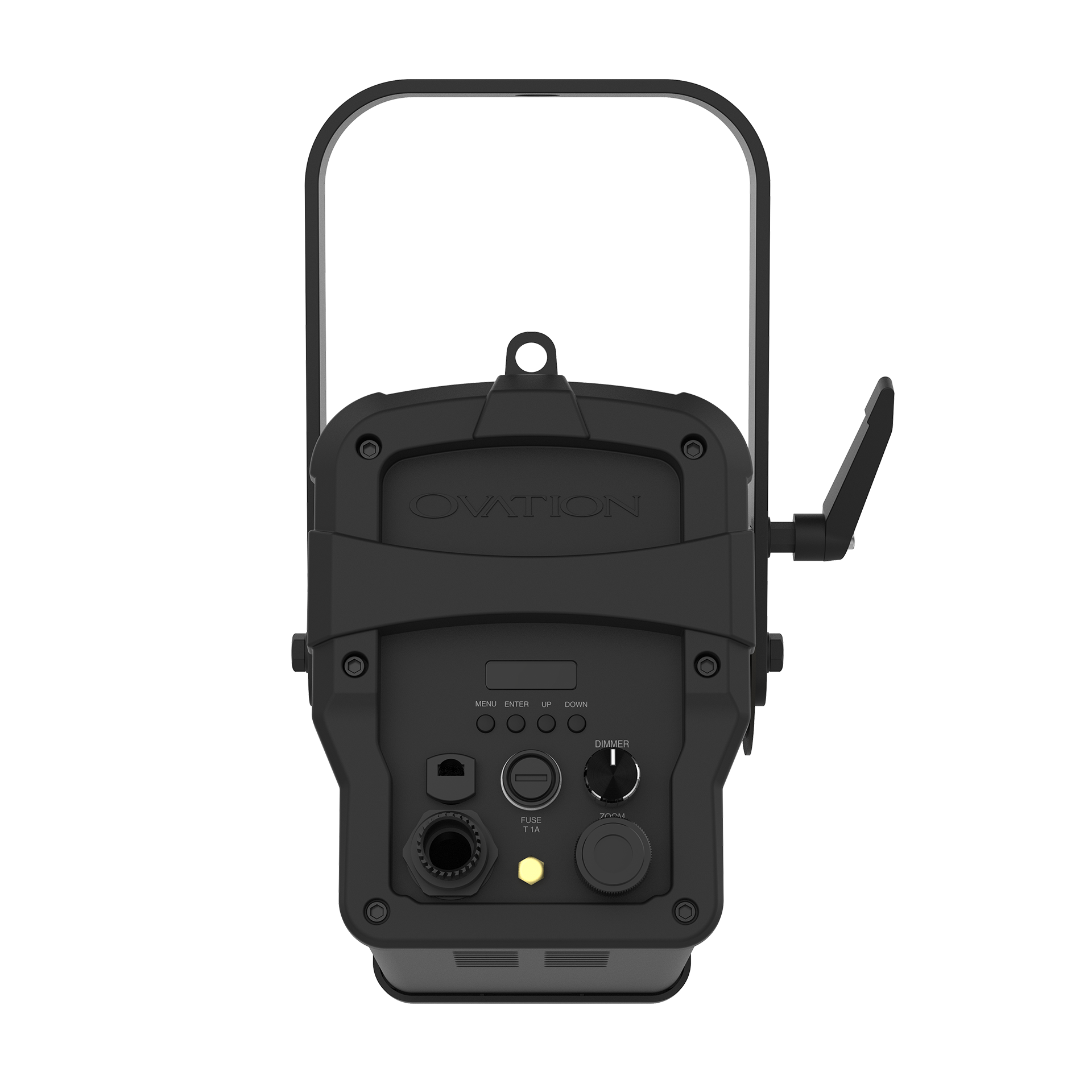

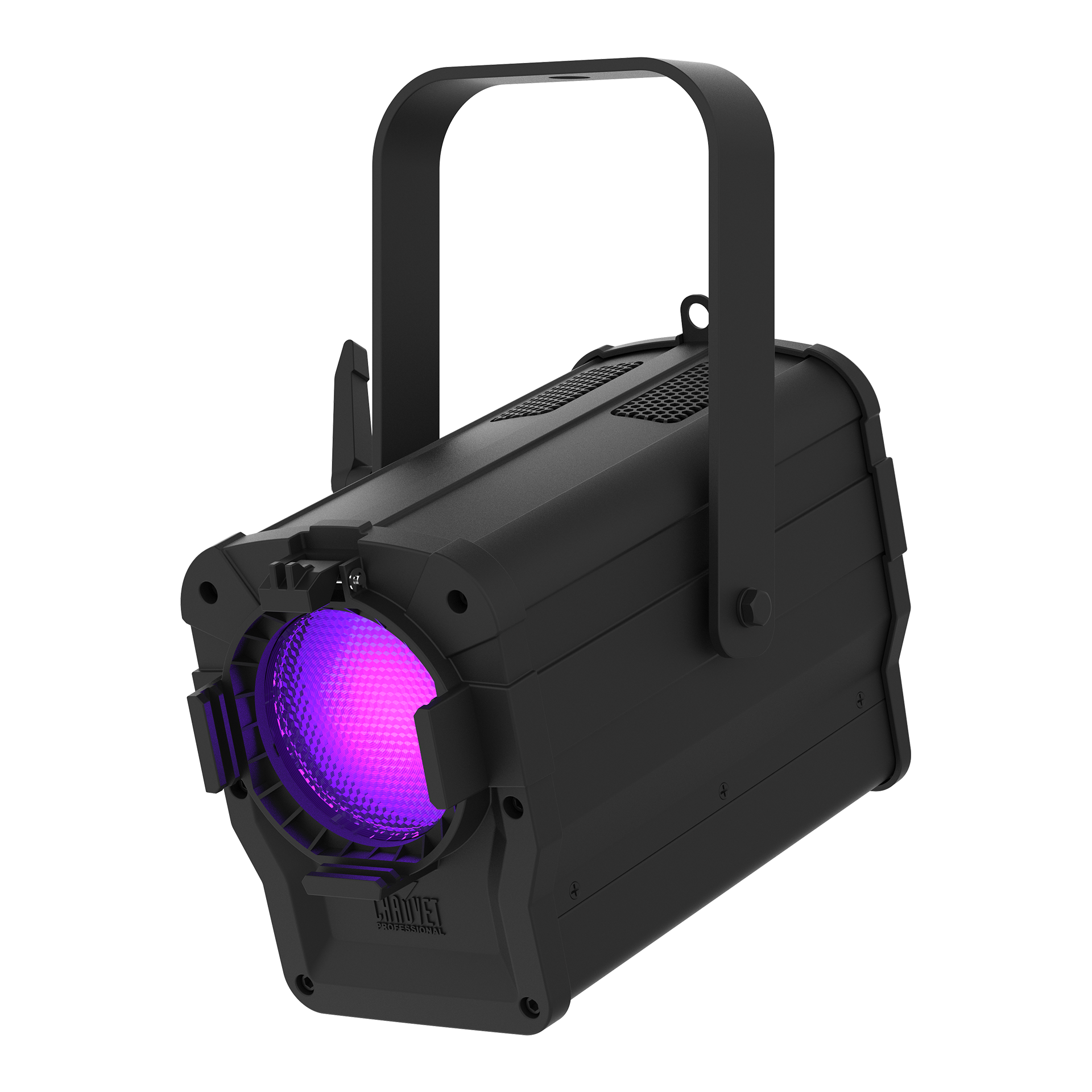

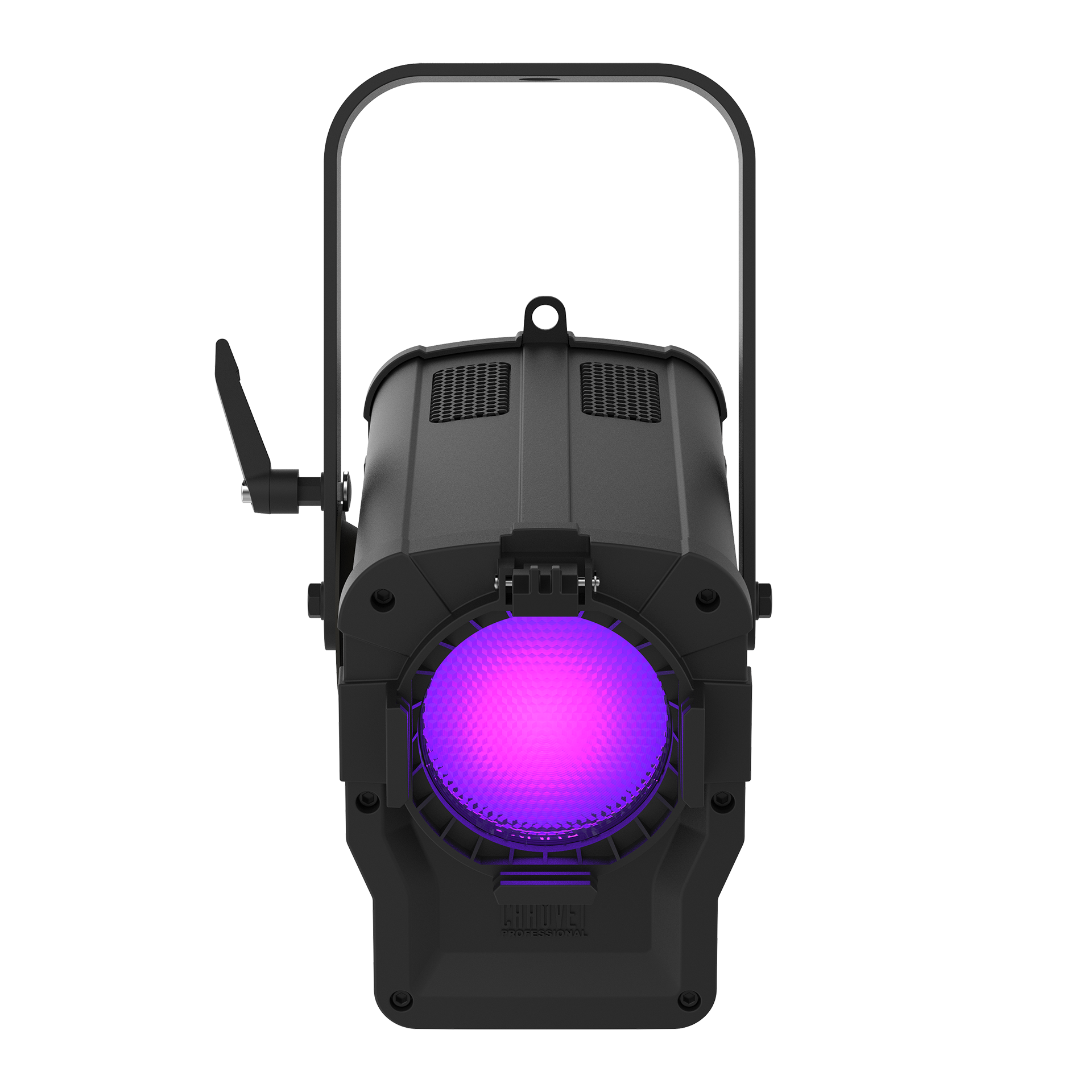

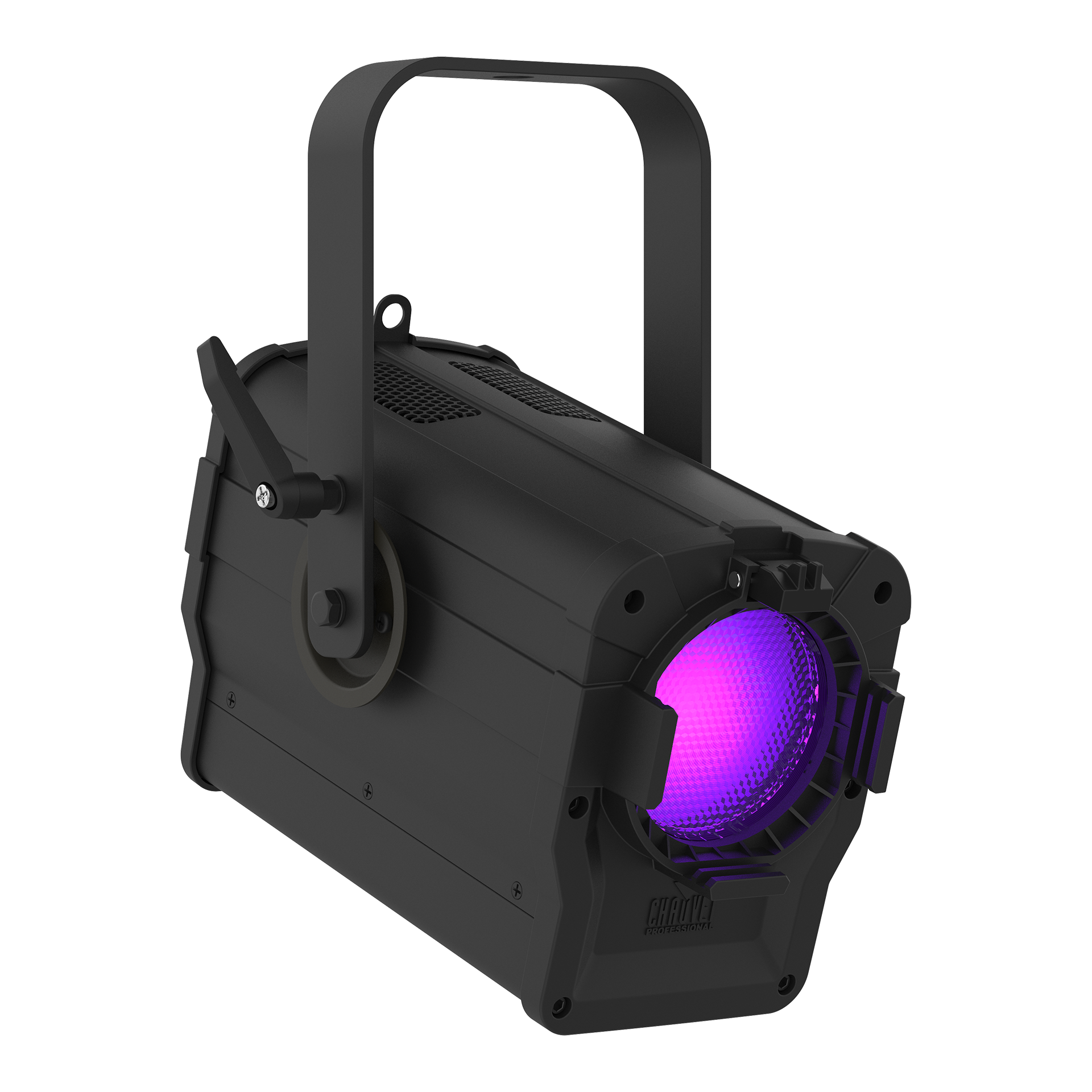

Ovation F-55FC

Optical

• Light Source

  15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4 W, (700 mA), 3779 K, 50,000 hours life expectancy

• Color Temperature (at full)

  3779 K

• CRI (3200 K)

  91

• Beam Angle

  18° to 67°

• Field Angle

  32° to 87°

• Zoom Range

  18° to 87°

• Lumens (30°)

  114

• Lumens (69°)

  462

• • Illuminance
    • Illuminance (32°)

      36 lux @ 5 m

    • Illuminance (73°)

      18 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Manual

• Strobe Rate

  0 to 30 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  4

• Built-in Automated Programs

  Yes

Construction/Physical

• Dimensions

  9.64 x 4.64 x 6.53 in (245 x 118 x 166 mm)

• Weight

  5.4 lb (2.4 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

• Accessory Holder/Gel Frame Size

  3.25 in (83 mm)

Connections

• Power Connection

  Edison plug to hard-wired

• Power Input

  Hard-wired

• Data Connectors

  5-pin XLR

• Cable Length (signal)

  1.79 ft (0.54 m)

• Cable Length (power)

  3.5 ft (1.07 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  3, 5, 7, 10, 12, 13 or 15

• Modes/Personalities

  8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  28 W, 0.392 A @ 120 V, 60 Hz

• Power and Current

  27 W, 0.243 A @ 208 V, 60 Hz

• Power and Current

  27 W, 0.224 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location
