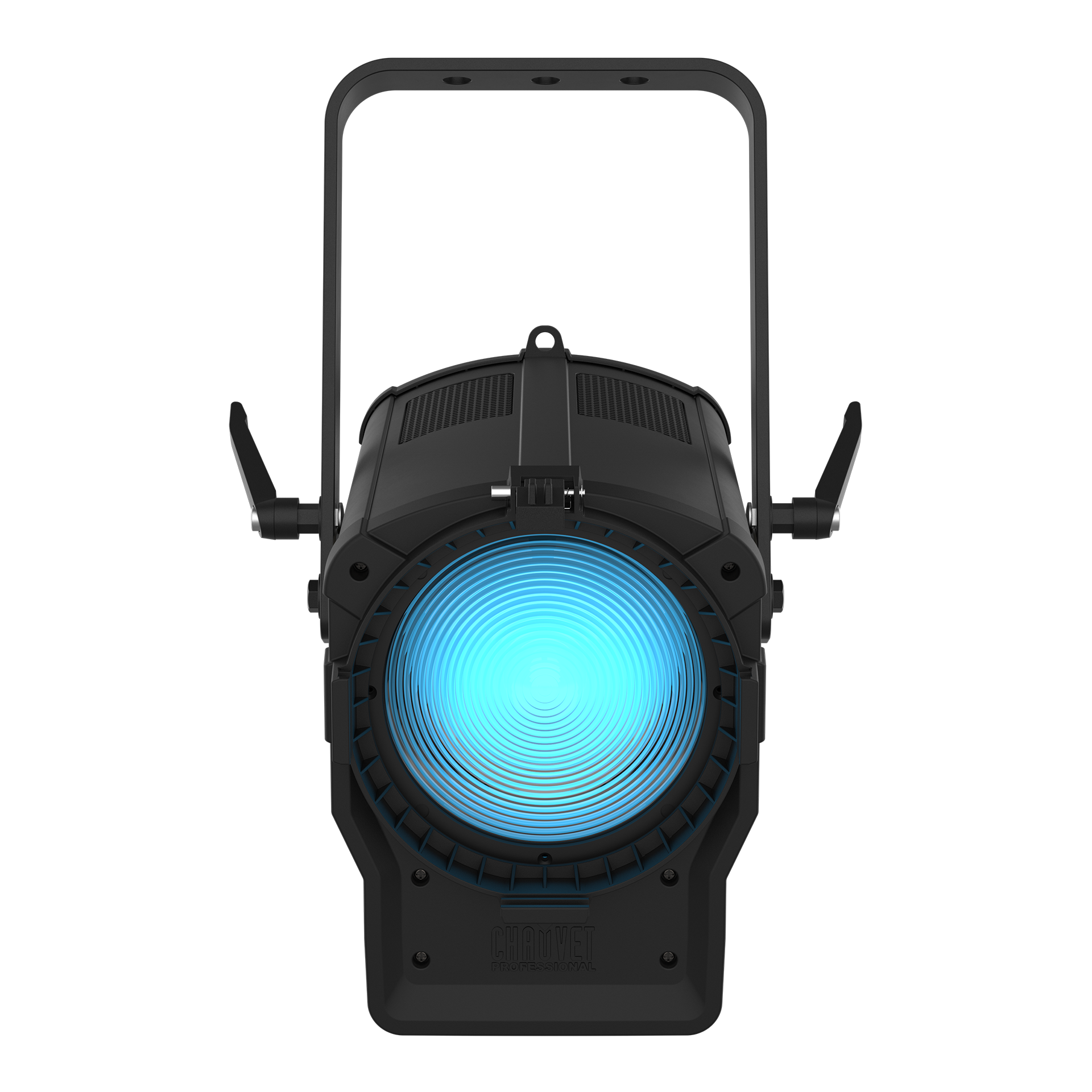

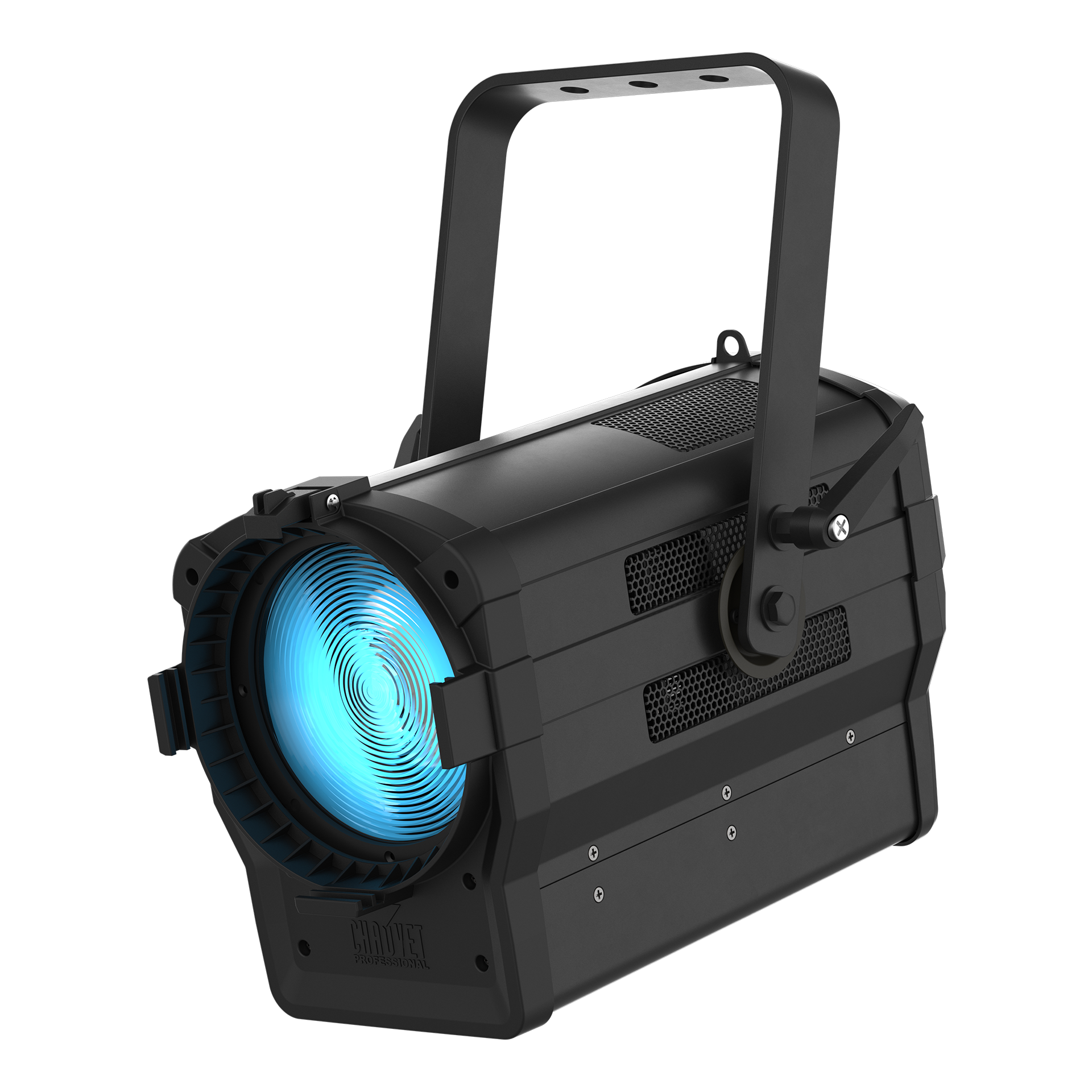

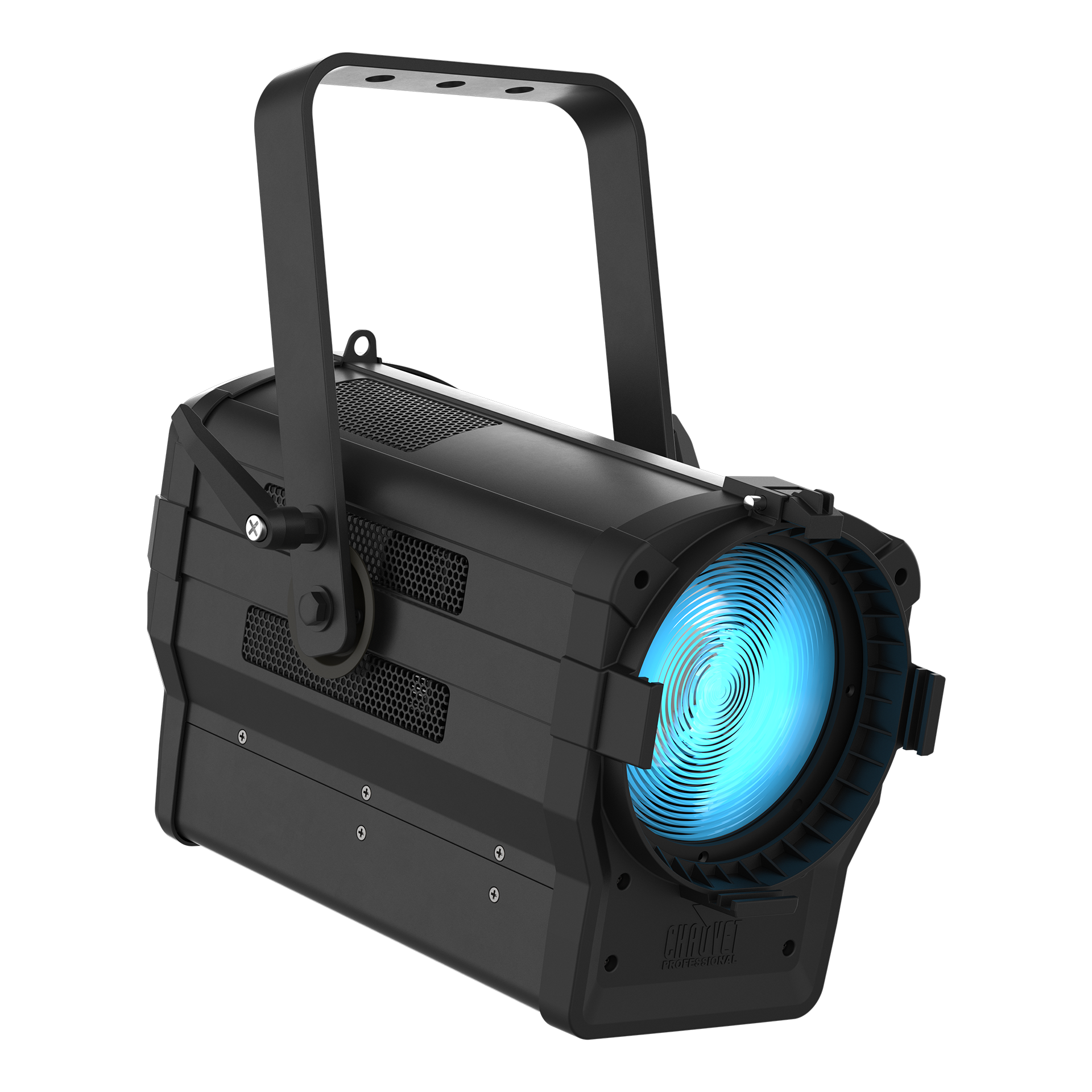

Ovation F-415FC

Optical

• Light Source

  46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.

• Color Temperature (range)

  2800 to 6500 K

• CRI (3200 K)

  91

• Beam Angle

  14° to 43°

• Field Angle

  27° to 68°

• Zoom Range

  14° to 68°

• Lumens (27°)

  1,877
  (68°): 2,815

• Illuminance (27°)

  915 lux @ 5 m
  (68°): 190 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 27 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  4

• Built-in Automated Programs

  Yes

Construction/Physical

• Dimensions

  15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)

• Weight

  12 lb (5.6 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum alloy, Aluminum die-cast

• Accessory Holder/Gel Frame Size

  6.25 in (158.75 mm)

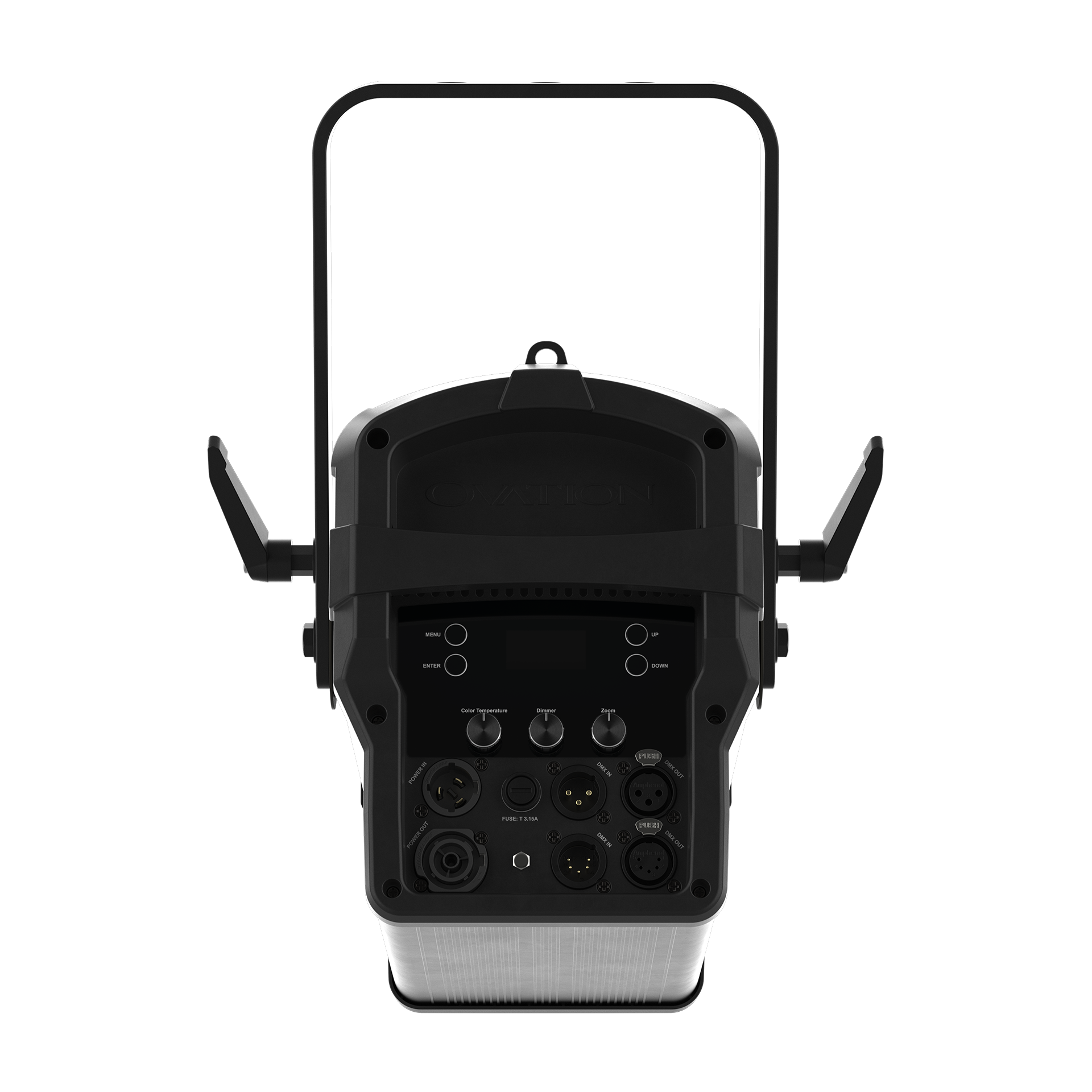

Connections

• Power Connection

  Edison (local) plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  1, 3, 5, 7, 10, 12, 13 or 15

• Modes/Personalities

  9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V

• Power and Current

  130 W, 1.101 A @ 120 V, 60 Hz

• Power and Current

  127 W, 0.638 A @ 208 V, 60 Hz

• Power and Current

  127 W, 0.585 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, UKCA

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
