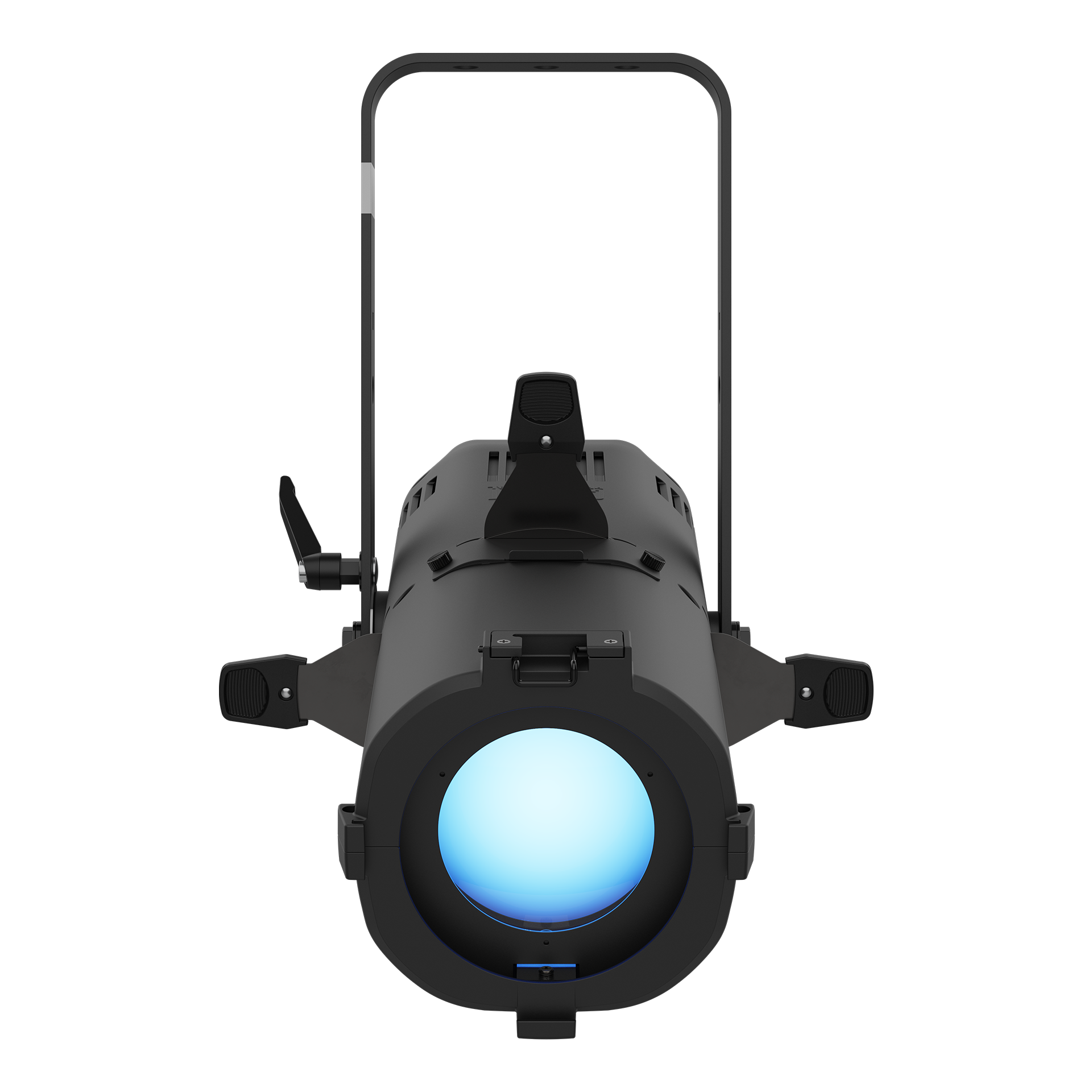

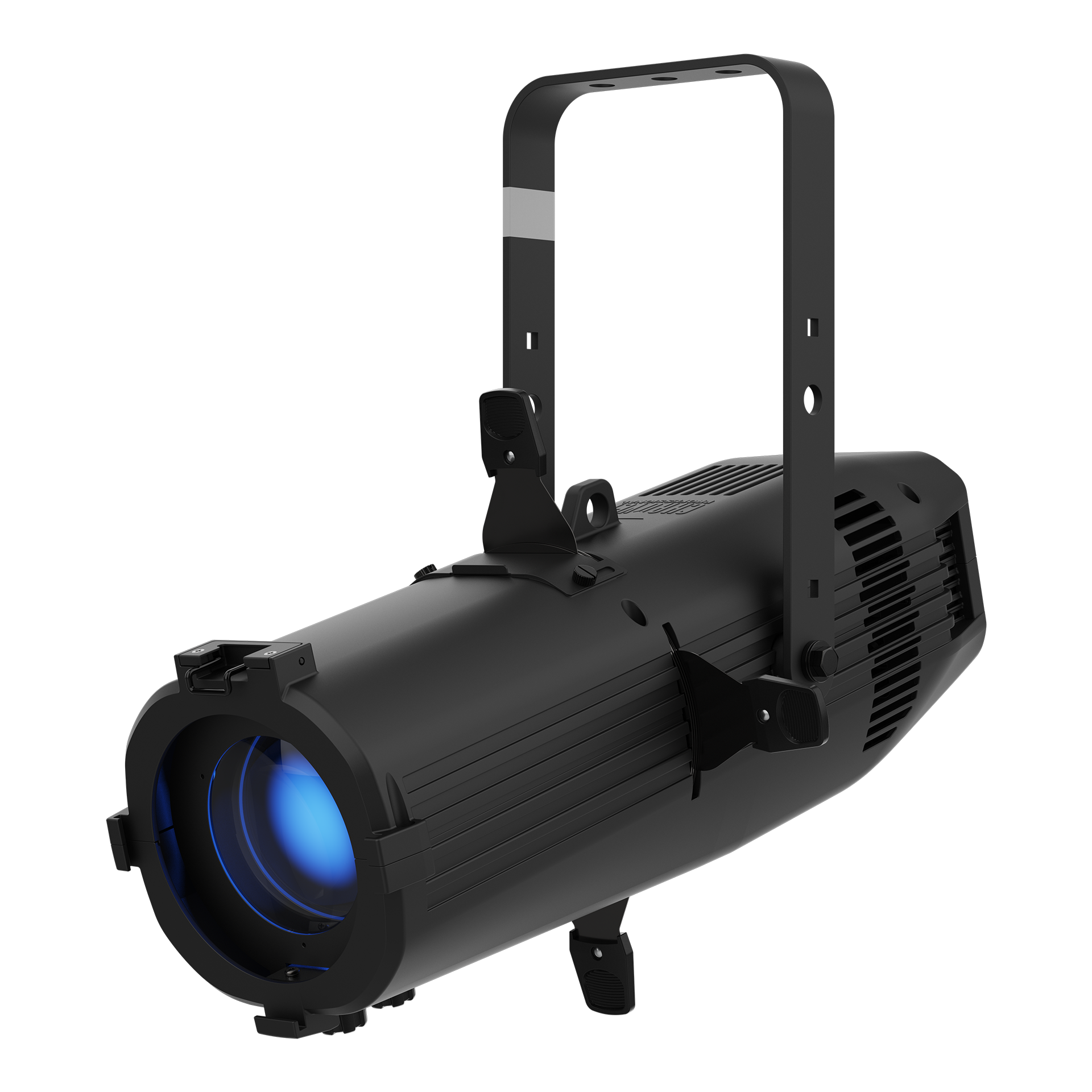

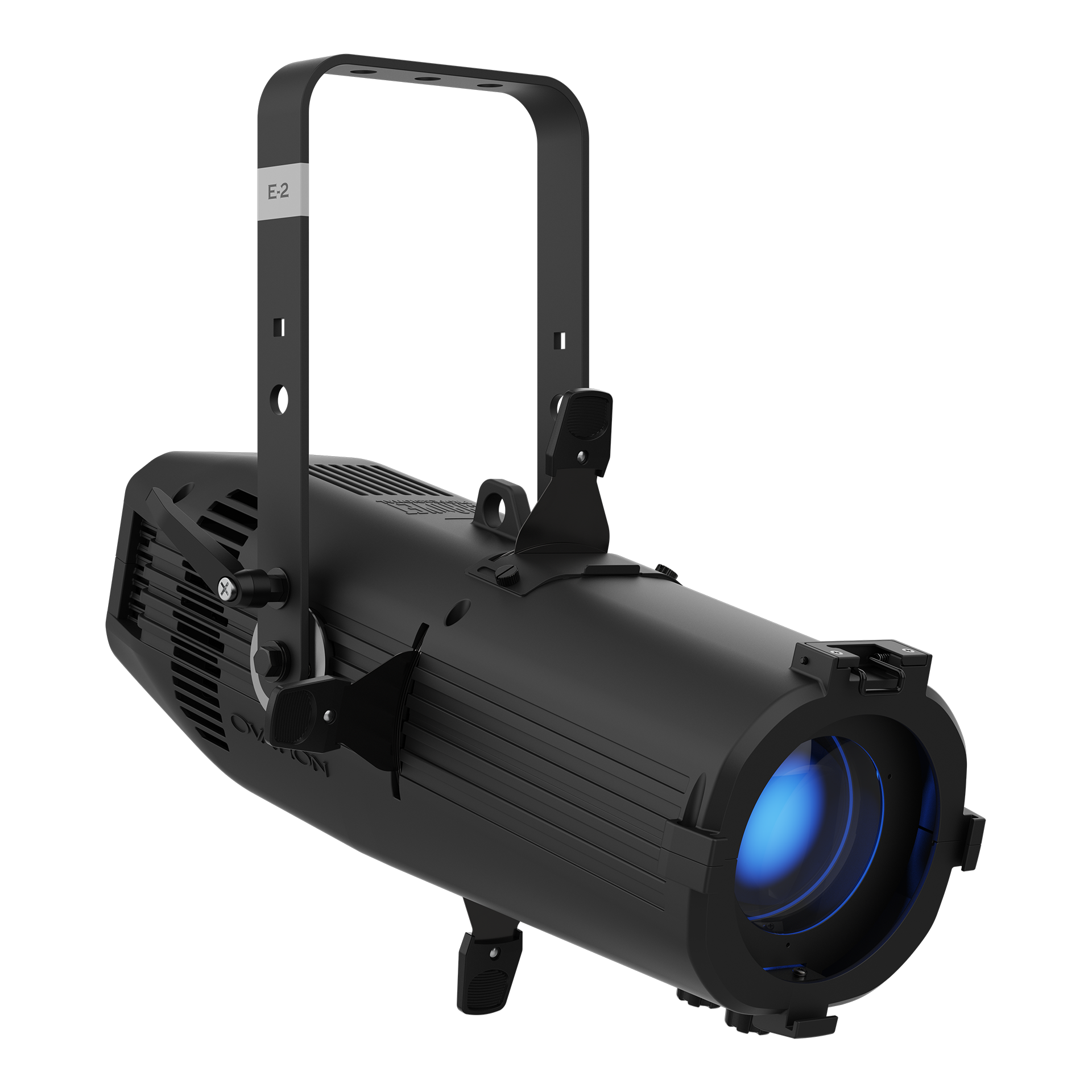

Ovation E-2 FC

Optical

• Light Source

  72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy

• Color Temperature (range)

  2800 to 8000 K

• Color Temperature (at full)

  4525 K

• CRI (3200 K)

  93

• • Beam Angle
    • Spot

      23.8°

    • Flood

      46.4°

    • 50% Zoom

      38.7°

• • Field Angle
    • Spot

      25.6°

    • Flood

      51°

    • 50% Zoom

      41.3°

• • Cutoff Angle
    • Spot

      24.9°

    • Flood

      51.8°

    • 50% Zoom

      41.9°

• Zoom Range

  23.8° to 51.8°

• Lumens (Spot)

  3708 lm

• Lumens (Flood)

  5608 lm

• Lumens (50% Zoom)

  5147 lm

• • Illuminance
    • Illuminance (Spot)

      1107 lux @ 5 m

    • Illuminance (Flood)

      488 lux @ 5 m

    • Illuminance (50% Zoom)

      595 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Framing Shutters

  Yes

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Manual

• Focus

  Manual

• Strobe Rate

  0 to 25 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  4

• Dim Curves

  4

• Built-in Automated Programs

  Yes

Construction/Physical

• Dimensions

  18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)

• Weight

  14.8 lb (6.7 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum die-cast

• Accessory Holder/Gel Frame Size

  6.25 in (159 mm)

• Gobo Size (Optional)

  “M”: 66 mm (outside), 48 mm (image), 2 mm (max. thickness)

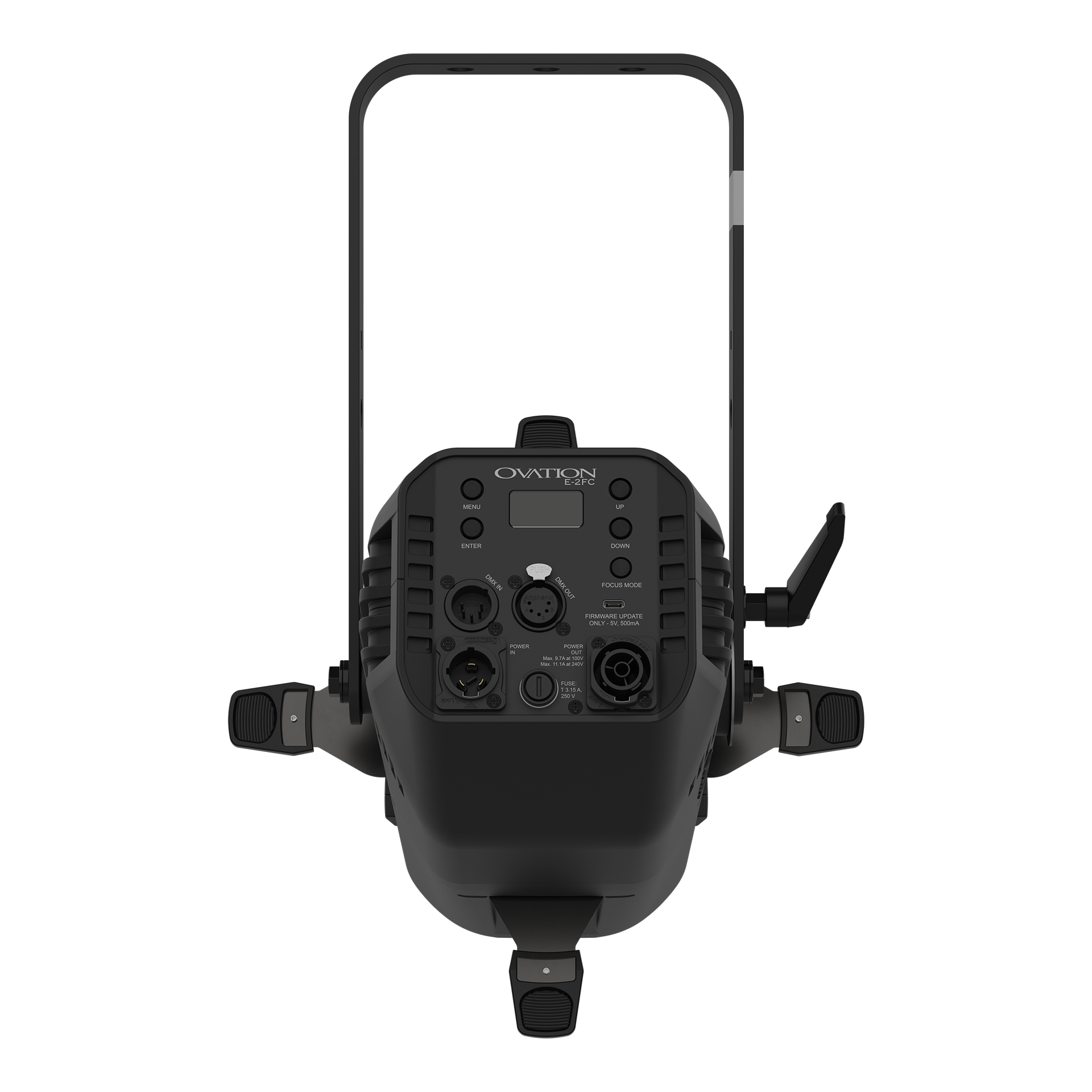

Connections

• Power Connection

  Edison (Local) plug to Seetronic Powercon IP65

• Power Input

  Seetronic Powercon IP65

• Power Output

  Seetronic Powercon IP65

• Data Connectors

  5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

• Software Connection

  USB

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV

• Modes/Personalities

  9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V

• Power and Current

  208 W, 1.71 A @ 120 V, 60 Hz

• Power and Current

  219 W, 1.10 A @ 208 V, 60 Hz

• Power and Current

  220 W, 0.98 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC, UKCA

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
