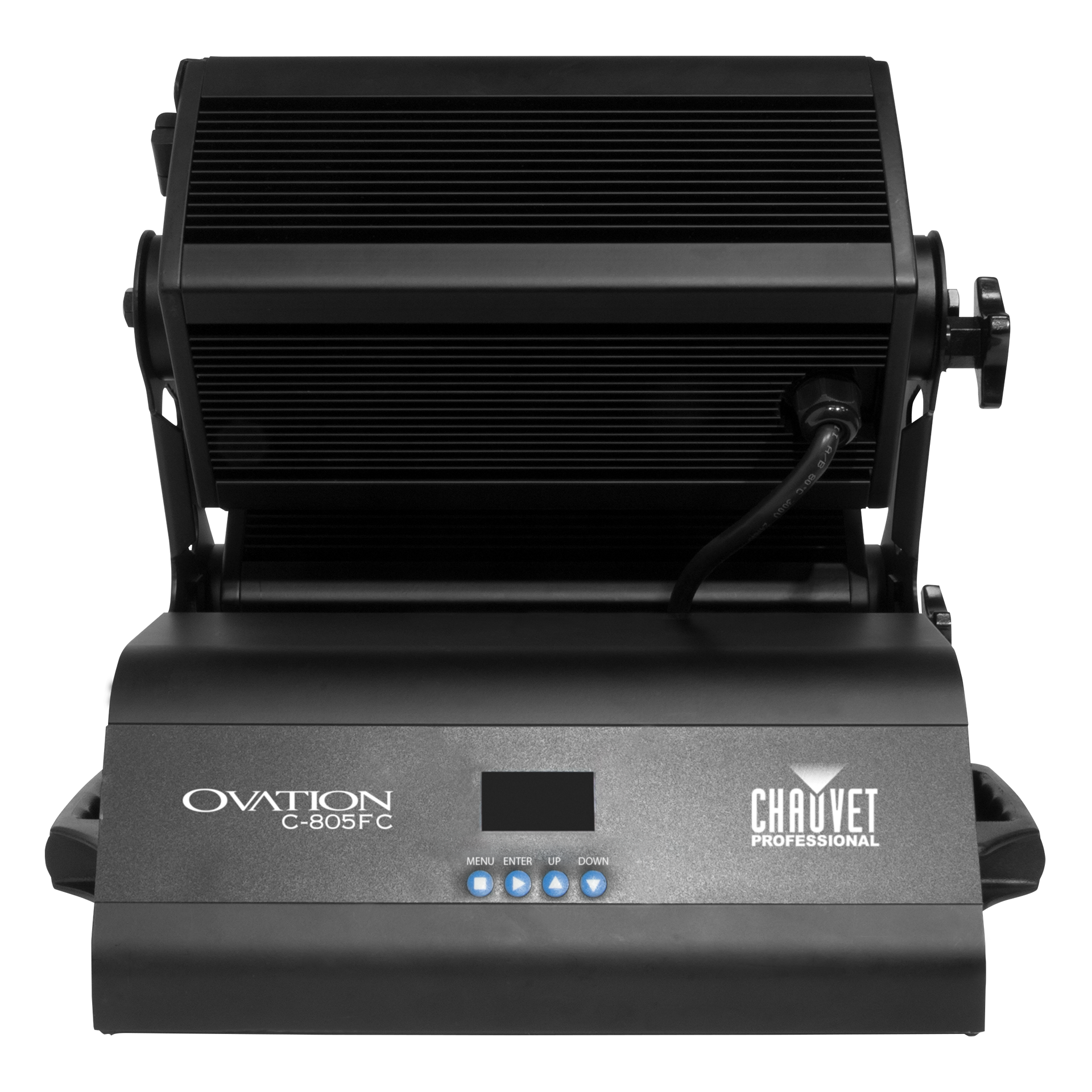

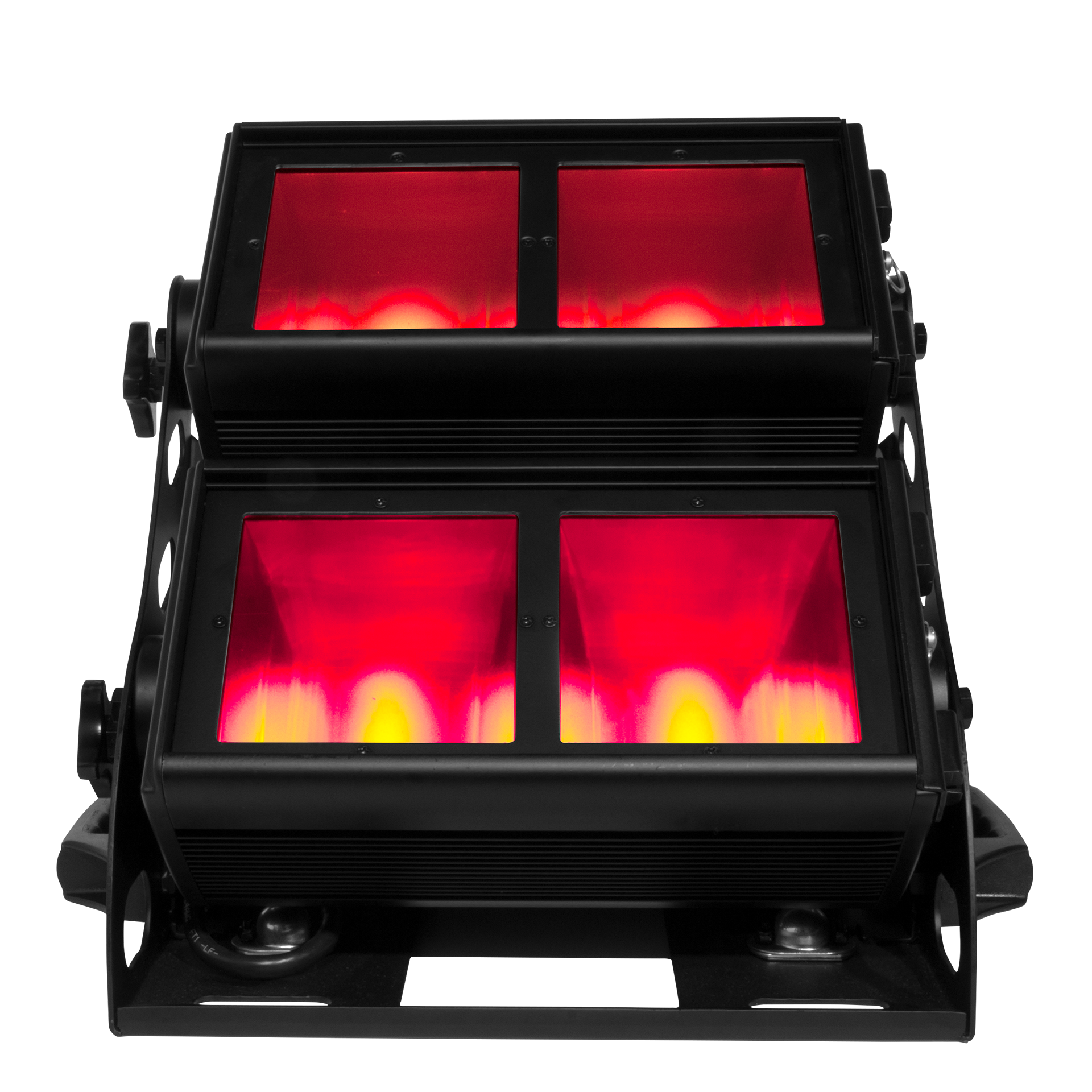

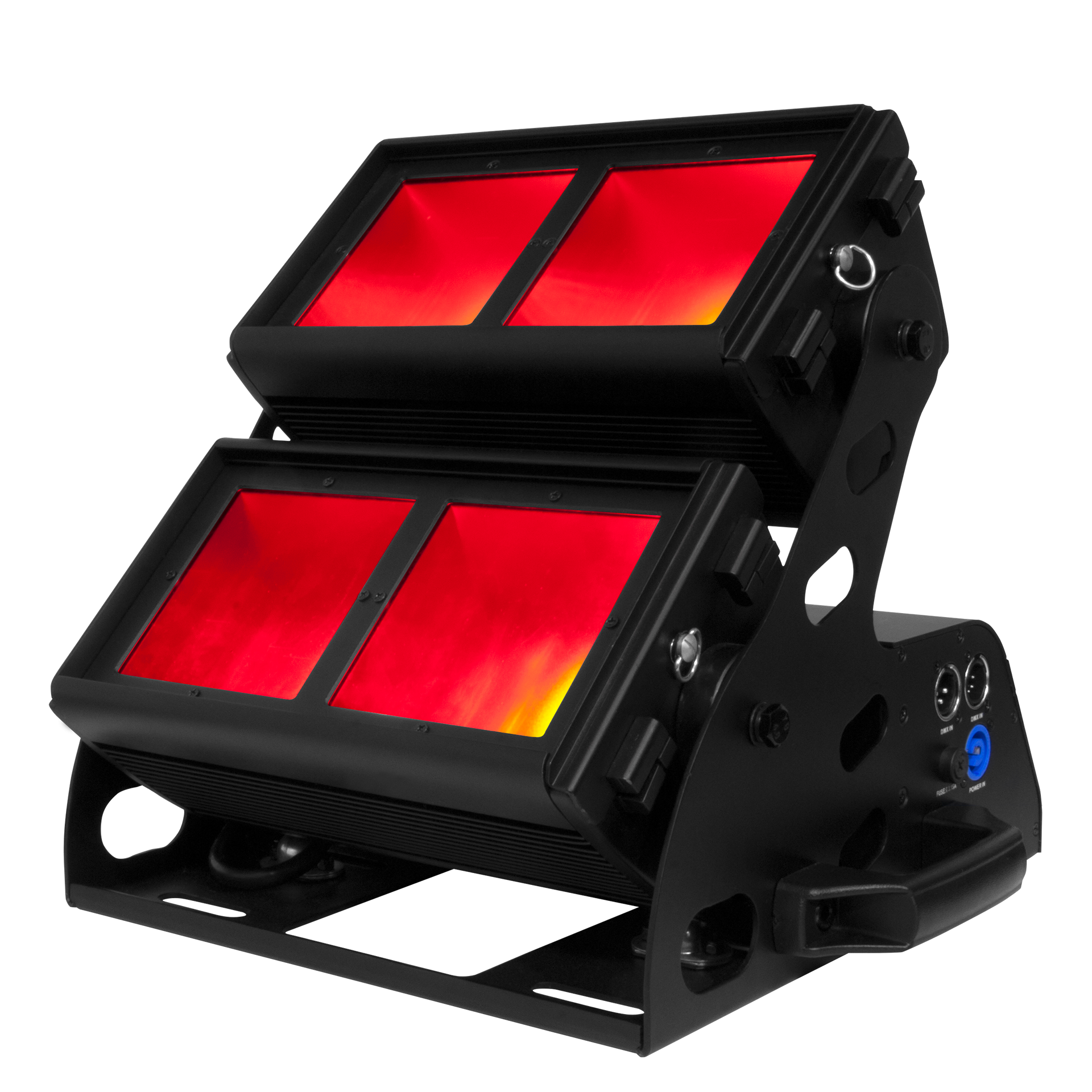

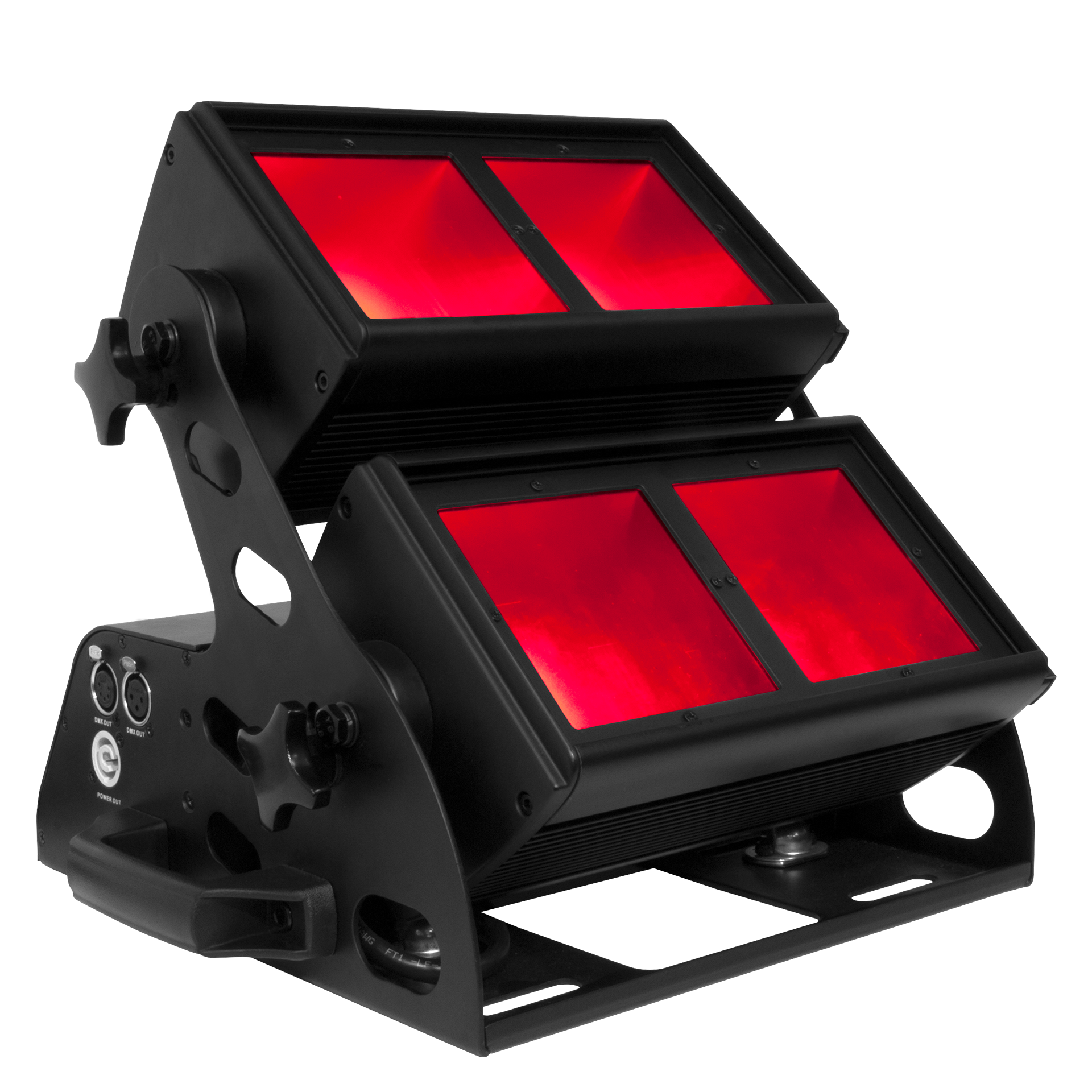

Ovation C-805FC
A full-color wash fixture that utilizes an RGBA-Lime color system and superb optics to render a vast spectrum of realistic, saturated colors with a flawlessly even output.

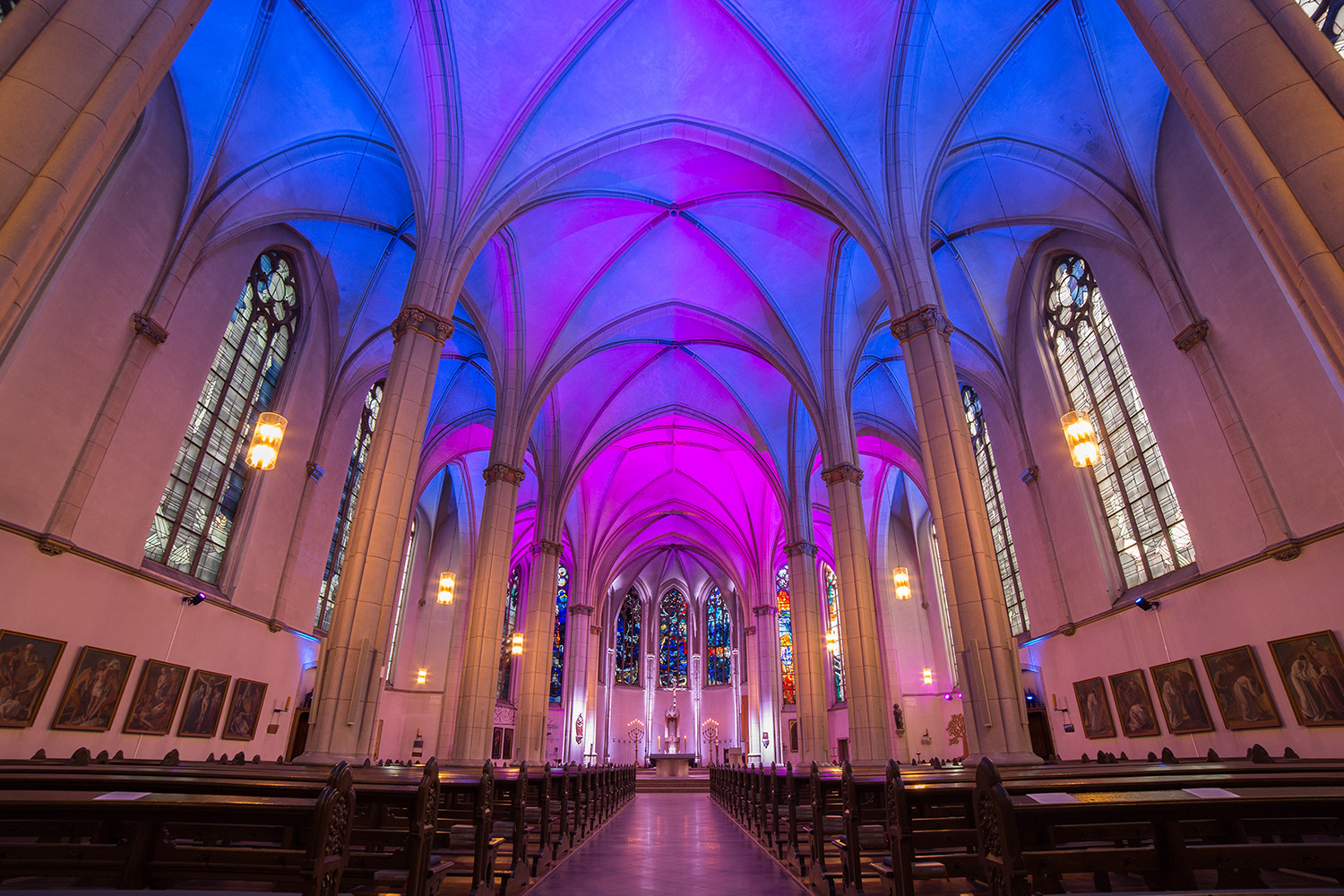

Perfectly suited for theatrical, broadcast, and house of worship applications where premium color rendering and smooth, even coverage are essential.
-
Features two independently adjustable heads for wider coverage and split-color effects.
-
Ensures completely silent operation with a fanless, convection-cooled design.
-
Delivers exceptionally smooth fades with 16-bit master and individual color dimming.
-
Offers adjustable PWM settings to provide flicker-free operation for broadcast use.
-
Includes a virtual color wheel with presets that match popular Rosco gel colors.
-
Supports RDM for remote addressing and configuration, simplifying fixture setup.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Specifications | Download |
Ovation C-805FC User Manual | Download |
Ovation C-805FC Quick Reference Guide | Download |
Ovation C-805FC DMX Chart | Download |
Ovation C-805FC IES Files | Download |
Ovation C-805FC CAD Files | Download |
Ovation C-805FC ShowXpress Profiles | Download |
Ovation C-805FC Virtual Color Wheel Conversion … | Download |
Ovation C-805FC Specification Sheet | Download |
Firmware | Download |
Ovation C-805FC
Ovation C-805FC uses its RGBA-Lime color palette to render nearly any color with tremendous realism and saturation. Its superb optics ensure an even output. Setup is easier than ever with the addition of RDM, adjustable PWM and an easy to navigate OLED full text display.
Features
Full Spectrum Color
Utilizes RGBAL LEDs to produce a wide range of vibrant hues suitable for theatre, film, and production.
High-Resolution Dimming
Achieve exceptionally smooth fades with 16-bit dimming control over the master dimmer and individual colors.
Dual Adjustable Heads
Two independently adjustable heads provide wider coverage and the ability to project split-color looks from a single unit.
Compact Cyclorama Wash
A compact and powerful fixture designed specifically for cyclorama wash applications.
Superior Light Quality
Produces a flat, even field of light with seamless color mixing for a consistent wash.
Virtual Color Wheel
Access a built-in virtual color wheel with presets that match popular Rosco gel colors for quick programming.
Remote Device Management
RDM capability allows for remote addressing and configuration, adding operational flexibility.
Flicker-Free Operation
Avoid on-camera flicker with adjustable Pulse Width Modulation, making it ideal for broadcast applications.
Silent Operation
Fanless, convection-cooled design ensures completely silent operation for noise-sensitive studio and theatre environments.
Specifications
Optical
-
Light Source
80 LEDs (20 red, 20 green, 20 blue, 12 amber, 8 lime) 2 to 4 W, (820 mA), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 10000 K
-
CRI (3200 K)
80
-
Beam Angle (Top Pod) (Horizontal)
41°
-
-
Beam Angle
-
(Top Pod) (Vertical)
57°
-
(Bottom Pod) (Horizontal)
37°
-
(Bottom Pod) (Vertical)
54°
-
(Both Pods) (Horizontal)
40°
-
(Both Pods) (Vertical)
57°
-
-
Beam Angle
-
Field Angle (Top Pod) (Horizontal)
64°
-
-
Field Angle
-
(Top Pod) (Vertical)
80°
-
(Bottom Pod) (Horizontal)
40
-
(Bottom Pod) (Vertical)
78°
-
(Both Pods) (Horizontal)
67°
-
(Both Pods) (Vertical)
81°
-
-
Field Angle
-
Lumens (Top Pod)
3,287
-
Lumens (Bottom Pod)
2,850
-
Lumens (Both Pods)
5,587
-
-
Illuminance
-
Illuminance (Top Pod)
175 lux @ 5 m
-
Illuminance (Bottom Pod)
169 lux @ 5 m
-
Illuminance (Both Pods)
310 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000Hz
Dynamic Effects
-
Tilt
± 30° manual adjustment per pod
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 20Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
No
-
Dim Modes
5
-
Built-in Automated Programs
Yes
-
Customizable Programs
Yes
-
Recall Custom Programs
Yes
Construction/Physical
-
Dimensions
15.3 x 12.2 x 11.7 in (390 x 310 x 298 mm)
-
Weight
22 lb (10 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum die-cast
-
Accessory Holder/Gel Frame Size
5.32 x 9.65 in (135 x 245 mm)
Connections
-
Power Connection
Edison (Local) plug to Neutrik® powerCON®
-
Power Input
Neutrik® powerCON®
-
Power Output
Neutrik® powerCON®
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX
-
DMX Channels
3, 4, 5, 6, 7, 8, 12, 18 or 24
-
Modes/Personalities
12 personalities (TOUR, TR16, ARC.1, AR1.D, ARC.2, ARC.3, ARC3.D, AR3.S, HSIC, PIXEL.1, PIXEL.3, PIXEL.16)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
-
Power and Current
151 W, 1.254 A @ 120 V, 60 Hz
-
Power and Current
151 W, 0.719 A @ 208 V, 60 Hz
-
Power and Current
152 W, 0.660 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC
-
IP Rating
IP20, dry location
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik® powerCON® cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
What's Included
- OVATION C-805FC
- Neutrik® powerCON® power cord
- 2 Gel Frames 5.32 x 9.65 in (135 x 245 mm)
- 2 Omega brackets with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Complete Your Rig
Downloads
Manuals | Ovation C-805FC User Manual | Download |
Manuals | Ovation C-805FC Quick Reference Guide | Download |
Drawings | Ovation C-805FC DMX Chart | Download |
Photometrics | Ovation C-805FC IES Files | Download |
Drawings | Ovation C-805FC CAD Files | Download |
Other | Ovation C-805FC ShowXpress Profiles | Download |
Other | Ovation C-805FC Virtual Color Wheel Conversion Chart | Download |
Other | Ovation C-805FC Specification Sheet | Download |
Other | Ovation C-805FC – Firmware | Download |
Ovation C-805FC FAQ’s

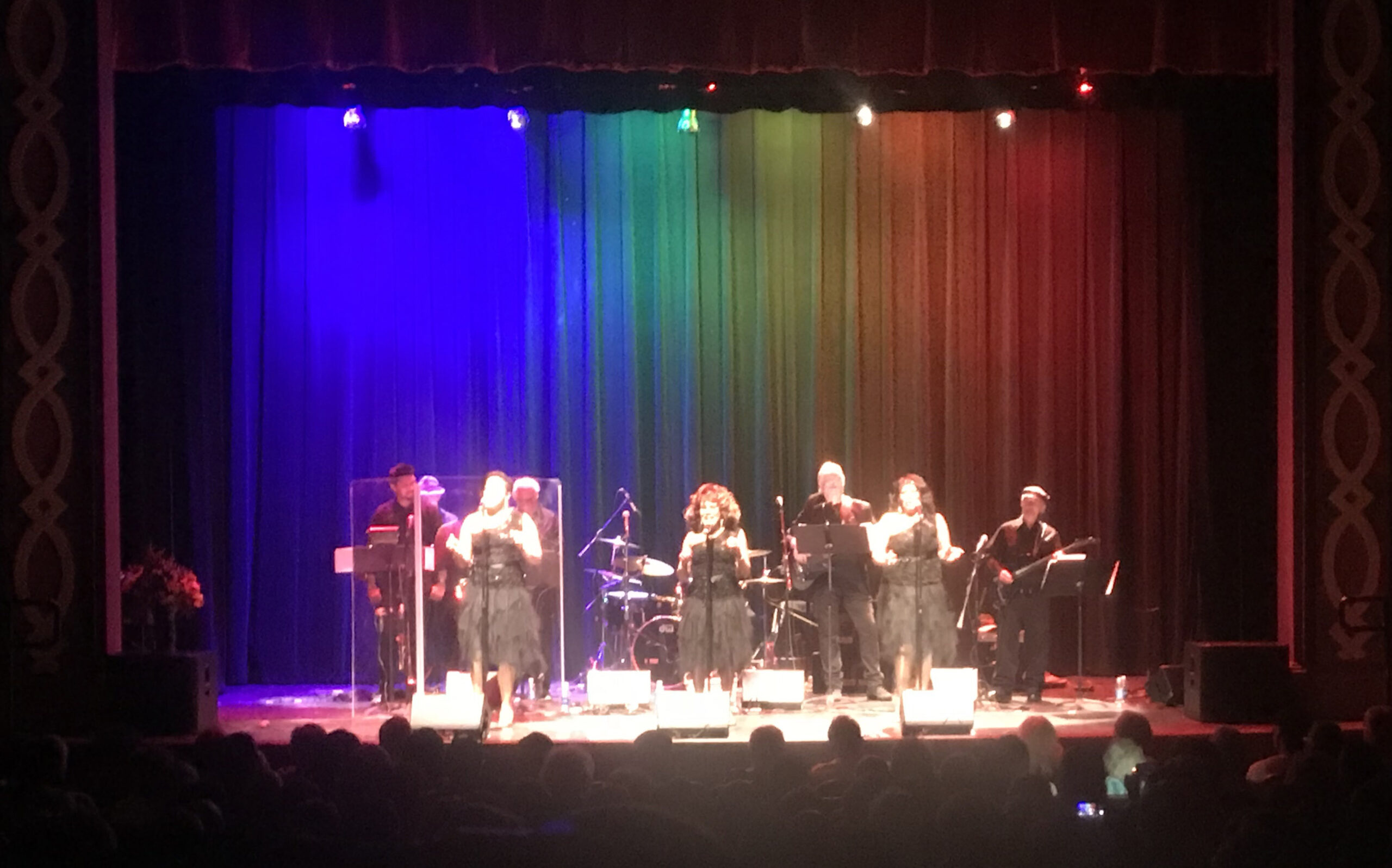

The Ovation C-805FC is a specialized lighting fixture designed to create a smooth, even wash of color on backdrops, curtains, and scenery. It is ideal for use in theatres, film sets, and production studios where high-quality, realistic color is essential.
