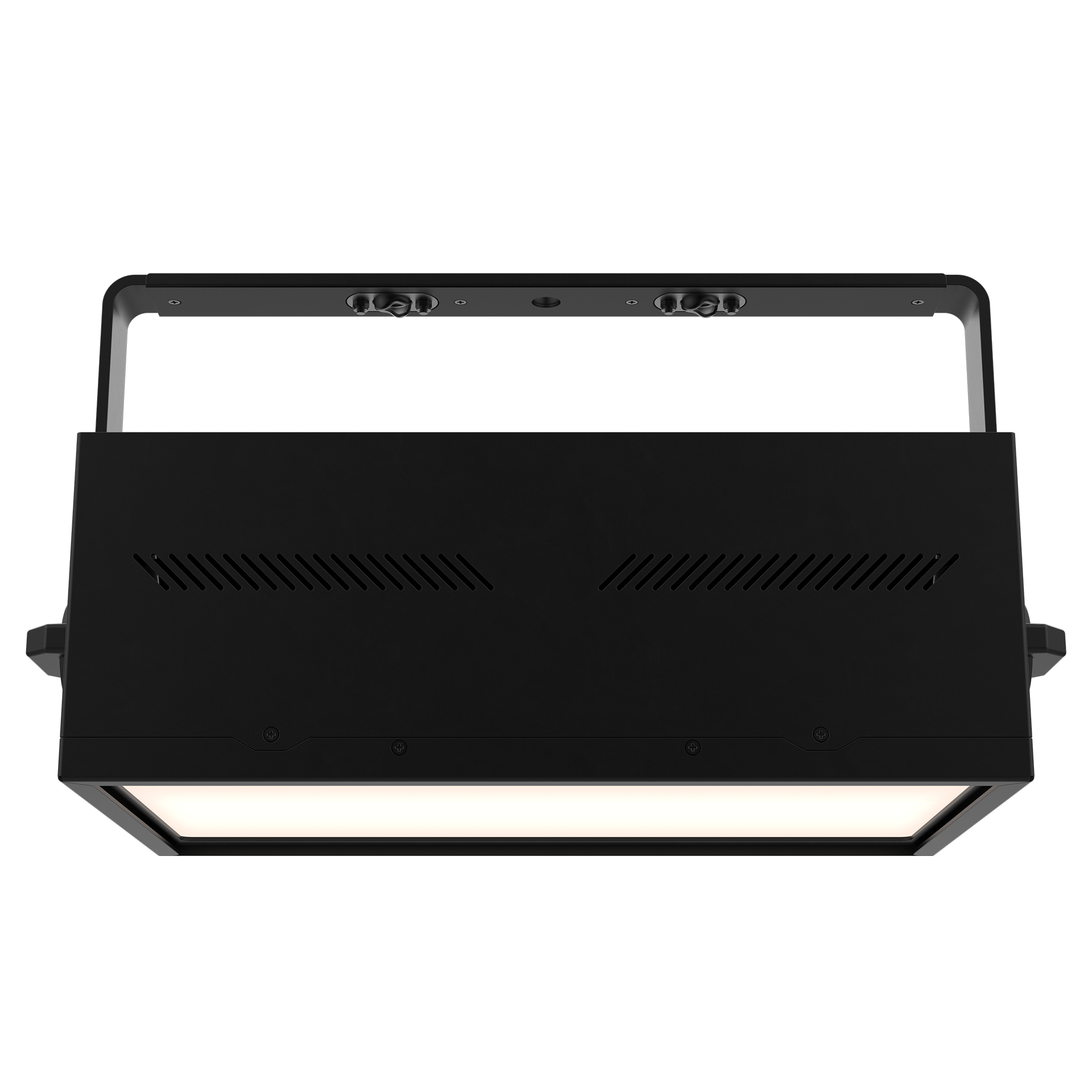

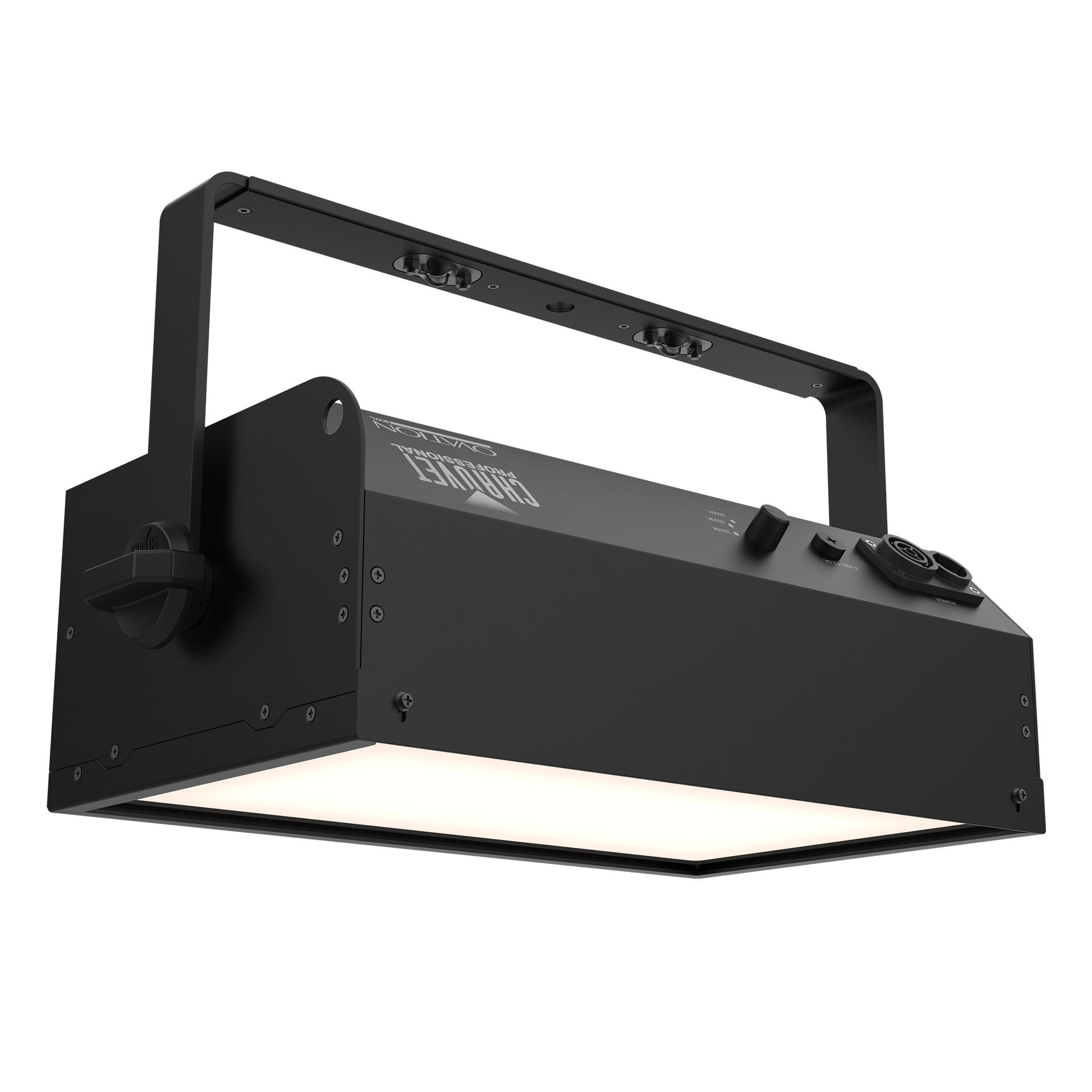

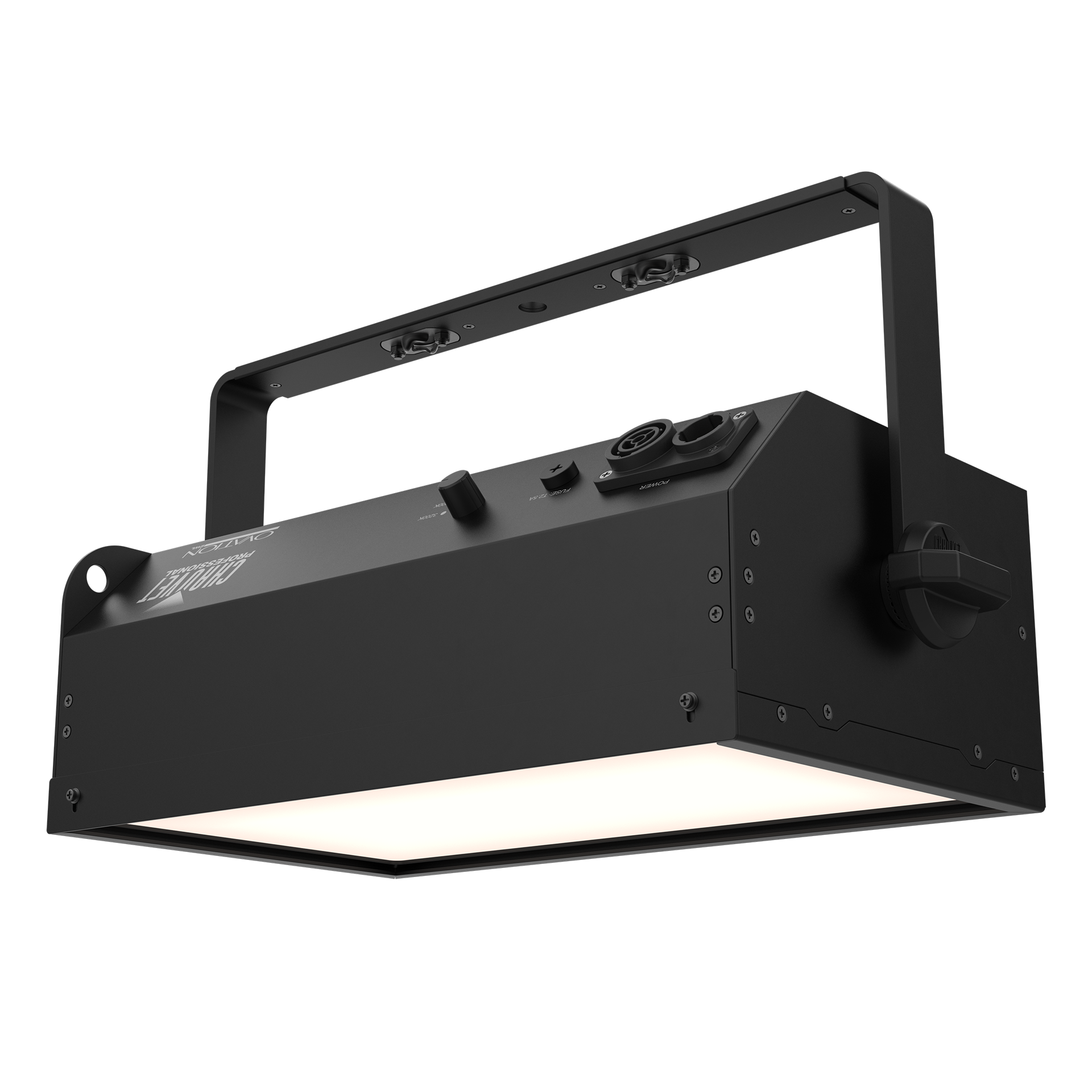

    Ovation 2WL

    A high-CRI utility flood light that operates on direct line voltage and dims with standard phase-cut or triac dimmers without needing any DMX control.

    It delivers soft, shadow-minimizing illumination ideal for houselights, lobbies, and broadcast applications where simple, high-quality lighting integration is essential.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: OVATION2WL

    Ovation 2WL

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

    Ovation 2WL

    SKU: OVATION2WL

    Useful for times when DMX lighting isn’t needed, this effective utility light is powered by direct line voltage and can be dimmed via off-the-shelf phase-cut or triac dimmers. Projecting a soft flood light that minimizes shadows, Ovation 2WL offers selectable 3200K, 4000K, and 5600K color temperatures that provide wide-spectrum, high-CRI lighting.

    Features

    Simple Non-DMX Operation

    Integrates seamlessly into any system using direct line voltage, eliminating the need for DMX control in utility lighting applications.

    Selectable High-CRI Output

    Choose between three high-CRI color temperatures to perfectly match ambient lighting for broadcast, theatre, or architectural environments.

    Soft, Even Flood

    A wide, soft flood beam minimizes shadows and provides smooth, even coverage for general area illumination or houselighting.

    Standard Dimmer Compatibility

    Achieve smooth dimming using conventional off-the-shelf phase-cut or triac dimmers, allowing for simple and cost-effective system integration.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      960 LEDs (CW, WW)

    • Color Temperature (3200k)

      3217 K

    • Color Temperature (4000k)

      3960 K

    • Color Temperature (5600k)

      5584 K

    • CRI (3200K)

      95.3

    • CRI (4000K)

      95.2

    • CRI (5600K)

      94.0

    • Beam Angle

      107.4°

    • Field Angle

      158.7°

    • Lumens (3200k)

      10,564

    • Lumens (4000k)

      10,954

    • Lumens (5600k)

      11,328

    • Illuminance 3200k)

      158 lux @ 5 m

    • Illuminance (4000k)

      164 lux @ 5 m

    • Illuminance (5600k)

      169 lux @ 5 m

    Dynamic Effects

    • Dimmer

      External Dimmer (phase cut or triac compatible)

    • Color Temperature Selection

      On-board Color Temperature Selection

    Construction/Physical

    • Dimensions

      17.51x 11.06 x 5.47 in (445 x 281 x 139 mm)

    • Weight

      10.2 lb (4.6 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum alloy

    • Accessory Holder/Gel Frame Size

      14.375 x 8.50 x 0.125 in (365.125 x 216 x 3.175 mm)

    Connections

    • Power Connection

      Edison (local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Power Output

      Seetronic Powerkon IP65

    • Cable Length (power)

      5 ft (1.5 m)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      13 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V

    • Power and Current

      103 W, 0.91 A @ 120 V, 60 Hz

    • Power and Current

      99 W, 0.55 A @ 208 V, 60 Hz

    • Power and Current

      98 W, 0.51 A @ 230 V, 50 Hz

    • Breaker Size

      T2.5 A, 350 V

    Certifications/Qualifications

    • Certifications

      CE, MET, FCC, RoHs

    • IP Rating

      IP20, dry location

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN

    What's Included

    • Ovation 2WL
    • Seetronic Powerkon power cable
    • Omega Bracket with mounting hardware

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    Ovation 2wl – Quick Reference Guide
    		Download

    Ovation 2WL FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Ovation 2WL
    How do I control the brightness and color temperature?

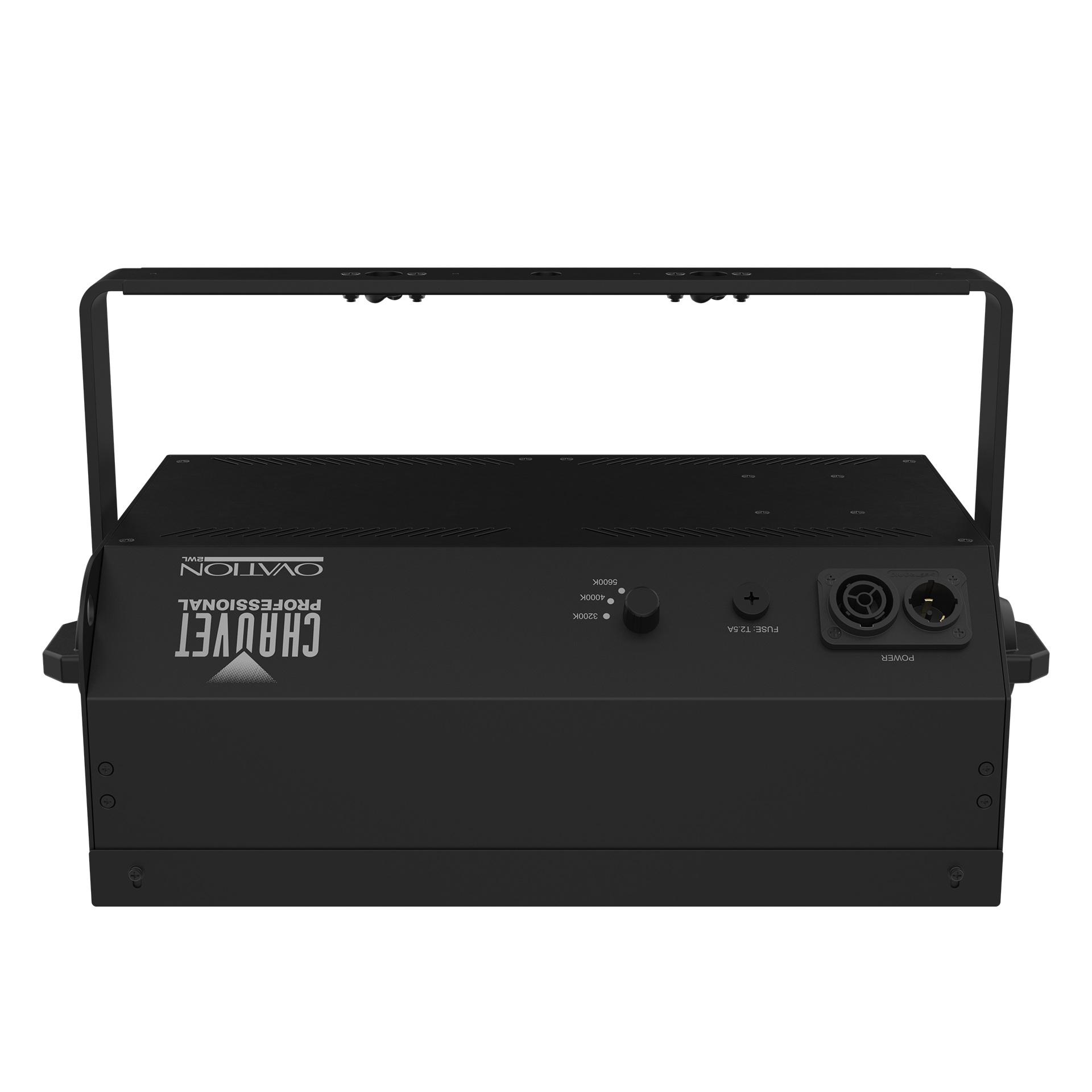

    Brightness is controlled using any standard phase-cut or triac wall dimmer. The color temperature (3200K, 4000K, or 5600K) is selected using a switch directly on the fixture, making setup simple and DMX-free.

    What hardware is included for mounting?

    Each unit includes an Omega bracket with mounting hardware, allowing for secure attachment to professional clamps for flexible rigging options.

    Can this fixture be powered from a standard wall outlet?

    Yes, this utility light is designed to run on direct line voltage and connects via an included Edison to Seetronic Powerkon cable, making it easy to power.
