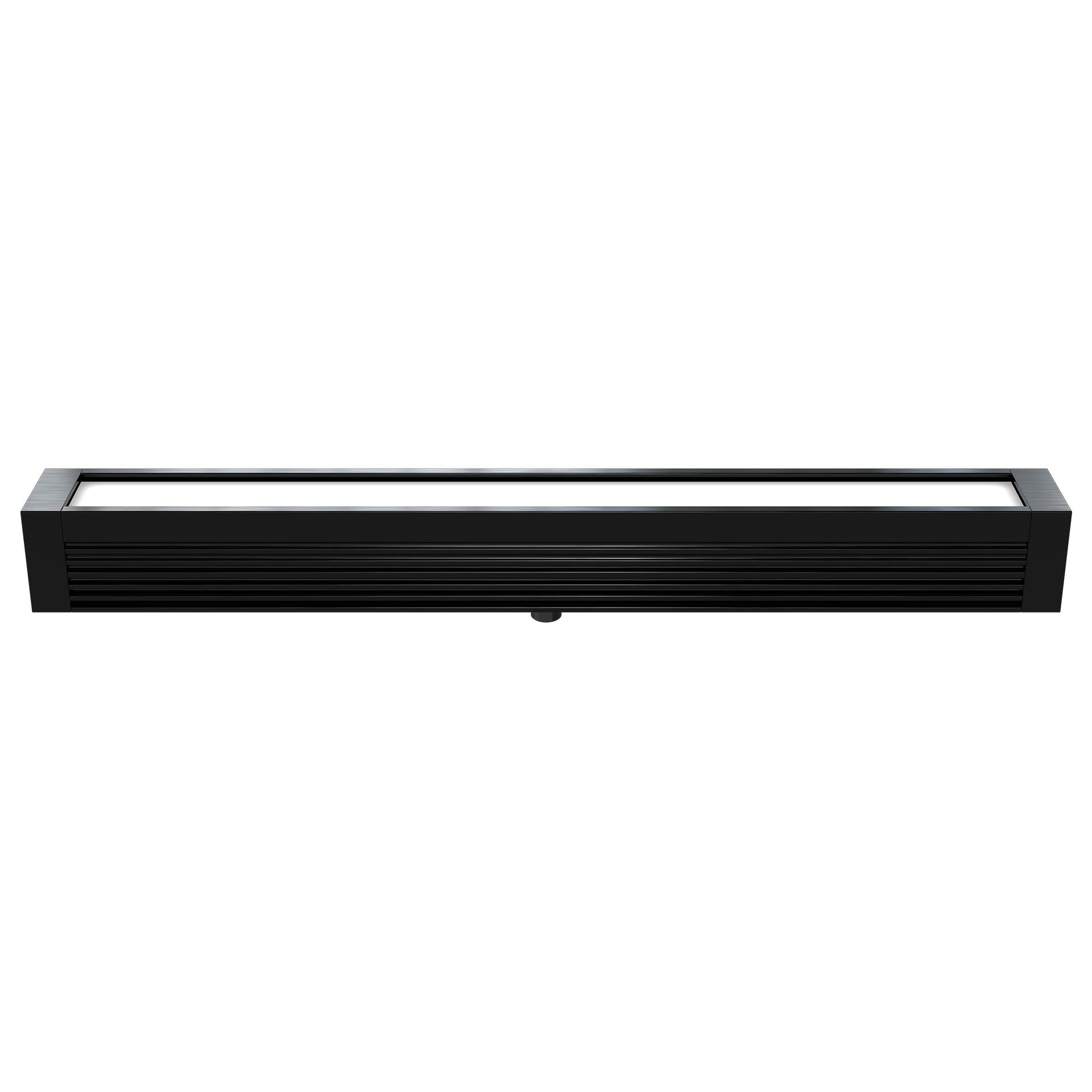

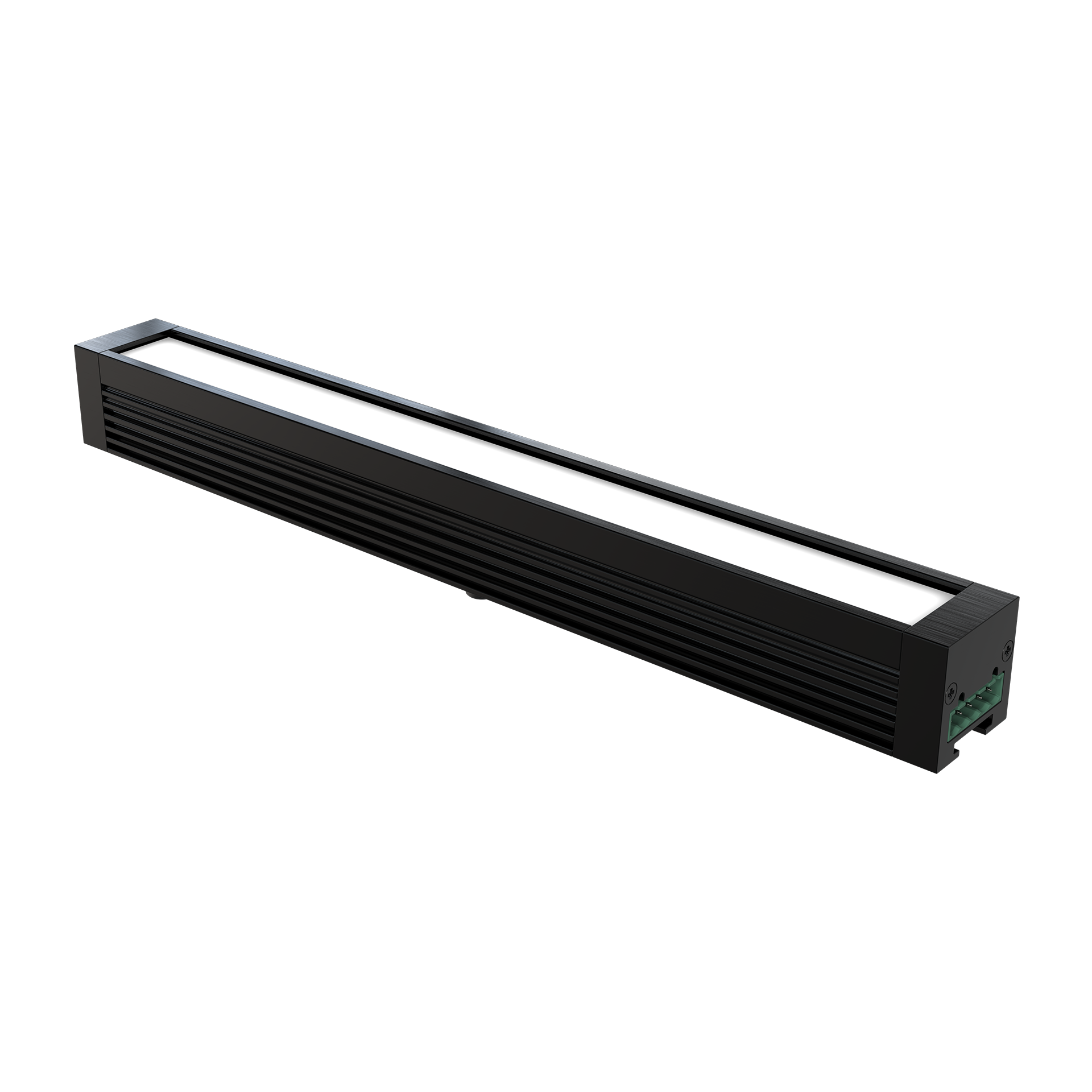

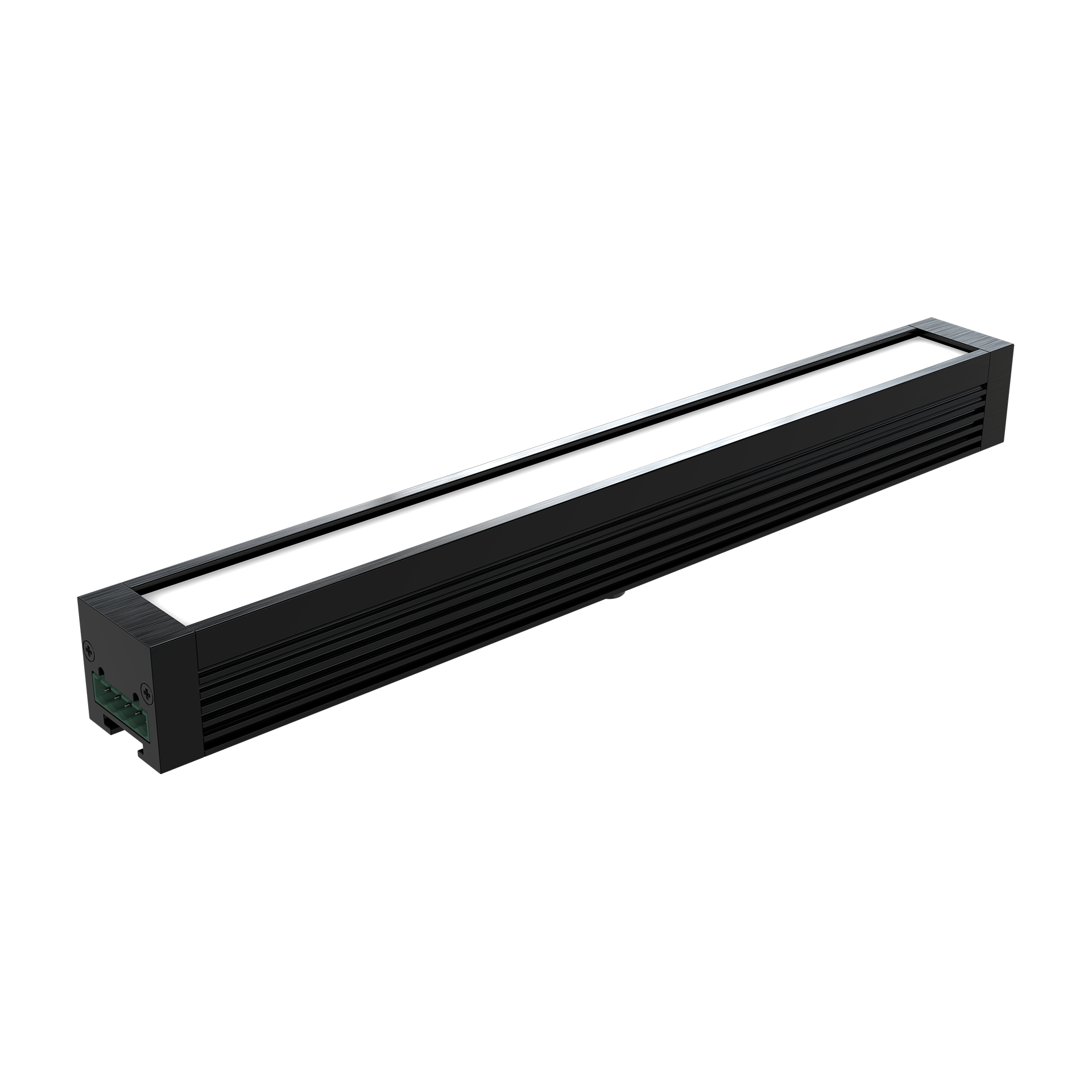

onAir Flex 12
A lightweight, silent, and DMX-controllable full-spectrum LED accessory that produces high-quality white light from 2800K to 10000K and full color to create a soft catchlight.
Ideal for short-throw studio applications where silent, high-quality, flicker-free lighting is essential for photography and film.
-
Features a high CRI of 96 for superior color rendering in broadcast and film.
-
Provides an expansive 2800K to 10000K CCT range for tunable, high-quality white light.
-
Delivers broad, even coverage ideal for short-throw applications with its wide beam angle.
-
Offers precise 16-bit dimming curves and adjustable PWM for flicker-free camera performance.
-
Weighs under 1 lb, allowing for easy placement in tight studio and on-location setups.
-
Operates via the onAir Flex Drive 2 for centralized power and data control.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
onAir Flex 12
Full spectrum LED soft catch light for short throw studio applications. Easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via onAir Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.
Features
Full Spectrum LED Soft Light
Provides a soft, full spectrum catch light designed for short throw studio applications.
High Quality Light and Color
Delivers superior white light and rich, saturated colors for professional results.
Flicker-Free Performance
Adjustable Pulse Width Modulation via the onAir Flex Drive ensures flicker-free operation on camera.
Completely Silent Operation
The silent design is ideal for use in noise-sensitive studio and broadcast applications.
Ultra-Smooth 16-Bit Dimming
Offers ultra-smooth 16-bit dimming curves and speeds through the onAir Flex Drive to complement any lighting scheme.
Complete Your Rig
Specifications
Optical
-
Light Source
12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.
-
Light Source
12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 10000 K
-
Color Temperature (at full)
9190 K
-
CRI
96
-
-
Beam Angle
-
Medium
96.1° x 64.3°
-
Light
111° x 62°
-
Heavy
93.3° x 72.2°
-
-
Beam Angle
-
-
Field Angle
-
Medium
148.8° x 123.8°
-
Light
149.8° x 126.3°
-
Heavy
151.7° x 136°
-
-
Field Angle
-
-
Lumens
-
Medium
765 lm
-
Light
810 lm
-
Heavy
734 lm
-
-
Lumens
-
-
Illuminance
-
Medium
17 lux @ 5 m
-
Light
16 lux @ 5 m
-
Heavy
15 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
via onAir Flex Drive
Construction/Physical
-
Dimensions
12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
-
Shipping Dimensions
15 x 6.5 x 4 in (381 x 165 x 102)
-
Weight
0.975 lb (0.442 kg)
-
Exterior Color
Black
-
Housing Material
Extruded Aluminum
Connections
-
Power Connection
Phoenix connector to Bare-wire
-
Physical Linking
Phoenix connector to Bare-wire
Control
-
Control Protocol
DMX
-
DMX Channels
8 or 10
-
Modes/Personalities
8ch-RGBWx2, 10ch-RGBW+Dx2
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
26 W, 0.28 A @ 120 V, 60 Hz
-
Power and Current
24 W, 0.31 A @ 208 V, 60 Hz
-
Power and Current
24 W, 0.29 A @ 230 V, 50 Hz
Cable
-
Connector
Phoenix
-
Pins
5
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
- onAir Flex Drive
What's Included
- OnAir Flex 12
- 6cm Cable
- 12cm Cable
- Blanks Connectors
- Light Filter
- Heavy Filter
Questions or Concerns?
Let us know, we’re here to help! Contact Us
onAir Flex 12 FAQ’s
The onAir Flex 12 is a lightweight and compact LED light bar designed for studio photography and video. Its primary purpose is to work as a ‘catch light,’ creating a subtle, professional glint in a person’s eyes to make them appear more vibrant and engaged on camera. Its silent operation makes it ideal for any recording environment.
It produces both high-quality white light and a full spectrum of rich colors. You can adjust the white light from a very warm, inviting tone to a crisp, cool daylight look, allowing you to perfectly match other lights or create a specific mood. The light is designed for broadcast, ensuring colors and skin tones look natural and accurate on camera.
The onAir Flex 12 is a lighting fixture that requires the separate onAir Flex Drive 2 unit (sold separately) to function. This controller provides power and gives you full control over brightness and color. This system ensures the light is completely flicker-free for video recording and provides ultra-smooth dimming for professional results.
