    MT-07

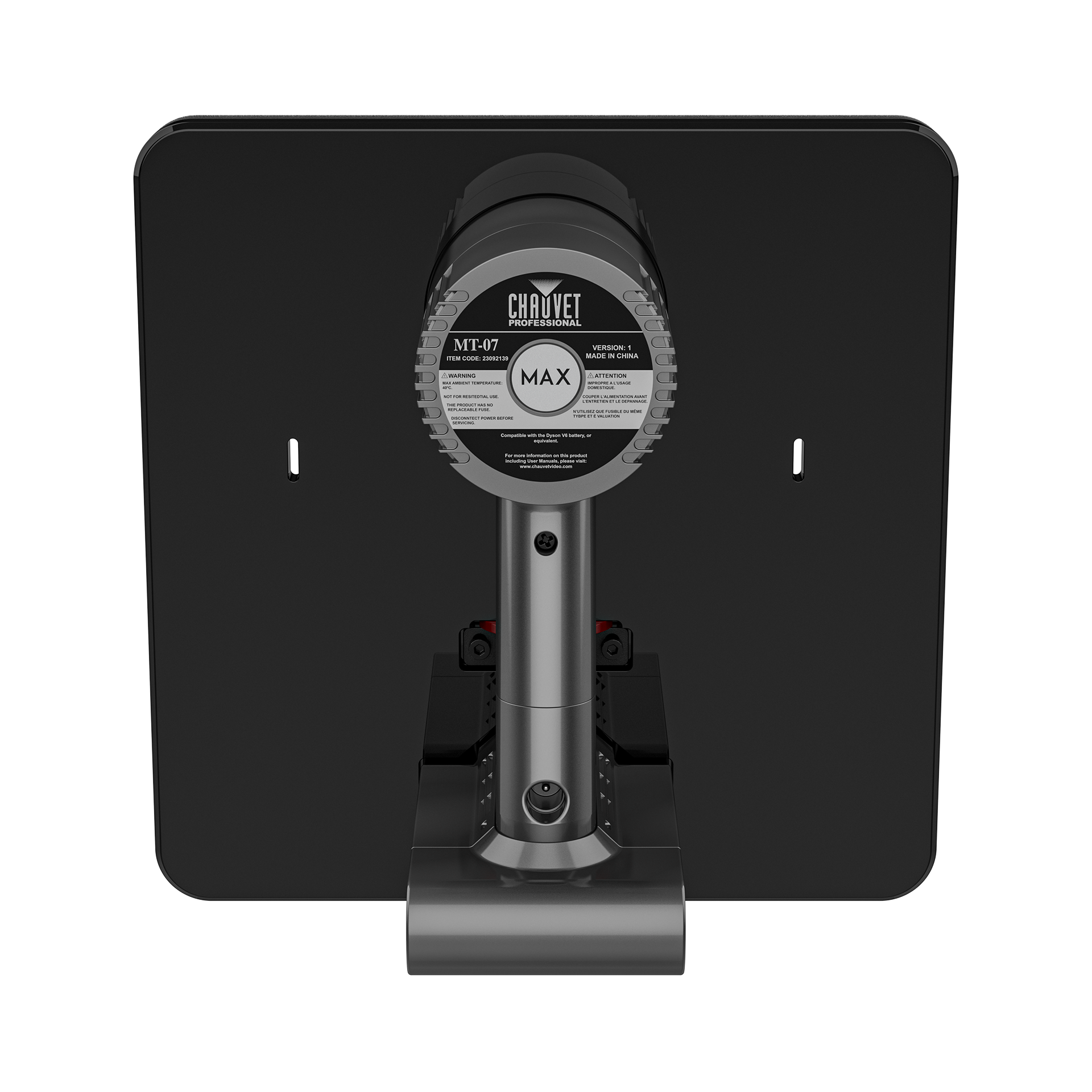

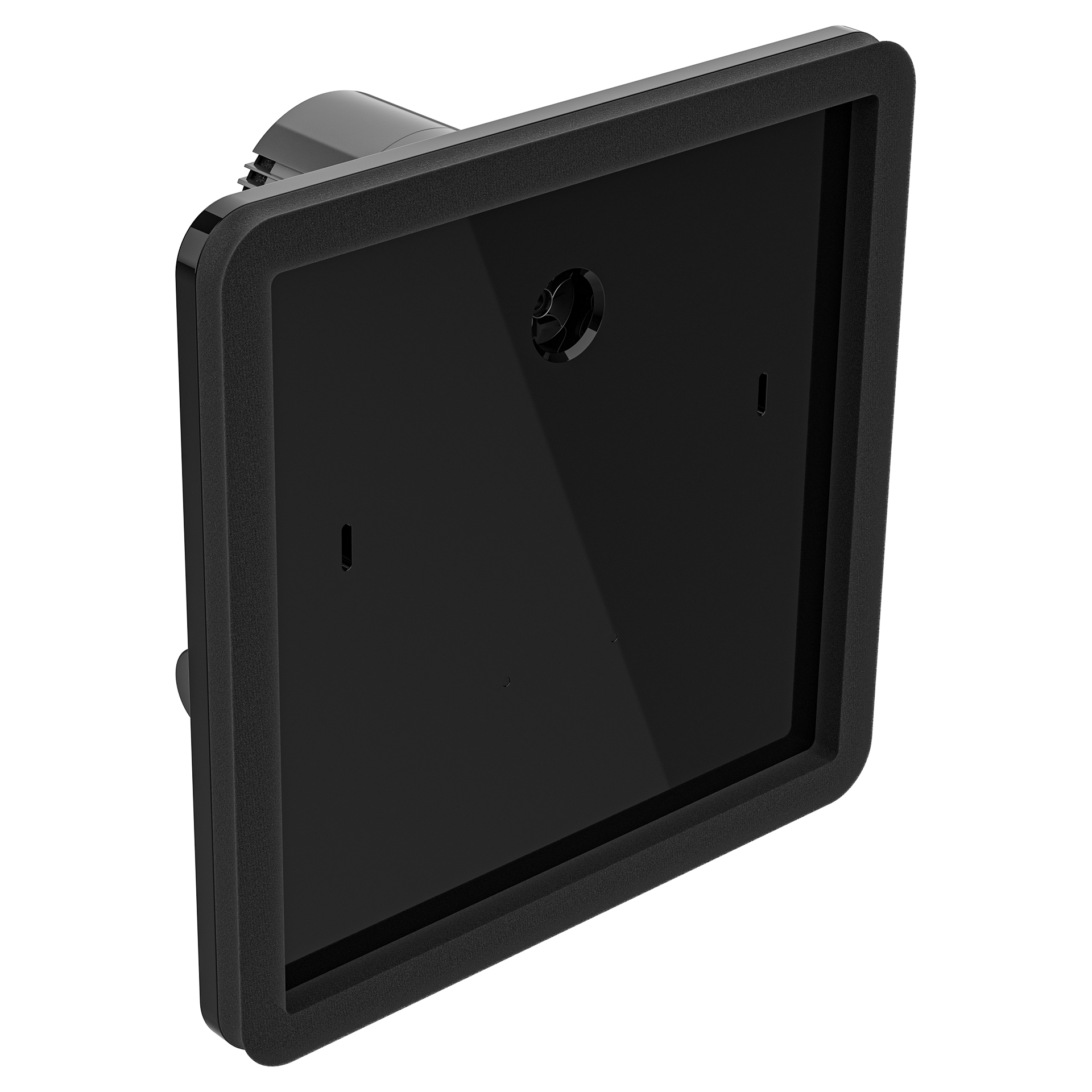

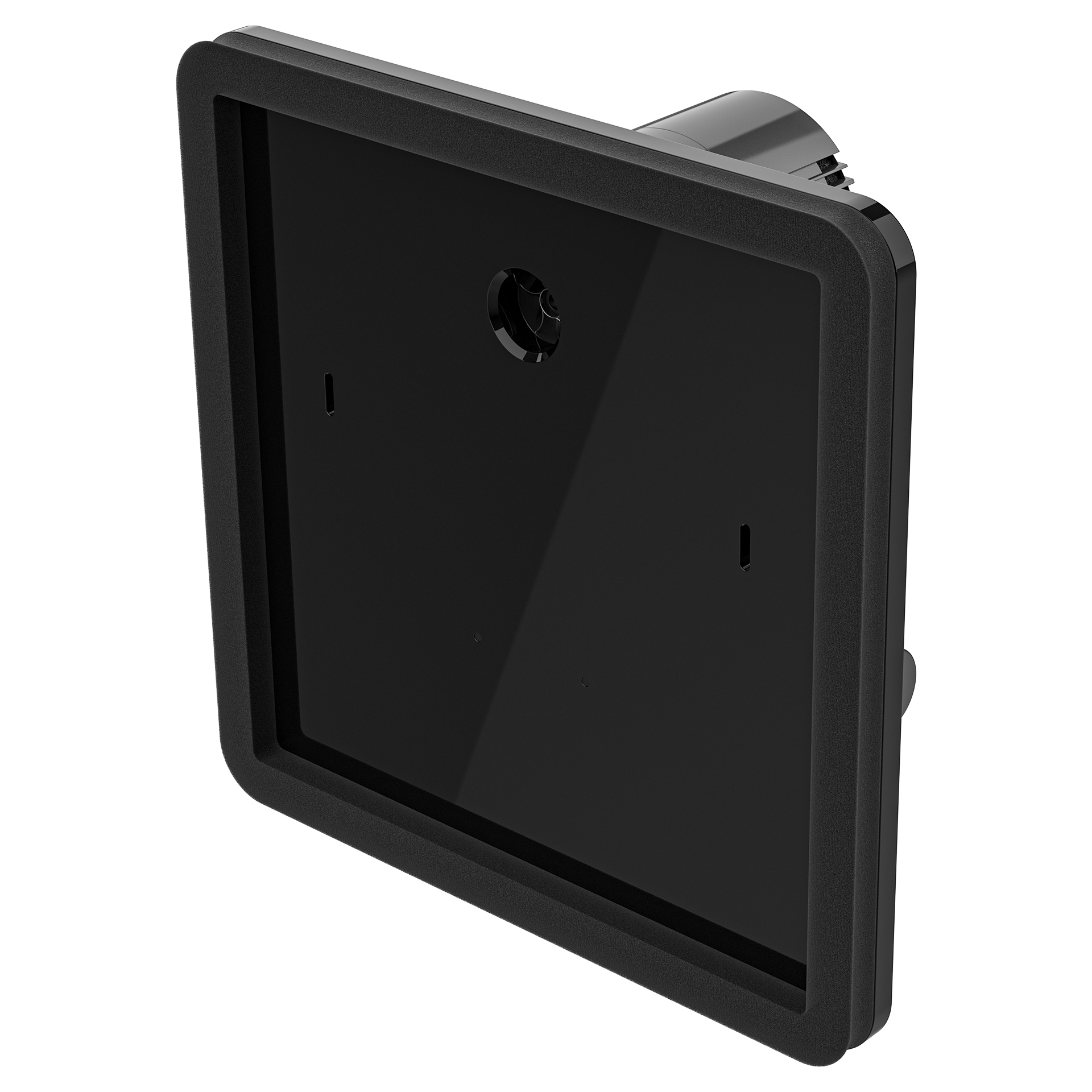

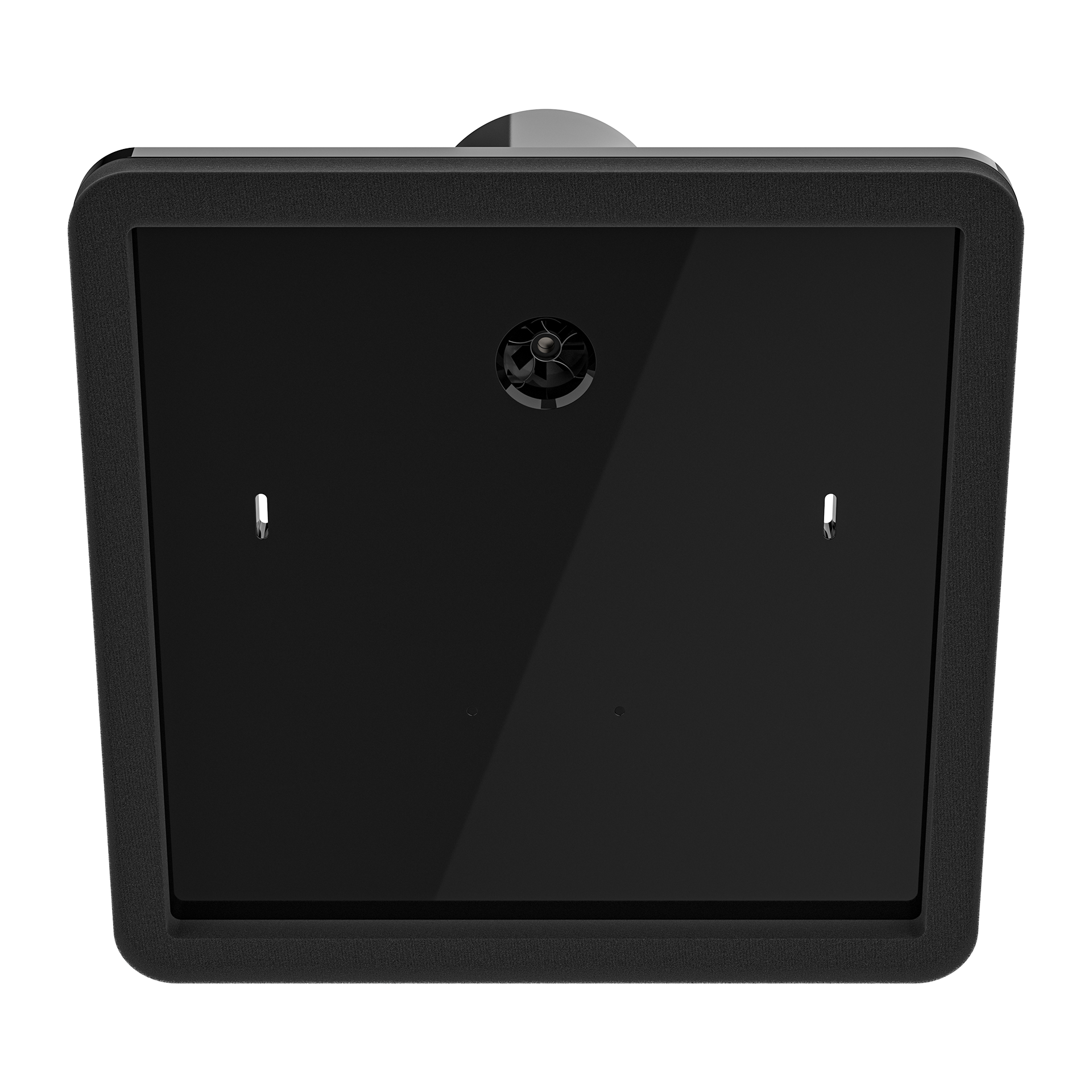

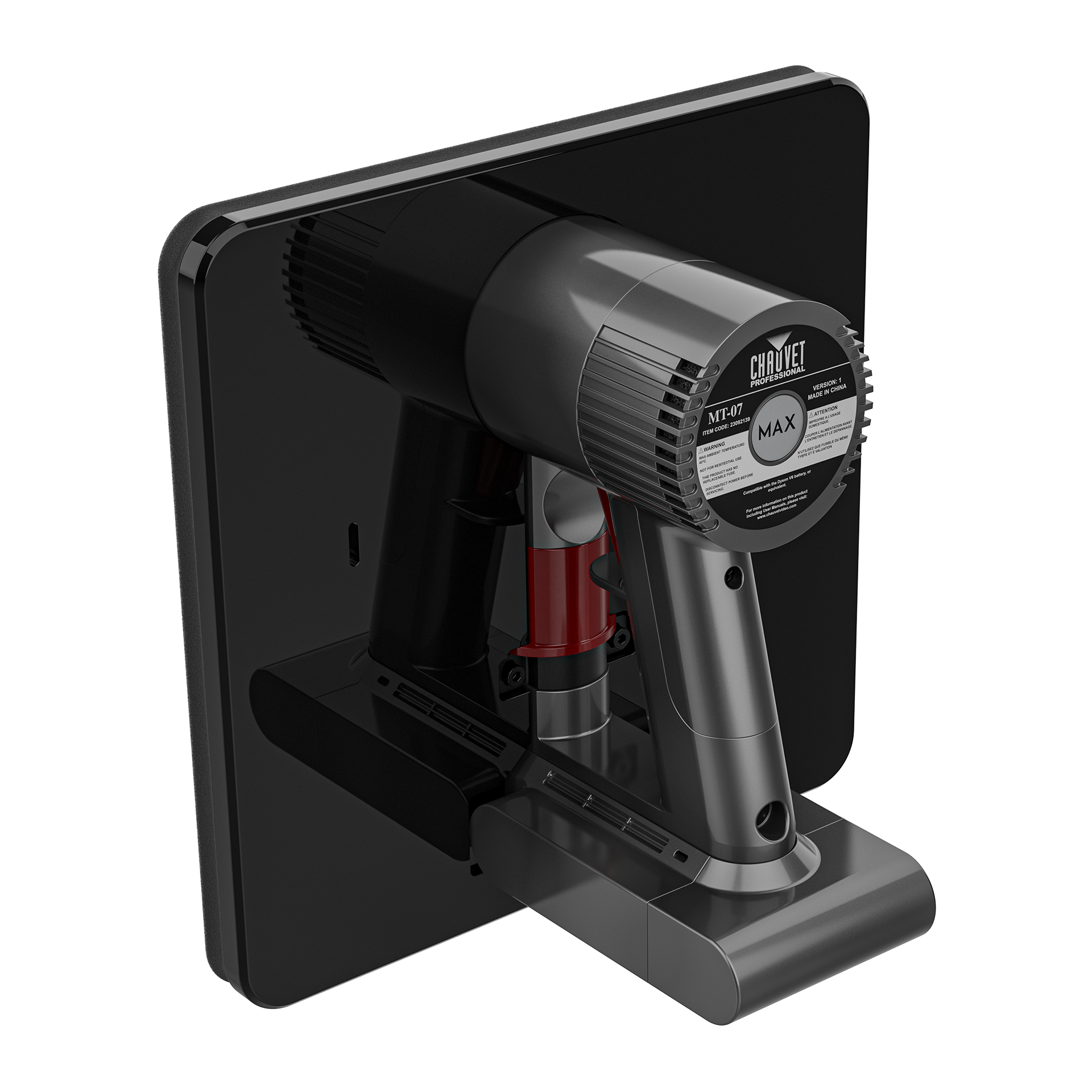

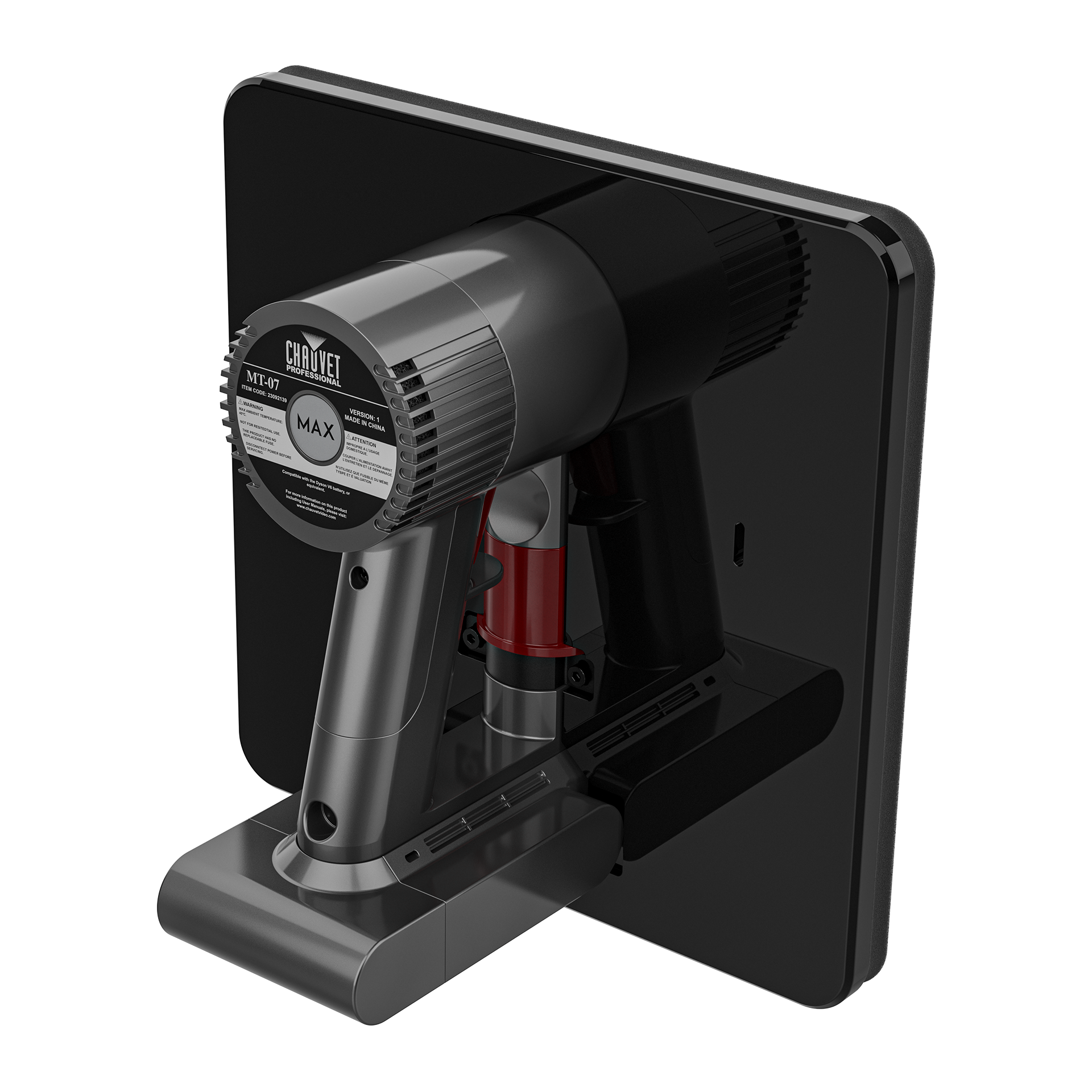

    A universal, battery-powered vacuum tool that provides safe and even pulling force for the damage-free removal and installation of LED modules from all CHAUVET Professional video panels.
    Ideal for technicians performing quick, on-site front-service maintenance and module replacement on video walls in any setting.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: MT07

    MT-07

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

    Universal LED Module removal/installation tool that works with all CHAUVET Professional video panels, including F-series and REM-series. Convenient battery-powered tool for front-service module access. Creates vacuum over LED module surface to apply even pulling force, preventing damage to LEDs on LED modules. Includes battery charger and carry case.

    Features

    Universal LED Module Tool

    A dedicated tool designed for the simple removal and installation of LED modules.

    Wide Chauvet Compatibility

    Works with all Chauvet video panels, including the F-series and REM-series, for maximum versatility.

    Convenient Battery Power

    The battery-powered design allows for easy use, especially for front-service module access.

    Damage Free Vacuum Suction

    Creates a vacuum to apply even pulling force, preventing damage to the delicate LEDs on each module.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Construction/Physical

      • Dimensions

        9.45 x 9.45 x 5.52 in (240 x 240 x 140 mm)

      • Weight

        6.8 lb (3.08 kg)

      • Dimensions (shipping size)

        12.05 x 15.04 x 8.27 in (306 x 382 x 210 mm)

      Connections

      • Cable Length (power extension)

        3 ft (0.91 m)

      Electrical

      • Charger Input Voltage

        26.10 VDC, 780 mA (external power supply: 100-240 VAC 50/60 Hz)

      Battery

      • Battery type

        Lithium Ion

      • Rechargeable

        Yes

      • Watt Hours

        97.2 Wh

      • Voltage

        21.6V

      • Amp Hour

        4500 mAh

      Certifications/Qualifications

      • Certifications

        CE

      • IP Rating

        IP20, dry location

      What's Included

      • MT-07 Module Removal Tool
      • Battery Charger
      • Battery Pack (installed)
      • Carry case

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      MT-07 – Quick Reference Guide
      		Download

      Learn How To Use Your MT-07

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Light Snacks: REM Mira Accessory Options

        Streamline the installation and front-service maintenance of REM Mira video walls with essential accessories from CHAUVET Professional. This overview showcases a precision drill guide and a battery-powered vacuum tool engineered to empower technicians with faster, safer, and more accurate workflows.

      Video Library

      Latest Articles

      Browse Articles

      MT-07 FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the MT-07
      What is the Chauvet MT-07 tool used for?

      The MT-07 is a battery-powered vacuum tool designed to safely remove and install individual LED modules from CHAUVET Professional video panels. It uses gentle suction to apply even pressure, preventing damage to the delicate LEDs during service or replacement.

      Which video panels work with the MT-07 tool?

      The MT-07 is a universal tool designed to work with all CHAUVET Professional video panels that feature front-serviceable modules, including popular lines like the F-series and REM-series.

      Is the MT-07 tool portable and easy to use?

      Yes, it is completely portable. The MT-07 is battery-powered, eliminating the need for nearby power cords, and it comes as a complete kit with a rechargeable battery, charger, and a convenient carry case for easy transport and use on any job site.
