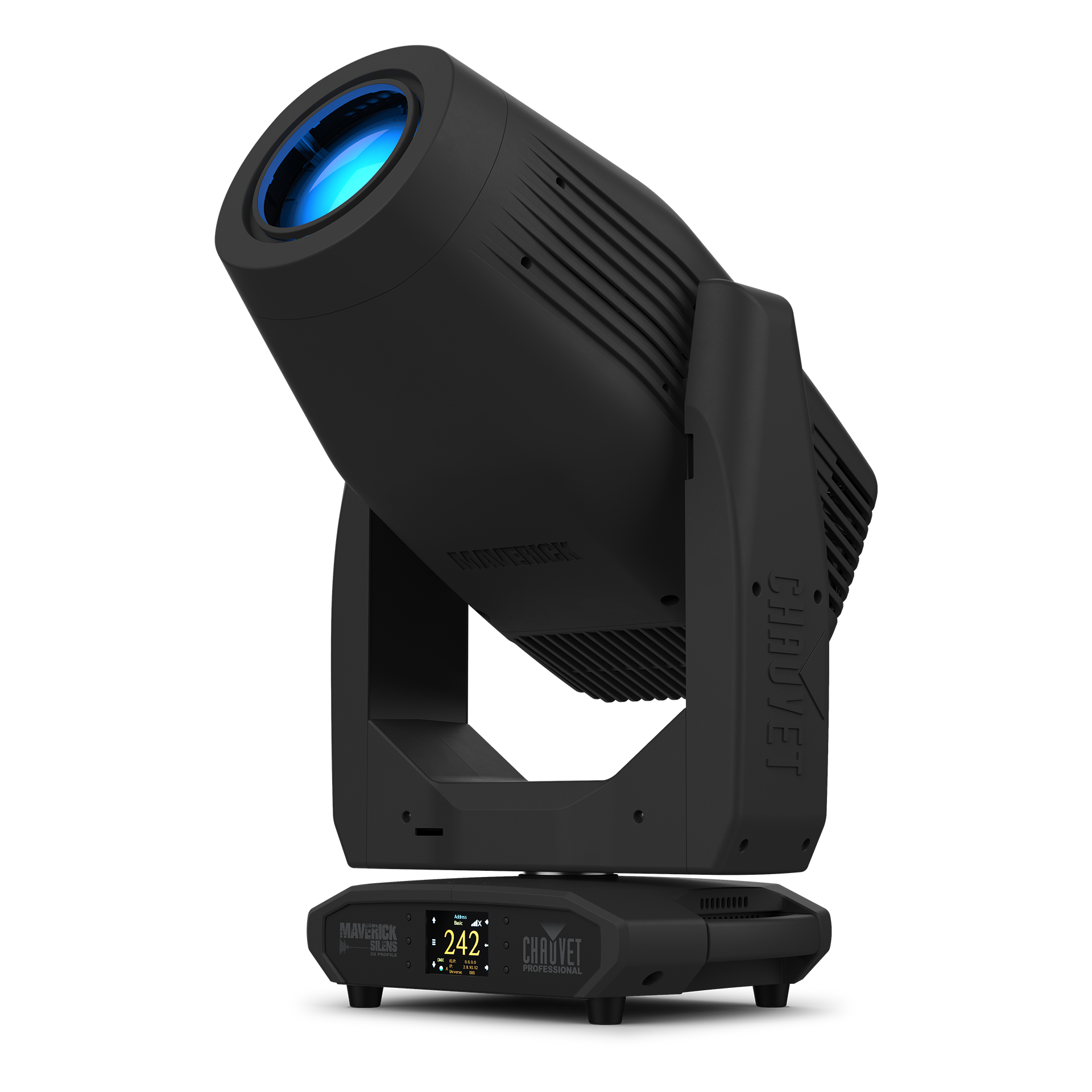

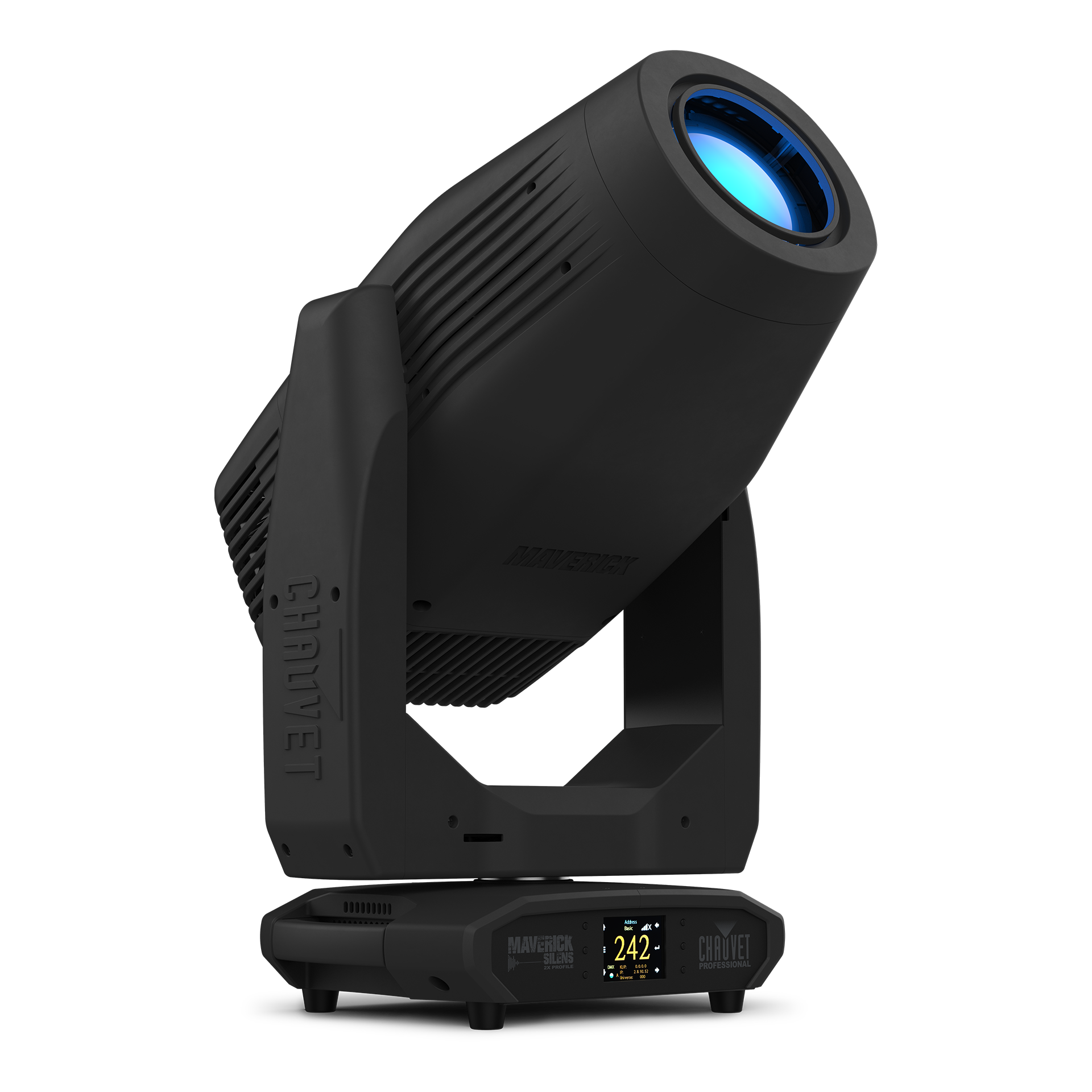

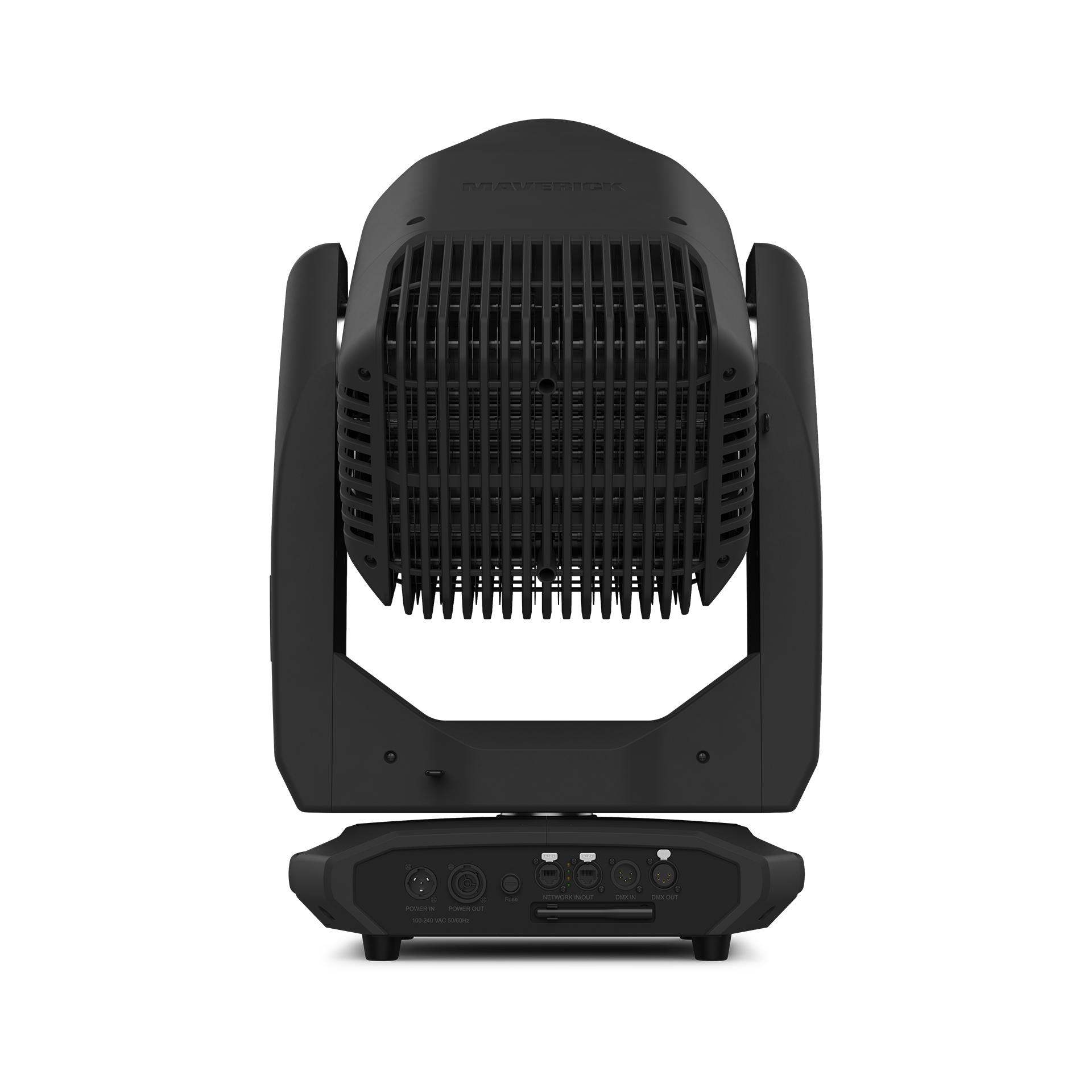

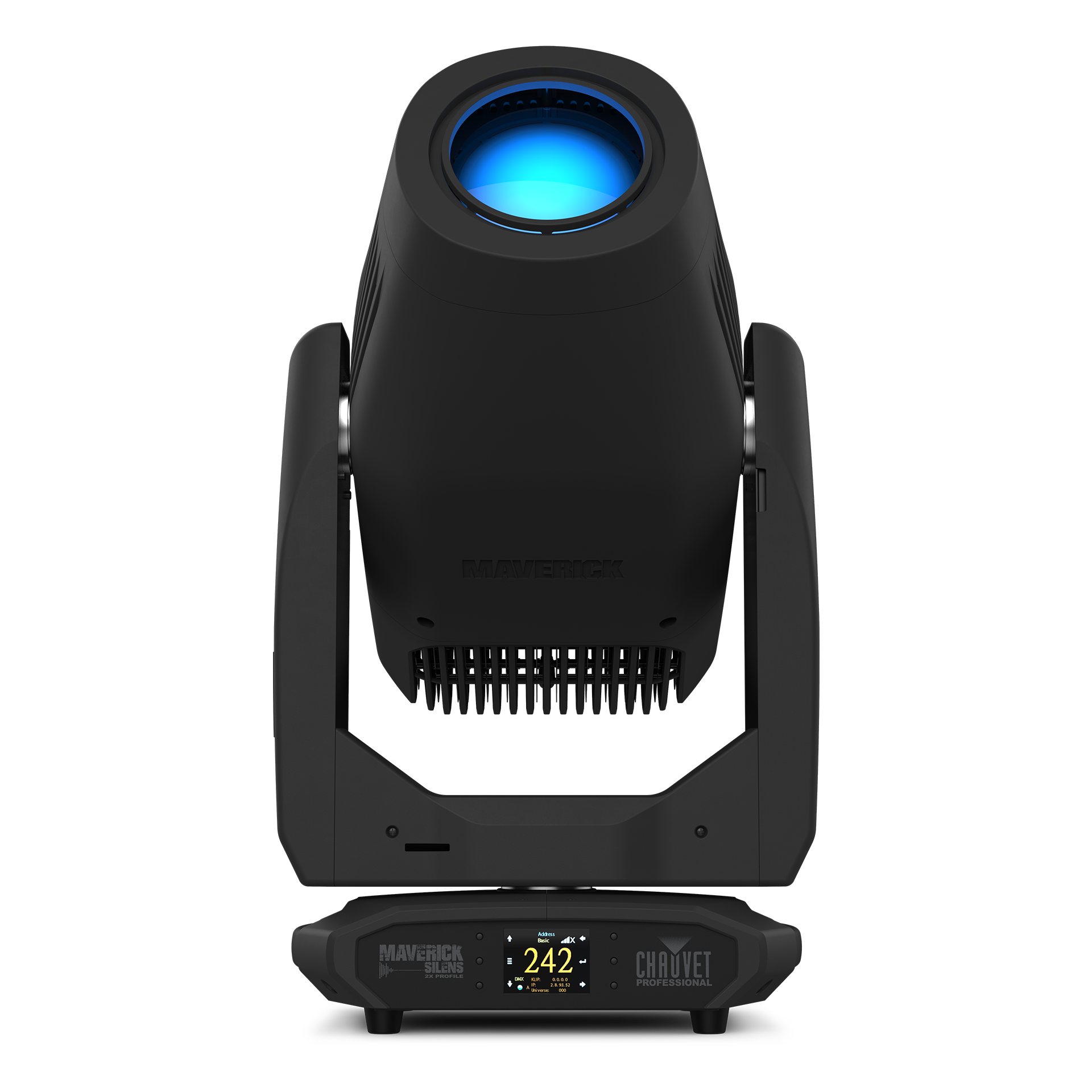

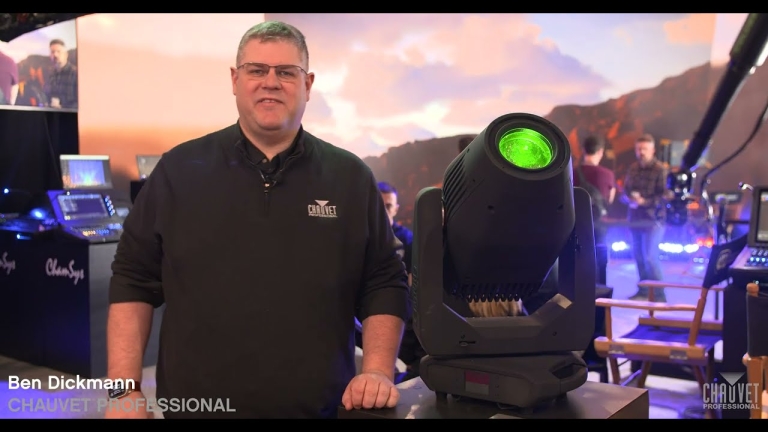

Maverick Silens 2X Profile

Optical

• Light Source

  1 LEDs (CW) 750 W, (12 A), 6331 K, 30,000 hours life expectancy

• Light Source

  1 LED (RGB) 13 W, (3.7 A), 50,000 hours life expectancy

• Color Temperature (at full)

  6317 K

• CRI

  94.8

• TM-30 Rf

  93.2

• TM-30 Rg

  101.5

• Front Lens Diameter

  138mm

• Beam Angle

  5.8° to 50.8°

• Field Angle

  6.4° to 53.6°

• Cutoff Angle

  6.5° to 58.5°

• Zoom Range

  5.5° to 58.5°

• Lumens – Output

  12,748

• • Illuminance
    • Illuminance (5.8°)

      30,672 lux @ 5 m

    • Illuminance (58.5°)

      697 lux @ 5 m

• Selectable PWM

  20,000, 40,000

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  6 + white, split colors, continuous scroll at variable speeds

• Colors

  CMY flags, CTO flag, color correction

• Gobos (1)

  7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  8 + open (8 glass), continuous scroll at variable speeds

• • Gobo Size
    • Gobo Wheel 1 (rotating)

      26.9 mm (outside), 22 mm (image)

    • Gobo Wheel 2

      26.9 mm (outside), 22 mm (image)

• Effect Wheel

  1 effect

• Framing Shutters

  Yes

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Variable Frost – Motorized

• Iris

  Motorized – 15 Leaf

• Prism

  5 Facets, round, motorized, rotating

• Strobe Rate

  0 to 20 Hz

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)

• Weight

  75.5 lb. (34.4 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant Polymer

Connections

• Power Connection

  Edison plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  5-pin XLR, Amphenol XLR Net RJ45 connectors in/out

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, DMX, CRMX, RDM, sACN

• DMX Channels

  32, 33, 41 or 42

• Art-Net Channels

  32, 33, 41 or 42

• Modes/Personalities

  4 personalities (32, 33, 41, and 42)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V

• Power and Current

  650 W, 6.53 A @ 100 V, 60 Hz

• Power and Current

  640 W, 5.45 A @ 120 V, 60 Hz

• Power and Current

  639 W, 3.10 A @ 208 V, 60 Hz

• Power and Current

  648 W, 2.82 A @ 230 V, 50 Hz

• Power and Current

  654 W, 2.75 A @ 240 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
