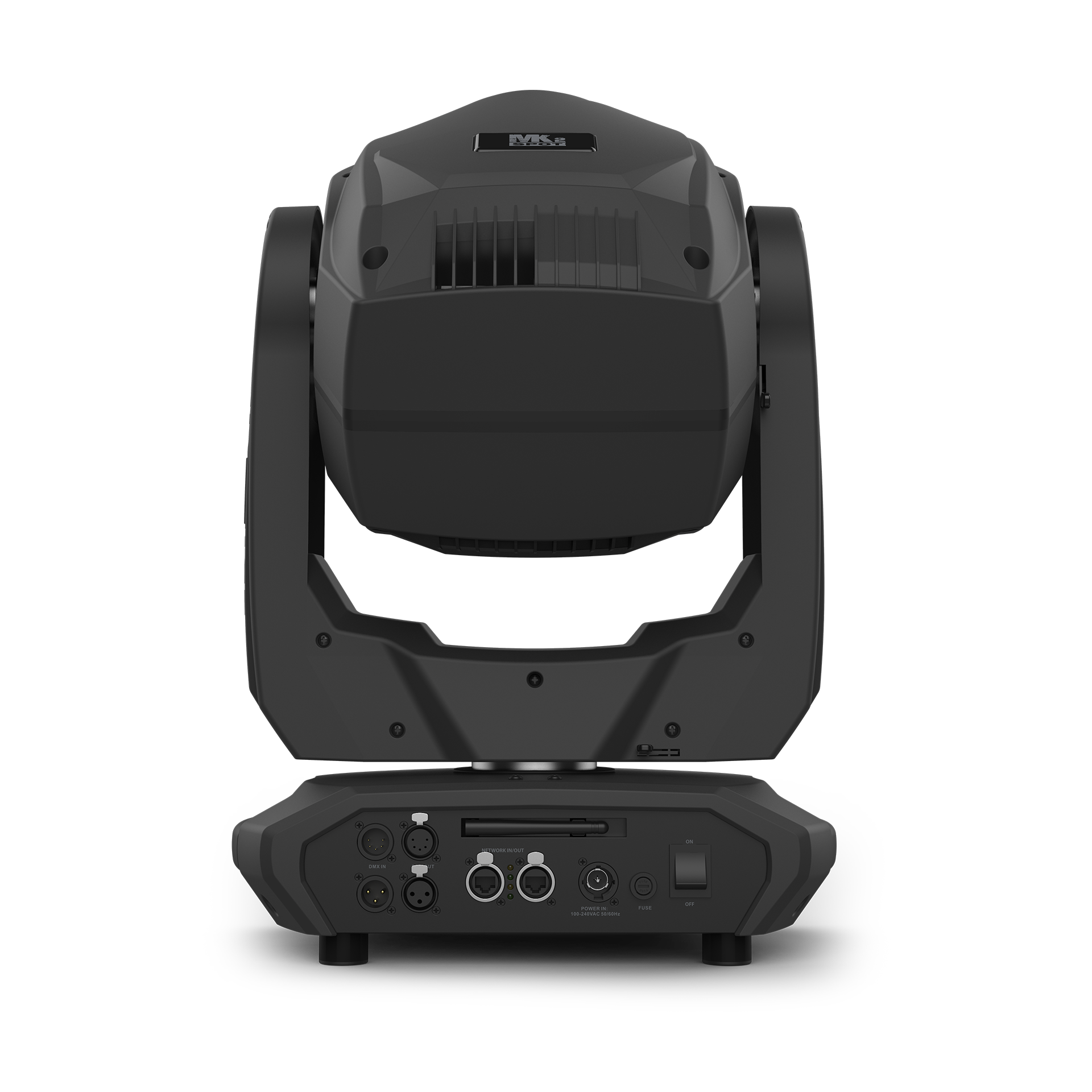

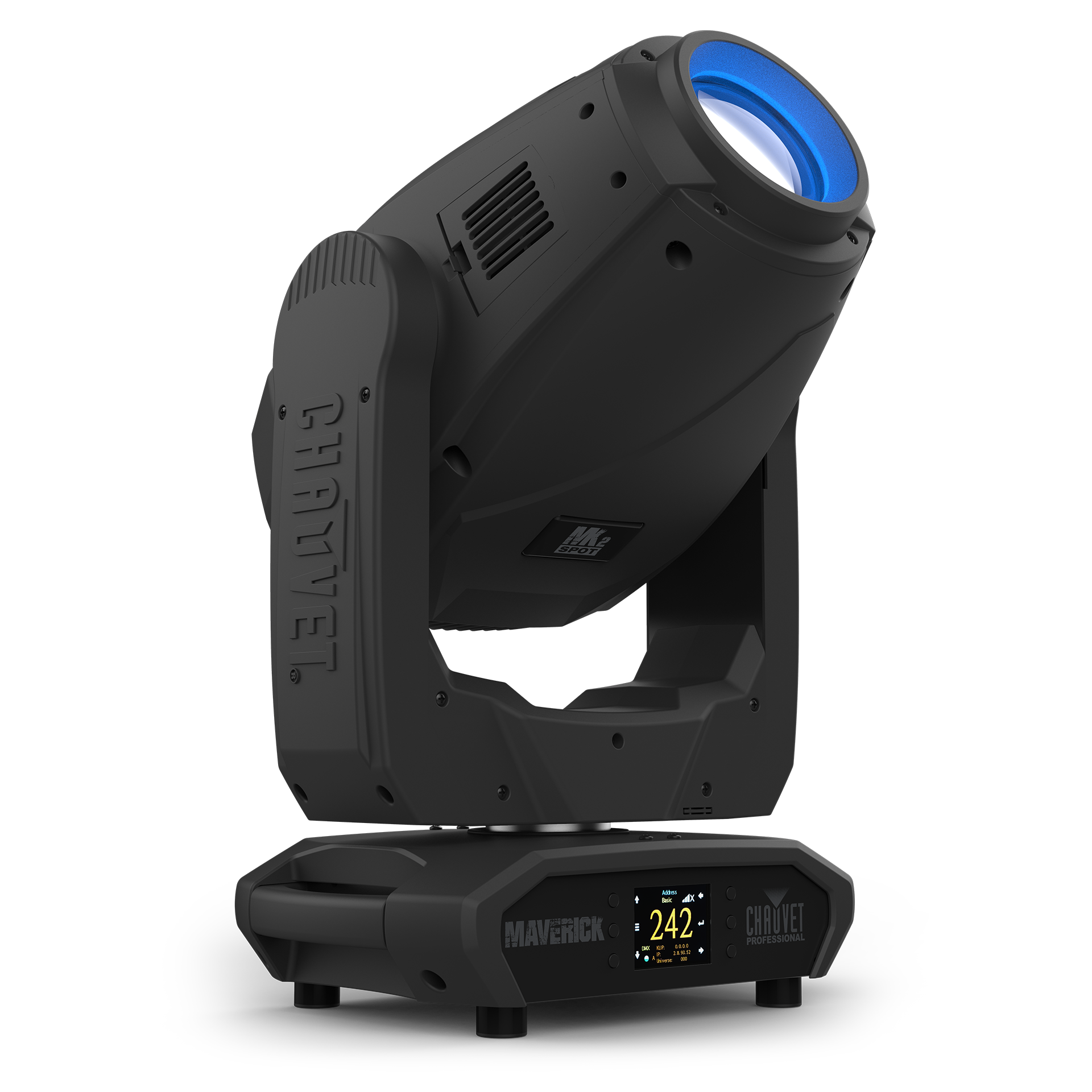

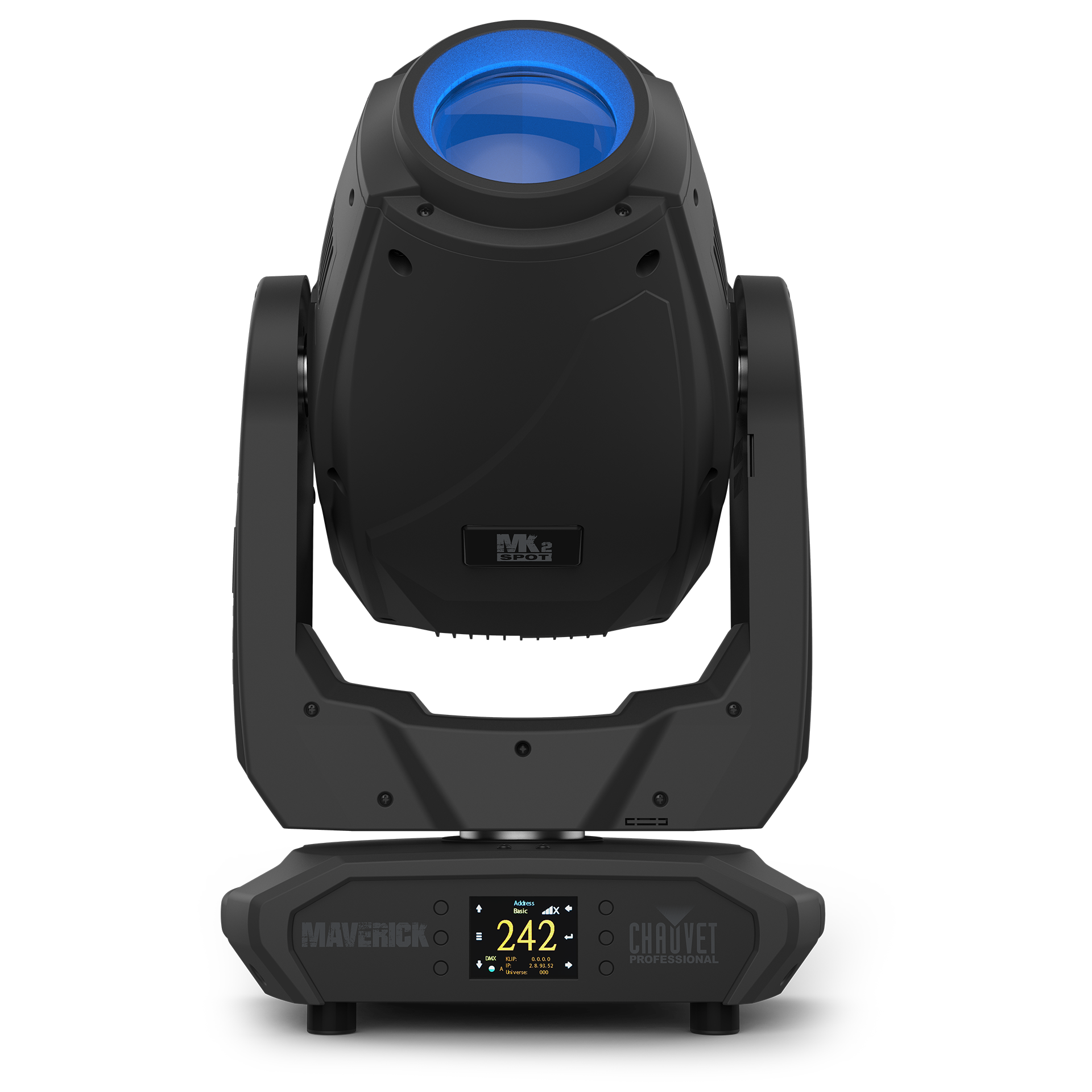

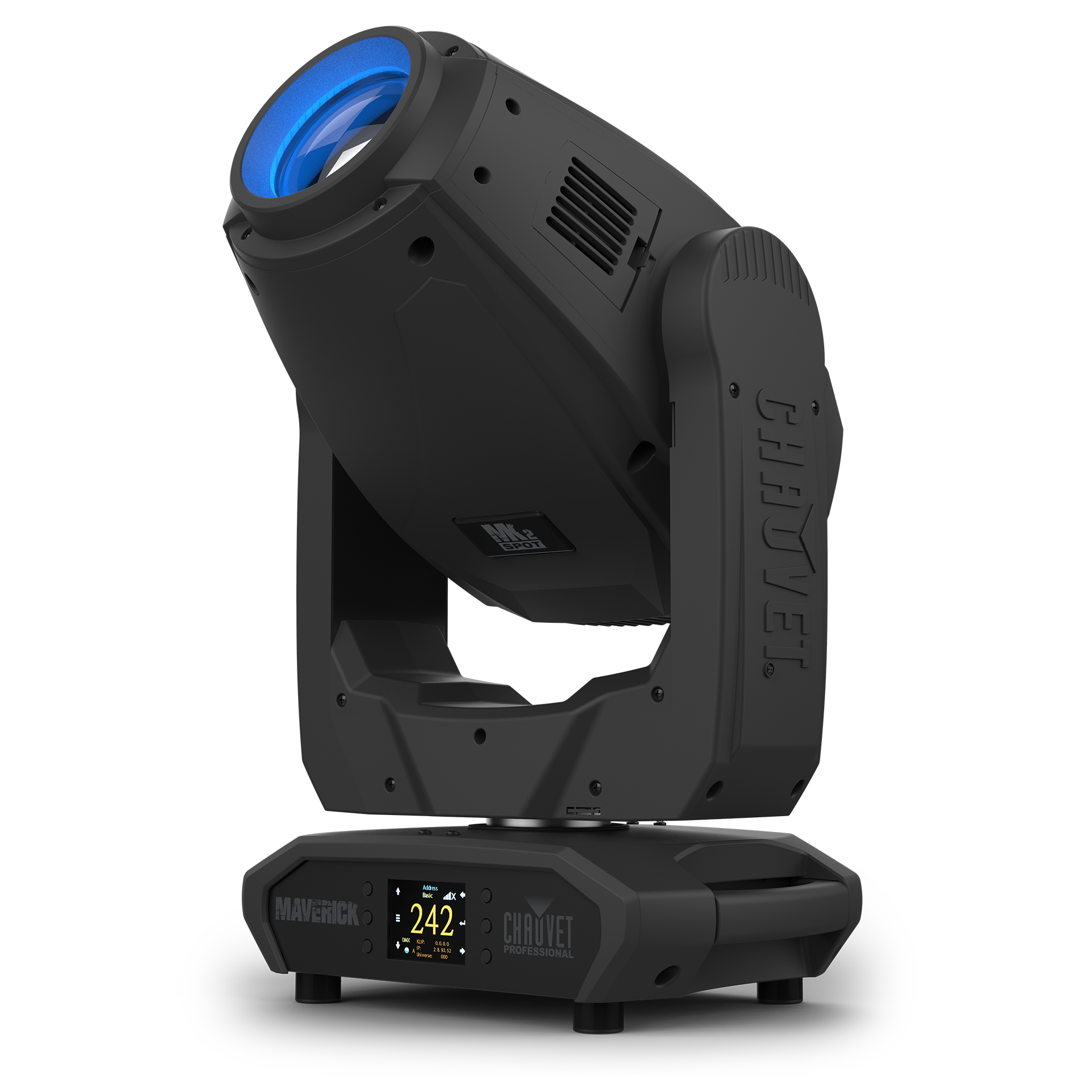

Maverick MK2 Spot

Optical

• Light Source

  1 LED (CW) 440 W, (5.6 A), 6808 K, 50,000 hours life expectancy

• Color Temperature (at full)

  7101 K

• Front Lens diameter

  116 mm

• CRI

  73

• Beam Angle

  12° to 35.6°

• Field Angle

  14.7° to 40.5°

• Zoom Angle

  14.7° to 40.5°

• Lumens – Source

  28,000

• Lumens – Output

  18,506

• • Illuminance
    • 13°

      20,200 lux @ 5 m

    • 37°

      2,731 lux @ 5 m

• Selectable PWM

  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt

  540°/270°

• Pan and Tilt Ranges

  540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors

  7 + white, split colors, continuous scroll at variable speeds

• Colors

  CMY flags, CTO flag

• Gobos (1)

  6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobos (2)

  6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

• Gobo Size (1)

  Gobo Wheel 1 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)

• Gobo Size (2)

  Gobo Wheel 2 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Focus

  Motorized

• Frost

  Motorized

• Iris

  Motorized

• Prism

  3 Facets, motorized, rotating

• Strobe Rate

  0 to 20 Hz

• Move-in-Black

  Yes

• Dim Curves

  4

Construction/Physical

• Dimensions

  15.1 x 9.8 x 26.4 in (385 x 250 x 671 mm)

• Weight

  62.8 lb (28.5 kg)

• Exterior Color

  Black

• Housing Material

  High-impact flame-retardant polymer

Connections

• Power Connection

  Edison plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin XLR, Neutrik

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  Art-Net, sACN, DMX, W-DMX

• DMX Channels

  24 or 32

• Art-Net Channels

  24 or 32

• Modes/Personalities

  2 personalities (24, 32)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current

  740 W, 6.01 A @ 120 V, 60 Hz

• Power and Current

  723 W, 3.63 A @ 208 V, 60 Hz

• Power and Current

  700 W, 3.33 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location
