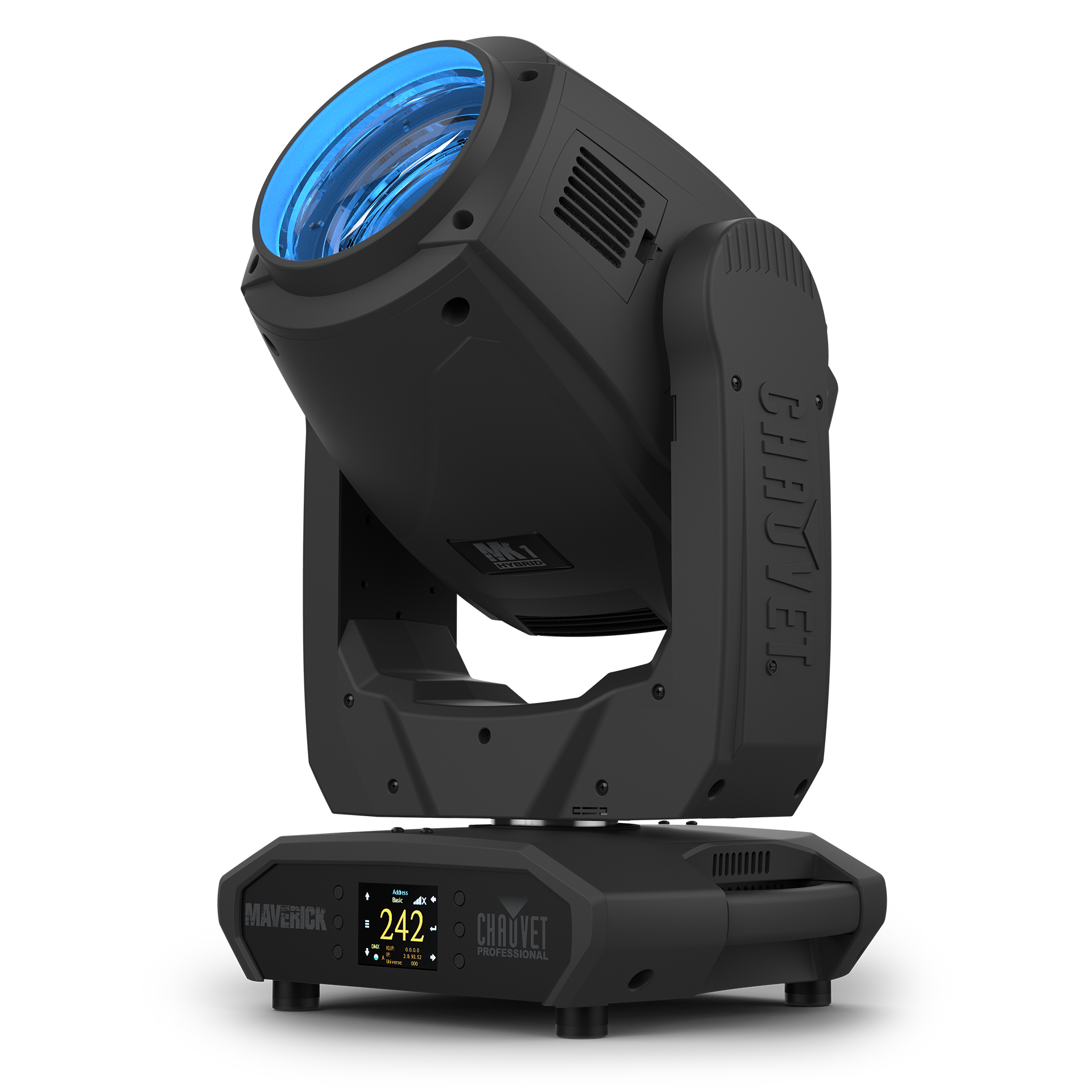

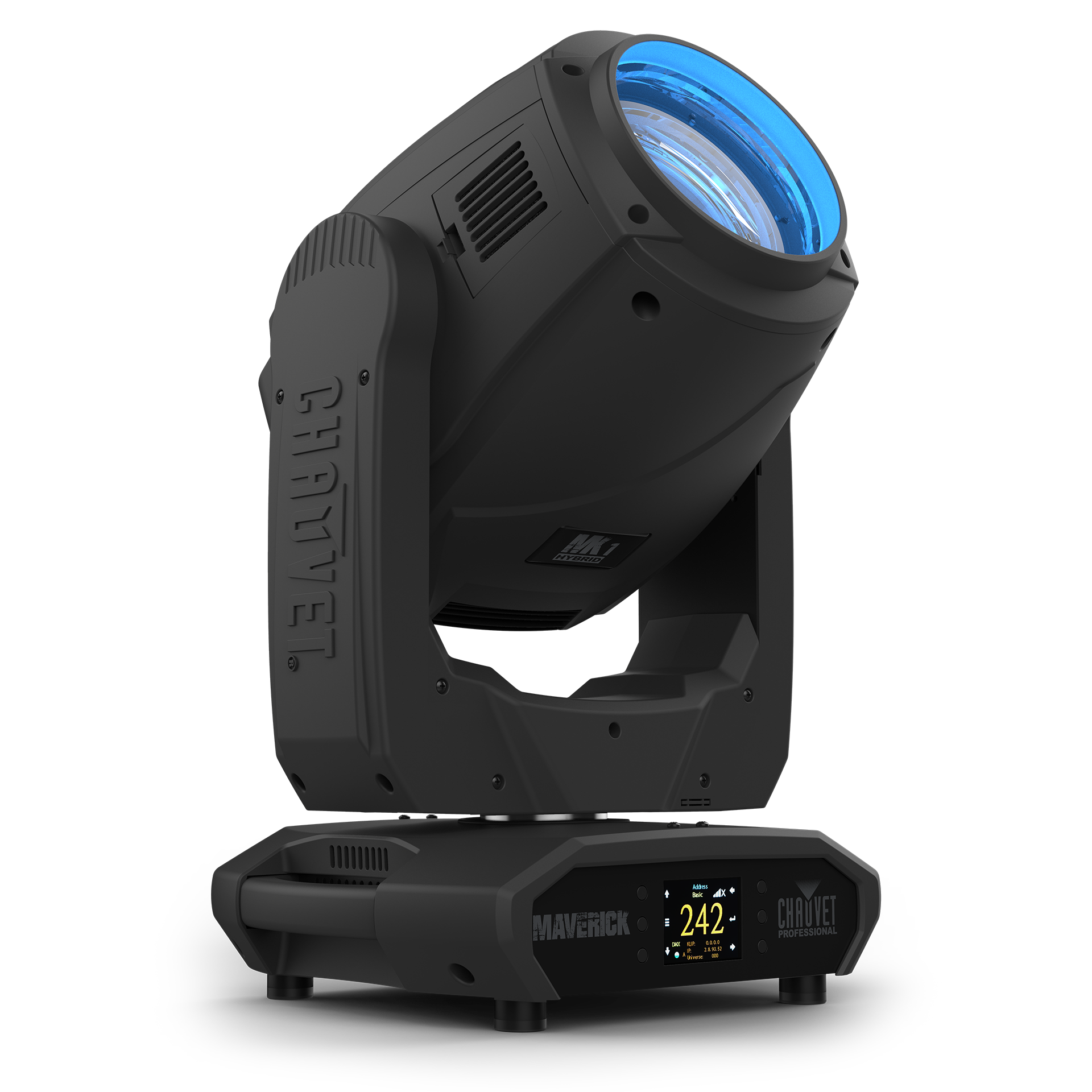

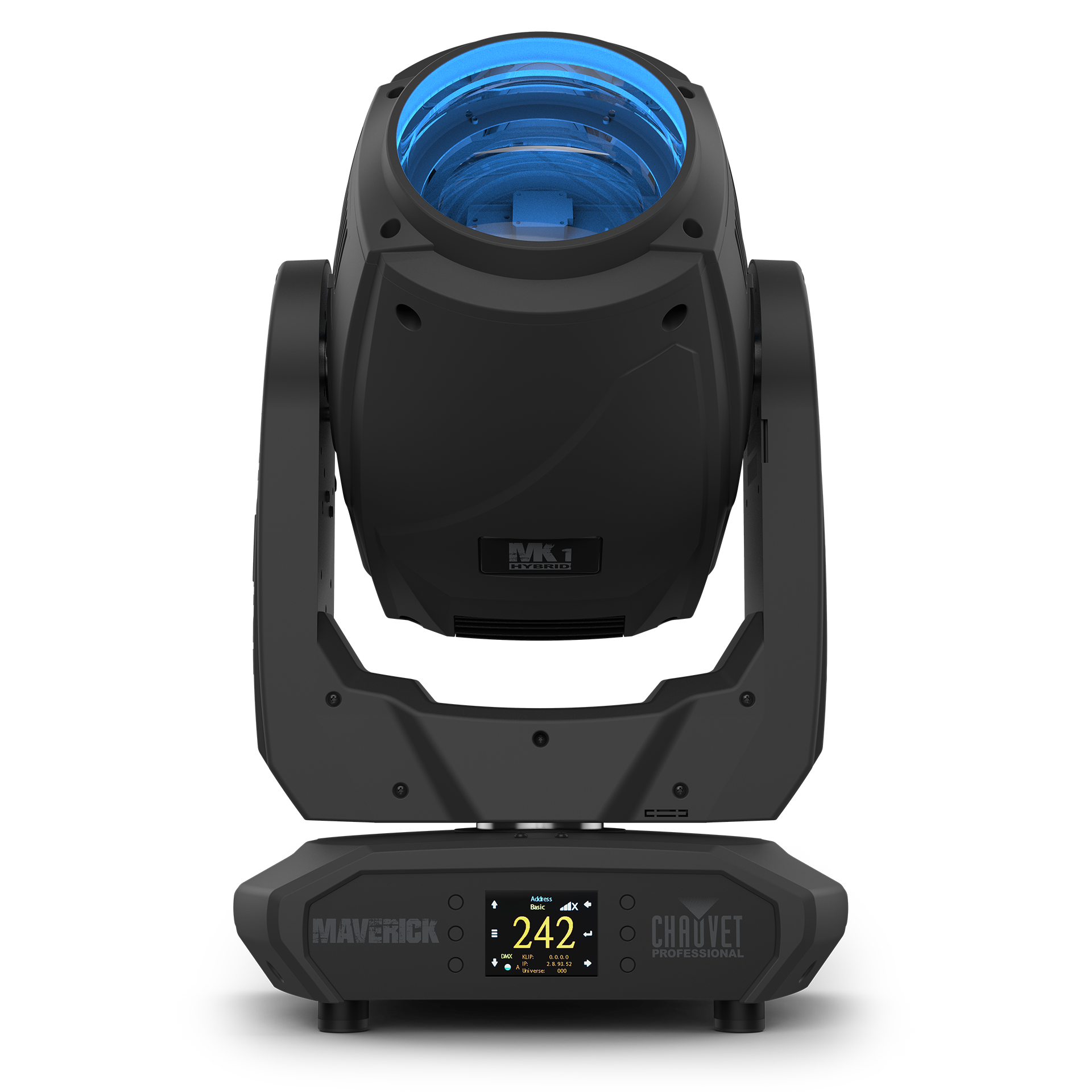

    Maverick MK1 Hybrid

    A powerful hybrid moving head fixture that delivers versatile spot and wash capabilities using a 440W lamp, CMY color mixing, dual overlapping prisms, a full gobo package, and a wide zoom range.
    Perfect for professional touring, concert stages, theatrical productions, and large-scale events that require a versatile, high-impact lighting workhorse.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: MAVERICKMK1HYBRID

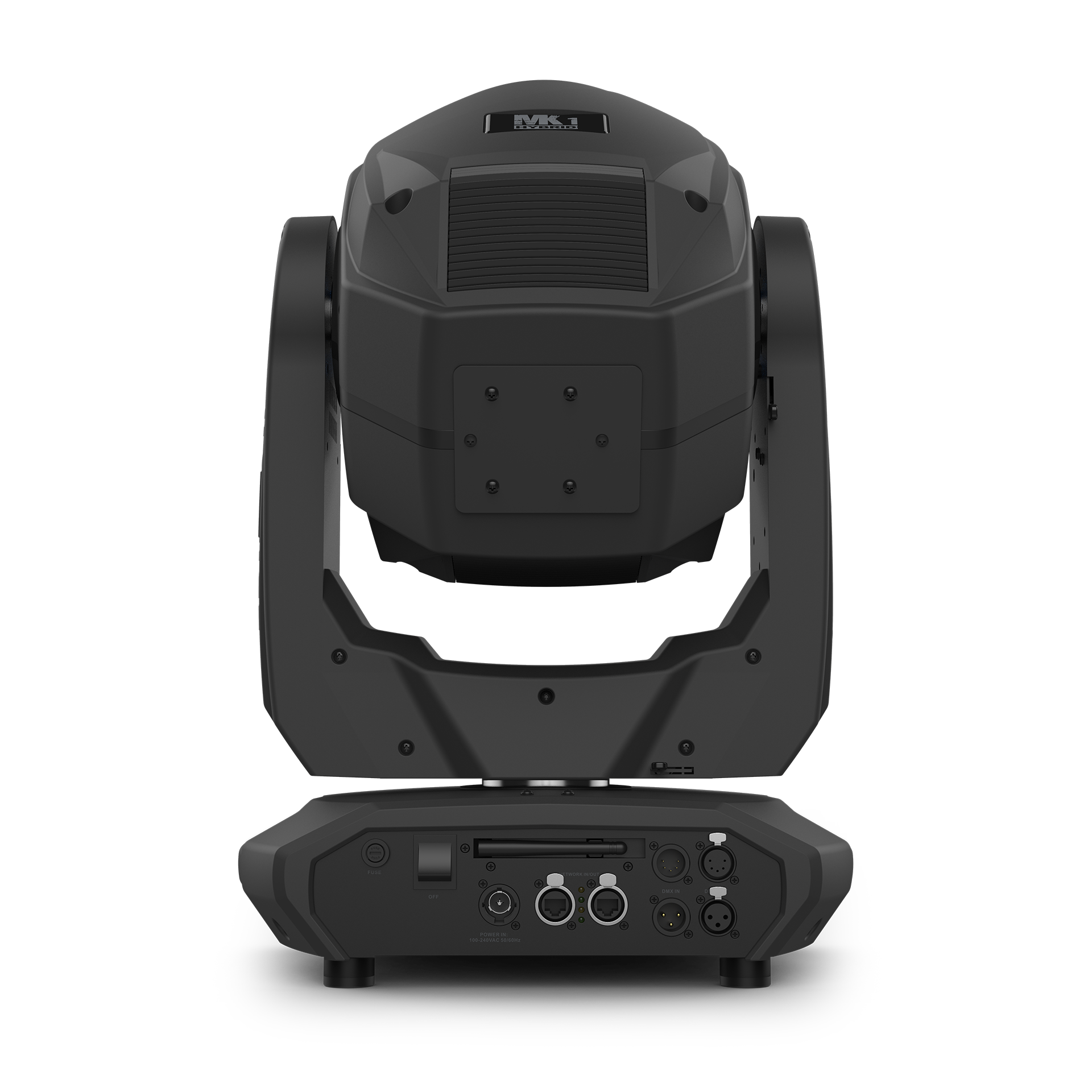

    Maverick MK1 Hybrid

    Specifications
    		 Download
    Maverick MK1 Hybrid Quick Reference Guide
    		 Download
    Maverick MK1 Hybrid User Manual
    		 Download
    Maverick MK1 Hybrid CAD File
    		 Download
    Maverick MK1 Hybrid Photometrics Report
    		 Download
    Maverick MK1 Hybrid DMX Chart
    		 Download
    Case Study: Cory Pattak Has Fun Lighting <em>Xa…
    		 Download
    Case Study: JDI Productions Creates Engagement …
    		 Download
    Case Study: <em>Let’s Dance</em> Gets New Moves
    		 Download
    Maverick MK1 Hybrid ShowXpress
    		 Download
    Firmware
    		 Download
    Download All Resources

    Maverick MK1 Hybrid

    SKU: MAVERICKMK1HYBRID

    Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3° – 18° zoom range in spot mode and 19° – 41° in wash mode, and a robust CMY color system. Powered by a 440 W Osram Sirius reflector lamp, this supercharged hybrid awaits your command to dazzle with stunning output and effects. Choose from DMX, sACN, Art-Net, or W-DMX for control.

    Features

    High Power Spot/Beam Fixture

    A versatile and powerful fixture combining Spot and Beam functionality in a single unit.

    Precise Pan and Tilt Movement

    Delivers rapid and accurate movement for dynamic lighting effects and precise positioning.

    Advanced Color Mixing

    Create a vast spectrum of colors using variable CMY mixing and a dedicated static color wheel.

    Dual Overlapping Prisms

    Layer and individually control both 8-facet and 4-facet prisms for complex aerial effects.

    Frost and Beam Flattening

    Includes frost and beam flattening filters to achieve soft, even light distribution for wash effects.

    Versatile Zoom Range

    Offers an extensive zoom from 3° to 18° in spot mode and 19° to 41° in wash mode.

    Narrow 1-Degree Beam

    Produces an extremely narrow 1-degree beam for creating sharp, focused aerial effects.

    Dual Gobo Wheels

    Provides extensive visual options with six rotating gobos and eighteen static gobos.

    Flexible Control Options

    Supports DMX, W-DMX, sACN, and Art-Net protocols for complete control versatility.

    Professional Power Input

    Features a True 1 compatible power input for secure and reliable connections.

    Battery Backup Display

    Allows for fixture setup and configuration without mains power via a display that automatically rotates.

    Easy Fixture Setup

    Simplify multi-fixture configuration with three setup presets and a preset sync function.

    Latest News

    Cody James Balances Divergent Visions for Yellowcard With Help From CHAUVET Professional
    LD Cody James balances powerful saturation and open space for Yellowcard’s anniversary tour.
    Read more
    Massive Productions Creates Winning Design for Tumba Festival with CHAUVET Professional
    Massive Productions creates a vibrant, broadcast-ready experience for the annual Tumba Festival.
    Read more
    Events United Delivers Realtime, Two-Site Kickoff for Connection with CHAUVET Professional
    Events United bridges two distant stages for a flawlessly connected hybrid corporate event.
    Read more
    BIGABOX Calls on CHAUVET Professional to Support Sonny Fodera at O2 Academy Brixton
    Tom Cull’s dynamic lighting design mirrored the emotional energy of Sonny Fodera’s sold-out London shows.
    Read more
    Massive Productions and CHAUVET Professional Connect Burna Boy to Fans in Curaçao
    Massive Productions creates a powerful, fan-focused lightshow connecting superstar Burna Boy to his audience.
    Read more
    CHAUVET Professional Helps Massive Productions Mirror Excitement on Identical Stages
    Massive Productions mirrors festival excitement with identical lighting rigs on two massive stages.
    Read more
    Cody James Balances Divergent Visions for Yellowcard With Help From CHAUVET Professional
    LD Cody James balances powerful saturation and open space for Yellowcard’s anniversary tour.
    Read more
    Massive Productions Creates Winning Design for Tumba Festival with CHAUVET Professional
    Massive Productions creates a vibrant, broadcast-ready experience for the annual Tumba Festival.
    Read more
    Events United Delivers Realtime, Two-Site Kickoff for Connection with CHAUVET Professional
    Events United bridges two distant stages for a flawlessly connected hybrid corporate event.
    Read more
    BIGABOX Calls on CHAUVET Professional to Support Sonny Fodera at O2 Academy Brixton
    Tom Cull’s dynamic lighting design mirrored the emotional energy of Sonny Fodera’s sold-out London shows.
    Read more
    Massive Productions and CHAUVET Professional Connect Burna Boy to Fans in Curaçao
    Massive Productions creates a powerful, fan-focused lightshow connecting superstar Burna Boy to his audience.
    Read more
    CHAUVET Professional Helps Massive Productions Mirror Excitement on Identical Stages
    Massive Productions mirrors festival excitement with identical lighting rigs on two massive stages.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      Osram Sirius 440W lamp, 7000 K (Color Temp), 1,500 hours life expectancy

    • Color Temperature (at full)

      6207 K

    • Front Lens diameter

      174 mm

    • Lumens – Source

      22,000

    • Lumens – Output

      15,500

    • Illuminance (2°)

      212,100 lux @ 15 m

    • Illuminance (3°)

      123,200 lux @ 15 m

    • Illuminance (18°)

      25,800 lux @ 5 m

    • Illuminance (19°)

      16,000 lux @ 5 m

    • Illuminance (41°)

      2,235 lux @ 5 m

      • Spot Mode
        • Beam Angle

          1° to 6°

        • Field Angle

          3° to 18°

        • Zoom Angle

          3° to 18°

      • Wash Mode
        • Beam Angle

          9° to 22°

        • Field Angle

          19° to 41°

        • Zoom Angle

          19° to 41°

    Dynamic Effects

    • Pan and Tilt

      540°/270°

    • Pan and Tilt Ranges

      540°, 360°, 180° pan/270°, 180°, 90° tilt

    • Colors

      15 + white, split colors

    • Colors

      CMY flags, CTO

    • Gobos (1)

      6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

    • Gobos (2)

      18 + open (18 metal), continuous scroll at variable speeds

    • Gobo Size

      Gobo Wheel 1 (rotating): 22 mm (outside), 13 mm (image), 1.1 mm (max. thickness)

    • Effect Wheel

      1 effect

    • Framing Shutters

      No

    • Dimmer

      Motorized

    • Shutter/Strobe

      Motorized

    • Zoom

      Motorized

    • Focus

      Motorized

    • Frost

      Motorized

    • Prism (1)

      4 Facets, motorized, rotating

    • Prism (2)

      8 Facets, motorized, rotating

    • Move-in-Black

      Yes

    Construction/Physical

    • Dimensions

      15.51 x 12.09 x 24.76 in (394 x 307 x 629 mm)

    • Weight

      66.7 lb (30.3 kg)

    • Exterior Color

      Black

    • Housing Material

      High-impact flame-retardant polymer

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Data Connectors

      3- and 5-pin XLR

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      Art-Net, DMX, W-DMX, sACN

    • DMX Channels

      27 or 30

    • Art-Net Channels

      27 or 30

    • Modes/Personalities

      2 personalities (27, 30)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      670 W, 5.45 A @ 120 V, 60 Hz

    • Power and Current

      648 W, 3.12 A @ 208 V, 60 Hz

    • Power and Current

      651 W, 2.81 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET

    • IP Rating

      IP20, dry location

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-07
    • IP rated Seetronic Powerkon extensions
    • DMX cables
    • Flight case: CPSINGLECASEA1

    What's Included

    • Maverick MK1 Hybrid
    • Seetronic Powerkon IP65 power cord
    • Omega bracket with mounting hardware

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    Maverick MK1 Hybrid Quick Reference Guide
    		Download
    Manuals
    Maverick MK1 Hybrid User Manual
    		Download
    Drawings
    Maverick MK1 Hybrid CAD File
    		Download
    Photometrics
    Maverick MK1 Hybrid Photometrics Report
    		Download
    DMX
    Maverick MK1 Hybrid DMX Chart
    		Download
    Case Studies
    Case Study: Cory Pattak Has Fun Lighting Xanadu
    		Download
    Case Studies
    Case Study: JDI Productions Creates Engagement for Wu-Tang Clan
    		Download
    Case Studies
    Case Study: Let’s Dance Gets New Moves
    		Download
    Other
    Maverick MK1 Hybrid ShowXpress
    		Download
    Other
    Maverick MK1 Hybrid – Firmware
    		Download

    Learn How To Use Your Maverick MK1 Hybrid

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

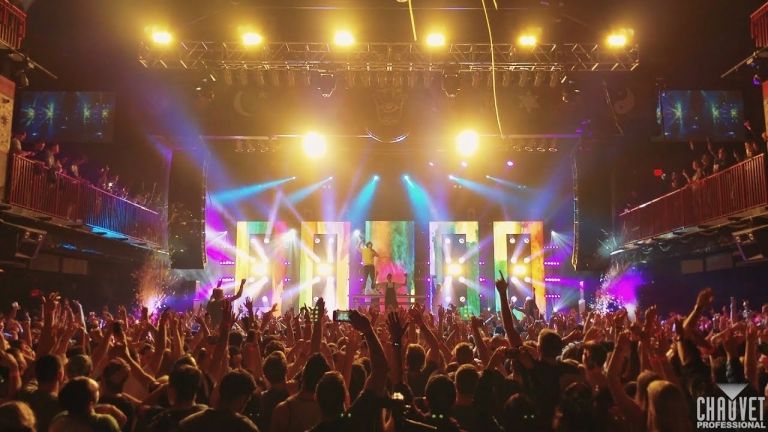

    • Maverick MK Pyxis on Tour with Louis the Child

      Join LD Kendall Clark backstage with EDM superstars Louis the Child for an exclusive look at his dynamic tour design. Discover how CHAUVET Professional fixtures empower designers to create unforgettable, high-energy concert experiences.

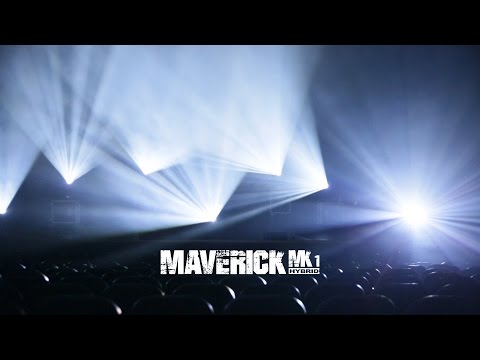

    • Maverick MK1 Hybrid by CHAUVET Professional

      Command the stage with the Maverick MK1 Hybrid, a powerful lamp-based moving head from CHAUVET Professional. Its versatile spot, wash, and beam capabilities, advanced optics, and overlapping prisms empower designers to create stunning aerial effects for any large-scale production.

    Video Library

    Latest Articles

    Browse Articles

    Maverick MK1 Hybrid FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Maverick MK1 Hybrid
    What does the Maverick MK1 Hybrid do?

    The Maverick MK1 Hybrid is a versatile all-in-one lighting fixture. It combines three types of lights into a single unit: a sharp BEAM for dramatic mid-air effects, a focused SPOT for projecting crisp patterns and logos, and a broad WASH for covering large areas with vibrant color. This flexibility lets you create a wide range of dynamic looks with fewer fixtures.

    What kind of visual effects can the Maverick MK1 Hybrid create?

    It excels at creating spectacular visual effects. You can project a wide variety of images and patterns using its two wheels of ‘gobos’. It also features two special prisms that can be layered on top of each other to split the light beam into stunning, multi-layered aerial effects. A frost feature is also included to soften the light for smooth, even color washes.

    How is the Maverick MK1 Hybrid controlled?

    The Maverick MK1 Hybrid offers flexible control for any professional show. It can be operated using standard wired connections or wirelessly with its built-in wireless DMX receiver, making it simple to integrate into any lighting rig. For easy setup, it even has a battery-powered screen, allowing you to configure the light’s settings without it being plugged into main power.
