    ÉPIX Line 10 IP S

    This compact, half-meter IP65 linear fixture delivers vivid, wide-gamut RGB color and includes three optical filters for varied viewing angles and looks.

    Native ÉPIX Mapping System compatibility enables fast, scalable video mapping for demanding touring, rental, and permanent integration projects.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: EPIXL10IPS

    ÉPIX Line 10 IP S

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

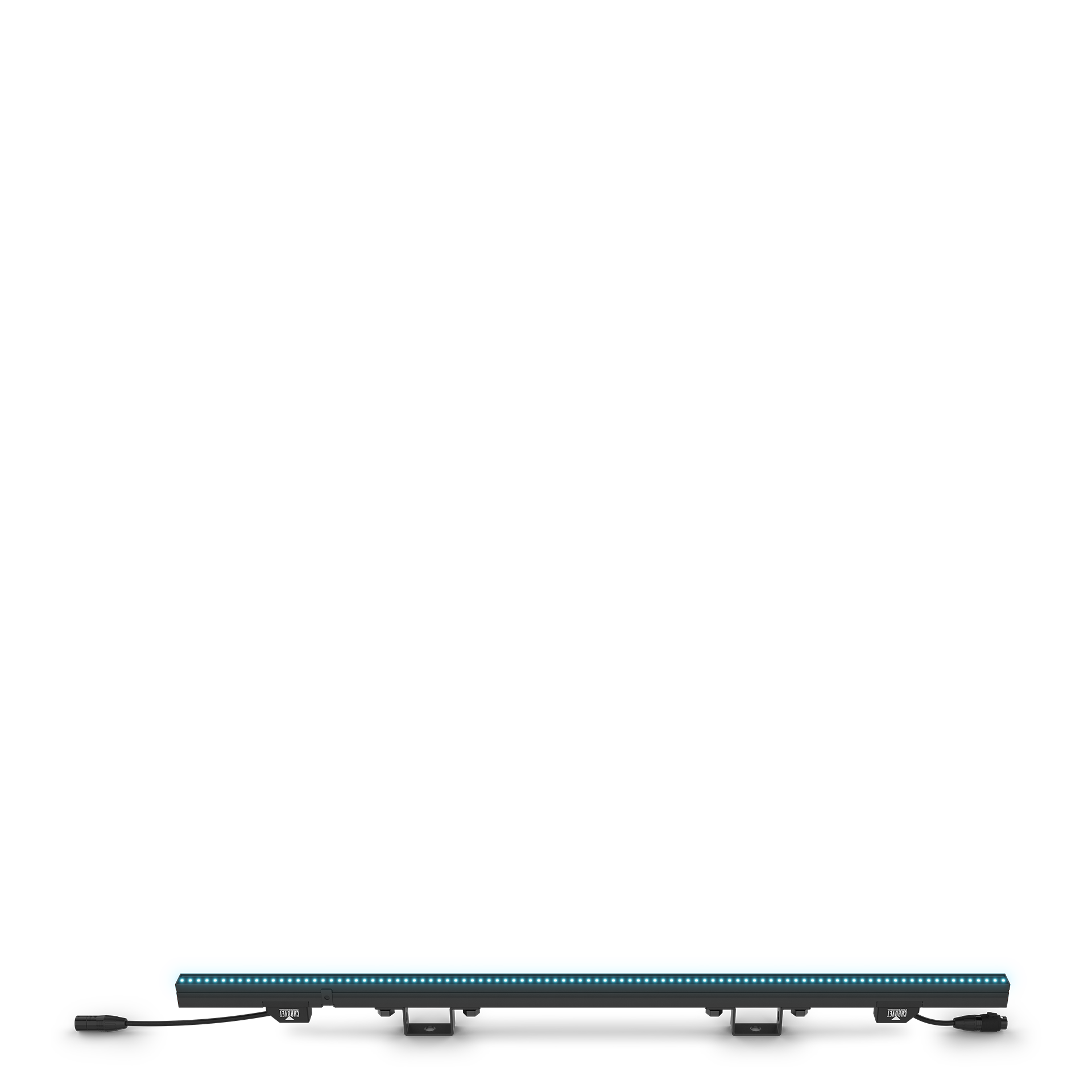

    ÉPIX Line 10 IP S

    SKU: EPIXL10IPS

    ÉPIX Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

    Features

    Outdoor-Rated Pixel Strip

    The IP65-rated housing and 10 mm pixel pitch deliver vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.

    Flexible Optics and Connectivity

    Three included optical filters and standard 4-pin XLR connectors provide versatile looks and support a wide range of installation requirements.

    Compact and Serviceable Design

    A slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower total cost of ownership.

    Streamlined Setup and Control

    Native compatibility with the ÉPIX Mapping System and MVR support makes system configuration and video mapping fast and intuitive.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        50 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy

      • Beam Angle

        114.6°

      • Field Angle

        161.9°

      • Viewing Angle

        170°

      • Lumens

        581.2

      • Pixel Pitch

        10 mm

      • Display Refresh Rate

        4900 Hz

      Dynamic Effects

      • Strobe Rate

        0 to 30 Hz

      Construction/Physical

      • Dimensions (no filter)

        19.685 x 1.161 x 2.862 in (500 x 29.5 x 72.7 mm)

      • Dimensions (square filter installed)

        19.685 x 1.228 x 2.862 in (500 x 31.20 x 72.7 mm)

      • Dimensions (round filter installed)

        19.685 x 1.969 x 2.862 in (500 x 50 x 72.7 mm)

      • Weight

        1.644 lb (0.746 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel

      • IP Rating

        [IP65]

      Connections

      • Power Supply (remote driver)

        ÉPIX D4 IP

      • Physical Linking (Standard Mode)

        20 inline ÉPIX Line 10 IP S

      • Physical Linking (Hi Power Mode)

        13 inline ÉPIX Line 10 IP S

      • Data Connectors

        4-pin IP65 XLR

      • Minimum required device linking cable size

        4 conductor (2 x 14 AWG, 2 x 16 AWG)

      • Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line

        210 ft (64 m)

      • Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line

        65 ft (20 m)

      • Max. cable length (shielded cables) between each ÉPIX Line

        60 ft (18 m)

      • Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line

        300 ft (91 m)

      • Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line

        150 ft (45 m)

      • Max. cable length (unshielded cables) between each ÉPIX Line

        100 ft (30 m)

      Control

      • Control Protocol

        [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]

      • DMX Channels

        2, 18, Groups of 5/10/255/50, or 300

      • Video Refresh Rate

        60 Hz

      Electrical

      • Input Voltage

        48VDC

      • Power and Current (STD)

        11 W, .223 A @ 48 VDC

      • Power and Current (Hi-PWR)

        16 W, .328 A @ 48 VDC

      Certifications/Qualifications

      • Compliance

        [CE, MET, FCC, ETL, UKCA, etc.]

      • Operating Temperature

        -4 °F to 122 °F (-20 °C to 50 °C)

      Required Accessories

      • Optional Software (mapping): KLSTR
      • Controller (required): [ÉPIX D4 IP]
      • Compatible Mounting Options: [EPIXMNTSPIGOT, M12 BOLT]

      Compatible Accessories

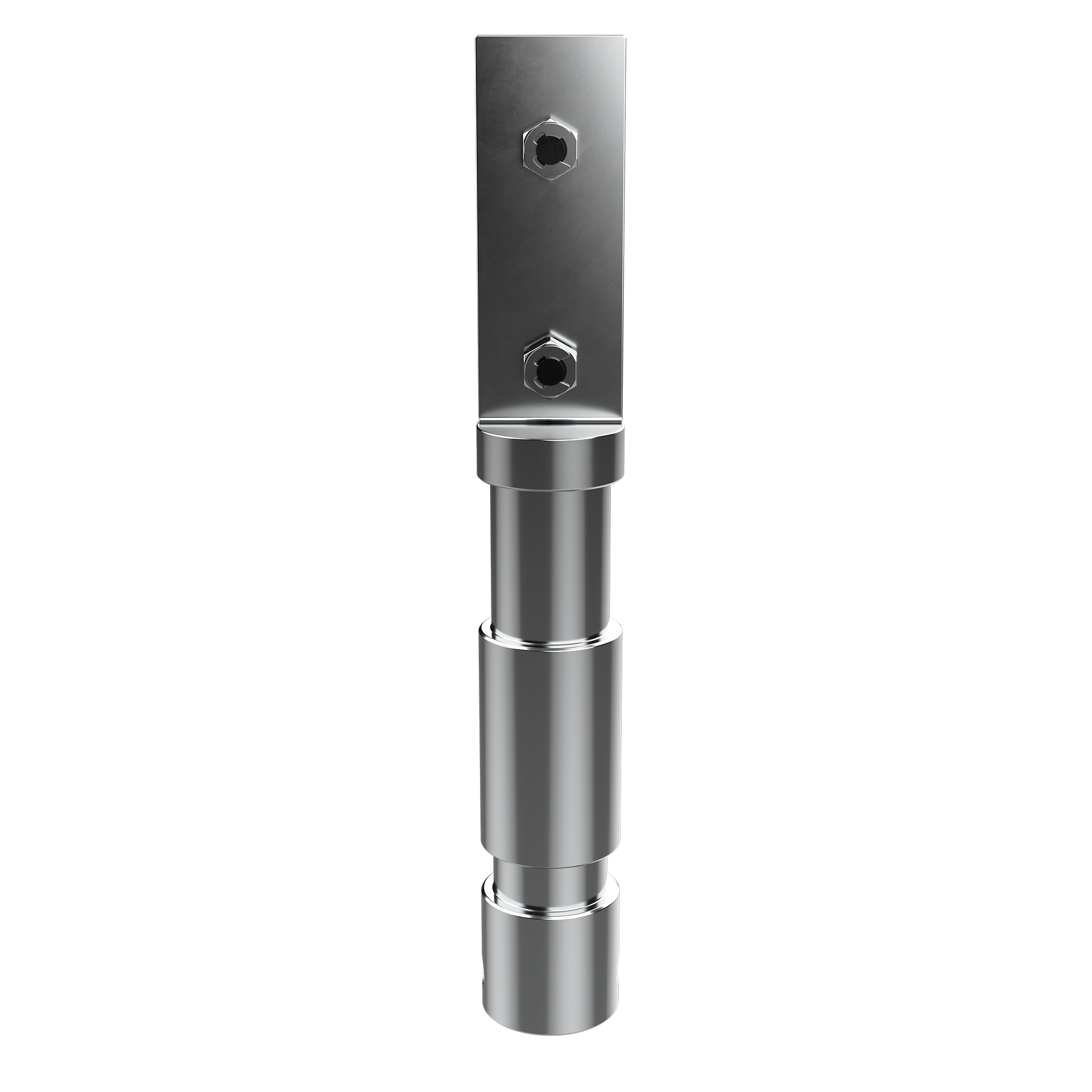

      • EPIXMNTSPIGOT (ÉPIX Mounting Bracket: Spigot Adapter 28mm)

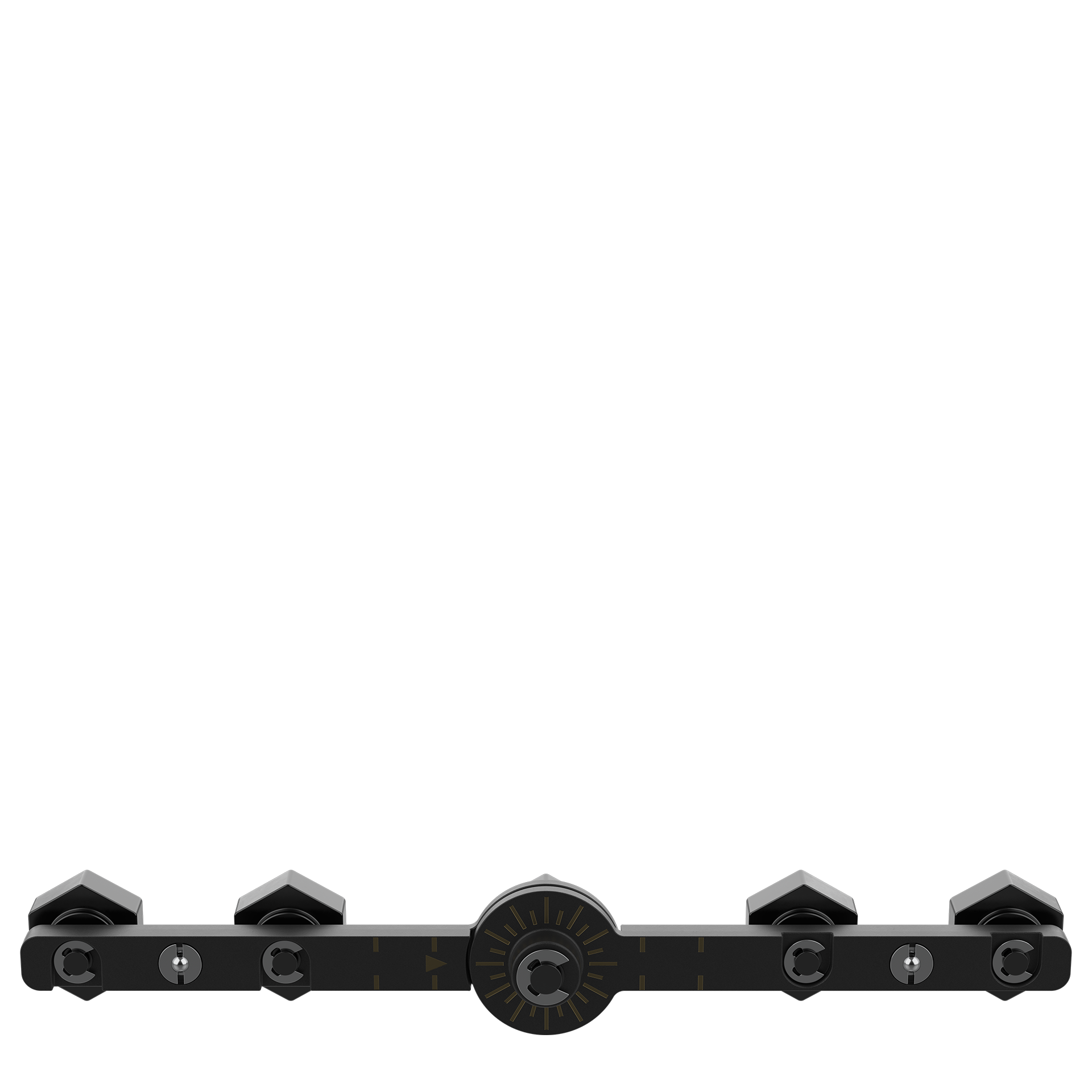

      • EPIXMNTANGLE (ÉPIX Mounting Bracket: +/- 120° Angling Adapter)
      • Clamps

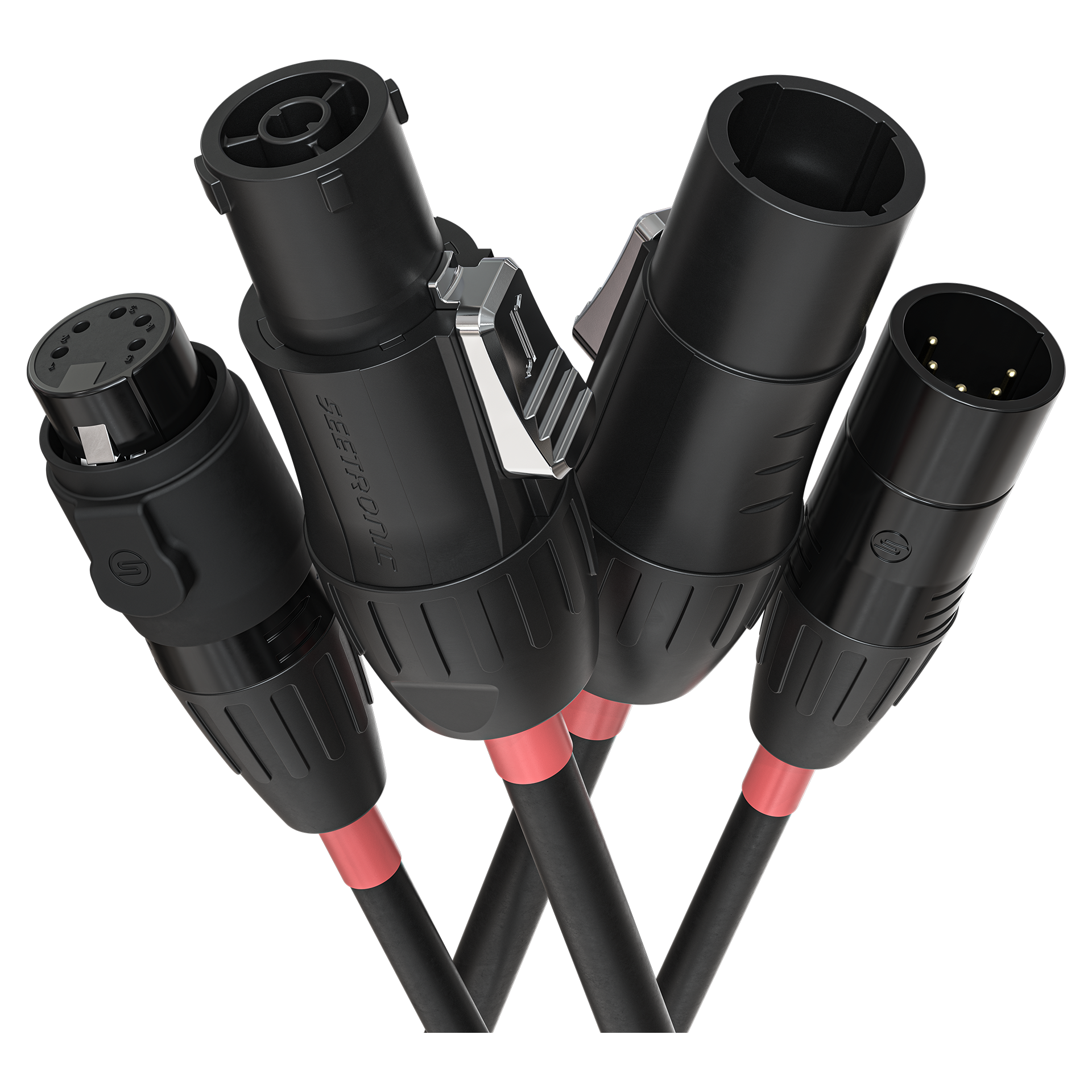

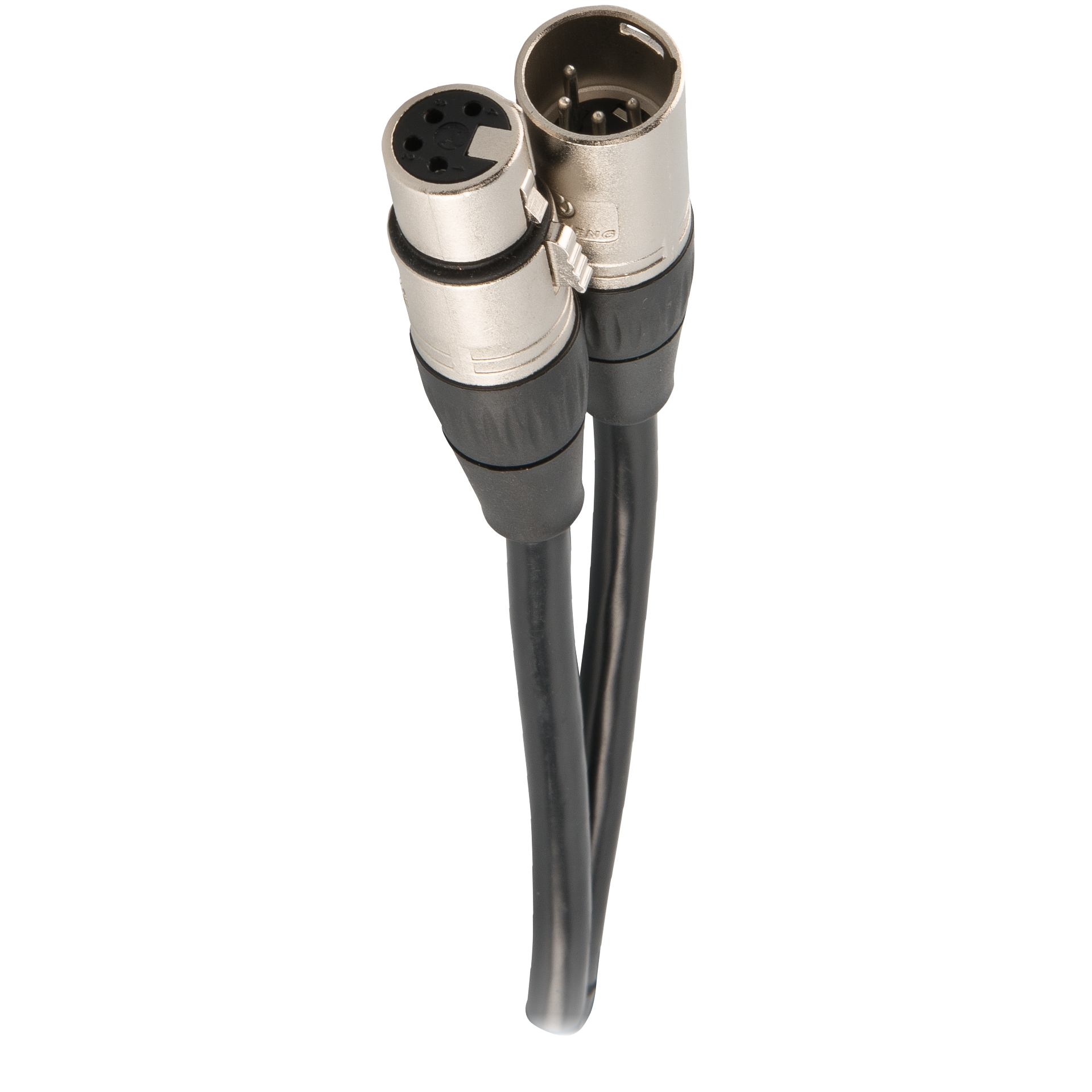

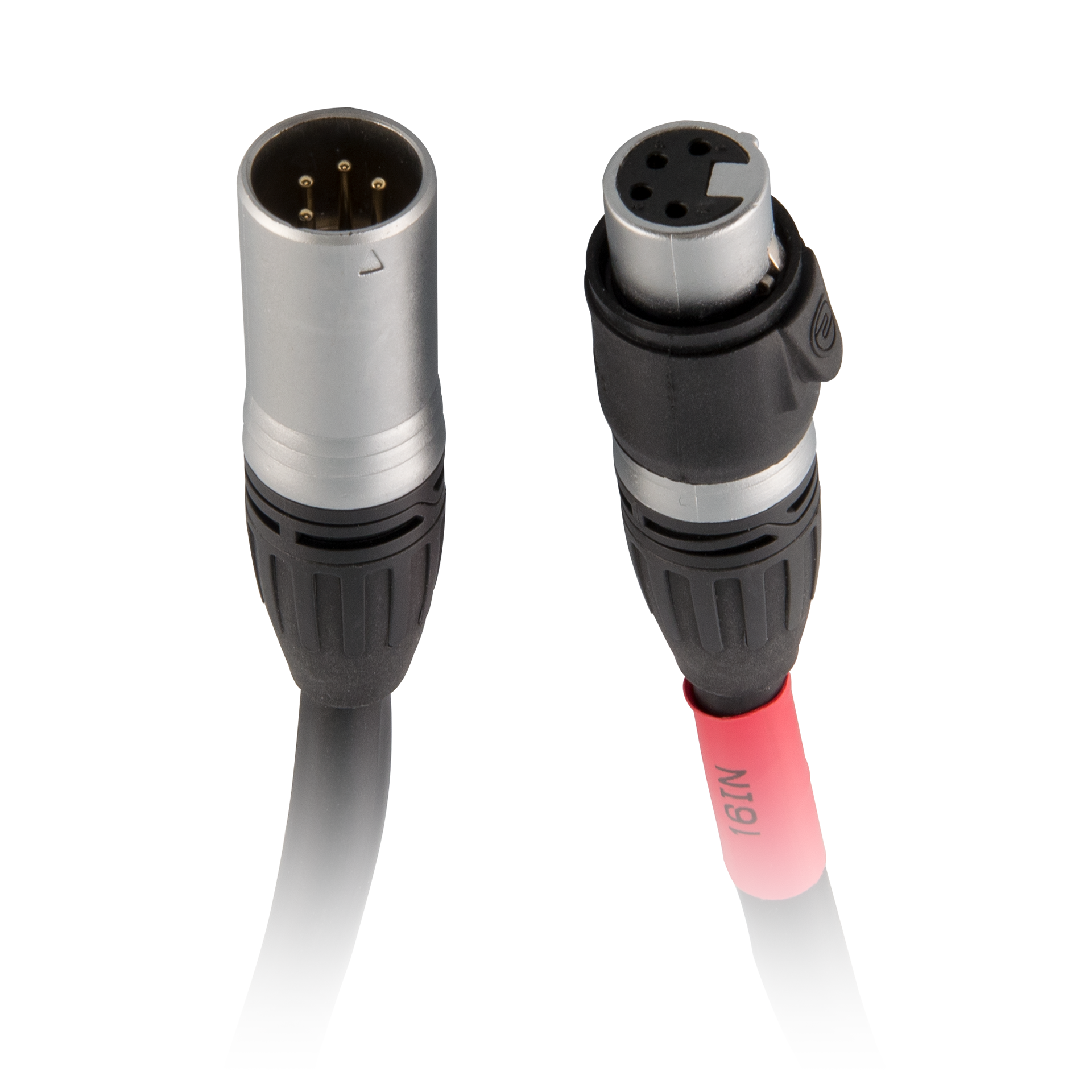

      • RIGLINK 4-PIN XLR Cables
      • Flight Case

      What's Included

      • ÉPIX LINE 10 IP S
      • Interlocking Bracket
      • Milky White Square Filter (Installed)
      • Black Stealth Square Filter (Included)
      • Milky White Round Filter (Included)
      • 1X Mounting Brackets (Installed)

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      ÉPIX Line 10 IP S – Quick Reference Guide
      		Download

      Learn How To Use Your ÉPIX Line 10 IP S

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • ÉPiX Debut at LDI 2025: The Future Of Pixel Lighting Starts Now

        Discover the next generation of outdoor-rated ÉPiX pixel strips from CHAUVET Professional. Powered by the new ÉPiX D4 IP processor, this system delivers fast, scalable video mapping for the most demanding touring, rental, and permanent integration applications.

      Video Library

      ÉPIX Line 10 IP S FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the ÉPIX Line 10 IP S
      What do I need to control this fixture?

      This fixture requires the ÉPIX D4 IP drive for power and data. It offers native compatibility with the ÉPIX Mapping System and supports MVR files for fast, intuitive configuration and video mapping.

      How can I change the look of the light output?

      Each fixture includes three interchangeable optical filters: a pre-installed milky white square filter, a black stealth square filter, and a milky white round filter. These allow you to easily modify the viewing angle and appearance for different applications.

      How many units can I link together from one controller?

      You can link up to 20 fixtures in Standard Mode or 13 fixtures in Hi Power Mode from a single ÉPIX D4 IP drive. Always refer to the product manual for detailed information on cable lengths and power planning.
