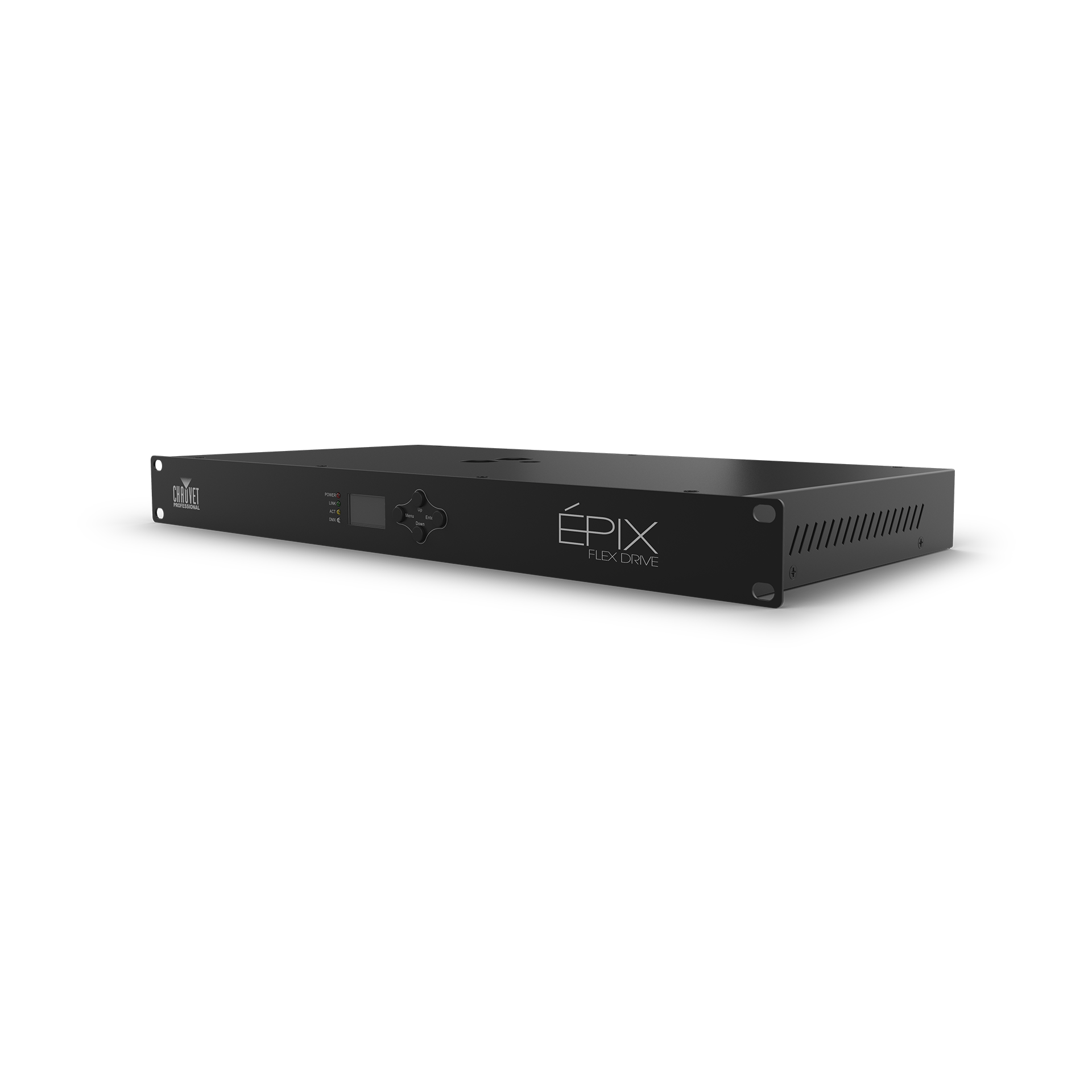

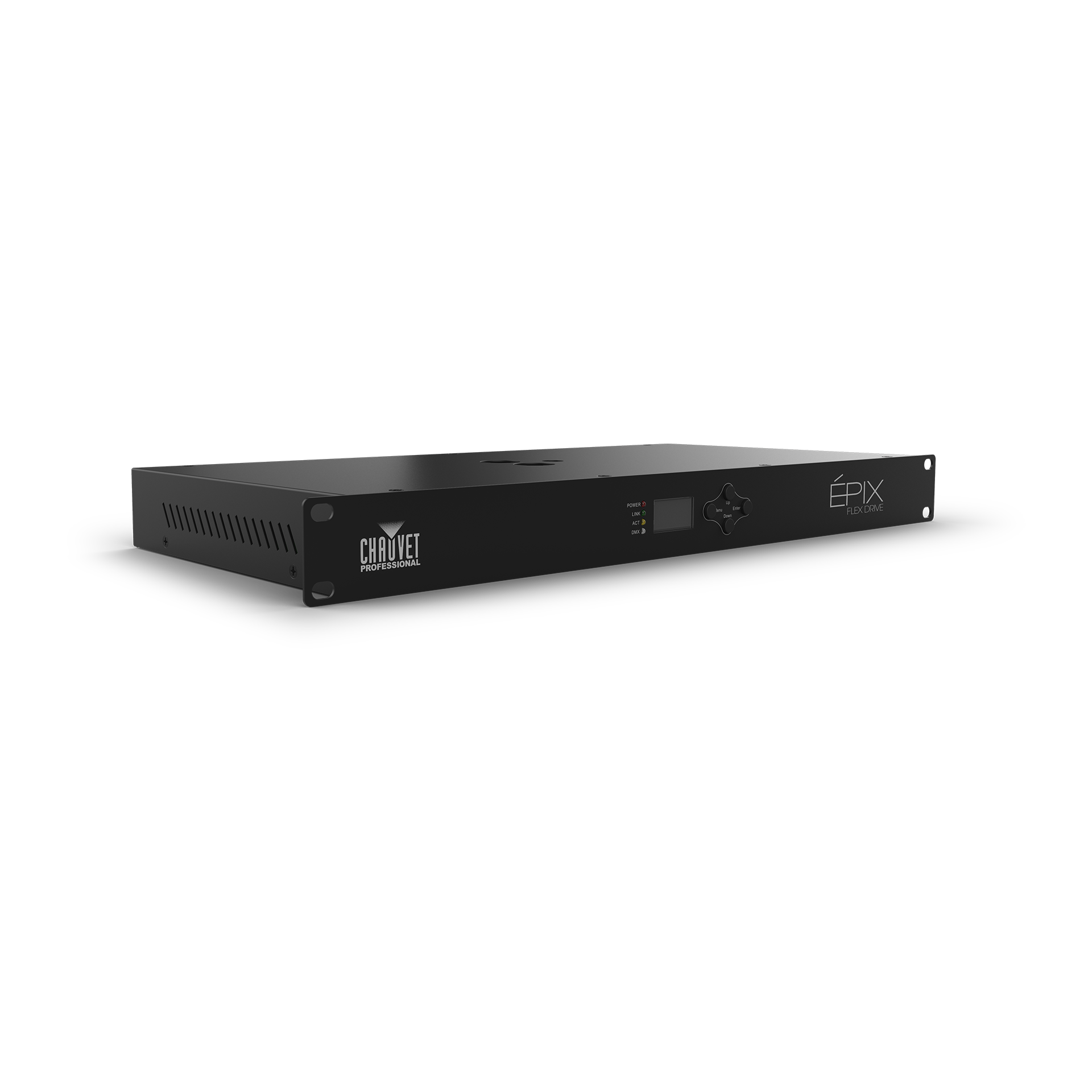

    ÉPIX Flex Drive

    A dedicated driver that powers and controls ÉPIX Flex 20 LED products, featuring two expandable outputs, versatile control modes, and remote management through an integrated web server.

    Ideal for large-scale architectural, event, and stage productions that require powerful, centralized control over long and expandable runs of flexible, pixel-mappable LED elements.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: EPIXFLEXDRIVE

    ÉPIX Flex Drive

    Specifications
    		 Download
    ÉPIX Flex Drive Quick Reference Guide
    		 Download
    ÉPIX Flex Connection Guide
    		 Download
    ÉPIX Flex Drive User Manual
    		 Download
    ÉPIX Flex Drive Firmware V1.4-1.0
    		 Download
    Firmware
    		 Download
    Download All Resources

    ÉPIX Flex Drive

    SKU: EPIXFLEXDRIVE

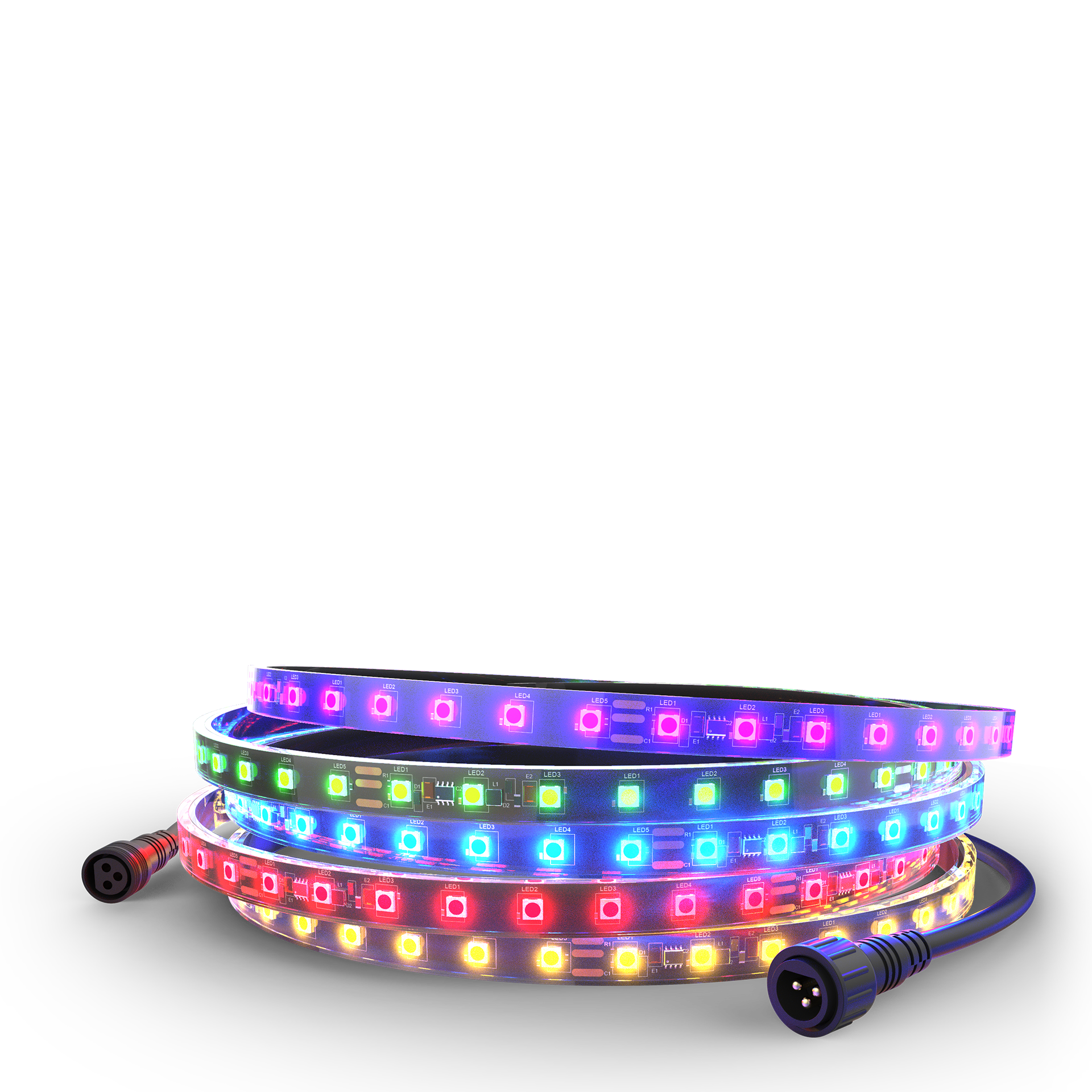

    ÉPIX Flex Drive controls the ÉPIX Flex 20 with 2 plug and play outputs that drive up to 4 ÉPIX Flex 20 at 960 LEDs each. Adding ÉPIX Flex Boost to each output doubles the capacity of the drive to 1920 LEDs or 8 ÉPIX Flex 20, which reduces cost per linear feet. To ease installation, ÉPIX Flex Drive allows for 75ft of extension cables between it and the first ÉPIX Flex 20. Use either pixel control or its simplified 17 / 34-channel control personalities to support changing colors and built-in automatic programs. Webserver is supported for remote configuration and for firmware updates.

    Features

    System Power and Processing

    Acts as the central power and data processor for the ÉPIX Flex 20 pixel product.

    Versatile Control Protocols

    Supports DMX, Art-Net, and sACN to integrate seamlessly into touring, rental, or installation environments.

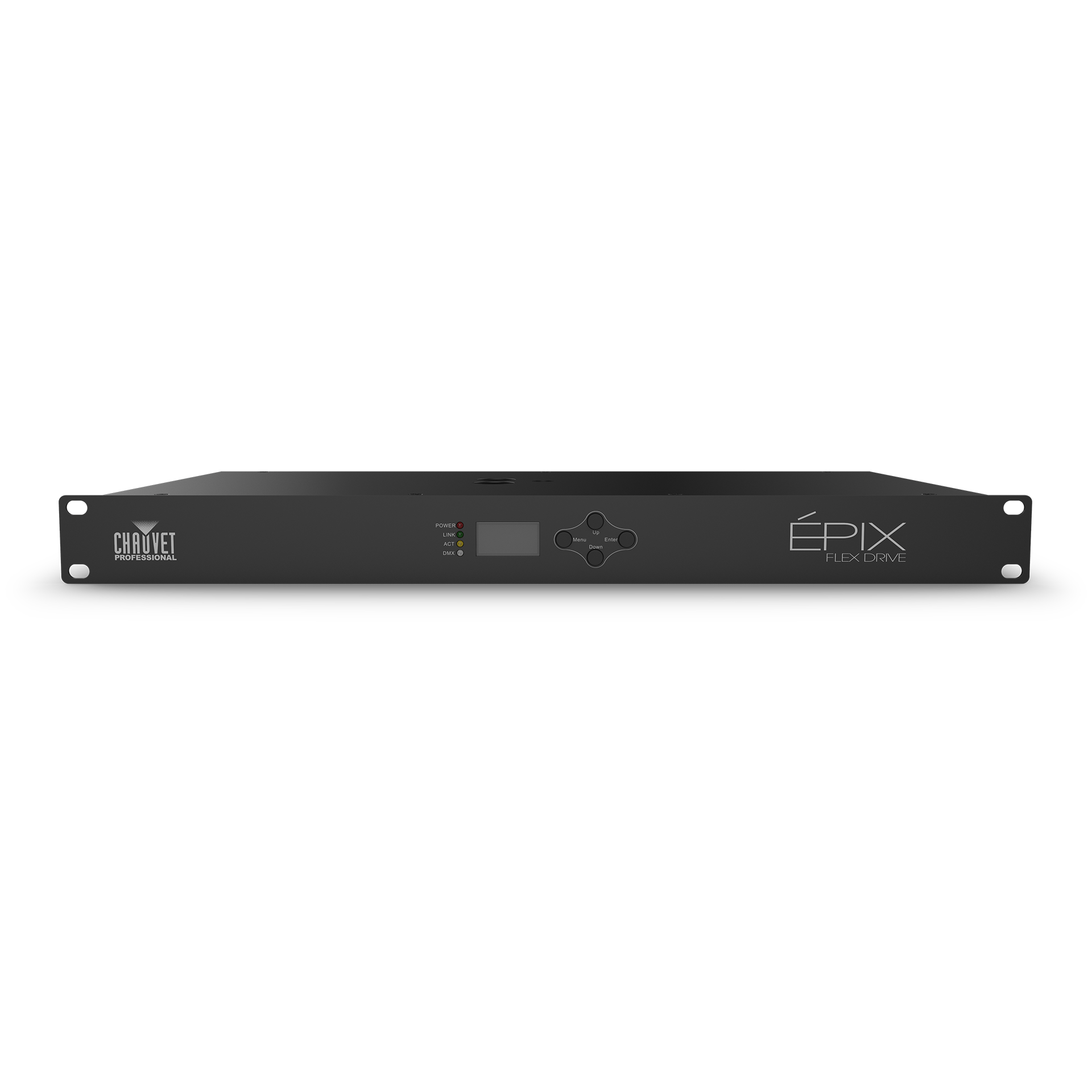

    Onboard OLED Display

    A built-in OLED display and menu system allows for quick and easy local configuration.

    Simple Pixel Configuration

    Configure your setup by simply assigning the desired pixel count to each of the two outputs.

    High Capacity Output

    Natively supports up to four ÉPIX Flex 20 rolls and can be expanded to drive eight rolls using the optional ÉPIX Flex Boost.

    Daisy Chain Capability

    Fixtures can be easily daisy-chained directly from the two available outputs for simplified wiring.

    Extended Placement Range

    Advanced power management allows the drive to be placed up to 75 feet away from the first connected pixel strip.

    Arkaos Media Master Compatibility

    Integrates with Arkaos Media Master Express for a plug-and-play system requiring minimal training.

    Remote Management

    A full webserver interface and RDM over Art-Net support enable convenient remote configuration and firmware updates.

    Flexible Control Modes

    Offers multiple control personalities, from detailed pixel-level programming to simplified plug-and-play options.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Dynamic Effects

    • Standalone Color Mixing

      Yes

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      19 x 17.52 x 1.7 in (483 x 445 x 44 mm)

    • Weight

      6 lb (2.7 kg)

    • Exterior Color

      Black

    • Housing Material

      Steel

    • Rackmount

      1U

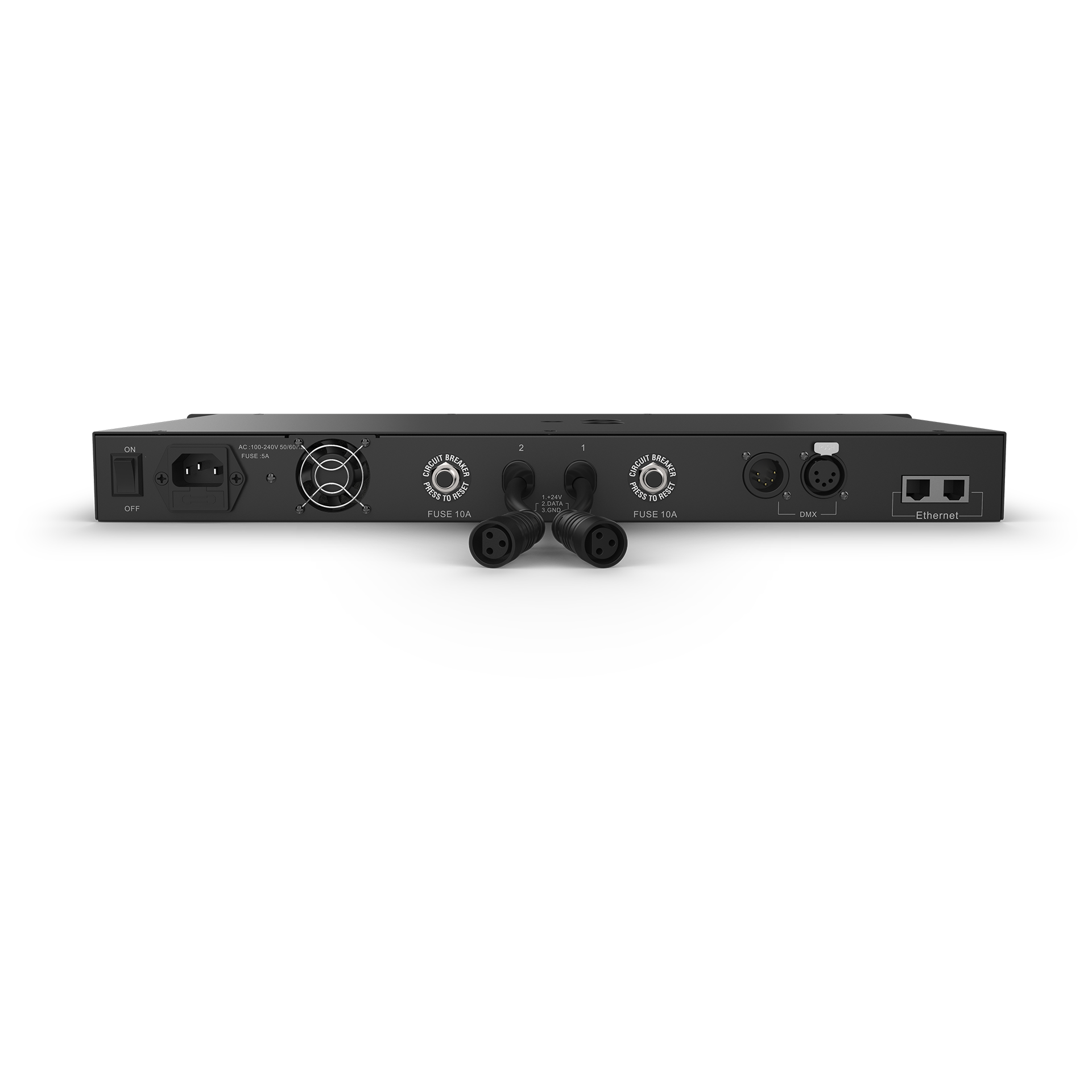

    Connections

    • Power Connection

      Edison (local) plug to IEC

    • Power Input

      IEC

    • Cable Length (power)

      5 ft (1.5 m)

    • Device Data Inputs

      Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)

    • Device Outputs (3-pin IP65 ports)

      2

    • Physical Linking per port (without Flex Boost)

      2 inline ÉPIX Flex 20
      (with Flex Boost): 4 inline ÉPIX Flex 20

    • Total max. cable extension length (without Flex Boost) between ÉPIX Flex Drive and first ÉPIX Flex 20

      75 ft (22.9 m)
      (with Flex Boost) between ÉPIX Flex 20 and ÉPIX Flex 20: 10 ft (3 m)

    • Total max. cable extension length between ÉPIX Flex Boost and ÉPIX Flex 20

      5 ft (1.5 m)

    Control

    • Control Protocol

      Art-Net, sACN, DMX

    • DMX Channels

      17, 34 or PIXEL

    • Art-Net Channels

      17, 34 or PIXEL

    • Modes/Personalities

      3 personalities (17ch, 34ch, PIXEL)

    • Maximum Supported LEDs (per port)

      960

    • Maximum Supported LEDs (total)

      1920

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      326 W, 2.75 A @ 120 V, 60 Hz
      314 W, 1.64 A @ 208 V, 60 Hz
      312 W, 1.50 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET

    • IP Rating

      IP20, dry location

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    • MET Listing Number

      E114016-1144

    • US Safety

      UL 8750

    • Canadian Safety

      CSA C22.2 No. 250.13-12

    Compatible Accessories

    • ArKaos Media Master Express + KN software

    What's Included

    • ÉPIX Flex Drive
    • IEC power cord

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    ÉPIX Flex Drive Quick Reference Guide
    		Download
    Manuals
    ÉPIX Flex Connection Guide
    		Download
    Manuals
    ÉPIX Flex Drive User Manual
    		Download
    Other
    ÉPIX Flex Drive Firmware V1.4-1.0
    		Download
    Other
    ÉPIX Flex Drive – Firmware
    		Download

    ÉPIX Flex Drive FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the ÉPIX Flex Drive
    What is the ÉPIX Flex Drive and what is it used for?

    The ÉPIX Flex Drive is the central power and control unit for the ÉPIX Flex 20 LED strip system. It acts as the brain, sending power and data to the light strips, which allows you to create dynamic and colorful lighting effects for stages, installations, and events.

    How many ÉPIX Flex 20 light strips can one drive control?

    The ÉPIX Flex Drive can control up to four ÉPIX Flex 20 light strips on its own (two per output). You can double this capacity to control a total of eight strips by adding the optional ÉPIX Flex Boost accessory to each output.

    How flexible is the installation with the ÉPIX Flex Drive?

    Installation is very flexible. You can place the drive up to 75 feet away from your first light strip, giving you plenty of freedom in your setup. It features a simple screen for on-the-spot configuration and can also be managed remotely through a web browser for easy adjustments.
