    ÉPIX D4 IP

    A four-port IP65 power and processing module that simplifies pixel mapping with the intuitive KLSTR system and onboard GDTF for seamless workflow integration.

    Its rugged, modular design delivers full creative freedom and industry-leading efficiency to lighting designers, system integrators, and rental houses for any outdoor application.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: EPIXD4IP

    ÉPIX D4 IP

    Specifications
    		 Download
    ÉPIX D4 IP
    		 Download
    Download All Resources

    ÉPIX D4 IP

    SKU: EPIXD4IP

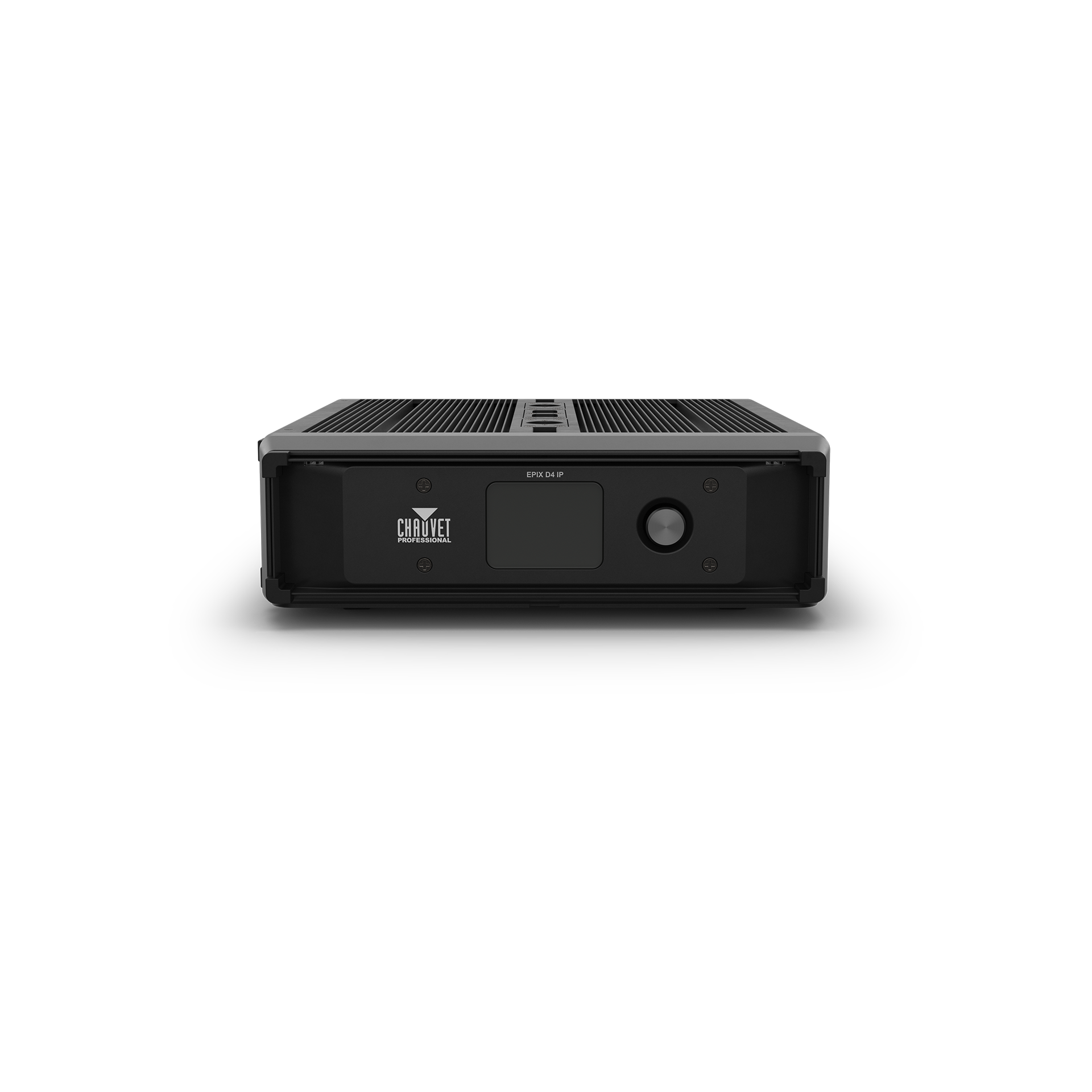

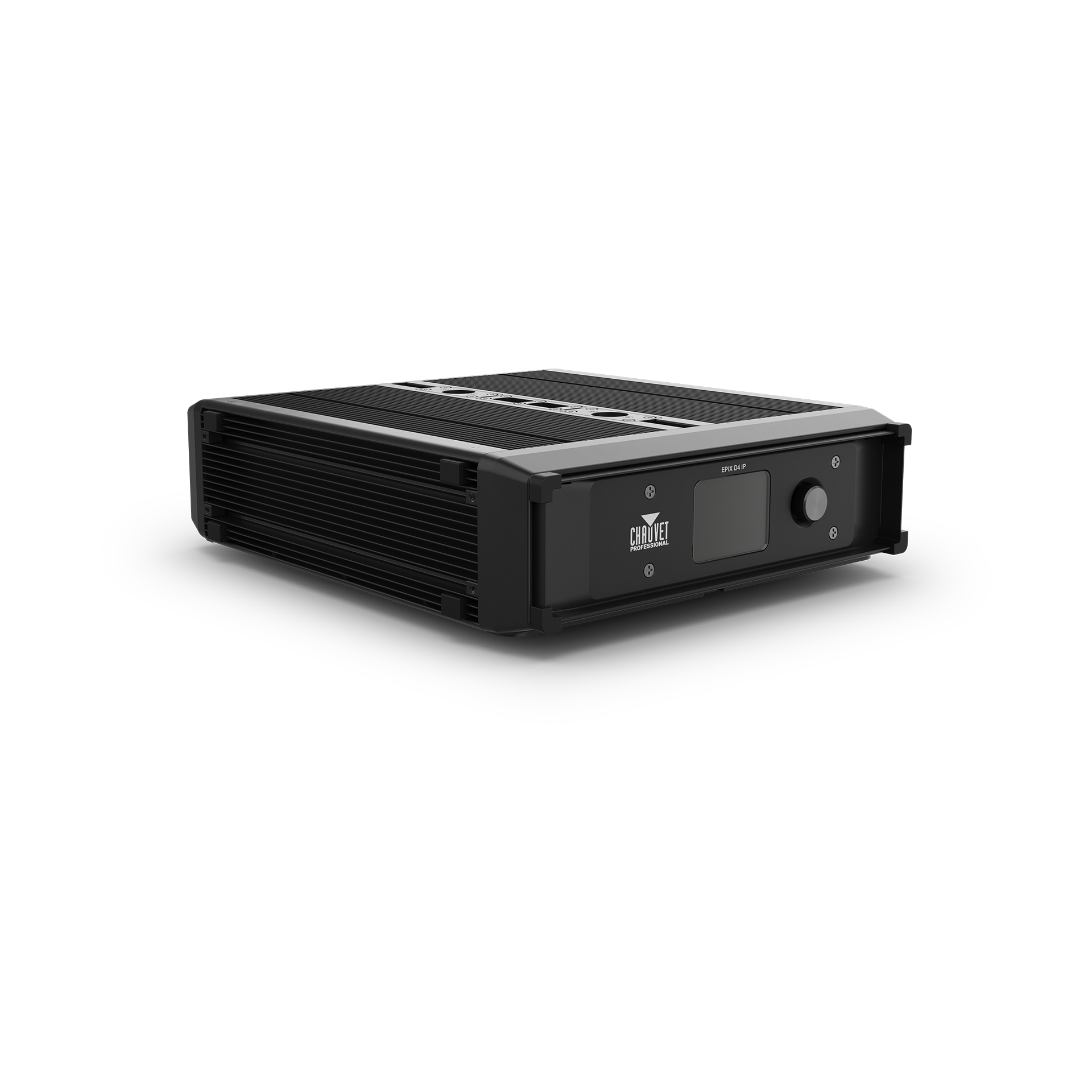

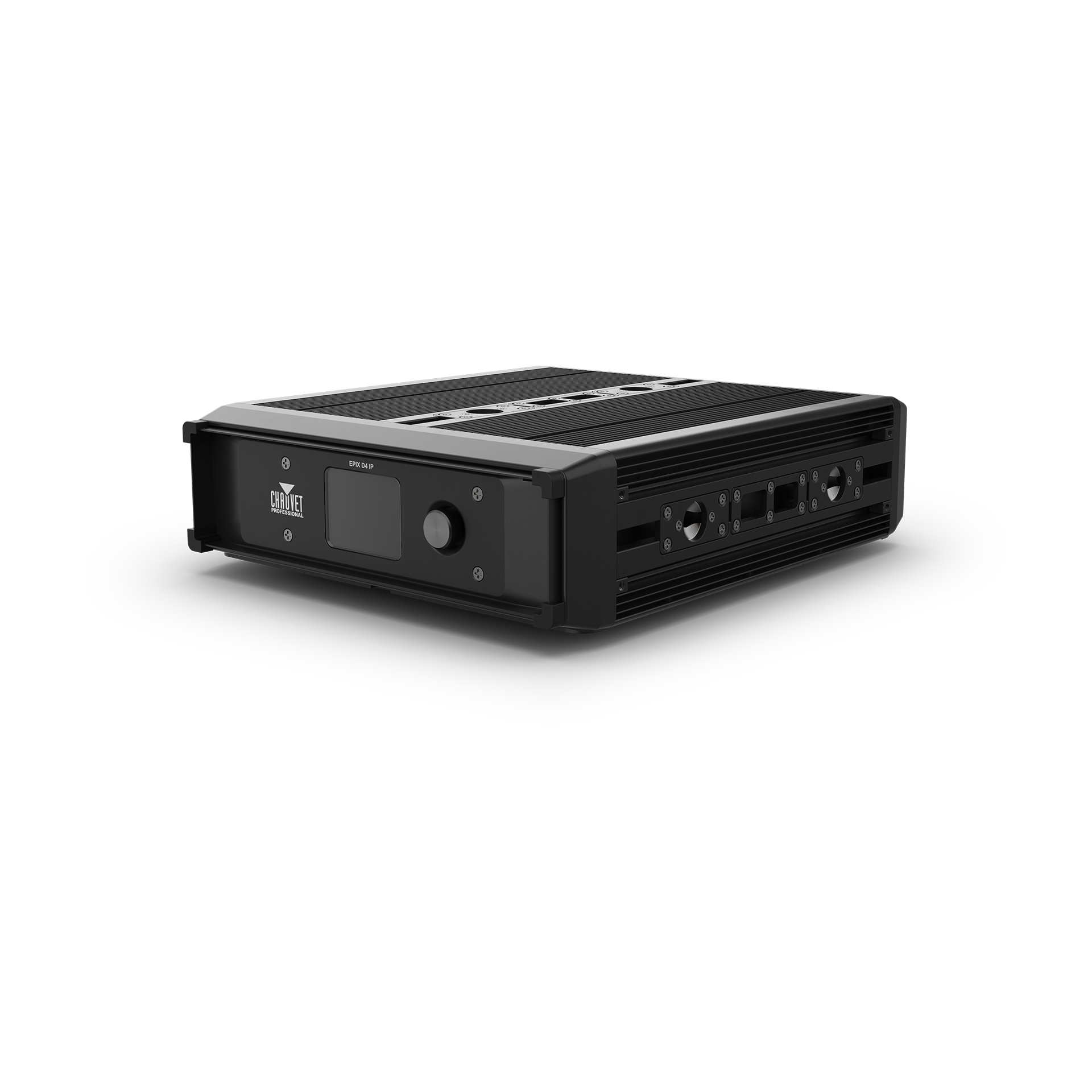

    ÉPIX D4 IP is a 4-port drive housing the ÉPIX mapping system – built to easily detect, configure, and control outdoor-rated ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.

    ÉPIX D4 IP is the heart of this latest generation ÉPIX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.

    Designed with modularity, serviceability, and universal connectivity at its core, ÉPIX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.

    Features

    Intuitive Pixel Mapping

    The onboard ÉPIX Mapping System automatically detects and configures connected pixel strips, dramatically simplifying complex layouts and saving valuable setup time on site.

    Seamless Design Workflow

    Native MVR and GDTF support creates an efficient production flow, allowing you to move from lighting design software to console playback without extra steps.

    Built For Any Environment

    A rugged, IP65-rated housing and modular 2U rack-mount design provide maximum durability and flexibility for both touring productions and permanent architectural installations.

    Centralized Power And Control

    Drive up to four runs of ÉPIX pixel strips from a single unit, streamlining your system’s power and data distribution for cleaner, more reliable setups.

    Uninterrupted Signal Reliability

    RSTP support provides automatic signal backup and redundancy, ensuring your visuals run flawlessly without interruption even in the event of a network cable failure.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Construction/Physical

      • Dimensions

        14.05 x 11.8 x 11.4 in (357 x 300 x 289 mm)

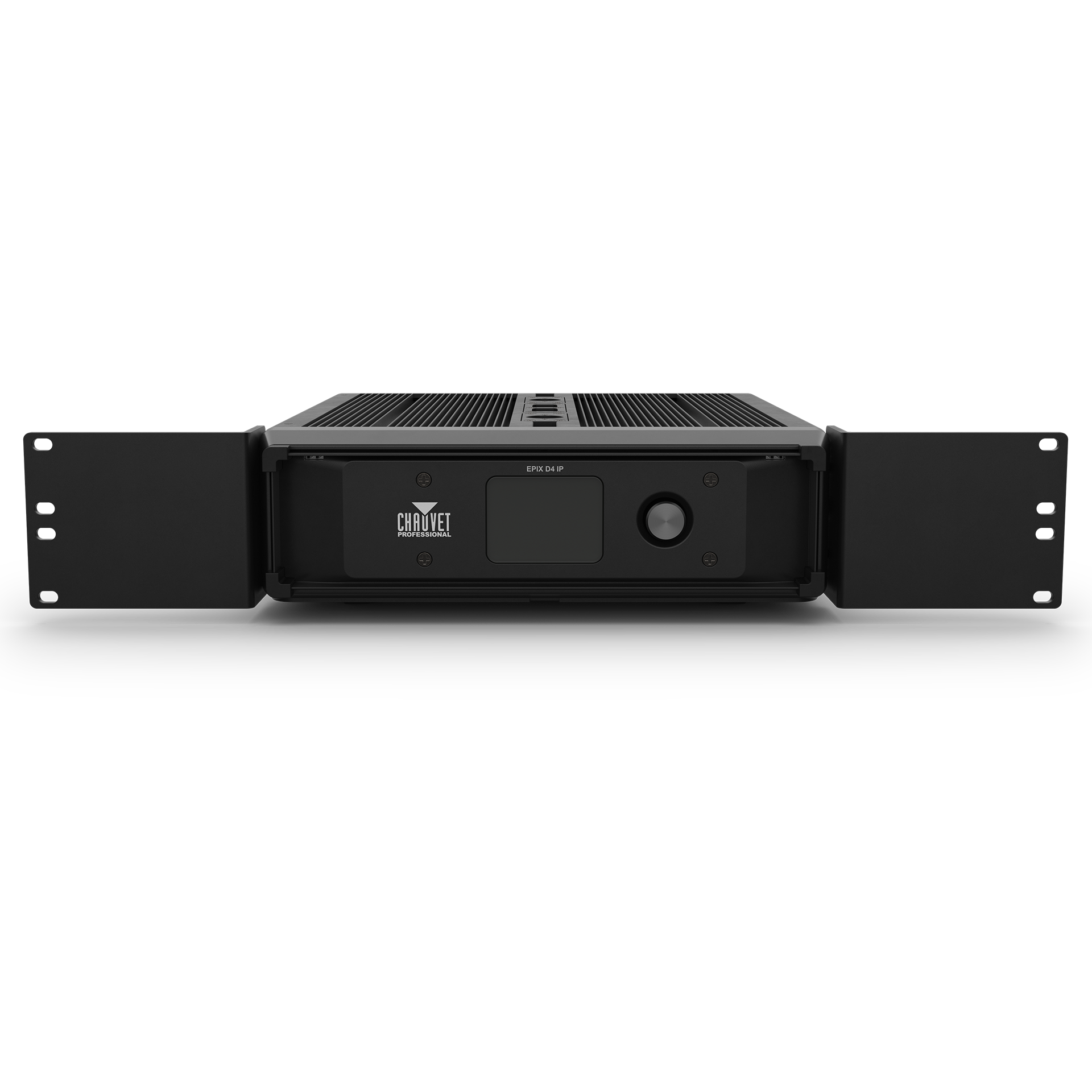

      • Dimensions (with rackmount brackets)

        20.24 x 11.8 x 11.4 in (514 x 300 x 289 mm)

      • Weight

        15lb (6.8 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum extrusion, Aluminum die-cast, rubber

      • Rackmount

        2U

      • IP Rating

        IP65

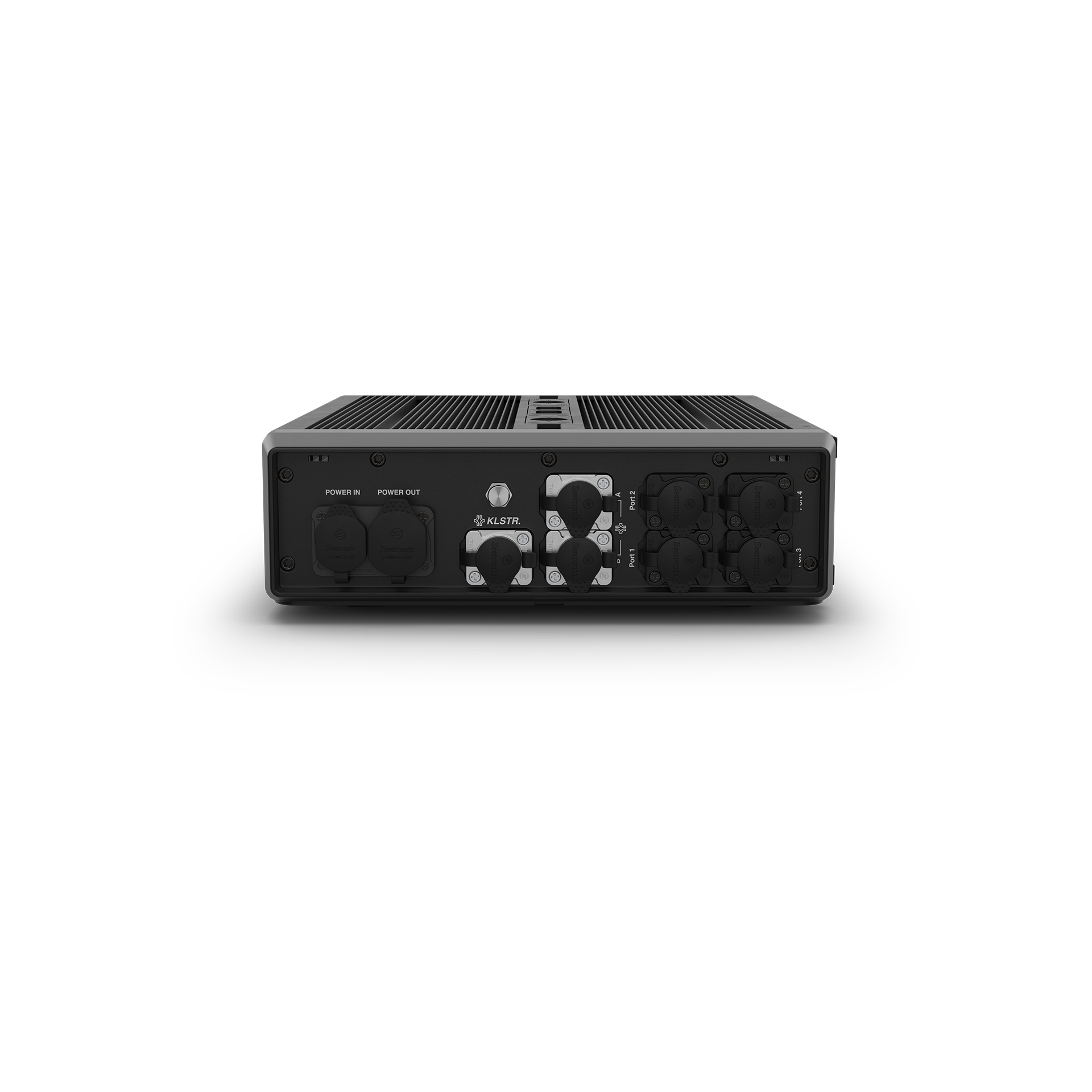

      Connections

      • Power input

        Seetronic Powerkon (powerCON Compatible)

      • Power output

        Seetronic Powerkon (powerCON Compatible)

      • Device output (4)

        4-pin XLR (IP65)

      • Data connectors (3)

        Seetronic etherKON (etherCON Compatible)

      • Intended Load

        ÉPIX Line 10 IP, ÉPIX Line 10 IP S

      • Minimum required device linking cable size

        4 conductor (2 x 14 AWG, 2 x 16 AWG)

      • Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line

        210 ft (64 m)

      • Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line

        65 ft (20 m)

      • Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line

        300 ft (91 m)

      • Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line

        150 ft (45 m)

      • Max. cable length (unshielded cables) between each ÉPIX Line

        100 ft (30 m)

      Control

      • Control Protocol

        [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]

      • DMX Channels

        2, 18, Groups of 5/10/255/50, or 300

      • Video Refresh Rate

        60 Hz

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V

      • Power and Current

        1,200 W, 12 A @ 100 V, 60 Hz 1,200 W, 10 A @ 120 V, 60 Hz 1,200 W, 5.77 A @ 208 V, 60 Hz 1,200 W, 5.22 A @ 230 V, 50 Hz 1,200 W, 5 A @ 240 V, 50 Hz

      Certifications/Qualifications

      • Compliance

        [CE, MET, ROHS]

      • Operating Temperature

        -4 °F to 122 °F (-20 °C to 50 °C)

      Compatible Accessories

      • CTC-50HC
      • RIGLINK POWERKON CABLES
      • RIGLINK COMBO CABLES

      What's Included

      • ÉPIX D4 IP
      • Power Cord (Seetronic powerKON)
      • Rack Ears with Screws (2)
      • Omega bracket

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      ÉPIX D4 IP
      		Download

      Learn How To Use Your ÉPIX D4 IP

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

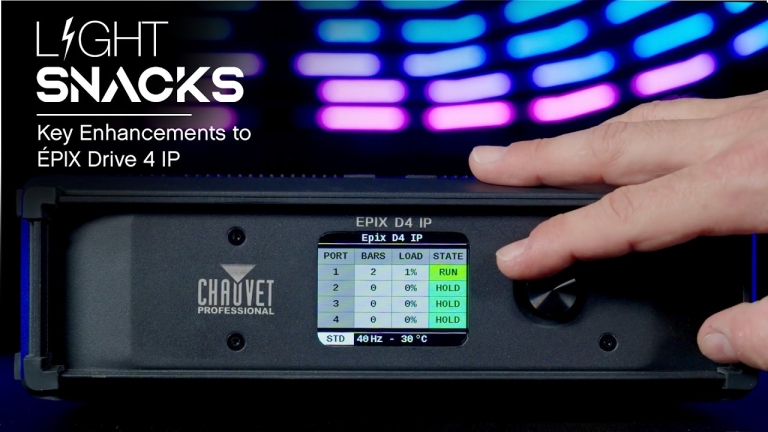

      • Light Snacks: Key Enhancements to EPIX Drive 4 IP

        CHAUVET Professional enhances the EPIX Drive 4 IP with a full-color display and rotary encoder, streamlining your workflow with faster navigation, easier setup, and instant access to powerful onboard mapping tools.

      • ÉPiX Debut at LDI 2025: The Future Of Pixel Lighting Starts Now

        Discover the next generation of outdoor-rated ÉPiX pixel strips from CHAUVET Professional. Powered by the new ÉPiX D4 IP processor, this system delivers fast, scalable video mapping for the most demanding touring, rental, and permanent integration applications.

      Video Library

      Latest Articles

      Browse Articles

      ÉPIX D4 IP FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the ÉPIX D4 IP
      What ÉPIX products is the ÉPIX D4 IP designed to control?

      This driver is specifically engineered to power and control the outdoor-rated CHAUVET Professional ÉPIX Line 10 IP and ÉPIX Line 10 IP S linear pixel strips. It serves as the central processing unit for this robust new ecosystem.

      How can I mount the ÉPIX D4 IP for my application?

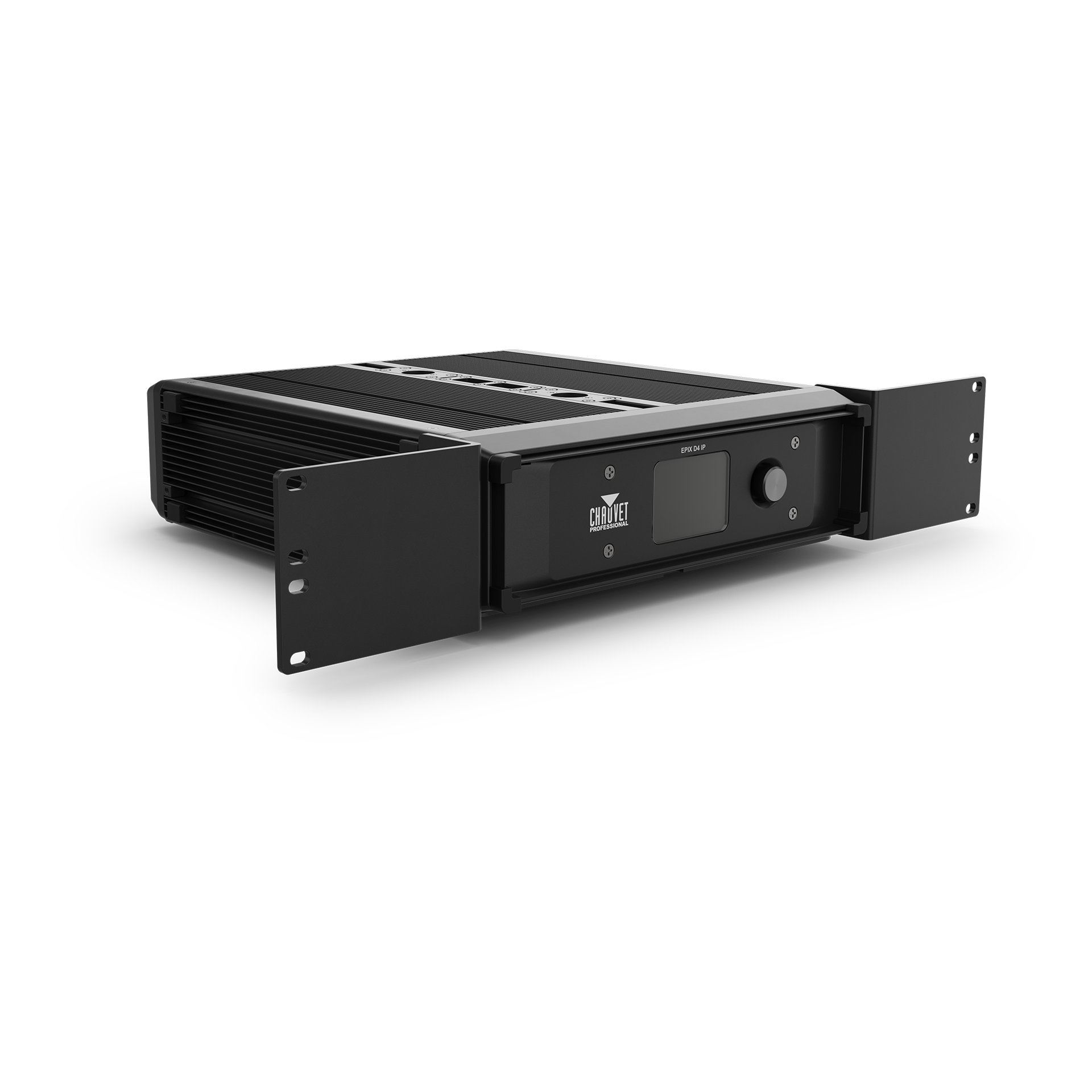

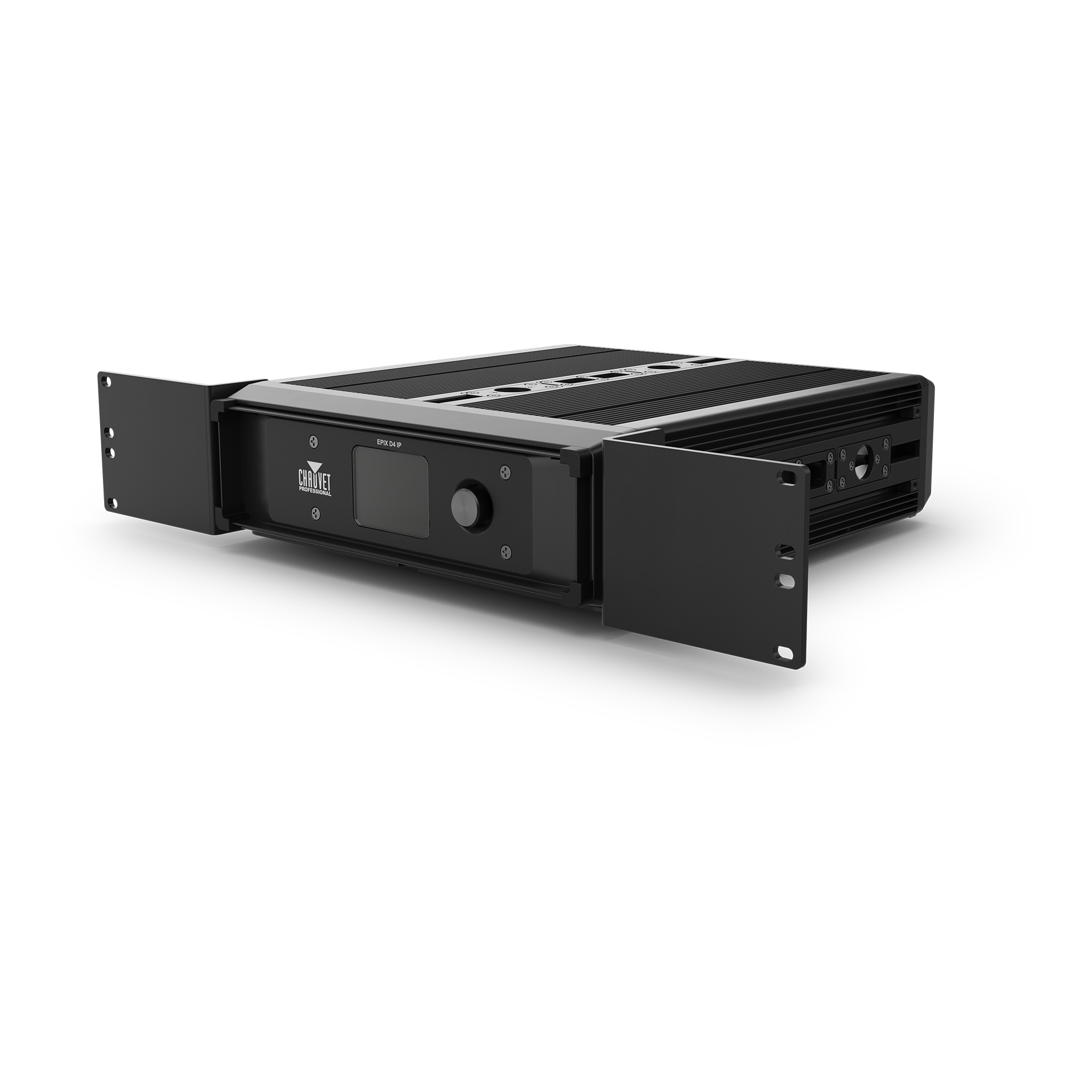

      The unit offers flexible mounting options for any environment. It includes a 2U rack-mount kit for integration into standard touring racks and an Omega bracket for secure truss mounting, making it adaptable for both installations and rental productions.

      What control protocols can I use with this driver?

      It supports a wide range of industry-standard protocols, including Art-Net, sACN, and Art-RDM. It also features the proprietary KLSTR and ÉPIX Mapping System for intuitive, push-and-pull configuration directly from the unit.
