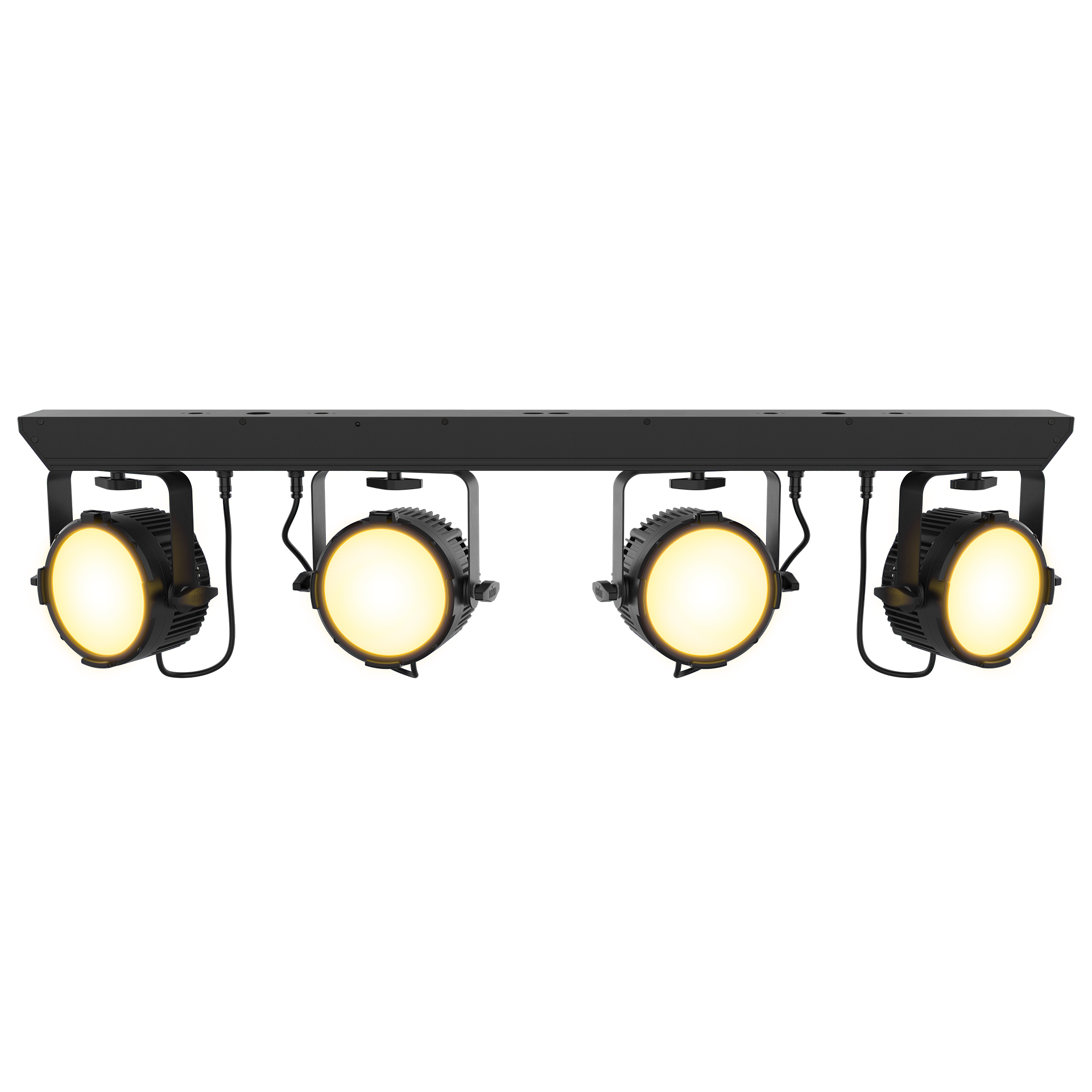

COLORdash PAR Bar 4
A complete wash light solution featuring four independently focusable RGBAW-UV LED heads, included accessories for versatile light shaping, and advanced flicker-free electronics.
Designed for convenience, this system is ideal for small theatres, events, and multi-use spaces requiring a comprehensive, easy-to-deploy, and on-camera-ready lighting package.
-
Generates a comprehensive color palette, including true UV, from four high-power LED arrays.
-
Offers flexible beam control, adjusting from 15° to 30° with an included wide filter.
-
Supports DMX and RDM control via 5-pin XLR or a standard CAT6 Ethernet connection.
-
Features adjustable PWM to eliminate on-camera flicker for broadcast and recording applications.
-
Delivers exceptionally smooth fades with a choice of four selectable dimming curves.
-
Simplifies setup with power linking for up to 4 units at 208 V.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.

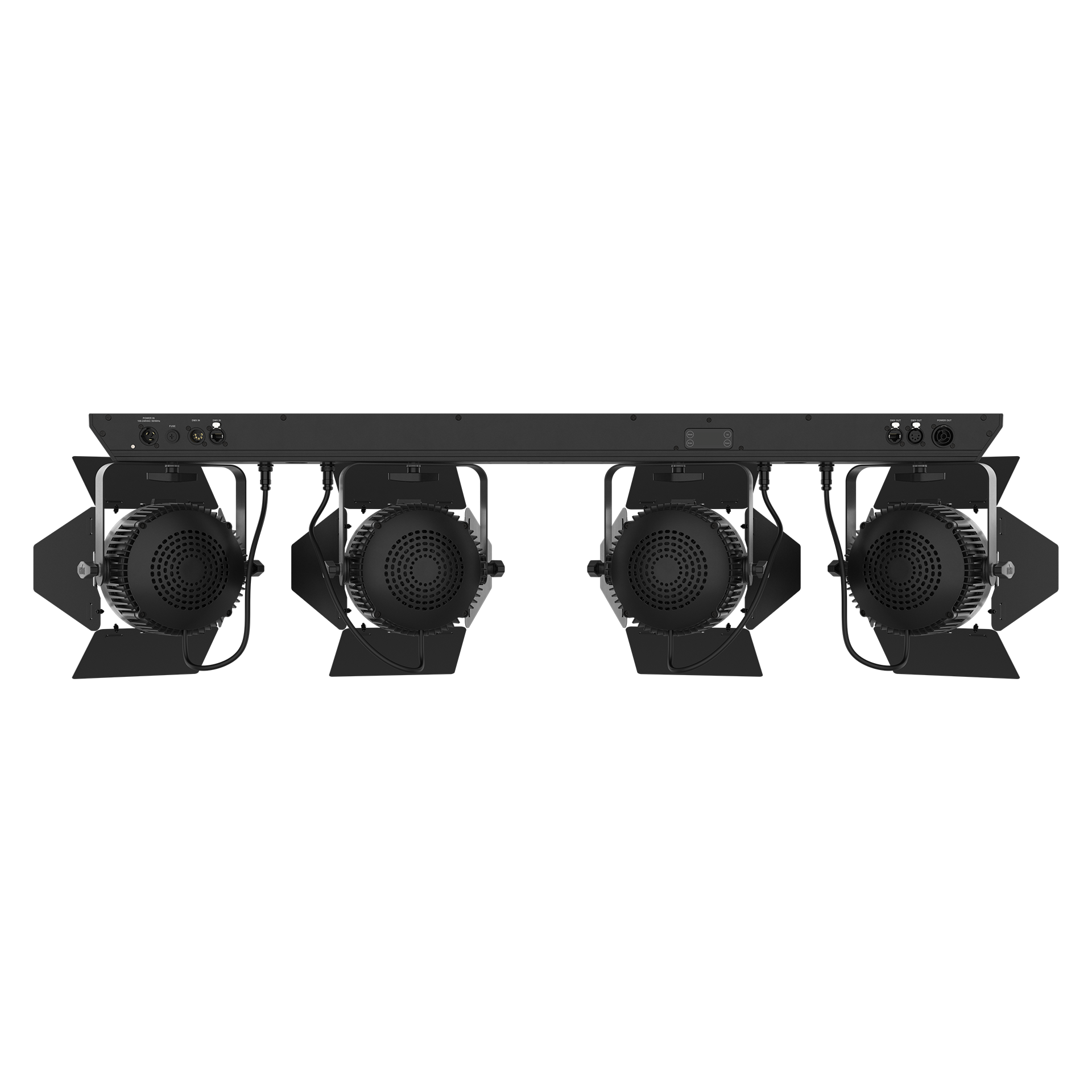

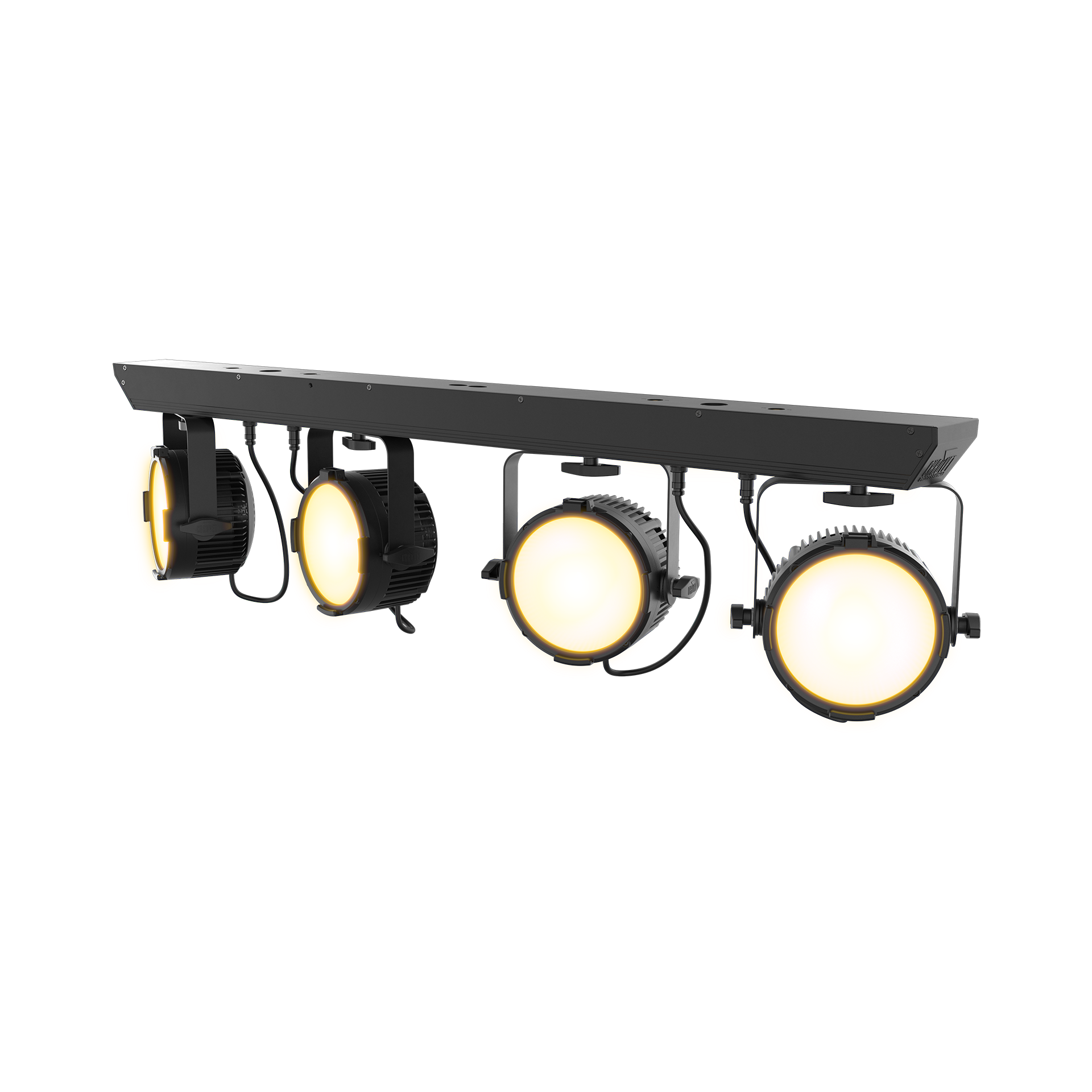

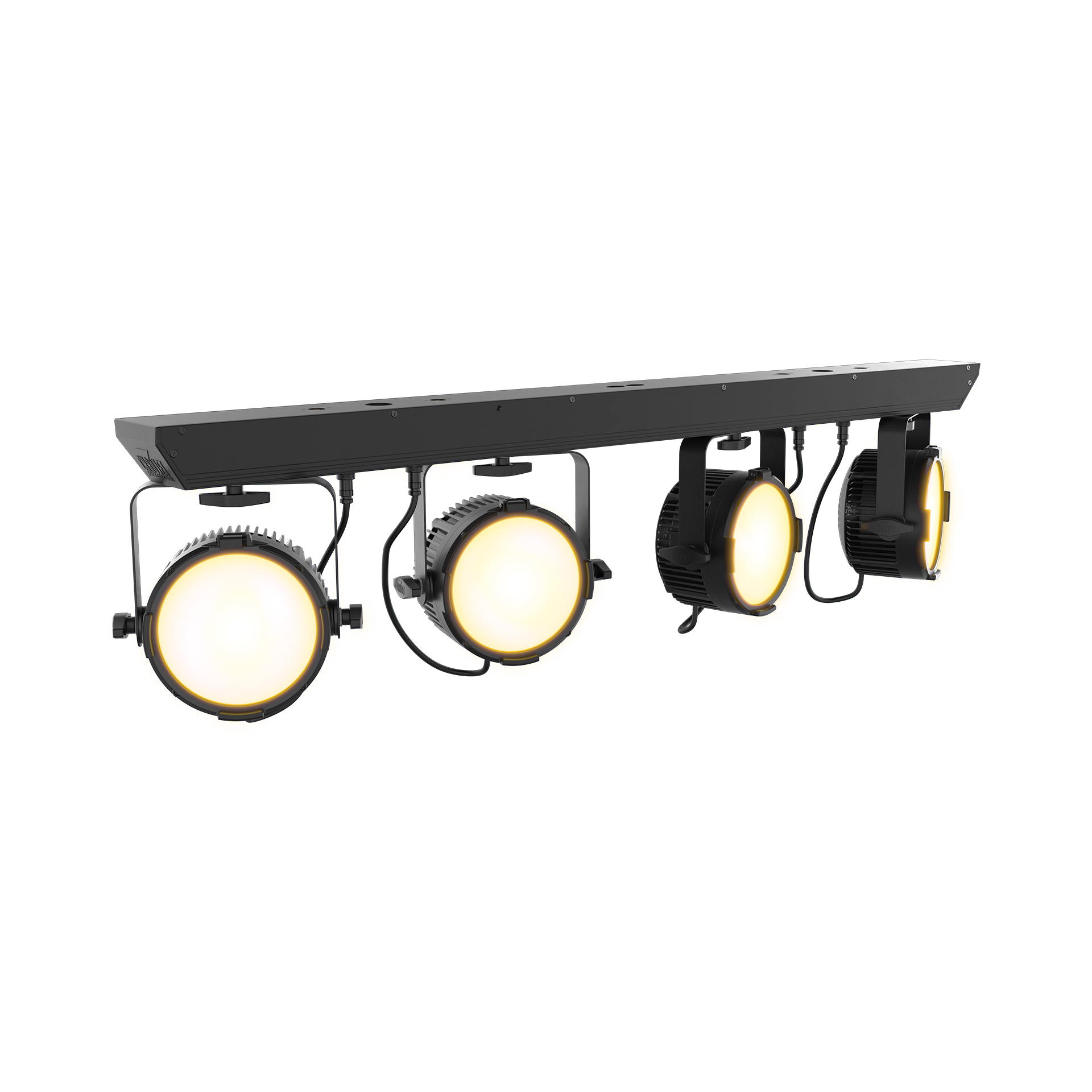

COLORdash PAR Bar 4
A complete wash light solution designed with convenience and versatility in mind for small theatres, events and multi-use spaces. COLORdash Par Bar 4 comes with all the features and accessories to shape light coverage to your needs. Independently focus each of four RGBAW-UV LED heads, change beam angles from 15° to 30° with the included wide filter, and keep light where it’s wanted with four-leaf barndoors. Selectable dimming curves mean fades are always smooth, and superior optics produce smooth color mixes. Advanced electronics with adjustable pulse width modulation make for flicker-free on-camera performance. Connect to DMX control via 5-pin XLR or with standard CAT6 Ethernet cable. A touchscreen interface and multiple mounting options complete this versatile package.
Features
Complete 4-Head Wash Solution
This all-in-one system features four heads with high-power RGBAW-UV LED arrays for vibrant, comprehensive color mixing.
Versatile Mounting Options
Multiple, convenient mounting methods are available to accommodate a wide range of setups and applications.
Independently Focusable Heads
Each of the four heads can be focused individually, allowing for precise and customizable stage coverage.

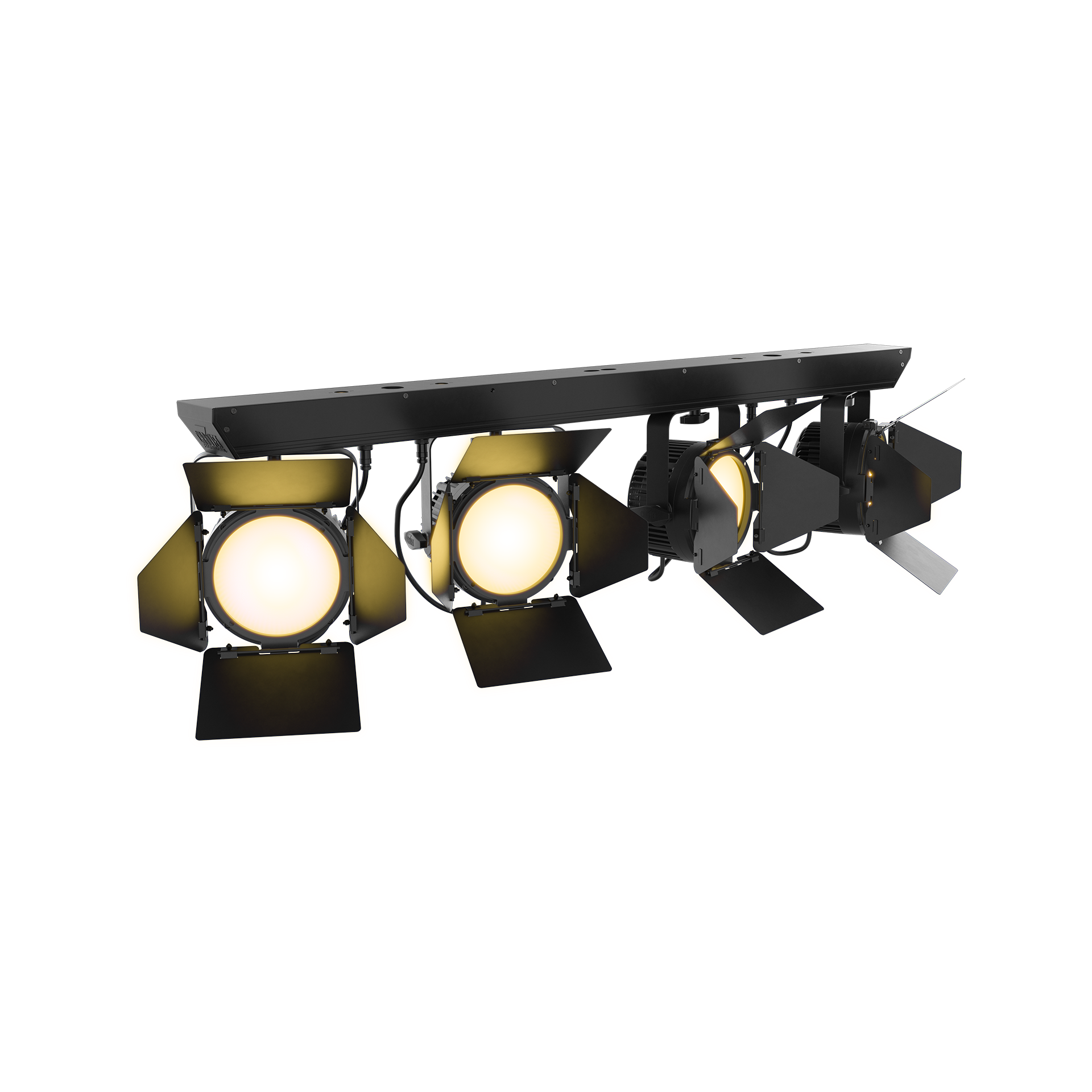

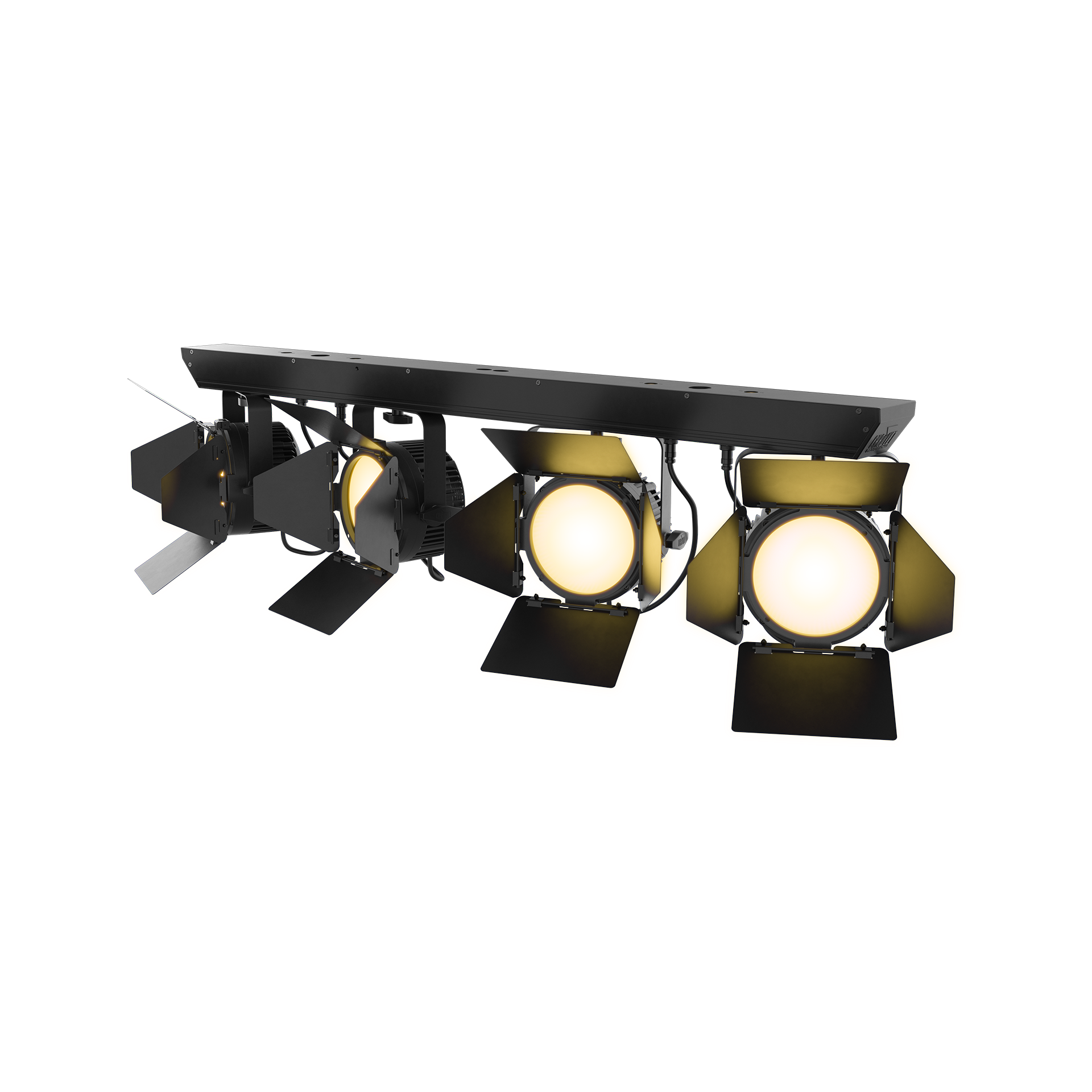

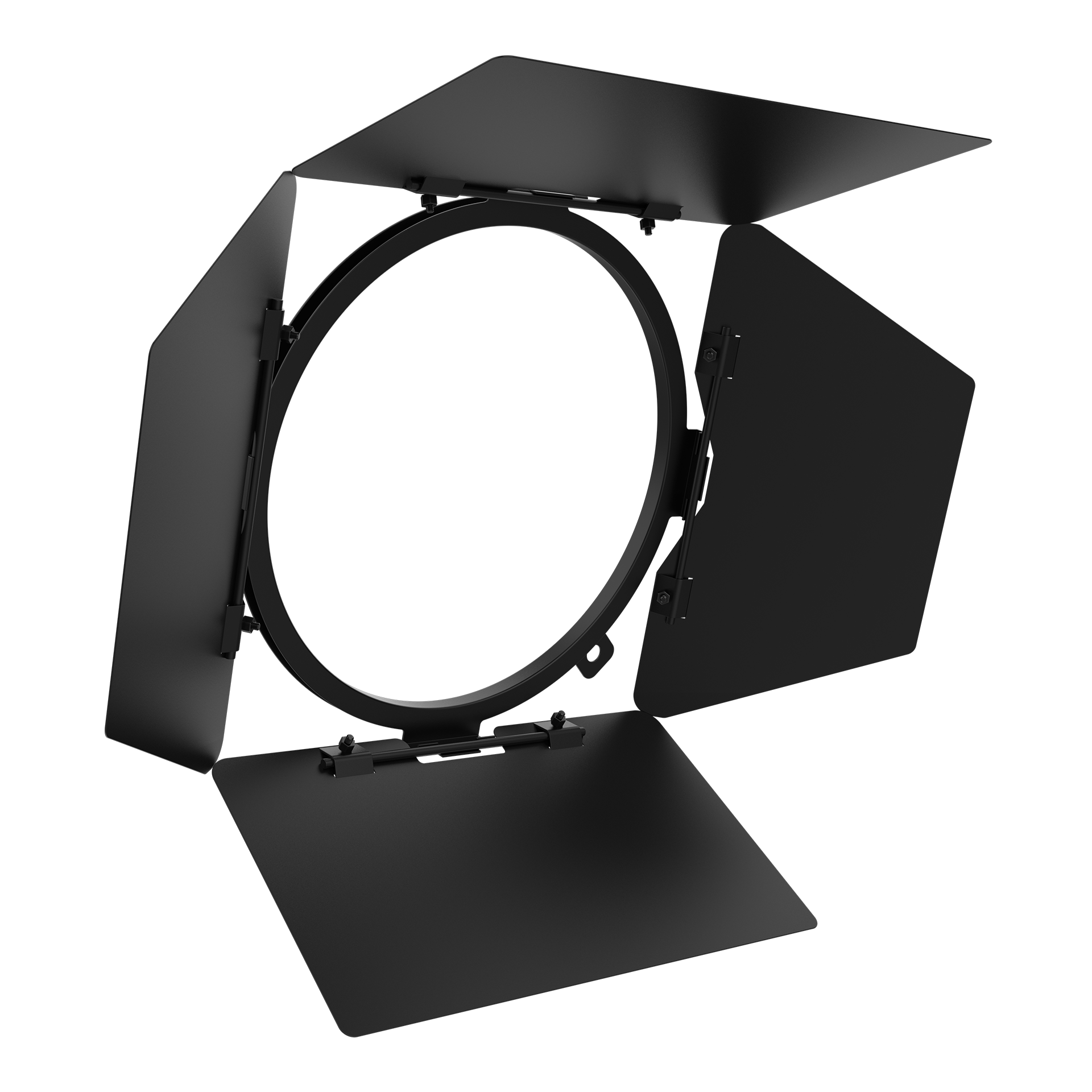

Included Barndoors
Comes equipped with barndoors for each head to shape the light beam and eliminate spill in unwanted areas.
Simple DMX Connectivity
Easily connect to your DMX controller using a standard CAT6 Ethernet cable for reliable operation.
Adjustable PWM
Avoid on-camera flickering with adjustable Pulse Width Modulation to match your camera’s frame rate.
Remote Device Management
RDM capability allows for remote addressing and configuration, adding significant operational flexibility.
Smooth Dimming Curves
Selectable dimming curves eliminate flicker and choppiness to ensure perfectly smooth fades.
OLED Touchscreen Display
An easy-to-read OLED display with a password-protected touchscreen interface allows for simple and secure setup.
Advanced Optics
A high-efficiency optical system provides exceptional color mixing and a powerful, even light output.
Complete Your Rig
Specifications
Optical
-
Light Source
1, RGBAW-UV LED Array (per head)
-
Beam Angle narrow (Single Par)
15.3°
-
Field Angle narrow (Single Par)
29.8°
-
Beam Angle wide (Single Par)
30.4°
-
Field Angle wide (Single Par)
49.4°
-
Lumens (Single Par)
4305 lm
-
Lumens (All Pars)
17930 lm
-
Illuminance Narrow (Single Par)
1482 lux @ 5 m
-
Illuminance Wide (Single Par)
510 lux @ 5 m
-
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Strobe Rate
0 to 20 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
45.3 x 5.16 x 11.08 in ( 1150.6 x 131 x 281.4 mm)
-
Weight
28.8 lb (12 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum Alloy
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
6,8,9,14,24,32,36,41
-
Modes/Personalities
8 personalities (6,8,9,14,24,32,36,41)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
2 units @ 100 V; 2 units @ 120V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
-
Power and Current
557W, 5.55 A @ 100 V, 60 Hz
-
Power and Current
551W, 4.63 A @ 120 V, 60 Hz
-
Power and Current
546 W, 2.63 A @ 208 V, 60 Hz
-
Power and Current
550W, 2.41 A @ 230 V, 50 Hz
-
Power and Current
559W, 2.33 A @ 240 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
32 °F to 104 °F (0 °C to 40 °C)
Compatible Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Seetronic Powercon power linking cables.
- 5-pin IP or Non-IP DMX Cables
- Ethernet or etherCON compatible cables
What's Included
- COLORdash Par Bar
- Seetronic Powercon IP65 power cord
- Wide Filter (4pc)
- Barndoors (4pc)
- Tripod mount
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
COLORdash PAR Bar 4 FAQ’s
The COLORdash PAR Bar 4 is an all-in-one system that includes everything you need for a versatile lighting setup. It comes with a bar holding four powerful LED light heads, plus accessories like barndoors for shaping the light, a filter to create a wider wash, and a tripod mount.
You have total control over your lighting. Each of the four heads can be aimed independently to light different areas. The advanced LEDs can create a massive range of vibrant colors, including whites, ambers, and even a UV (blacklight) effect. Plus, the included barndoors for each head let you precisely shape the beam and prevent light from spilling into unwanted areas.
Yes, it’s designed for convenience. It has multiple mounting options, and you can control it with professional DMX systems using either standard lighting cables or simple, common network (Ethernet) cables. For quick changes without a controller, you can easily adjust settings directly on the fixture’s user-friendly touchscreen.
