COLORado Solo Edge 3
This low-profile, one-meter IP65-rated footlight features an RGBwWL source and a single lens for smooth, high-quality color and white light output.
Integrated RGB marker lights provide talent cues while its end-to-end design creates seamless, gap-free arrays for stage and broadcast applications.
-
Low-profile, 1m, IP65 rated footlight with full-color and high-quality white light
-
Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
-
Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
-
Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
COLORado Solo Edge 3

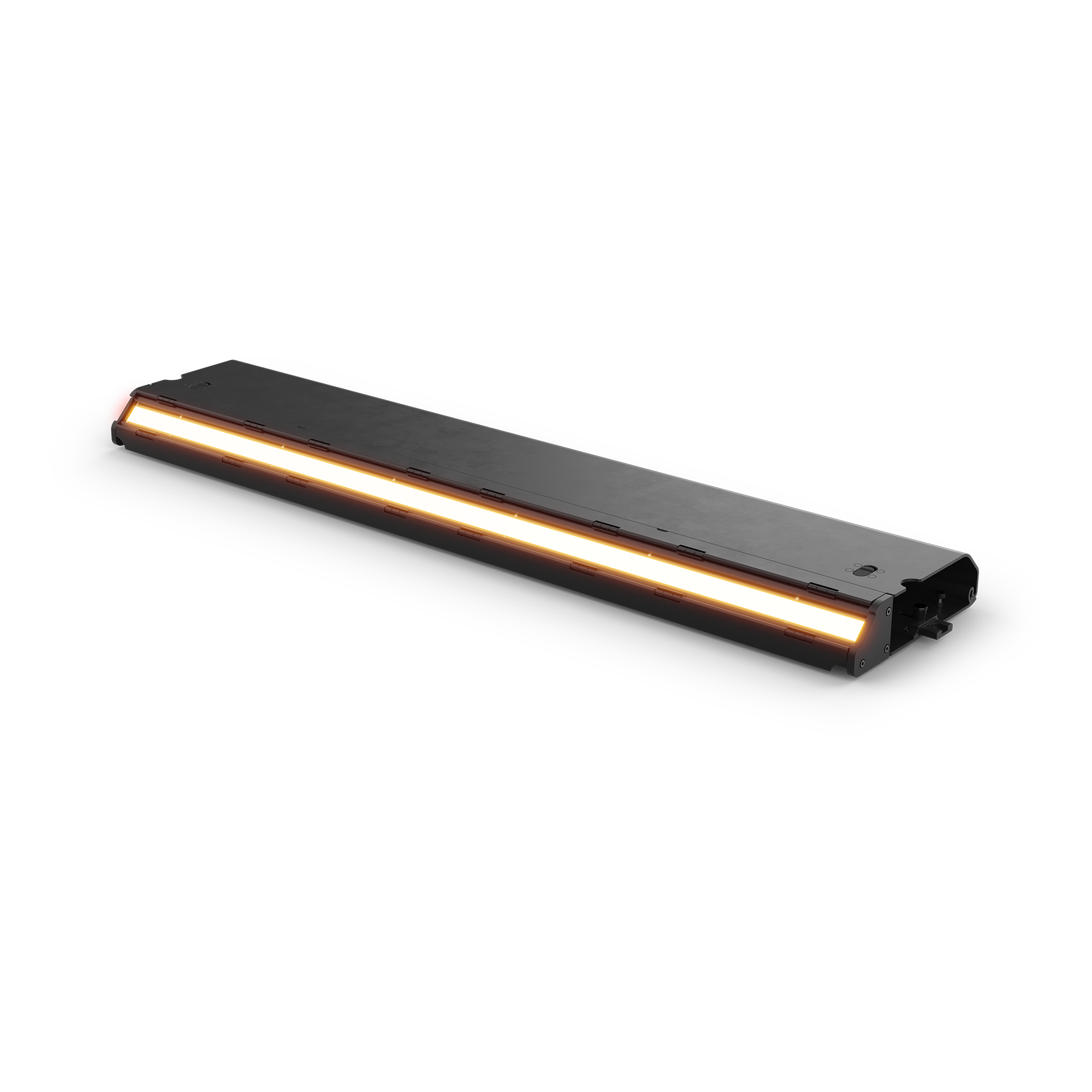

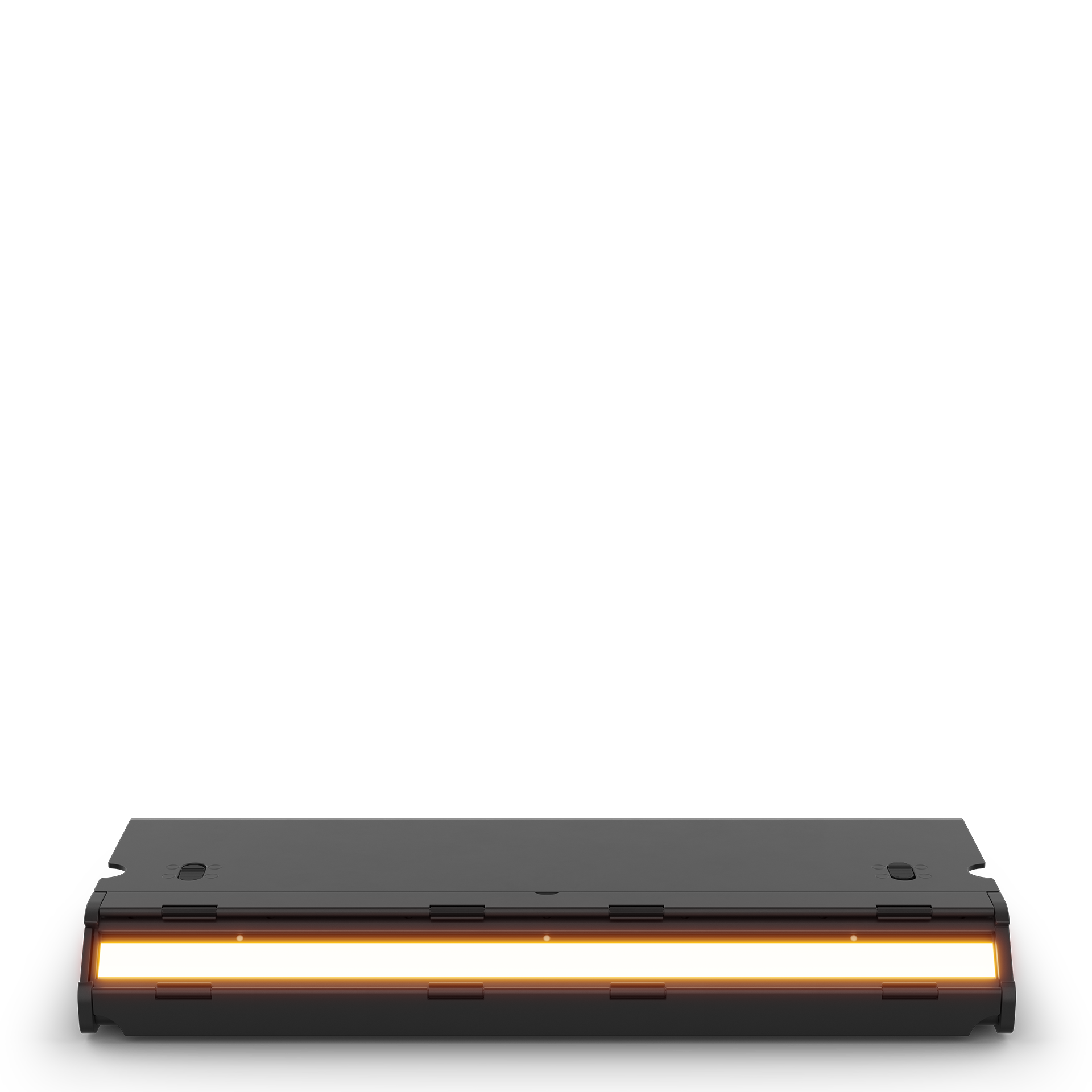

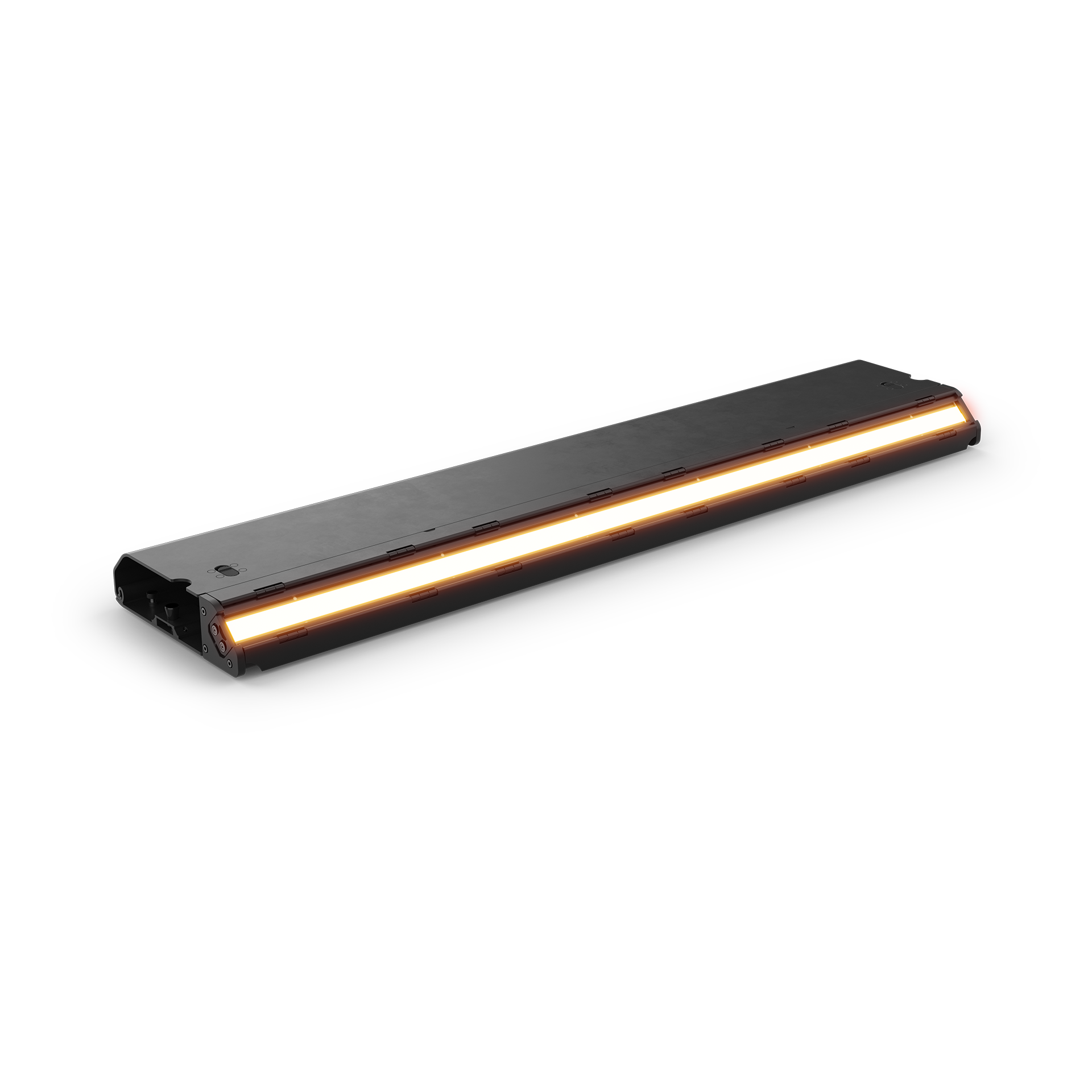

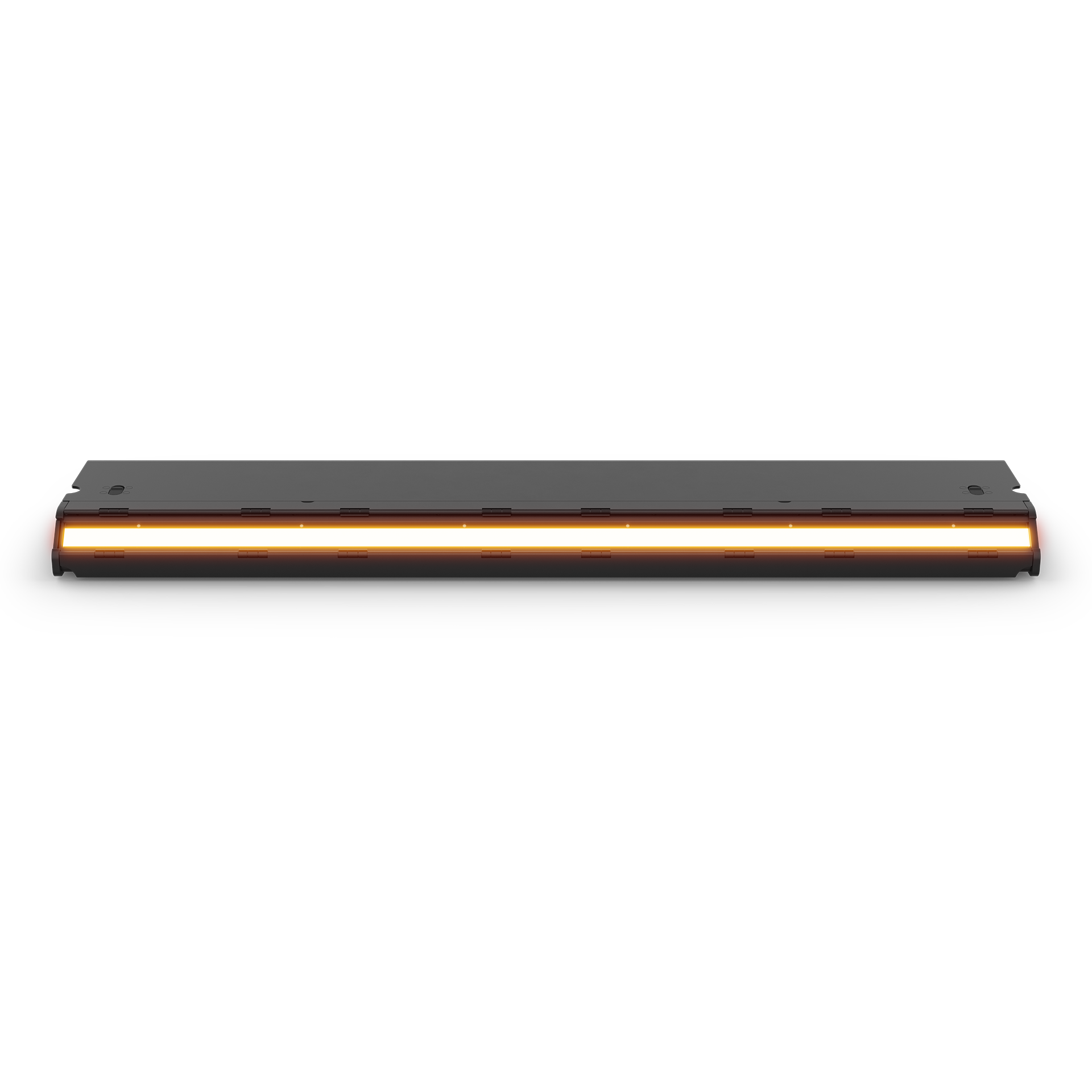

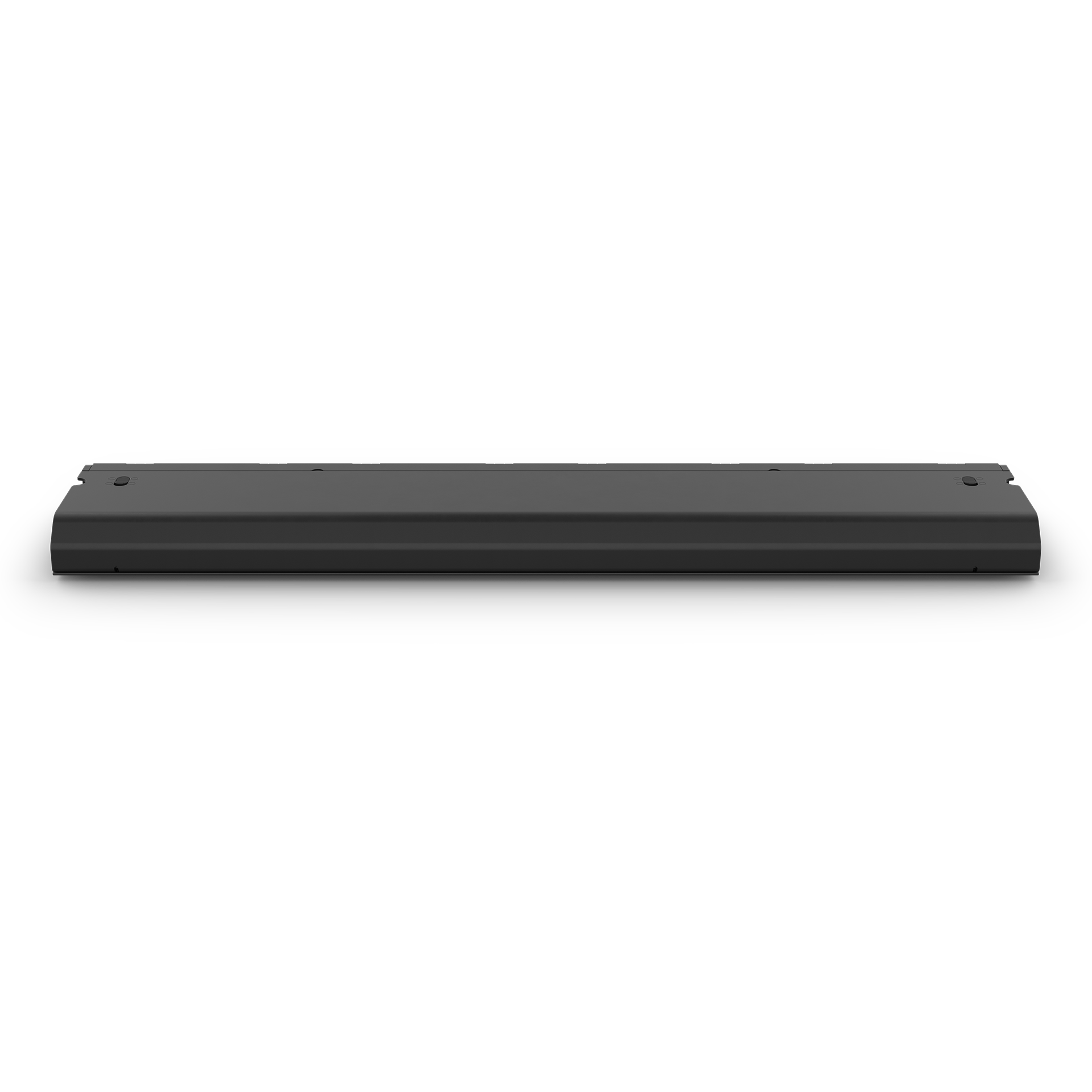

This low-profile, 1-meter, IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.
Features
High-Quality Theatrical Light
An advanced RGBwWL LED system delivers a full color spectrum and high-CRI white light, all housed in a rugged IP65-rated frame.
Smooth, Unseen Output
A single-source lens produces smooth, even washes, while the included stealth filter helps the fixture visually disappear when not in use.
Integrated Stage Markers
Fully controllable RGB marker lights are built directly into the fixture to provide clear visual cues for talent or define stage boundaries.
Seamless End-To-End Design

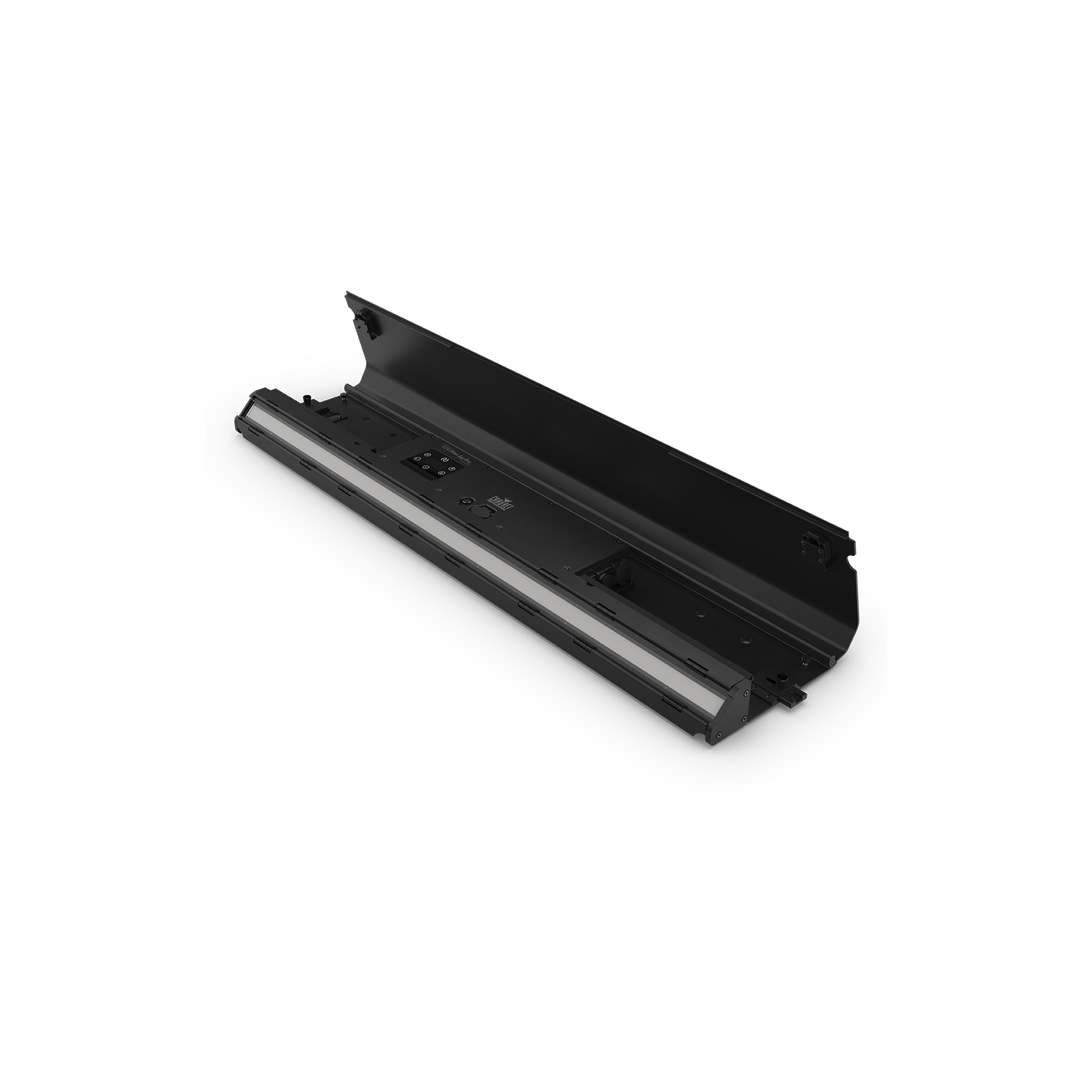

Create perfectly aligned, gapless arrays with end-to-end connections and a covered display that keeps the focus on the light, not the hardware.
Complete Your Rig
Specifications
Optical
-
-
Light Source
-
Primary
112 LEDs (Quintuple-color RGBwWL)
-
RGB Markers
12 LEDs (Tri-color RGB)
-
-
Light Source
-
Color Temperature (range)
2800 to 8000 K
-
Color Temperature (at full)
6329 K
-
CRI @ 3200K
92.5
-
-
Beam Angle
-
Horizontal
116.4°
-
Vertical
121.5°
-
Horizontal (Stealth Filter)
89.5°
-
Vertical (Stealth Filter)
91.6°
-
-
Beam Angle
-
-
Field Angle
-
Horizontal
148.4°
-
Vertical
158°
-
Horizontal (Stealth Filter)
131.4°
-
Vertical (Stealth Filter)
137.4°
-
-
Field Angle
-
-
Lumens
-
Without Stealth Filter
17,416
-
With Stealth Filter
4,144
-
-
Lumens
-
-
Illuminance
-
Without Stealth Filter
235 lux @ 5 m
-
With Stealth Filter
82 lux @ 5 m
-
-
Illuminance
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 30Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Dim Curves
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
Yes
Construction/Physical
-
Dimensions
39.37 x 8.85 x 2.51 in (1000x 225 x 64mm)
-
Weight
22 lb (10 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy and Aluminum die-cast
-
IP Rating
IP66
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
5-pin IP65 XLR, Seetronic etherCON
-
Cable Length (power)
5 ft (1.5 m)
-
Software Connection
USB, Ethernet (RJ45)
Control
-
Control Protocol
Art-Net, sACN, DMX, RDM
-
-
DMX Channels
-
1 Cell
5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
-
2 Cell
8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
-
4 Cell
14, 15, 15, 18, 22, 33, 37, 41,42 or 69
-
-
DMX Channels
-
-
Art-Net Channels
-
1 Cell
5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
-
2 Cell
8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
-
4 Cell
14, 15, 15, 18, 22, 33, 37, 41,42 or 69
-
-
Art-Net Channels
-
Modes/Personalities
personalities (32)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V;
-
Power and Current
242 W, 2.03 A @ 120 V, 60 Hz
-
Power and Current
237 W, 1.18 A @ 208 V, 60 Hz
-
Power and Current
236 W, 1.06 A @ 230 V, 50 Hz
Battery
-
Battery type
Lithium Ion
-
Rechargeable
Yes
-
-
Battery Power
-
Li-ion Battery
3.7Vdc, 200mAh
-
Li-Button
3Vdc, 1000mAh
-
-
Battery Power
Certifications/Qualifications
-
Compliance
CE, MET, FCC
-
MET Listing Number
[E113093-1110, E113093-1125]
-
US Safety
[UL 60950-1]
-
Canadian Safety
[CSA C22.2 No. 60950-1]
-
-
Thermal Dissipation
-
@ 120V
819 BTU per hour
-
@ 208V
819 BTU per hour
-
@ 230V
819 BTU per hour
-
-
Thermal Dissipation
-
Temperature (Ambient)
-4 °F to 122 °F (-20 °C to 50° C)
Compatible Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Riglink TR1 Cables
- Riglink IP DMX cables
- Riglink IP Network cables
What's Included
- COLORado Solo Edge 3
- Seetronic Powerkon IP65 power cord
- Power and Data linking cables
- Stealth Filter
- 2 Omega bracket with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | COLORado Solo Edge 3 – Quick Reference Guide | Download |
Manuals | COLORado Solo Edge 3 – User Manual | Download |
Manuals | COLORado Solo Edge 3 – DMX Charts | Download |
Manuals | COLORado Solo Edge 3 – Photometrics Report | Download |
Manuals | COLORado Solo Edge 3 – Corners, straight, ends | Download |
Manuals | COLORado Solo Edge 3 – 2D Files | Download |
Manuals | COLORado Solo Edge 3 – 3D Files | Download |
Learn How To Use Your COLORado Solo Edge 3
Explore these detailed videos showcasing setup, features, and creative applications for this product.
-
Tech Talk: COLORado Solo Edge
Discover how the CHAUVET Professional COLORado Solo Edge 3 keeps the stage front clean with powerful, even light. This innovative footlight shapes the performance when needed and disappears when it shouldn’t be noticed, ensuring a distraction-free production.
COLORado Solo Edge 3 FAQ’s
The integrated RGB marker lights are fully controllable via DMX as a separate zone, allowing you to program them for talent cues or stage edge marking independently from the main wash light.
The stealth filter is a unique accessory designed to minimize the fixture’s visibility when it is turned off, helping it blend seamlessly into the stage floor or scenery for a cleaner look.
Yes, the fixture is engineered for seamless end-to-end alignment. The physical housing and power/data linking connections are designed to create continuous, uninterrupted lines of light with no visible gaps.
