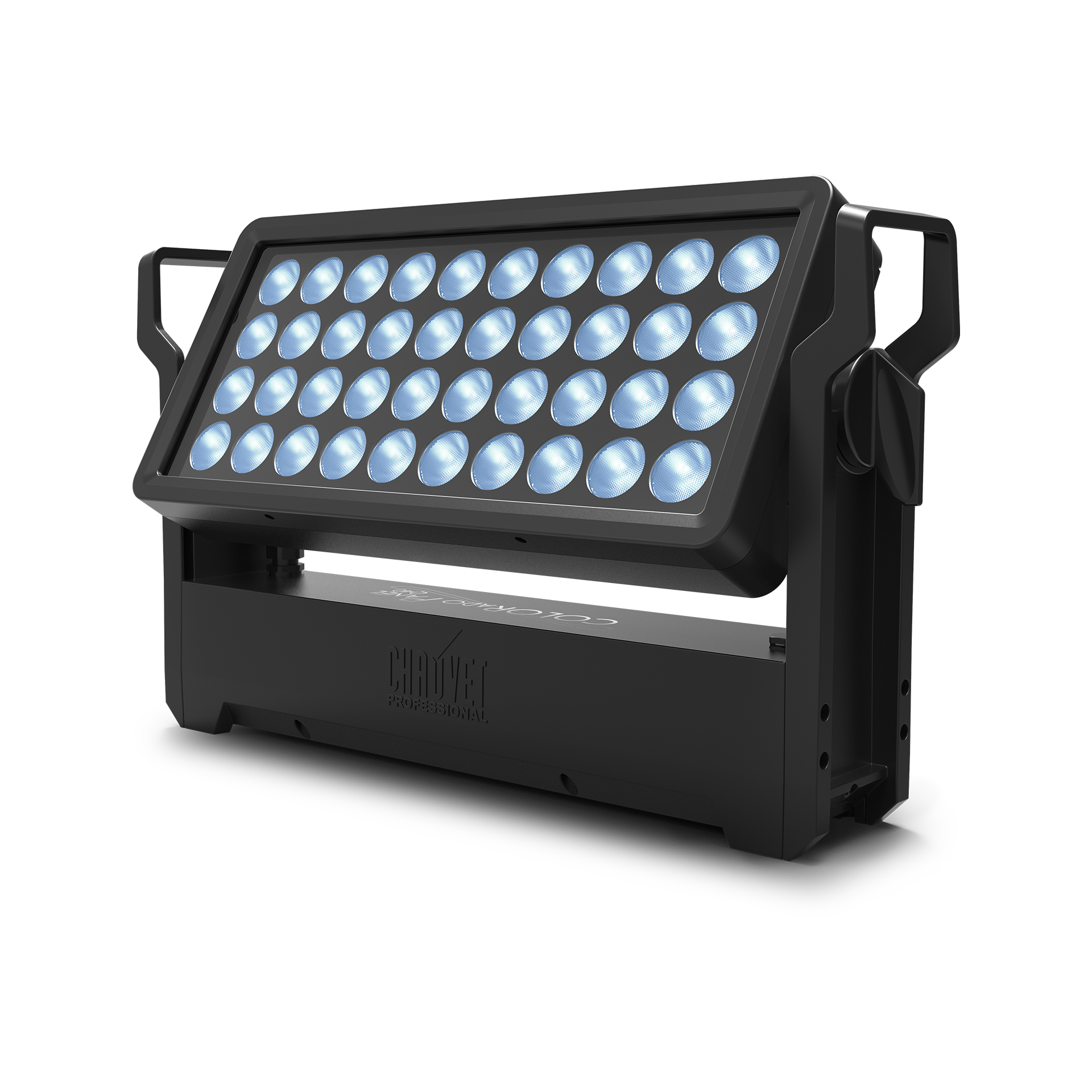

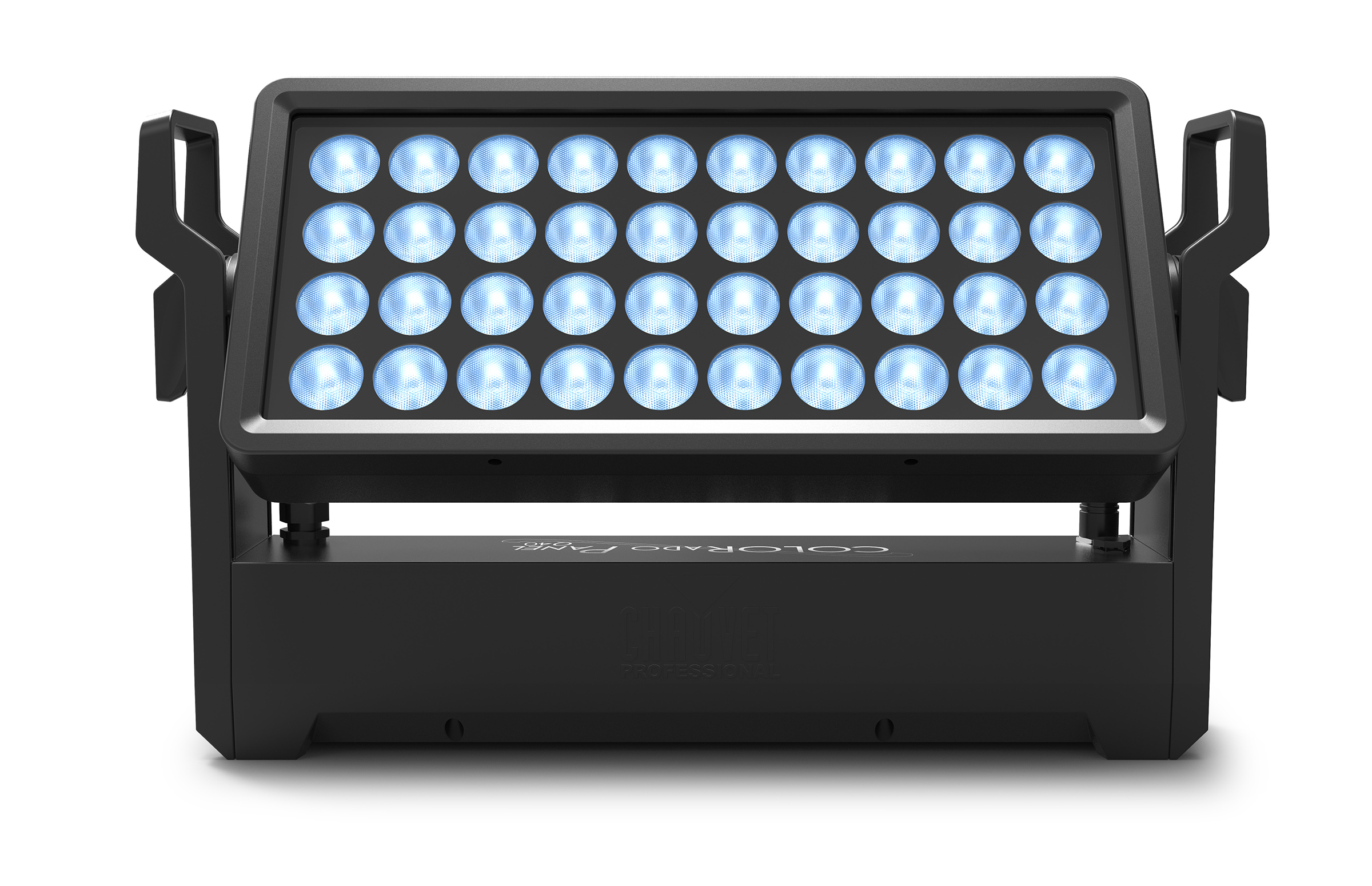

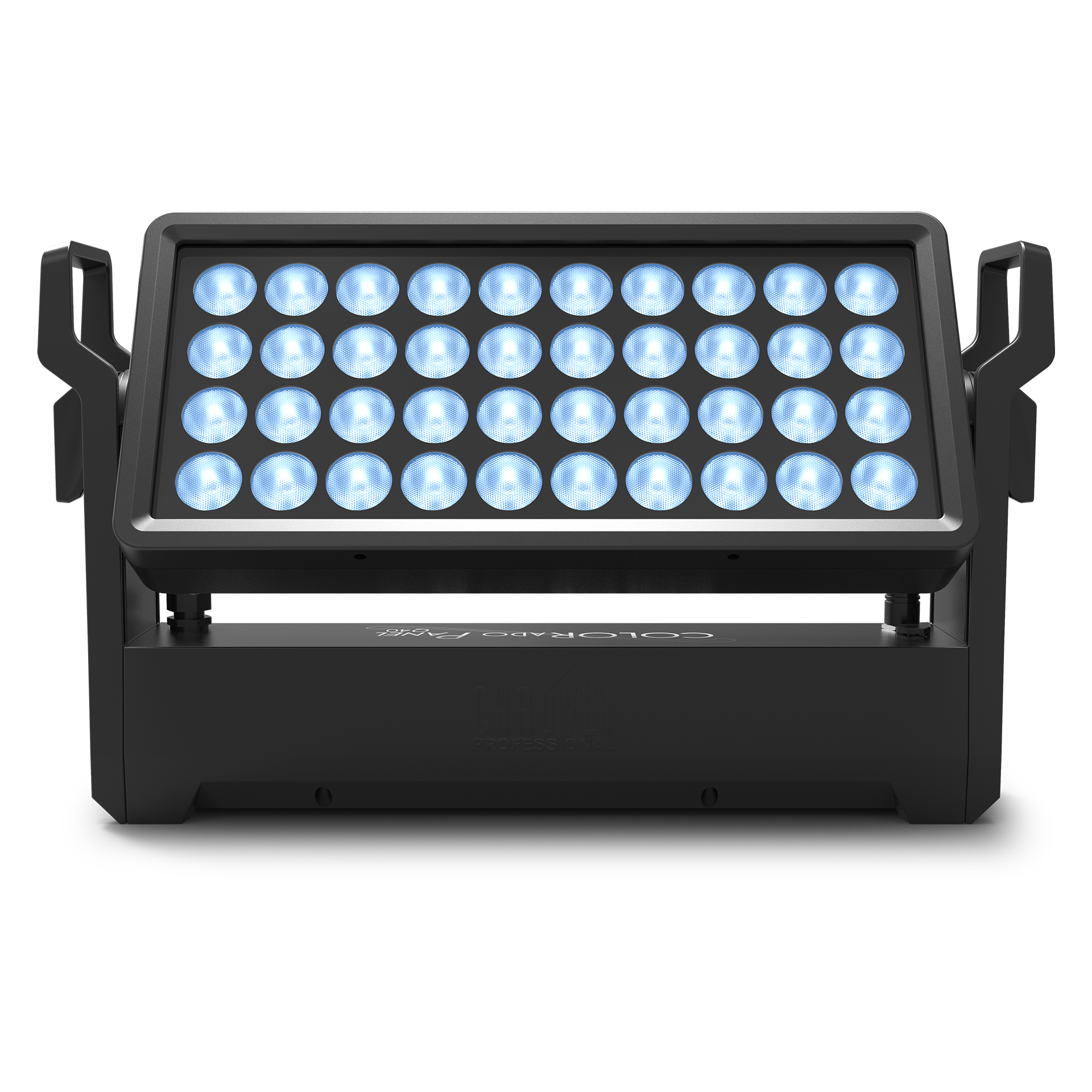

    COLORado Panel Q40

    A powerful IP65-rated rectangular wash light featuring 40 15W RGBW LEDs that delivers flawless edge-to-edge color mixing with an adjustable beam and wireless control.
    Perfect for indoor or outdoor productions, events, and architectural installations requiring a durable and versatile wide-area wash of color.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORADOPANELQ40

    COLORado Panel Q40

    Specifications
    		 Download
    COLORado Panel Q40 Quick Reference Guide
    		 Download
    COLORado Panel Q40 User Manual
    		 Download
    COLORado Panel Q40 CAD Files
    		 Download
    COLORado Panel Q40 DMX Chart
    		 Download
    COLORado Panel Q40 IES Files
    		 Download
    COLORado Panel Q40 Photometric and Chromaticity…
    		 Download
    Firmware
    		 Download
    Download All Resources

    COLORado Panel Q40

    SKU: COLORADOPANELQ40

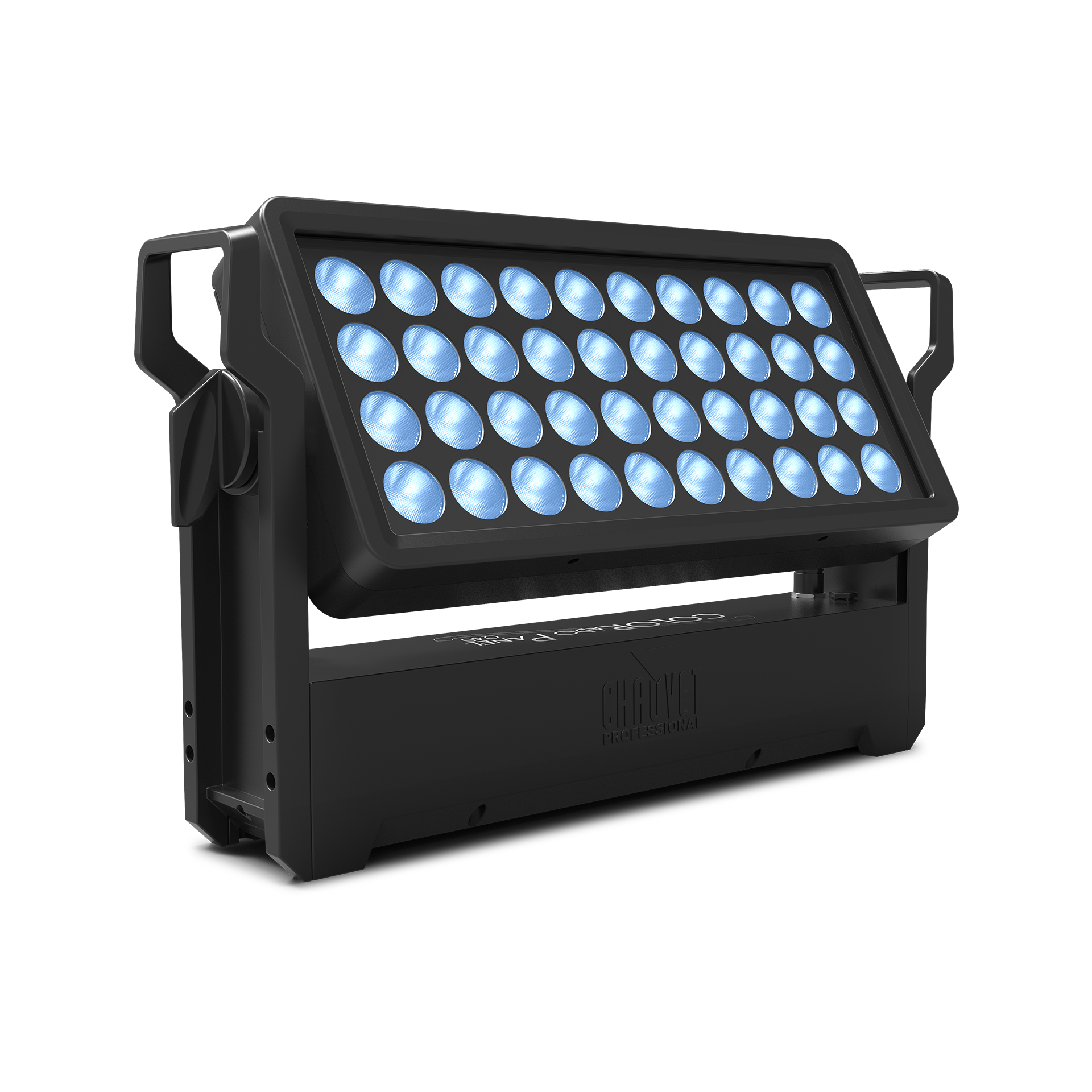

    COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

    Features

    Indoor/Outdoor RGBW Wash

    This rugged RGBW LED wash provides ultimate flexibility for events that require both indoor and outdoor use.

    Superior Color Mixing

    Experience flawless, even color from one edge of the beam to the other.

    All Weather Operation

    IP-rated power and DMX connections ensure reliable performance in any weather conditions.

    Magnetic Flood Filter

    The included magnetic filter attaches easily to create a wide and even area wash.

    Flicker Free Performance

    Adjustable Pulse Width Modulation (PWM) eliminates on-camera flickering for broadcast applications.

    Wireless Control and Management

    Integrated WDMX and RDM provide added flexibility for control and remote device management.

    Smooth Dimming Curves

    Selectable dimming curves eliminate flicker and choppiness for exceptionally smooth fades.

    OLED Touchscreen Display

    An easy-to-read OLED display with a password-protected touchscreen allows for simple setup and navigation.

    Advanced Optics

    High-efficiency optics provide both exceptional color mixing and a powerful light output.

    Quick Rigging

    Mount the fixture quickly and easily to any truss or pipe with the included omega bracket.

    Latest News

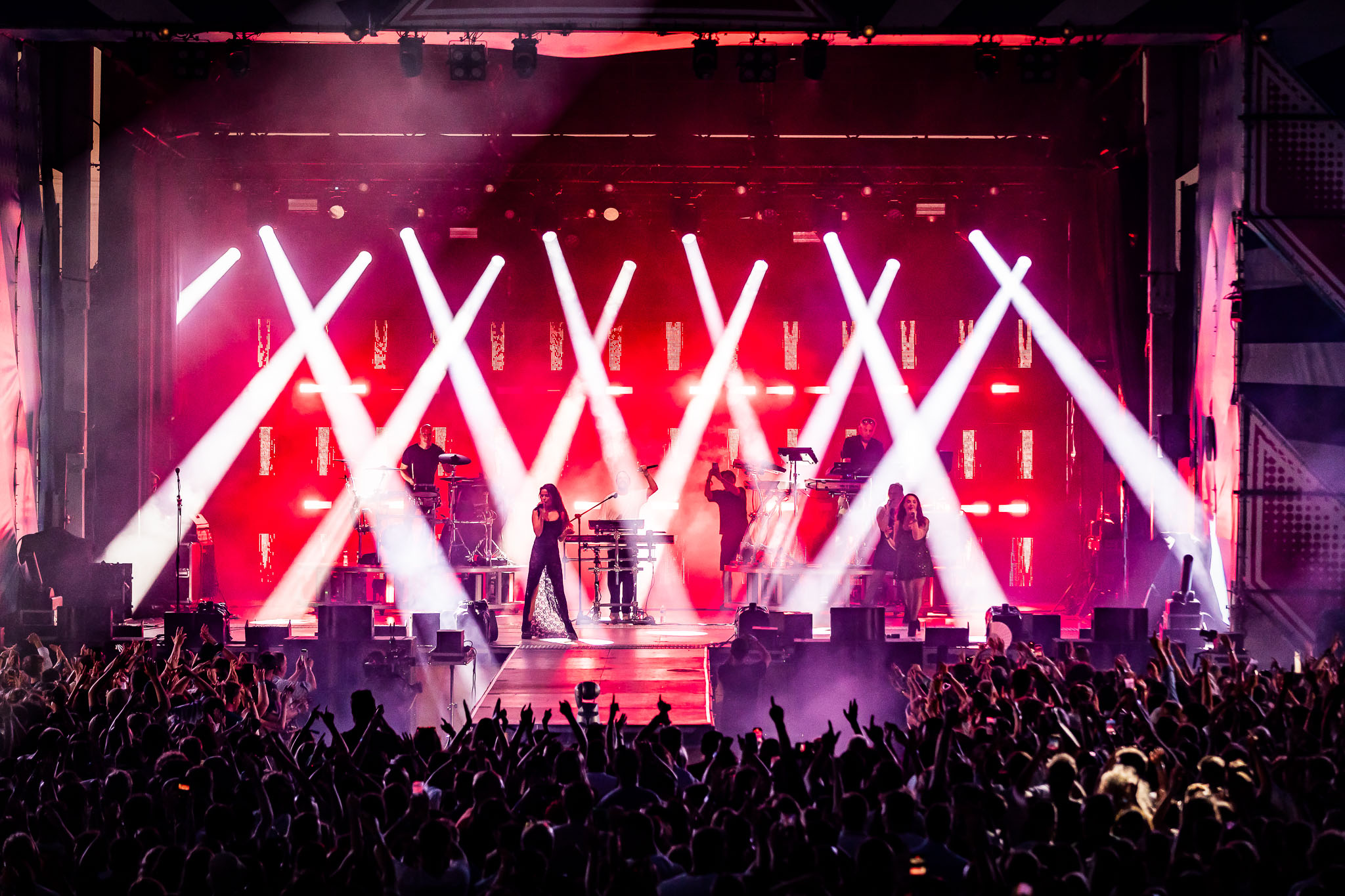

    John&Jane – Premium Technical Event Support and CHAUVET Professional Move Smoothly at Hype’O Dream
    A kinetic lighting design from John&Jane elevates the Hype’O Dream dance festival experience.
    Read more
    Tunnel Vision! John & Jane Create Exciting Visuals For Listen Festival
    Lighting design team John & Jane transforms a Brussels traffic tunnel into an immersive musical experience.
    Read more
    Backstage Production Group Adds Glow to SIBIU Theatre Festival With Over 250 CHAUVET Professional Fixtures
    Backstage Production Group lights Romania’s SIBIU Theatre Festival with over 250 CHAUVET Professional fixtures.
    Read more
    John&Jane – Premium Technical Event Support and CHAUVET Professional Move Smoothly at Hype’O Dream
    A kinetic lighting design from John&Jane elevates the Hype’O Dream dance festival experience.
    Read more
    Tunnel Vision! John & Jane Create Exciting Visuals For Listen Festival
    Lighting design team John & Jane transforms a Brussels traffic tunnel into an immersive musical experience.
    Read more
    Backstage Production Group Adds Glow to SIBIU Theatre Festival With Over 250 CHAUVET Professional Fixtures
    Backstage Production Group lights Romania’s SIBIU Theatre Festival with over 250 CHAUVET Professional fixtures.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy

      • Color Temperature (range)

        2800 to 10000 K

      • Installed Optics

        15°

      • Beam Angle (w/o filter)

        20.4°

      • Beam Angle (w/filter)

        24.6°

      • Field Angle (w/o filter)

        33.8°

      • Field Angle (w/ filter)

        50.4°

      • Lumens

        29,407

      • Lumens (w/filter)

        17,992

        • Illuminance
          • Illuminance (w/o filter)

            8,347 lux @ 5 m

          • Illuminance (w/ filter)

            2,590 lux @ 5 m

      • Selectable PWM

        600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

      Dynamic Effects

      • Tilt Ranges

        0° to 150°

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 27 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        4

      • Built-in Automated Programs

        Yes

      Construction/Physical

      • Dimensions

        20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)

      • Weight

        28.2 lb (12.8 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum alloy, Aluminum die-cast

      • Filter Size

        16.75 x 8 in (425.45 x 203.2 mm)

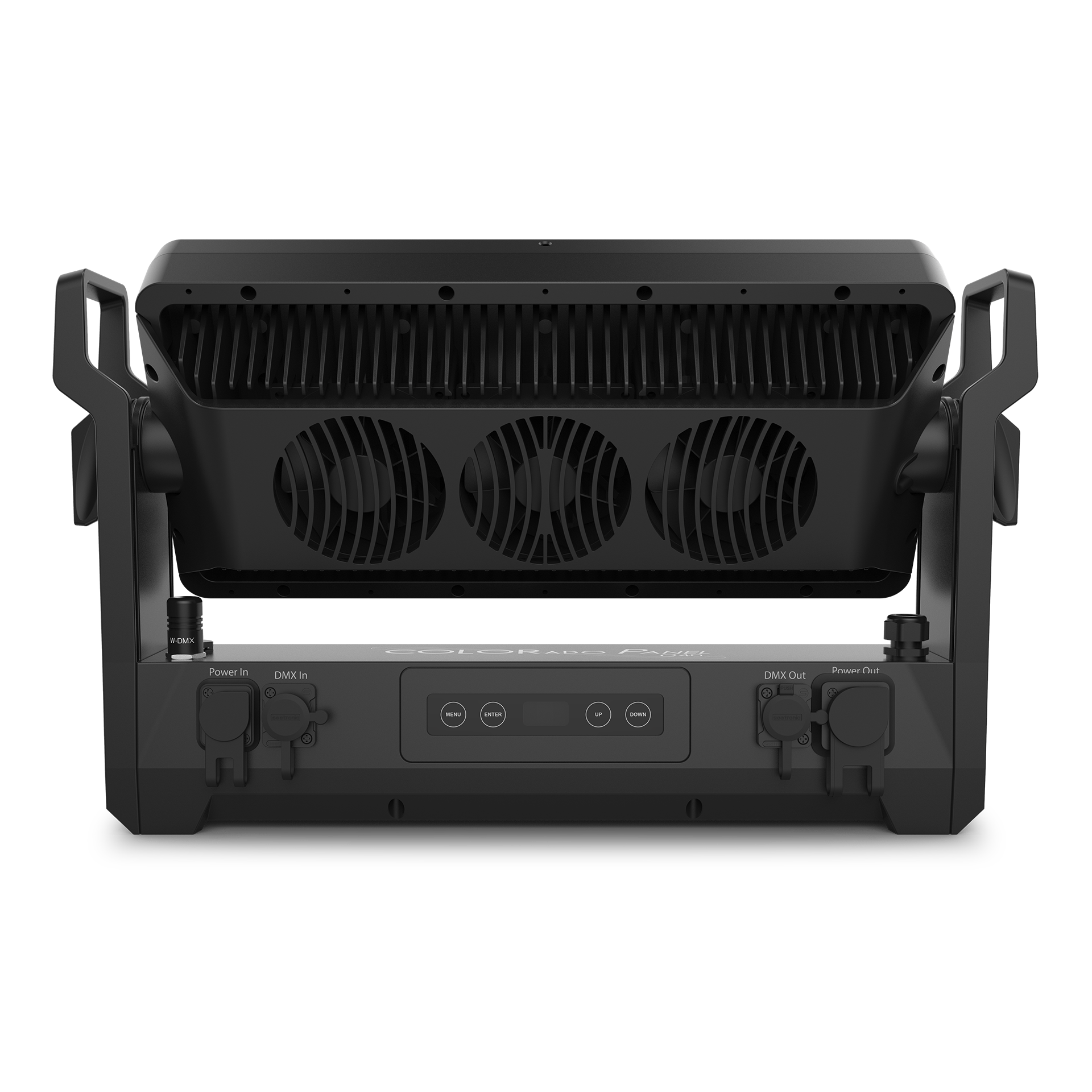

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin IP65 XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, W-DMX, RDM

      • DMX Channels

        4, 7, 11, 16 or 22

      • Modes/Personalities

        5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V

      • Power and Current

        566 W, 4.729 A @ 120 V, 60 Hz

      • Power and Current

        559 W, 2.701 A @ 208 V, 60 Hz

      • Power and Current

        560 W, 2.439 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, FCC

      • IP Rating

        IP65, outdoor/wet, with pressure equalizing M12 GORE valve

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • COLORado Panel Q40 Barndoor
      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Seetronic Powerkon power linking cables
      • 5-pin IP or Non-IP DMX Cables
      • COLORado Panel Q40 Filter Pack

      What's Included

      • Seetronic Powerkon IP65 power cord
      • Color Blending Filter lens
      • Omega bracket with mounting hardware

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      COLORado Panel Q40 Quick Reference Guide
      		Download
      Manuals
      COLORado Panel Q40 User Manual
      		Download
      Drawings
      COLORado Panel Q40 CAD Files
      		Download
      DMX
      COLORado Panel Q40 DMX Chart
      		Download
      Photometrics
      COLORado Panel Q40 IES Files
      		Download
      Photometrics
      COLORado Panel Q40 Photometric and Chromaticity Reports
      		Download
      Other
      COLORado Panel Q40 – Firmware
      		Download

      Learn How To Use Your COLORado Panel Q40

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Live from Central Park! It’s SummerStage 2024 with Spencer Lavoie

        Go behind the scenes at SummerStage 2024 as Spencer Lavoie reveals his lighting rig. Discover how all-weather CHAUVET Professional fixtures deliver vibrant, high-impact looks for New York’s iconic outdoor festival, rain or shine.

      • BTS National Happy Belgium Concert Celebration at Parc du Cinquantenaire

        See how over 230 CHAUVET Professional IP65 fixtures delivered flawless performance for Belgium’s national celebration. The rig illuminated the massive stage and historic architecture for 60,000 attendees and a national broadcast, proving its power and reliability in a demanding outdoor concert environment.

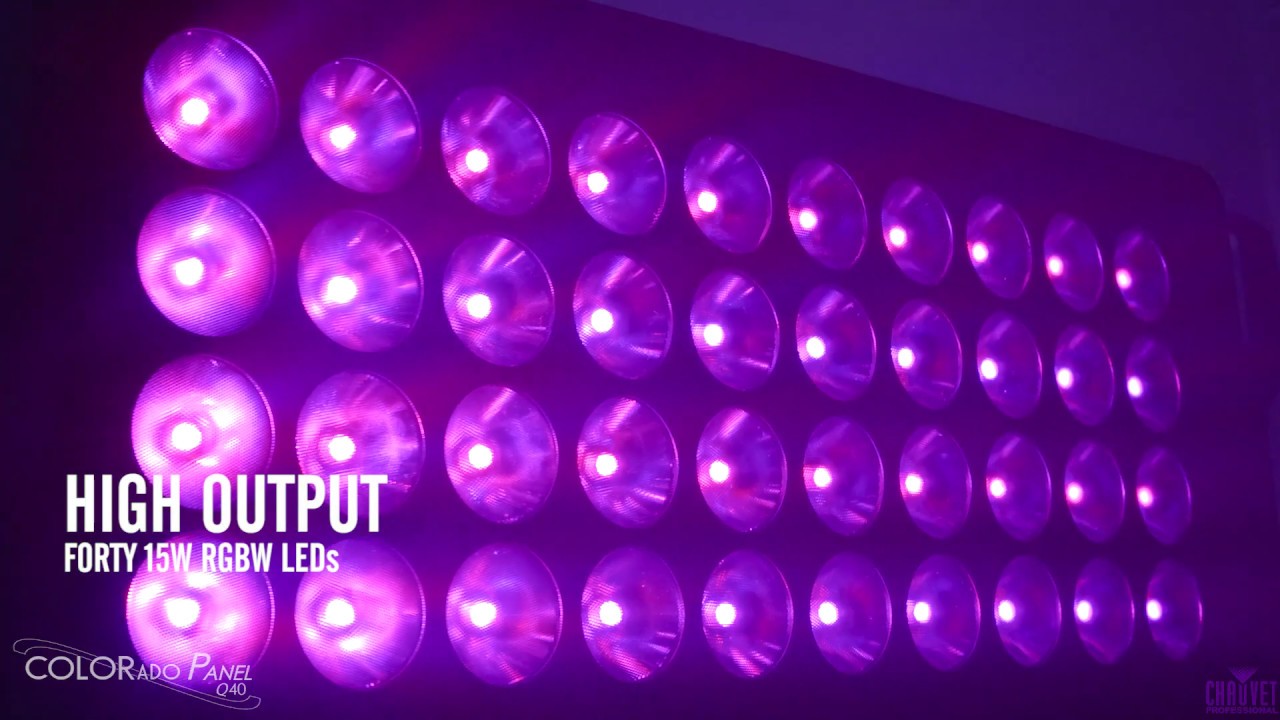

      • COLORado Panel Q40 IP65 Wash Light

        Drench any surface in a flawless field of color with the powerful COLORado Panel Q40. This rugged, IP65-rated RGBW wash light delivers superior edge-to-edge color mixing and includes a magnetic flood filter to empower bold, immersive designs for any indoor or outdoor application.

      Video Library

      Latest Articles

      Browse Articles

      COLORado Panel Q40 FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the COLORado Panel Q40
      Is the COLORado Panel Q40 suitable for outdoor use?

      Yes, it is built to perform in any weather conditions. Its rugged design and outdoor-rated power and data connections make it a reliable lighting choice for both indoor and outdoor events, rain or shine.

      How can I adjust the light beam from the COLORado Panel Q40?

      You can easily change the light’s coverage. The panel has an adjustable beam angle, and it includes a magnetic filter that you can quickly snap on to spread the light out for a wider, even wash of color.

      What makes the COLORado Panel Q40 easy to control?

      The fixture offers flexible control options, including wireless DMX, which lets you operate it without running data cables. It also has a simple touchscreen display for direct adjustments and uses standard, non-proprietary power and data connectors for an easy setup.
