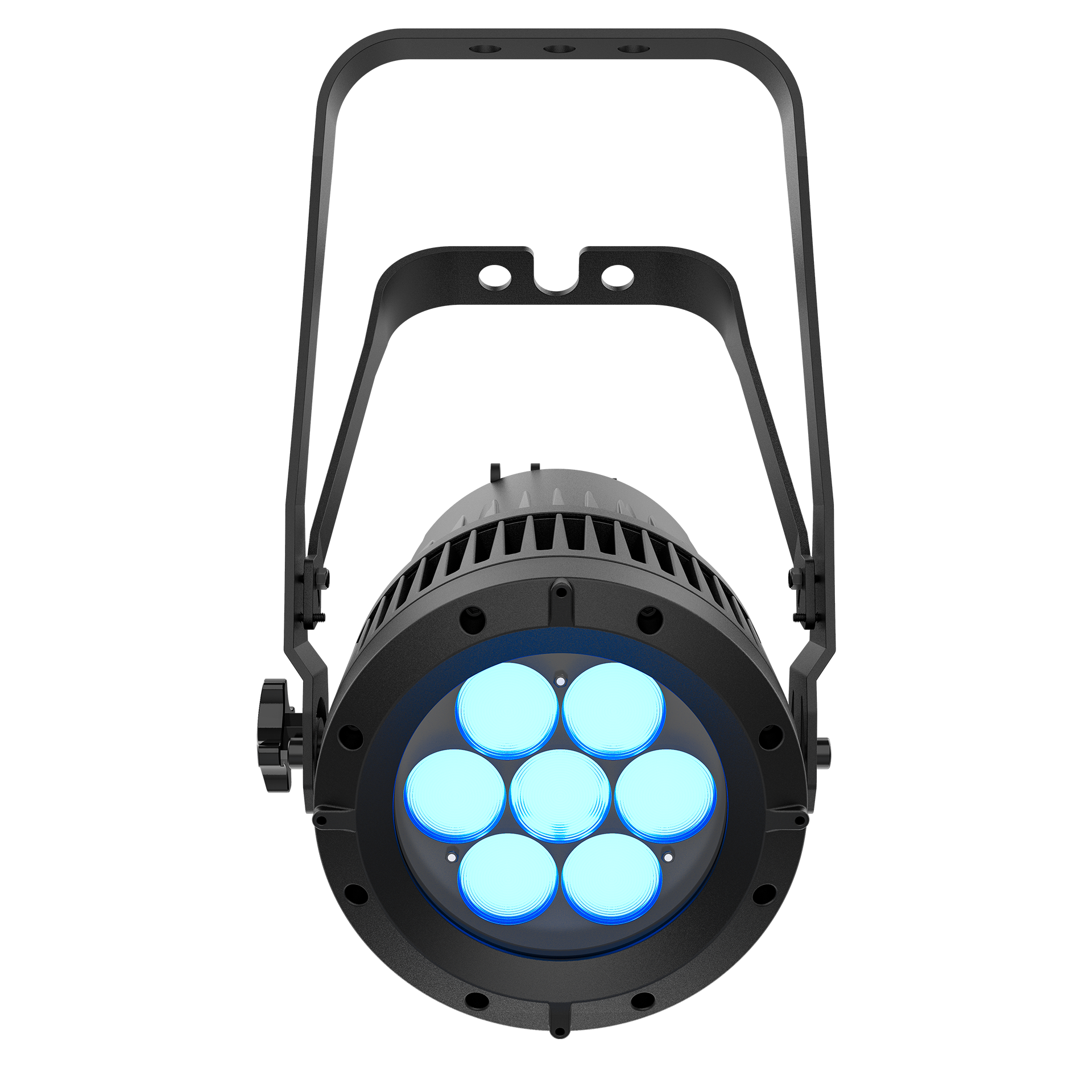

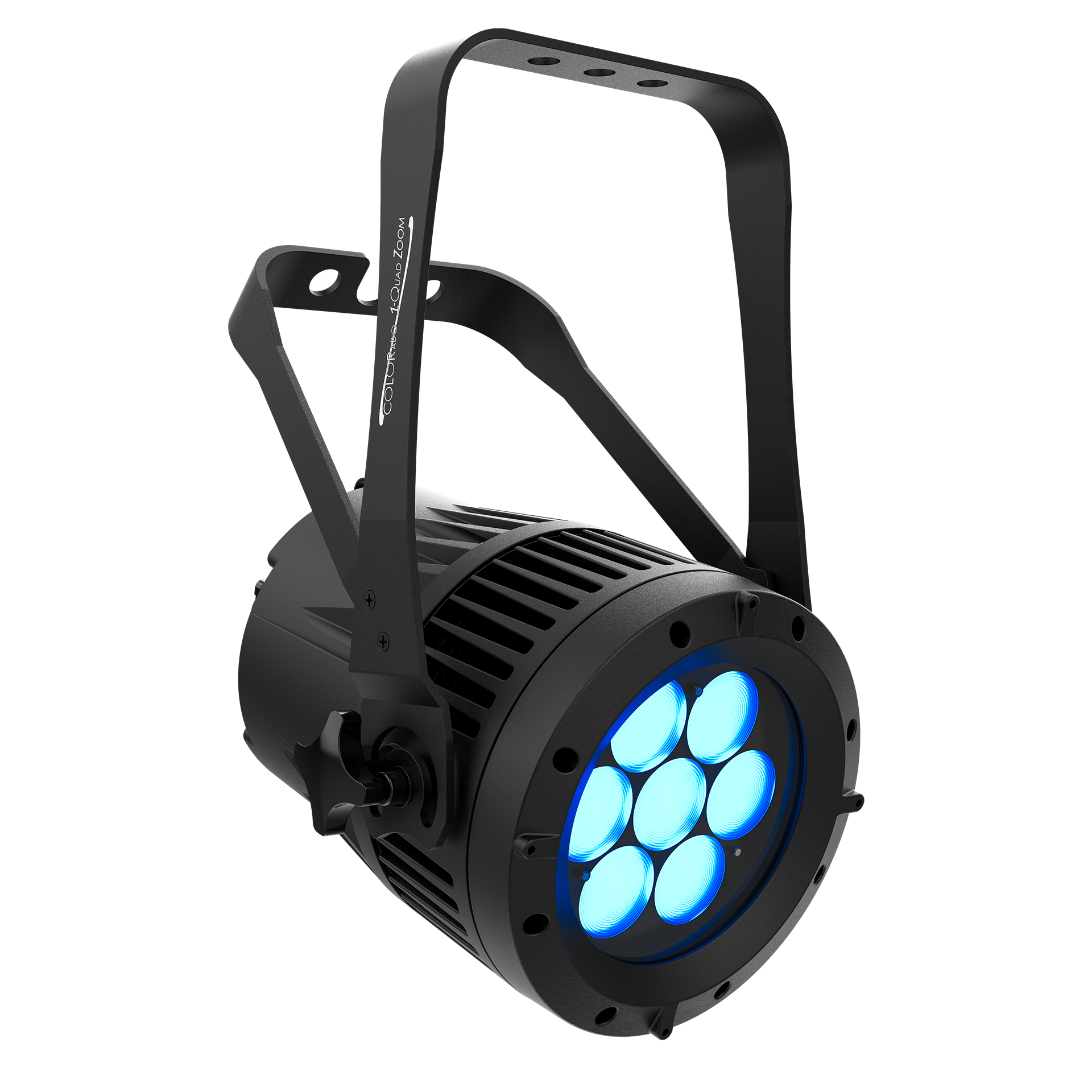

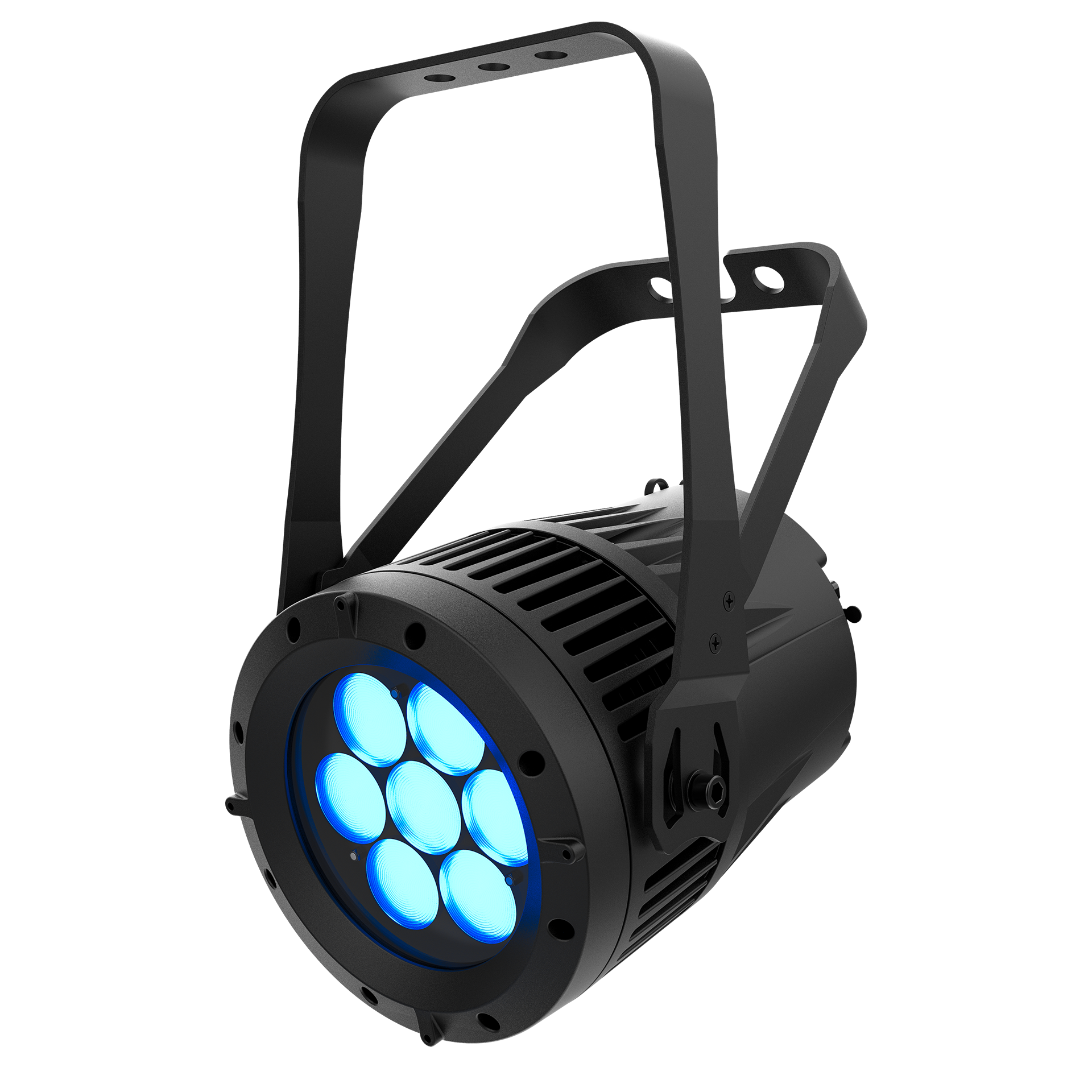

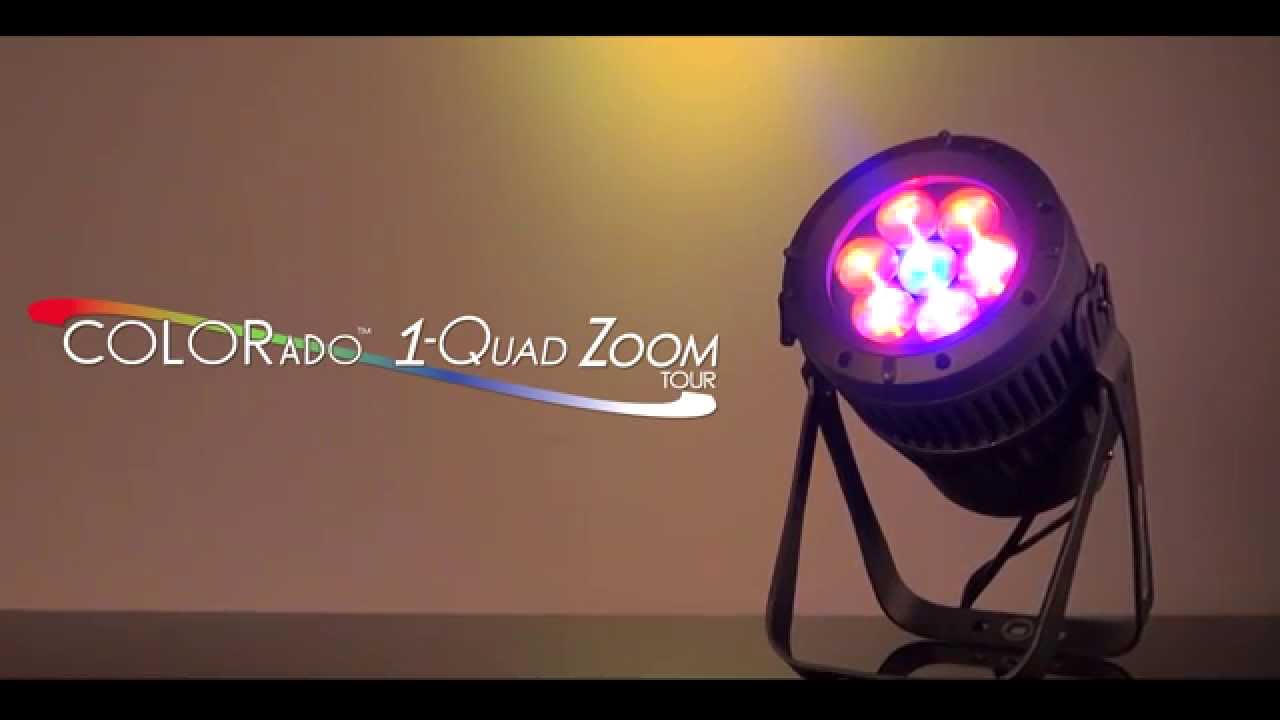

COLORado 1-Quad Zoom

Optical

• Light Source

  7 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy

• Beam Angle

  7° to 32°

• Field Angle

  13° to 45°

• Zoom Range

  7° to 45°

• • Illuminance
    • Illuminance (13°)

      3,280 lux @ 5 m

    • Illuminance (45°)

      296 lux @ 5 m

• PWM Frequency

  1,200 Hz

Dynamic Effects

• Dimmer

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 20 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  5

• Dim Curves

  4

• Built-in Automated Programs

  Yes

• Customizable Programs

  Yes

• Recall Custom Programs

  Yes

Construction/Physical

• Dimensions

  14.07 x 9.3 x 7.48 in (357 x 236 x 190 mm)

• Weight

  15.4 lb (7 kg)

• Exterior Color

  Black

• Housing Material

  Aluminum die-cast

• Accessory Holder/Gel Frame Size

  7.5 in (191 mm)

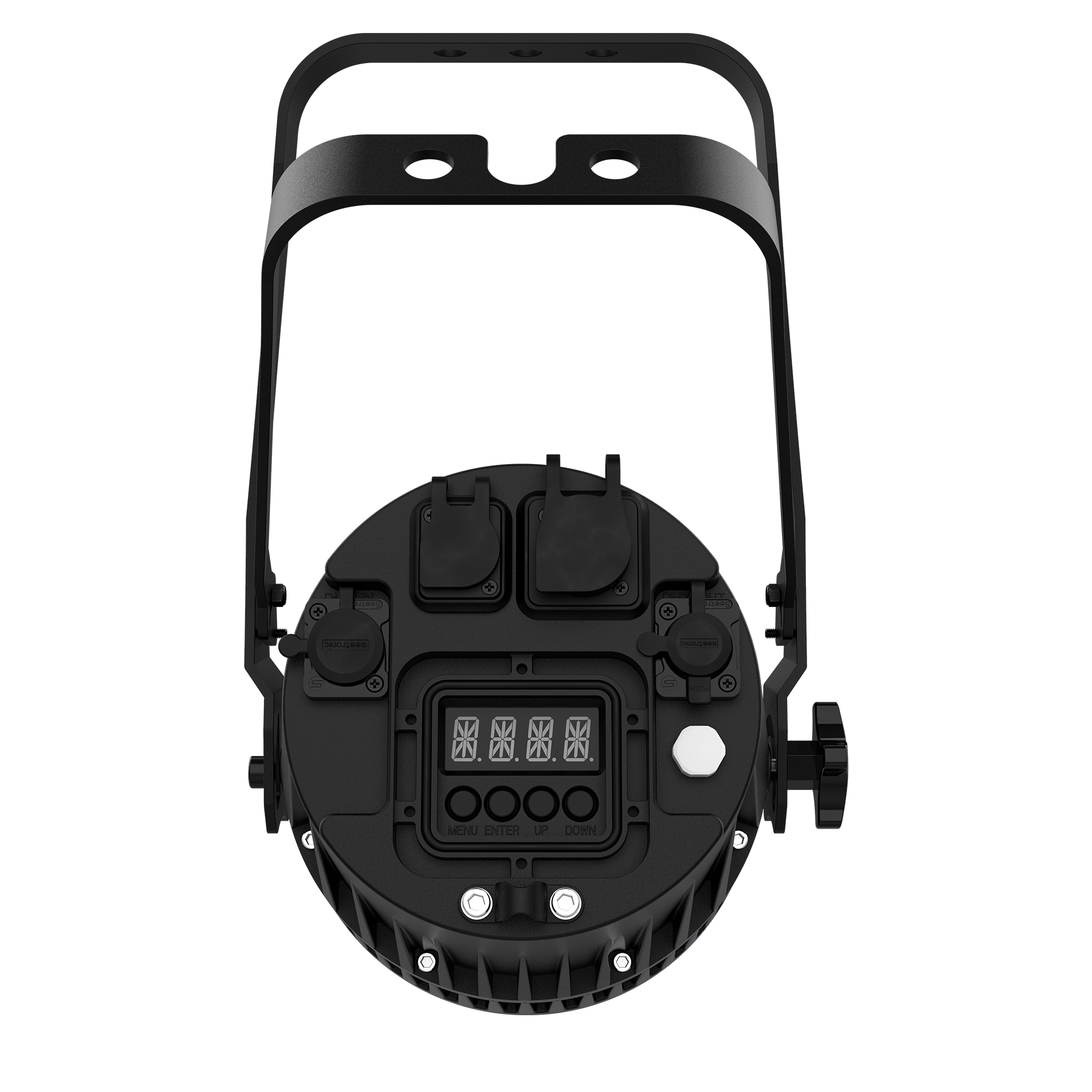

Connections

• Power Connection

  Edison (local) plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  5-pin XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Control Protocol

  DMX, RDM

• DMX Channels

  3, 4, 5, 6, 7, 10, 12, 17 or 25

• Modes/Personalities

  12 personalities (AR1D, AR2Z, ARC1, ARC2, ARC2D, ARC2S, C1Q, FULL, HSV, STD.Y, TOUR, TR16)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  15 units @ 120 V; 27 units @ 208 V; 28 units @ 230 V

• Power and Current

  101 W, 0.861 A @ 120 V, 60 Hz

• Power and Current

  104 W, 0.501 A @ 208 V, 60 Hz

• Power and Current

  106 W, 0.472 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP65, temporary outdoor/wet use
