    Vesuvio 4 IP

    This IP53-rated vertical fogger creates powerful, illuminated atmospheric bursts with dual-zone RGBA LEDs, delivering a CO₂-style effect without needing compressed gas tanks.

    It delivers extreme vertical or horizontal throw for the largest outdoor festivals, touring stages, and indoor environments that demand high-impact, tour-grade atmospheric effects.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: VESUVIO4IP

    Vesuvio 4 IP

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

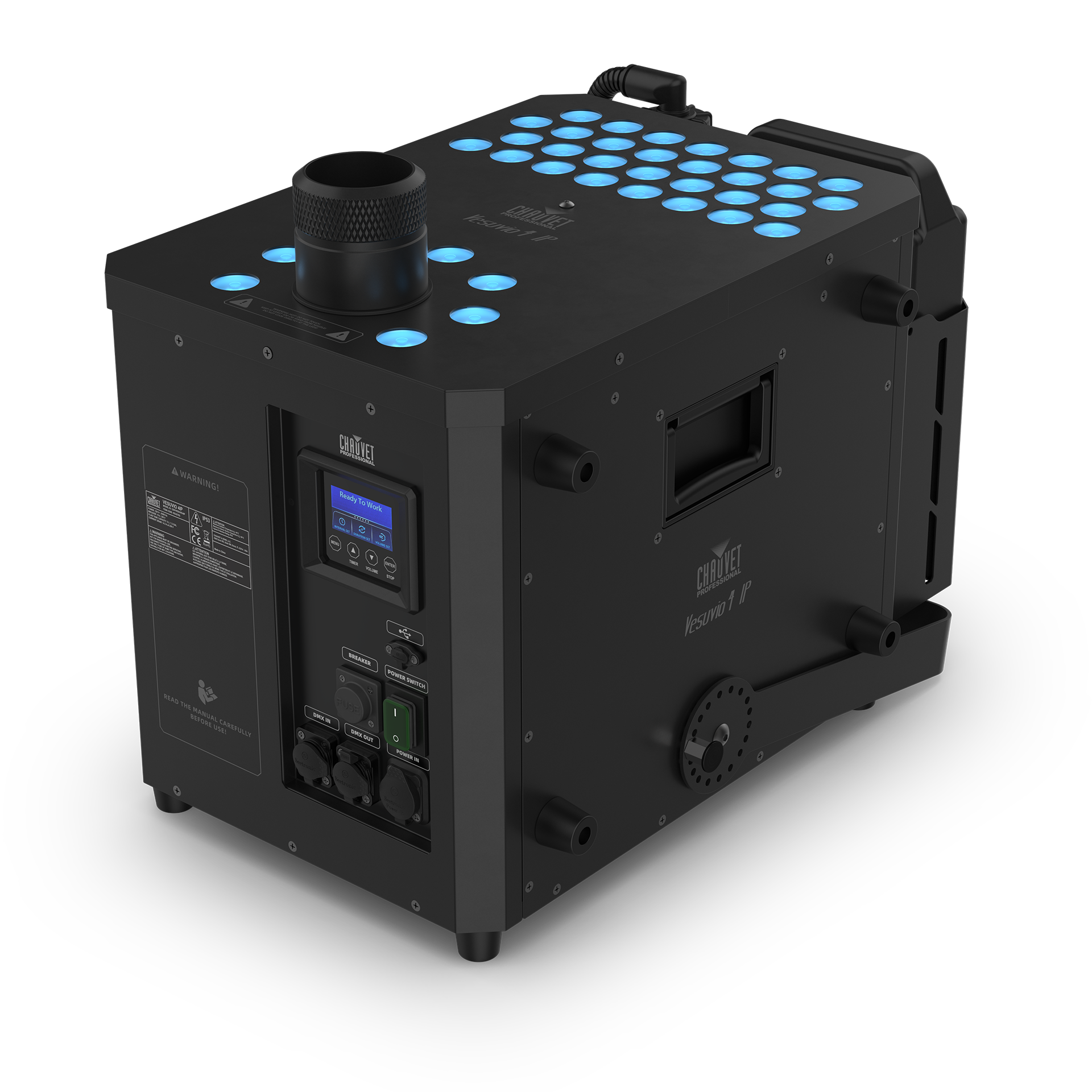

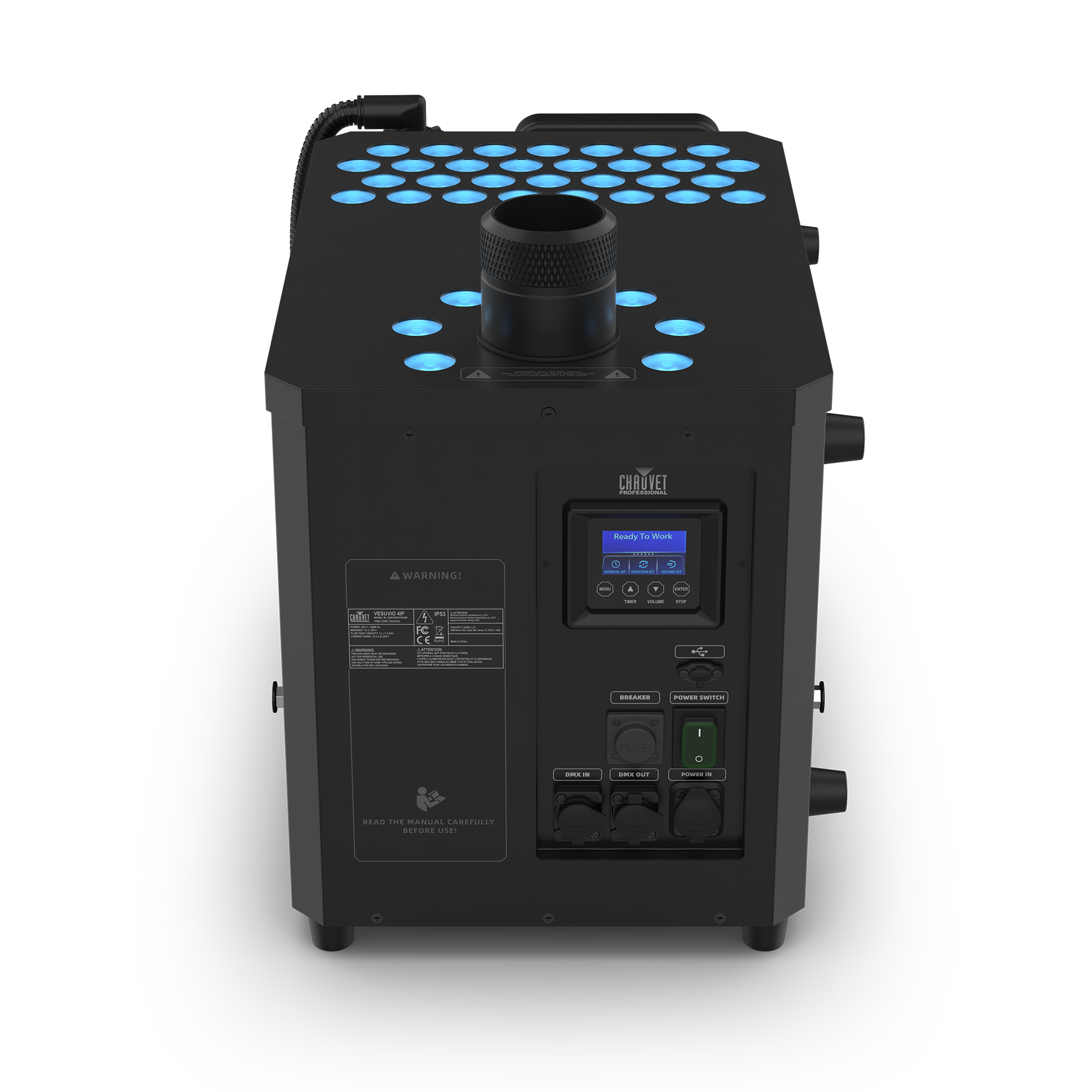

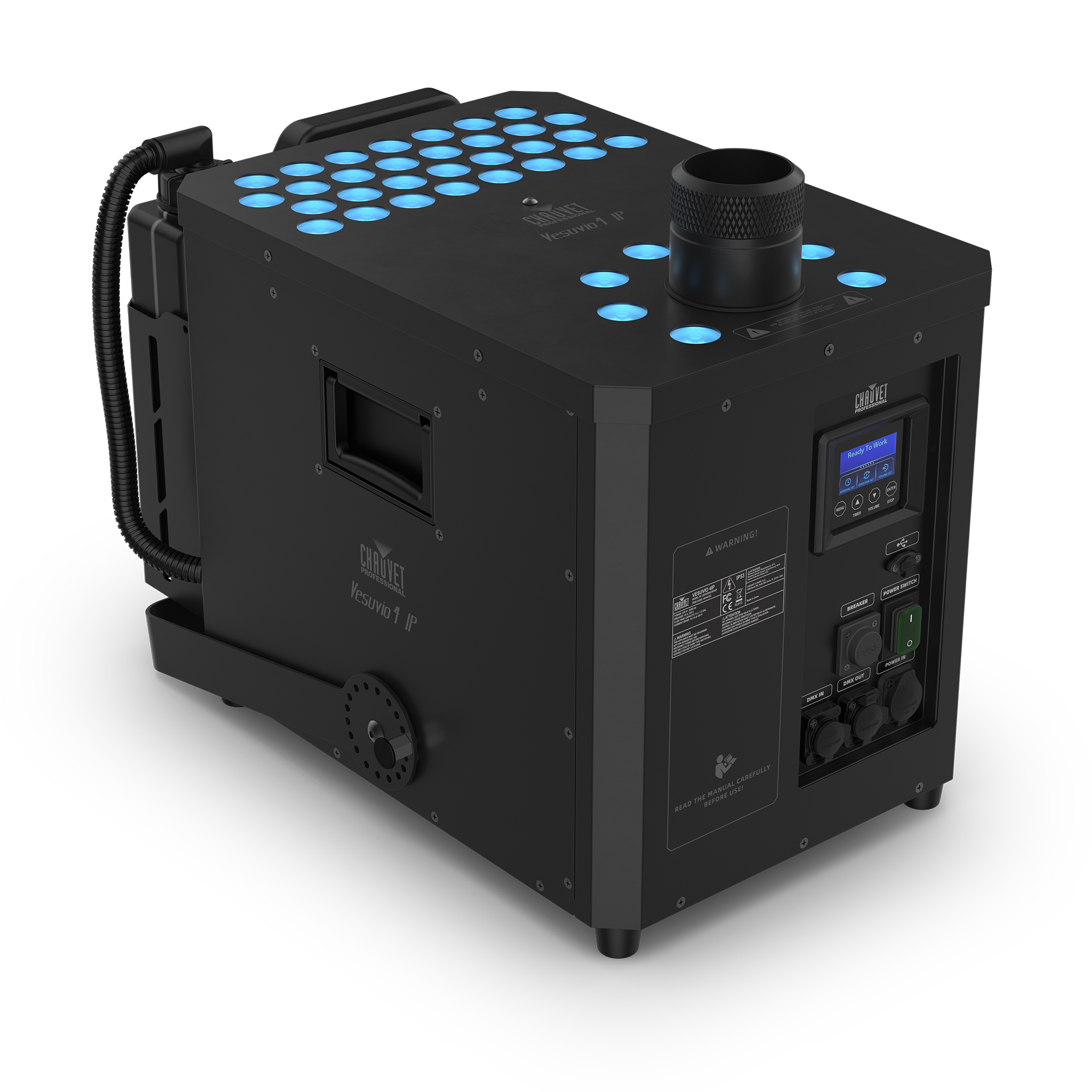

    Vesuvio 4 IP

    SKU: VESUVIO4IP

    Punch up high-impact illuminated fog bursts with an IP53-rated tour-grade unit that delivers both extreme vertical or horizontal throw and dual-zone RGBA control to create dynamic color effects bright enough for the largest outdoor festivals and indoor environments. Operate via its full-color onboard display, included wireless RF handheld remote, or DMX. Remotely address and monitor via RDM. Vesuvio 4 IP ships in a durable custom road case built for easy transportation and the rigors of touring and rental. Use QDF Quick Dissipating Fluid for optimal performance. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets.

    Features

    CO₂-Style Fog Bursts

    Create powerful vertical fog plumes that simulate CO₂ jets without requiring compressed gas tanks, simplifying setup and logistics for any production.

    Outdoor-Ready Operation

    An IP53-rated design provides reliable performance for temporary outdoor use, ensuring your atmospheric effects work flawlessly in damp or wet environments.

    Extreme High-Impact Throw

    Project dense fog bursts up to 50 feet (15 m), delivering maximum visual impact for large-scale stages, festivals, and arenas.

    Dynamic Dual-Zone Color

    Illuminate fog with two independently controlled RGBA LED zones, enabling you to create dynamic, multi-hued atmospheric effects and visuals.

    Tour-Grade Flight Case

    Transport and protect your investment with the included custom-built road case, designed to withstand the rigors of touring and rental applications.

    Versatile Control Integration

    Operate with professional flexibility using the onboard full-color display, the included wireless RF remote, or seamless DMX and RDM integration.

    Simplified Post-Show Maintenance

    An integrated drainage system allows for quick and easy water evacuation after use, streamlining cleanup and preparing the unit for storage.

    Convenient Firmware Updates

    Keep your unit current with the latest features and performance enhancements by easily uploading software updates via the built-in USB-C port.

    Optimized Fluid Performance

    Achieve clean, powerful, and fast-dissipating atmospheric effects by using CHAUVET Professional QDF fluid, which is required for optimal operation.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Preliminary Specifications

    Details are being finalized and may change before shipping.
    Download Product Specs

    Optical*

    • Light Source

      37 LEDs (RGBA)

    Request Preliminary Optical Specs

    * These specifications are still being finalized.

    Dynamic Effects

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Low Fluid Shutdown

      No

    • Standalone Color Mixing

      No

    • Built-in Automated Programs

      Yes/No

    Construction/Physical

    • Dimensions

      20.79 x 13.82 x 17.32 in (528 x 351 x 440 mm)

    • Weight

      72.2 lb (32.75 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum alloy, stainless steel

    • Tank Capacity

      1.4 gal (5.3 l)

    • Fluid Consumption

      22 ml/min

    • IP Rating

      IP53

    • Heat-up Time

      13 min

    • Maximum Runtime

      45-second bursts

    Connections

    • Power Input

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin IP65 XLR

    • Cable Length (power)

      5 ft (1.5 m)

    • Firmware upgrades

      USB type-C

    Control

    • Control Protocol

      [DMX, RDM, RF Remote]

    • DMX Channels

      14

    • Modes/Personalities

      1 personalities (14)

    • On-Board Control

      Yes

    • Included Remote

      yes

    Electrical

    • Input Voltage

      208 VAC, 60 Hz

    • Power and Current

      2167 W, 10.43 A @ 208 V, 60 Hz

    • Breaker Size

      16 A, 250 V

    Required Accessories

    • Compatible Mounting Options: [140DX OMEGA BRACKET, M12 BOLT]
    • Quick Dissipating Fluid (QDF)

    Compatible Accessories

    • CTC-50G
    • CTC-50HCN
    • RIGLINK POWERKON CABLES
    • RIGLINK DMX CABLES

    What's Included

    • Vesuvio 4 IP
    • Seetronic Powerkon Cable
    • 2x Omega Brackets
    • Controllers: RF Remote

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    Vesuvio 4 IP – Quick Reference Guide
    		Download

    Vesuvio 4 IP FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the Vesuvio 4 IP
    How can I position or mount this fogger?

    The Vesuvio 4 IP is designed for maximum flexibility. It can be operated vertically from the ground, positioned horizontally, or mounted overhead using the included omega brackets for truss integration.

    What control options are included out of the box?

    It includes an onboard full-color display for manual operation and a wireless RF handheld remote for simple triggering. For advanced integration, it supports DMX and RDM protocols.

    What type of fog fluid should I use?

    For optimal performance and to ensure clean, high-impact effects, this unit requires CHAUVET Professional QDF (Quick Dissipating Fluid). Using other fluids may affect performance and reliability.
